Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 2 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
ACCESSORIES
Above are some of the trench drain components typical to an installation. Double check your order to ensure that you have all
components particular to your job before beginning your installation.
Contact Zurn Customer Service at 1-877-ZURN-NOW should additional material be required.
P884-U3-NS
3" [76 mm] NO-HUB BOTTOM
OUTLET
P884-E1-NS
CLOSED END CAP
Z884
TRENCH DRAIN
GL
GRATE LOCK DOWN
HARDWARE (917 BAG)
P4-HPP
HEEL-PROOF POLYPROPLENE
(CLASS A) GRATE

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 3 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS

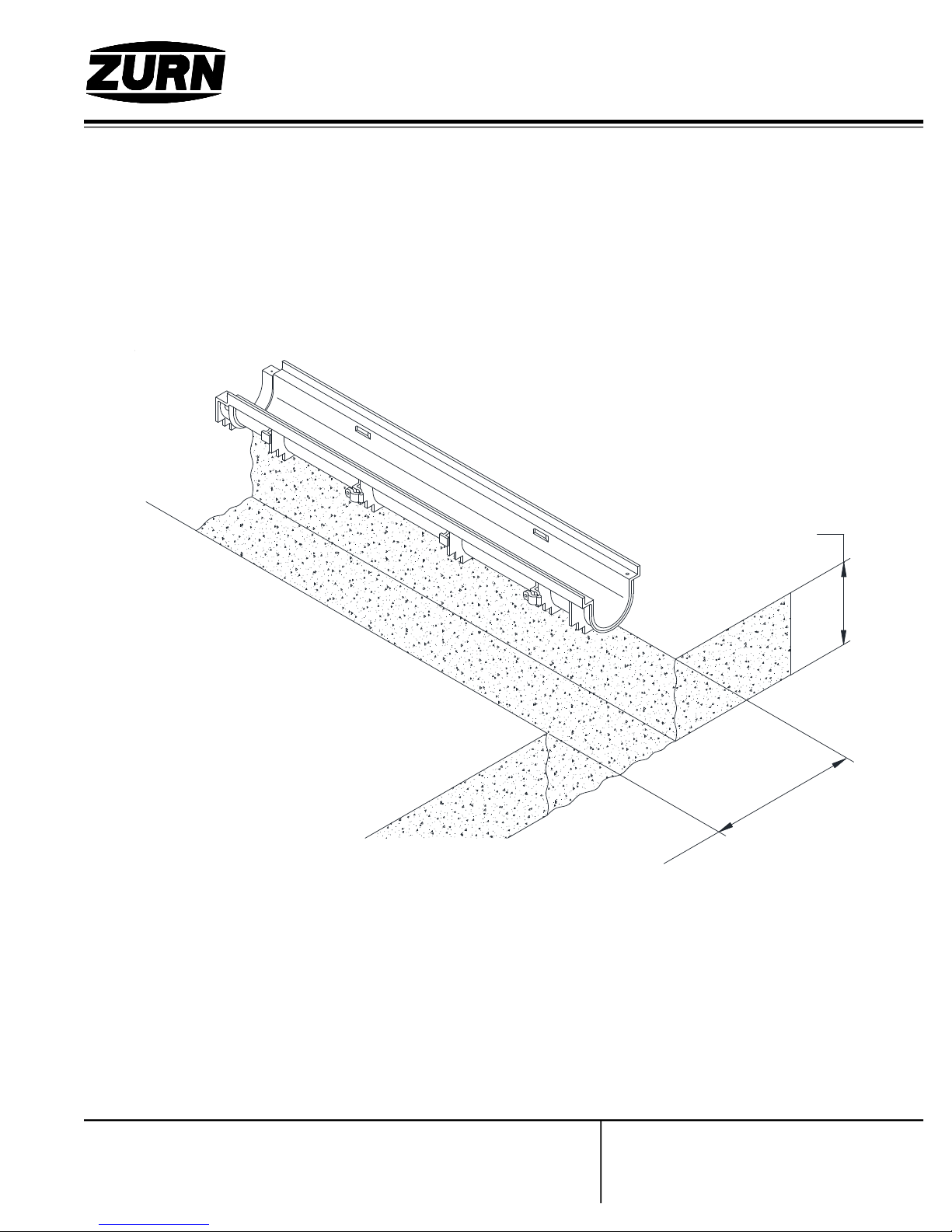

EXCAVATION
Trench excavation must be 4" [102mm] greater than the trench depth and a minimum width of 14" [356mm]. Soft and/or
shifting soil substrates may cause cracking of the concrete and consequent movement of the trench. It is critical that the
concrete be poured on an adequate foundation.
14" [356 mm]
MINIMUM
8" [203 mm]
MINIMUM

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 4 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
Upon completion of the trench excavation, the channels should be placed in order alongside the excavation and according to
the job layout. Grates are not installed at this time.
OVERALL LAYOUT

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 5 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
SUSPENDED INSTALLATION
An alternative means of installation is to suspend the trench drain as shown. Wooden braces to hang the trench run can be
attached to the drain body through the grate lock down bars as illustrated above.
Note: unless Grate Lockdown option is specified, the supsended installation method can not be utilized.

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 6 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
JOINT CONNECTION
Assembling the trench run is easy using Flo-Thru’s mechanical interlocking joints. Simply align the two mating ends of the
trench sections and fasten with the hardware fasteners provided. A silicone caulk, or a construction adhesive, such as Liquid
Nails, is recommended to be used at each joint as a sealer.

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 7 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
OUTLETS & ACCESSORIES
To attach an end outlet or end cap, cut trench to desired length if necessary and attach with provided screws and a silicone
caulk or a construction adhesive if desired.
A bottom outlet is attached to the bottom side of the trench drain with provided screws and a silicone caulk or a construction
adhesive if desired as shown below. A hole saw can be used to cut the appropriate size hole through the bottom of the trench.

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 8 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS
POURING THE CONCRETE
It is necessary to install a 4-1/4" [108mm] wide spacer (supplied by others) in the grate section of the trench to maintain the
width during the concrete pour.
Pour the concrete around the three sides of the trench drain. Be certain to adequately VIBRATE the concrete as it is being
placed. Proper vibration will eliminate any unwanted voids within the concrete pour.
Finish troweling should be done to set the top edge of the trench drain about 1/16” [2mm] below the floor grade. Remember to
compensate for concrete shrink that may occur during cure so that the edge of the trench drain does not protrude above the
finished floor grade.

Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax [phone]
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
®
Rev. B
Date: 5/9/2018
C.N. No. 140014
Form No. FT628 Page 9 of 9
Z884
SHALLOW TRENCH DRAIN SYSTEM™
INSTALLATION INSTRUCTIONS

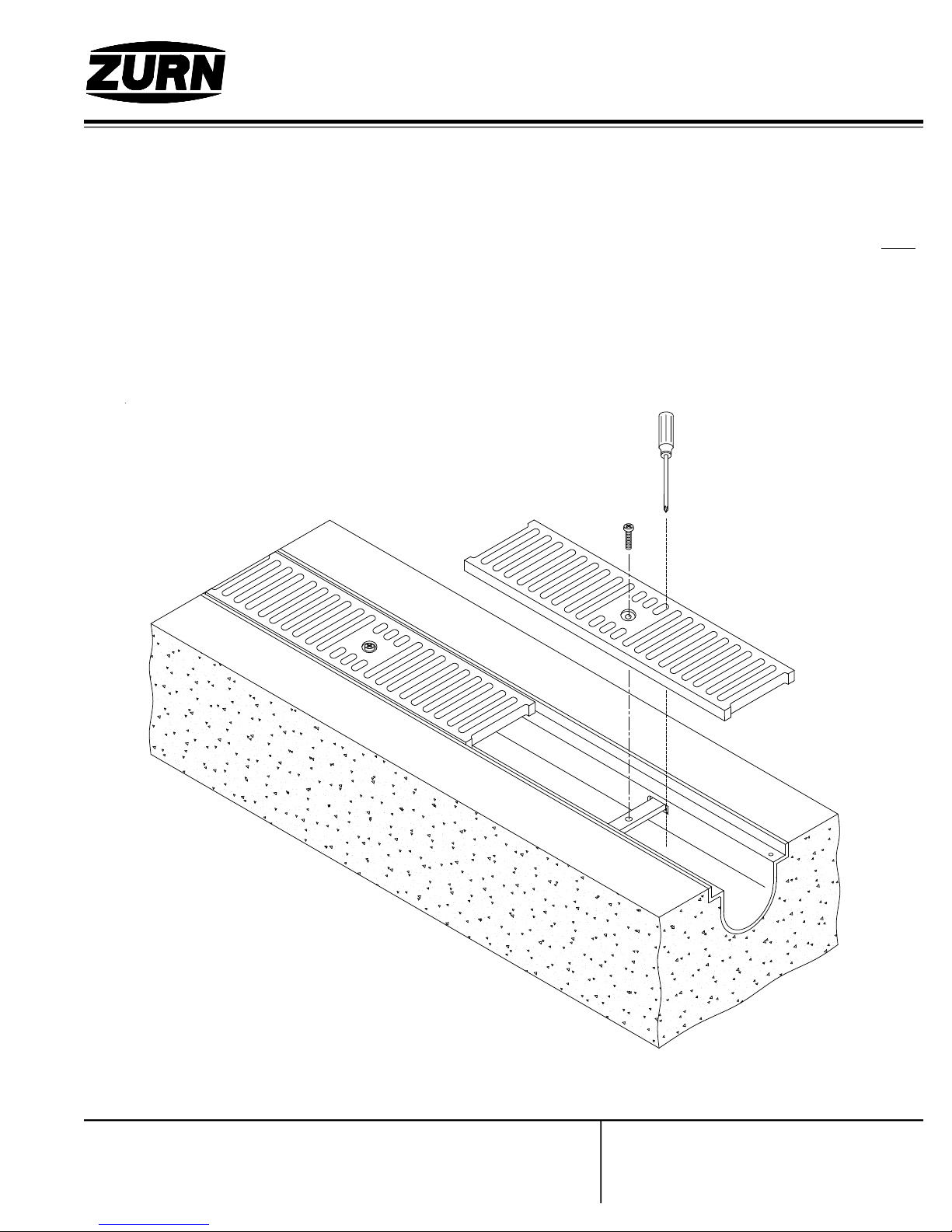

AFTER THE POUR
After the concrete has been poured, vibrated, and given sufficient time to dry, both the grates and grate lock down bolts must
be installed. The center of the grate should straddle the toggle-in lockdown bar. The exception is when the channel is cut. To
place these grates, line up the lock down hole in the grate with the lock down hole in the bar. Grates with a length of under
12” [305] will not be able to be locked down. Lock down bolts can be installed using a 7/16” socket. Insert a thin screwdriver
through the grate to support the right side of the lockdown bar to hold it in the slots while tightening the lockdown bolt.
