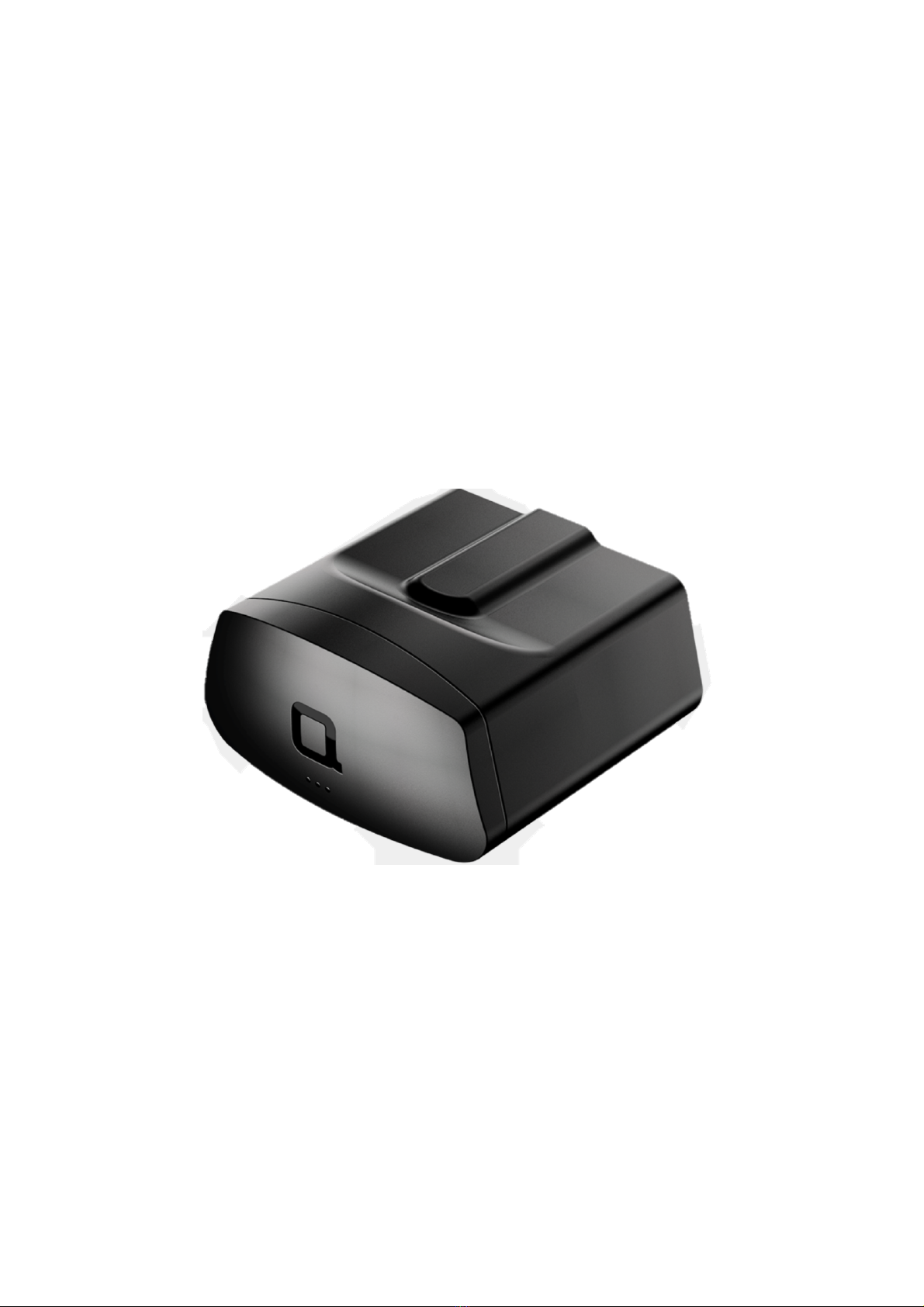

ZUS®Smart Vehicle Health Monitor
User Manual
Please read this manual carefully before attempting installation and online
activation. Pictures are for indication and illustration purposes only

2
Table of Contents
Quick Start .................................................................................................................................................................................... 3
Getting Started............................................................................................................................................................................. 4
Locating OBD-11 Port ............................................................................................................................................................... 4
App Features................................................................................................................................................................................. 5
Engine Health Monitor......................................................................................................................................................5
Pro Dashboard .....................................................................................................................................................................5
Safety Center........................................................................................................................................................................5
Find Your Car........................................................................................................................................................................5
Instantly Share You Parking Spot .................................................................................................................................5
Say Goodbye to Parking Tickets.................................................................................................................................... 5
Specifications ............................................................................................................................................................................... 5
Troubleshooting Tips................................................................................................................................................................. 6
Important Safety Instructions.................................................................................................................................................. 6
Compatibility................................................................................................................................................................................ 6
ELD Manual............................................................................................................................................................7
ELD Mandate Overview............................................................................................................................................................. 7
Setting up...................................................................................................................................................................................... 8
Installing the ZUS App on your Phone........................................................................................................................8
Scanner set up .....................................................................................................................................................................8
Using the ELD .............................................................................................................................................................................. 8
Registration. Connect to Fleet .......................................................................................................................................8
How to become an ELD driver .......................................................................................................................................9
Connect app with scanner...............................................................................................................................................9
ELD Menu Options........................................................................................................................................................... 10
First truck creating .......................................................................................................................................................... 10
Changing status................................................................................................................................................................ 10
Driving status .................................................................................................................................................................... 11
Edit status........................................................................................................................................................................... 11
Insert past duty status ................................................................................................................................................... 12
Create DVIR........................................................................................................................................................................ 12
Sign logs ............................................................................................................................................................................. 13
Inspection report.............................................................................................................................................................. 13
Related Functionality...............................................................................................................................................................14
To send Logbook complete the following steps:................................................................................................. 14
Send DVIR:.......................................................................................................................................................................... 14
Send documents:.............................................................................................................................................................. 14
Send inspection report: ................................................................................................................................................. 15
Unidentified Driving.................................................................................................................................................................15
Select “Unidentified Driving”....................................................................................................................................... 15
Register Malfunction................................................................................................................................................................15

3
Quick Start

4
Getting Started
Locating OBD-11 Port
Refer to the diagram below to locate the DBD-11 port. The most common location is left of
the steering wheel and underneath the dashboard. Note that the vehicle's OBD-11 port may be
located behind a latch or contain a cover.

5
App Features
Engine Health Monitor
Keep tabs on your engine health with real-time alerts. Decode engine error codes, which
normally costs a $100 trip to the mechanic.
Pro Dashboard
Get real-time driving data, beyond just the basics. Monitor your car like a pro.
Safety Center
World's first predictive algorithm analyzes historical engine data for potential issues.
Find Your Car
The ZUS Smart Vehicle Health Monitor automatically saves you parking location. Simply
open the ZUS app to find your car with the Map or Compass.
Instantly Share You Parking Spot
Skip the complex instructions. Simply share locations with loved ones via Family Share
and they can easily find where your car is parked with their smartphone.
Say Goodbye to Parking Tickets
Set a parking timer to alert you 10 minutes before time runs out.
Specifications
Specifications
ZUS Smart Vehicle Health Monitor
Size
42.0 * 41.5 * 21.7 mm / 1.65 * 1.63 * 0.85 inch
Weight
25g / 0.88oz
Input Current
0.05 – 0.01 A
Input Voltage
12 – 24 V
Color
Black
Model
ZUHMBKBTV
Operating Frequency Range and Max
Output Power
BT2.4Ghz. -9dBm

6
Troubleshooting Tips
1. If the device has successfully paired with your smartphone and the white indicator
lights are on, but there is no data appearing on the ZUS app, it may be that your
vehicle does not support external OBD devices. There are certain car makes that do
not support 0B 0 -11 devices for various reasons Please check our online FAQ at
www.help.nonda.co for more info.
2. If the device is plugged into the 0BD-11 port and the indicator lights are not turning
on, please contact our Customer Support Team at [email protected] for fur the
assistance.
Important Safety Instructions
Do not submerge or expose to water far extended time period.
Do not place near any open flame sources.
Do not disassemble.
Avoid dropping.
Compatibility
Please note that your vehicle must be OBD- 11 compatible in order for the ZUS app
to work. As a rule of thumb, petrol/gasoline vehicles built since 1996 and Diesels
built since 2004 are OBD-11 compliant.

7
ELD Manual
ELD Mandate Overview
It is important to know that ELDs do not fully automate driver logs but are a tool to simplify
the process of data collection for a driver’s logs. For example, you still have to manually set
your duty statuses to “Off Duty”, “Sleeper Berth”, and so on. You also have to manually certify
your records.
The BIT ELD adapter allows your vehicle to communicate with the BIT ELD app over a wireless
connection. To support compliance with the FMCSA’s ELD mandate, it automates the collection
of the following data items:
1. Vehicle Identification Number (VIN)
2. Odometer mileage
3. Engine hours
4. Engine on/off status
5. Vehicle in-motion status
These are the only data items from the vehicle’s data bus that are used to support compliance
with the ELD mandate.
The VIN is used to automatically associate your records with a specific vehicle. If you move
your ELD adapter to a different vehicle, it will automatically read the new VIN and use the new
VIN in your logs. The odometer and engine hour readings are used to automatically fill in fields
in your driver logs.
The engine on/off status and vehicle in-motion status are used as triggers to automatically
record events. A record will be automatically added to the ELD’s logs when the engine is turned
on or turned off. When the vehicle’s wheel speed exceeds 5 mph, a duty status of “Driving” will
be automatically recorded. If the vehicle is no longer in motion, the ELD will automatically
record a duty status change to “On Duty Not Driving” after 6 minutes if the driver does not
manually change their duty status. When the ELD adapter detects that the vehicle is in motion,
the time must be recorded as either driving, personal use of the commercial vehicle, or a yard
move. The time when the vehicle is in motion cannot be shortened or changed to a non-moving
status such as Off Duty, Sleeper Berth, or On Duty Not Driving. This is all part of the ELD
mandate.
Your records are collected and stored in a database on your smartphone or tablet with the ZUS
app. However, the ELD adapter has internal memory to store events when not connected to the
ZUS app. These records will be associated with the “Unidentified Driver” account and will be
visible to all drivers of that vehicle on the Home screen of the ZUS app.

8
Setting up
Installing the ZUS App on your Phone
The ZUS OBD app is available from the Apple App Store and the Google Play Store. Using your
Apple or Android device, go the app store and search for “ZUS”.
Scanner set up
Before beginning to work with the application, make sure that the vehicle supports OBD-II-
standards.
1 Connect Bluetooth adapter to the 16-pin data link connector.
2 Make certain that lamp on the adapter goes on after connecting the parts (in case the
DLC is not in the open view, it is recommended checking the lamp with the help of a
pocket mirror or a front-facing camera of the smartphone).
3 Start the vehicle’s engine.
4 Select the Bluetooth option in the smartphone: “Settings” > “Bluetooth”. Turn on the
search for Bluetooth devices and find OBD-II adapter. It will appear in the list of the
available devices under the name 'scan tool','obdkey','plx','cbt' or something similar.
Tap on the name of the correct adapter. The smartphone will offer to connect the
devices.
5 Connect the devices. The scanner will require the secret code. As a rule, it is “1234” or
“0000”.
6 Scanner setup is complete.
Using the ELD
Registration. Connect to Fleet
Before beginning to work with the application, make sure that the vehicle supports OBD-II-
standards.
1 Open the “ZUS” app.
2 Tap on “Sign up now” button.
3 It will open the “Sign up” screen.
4 In the field “user type” select the option “driver”.
5 Fill in all given fields with correct information.

9
6 Check in the box near to “I accept the terms and conditions” and tap on the button
“next”.
How to become an ELD driver
1. It is necessary to be a part of the fleet to become an ELD user. Select the “Connect to
carrier” option on the next screen to join the fleet.
2. Click on «enter USDOT» input field and enter correct information.
3. When USDOT is found click on «save» button.
4. Request to join the fleet is sent over to the server, where the supervisor manually
confirms it. After the confirmation, you will become the ELD driver and receive access
to all ELD features.
Connect app with scanner
1 Turn on the Bluetooth on your smartphone.
2 Connect the device to the DLC.
3 Open the application.
4 Find the icon with the scanner in the upper right corner of the Logbook screen. The
icon is going to remain grey until the ELD scanner is connected.
5 Tap on the “Connect” button.
6 Choose the truck from the list or create a new one.
7 It will open up the pop-up “Choose scanner” with a list of the available devices within
your range.
8 Choose the device from the list.
9 Make sure that the device connected is the correct one. Otherwise, the selected truck
will not get connected accordingly.
10 Tap on the “Add” button to be connected to the selected or created truck. Press ‘Cancel”
to undo the action.
11 “Connecting” pop-up will open
It is going to take a few seconds for the scanner to connect…
12 After scanner is successfully connected, an ELD icon will turn green.
13 Tap on the icon again to choose and connect another scanner.

10
ELD Menu Options
1 BT Connection - indicates Bluetooth status.
2 GPS connected - indicates GPS status (available, unavailable).
3 Engine on/off - indicates current status of engine.
4 AOBRD/ELD settings - set up a system to your requirements.
5 Check update - check scanner firmware update.
6 Unidentified driving.
7 Register malfunction – register scanner malfunction.
8 Send debug logs - improve maintenance sending diagnostic alerts
First truck creating
Also, you can create a new truck from the “Manage trucks” screen.
1 Go back to the main screen “Logbook”.
2 Press on “+” in the bottom right corner of the screen.
3 Choose “Manage Trucks”.
4 Repeat the given above steps and create a new truck.
Changing status
1 “ZUS OBD” application offers 3 statuses to choose from:
OFF - OFF DUTY, YOU ARE NOT WORKING.
SB - SLEEPER BERTH, TIME SPENT IN THE BERTH.
ON - ON DUTY, BUT YOU ARE NOT DRIVING
2 Press on the status of your choice, and it is going to get into focus.
3 If there is a need, edit the timeline of the selected status.
4 Save the changes.
You can also create the status from the “Logbook” screen by pressing on the status icon in the
upper left corner. It will open the screen “Create Status” with a list of available statuses. Press
the status to select it. Afterward, save the changes.
