ZyXEL Communications V660 User manual

Copyright © 2007. All rights reserved
V660
Dual-Mode Phone
Quick Start Guide
Version 1.00
04/2007
Edition 1

V660 Quick Start Guide
1
1 Overview
Your V660 provides standard cellphone functions, and adds
WiFi connectivity.
In the figure below, the dashed line shows your V660 (A)
calling a phone (B) over the regular phone network (PSTN, or
Public Switched Telephone Network).
The solid line shows the V660 connecting to a wireless
access point (C) on your computer network to send and
receive email, browse the Web, and make voice calls over the
Internet (VoIP).
This Quick Start Guide covers the following:
•Physical Features. See page 3.
•Preparing Your Phone. See page 4.

2
V660 Quick Start Guide
•Using the LCD Screen. See page 10.
•Making Cellular Phonecalls. See page 12.
•Connecting to a Wireless Access Point. See page 13.
•Making Internet Phonecalls. See page 16.
•Using the Camera. See page 19.
•Installing a Memory Card. See page 20.
•Locking and Unlocking the Phone. See page 21.

V660 Quick Start Guide
3

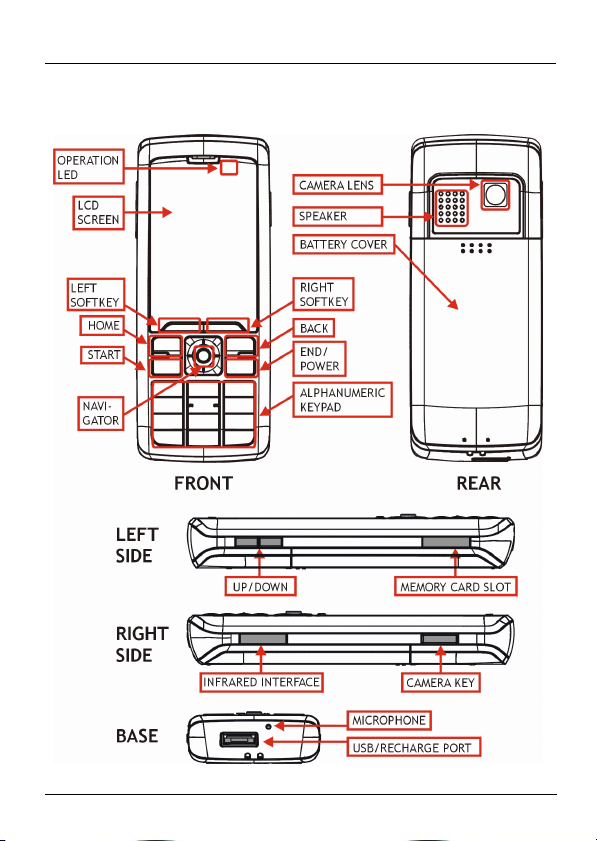

2 Physical Features

4
V660 Quick Start Guide
The following table describes some of the keys you use in this
Quick Start Guide.
3 Preparing Your Phone
This section shows you how to:
LABEL DESCRIPTION
Left and Right
Softkeys
The functions of these keys depend on the
screen currently displayed on the LCD. A word
displayed above a softkey indicates its current
function.
Navigator Use this to move around the V660’s screens.
Click the navigator (press it in) to select the
highlighted function.
Home Press this to return to the Home page at any
time (see page 10).
Back Press this to return to the previous screen, or
delete a character when entering data.
Start After you enter or select a phone number,
press this to start the call.
End/Power Press this for several seconds to turn the
V660 on or off.
Press this once when a call is in progress to
end the call.
Alphanumeric
Keypad
Use these keys to enter numbers and letters.

V660 Quick Start Guide
5
• Install the included battery.
• Install a SIM (Subscriber Identity Module) card.
• Charge the V660’s battery.
1WARNING: NEVER expose the battery to
high temperatures (such as fire or
prolonged direct sunlight), short-circuit it or
open the battery’s casing. This could cause
the battery to ignite or explode.
1WARNING: DANGER OF ELECTRICAL
SHOCK. Remove the battery or battery
cover only when the V660 is turned off and
the charger/USB cable is unplugged.

6
V660 Quick Start Guide
3.1 Installing the Battery and a SIM Card
This section describes how to install the battery that came
with your V660, and how to install a SIM (Subscriber Identity
Module) card. A SIM card allows you to make and receive
cellphone calls with the V660. If you do not want to install a
SIM card now, you can still use the V660’s other features
once the battery is installed.
"Fully charge the battery before you first use the
V660. This may take 8 to 10 hours. When you
first charge the battery, use the included charger
and NOT the USB cable. The power supplied
from a computer’s USB port is not enough to
fully charge the battery. Use the charger instead
of the USB cable whenever possible.
1Remove the V660’s battery cover. Press the grooved area
at the top of the cover, slide the cover downwards
(towards the V660’s base) and lift it off.
2Install a SIM (Subscriber Identity Module) card. If you do
not want to install a SIM card now, skip to step 3.

V660 Quick Start Guide
7
The V660’s SIM card slot is located inside the battery
hatch. Slide the SIM card into the receptacle as shown, so
that the card’s contacts (the metal areas) are touching the
V660’s contacts.
3Remove any packaging material from the battery. Insert
the top end of the battery into the battery hatch so that its
contacts (the metal areas) are touching the V660’s
contacts.
Ensure that the +and - symbols on the battery line up with
those on the V660.

8
V660 Quick Start Guide
4Press the battery’s bottom end down until it clicks into
place.
"Do not force the battery into place. If it does not
fit in the battery hatch, it is wrongly aligned.
5Replace the battery cover.
"To remove the battery, insert a fingernail under
the small lip at the bottom of the battery, press
the battery forwards (towards the V660’s top)
and lift it out.
3.2 Charging the Battery
The V660 uses a rechargeable lithium (Li-ion) battery. Charge
the battery using the included charger or the USB cable to
connect to a computer (see your User’s Guide). Both cables
connect to the V660’s USB/Recharge port.

V660 Quick Start Guide
9
1WARNING: Use only the charger that came
with your V660. Using a different type of
charger might damage the V660 or its
battery.
Do the following to recharge the V660’s battery using the
included charger:
1Insert the USB end of the charger cable into the USB/
Recharge port.
2Connect the charger’s plug to a power socket. Turn the
power on.
3The Operation LED comes on after a few seconds.
4If the V660 is turned off, the LCD screen shows a battery
icon and then goes blank. If it is turned on, a icon
appears at the top of the screen.
VIf the Operation LED does not come on, check
your connections and ensure the power supply
is switched on. If the problem persists, you may
have a faulty cable. Contact your vendor.

10
V660 Quick Start Guide
4 Using the LCD Screen
Turn the V660 on by pressing the End/Power key for a few
seconds.
When you first turn the V660 on, it prompts you to enter some
basic information. Once you have done this, the Home screen
displays as shown. Go back to this screen at any time by
pressing the Home ()key.
VIf the screen stays dark when you try to turn on
the V660, ensure that the battery is charged.
See section 3.2 on page 8.

V660 Quick Start Guide
11
•TheStatus Bar displays information about your V660. The
following table describes common status bar icons.
• Use the Shortcut Bar to jump to the V660’s main feature
screens (Internet Explorer, Windows Media Player, the
Microsoft Network, email and messaging, etc.) Use the navi-
gator to move around the Shortcut Bar.
•TheDisplay Area shows information related to the V660’s
current function (the Web site you are browsing, details of
the current call, etc.)
ICON DESCRIPTION
This shows the signal strength of the cellular phone
network connection (when a SIM card is installed).
This shows the battery level.
The battery is almost empty.
The battery is missing or faulty.
The battery is recharging.
The wireless LAN connection is up.
A VoIP account is successfully registered.
The GPRS service is available. GPRS (General
Packet Radio Service) uses the cellphone network
for Internet access.
You have a new text message.
You have a new voicemail message
There is no SIM card installed.
The installed SIM card is faulty.

12
V660 Quick Start Guide
•UsetheLeft and Right Softkeys to perform the functions
shown in the Softkey Functions section.
5 Making Cellular Phonecalls
Take the following steps to make a phonecall over the regular
GSM cellphone network.
1If you did not already install a SIM card, do so now (see
section 3.1). Turn on the V660.
2When the main screen displays, check that your phone
service provider’s network name and a icon display.
VIf the name of your cellphone network does not
display in the Home screen, reinstall the SIM
card and check its contacts are free of dirt and
corrosion. If you still cannot see the network
name, you may be out of its coverage area.
3Enter the number you want to call and press the Start key.
4When you want to end the call, press the End key.

V660 Quick Start Guide
13
VIf you cannot make a cellular phonecall, ensure
that your V660 has a cellular signal (look at the
Status Bar). If the V660 has a signal but you
still cannot make a call, contact your cellular
service provider.
6 Connecting to a Wireless Access
Point
When you are connected to a wireless Access Point (AP) with
Internet access, you can make VoIP calls (if you have an
active SIP account), browse the Web and send and receive
email.
Do the following to connect to an AP.
1From the Home screen, click Start > Settings > WiFi >
Connections.

14
V660 Quick Start Guide
2Press New. The following screen appears.
Enter the AP’s information exactly as it was given to you. The
following table describes how to fill in the fields.
FIELD DESCRIPTION
Name Enter a name for this connection. This name
appears in the Home page when the connection is
on. You can choose any name, as this does not
affect network settings.
ESSID This is the “Network Name”. Enter the access
point’s ESSID.
Security Select the type of wireless security the access
point uses, and enter your security information in
the fields that appear.
MAC Leave this field at its default. This is the Media
Access Control address of your V660. All
networking devices have a MAC address, which
uniquely identifies them.

V660 Quick Start Guide
15
3Click Done to return to the previous page.
Select the new profile and press Menu. Select Default to
always use this profile first.
4Return to the Home screen (press the Home button). The
LCD screen displays WiFi: Connecting... while it searches
for the AP, then displays the wireless network’s ESSID
(network name) when it is successfully connected.
DHCP Select this if you were not given an IP address to
use.
When this is selected, your V660 gets its IP
address automatically. When it is not selected, you
have to enter your IP settings manually.
If you select this, leave all the following fields in this
screen blank unless you have a specific reason to
do otherwise.
IP If you were given an IP address to use, enter it
here.
If you do this, ensure DHCP is not selected.
Submask Enter the subnet mask associated with the IP
address above.
Gateway Enter the IP address of your network gateway.
Preferred/
Alternate
DNS
server
Enter the details of your Domain Name Servers
here. If you have only one DNS server address,
enter it in the Preferred DNS Server field.
FIELD DESCRIPTION

16
V660 Quick Start Guide
VIf you cannot connect to a wireless LAN, check
that you entered the AP’s settings correctly. The
V660 and the AP must use exactly the same
security settings. Turn the V660 off and on.
Check that the AP is on. If the problem persists,
you may be out of the AP’s coverage area.
7 Making Internet Phonecalls
VoIP (Voice over IP) allows you to make phonecalls over the
Internet. SIP is the protocol the V660 uses to make VoIP
calls. Before you can use the V660 to make VoIP calls, you
need:
• An active account with VoIP service provider that uses SIP.
• A wireless connection between the V660 and an Access
Point (AP). See section 6for more information.
Do the following to set up your VoIP account on the V660.
1From the Home screen, click Start > Settings > WiFi > SIP
Phone.

V660 Quick Start Guide
17
2Press New. The following screen appears.
Enter your account information exactly as it was given to
you.
"If you were not given information for some of the
fields in this screen, leave them at their default
settings.
The following table describes how to fill in the fields in this
screen.
FIELD DESCRIPTION
Name Enter a name for this SIP phone account.
This name appears in the SIP Phone page.
You can choose any name.
SIP Phone
Account
Enter your account information in this
section.
User Name This is the user name for this SIP account.

18
V660 Quick Start Guide
Authentication
Name
This is your SIP account number. For
example, if you have a SIP account like
[e-mail], your SIP
account number is 1234567.
Password This is the password for this SIP account.
User ID If you have an alias or secondary name for
this account, enter it here. Otherwise, leave
it blank.
Registrar
server
Enter the IP address of the SIP server for
this account. If you have more than one
server’s address, enter the registrar server’s
address.
Port Enter the listening port of the SIP server.
Proxy server If you were given information on a SIP proxy
to use, enter its details here.
Port Enter the listening port of the SIP proxy
server.
SIP Service
Lookup
Select this if you want the V660 to
automatically check which calling features
your account supports.
Codec Setting Leave the fields in these sections at their
default settings unless you have a specific
reason to do otherwise.
Advanced
Setting
STUN setting
FIELD DESCRIPTION

V660 Quick Start Guide
19
3When you have finished, press Apply, then press the
Home key. The V660 tries to register with the SIP server.
When the SIP account is successfully registered, a
icon displays at the top of the screen.
4To make a VoIP call, press the #key before you dial the
number. For example, if you want to dial the phone
number 55512345 using your VoIP account instead of the
cellular network, dial “#55512345”.
VIf you cannot make a VoIP call, ensure you
entered your SIP Phone settings correctly. Go
to the Home screen and check your wireless
LAN connection is working (if it is not working,
WiFi: Unavailable displays). Try using the VoIP
account from another phone, and/or try calling a
different phone number. If the problem persists,
contact your VoIP service provider.
8 Using the Camera
To use camera, press the Camera button on the side of the
V660. The viewfinder window appears.
• To take a picture, press the Camera key again, or press
Capture.
