ZyXEL Communications G-6000 User manual

G-6000
High Speed, Long Range Ethernet Wireless Bridge
Ver 1.0
January, 2005
Quick Start Guide

1
Table of Contents
1. Introduction to the G-6000...................................................................4
2. Product installation requirements ......................................................4
3. Hardware Description ..........................................................................5
3.1. Packing list ...............................................................................................5
3.2. The outdoor unit .......................................................................................6
3.3. The Indoor Unit .........................................................................................7
4. Configuring G-6000 ..............................................................................7
4.1. Default Configuration...............................................................................7
4.2. To access the G-6000 System WEB Server ............................................8
4.3. System Configuration ..............................................................................9
4.3.1 Working with Configuration Windows – System Setup ........................9
4.3.2 System Configuration Windows - Software Download .......................12
4.3.3 System Log Windows ............................................................................13
5. Hardware Installation .........................................................................13
5.1. G-6000 office test....................................................................................13
5.2. G-6000 Physical Connection .................................................................15
5.3. Installation of outdoor unit ....................................................................15
5.4. Indoor Unit Installation...........................................................................19
5.5. Initializing the G-6000.............................................................................19
5.6. Antenna Alignment.................................................................................19
5.7. Indoor Interface Unit ..............................................................................20
5.8. System LED Indication...........................................................................21
5.9. RSSI LED Indication ...............................................................................21
5.10. Alignment Tools......................................................................................21
5.11. Special Notice for Waterproof Installation............................................22

2
List of figures
Figure 3-1 Packing contents of G-6000 ................................................................................ 6
Figure 3-2 Top panel of outdoor unit .................................................................................... 7
Figure 3-3 Bottom panel of outdoor unit ............................................................................. 7
Figure 4-1 Status-System information.................................................................................. 8
Figure 4-2 Status Wireless information................................................................................ 9

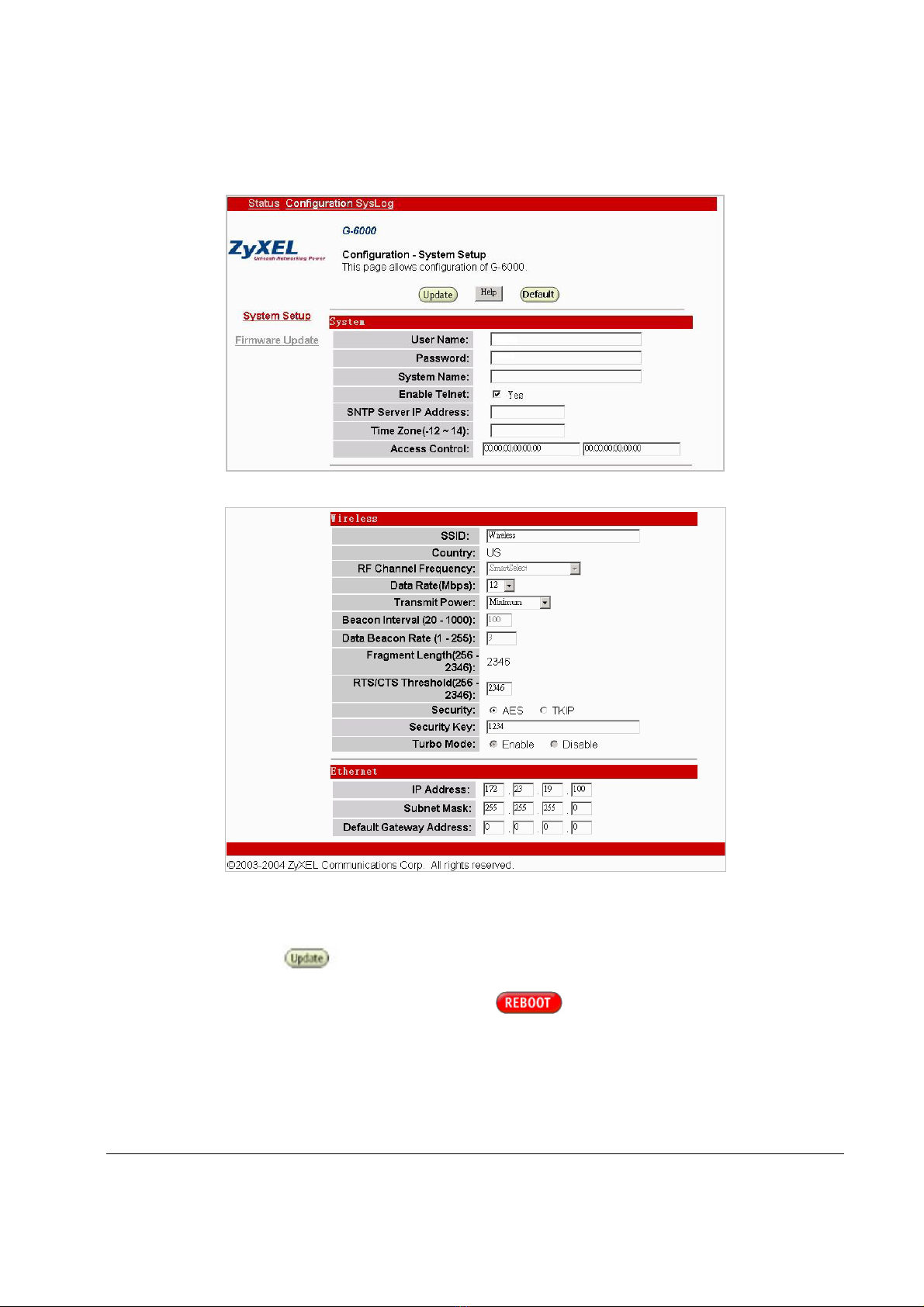

Figure 4-3 Configuration-System setup............................................................................. 10
Figure 4-4 Configuration –Wireless setup......................................................................... 10

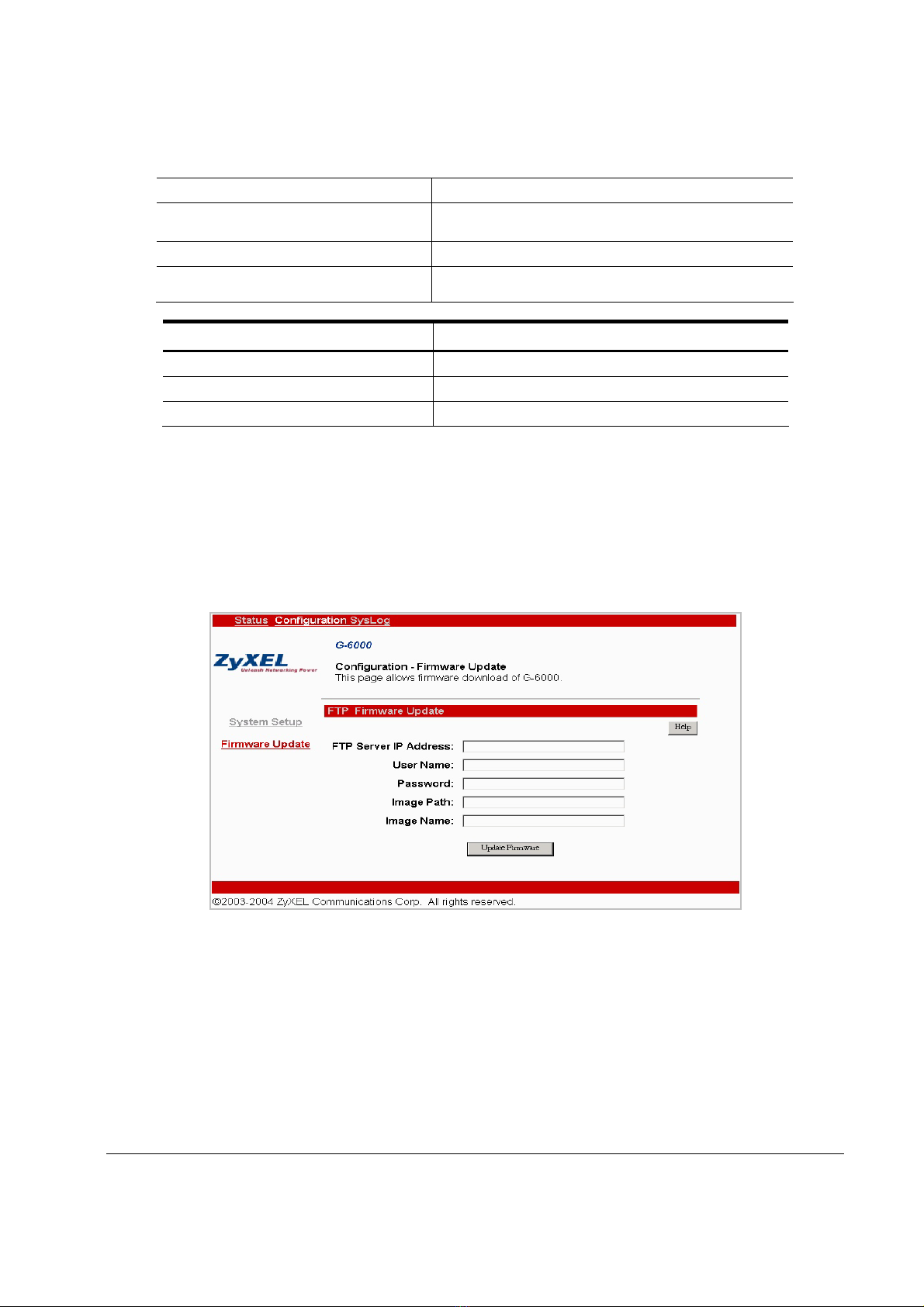

Figure 4-5 FTP firmware update........................................................................................... 12

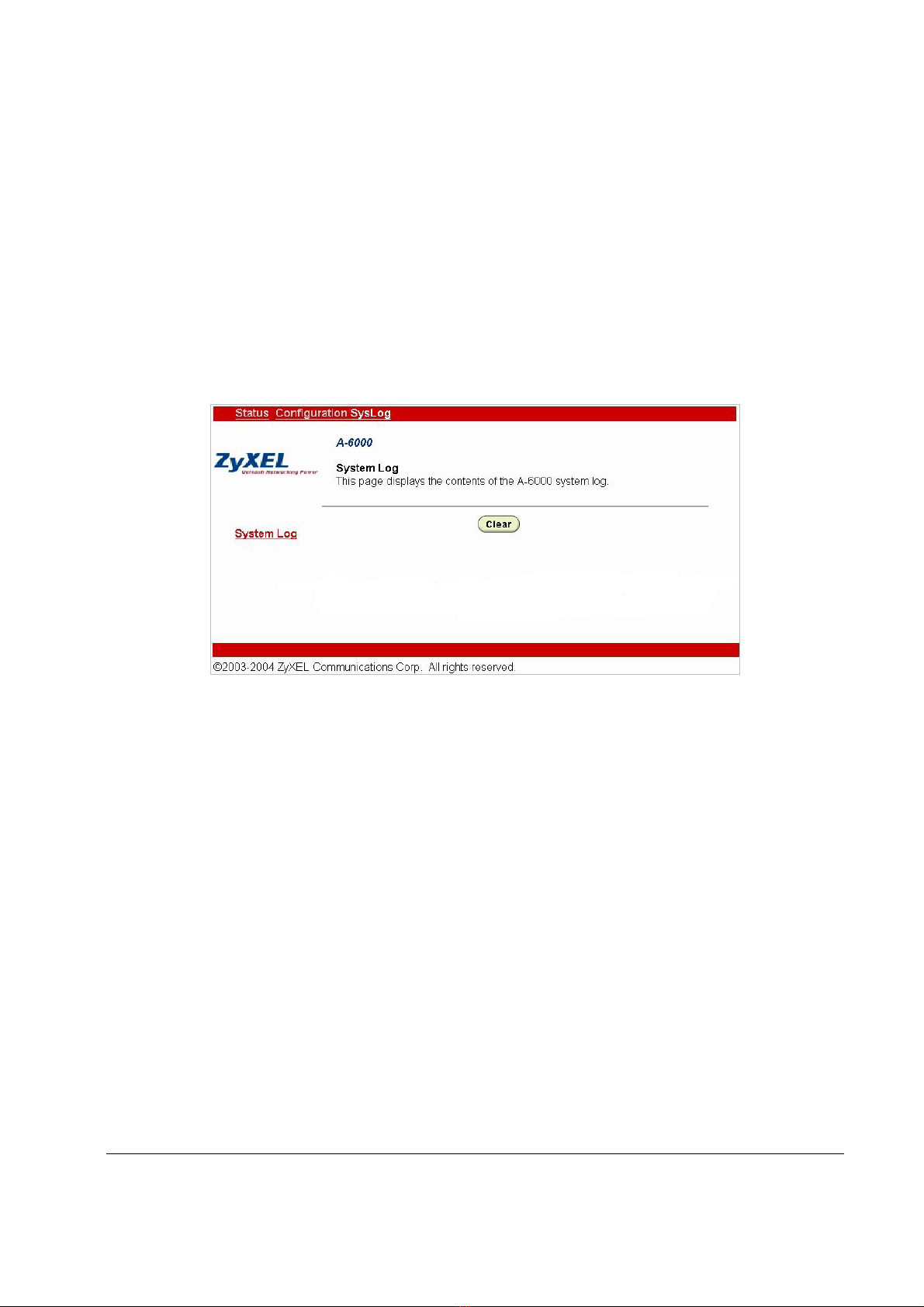

Figure 4-6 System log............................................................................................................. 13
Figure 5-1 Physical connection of G-6000 for office test with flat panel antennas 14
Figure 5-2 Physical Installation of G-6000 with flat panel antenna ............................ 15
Figure 5-3 Mounting Bracket Assembly............................................................................. 16
Figure 5-4 Attach the Mounting Bracket to Outdoor Unit.............................................. 16
Figure 5-5 Install Outdoor Unit to the Mast ....................................................................... 16
Figure 5-5 Install Antenna to the Outdoor Unit ................................................................ 17
Figure 5-6 Connect Cat-5 cable to the outdoor unit ....................................................... 17
Figure 5-8 Connect Grounding wire to the outdoor unit ............................................... 18
Figure 5-9 Cable Connections of Network/Power Injector............................................ 19
Figure 5-10 Waterproof installation of cable connections ............................................ 22

3
List of tables
Table 3-1 Connectors of outdoor unit................................................................................... 7
Table 3-2 Connectors of indoor unit ..................................................................................... 7
Table 4-1 Default configuration .............................................................................................. 7
Table 4-2 Parameter description .......................................................................................... 12

4
1. Introduction to the G-6000
The ZyXEL G-6000 is a Wireless Bridge for Inter-building Point to Point Ethernet connection. By supporting
AES/TKIP, G-6000 is particularly suited for sensitive data transmission. System privacy is also inherent
through the MAC & 802.1x based mutual authentication functionality. Outdoor-mounted design with
weatherproof enclosure and connecting with low loss cable to antenna achieves outstanding performance in
the longer communication distance. The power over Ethernet (POE) technology supplies the power and
Ethernet connectivity via a single Ethernet cable and allows users to install system quickly. G-6000 meets
FCC 15.203 regulations. The G-6000 is strictly intended for sale to the professional market as it requires
sophisticated installation methods and is an integral part of a larger infrastructure that will be sold to ZyXEL
licensed operators as a package. The G-6000 uses a standard N-type connector however it requires installation
done only by a licensed professional due to the complexity of the technology and product. Installation
requires special training by ZyXEL to align the antennas.
2. Product installation requirements
1. The G-6000 can only be installed by a licensed installer; training and access to technical requirements will
be provided through the user guide and through training done by the business partnership agreements with
respective customers.
2. The installation will be done in a controlled and licensed environment; and filing of the appropriate
documentation as required by local law.
3. Installation requires special training (special programming, access to keypad, field strength measurements
made) by ZyXEL of the installation and maintenance teams of the ZyXEL licensed service providers and
operators.
4. ZyXEL licensed service providers will be required to have their installation teams trained to do installation
of the G-6000 and antennas on high sited areas in order to meet the performance and regulatory requirements.
This will require professional installation; the installation of the G-6000 must be controlled and installed by
licensed professionals. Specially designed antennas and mounting procedures will be required and
professional installation needed to ensure the equipment works reliably and compatibly with the complete
ZyXEL infrastructure.
5. An intentional radiator shall be designed to ensure that no antenna other than that furnished by the ZyXEL
or its customer shall be used with the G-6000. The use of a permanently attached antenna or of an antenna
that uses a unique coupling to the intentional radiator shall be considered sufficient to comply. If the unit
becomes broken, the antenna can be replaced by the user, but the use of a standard antenna jack or electrical
connector is prohibited. Further, this requirement does not apply to intentional radiators that must be
professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other
intentional radiators which must be measured at the installation site. However, the installer shall be
responsible for ensuring that the proper antenna is employed so that the limits in this part are not exceeded.
6. This standard antenna may be used in a point-to-point application, and possibly may require a tower mount
and/or directional antenna. Such use would be applicable in the following uses: data and control signal
transmitter located in oil fields; transmitters mounted on trains and train stations; pole-mounted police and/or
emergency vehicles.
7. Permanent attachment of the G-6000 can be achieved by various means such as factory application of a
permanent cement or epoxy to a standard antenna connector. The G-6000 will specify the certification
application type of adhesive to be used and must confirm that the adhesive will be applied at the factory –
prior to shipment.
8. The installer must ensure that the G-6000 and antenna is properly installed so as not to exceed the limits for
which it has been designed.

5
9. Compliance is required for special waterproofing procedures, insulation against lightening and other
weather conditions.
10. Also requires special mounting brackets for instillation in professional environments.
11. Licensees will be recruited primarily from existing service providers and manufacturers that are already
successful in Internet, paging, or mobile phone service industries.
12. ZyXEL will provide products and services through service providers, its main sales strategies will be to
empower service providers and to provide on-going service and support to service providers. Service
providers will focus on local markets and offer flexible services to niche markets.
13. Multiple service providers can be started with a relatively low cost of entry. ZyXEL will provide licensing
companies already in the service industry (such as Internet, paging, or mobile telephone service companies), it
will be possible to qualify and license service provides in a short space of time.
14. ZyXEL will provide all starter ingredients (such as prototypes) on a discounted basis to Widenet service
providers for smooth transition and integration into existing client bases, authorization, and billing.
15. All equipment will be sold only to ZyXEL qualified network operators that will be purchasing the
equipment as a part of an infrastructure to provide services. The intended use and design of the G-6000 is for
use by utility companies, large telecom corporations to build out or compliment their current infrastructure for
radio frequency and telecommunications signaling.
3. Hardware Description
The G-6000 is composed of outdoor and indoor unit which are connected by a single Ethernet cable.
3.1. Packing list
a. Outdoor Unit
b. Network Power injector
c. HDF 400 RF coaxial cable
d. 20m Cat-5 STP cable with special waterproof connector
e. Mounting bracket
f. power adaptor
g. CAT-5 Straight-through Ethernet cable
h. RS-232 cable
i. Grounding wire
j. Quick installation guide
k. Supporting CD
l. antenna alignment kit
Optional components
m. 22 dBi antenna
n. 50m Cat-5 STP cable with special waterproof connector
o. 90m Cat-5 STP cable with special waterproof connector

6
a.
b.
c.
d.
e.
f.
g.
h.
i.
l.
m.
Figure 3-1 Packing contents of G-6000
3.2. The outdoor unit
The outdoor unit is a radio transceiver equipped with a robust IP66 approved enclosure and features a N-type
connector for external antenna connection. A special weather proven connector is used for connecting the
single STP cable to the indoor unit and special weatherproof RS232 connector is built for the connection of a
special designed antenna alignment kit to align the directional antenna.

7

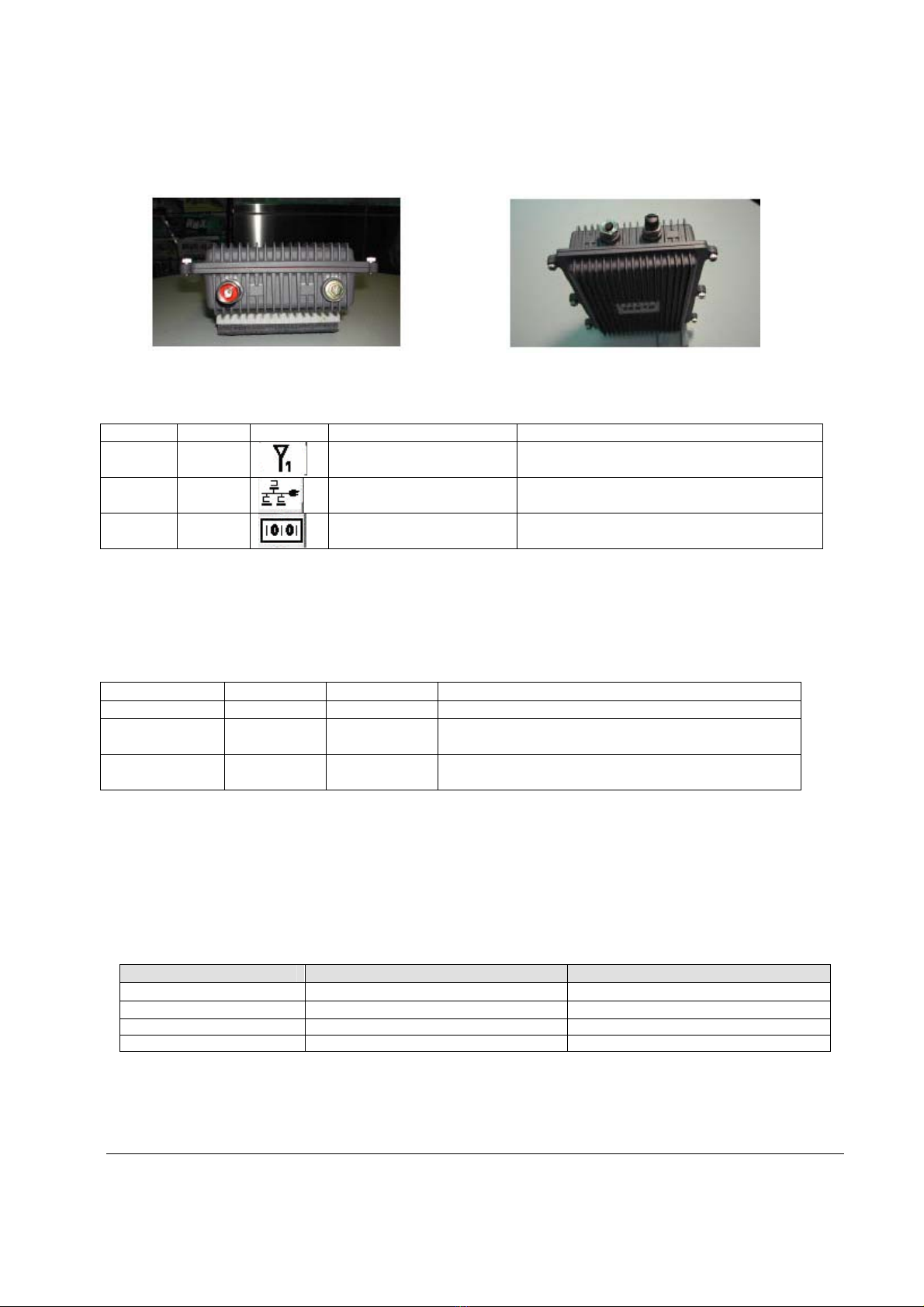

Figure 3-2 Top panel of outdoor unit
Figure 3-3 Bottom panel of outdoor unit
Table 3-1 Connectors of outdoor unit
Function Location Label Interface Description
Antenna Top
N male RF connector with
special water proof
Connecting to the outdoor antenna
Signal &
Power
Bottom
8-pin female connector
with special water proof
Connecting to the indoor interface unit
supplying the power and signal
Antenna
alignment
Bottom
8-pin male connector with
special water proof
Connecting to AK-100 for antenna
alignment
3.3. The Indoor Unit
The indoor unit is a network/power injector which is used to combine the signal stream and DC power into
single category-5 cable to connect outdoor unit. It has three ports.
Table 3-2 Connectors of indoor unit
Function Name Connector Description
Power POWER Power jack Connecting to the outdoor antenna
Ethernet TO LAN RJ45 User for CPE connection via straight through
Ethernet cable
Signal & Power TO RADIO RJ45 Used for outdoor unit connection via special
waterproof category-5 cable
4. Configuring G-6000
This guide shows you the default factory configuration of G-6000 and how to configure the G-6000 for
appropriate operation at the first time. See the User’s Guide for configuration details.
4.1. Default Configuration
The G-6000 is shipped with following factory default configurations:
Table 4-1 Default configuration
BU RU
LAN IP 192.168.1.1 192.168.1.1
Subnet Mask 255.255.255.0 255.255.255.0
Wireless ESSID Wireless Wireless
Username/Password admin/1234 admin/1234

8
4.2. To access the G-6000 System WEB Server
There are three tags on left-top of the Web Server System Status window: Status, Configuration and Syslog.
Each of the tag contains different functions of the G-6000 management.
Follow these steps to configure the channel frequency and SSID using a web browser:
1. Launch a web browser (Netscape Navigator or Internet Explorer are examples of commonly used web
browsers).
2. From the PC, enter the IP address that is assigned to the system as the URL address, for example
http://192.168.1.1.
3. A dialog box appears requesting login authorization.
When prompted, enter the following information to log in:
Log in: admin (case-sensitive)
Password: 1234
Click OK to complete the login process.
NOTE: The web browser must support frames and Java script must be enabled.
4. The G-6000 Web Server System Status window appears as below:
Figure 4-1 Status-System information

9
5. Press the Wireless Information, then current Radio Status is shown as below:
Figure 4-2 Status Wireless information
4.3. System Configuration
The web server windows allow you to setup the configuration information for the system. The web server
provides functions for system setup and firmware updates by clicking the “Configuration” tag on left-top of
the WEB window.
To access any of these system configuration screens, click on the desired hotlink from the navigation bar in
the “Configuration” screen.
4.3.1 Working with Configuration Windows – System Setup
The Web Server configuration windows provide a user-friendly interface to aid in quick configuration of the
system. After making any additions or changes to any configuration window, update the configuration file to
save the changes. The new configuration is not in effect until the system reboots.

10
Figure 4-3 Configuration-System setup
Figure 4-4 Configuration –Wireless setup
To update configuration files:
1. Enter the configuration updates or changes in the appropriate configuration fields.
2. Click Update. After click Update, there will appear red string alarm to let you press the
REBOOT to reboot system to make the changes effective.
3. Click REBOOT to make the changes effective.
The web server loses connectivity with the Web Server as the system reboots. To reestablish the connection
with the Web Server, wait until the system has completed rebooting and navigate to the Web Server to resume
Following table shows brief descriptions of web server settings. Refer to table 4-1and give a proper setting for
your system

11
System Configuration Description
User Name Specifies the user name.
Password Specifies the password.
Telnet Enable Use the checkbox to allow telneting into the
system.
Access Control Specifies the MAC address allowed to join.
Wireless Configuration Description
SSID Identification of the BU. Enter a number or
address between 1 and 32 characters in length
that the RU is associating with. Use the System
Name field to uniquely identify each BU..
Country Display country name; it’s related to channel
frequency base.
RF Channel Frequency Select the desired frequency of operation from
the drop-down menu, or choose SmartSelect.
The radio frequencies that appear in the Radio
Channel drop-down menu are dependent on
the wireless mode selection. Select
“SmartSelect” to automatically search through
the frequency list to find a used or less
congested channel. It only works on AP
system. AC will scan the right channel.
Data Rate (Mbps) Specifies rate of data transmission. Select the
desired rate from the drop-down menu. The
Best selection will adapt the rate to the best
available. Value unit in Mega bit per second
Transmit Power Specifies the level of transmit power. Choose
the value of the transmit power from the
dropdown menu. Decrease the transmit power
if more than one AP is co-located using the
same channel frequency. Maximum transmit
power depends on channel frequency. In
selected item, ‘Full’ means maximum transmit
power; ‘Half’ means Full – 3dB; ‘Quarter’
means Full –6dB; ‘Eighth’ means Full –9dB;
and ‘Minimum’ means 0dB.
Beacon Interval (20 - 1000) Specifies the beacon interval value. Enter a
value between 20 and 1000. It only works on
AP system.
Data Beacon Rate (1 - 255) Specifies the Data Beacon Rate. Enter a value
between 1 and 255 that specifies the delivery
traffic indication message (DTIM). It only works
on AP system.

12
Fragment Length (2346) Shows the fragment length.
RTS/CTS Threshold (256 - 2346) Specifies the value of the RTS/CTS threshold.
Enter a value between 256 and 2346.
Security Specifies the security policy in AES, or TKIP
Security Key Specifies key setting related to security policy.
Maximum length is 64 characters.
Ethernet Configuration Description
LAN IP Address Specifies the IP address of the unit.
Subnet Mask Specifies the subnet mask for the unit.
Default Gateway Address Specifies the default gateway for the unit.
Table 4-2 Parameter description
4.3.2 System Configuration Windows - Software Download
The Firmware Update configuration window allows users to view FTP location of the new firmware. The
default values for the FTP Host Name, User Name, Password, Image Path and Image Name appear in the
window. To access the Firmware Update window, click on Update button. The Firmware Update
configuration window is shown as below:
Figure 4-5 FTP firmware update
The system uses the file transfer protocol (FTP) to download the Operating image from the PC. An FTP
server utility is required to perform the data transfer between the system and PC.

13
To enable firmware updates:
1. Enter the host PC’s IP address, User Name, Password, Image Path, and Image Name in the
data-entry files.
2. Click Update Firmware to store the new firmware changes.
Note: The red reminder s only appear if you update setting in Configuration/System Setup page.
4.3.3 System Log Windows
The System Log window logs system events for detail descriptions of system status log. This is very useful to
track system. It shows important successful states and critical system logs.
Figure 4-6 System log
If you didn’t specify SNTP/NTP server IP address in Configuration/System Setup page, there won’t be any
timestamp in system log. The following lists all system logs in G-6000.
Watch dog reboots system.
Firmware programming failed.
Error while saving configuration parameters.
5. Hardware Installation
5.1. G-6000 office test
It is recommended that you test the system in office before you r outdoor installation. Please be noticed that
the power for each unit should be set as ”min” at the first time for your system link with antennas connected
to the units. After you access the web page and read the RSSI value, the reading should be in the range
between –45 to –61. The physical cable connection of theG-6000 for office test is shown as the following
diagram:

14
Figure 5-1 Physical connection of G-6000 for office test with flat panel antennas

15
Please follow the procedures to test your G-6000 in office:
1. Connect the system according to the diagram above.
2. Set the MAC address for BU and RU
3. Set the SSID for BU and RU
4. Set security level as “High”.
5. Set LAN IP address for BU and RU (192.168.1.1 for BU, 192.168.1.2 for RU)
6. Keep two antennas as far as possible, and do not position the antennas face to face.
7. Perform the Frequency and Data rate setting
8. Perform the FTP file transfer and Server-U for throughput test. (Depending on user’s application software,
The testing result varies from PC to PC).
9. If the function is ok, perform outdoor installation and testing
5.2. G-6000 Physical Connection
The physical cable connection of the G-6000 is shown in the following pictures.
Figure 5-2 Physical Installation of G-6000 with flat panel antenna
5.3. Installation of outdoor unit
The installation procedures of G-6000 is described as below:
1. Choose an appropriate place for the installation. The path between sites should be clear line-of-sight.
2. Prepare a mast with a diameter of 40mm~50mm.
3. Assemble mast mount bracket as shown in Figure 5-3

16
Figure 5-3 Mounting Bracket Assembly
4. Attach the mounting bracket and the grounding wire to the back of the outdoor unit as shown in Figure
5-4.
Figure 5-4 Attach the Mounting Bracket to Outdoor Unit
5. Fasten the mounting bracket assembly to install outdoor unit on the mast
.
Figure 5-5 Install Outdoor Unit to the Mast

17
6. Connect the antenna to the N-male connector port labeled on the top of outdoor unit. For the
directional antenna installation, use the HDF 400 RF coaxial cable. The polarization of antenna for both
BU and RU should be the same; otherwise, the installation will fail to communicate. At the same time, you have
to point the directional antenna to that of the other unit.
Notice: The antenna must be installed by the professional installer to comply with the safety, electrical
and radiation standards. The installer should properly configure the output power of transceiver
according to related country regulation requirement and per antenna type.
Figure 5-6 Install Antenna to the Outdoor Unit
Attach the end of 8-pin male connector of category-5 cable to the 8-pin female connector port labeled
on the bottom of outdoor unit. Then, the outdoor unit installation is completed.
Figure 5-7 Connect Cat-5 cable to the outdoor unit

18
Figure 5-8 Connect Grounding wire to the outdoor unit

19
5.4. Indoor Unit Installation
After the outdoor unit installation is completed, you may follow the procedures below to install the indoor
unit.
1. Choose an appropriate place for the network/power injector. You might hang it on the wall or just place it
on the desk. Connect the other end of category-5 cable to the “TO RADIO” RJ-45 connector of
network/power injector.
2. Connect one end of Ethernet cable to the “TO LAN” RJ-45 port of the network/power injector. Connect
the other end of Ethernet cable to the workstation directly or through a switch/hub/router.
3. Connect the power jack of switching power adaptor to the power port labeled as ” POWER” on the
network/power injector.
Figure 5-9 Cable Connections of Network/Power Injector
5.5. Initializing the G-6000
1. When plugging the switching power adapter into the 110V/220V wall outlet, the LED named PWR on
the network/power injector will light on.
2. When the power and signal connection to outdoor unit are complete, the SYS LED of the network/power
injector will light on.
5.6. Antenna Alignment
Please set the SSID, MAC address, and frequency channel at both BU and RU unit. It is highly recommended
that you set the security as” HIGH”. Because the throughput are all the same no matter it is set as low, middle,
or high.
Please do not unplug the power of POE right after you click the REBOOT icon. If it is required
to perform hardware reboot, wait for 30 seconds at least after you clicked the REBOOT icon.
