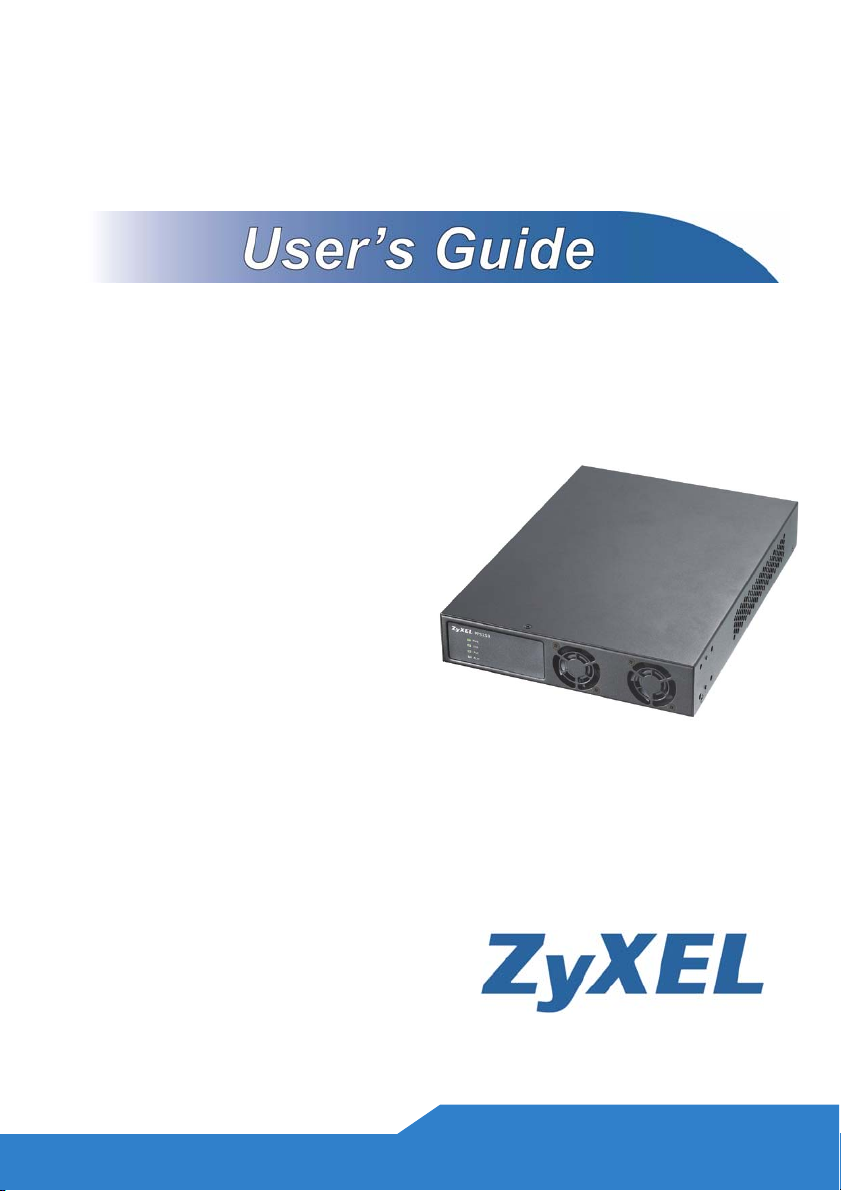

ZyXEL Communications PPS-250 User manual

www.zyxel.com
External PoE Power Supply
Edition 1, 2/2010
PPS250
Copyright 2010 ZyXEL Communications
Corporation

2
Device Panel
POWER RPS CONNECTOR
FAN VENT
LEDs FAN VENTS

3
Overview
The PPS250 is a power module for ZyXEL Ethernet Power-over-
Ethernet (PoE) switches, such as the GS2200-24P. It provides additional
external PoE power budget on top of the internal power budget of the
switch.The switch supplies power to powered devices (PD) connected to
it.
A powered device (PD) is a device such as an access point or a switch,
that supports PoE (Power over Ethernet) so that it can receive power
from another device through a 10/100/1000Mbps Ethernet port.

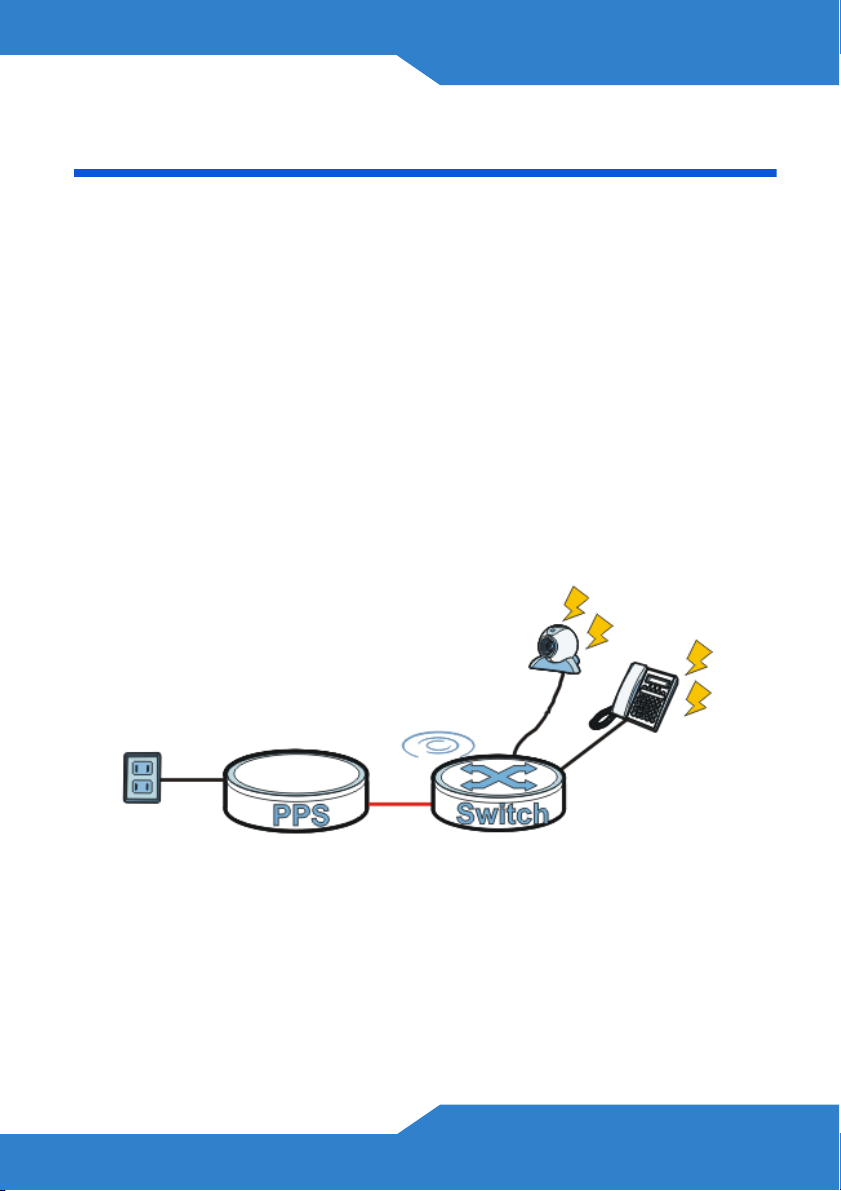

In the following figure, the PPS250 is connected to the switch so that it
provides enough power to devices connected to it.
Aside from minimizing the need for cables and wires, PoE removes the
hassle of trying to find a nearby electric outlet to power up devices. The
PPS250 also ensures that the fans work continuously to prevent the
switch from overheating. Once the PPS250 is connected to the GS2200-
24P, the GS2200-24P can provide full power to each port (15.4 Watts).
Fan

4
Hardware Connections
The PPS250 is hot-swappable.
1. RPS CONNECTOR: Use the RPS cable provided to connect the
PPS250 to your ZyXEL switch as shown below.
The RPS connector should only be used with the PPS250. Do not insert
other connector cables to the PPS250.
2. POWER: Use the power adaptor provided to connect an appropriate
power source to this socket. The LED light turns green once the
PPS250 is ready.
 The PPS250 can be used for the GS2200-24P only, and
both of these devices should be used, repaired, and
maintained by a qualified technician.
1
2

5
LEDs
After you connect the power to the PPS250, view the LEDs to ensure
proper functioning of the PPS250 and as an aid in troubleshooting.
Refer to the Quick Start Guide and User Guide of your switch for
instructions on how to configure and use its other features.
Table 1: LED Descriptions
LED Color Status Description
PWR Green On The system is turned on.
Off The system is off or has failed.
LNK Green On There is a device connected.
Off No device connected.
PoE Green On Power is supplied to a connected device.
Off There is no power supply.
ALM Red On System failure due to overheating or abnormal
fan operation.
Off The system is working normally.

6
Product Specifications
The following tables summarize the PPS250’s hardware and firmware
features.
EMI/Safety
Hardware Specifications
Dimensions 280 mm (L) x 206 mm (W) x 44 mm (H)
Weight 2 kg
Input Power 100 - 240V ~ 50/60Hz 2.5A MAX, 225W
Output Power 49V , 4.6 A MAX.
Operation
Temperature
0º ~ 50º C
Storage Temperature -40º ~ 70º C
Humidity 10% ~ 95% (non-condensing)
MTBF 5 years (44,000hrs) at least (PSP-225-48OPD: 103Khrs)
Item Description
Safety CSA 60950-1
EN 60950-1
IEC 60950-1
UL 60950-1
EMC FCC Part15 (Class A)
CE EMC (Class A)
---
__

7
Safety Warnings
• Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a
remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Ground yourself (by properly using an anti-static wrist strap, for example) whenever
working with the device’s hardware or connections.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over
them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V
AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
• If the power adaptor or cord is damaged, remove it from the device and the power
source.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to
order a new one.
• Do not use the device outside, and make sure all the connections are indoors.
There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.

8
• Your product is marked with this symbol, which is known as the WEEE mark.
WEEE stands for Waste Electronics and Electrical Equipment. It means that
used electrical and electronic products should not be mixed with general
waste. Used electrical and electronic equipment should be treated
separately.
Legal Information
Copyright
Copyright © 2010 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole,
transcribed, stored in a retrieval system, translated into any language, or transmitted in
any form or by any means, electronic, mechanical, magnetic, optical, chemical,
photocopying, manual, or otherwise, without the prior written permission of ZyXEL
Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products,
or software described herein. Neither does it convey any license under its patent rights
nor the patent rights of others. ZyXEL further reserves the right to make changes in any
products described herein without notice. This publication is subject to change without
notice.
Certifications
1. Go to http://www.zyxel.com.
2. Select your product on the ZyXEL home page to go to that product's page.
3. Select the certification you wish to view from this page.

9
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any
defects in material or workmanship for a specific period (the Warranty Period) from the
date of purchase. The Warranty Period varies by region. Check with your vendor and/or
the authorized ZyXEL local distributor for details about the Warranty Period of this
product. During the warranty period, and upon proof of purchase, should the product
have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its
discretion, repair or replace the defective products or components without charge for
either parts or labor, and to whatever extent it shall deem necessary to restore the
product or components to proper operating condition. Any replacement will consist of a
new or re-manufactured functionally equivalent product of equal or higher value, and will
be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been
modified, misused, tampered with, damaged by an act of God, or subjected to abnormal
working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the
purchaser. This warranty is in lieu of all other warranties, express or implied, including
any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL
shall in no event be held liable for indirect or consequential damages of any kind to the
purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the
warranty policy for the region in which you bought the device at http://www.zyxel.com/
web/support_warranty_info.php.
Registration
Register your product online to receive e-mail notices of firmware upgrades and
information at www.zyxel.com.
