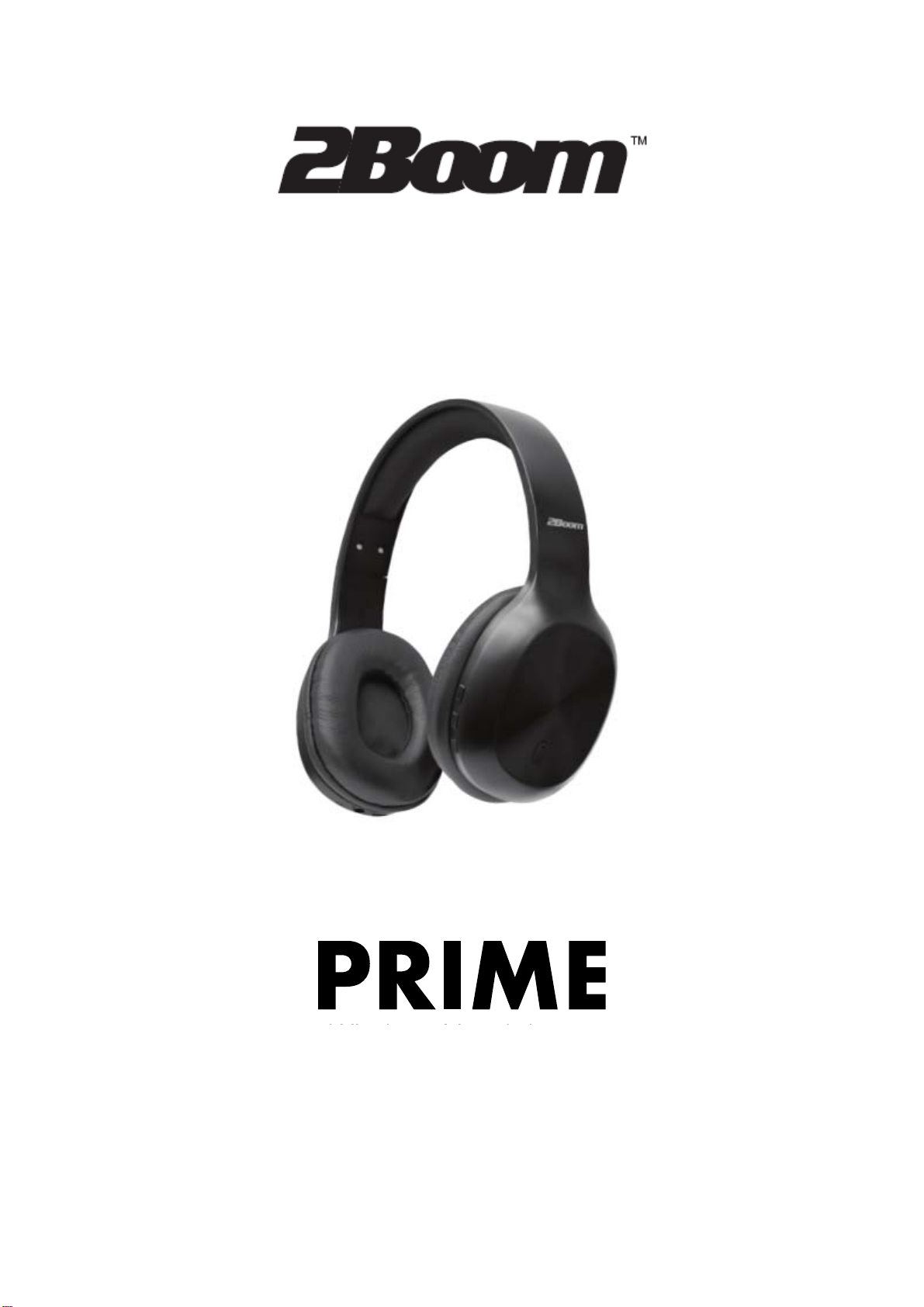

2Boom PRIME HPBT290 Instruction Manual

1
Model: HPBT290
USER MANUAL

2
Getting started
• Remove the product from the box.
• Remove any packaging from the product.
• Please retain all packaging after you have checked and counted all the parts and the contents
against the list.
Package Contents
• Bluetooth Headphone
• USB charging cable
• Instruction Manual
• Warranty card
Key Features
• Bluetooth stereo headset
• Built-in microphone for hands-free use with Bluetooth enabled devices
• Comfortable adjustable design
• Connects automatically to previously connected devices
Safety Instructions
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.
Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent
against electric shock, explosion and/or injury to yourself and damage to the unit.
Do not use the unit if it has been dropped or damaged in any way.
Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs
may place the user at serious risk.
Do not use the unit with wet hands.
Do not put objects into any of the openings.
Keep the unit free from dust, lint etc.
Do not use this unit for anything other than its intended use.
Keep the unit out of reach of children.
This product is not a toy.
Do not use the handset at excessive volume levels, as damage to hearing may occur.

3
Description of Parts:
INSTRUCTIONS FOR USE
Charging Instructions
 The Bluetooth Headphone comes with a built in rechargeable battery. Before using it for the first
time we recommend you charge the battery fully. Only use the supplied USB Cord to charge the
Bluetooth Headphone. Please charge for about 2-3 hours.
 Connect the USB charging cable to a computer USB port and the Micro USB plug to the charging
port of the device. The Red LED light turns on while the device is charging. It takes 2-3 hours for
the unit to fully charge. When the battery is fully charged, the red light will turn off.
Turning on/off the device
 Press and the Power on/off button for 2-4 seconds to turn ON or OFF the device with indication
tone.
Pairing the device with Bluetooth devices (phone or music device)
 Ensure the device is turned off, and then press and hold the MF button for 2-4 seconds to turn on
with indication tone, and the LED flashes blue rapidly. Place the Bluetooth Headphone and
Bluetooth device (phone or music device) so that they are no further than 3 feet apart;
 Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer to
the manufacturer’s instructions for instructions on enabling Bluetooth on your device.
 Once you have activated Bluetooth on your device, select the “2BOOM-HPBT290” from the list of
available Bluetooth devices.
1 Built-in mic
2 AUX port
3 USB Charging port
4 Volume down/Previous track
5 Volume up /Next track
6 “ ll<” button/Play/pause/Phone button
7 Power on/off button
8 LED Light Indicator

4
 If required, enter the password ‘0000’ to confirm & finalize pairing.
 Once paired successful, beep sound will be heard and the LED flashes blue slowly.
 You can now start to use the device.
 Please note pairing mode on the device will last for around 10 minutes. If no devices are paired
within around 10 minutes the device will power off automatically.
 If pairing is unsuccessful, turn off the device first and then re-pair following the above steps.
 Once you have paired the Bluetooth Headphone with a device, the Headphone will remember
this device and will pair automatically when the device’s Bluetooth is activated and in range. You
do not need to re-pair any previously connected devices.
 The Bluetooth Headphone will attempt to automatically connect to the last device it was paired
with when switched on. If you want to pair it with a new device, please follow the steps outlined
above.
 Once the Bluetooth Headphone is paired with your device the music will transmit through the
Bluetooth Headphone. Please refer to your device’s user manual for further information.
Function Summary
Listening to Music
 Once the Headphone is paired with your device you can stream music wirelessly through the
Bluetooth Headphone. Should you encounter any problems while streaming please refer your
device’s user manual for further information.
Control Function
Function Operation Button
Increase Volume Playing music A long press on the” +”button once will increase the volume
Decrease
Volume
Playing music A long press on the “-“button once will decrease the volume
Pause Playing music A short press on the ” ll<” button will pause the music
Play Pausing A short press on the” ll<”button will restart the music
Previous track Playing music A short press on the” -“ button will return you to the previous
track
Next track Playing music A short press on the “+”button will take you to the next track
Making a call with the Bluetooth Headphone in Bluetooth mode
Basic operation
Function Operation Button
Answer a call Incoming Call Press the ” ll<” button once to answer an
incoming call
End a call Incoming Call After your phone conversation, short press the ”

5
ll<” button.
Reject call Incoming call Long press the ” ll<” button to reject the
incoming call
Increase Volume During a call A long press on the “+” button once will increase
the volume
Decrease Volume During a call A long press on the “-“ button once will decrease
the volume
Redial last number Standby mode and
connected to a device
Short press the ” ll<” button twice
Please Note
• Not all mobile phones support all the functions listed above. Please refer to your cell phone’s
user’s manual for further information.
• Certain functions and indication tone maybe vary depending on your mobile phone.
LED indicator
Please refer to the below tables for a list of the LED statuses whilst using the Bluetooth Headphone.
Charging Indication
LED indicator Status of the BT Headphone
Red LED Charging
Red LED turns off Charging Completed
LED Indication
LED indicator Status of the BT Headphone
LED flashes blue rapidly Pairing mode
Do’s and Don’ts
Do not play music at excessive levels. Damage to hearing and/or equipment may result.
Do not use outdoors in wet or in damp surroundings.
Care and Maintenance
Read the following recommendations before using the Bluetooth Headphone. Following these you will
be able to enjoy the product for many years.
• Do not expose the Bluetooth Headphone to liquid, moisture or humidity to avoid the product’s
internal circuit being affected.
• Don’t use abrasive cleaning solvents to clean the device.
• Do not expose the device to extremely high or low temperature as this will shorten the life of
electronic devices, destroy the battery or distort certain plastic parts.

6
• Don’t dispose of the device in a fire as it will result in an explosion.
• Don’t expose the device to contact with sharp objects as this will cause scratches and damage.
• Don’t let the device fall on the floor. The internal circuit might get damaged.
• Don’t attempt to disassemble the device as it may get damaged if you are not professional.
In case the device doesn’t function properly, send it to the store you bought it. The staff will help you
to the problem.
Specifications
Operating distance 33 Feet
Working time 4-5 hours
Charging input voltage DC 5V
Charging time 1.5 ~ 2.5hours
Driver unit : 40mm 32R
Built-In Battery 150mAh
(Note: Battery life & charging time may vary based on usage & types of devices used.)
FCC-ID: 2AIDL-HPBT290
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.

7
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure requirement. The device can
be used in portable exposure condition without RF striction.
Migear International Group LLC,
34 West 33rd Street, Suite 1007, New York, NY 10001,
TEL: [phone]
