Blue Tiger Advantage PLUS User manual

Blue Tiger Advantage PLUS
User Manual
bluetigerusa.com

CONTENTS
Thank You 3
Please Read this Reference Manual 3
Features 3
Charge the Battery 4
Connecting Headset to Device 4
Pairing 4
Phone Calls 5
Answer Call
End Call
Ignore Incoming Call (1st or 2nd call)
Answer 2nd Incoming Call
Custom User Functions 6
Changing Language
Turning the Blue Tiger LED On/O
Microphone Mute
Voice Activation
Understanding LED Lights and Tones 7
Position the Boom 8
Adjust Headband 8
Mic Boom Tension & Headband Disassembly 9
Microphone Orientation 10
Patents 11
Specications 11
Cleaning and Maintenance 11
Troubleshooting 12

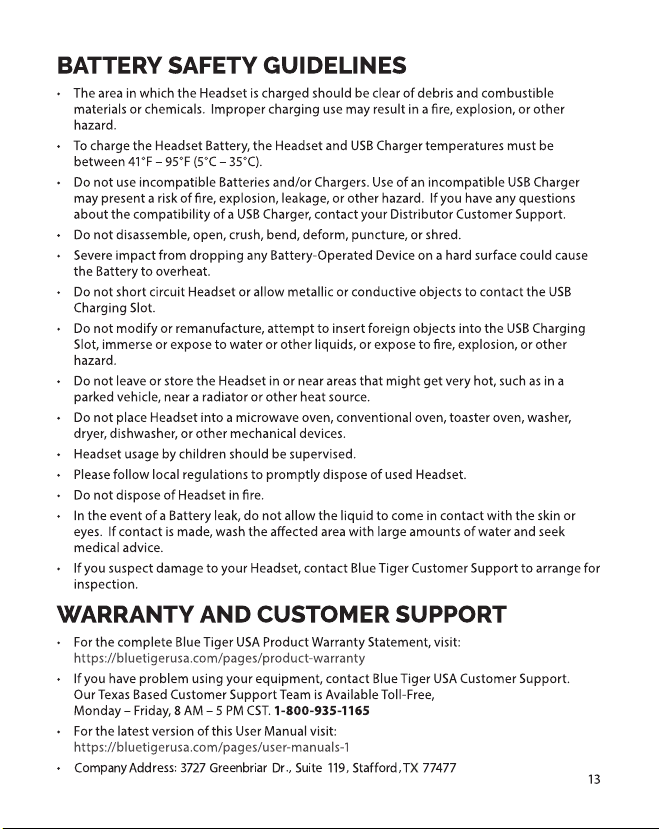

Battery Safety Guidelines 13
Warranty and Customer Support 13
Safety and Regulatory Information 14

3
THANK YOU
We appreciate your purchase of the Blue Tiger Advantage PLUS Headset. This rugged
wireless Headset combines high-quality audio performance, environmental durability, and
lightweight comfort without sacricing stability during active use.
PLEASE READ THIS REFERENCE MANUAL
Please take the time to follow the instructions in this reference guide carefully.
It will help you set up and operate your Advantage PLUS Headset properly and enjoy its
advanced features. Please save this guide for future assistance.
FEATU RE S
Bi-Directional Noise
Cancellation
Microphone
Flexible
Microphone
Boom
Boom
Tightening
Knob
Volume
Buttons
Multi-Function
Button (MFB)
Adjustable
Headband
Flexible
T-Pad
USB
Charging
Port
Snap Fit
Ear Cushion
LED
NFC Tag

4 | Blue Tiger Advantage PLUS User Manual v1.2
CHARGE THE BATTERY
1. Remove the USB Charging Port Cover and connect Charging Cable to a USB adapter.
2. Insert the Charging Cable into the Headset USB Port.
3. Charge for 3 hours prior to use.
Solid Red LED indicates charging.
Solid Blue LED indicates headset is fully charged.
CONNECTING HEADSET TO DEVICE
To use the Advantage PLUS Headset with a Bluetooth Device, such as a smartphone or
laptop computer, you must rst establish a wireless connection between the Headset and
the intended device. This process is called “Pairing”.
PAIRING
The Headset may be paired with Bluetooth devices using one of two methods:
1. Standard Bluetooth pairing where the headset is discovered by the Bluetooth Device.
2. Touch-to-Pair with devices supporting an NFC Connection.
Headset must be within close proximity of the Bluetooth Device to complete pairing. To
initiate pairing, Headset must be powered o. If the Headset is ON, turn the Headset OFF
by pressing the Multi-Function Button (MFB) for 2.5 seconds.
1. Initiate Standard Bluetooth pairing by pressing the MFB for 6 seconds - press and hold
the button - until you hear “Pairing, Please Wait” and the LED alternately ashes red and
blue. Use the Bluetooth Device’s Bluetooth search and pairing functionality (refer to the
Device or Host documentation if necessary) and select “AdvantagePLUS”. If necessary,
enter four zeros (0000) for the passcode and accept connection.
2. For Touch-to-Pair, initiate Standard Bluetooth Paring before touching Headset NFC tag
to NFC tag of Host. The Headset NFC Tag is located in the Microphone Assembly.

5
Once successfully paired, you will hear “Device Connected” and the LED will ash blue, once
every two seconds indicating the Headset and Bluetooth Device are connected. The
Headset may be paired to a new Bluetooth Device using the above procedure. Note that
this will undo the pairing to the current Bluetooth Device.
Once the Headset and Bluetooth Device have been paired, the Headset and Bluetooth
Device will automatically reconnect the next time they are both powered on and in close
proximity to each other.
Multipoint Pairing
It may be useful to have the Headset connected to 2 devices simultaneously. For example,
to 2 dierent smartphones, or to a phone and a laptop computer. This is called Multipoint
pairing. For Multipoint pairing:
1. Turn o Bluetooth on the 1st connected Device.
2. Turn on Bluetooth on the second Device.
3. Initiate Pairing on the Headset (refer to Pairing section).
4. Pair the Headset with the second Device. You should hear an alert, “Device Connected”.
5. Turn ON Bluetooth on the 1st Device. Using the Device Bluetooth search menu,
reconnect to the AdvantagePLUS Headset. You should hear a second “Device
Connected” alert.
Your Headset is now connected with both devices and can now accept a call or listen to
audio/video from either device.
For more information or assistance with Multipoint Pairing, please contact Customer
Support (see Warranty and Customer Support section).
PHONE CALLS
Answer Call
To answer a phone call, tap or press the Multi-Function Button (MFB) for 0.5 seconds or less.
End Call
To end a call (hang up), press and hold the MFB for 1 second.
Ignore Incoming Call (1st or 2nd call)
Press and hold the MFB for 1 second.
Answer 2nd Incoming Call
To answer a second incoming call and end the ongoing call, tap or press the MFB for 0.5
seconds.
To answer a second incoming call and place the ongoing call (the rst call) on HOLD, double
press the MFB. To end the second call and resume the 1st call on HOLD, tap or press the
MFB for 0.5 seconds.

6 | Blue Tiger Advantage PLUS User Manual v1.2
CUSTOM USER FUNCTIONS
Changing Language
Change the Headset voice prompt language by pressing the Multi-Function Button (MFB)
and Vol+ button simultaneously for 1 second. This function can only be activated in
standby or connected mode. The following languages are selectable: English, French,
German, and Spanish. Each successive button press will cycle to the next language.
Turning the Blue Tiger LED On/O
The Blue Tiger LED can be turned o by pressing Vol+ and Vol- simultaneously for 5
seconds. This function can only be activated in standby or connected mode.
To turn the LED back on, press Vol+ and Vol- simultaneously for 5 seconds.
Microphone Mute
During phone calls, the microphone can be muted by pressing Vol+ and Vol- for 1 second.
User will hear a prompt “Mute On”. A double tone will alert user every 10 seconds that the
microphone is muted.
Pressing Vol+ and Vol- for 1 second will deactivate the Microphone Mute function. User will
hear a prompt “Mute O”.
Voice Activation
To initiate the Bluetooth Device’s Voice Assistant (such as Apple Siri, Google Assistant,
Samsung Bixby, etc.), double press the MFB. Listen for the tone then begin speaking.
Apple and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. Google and Google
Assistant are trademarks of Google LLC. Samsung and Bixby are trademarks of Samsung Electronics Co., LTD.

7
UNDERSTANDING LED LIGHTS AND TONES
Primary Features Headset Control LED Light Tones
Pairing Powered O, Press MFB for 6
Seconds
Blue and Red Alternate
Flash “Pairing, Please Wait”
Pairing Complete Automatic No LED Output “Device Connected”
Pairing Failure Automatic No LED Output “Pairing Incomplete”
Power On/O Press MFB for 2.5 seconds Blue/Red Flash 3 Times
“Blue Tiger
Activated”, “Blue
Tiger O”
Volume Press Volume + or Volume - to
Increase or Decrease Volume No LED Output < Increase Volume
> Decrease Volume
Connected Automatic Blue Flash Once Every 2
seconds Double Short
Microphone Mute Press Vol+ and Vol- simultaneously
for 1 second to Mute/Unmute No LED Output “Mute On”, “Mute
O”
Change Language Press MFB and Vol+ for 1 second No LED Output “English Selected”
Turn LED On/O In Connected Mode, Press Vol+
and Vol- for 5 seconds No LED N/A
Not Connected Automatic Blue Solid “Lost Connection”
Link Lost Automatic No LED output “Lost Connection”
Low Battery Warning Automatic Red Flash Twice Every 2
Seconds “Battery Low”
Low Battery Shutdown Automatic Red Flash 3 Times 4 Descending
A/V Playback Features Headset Control LED Light Tones
A/V Streaming Automatic Blue Flash Twice Every 2
seconds N/A
Play or Pause Press MFB for 0.5 seconds No LED Output Short High
Track Forward Press Volume Up for 1 second No LED Output Short High
Track Backward Press Volume Down for 1 second No LED Output Short High
Phone Call Features Headset Control LED Light Tones
Answer/End Call Press MFB for 0.5/1 seconds No LED Output One Short/Two Short
Call Ongoing Automatic Blue Flash Once Every 3
seconds N/A
Ignore 1st Call/2nd Call Press MFB for 1 second No LED Output Long Low
Answer Second Call/
Hang up Ongoing Call Press MFB for 0.5 seconds No LED Output One Short
Answer Second Call/
Hold Ongoing Call Double Press MFB No LED Output Long Low
Switch between 1st and
2nd Call Double Press MFB No LED Output N/A
2nd Call Ongoing Automatic Flash Red On 1 Second,
O 1 Second N/A
Last Number Redial Press Volume + and Volume – for
0.5 seconds No LED Output Long Low
Voice Activation Double Press MFB No LED Output One Short

8 | Blue Tiger Advantage PLUS User Manual v1.2
POSITION THE BOOM
Do not rotate the boom beyond the stop point.
ADJUST HEADBAND
The black coated stainless-steel headband will click as
it is lengthened or shortened to size for a comfortable
position. The headband can also be squeezed or
stretched by carefully bending for a tighter or a looser
t to the head. When adjusting the headband:
• Position the ear cushion in the center of the ear.
• Position the T-Pad above the ear, half way between
the top of the ear and the top of the head.
Right Side Boom Placement
Stop Point
Adjust Size
Stop Point
Left Side Boom Placement
Tighter Fit
Looser Fit

9
Stop Point
MIC BOOM TENSION & HEADBAND
DISASSEMBLY
The microphone boom position tension can be adjusted. Simply tighten or loosen the mic
boom by tightening or loosening the Boom Tightening Knob (Set Screw) as shown.
1. Loosen the Headband Set Screw (counterclockwise) or tighten (clockwise) to loosen or
tighten the boom position up or down.
It is not necessary to disassemble your Advantage PLUS Headset. However, if the headband
were to become separated from the mic boom, simply reattach it as shown and tighten the
Set Screw. This feature allows for future accessories.
2.
Reattach the Bluetooth Headset Module (mic boom) to headband and tighten the Set Screw.

10 | Blue Tiger Advantage PLUS User Manual v1.2
INSTALL WINDSCREEN AND EAR CUSHION
The microphone Windscreen and the speaker Ear Cushion are both easily replaceable.
1. Slide the mic Windscreen over the microphone assembly like a sock.
2. The Ear Cushion snaps on to the headband assembly. Unsnap the cushion from the
headband to replace or interchange between the foam or leather cushions (both included).
MICROPHONE ORIENTATION
Talk Side
Noise Cancellation Side
Speech Recognition Microphone
Talk Indicator
NFC Tag
Noise Cancellation Microphone

Volume levels are measured in decibels (dB). Exposing your ears to any noise at or
above 85 dB can cause gradual hearing loss.
According to the Occupational Safety and Health Administration (OSHA), listening
to volume levels over 100 dB for more than two hours at a time can lead to
hearing loss.
http://www.osha.gov/SLTC/noisehearingconservation/#loud
*Your Advantage PLUS headset has the capability to reach a colume level that
exceeds 100 dB.
**Please exercise caution.

12 | Blue Tiger Advantage PLUS User Manual v1.2
TROUBLESHOOTING
Operation Problem Possible Solution
Operating Headset will not Turn On.
Make sure Headset is fully charged.
Make sure Headset is charged by placing
USB Cable in USB Charging Slot and
follow the Headset charging instructions.
Pairing
Does not Pair.
Headset should be OFF when beginning
the pairing process.
Make sure intended Bluetooth Device is
turned on.
Make sure the Headset is within 12 inches
of intended Bluetooth Device.
Make sure you select “Advantage PLUS”
on the Bluetooth Device’s Bluetooth
search menu
Headset appears to be
connected but cannot
communicate with the
intended Bluetooth Device.
Headset may be connected with a
dierent Bluetooth Device.
1. Make sure the intended Bluetooth
Device is within 12 inches of Headset.
2. Make sure all other non-intended
Bluetooth Devices are at least 10 feet
away from the Headset.
3. Turn o the Headset and start the
pairing process again.
LED No LED light visible on
Headset.
Press Vol+ AND Vol- together for 5 seconds
to turn LED ON. Pressing Vol+ and Vol-
again, together for 5 seconds, will turn the
LED OFF. The LED on/o control will NOT
function while streaming audio or while a
call is in progress.
NFC NFC Does not Pair
For Touch-to-Pair, initiate Standard
Bluetooth Paring before touching the
Headset NFC tag to the NFC tag of the
Bluetooth Device. The Headset NFC Tag is
located in Microphone Assembly.

14 | Blue Tiger Advantage PLUS User Manual v1.2
SAFETY AND REGULATORY INFORMATION
• Warnings for use of Wireless Devices.
Please observe all warning notices with
regard to the usage of wireless devices.
• Potentially Hazardous Atmospheres
– Vehicles Use. You are reminded of the
need to observe restrictions on the use of
radio devices in fuel depots, chemical
plants etc. and areas where the air contains
chemicals or particles (such as grain, dust,
or metal powders) and any other area
where you would normally be advised to
turn o your vehicle engine.
• Potentially Hazardous Atmospheres –
Fixed Installations. You are reminded of
the need to observe restrictions on the use
of radio devices in fuel depots, chemical
plants etc. and areas where the air contains
chemicals or particles (such as grain, dust,
or metal powders).
• Contains small parts which can be a
choking hazard.
• Not suitable for children under age 3.
• This product contains magnets which can
be harmful to pacemakers, or similar
medical devices.
• To reduce the risk of re or electrical shock,
do not expose the product to rain or
moisture.
• As with any electronic products, use care
not to spill liquids into any part of the
system. Liquids can cause a failure and/or a
re hazard.
• Do not place any naked ame sources, such
as lighted candles, on or near the
apparatus.
• Use caution when using your headset while
operating a vehicle or engaging in any
activity that requires your full attention.
Check and follow local laws regarding
mobile phone and headset use. Some
jurisdictions impose specic limitations,
such as single earpiece conguration, on
the use of such products while driving.
• Sounds that you rely on as reminders or
warnings may sound dierent when using
a headset. Be aware of how these sounds
may vary in character so you can recognize
them as needed.
• Do not leave a battery on prolonged
charge when not in use.
CAUTION:
• Do not make modications to the headset
or accessories. Unauthorized alterations
may compromise safety, regulatory
compliance, and product performance and
warranty.
• Prevention of Hearing Loss
• To prevent possible hearing damage, do
not listen at high volume levels for long
periods.
• Use only with the supplied power supply
meeting local regulatory requirements (ex.
UL, CSA, VDE, CCC).
• Use caution when using a Headset while
operating a motor vehicle or anywhere the
inability to hear outside sounds may
present a danger to you or others.
• The Advantage PLUS Headset does not
require scheduled cleaning. Should
cleaning be necessary, simply wipe the
outside surfaces with a soft damp cloth.
Regulatory Information
All Blue Tiger USA devices are designed to be
compliant with rules and regulations in the
locations they are sold and will be labeled as
required. This regulatory information applies
to Model number 17-150401.
International
This device complies with internationally
recognized standards covering human exposure
to electromagnetic elds from radio devices.
Wireless Device Country Approvals
Regulatory markings, subject to certication,
are applied to the device signifying the radio
(s) is/are approved for use in the following
countries: United States, Canada, and Europe.
Note: Europe includes Austria, Belgium,
Bulgaria, Czech Republic, Cyprus, Denmark,
Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal,
Romania, Slovak Republic, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
