2N® NetStar Records Manager
Manual
The allows for a simple management and rapid2N® NetStar Records Manager
filtration of recorded calls according to various categories, for example number (called
and calling), date and time. Immediately after login, each user will see its call records
and, depending on the allocated user rights, any other user call records (Administrator,
e.g.). You can play your records via your Internet browser, make comments using the
web interface or download the records to your PC for2N® NetStar Records Manager
later use.
After installation on the server, each user will be able to log in easily via its unique URL
in the Internet browser. Make sure that there is a functional Internet connection to
make the system work properly.
Content:
1. 2N® NetStar Records Manager Installation Wizard
2. 2N® NetStar Records Manager Configuration
3. 2N® NetStar Records Manager User Manual

52N TELEKOMUNIKACE a.s., www.2n.cz
®
1. 2N® NetStar Records Manager Installation Wizard
Installation
Install the directly on a hardware PC or virtualisation 2N® NetStar Records Manager
platform (VMware, Oracle VM VirtualBox, etc.).
Example of Virtualisation Platform Installation
Connect the received ISO file with the 2N® NetStar Records Manager installation to
the CD/DVD drive in the virtualisation platform that meets the minimum configuration
requirements mentioned above. Set booting from the CD/DVD drive and start the
:virtual PC. When the ISO file has been read, the following screen will be displayed
Caution
Make sure that the following minimum PC/virtualisation platform
configuration requirements are met while installing the
!2N® NetStar Records Manager to avoid system malfunction
64bit processor
4 GB RAM
100 GB free hard disk space
Caution
The size of recordings made by is approximately 1 MB per2N® NetStar
1 minute record. Therefore, check the capacity of your hard disk.
Note
Make sure before installing the 2N® NetStar Records Manager onto a
virtualisation platform that VT-x or AMD-V or any other similar
virtualisation function is enabled according to the hardware PC processor
. type

62N TELEKOMUNIKACE a.s., www.2n.cz
®
Select the first option on this screen and the first option on the next screen (Use all
space) and click .Next

72N TELEKOMUNIKACE a.s., www.2n.cz
®
When the installation is completed, the virtual PC gets restarted. If the booting
sequence was changed in the virtual PC configuration, we recommend you to return
Booting from hard disk to the first place.
After booting from hard disk is completed, you will see the login window:
Log in to complete the installation process: login .admin and password 2n
Upon login, the post-installation script will start automatically to complete the
.2N® NetStar Records Manager installation
Language is the first script selection.
Caution
The post-installation script takes a few minutes. Be very careful while
entering data and do not interrupt or skip over the script to avoid the
.2N® NetStar Records Manager malfunction

82N TELEKOMUNIKACE a.s., www.2n.cz
®
Having selected the language version, enter the server hostname.
Select the interface to be used for connection (this IP address will then be entered into
the Internet browser if necessary).
If the DHCP server is available in the network, you can keep the assigned IP address or
set the static IP address. If you select No, you will be invited to enter a new IP
address, network mask, default gateway and primary and secondary DNS.
Now choose the type of user connection to the 2N® NetStar Records Manager : IP
address or Domain name. If you select the latter option, you will be asked to enter the
domain name.

92N TELEKOMUNIKACE a.s., www.2n.cz
®
Press any key to continue. Enter the to authorise the admin user password
server storage. Use these access data for storage2N® NetStar Records Manager
mapping in . The password can differ from the 2N® NetStar
server access password.2N® NetStar Records Manager
Now create the folder for saving records.
The service will be enabled when all the required data have been set.
Caution
Make a corresponding record in your DNS server if the users are
connected via their domain names.
Note
Do not change the admin password for authorisation of the
server storage until the2N® NetStar Records Manager
post-installation script is completed in the configuration menu (console)
displayed upon every Admin login. To change the password, select 7 in
the configuration menu and enter the following:
smbpasswd –a admin
Having entered the command, you will be invited to enter a new
password.

102N TELEKOMUNIKACE a.s., www.2n.cz
®
Press any key to complete installation. Now log in via your Internet browser and start
using the . 2N® NetStar Records Manager The configuration menu below will be
displayed upon Admin login.
Caution
Please set the correct time (via the NTP server - option 4, e.g.) before
using the 2N® NetStar Records Manager as correct time setting is
crucial for some functions.

112N TELEKOMUNIKACE a.s., www.2n.cz
®
2. 2N® NetStar Records Manager Configuration
Section content:
First Login
Add 2N® NetStar
Add Intercom
Users
Storage Mapping in 2N® NetStar
First Login
Having completed installation, enter the 2N® NetStar Records Manager server IP
.address or domain name into your Internet browser
For the first login, use the 2N® NetStar Records Manager server Superadmin
.account: name superadmin and password 2n Click the logged-in user name in the
right-hand upper screen corner to change the Superadmin password after login if
.necessary
The start screen is displayed after a successful login.
Note
Use Internet Explorer 8 and higher, Mozilla Firefox or Google Chrome for
your web login.

122N TELEKOMUNIKACE a.s., www.2n.cz
®

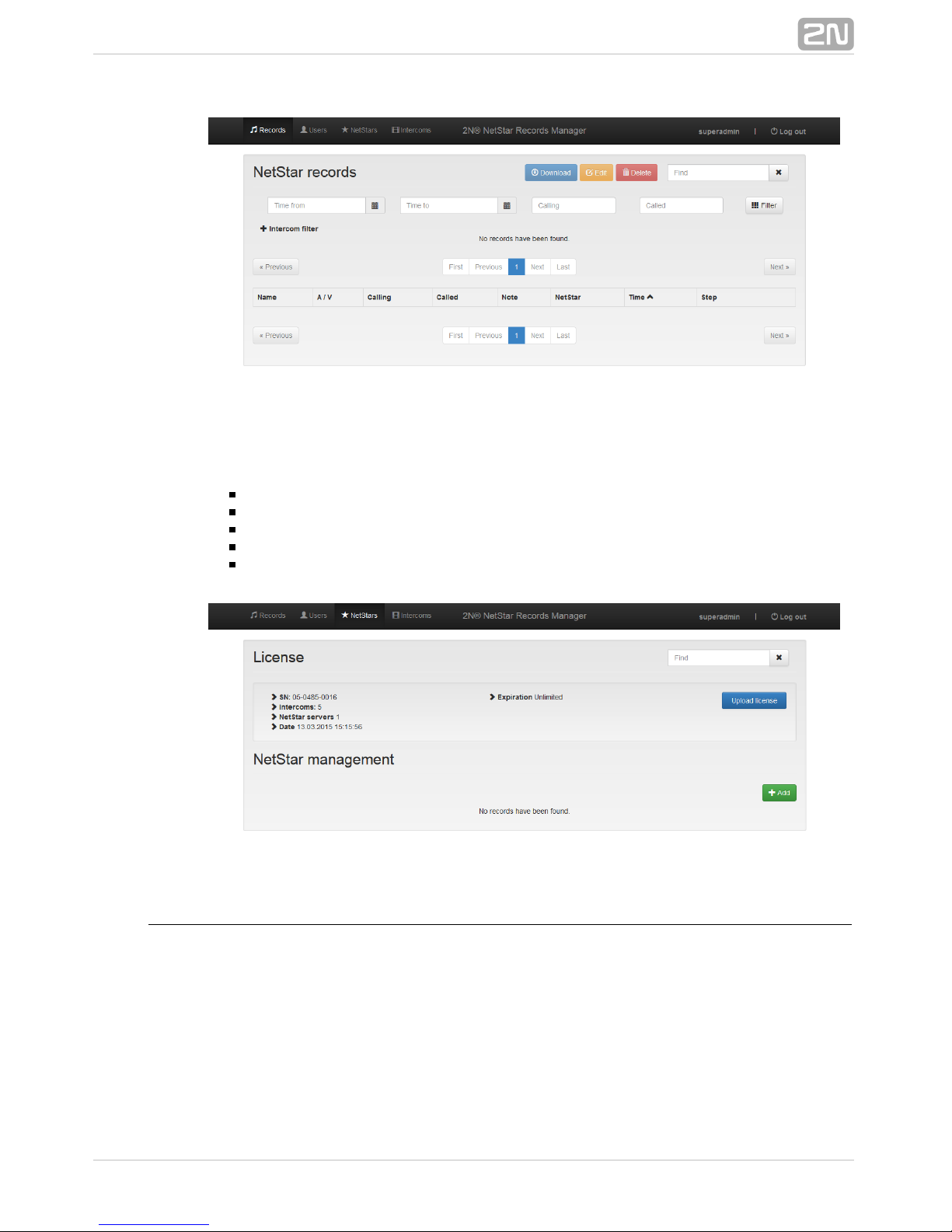

Click and then to upload the NetStars in the upper tool bar Upload licence
.2N® NetStar Records Manager licence
The following data are displayed after licence upload:
SN - serial number2N® NetStar
Intercoms - count of licensed intercoms2N® Helios
NetStar servers - count of licensed platforms2N® NetStar
Date - last licence verification date
Expiration - licence time validity
Add 2N® NetStar
Select in the upper tool bar and click to add .NetStars Add 2N® NetStar

132N TELEKOMUNIKACE a.s., www.2n.cz
®
NetStar - enter the connection name.
IP - enter the IP address. 2N® NetStar
Port - define the communication port (default port is ).2N® NetStar 6543
System user - set the user for authentication (we recommend2N® NetStar
you to create a special user in for this purpose).2N® NetStar
System password - enter the system user password.
(confirm)System password - re-enter the system user password for
confirmation.
Storage - select a folder from the list to the right to which recordings shall be
saved.

142N TELEKOMUNIKACE a.s., www.2n.cz
®

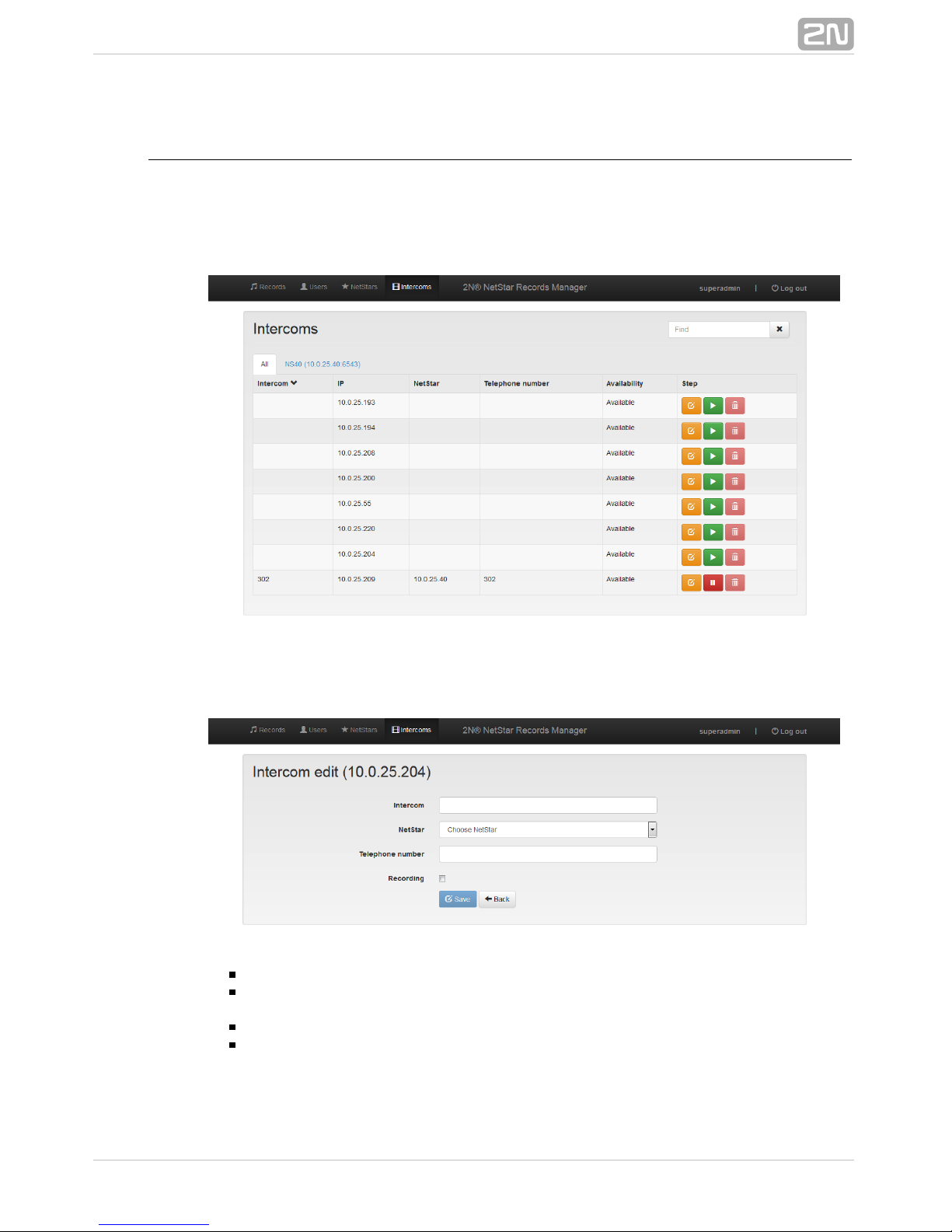

Add Intercom
The server adds intercoms automatically based on2N® NetStar Records Manager
the replies to the sent broadcast message. Thus, make sure that the intercoms are
located in one and the same broadcast domain or that the broadcast message is resent
by network elements.
Having added the intercoms, click Edit to complete the settings and activate video
recording from the intercom(s).
Intercom - enter the intercom name.2N® Helios
NetStar - select the with which the intercom is2N® NetStar 2N® Helios
registered.
Telephone number - enter the phone number.2N® Helios
Recording - activate / deactivate recording.

152N TELEKOMUNIKACE a.s., www.2n.cz
®
Use the field in the upper right-hand corner to search intercoms according to theFind
following parameters (Intercom, IP, NetStar, Telephone number):
Intercom - enter the name.2N® Helios
IP - enter the IP address.2N® Helios
NetStar - enter the IP address of the with which the 2N® NetStar 2N® Helios
intercom is registered.
Telephone number - enter the phone number. 2N® Helios
Availability - display information on availability.2N® Helios
Step
Intercom edit
Activate / Deactivate intercom
Delete intercom
Arrange the intercoms in any column. Click on the column name to2N® Helios
display an arrow: arrow up means descending order and arrow down means ascending
order.
Users
The tab provides a list of all users from all the s added. The usersUsers 2N® NetStar
are read automatically when the licence is added and can be updated 2N® NetStar
manually by clicking the Update icon. Each user is automatically assigned the lowest
role (Agent) at the beginning. Superadmin or Admin can change the user roles. The
Admin, Manager and Agent roles have the following rights:
Admin - has access to all records within the it is assigned to and2N® NetStar
may set user roles.
Manager - has access to its records and records of the users assigned to its
group.
Agent - views its records only.
Storage Mapping in 2N® NetStar
Storage mapping in via the NsAdmin configuration tool is the next step.2N® NetStar
Add a physical storage in the Global data – Storage Manager menu displayed using the
right mouse click (Add).
Caution
Make sure that the phone number matches the number under which the
intercom is registered with to avoid video recording error.2N® NetStar
Note
User login data and passwords are obtained from . Change2N® NetStar
the data and password via the menu in the NsAdminUsers – User rights
configuration tool. A subsequent password change via the
web interface changes the password in 2N® NetStar Records Manager
too.2N® NetStar

162N TELEKOMUNIKACE a.s., www.2n.cz
®
Enter the storage name and confirm.
Set Network as Storage type.
Access port - set the server address in the2N® NetStar Records Manager
\\ip_address\share format.
Free size (B) - define what space shall be used; enter -1 to use the whole disk
capacity.
Login - enter admin.
Password - enter the password used for installation (refer to Section 1 of this
manual).
Connect attempt in (s) - define when connection attempt shall be repeated after
storage failure.
After storage mapping, a row will be added to the table. If all theDetected Storages
parameters have been set correctly, the column will include the valuState Operating
e.
Now right-click on , select and selectVoice Record Add physical storage mapping
the currently added storage.
Having added the storage, select the and Move evidence of files to storage Keep
options.files removed from records
Enter the name of the record-saving directory created during installation into the Path
field.
Finally, set . Refer to the meRecord format .wav Global data - Global parameters
nu for settings.
Caution
Make sure that the network storage name does not include diacritics and
spaces.

172N TELEKOMUNIKACE a.s., www.2n.cz
®
3. 2N® NetStar Records Manager User Manual
Section content:
Login
Agent
Manager
Admin
Login
Log in with the user name and password assigned to you.
Agent
The upper tool bar provides the following options:
Records
User Settings - change the user password if necessary.
Log out - log out.
The start screen displays the tab including the list of records. Records

182N TELEKOMUNIKACE a.s., www.2n.cz
®
Records
Use the function to search records according to Name, Calling, Called, NoteFind
or Time.
The searched string need not be precise, you can enter just a part of the string.
Example: Enter '20' into the field to find all records including '20' in any columnFind
(Name, Calling, Called, Note, Time).
The following buttons are located next to the field:Find
Download - download records to a PC.
Edit - edit a note.
Delete
Click the buttons to operate the currently filtered records.
There four fields below the buttons ( ) for moreTime from, Time to, Calling, Called
detailed search and a button for search confirmation. Use this type of search forFilter
search in defined columns and an absolute match.
The last part of the tab provides a seven-column list of all or filtered-outRecords
records:

192N TELEKOMUNIKACE a.s., www.2n.cz
®
Name - record name
A / V - audio or video
Calling - calling number
Called - called number
Note - note to record
Time - recording time
Step - buttons for operations with selected records
Arrange the records in any column. Click on the column name to display an arrow:
arrow up means descending order and arrow down means ascending order.
The column includes four buttons for operations with selected records.Step
Click the first button to play a record, the second to edit a note, the third to delete a
record and the fourth to save a record into a PC.
There are tool bars above and below the list including the following buttons:
Previous records - is applied after 10,000 records
First - first list page
Previous - page preceding the current list page
Number of pages from 1 to 200 - list page number
Next - page following the current list page
Last - last list page
Next records - is applied after 10,000 records
One list page displays . When page 200 is reached (10,000 records), the 50 records
and buttons will become applicable and pagePrevious records Next records
numbering will be 1 to 200 again.

202N TELEKOMUNIKACE a.s., www.2n.cz
®
Manager
In addition to having all Agent properties, the Manager can also view records of the
users assigned to its group. Admin or Superadmin assigns users to groups.
Admin
Admin has all of the above mentioned Manager properties. Moreover, it can view all
records within one and use the option in the upper tool bar.2N® NetStar Users
Users
The tab includes all users of the selected .Users 2N® NetStar
Use the field in the right-hand upper corner to search users according to the User,Find
Role or NetStar (IP address/port) . parameters
The searched string need not be precise, you can enter a part of the string only.
Example: Enter '20' into the Find field to find all records including '20' in any column
(User, Role, NetStar).
