MODEL:
2CU-HDS104
FEATURES
Support AHD Analog High Definition Camera
25FPS (PAL) / 30FPS (NTSC) each channel recording
4CH Video / 4CH Audio Input, Full 1280H*720P Recording and playback
H.264 dual-stream video compression
Support 1*RS485 / 1*SATA (Max.4T)
Support 2.0 USB memory (USB flash Disk, USB HDD, USB CD/DVD Burner, etc.)
Support RJ45 (10M/100M) Network Interface
User Friendly GUI, front panel, IR remote control and mouse
Support multiple web browsers(IE, Chrome, Firefox, Safari)
Support Admin Vision DDNS
Support 255 Channels Admin Vision CMS free
Support VGA / HDMI Video output
Support Network Protocol: PPPOE, NTP, DNS, DDNS, FTP, etc.
Easy backup method: network download to remote client
Support main mobile remote monitoring (Windows / Symbian / iPhone / iPad /
Android / BlackBerry, etc.)
Support P2P and Cloud Technology, easy to achieve a variety of network
penetration, one step to remote monitoring, getting rid of various complicated
network settings, easy and simple to operate.
Perfect circuit protection & unique triple watchdog function ensure that the
equipment never crashes.
CAUTION
1.Do not attempt to disassemble the NVR device.
2.Handle the NVR with care.
3.The installation should be made by qualified service personnel or system installers.
4.Do not use strong or abrasive detergents when cleaning the NVR surface.
5.Clean the NVR surface with care.
6.Never face the NVR towards the sun.
7.Use the NVR at temperatures within –10 °C to +50 °C, and humidity below 90 %
RH and the storage temperatures should be within –20 °C to +60 °C and humidity
below 20% to 80 % RH.
8.Please operate the NVR within the specified power source ratings. Avoid connections
during a lightning storm. Otherwise, an electric shock may be caused.
OPERATING
INSTRUCTIONS
Thank you for your purchase of this product.
Before attempting to connect or operate this
product, please read these instructions completely.
The above drawing is for reference only.
!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
DO NOT REMOVE COVER (OR BACK),NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
CAUTION !
The lightning flash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the user
to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be
sufficient magnitude to constitute a
risk of electric shock to a person.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in literature accompanying the appliance.
MAIN MENU
Set Recording Parameters, including Record Configuration, Playback and
Backup.
1. Power Cable.......................................................................................................1PCS.
2. Power Adaptor...................................................................................................1PCS.
3. Remote Control..................................................................................................1PCS.
4. 2 Pin Wafer ........................................................................................................1PCS.
5. Operating Manual ..............................................................................................1PCS.
6. Mouse...............................................................................................................1PCS.
7. Black Sponge Washer.........................................................................................4PCS.
8. Screws ..............................................................................................................6PCS.
PACKAGE CONTENTS
Note: Factory default U Password: No Passwordser: Admin,
Main Menu
Record Alarm System
Advanced Info Logout
Display system statistics:Storage status; current online
users; recording bitrate.
Cancel
Set Alarm Parameters, including Motion Detect, Blind Detect, Video Loss
Detect, Exterior Alarm Detect and Output, and Abnormal Parameter Setup.
(This model does not support external alarm function)
Set System Parameters, including General Configuration, Encode, Network,
Network Service, GUI Display, PTZ Configuration, RS 232, Tour and Digital
channel parameter settings.
Set System Tools, including Storage, Account, Online User, Output Adjust,
Auto Maintain, Restore, Upgrade, Device Information, Import/Export.
Display System Statistics, including Storage Status, Current Online User, and
Recording Bitrate.
Logout the OSD menu or reset/restart the system.
Record Config: configure the recording time. Choose the recording
channel; set the time length of video files and prerecord time; three types
of record mode can be selected (Schedule, Manual & Stop).
Playback: search for and playback video files. Choose the channel and
date to playback videos. Through the control bar, user can control the play
pace, choose the frame and files, and edit & backup video files.
Backup: Backup the recorded files to local storage device. User can burn
the selected device or erase data for storage device.
Motion Detect: by analyzing video, when system detects sensitive
moving signal, it will start motion detect alarm. User can configure all
video detection parameters including channel, active area, sensitivity
levels, alarm output, etc.
Video Blind: when someone viciously masks lens, the system can alert
you to guarantee video continuity. User can set parameters including
channel, active area, sensitivity levels, alarm output, etc.
Video Loss: when video loss happens, the system will give user the video
loss alarm. User can set parameters including channel, active area, alarm
output, etc.
Alarm Input: user can set parameters including channel, period, type,
alarm output, etc. (This model does not support external alarm function)
Alarm Output: three modes of alarm output including Configuration,
Manual and Stop. (This model does not support external alarm function)
Abnormality: choose event type and alarm way. When the event happens,
alarm occurs.

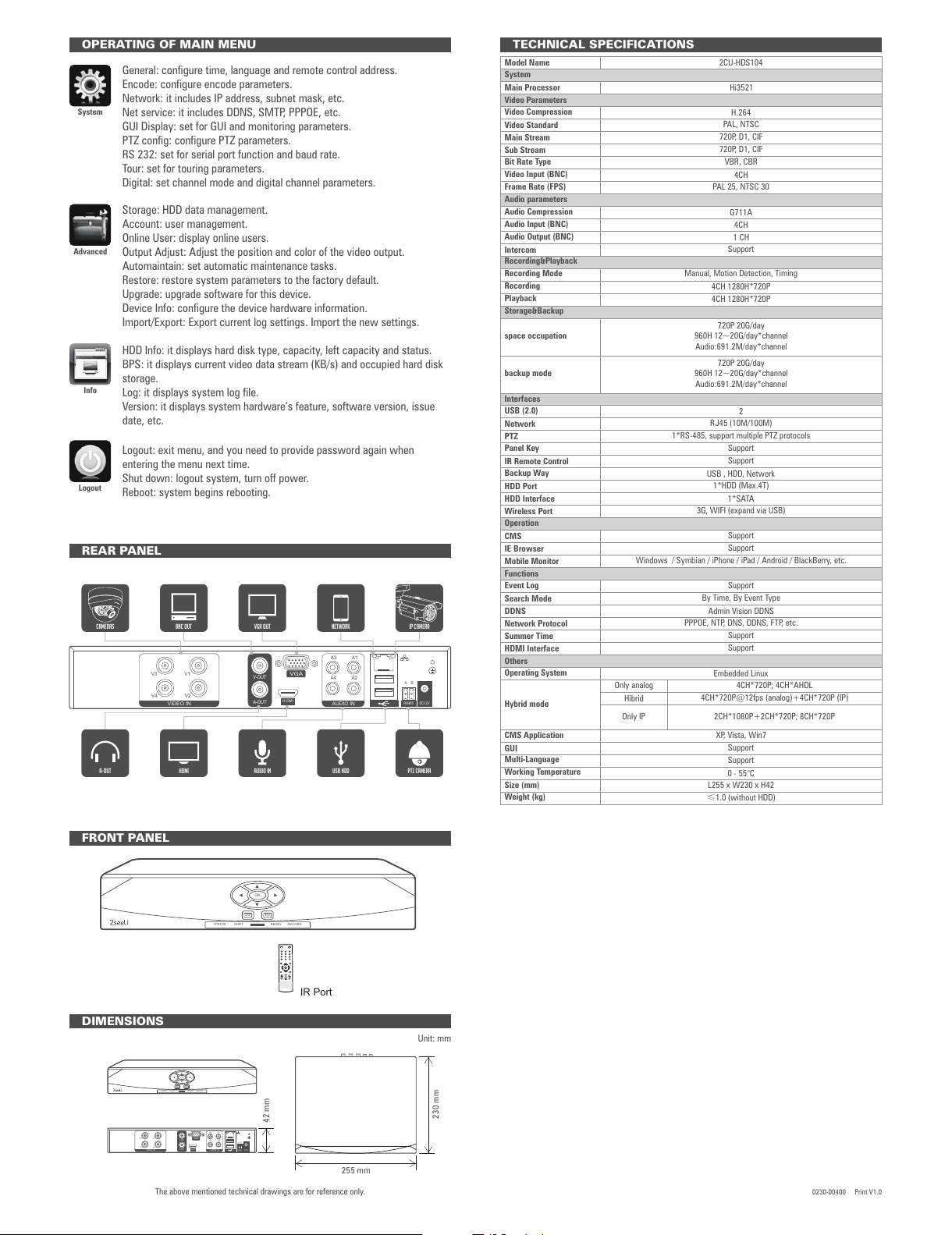

OPERATING OF MAIN MENU
Record
Alarm
STATUS SHIFT READY RECORD
OK
Shift Esc
