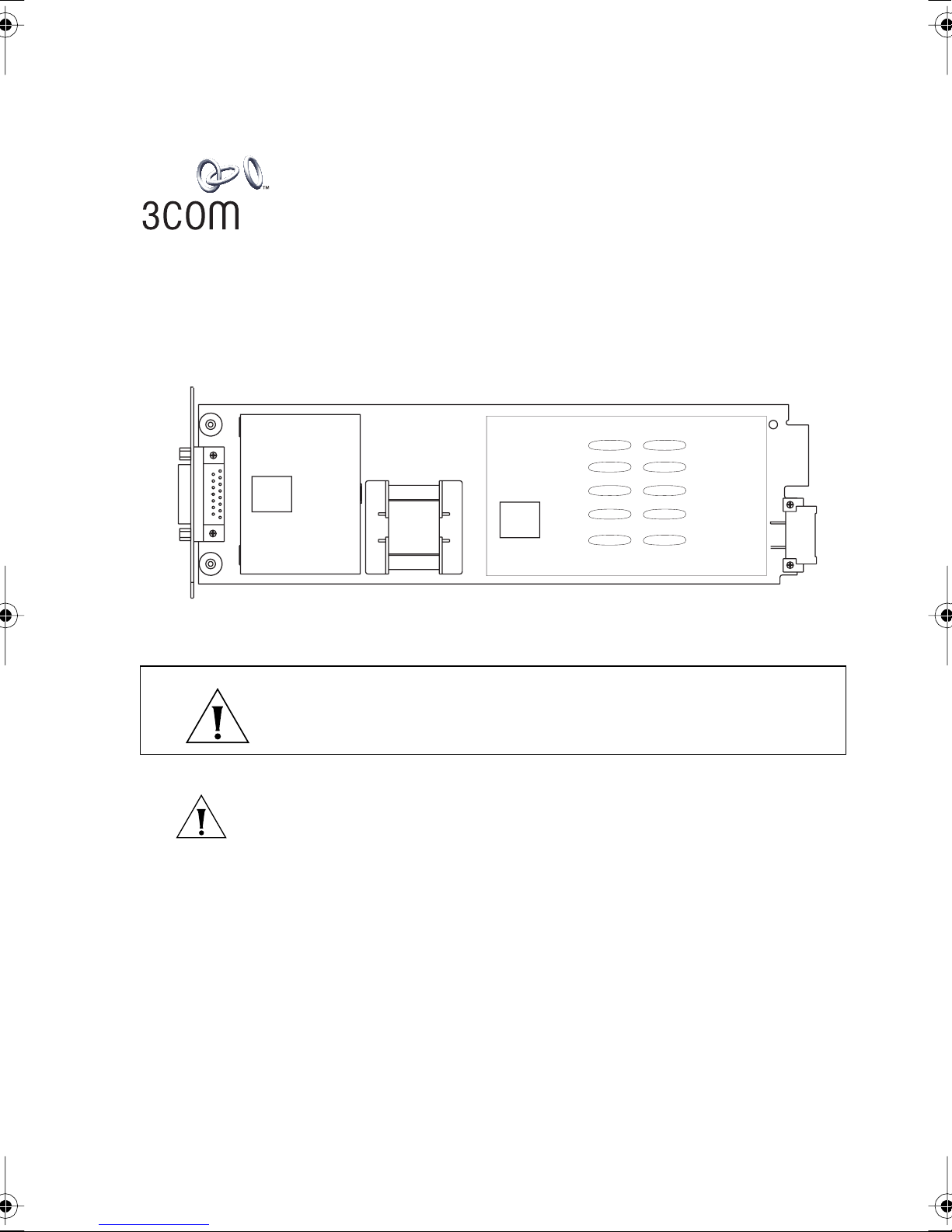

3Com 3C16075 User manual

SUPERSTACK®3 ADVANCED
RPS TYPE 3 POWER MODULE
(3C16075) INSTALLATION GUIDE
CAUTION: All installed Type 3 Power Modules must have a DC cable
or a protective cover fitted on completion of installation.
The Type 3 Power Module is a UL listed accessory for use only with
the UL listed Advanced RPS Chassis.
This guide provides all the information you need to install and use a
SuperStack®3 Advanced RPS Type 3 Power Module (3C16075).
This guide is intended for use by suitably qualified service personnel
who are responsible for installing and setting up network equipment.
For installation by suitably qualified
service personnel only.
DUA1607-5AAA02.fm Page 1 Tuesday, September 26, 2000 3:14 PM

2SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
Introduction
The Type 3 Power Module fits into the SuperStack 3 Advanced RPS
Chassis (3C16071, 3C16071A, or 3C16071B). The module provides
redundant power from the Advanced RPS chassis to the SuperStack 3
Switch 4900 Series.
You can use the Type 3 Modules in three ways:
■Standard Usage
Connect the power module to the SuperStack 3 unit using the
standard DC cable supplied with this module. Provide AC mains
supply to the Advanced RPS chassis only. The power module acts
as a highly reliable power supply that can be swapped in the
event of failure.
■Managed Redundancy.
Connect the power module to the SuperStack 3 unit using the
standard DC cable supplied with this module. Provide AC mains
supply to both the SuperStack 3 unit and the Advanced RPS
chassis. If the SuperStack 3 unit’s internal power supply fails, the
unit auto-enables the Advanced RPS. Alternatively, some
SuperStack 3 units use the Advanced RPS as their default power
supply, and if this fails they revert to their internal power supply.
Check the Getting Started Guide that accompanies your Switch
for more information. This set-up provides a managed redundant
(single module) configuration.
■Full Redundancy
Connect two Type 3 Modules to the SuperStack 3 unit using the
optional ‘Y’cable (3C16077) available from your supplier. Provide
AC mains supply to the Advanced RPS chassis only. If one, of the
modules fails, the other module will take the full load, and allow
you to “hot-swap”the faulty module, to return the system to full
redundancy. This set-up provides a fully redundant (resilient)
configuration.
CAUTION: If you need to replace a Type 3 Power Module used in a
full redundancy configuration, remove the ‘Y’ cable connection from
it before removing the module.
CAUTION: An energy hazard may exist on the Type 3 Power Module
DC connector when the Module is in the Advanced RPS chassis.
DUA1607-5AAA02.fm Page 2 Tuesday, September 26, 2000 3:14 PM

SuperStack 3 Advanced RPS Chassis Loading Limitations 3
SuperStack 3 Advanced RPS Chassis Loading Limitations
WARNING: Do not overload the chassis —refer to Table 1
“Maximum Number of Advanced RPS Power Modules per Chassis”to
determine loading limitations. It is important that the loading
limitations are not exceeded.
ATTENTION: Ne surchargez pas le châssis —référez-vous au
Tableau 1 "Maximum Number of Advanced RPS Power Modules per
Chassis" pour déterminer les limitations de charge. Il est important
que ces limitations de chargement ne soient pas excédées.
WARNUNG: Bitte überlasten Sie nicht das Chassis —
bezugnehmend auf Tabelle 1 "maximale Anzahl der Advanced RPS
Powermodule per Chassis" und halten Sie die Limitierung ein. Es ist
wichtig, daßSie die Limitierung nicht überschreiten.
Details of the permitted combinations of modules and 3Com
products are also given in Appendix C of the Advanced RPS Chassis
User Guide (DUA1607-0AAA0x).
Redundant (Single Module) Configuration
The maximum output DC power of the Advanced RPS is 480 W.
However, this can be exceeded only when installing two Type 3
Modules with no other power modules fitted. All other power
module combinations must not exceed 480 W. Refer to Table 1 for
more information on chassis loading limitations.
Fully Redundant (Resilient) Configuration
If you use two Type 3 Modules, connected by a ’Y’cable in full
redundancy mode, these two modules count as one. This is because
a pair of power modules connected with a ‘Y’cable draws the same
power as a single power module. In this configuration the modules
power-share, that is, the power drawn by both modules is the same
as that drawn by one module in the single module configuration,
however the ratio the power is drawn by each module can vary, for
example, 50:50, 40:60, and so on.
CAUTION: You must not pair power modules of different types and
power ratings, for example, do not pair a 60 W Type 1 with a 100 W
Type 1, a Type 2 or Type 2A with a Type 3, and so on.
DUA1607-5AAA02.fm Page 3 Tuesday, September 26, 2000 3:14 PM

4SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
Figure 1 shows the rear view of an Advanced RPS chassis and the
power module slot numbers to help you determine which slots to use
for your Type 3 Modules to meet the permitted configurations
detailed in Table 1.
Figure 1 Advanced RPS Chassis Rear View
DUA1607-5AAA02.fm Page 4 Tuesday, September 26, 2000 3:14 PM

SuperStack 3 Advanced RPS Chassis Loading Limitations 5
Table 1 Maximum Number of Advanced RPS Power Modules per Chassis
Configuration Type 1 60 W
Module (3C16072)
Type 1 100 W Module
(3C16073), Type 2 (100
W) Module (3C16074),
or Type 2A (100 W)
Module (3C16074A) Type 3 Module
(325 W) (3C16075)
A 8 none none
B 7 none none
C 6 1 none
D 5 1 none
E 4 2 none
F 3 3 none
G 2 3 none
H 1 4 none
Inone 4none
J*
* Install the power modules in slots 7 and 8.
none 1 1
K†
†Install the 100 W and Type 3 Module in slots 7 and 8, and the 60 W Module in slot 5 or 6, whichever
is next to the 100 W Module.
1 1 1
L‡
‡Install the Type 3 Module in slot 7, and the 60 W Modules in slots 8 and 5.
2none 1
M**
**Install two Type 3 Modules in the chassis using single DC cables, that is, both modules drawing
power separately. If using this configuration, install the modules in slots 7 and 8.
none none 2
N††
††Install four Type 3 Modules in the chassis using the optional ‘Y’cable. Two modules that are paired,
power-share at any one time. If using this configuration, install the four modules in slots 5, 6, 7, and
8. Connect the ‘Y’cables across slots 7 and 5, and 8 and 6 respectively, that is, the power modules in
slots 7 and 5 are paired, and the power modules in 8 and 6 are paired.
none none 4
DUA1607-5AAA02.fm Page 5 Tuesday, September 26, 2000 3:14 PM

6SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
Safety Information
You must read the following safety information before carrying out
any installation or removal of components, or any maintenance
procedures on the SuperStack 3 Advanced RPS.
WARNING: Warnings contain directions that you must follow for
your personal safety. Follow all directions carefully.
You must read the following safety information carefully before you
install or remove the unit.
AVERTISSEMENT: Les avertissements présentent des consignes que
vous devez respecter pour garantir votre sécuritépersonnelle. Vous
devez respecter attentivement toutes les consignes.
Nous vous demandons de lire attentivement les consignes suivantes
de sécuritéavant d’installer ou de retirer l’appareil.
WARNHINWEIS:Warnhinweise enthalten Anweisungen, die Sie zu
Ihrer eigenen Sicherheit befolgen müssen. Alle Anweisungen sind
sorgfältig zu befolgen.
Sie müssen die folgenden Sicherheitsinformationen’sorgfältig
durchlesen, bevor Sie das Gerät installieren oder ausbauen.
Important Safety Information
Installation and removal of the unit must be carried out by suitably
qualified service personnel only.
WARNING: Please read the following safety information in
conjunction with the safety information contained in the the
Advanced RPS Chassis User Guide before installing the module.
■Use only the special cables designed and supplied for this
product.
■3Com require that you confirm that your chassis supports the
dual phase feature by checking that “3C16071A”or
“3C16071B”appears on the serial number label on the base of
the chassis, the front panel overlay, and also on the packaging
label. If the “A”or “B”suffix is not shown, the 3C16071 does
not provide dual phase support and must be powered from AC
sources of the same phase.
■Disconnect both AC power leads before servicing.
■Do not fit a Type 3 ‘Y’cable to a Type 3 Power Module that is
being used in a single module configuration.
DUA1607-5AAA02.fm Page 6 Tuesday, September 26, 2000 3:14 PM

Safety Information 7
■When you connect DC cables to a Type 3 Power Module you must
tighten the screws on all DC cable connectors with a suitable tool.
■When connecting a DC cable to the power module, you must
take off the D-type connector protective cover by removing the
fixings with a suitable tool. Keep the cover and the fixings in a
safe place. If you disconnect the DC cable at any time, you must
then replace the protective cover.
CAUTION: An energy hazard may exist on the Type 3 Power Module
DC connector when the Module is in the Advanced RPS chassis.
L’information de SécuritéImportante
L'installation et la depose de l'unitésont àeffectuer uniquement par
du personnel de maintenance competent.
AVERTISSEMENT: Veuillez lire les informations de sécuritésuivantes
conjointement avec les informations de sécuritéfigurant dans le
guide d'utilisation du Advanced RPS Chassis, avant d'installer le
module.
■Utilisez uniquement les câbles spécialement conçus et livrés pour
ce produit.
■A la requête de 3Com, vous devez confirmer que votre châssis
fournit la fonction double phase en vérifiant que le numéro
3C16071A ou 3C16071B est indiquésur l'étiquette du numéro
de série en bas du châssis, sur le panneau avant et également sur
l'étiquette d'emballage. Si le suffixe A ou B n'est pas indiqué, le
3C16071 ne fournit pas la fonction double phase et il faut le
mettre sous tension àpartir des sources de courant alternatif de la
même phase.
■Débranchez les conducteurs électriques secteur avant de procéder
àune intervention d'entretien courant.
■Il ne faut pas installer un câble ‘Y’Type 3 sur un module de
puissance Type 3 utilisédans une configuration àmodule unique.
■Pour connecter un câble d’alimentation DC au module
d’alimentation Type 3 , vous devez d’abord ôter le capot de
protection du connecteur D-type en retirant les attaches àl’aide
d’un outil approprié. Conservez le capot et les attaches en lieu
sûr. Si vous devez déconnecter le câble CC, il vous faudra en effet
les remettre en place.
DUA1607-5AAA02.fm Page 7 Tuesday, September 26, 2000 3:14 PM

8SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
CAUTION: Un défaut fugitif d’alimentation peut exister au niveau du
connector su Power Module de Type 3 lorsque ce module est dans le
chassis RPS avancé.
Wichtige Sicherheitsinformationen
Der Ein- und Ausbau der Anlage ist nur von ausgebildetem
Wartungspersonal auszuführen.
WARNUNG: Bitte lesen Sie die folgenden Sicherheitsinformationen
in Verbindung mit den Sicherheitsinformationen, die in der
Bedienungsanleitung für das Advanced RPS Chassis enthalten sind,
bevor das Modul installiert wird.
■Ausschließlich die für dieses Produkt konstruierten und
gelieferten Spezialkabel benutzen.
■3Com verlangt von Ihnen die Bestätigung, daßIhr Chassis die
duale Phasenfunktion unterstützt, indem Sie nachprüfen, daß
"3C16071A" oder “3C16071B”auf der Seriennummernplakette
an der Chassis-Basis, am Frontplatten-Overlay sowie am
Verpackungsetikett erscheint. Falls weder A moch B im suffix
erscheint, sorgt 3C16071 nicht für duale Phasenunterstützung
und mußvon AC-Quellen derselben Phase gespeist werden.
■Vor Wartungsarbeiten müssen beide Wechselstromnetzkabel
abgezogen werden.
■Ausschließlich die für dieses Produkt konstruierten und
gelieferten Spezialkabel benutzen.
■Kein ‘Y' Kabel Typ 3 an ein Power Module Typ 3, das in einer
Einzelmodul-Konfiguration benutzt wird, montieren.
■Bei Verwendung von Power Module-Gleichstromkabeln Typ 3
müssen sämtliche Schrauben mit einem geeigneten Werkzeug
angezogen werden.
■Bevor ein DC-Kabel an das Stromversorgungsmodul Typ 3
angeschlossen werden kann, mußdie Steckerschutzabdeckung
Typ D entfernt werden, indem die Befestigungsschrauben mittels
eines geeigneten Werkzeuges gelöst werden.
Die Abdeckung und Befestigungsschrauben sicher aufbewahren.
Wird das DC-Kabel wieder abgezogen, muss die
Schutzabdeckung wieder angebracht werden.
DUA1607-5AAA02.fm Page 8 Tuesday, September 26, 2000 3:14 PM

Installing the Power Module 9
CAUTION: Wenn sich das Type 3 Power Module im Advanced RPS
Chassis befindet kann es zu einer Energiegefahr am DC Stecker
kommen.
Installing the Power Module
CAUTION: Never plug a hot power module into the Advanced RPS.
You may damage the power module. Allow sufficient time
(approximately 1 minute) for the module to cool down before
inserting it into the power module slot.
CAUTION: It is important that the power modules are cooled
effectively. We strongly recommend installing the power modules as
evenly as possible between the top and bottom slots. Refer to Table 1
for recommendations on slot configurations for the Type 3 Module.
You can “hot-insert”the Type 3 Module into the chassis, that is, you
do not need to remove mains power from the chassis before you
insert a power module.
1Take off the blanking plate by removing the fixing screw. Keep the
blanking plate and screw in a safe place. If you remove the module at
any time, you must replace the blanking plate to maintain the flow of
cooling air within the chassis.
2Hold the power module so that the text on the front panel is upright,
and insert it into the chassis, sliding the module into the runners.
Push firmly to ensure the connectors are fully engaged.
3Secure the module with the screws provided using a suitable tool.
CAUTION: When removing a power module that has just been
operating, beware of hot components.
CAUTION: Do not operate the Advanced RPS continuously with any
of the rear slots open. This will disturb the flow of cooling air and
reduce the life of your unit.
DUA1607-5AAA02.fm Page 9 Tuesday, September 26, 2000 3:14 PM

10 SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
Connecting the DC Cables
Standard Type 3 Module DC Cable
To connect a standard Type 3 Module DC cable (supplied with this
module) to provide redundancy to your SuperStack 3 unit:
1Ensure the Type 3 Power Module is in the Advanced RPS chassis
before connecting or disconnecting a standard DC cable or the
protective cover.
CAUTION: An energy hazard may exist on the Type 3 Power Module
DC connector when the Module is in the Advanced RPS chassis.
2Check that you are about to connect the Type 3 Module (3C16075)
with the Type 3 standard DC cable supplied with the module.
3Connect the cable’s male connector to the Redundant Power System
socket on the rear of the SuperStack 3 unit.
4Connect the cable’s female connector to the Type 3 Module outlet
fitted into the rear of the Advanced RPS chassis.
5Tighten the screws on all DC cable connectors with a suitable tool.
Optional ‘Y’DC Cable
To connect the ‘Y’cable (3C16077) to provide full redundancy
(resilience) to your SuperStack 3 unit:
1Ensure the Type 3 Power Module is in the Advanced RPS chassis
before connecting or disconnecting the optional ‘Y’DC cable.
CAUTION: An energy hazard may exist on the Type 3 Power Module
DC connector when the Module is in the Advanced RPS chassis.
2Check that you are about to connect Type 3 Modules (3C16075) with
the Type 3 ‘Y’cable (3C16077).
3Connect the male connector to the Redundant Power System socket
on the rear of the SuperStack 3 unit.
4Connect one female connector to each of two Type 3 Module outlets
fitted into the rear of the Advanced RPS chassis.
5Tighten the screws on all DC cable connectors with a suitable tool.
Further details of how to use the ‘Y’cable are given in the guide that
accompanies the cable.
DUA1607-5AAA02.fm Page 10 Tuesday, September 26, 2000 3:14 PM

Technical Information 11
CAUTION: Do not attempt to use a ‘Y’cable to power two separate
SuperStack 3 units. The equipment may not operate.
CAUTION: All DC cable screws must be tightened with a suitable
tool.
Technical Information
Troubleshooting
If the LEDs on the SuperStack 3 Advanced RPS Chassis indicate a
problem refer to Table 2, which contains a list of problems and
possible faults.
If you have a problem that is not listed here and you cannot solve it,
please contact your local technical support representative.
Table 2 Problems indicated by LEDs
Mechanical
Weight 633 g (22 oz)
Size 276 x 87 x 42 mm (10.8 x 3.4
x 1.6 in.)
Electrical - Maximum Current Available
+27.0 volts 12.5 A
Power Consumption
Typical Input Power: 395 W
Total continuous output: 325 W
Problem Possible Fault
No Input LED ON ■Mains power is not present.
■AC power cord is incorrectly connected.
■Power cord may be faulty.
■LED failed. Contact your supplier.
DUA1607-5AAA02.fm Page 11 Tuesday, September 26, 2000 3:14 PM

12 SUPERSTACK®3 ADVANCED RPS TYPE 3 POWER MODULE (3C16075) INSTALLATION GUIDE
Should you be unable to rectify the problem, consult your supplier
with the following information:
■Product number and power module serial number
■Brief description of the fault
Copyright © 2000, 3Com Technologies. All rights reserved.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States
and may or may not be registered in other countries.
3Com and SuperStack are registered trademarks of 3Com Corporation. The 3Com logo is a
trademark of 3Com Corporation.
Other brand and product names may be registered trademarks or trademarks of their
respective holders.
Part No. DUA1607-5AAA02
Published September 2000
Power module present,
No Output LED ON ■Power module is incorrectly installed.
■DC cable is not connected.
■SuperStack 3 unit is not connected.
■SuperStack 3 unit does not require RPS power.
■LED failed. Contact your supplier.
Power module present,
Yellow LED ON ■Power module connected to SuperStack 3 unit whose requirement exceeds the DC output available.
■Power module output is out of specification. Contact
your supplier.
■Power module has failed. Contact your supplier.
Problem Possible Fault
DUA1607-5AAA02.fm Page 12 Tuesday, September 26, 2000 3:14 PM
