SuperStack®II
Remote Access System 1500
Quick Setup Guide
Release 2.0
Part No. 10030338 AA
December, 1999

3Com Corporation
5400 Bayfront Plaza
Santa Clara, California
95052-8145
Copyright © 1999, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced
in any form or by any means or used to make any derivative work (such as translation, transformation, or
adaptation) without written permission from 3Com Corporation.
3Com Corporation reserves the right to revise this documentation and to make changes in content from time
to time without obligation on the part of 3Com Corporation to provide notification of such revision or change.
3Com Corporation provides this documentation without warranty of any kind, either implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
3Com may make improvements or changes in the product(s) and/or the program(s) described in this
documentation at any time.
UNITED STATES GOVERNMENT LEGENDS:
If you are a United States government agency, then this documentation and the software described herein are
provided to you subject to the following:
United States Government Legend: All technical data and computer software is commercial in nature and
developed solely at private expense. Software is delivered as Commercial Computer Software as defined in
DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided
with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is
provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14
(June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided
on any licensed program or documentation contained in, or delivered to you in conjunction with, this
User Guide.
[Portions of this documentation are reproduced in whole or in part with permission from (as appropriate).]
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may
not be registered in other countries.
3Com, the 3Com logo, and SuperStack are registered trademarks of 3Com Corporation.
Intel and Pentium are registered trademarks of Intel Corporation. AIX, Appletalk, AT, CompuServ, IBM,
NetView, and OS/2 are registered trademarks and Warp is a trademark of International Business
Machines Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of
Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc.
Other brand and product names may be registered trademarks or trademarks of their respective holders.

iii
CONTENTS
ABOUT THIS GUIDE
Finding Specific Information ix
Conventions ix
Related Product Documentation and Information ix
Contacting 3Com x
1INSTALLING THE RAS 1500 HARDWARE
Before you Begin 1-1
Required Equipment 1-1
You Should Have Received 1-2
Optional Components 1-2
Installing the RAS 1500 System 1-3
Installing the
RAS 1500 System
in a Stack 1-3
Installing the
RAS 1500 System
in a Rack 1-3
Rack Installation Guidelines 1-4
Grounding the
RAS 1500 1-5
I/O Module 1-5
Front Panel Description 1-6
Connecting the Cables 1-7
Router Unit and Port Expansion Unit Cabling 1-8
Router Unit and Primary Rate Access Unit Cabling 1-9
Powering the RAS 1500 On or Off 1-10
Powering On the RAS 1500 1-10
Powering Off the RAS 1500 1-10
Connecting the STACKNET Cables 1-10

iv
2CONFIGURING THE RAS 1500 SOFTWARE
Overview 2-1
Before You Begin 2-2
Initial Configuration from PCs Running Microsoft Windows 95, 98, or
NT 2-2
Initial Configuration from UNIX-based Platforms 2-5
Accessing The CLI 2-5
Configuring the Port Expansion Unit with the CLI 2-8
Getting CLI Help 2-9
Additional CLI Information 2-9
Using the Web Configuration Interface from PC and UNIX-based
Platforms 2-9
Viewing Online Help 2-27
ADESCRIPTION OF LEDS
RAS 1500 LEDs A-1
Power and Status LEDs A-1
WAN Port LEDs A-1
LAN Port LEDs A-2
BRI-ISDN I/O
Module LEDs A-3
Analog I/O
Module LEDs A-3
Primary Rate Access Unit (PAU) Alarms A-4
BCONFIGURATION ASSISTANCE
Configuration Worksheet B-1
BRI-ISDN Users B-1
PRI-ISDN Users B-1
IPX users B-1
NOS Users B-2
RADIUS Users B-2
UNIX SYSLOG users B-2
Users with an ISP B-2
Users connecting to a remote LAN B-2
ISDN Provisioning Service B-3

v
CT
ECHNICAL SPECIFICATIONS
Certification C-1
United States C-1
Analog V.34 Model: FCC Part 68 Compliance Statement C-2
Canadian Installations C-2
Other Specifications C-3
Safety C-3
Physical Dimensions C-3
Interfaces C-3
Power Requirements C-4
D3COM LIMITED WARRANTY
ET
ECHNICAL SUPPORT
Online Technical Services E-1
World Wide Web Site E-1
3Com FTP Site E-1
3Com Bulletin Board Service E-2
3ComFacts Automated Fax Service E-3
Support from Your Network Supplier E-3
Support from 3Com E-3
Returning Products for Repair E-5
INDEX

ABOUT THIS GUIDE
This guide describes how to install and configure the SuperStack® II
Remote Access System 1500. It covers configuration information for
setting up the following four basic services through the browser-based
Web Configuration Interface.
■Dial In Access
■Shared ISP Access
■LAN-to-LAN Routing
■Individual Dial Out Access
For configuring additional features, refer to the System Management
Guide.
The table below contains information on tasks you will perform to install
and configure the RAS 1500. Please read and follow this information.
Task What is Performed What is Required
1Order ISDN line provisioning from
the Telephone Company
Switch type and switch parameters
2Obtain MAC Address of RAS 1500 Locate sticker on back of RAS 1500
containing MAC Address. Write
down number here:
___________________
3Ensure all Router Units are running
Release 2.0
Refer to the Firmware Upgrade
document and follow procedures for
upgrading from Release 1.0 or 1.5 to
2.0.

viii ABOUT THIS GUIDE
The RAS 1500 Release Notes for Release 2.0 shipped with this product
may contain more recent hardware installation and software
configuration information. Therefore, if the information in the Release
Notes differs from the information in this guide, follow the instructions in
the release notes.
4Obtain the following information:
IP address to assign to the RAS
1500
IP Network Mask
Community string (SNMP
password)
Default Gateway Address
Default Gateway Metric
DNS Server Address
DNS Server Domain Name
IP Addresses to assign to incoming
calls
User names and passwords (if using
local authentication)
See your system administrator.
Record information in the spaces
provided here:
5Install the RAS 1500 Hardware See Chapter 1.
6Configure an IP Address for the
RAS 1500
PC Users running Microsoft
Windows 95, 98 or NT:
Insert the CD ROM. See Chapter 2.
UNIX Users: UNIX systems initially
require the IP address and subnet
mask setup using the CLI.
CD does not apply. See Chapter 2
7Configure features of the RAS
1500
Use the Setup Wizard in the Web
Configuration Interface. See Chapter
2.
Task What is Performed What is Required

Finding Specific Information ix
Finding Specific
Information
This table shows the location of specific RAS 1500 information.
Conventions This table lists conventions that are used throughout this guide.
Related Product
Documentation and
Information
The SuperStack® II Remote Access System 1500 documentation set
includes the following documents:
■SuperStack® II Remote Access System 1500 Release Notes
These notes provide information about the system software release,
including new features and bug fixes. It also provides information
about any changes to the RAS 1500 system documentation. Release
notes are enclosed in the RAS 1500 package and are available at
http://www.3com.com/ras1500.
■SuperStack® II Remote System 1500 System Management Guide
This guide describes how to configure your RAS 1500. It is located on
the RAS 1500 Resource CD-ROM in .pdf format and at the 3Com Web
Site http://www.3com.com/ras1500.
If you are looking for this information Turn to
Latest changes to the documentation Release Notes
Installing the RAS 1500 Hardware Chapter 1
Configuring the RAS 1500 Software Chapter 2
Description of LEDs Appendix A
Configuration Assistance Appendix B
Technical Specifications Appendix C
Warranty Information Appendix D
Technical Support Appendix E
Table 1 Notice Icons
Icon Notice Type Description
Information note Important features or instructions
Caution Information to alert you to potential damage to a
program, system, or device
Warning Information to alert you to potential personal injury

xABOUT THIS GUIDE
■Web Configuration Online Help
This online help file describes how to use the Web Configuration
Interface to configure your RAS 1500. It can be accessed by clicking
Help from the banner tool bar located in all screens of the
browser-based Web Configuration Interface.
■SuperStack® II Remote Access System 1500 System Reference Guide
Describes how to configure your RAS 1500 system using the
Command Line Interface (CLI). It is located on the RAS 1500 Resource
CD-ROM in .pdf format and at the 3Com Web Site
http://www.3com.com/ras1500.
■SuperStack® II Remote Access System 1500 I/O Module Installation
Guide
Describes how to install an I/O module in a Router Unit or Port
Expansion Unit. It is located on the RAS 1500 Resource CD-ROM in
.pdf format and at the 3Com Web Site
http://www.3com.com/ras1500
■SuperStack® II Remote Access System 1500 Firmware Upgrade
Describes how to upgrade the RAS 1500 from Software Release 1.0 or
1.5 to 2.0. It is enclosed in the RAS 1500 package and is available at
http://www.3com.com/ras1500.
You can find additional SuperStack® II RAS 1500 product information on
the 3Com Web Site:
http://www.3Com.com/ras1500
Contacting 3Com Use this chart as a reference when you need to contact 3Com.
For a complete listing of support and contact numbers, refer to Appendix
E, “Technical Support.”
Contacting 3Com
3Com Corp. - 5400 Bayfront Plaza - P.O. Box 58145 - Santa Clara, CA - 95052-8145
Internet http://support.3Com.com

1INSTALLING THE RAS 1500
HARDWARE
This chapter contains the following information:
■Before you Begin
■Installing the RAS 1500 System
■Grounding the RAS 1500
■I/O Module
■Front Panel Description
■Connecting the Cables
■Powering the RAS 1500 On or Off
■Connecting the STACKNET Cables
Before you Begin Before you begin installation:
■Confirm you have the required equipment
■Check that your RAS 1500 package is complete (see page 1-2)
Required Equipment This section discusses the hardware and software requirements for
configuring the RAS 1500.
Hardware Requirements
A Pentium PC or UNIX workstation with the following hardware
requirements:
■32 MB RAM
■40 MB free Hard Drive storage space
■Mouse
■TCP/IP configured

1-2 CHAPTER 1: INSTALLING THE RAS 1500 HARDWARE
Software Requirements
The Web Configuration Interface, the browser-based tool for setting up
features of this release, requires Netscape Navigator 4.0 or Internet
Explorer 4.0 running on Windows 95, 98, or NT 4.0 (with the latest
service pack from Microsoft), or UNIX.
The Web Configuration Interface runs from the Web browser after the IP
address for the RAS 1500 has been configured. If you are running
Windows 95, 98, or NT, the IP address is set using the IP Wizard that you
will access from the splash screen on the CD. If you are using a
UNIX-based platform, the IP address has to be set through the console
monitor.
You Should Have
Received
You should have received the following items with your Router Unit:
■SuperStack®II RAS 1500 Router Unit
■AC power cord
■Null modem cable for console management
■Ethernet cable
■Cable-guide mounting brackets
■Flat-head mounting bracket screws
■Rubber feet
■Resource CD-ROM
■User documentation:
■RAS 1500 Release 2.0 Quick Setup Guide
■RAS 1500 Release 2.0 Release Notes
■RAS 1500 Release 2.0 Firmware Upgrade
■Dual-end compact screwdriver
If your RAS 1500 box does not contain all items listed above, contact
3Com Technical Support in your country. See Appendix D, “Warranty
Information,” for information.
Optional
Components
You can purchase the following items separately:
■WAN cables: V.35, X.21
■I/O Modules: 4-port V.34 modem module and cables, 2-port ISDN BRI
module and cables

Installing the RAS 1500 System 1-3
■Port Expansion Unit — Each router unit supports up to two Port
Expansion Units.
■Primary Rate Access Unit — Each router unit supports a single Primary
Rate Access unit.
Installing the RAS
1500 System
The RAS 1500 system consists of a Router Unit (RM), Port Expansion Unit
(PEM), and Primary Rate Access Unit (PAU). You can install the RAS 1500
either as part of a stack of equipment or in a standard 19-inch rack.
RAS 1500 installations are limited to a Router Unit and two Port
Expansion Units or a Router Unit and a Primary Rate Access Unit. When
adding a Port Expansion Unit or Primary Rate Access Unit, make sure the
router module operational code is upgraded to match the appropriate
version.
WARNING: To avoid personal injury or damage to the unit, make sure the
stack or rack into which you install RAS 1500 is placed on a stable
surface.
Installing the
RAS 1500 System
in a Stack
Use the following steps to install a Router Unit, Port Expansion Unit, or
Primary Rate Access Unit in a stack:
1Peel each rubber foot from the adhesive sheet and attach it to the
bottom of the unit. Use the circular marks on the bottom of the unit as
guides.
2Place the unit into an existing stack of equipment, or on a smooth, level
surface.
Installing the
RAS 1500 System
in a Rack
Use the following steps to install a Router Unit, Port Expansion Unit, or
Primary Rate Access Unit into a standard 19-inch rack:
For rack installations, do not attach the rubber feet to the unit.
1Fully extend the cable guides on the enclosed mounting brackets.
2Fasten the mounting brackets to both sides of the unit using the enclosed
screws and a Phillips-head screwdriver.

1-4 CHAPTER 1: INSTALLING THE RAS 1500 HARDWARE
Figure 1-1 Fastening the Mounting Brackets to the Route Unit
3Mount the units in the rack.
RAS 1500 units can be mounted in any order, but for ease of
management, we recommend you install RAS 1500 Router Unit on the
bottom of the stack or rack.
Rack Installation
Guidelines
Follow these guidelines when you install RAS 1500 in a rack.
■Operating Ambient Temperature — If the RAS 1500 is installed in a
closed or multi-unit rack assembly, the operating ambient temperature
of the rack environment may be greater than room ambient
temperature. Therefore, we recommend that you install the
equipment in an environment compatible with the RAS 1500’s
maximum rated ambient temperature. Refer to Appendix C,
“Technical Specifications,” for details.
■Air Flow — Install the RAS 1500 so that the rack has enough air flow
for safe operation.
If the RAS 1500 fails while in a rack, you might have to allow more
spacing between the other equipment in the rack to provide more air
flow.
■Mechanical Loading — To avoid a hazardous condition, mount the
equipment in the rack evenly and place the rack on a stable surface.

Grounding the RAS 1500 1-5
■Circuit Overloading — Make sure the RAS 1500 is properly
connected to the power supply circuit. This circuit should include
overcurrent protection and proper power supply wiring.
■Grounding — Maintain reliable grounding of the rack-mounted
RAS 1500. Do not connect the RAS 1500 to a power supply
connection other than the branch circuit.
Grounding the
RAS 1500
Stack installation of a Router Unit and at least one Port Expansion Unit, or
a Primary Rate Access Unit requires proper grounding. Grounding straps
are enclosed in the accessories kit. Install them as follows:
1Remove one cover screw on Router Unit and the Port Expansion Unit or
Primary Rate Access Unit.
2Install a ground strap between the Router Unit cover and the Port
Expansion Unit/Primary Rate Access Unit cover and reinstall the screws as
shown.

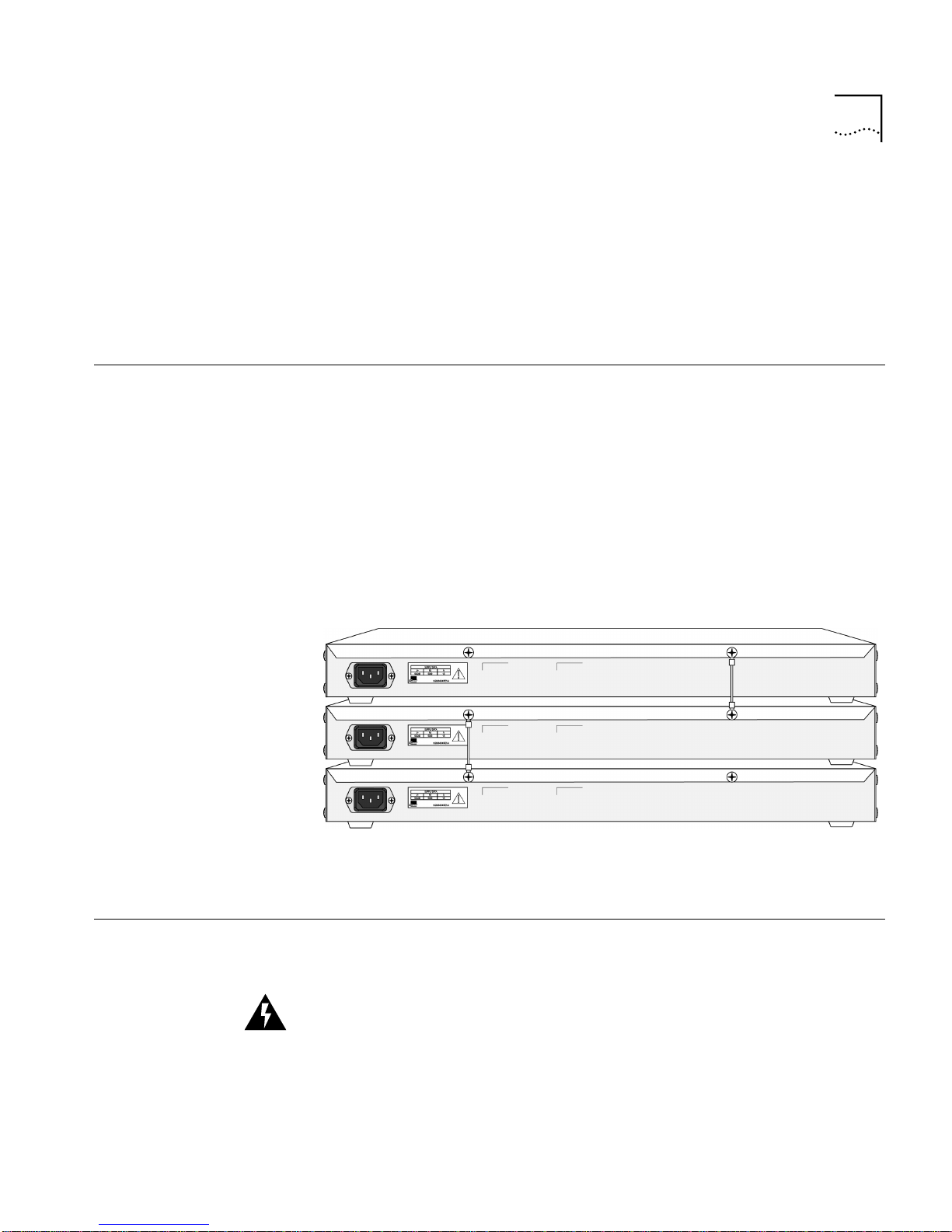

Figure 1-2 Grounding the RAS 1500 (Router Unit and two Port Expansion Units)
I/O Module Refer to the I/O Installation Guide that is shipped with the I/O modules for
installation instructions.
WARNING: The I/O modules are not hot-pluggable. You must have the
power cord disconnected when installing I/O modules in the Router Unit
or Port Expansion Unit.

1-6 CHAPTER 1: INSTALLING THE RAS 1500 HARDWARE
Front Panel
Description
The following figures describe the RAS 1500 front panels.
Figure 1-3 RAS 1500 (Router Unit and Port Expansion Unit) Front Panel
Table 1-1 Front Panel Features
Description Function
Analog I/O module Connect analog telephone lines.
ISDN -BRI I/O module (S/T or U) Connect ISDN-BRI telephone lines.
WAN port Connect to the WAN through this port. Automatic cable
detection defines interface type.
LAN port Connect to the LAN through this port. Automatic cable
detection defines interface type.
Console port Connect a serial cable to a terminal from this port to access
the unit’s command line interface (CLI). The port defaults to
38.4 Kbps.
STACKNET (IEEE P1394 connectors) Connect supplied STACKNET cable from these ports to RAS
1500 Expansion Unit.

Connecting the Cables 1-7
Figure 1-4 RAS 1500 (Router Unit and Primary Rate Access Unit) Front Panel
Connecting the
Cables
Connect the telco and network cables to the RAS 1500 Router Unit and
Port Expansion Unit or Primary Rate Access Unit.
Table 1-2 Front Panel Features
Description Function
PRI port Connect PRI-ISDN telephone line.
WAN port Connect to the WAN through this port. Automatic cable
detection defines interface type.
LAN port Connect to the LAN through this port. Automatic cable
detection defines interface type.
Console port Connect a serial cable to a terminal from this port to access
the unit’s Command Line Interface (CLI). The port defaults to
38.4 Kbps.
STACKNET (IEEE P1394 connectors) Connect supplied STACKNET cable from these ports to RAS
1500 Primary Rate Access Unit.

1-8 CHAPTER 1: INSTALLING THE RAS 1500 HARDWARE
Router Unit and Port
Expansion Unit
Cabling
Connect the following cables to the Router Unit and Port Expansion Unit
as shown:
RAS 1500 Router and Port Expansion Units may be configured with a
combination of BRI-ISDN or Analog I/O cards. The number and type of
telco connections depends on the configuration.
■BRI-ISDN
■Analog
■LAN
■WAN
■Console
Figure 1-5 Router Unit and Port Expansion Unit Cable Connections

Connecting the Cables 1-9
Router Unit and
Primary Rate Access
Unit Cabling
Connect the following cables to the Router Unit and Primary Rate Access
Unit as shown:
RAS 1500 systems configured with a Primary Rate Access Unit only have a
T1/E1 line and console cable. However the Router Unit may have an
analog or BRI-ISDN I/O Module. The number and type of telco
connections depends on I/O modules installed in the Router Unit.
■PRI
■BRI-ISDN
■Analog
■LAN
■WAN
■Console
Figure 1-6 Router Unit and Primary Rate Access Unit Cable Connections

1-10 CHAPTER 1: INSTALLING THE RAS 1500 HARDWARE
Powering the
RAS 1500 On or Off
There is no power switch on the RAS 1500. Use the following steps to
power on or power off the units in a RAS 1500 stack.
Powering On the
RAS 1500
To power on the RAS 1500, connect the power cord to the AC power
port of the unit and plug the power cord into the AC power supply
source.
Powering Off the
RAS 1500
To power off the RAS 1500, disconnect the AC power cord from the AC
power port of the unit.
WARNING: Always disconnect the AC power cord before removing the
cover of the Router, Primary Rate Access Unit, or Port Expansion Unit.
Connecting the
STACKNET Cables
After the Router Unit and Port Expansion Unit AC power cords are
connected, connect the STACKNET cable(s). Connect each Port Expansion
Unit or a single Primary Rate Access Unit to the Router Unit making sure
the connection is secure. Note that the ferrite end must be connected to
the Router Unit as shown.
