GETTING STARTED WITH PCXSET
This guide explains how to install and configure the NBX®pcXset™Soft
Telephone Client software. The information in this guide is designed for
installers and technical support representatives. Only users with
administrative privileges can install and configure the software.
This guide explains how to install and configure the pcXset application. It
is designed for resellers and technical support representatives.
Use this guide in conjunction with the following documents:
■NBX Administrator’s Guide
This guide describes how to change and manage the NBX system after
initial installation and configuration. It is intended for installation
technicians and administrators.
■NBX Business Telephone Guide
This guide provides an overview of the features in the NBX system as
they relate to the NBX Business Telephone.
Use the NBX NetSet™ utility to access these documents. These guides
can also be found on the Resource Pack CD.
Overview The pcXset PC Telephone is a software application that enables a user’s
computer to have the same features and functions as an NBX Business
Telephone. Using the pcXset software is similar to using an NBX Business
Telephone except that the telephone has a handset while the pcXset
software requires a headset with a microphone connected to the client
computer. You use the computer’s mouse and keyboard to operate the
pcXset controls.
3Com recommends that you use a USB headset with your computer. Do
not use the computer’s built-in speaker and microphone due to sound
quality issues.

6GETTING STARTED WITH PCXSET
The pcXset software can accept calls only when both the client computer
and the pcXset software are running. However, voice mail messages are
received and stored on the NBX system even if the pcXset computer is not
running.
The pcXset Help contains instructions for using the application. For
detailed instructions on using the pcXset software, select Contents from
the Help menu.
The NBX Business Telephone Guide has similar instructions, except for the
obvious differences between using the controls of a physical telephone
and the controls of a software program.
Computer
Requirements
The computer on which you install the pcXset software must meet the
following hardware and software requirements:
■Processor — Minimum Pentium 333MHz. Recommended 500 MHZ
or higher.
■Operating system — Windows 98, Windows ME, Windows 2000
(Server and Professional versions) and Windows XP (Home and
Professional). Recommended Operating System is Windows 2000 or
Windows XP.
■RAM — 32 MB (Windows 98), 64 MB (Windows 2000)
■Video display — 640 x 480 pixels with 16 colors minimum. 3Com
recommends 800 x 600 pixels with 256 colors or greater.
■Network — An Ethernet network adapter.
■Audio — A USB handset or headset with microphone.
■Disk Space — 40 MB of free disk space
■USB headset with microphone
■Please avoid the following:
■PC sound card systems.
■Poor quality headset.
■Using speakers and a separate microphone. See “DTMF Tones Echo
Back to the Analog Line Card” for more information.

Installing the pcXset Software 7
Installing the
pcXset Software
You install the pcXset software from the NBX Resource Pack CD.
Each NBX system is shipped with one pcXset license. To use more than
one pcXset Soft Telephone on a system, you must purchase additional
pcXset licenses and enter the license key into the NBX system.
CAUTION: Do not install the pcXset software on the same computer on
which NBX ConneXtions is installed.
To install the pcXset software:
1Insert the NBX Resource Pack CD into the CD-ROM drive of the client
computer.
2On the NBX Resource Pack dialog box, click NBX Applications and then
click NBX pcXset to begin the installation wizard.
3Reboot the computer to complete the installation.
You must reboot the computer to finish installing the pcXset software
driver.
This completes the installation process. You must now configure the
pcXset software before you can begin using it.

8GETTING STARTED WITH PCXSET
Configuring the
pcXset Software
You must configure the pcXset software so that it can interact with both
the Call Processor and with the computer on which it is installed.
To configure the pcXset software:
1Select Start > 3Com NBX > NBX pcXset Configuration Wizard. The
Configuration Wizard window appears (Figure 1).
Figure 1 Configuration Wizard Window
2Use the buttons described in Table 1 to access Windows configuration for
your PC setup:

Configuring the pcXset Software 9
3Use the Configuration Wizard tabs to configure the pcXset software.
■Welcome — Introduction.
■Audio — Test the client computer’s audio controls for compatibility
with the pcXset software.
■Mic — Test the headset microphone’s compatibility with the pcXset
software.
■MAC Info — Enter the NBX system’s MAC address.
■IP Info — Enter the NBX system’s IP address, subnet mask, and default
gateway. The wizard can locate this information automatically.
■NetSet — Add the pcXset software to the Call Processor using the
NetSet utility.
■Country — If you want the pcXset tones and cadences and Help to
use the same regional settings as the NBX system, select the a setting
on the Country tab. To specify different regional settings for tones and
cadences and Help, enable the Use Advanced Settings check box and
click Advanced.
■Done! — Finish the pcXset configuration process.
The user can now start using the pcXset application, and may customize
the pcXset display and other settings at any time.
Table 1 Windows Access Buttons
Windows Configuration Type Button
Multimedia Control Panel — Displays Multimedia properties
for your PC.
Volume Control — Allows you to set the volume for
speaking and listening using the pcXset application.
Network Control Panel — Provides information on network
devices, such as network interface card parameters,
protocols, and IP addresses.
Microsoft System Information — Displays information about
your system, such as operating system, memory, and
processors. You must specify the MAC address of your
network adapter if you manually add the pcXset client as a
new device in the NBX system.

10 GETTING STARTED WITH PCXSET
Customizing pcXset’s
Display
After you launch pcXset, you can set the pcXset display:
1Select pcXset Tools > Options > Display. See (Figure 2).

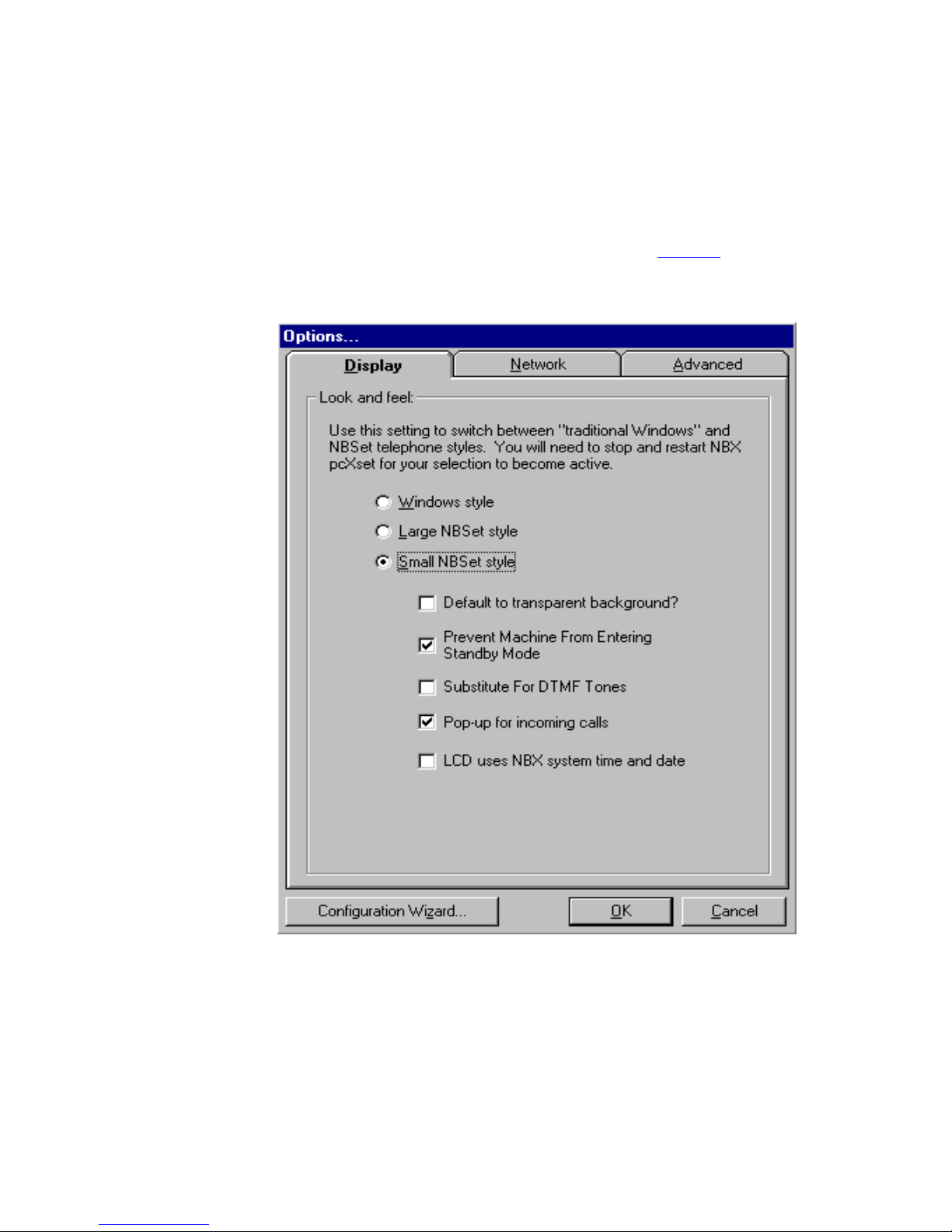

Figure 2 Options Dialog Box - Display Tab

Configuring the pcXset Software 11
2Select from the following display types:
■Windows style — This Windows application-style appearance
(Figure 3) is recommended for computers with a video card capable of
displaying only 256 colors.
Figure 3 Windows-style Display

12 GETTING STARTED WITH PCXSET
■Large NBSet or Small NBSet — You can set this realistic telephone
display (the classic NBX Business Telephone as shown in Figure 4) to
large or small to suit your preference. To display only the telephone
image on the screen, select Display > Default to transparent
background? or, when the pcXset application is running, double-click
the telephone image to remove the grey background.
Figure 4 NBSet-style Display
■Prevent Machine from Entering Standby Mode — (See Figure 2)
A call that comes in to the pcXset application when your computer is
in standby mode is transferred to voice mail. This setting is enabled by
default to prevent your computer entering standby mode.
■Substitute for DTMF tones — (See Figure 2) Check this box to hear
a “click” sound when you dial using pcXset software instead of the
normal DTMF tone that you hear when dialing with a regular

Configuring the pcXset Software 13
telephone. This substitution makes the pcXset software sound more
like a PC application.
Configuring Network
Settings
In the Network tab (Figure 5), you can customize or adjust the network
settings that you applied in the Configuration Wizard.

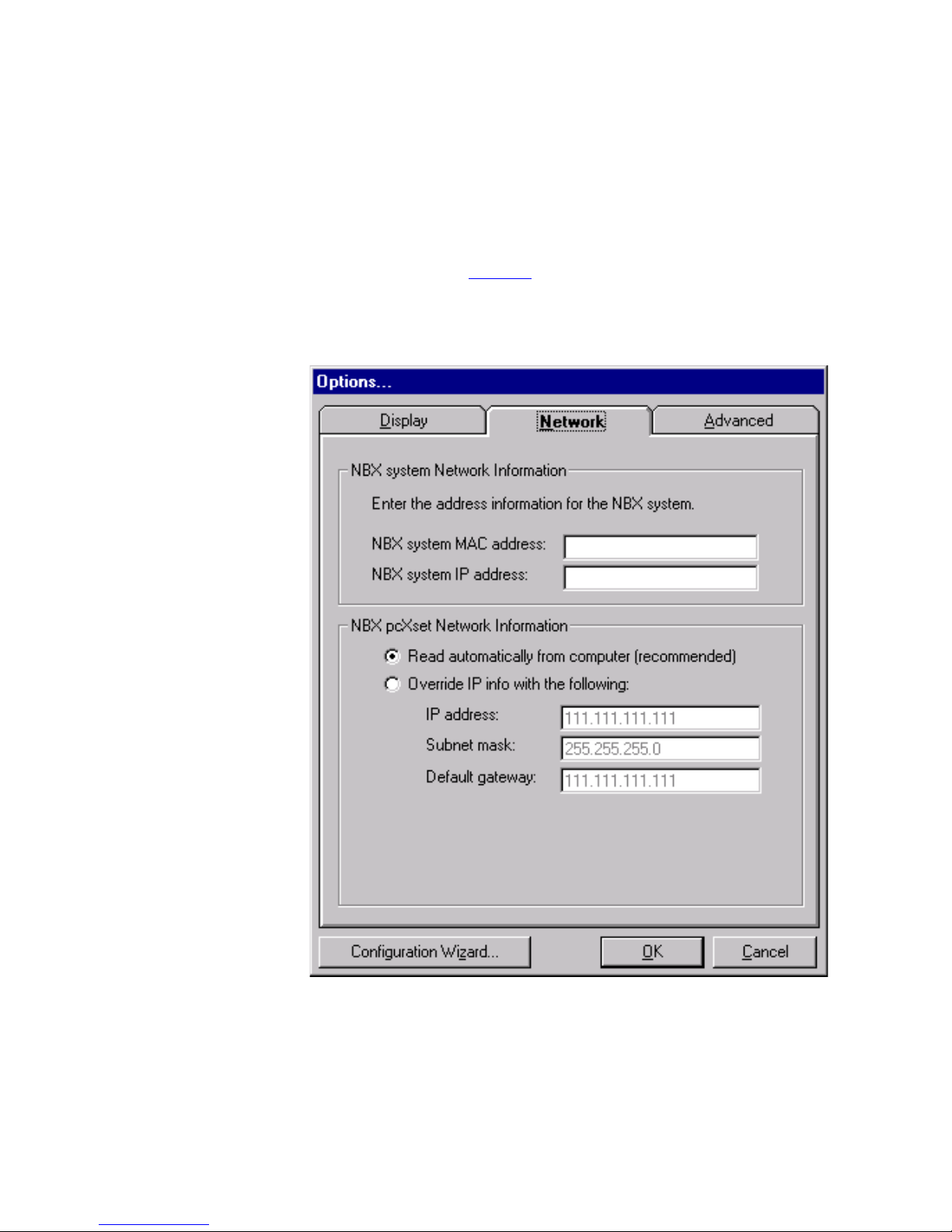

Figure 5 Options Dialog Box - Network Tab

14 GETTING STARTED WITH PCXSET
Configuring
Advanced Settings
Use the Advanced tab (Figure 6) to adjust your audio parameters and
communications strategy.
Figure 6 Options Dialog Box - Advanced Tab
■Tone Volume — Allows independent volume control of dial tone,
dialing, and DTMF tone sounds (that is, telephone audio tones) which
are generated when you press digits to dial a telephone number.
■Control Mixer — A mixer program controls settings such as the
amplification level of the microphone, computer volume, CD device,
and wave play. The mixer program, which is called Volume Control on
Windows machines, is typically available by an icon in the system tray.

Configuring the pcXset Software 15
You can also access the Volume Control program by clicking the Volume
Control icon (see Tab l e 1) in the NBX pcXset Configuration Wizard.
You can set and save a set of mixer state values for use with the
pcXset application. Each time you start the pcXset application, it uses
these saved values instead of the Windows default values. To set and
save the mixer values for pcXset, open the Volume Control window,
start the pcXset application and:
aClick Tools > Options. On the Advanced tab, enable the
Control Mixer check box.
bSet the volume control to the value you want to use with pcXset.
cClick the Save Mixer Settings button.
dSet the mixer amplification levels back to the values you want to use
as the Windows default values.
When the pcXset application is active, it uses the saved mixer
amplification levels. When pcXset is not the active window, it uses the
Windows default values.
To verify this:
aOpen the volume control window.
bStart the pcXset application and observe the volume control settings.
cExit from the pcXset application and observe that the volume control
mixer settings change from the values used by the pcXset application
to the Windows default values.
■Share audio hardware — Enable this selection for the pcXset
software to share the audio hardware recording channel. If you do not
enable this, you must close the pcXset application before any other
applications can use the audio hardware recording channel.
■Shared shutdown delay (sec.) — If you have chosen to share the
audio hardware and find that the pcXset application is cutting off the
audio, increase this value. For example, increase the value if the tones
are distorted when you dial a telephone number. The default value for
this setting is 2 seconds.
CAUTION: Increasing the value too much can also prevent the pcXset
application from playing tones properly or prevent other applications
from using the shared audio hardware, which could result in audio
sharing conflicts. See “Troubleshooting” for more information.
■Force Layer 3 (IP) — Select Force Layer 3 to force the pcXset
software to use Layer 3 IP addressing to communicate with the NBX

16 GETTING STARTED WITH PCXSET
system. When you use Layer 3, the pcXset application requires the IP
address of the NBX system. You specify this setting using the pcXset
Configuration Wizard, or using the Network tab of the Options dialog
box.
When you use Layer 3, you must also specify the version of your NBX
software.
■Accept All Multicasts — Some Ethernet cards do not fully support
selective multicasting communication. Select this option if you are
experiencing problems with conference calls or internal or external
paging.
■Delay and Multiplier — The size of the audio buffer pool is a product
of Delay and Multiplier. Higher multipliers and lower delays generally
produce an optimal audio setup. Higher overall values may improve
audio quality for slower machines at the expense of a small
communications delay. Lower overall values improve audio
responsiveness, but may result in some audio break-up for slower
machines.
■PC Speaker Audio Warning Setup — These values determine at
which frequency and for how long your PC plays a sound when there
is an incoming call. Press Test to hear a sample tone.

Editing the Access Button Labels and Tooltip Pop-ups 17
Editing the Access
Button Labels and
Tooltip Pop-ups
You can edit the labels to the right of the Access buttons on both the
NBX Telephone display and the Windows style display. You can add brief
text that describes the feature or speed dial that you have assigned to the
button. You can also add a description that appears as a “tooltip”
comment when you place the cursor over any of the buttons.
To edit the label and tooltip of a button:

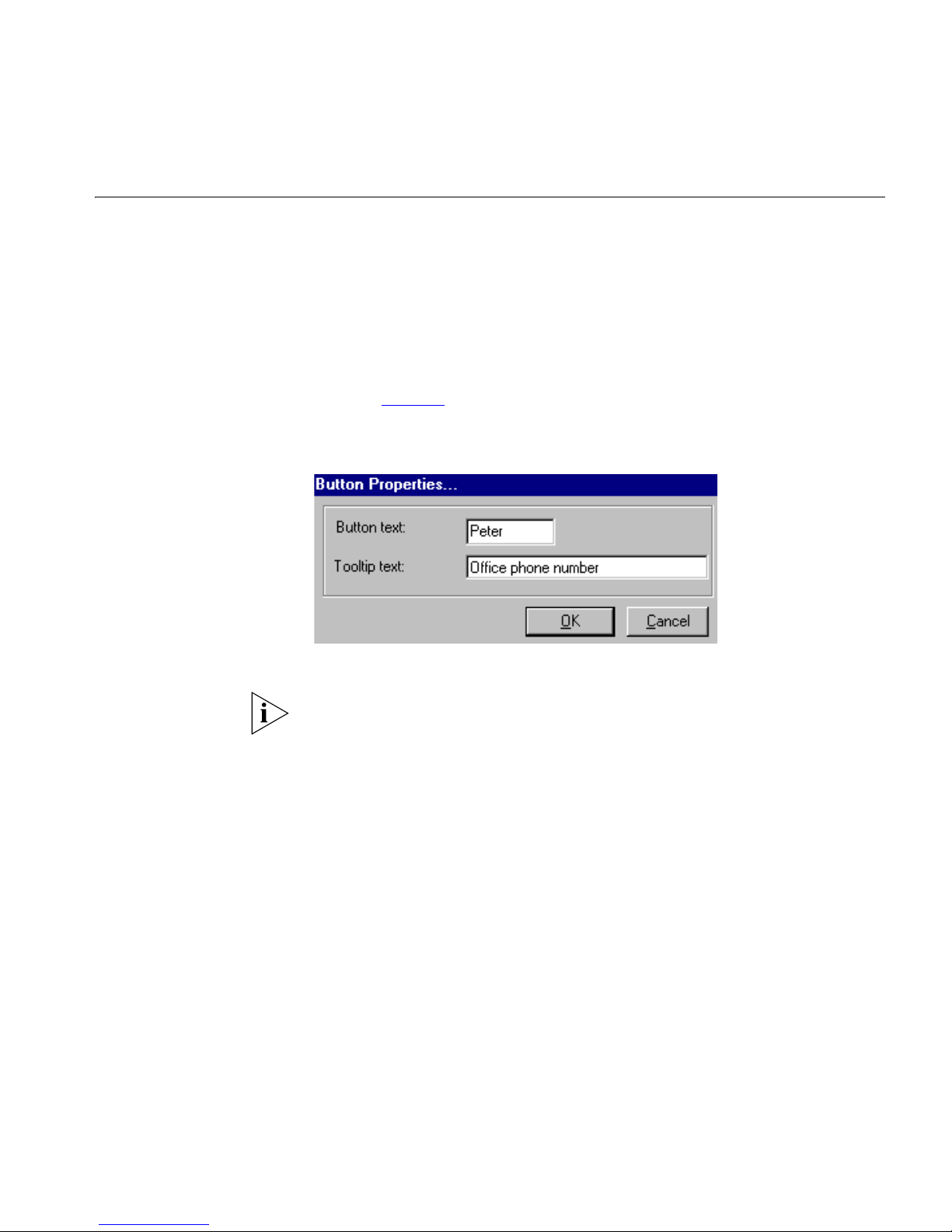

1Right-click any of the Access buttons. The Button Properties dialog box
appears (Figure 7).
Figure 7 Button Properties Dialog Box
2Enter a brief, descriptive name in the Button text field.
If the name is longer than five or six characters, it may be truncated on
the Access button labels.
3Enter a more descriptive comment in the Tooltip text field. You can use up
to 100 characters.
4Click OK. The text appears on the Access button labels in any of the
displays.

18 GETTING STARTED WITH PCXSET
Keyboard Shortcuts Table 2 lists the keyboard shortcuts you can use instead of clicking
telephone control buttons with the mouse.
Tab l e 2 Keyboard Shortcuts
Alternatively, you may use 0 through 9 and * on the numeric keypad on
your computer’s keyboard. Use “.” (the period key) for hash or pound.
Before you use the keypad, verify that Num Lock is on.
Troubleshooting This section outlines possible problems that you may encounter when you
install and use the pcXset software for the first time. It includes error
messages, problem descriptions, and recommended solutions. The pcXset
log file (pcXset.log) is in the pcXset installation directory.
Some of the errors described in this section are audio card problems.
Audio card errors have an error number of [8004xxxxH]. Note, however,
Press Key To Select
0through 9 Digits 0 through 9
*Star
#Hash or pound
F1 through F12 Line Appearance Buttons L1 through L12
Esc Speaker
SSpeaker
RRedial
CConference
TTransfer
HHold
FForward Voice Mail
VVoice Mail (Msg)
AHandsfree
MMute
PProgram
Up Arrow Volume Up
Right Arrow Volume Up
Down Arrow Volume Down
Left Arrow Volume Down

Troubleshooting 19
that 3Com recommends that you use your system’s USB audio capabilities
rather than using sound card audio.
Audio Buffers Need
Adjusting
Choppy audio occurs during telephone conversations or during the audio
test in the Configuration Wizard, or there are delays in audio playback
during telephone conversations.
Description
This problem is caused by incompatible audio buffer size settings.
Solution
Audio buffer size settings are expressed as two values: Delay and
Multiplier. The product of these numbers represents the overall size of the
buffer pool. Lower values for these numbers reduce echo delay. Higher
values increase audio quality. Change these values in any of these ways:
■Select Configuration Wizard > Audio > Audio Configuration
■Select Configuration Wizard > Mic > Audio Configuration
■Select Options > Advanced
These numbers depend on your computer hardware and operating
system. Experiment with different value combinations to see how low you
can adjust the product of the delay and multiplier and still achieve good
audio quality.
Audio Sounds
Distorted
Audio sounds choppy while on a conference call.
Description
You must configure some Ethernet cards to accept all multicasts to
improve audio quality.
Solution
1Run the pcXset software.
2Select Tools > Options > Advanced > Accept All Multicasts.
Audio Stream Error This type of error occurs when the pcXset software is trying to play or
record audio.

20 GETTING STARTED WITH PCXSET
The following messages appear during an audio test, microphone test, or
during pcXset startup:
Error code: [80044802H]
Error running audio stream from engine. Could be caused by
accidentally running pcXset and the configuration wizard
at the same time.
A similar message may appear in the log file:
ERROR: XXXXX [80044802H]
Error running audio stream from engine. Could be caused by
accidentally running pcXset and the configuration wizard
at the same time.
Error code: [80041000H] Error Message: XXXXX Context: XXXXX
This error has occurred in the Wave Audio object. Please
contact your technical support representative.
A similar message may appear in the log file:
ERROR: XXXXXXXX [80041000H]
This error has occurred in the Wave Audio object. Please
contact your technical support representative.
Description
You cannot hear pcXset audio with the audio card.
Solution
1Select one of these:
■Windows 9X and Windows NT
Start > Settings > Control Panel > Multimedia > Audio
■Windows 2000
Start > Settings > Control Panel > Sounds and Multimedia >
Audio
■Windows XP
Start > Control Panel > Sounds and Audio Devices
2Verify that there are valid entries in the Preferred device drop-down lists
for Playback and for Recording.
