3M MP410 User manual

USB Wireless Adaptor
User’s Manual

iii © 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
English ............................................1
French ...........................................16
German ..........................................31
Spanish ..........................................46
Italian............................................61
Dutch............................................76
Swedish..........................................91
Portuguese.......................................106
Polish...........................................121
Russian .........................................136
Arabic...........................................151
Chinese(Simplified)................................166
Chinese(Traditional)...............................181
Japanese........................................196

1
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Thank You
Thank you for purchasing the 3M™ USB Wireless Adaptor for 3M™
MP410 Projectors.
Customer Support
For manuals, frequently asked questions and technical support, call
1-866-631-1656 (toll free in the US) or go to www.3MMP410.com.
Intended Use Statement
The 3M™ USB Wireless Adapter for the 3M MP410 is compatible with the
3M Mobile Projector MP410. 3M does not support other uses for the 3M
USB Wireless Adaptor.
Important Notice
All statements, technical information, and recommendations related to
3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product,
you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use.
Any statements related to the product which are not contained in 3M’s
current publications, or any contrary statements contained on your
purchase order shall have no force or effect unless expressly set forth in a
written agreement signed by an authorized officer of 3M.
Trademarks And Copyrights
The 3M logo and 3M are registered trademarks of 3M Company. All other
trademarks or registered trademarks are property of their respective
companies.
English

2© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Warranty
The 3M™ USB Wireless Adaptor for the MP410 Projector (the
“3M Product”) is warranted to be free from defects in material or
manufacture for a period of 1 year from the date or purchase. If the
product does not conform to the warranty within the warranty period,
3M’s exclusive obligation is to repair, replace or refund the purchase price
of the non-conforming product. To the extent permitted by law, 3M will
not be liable for indirect, incidental, special or consequential damages,
irrespective of the legal theory asserted. If the product needs service,
please call 1-866-631-1656. For the detailed terms and conditions of the
warranty go to www.3mmp410.com, or contact us at 1-866-631-1656 or
[email protected].

3
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Wireless Installation Instruction
NOTE:Your computer must have the following minimum system
requirements:
Operating System
yWindows
Microsoft®Windows®XP Home or Professional Service pack 2 (32-bit
recommended), Windows®Vista 32-bit or 64-bit, and Windows 7 Home or
Professional 32-bit or 64-bit
yMAC OS, Mac OS x 10.5 and above
Minimum Hardware
a. Intel®Dual Core™ 1.8 MHz or greater
b. 256 MB of RAM required, 512 MB or more recommended
c. 10 MB of available hard-disk space
d. nViDIA or ATI graphic card must with 64 MB VRAM or above
e. Ethernet adapter (10 / 100 bps) for an Ethernet connection
f. A supported WLAN adapter for a WLAN connection (any NDIS-
compliant 802.11b or 802.11g or 802.11n WiFi device)
Web browser
Microsoft Internet Explorer 6.0 or 7.0 (recommended) or 8.0, Firefox 2.0,
Safari 3.0 and above
NOTE:The USB wireless adapter is not shipped with your
projector. Find out where to purchase the USB wireless adaptor at
www.3mmp410.com.

4© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Enable Wireless on the Projector
1. Install the optional wireless dongle.
Universal I/O HDMI A/V in
DC in
USB-A
MicroSD
2. Connect the power cord with AC adapter to the wall outlet and press
the power button.
3. Press the Menu button on your projector control panel or remote
control.
NOTE: Use , , and buttons to navigate and to select.

5
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
4. Select the input source as USB.
The Wireless Guide Screen shown below appears:
5. Make a note of the LOGIN CODE, SSID, and IP ADDRESS. You will
need this information to log in later.

6© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Install the Wireless Application Software on Your
Computer
6. Connect your computer to the MP410 wireless network.
NOTE:
1. Your computer must have wireless network function to detect the
connection.
2. When you connect to the MP410 wireless network, you will lose
wireless connectivity with other wireless networks.
NOTE: It is recommended that all proxies are turned off. (In Microsoft®
Windows 7: Click Control Panel Internet Options Connections
LAN Settings)

7
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
7. “Wireless Application Software” is required if used for wireless display.
Please download and install the software for first-time use. If it is
already installed, skip Steps 7 - 12.
NOTE:You only need to install the "Wireless Application Software"
once.
8. Open the Internet browser on your computer then enter the default IP
Address 192.168.100.10 in the browser’s address bar.

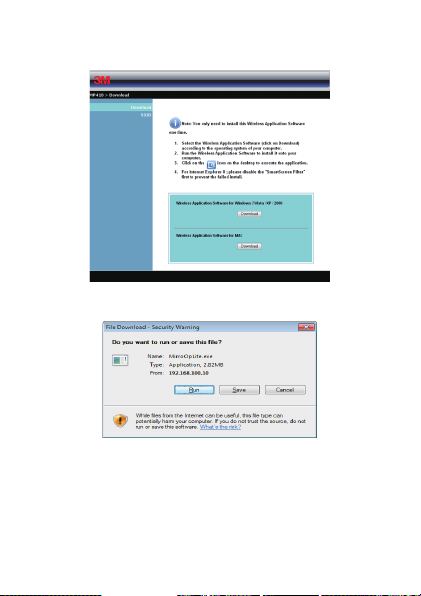

9. The MP410 web management page opens. Click <Download> to
install the software.

8© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
10. Select the appropriate operating system, and then click <Download>.
11. Click <Run> to proceed with the installation of the Mirror OP Lite
software file.

9
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
NOTE: If you are unable to install the application because of inadequate
rights on the computer, please contact your network administrator.
12. The installation software will launch. Click <NEXT> and follow the
on-screen instructions to complete the setup.
Click <Run> to proceed with the installation.
Click <Yes> to allow the program to run on your computer.
Do you want to allow the following program from an
unknown publisher to make changes to this computer?
< Yes > < No >

10 © 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410

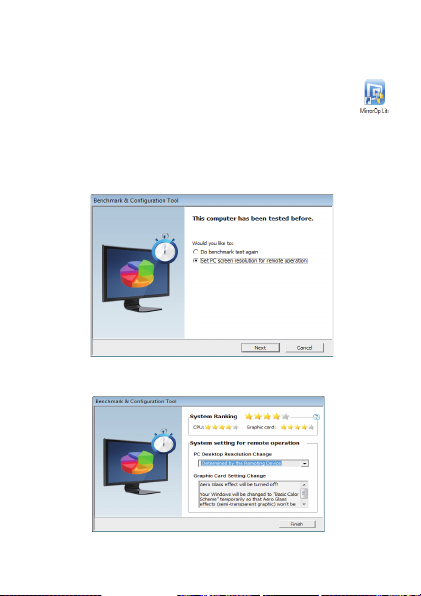

Launch the Wireless Application
13. When the installation is complete, an icon, labeled Mirror Op
Lite will appear on your computer desktop. Double-click this
icon to start the application.
The Benchmark Configuration Tool screens will only display the first
time you start the application.
Click <Next> to automatically configure the Mirror Op Lite software
based on your computer’s hardware.
Click <Finish> to complete the configuation screens and display the
logon screen.

11
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Login
14. To connect with your projector, select 3M MP410 and click
<Connect>.
15. To connect with your computer, enter the Login Code (see Step 5) and
click <Connect>.
Important Note:
If the IP Address is blank or filled with zeros, enter the default IP
Address 192.168.100.10.

12 © 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Understanding the Buttons
After a successful log in, the following screen appears:
Item Description
1 Status Bar Display IP and LOGIN CODE information.
Menu Click to activate the application menu.
Minimize button Click to minimize the application.
Close button Click to exit the application.
2 Control Toolbar
Full screen Click to project the image in full screen.
Stop Click to stop projection.
Pause Click to pause projection.
3 Connection Status
Connection Icon Blinks when projection is in progress.
Projecting the Presentation
• To project the presentation, click .
• To pause the presentation, click . The icon turns green.
• To continue the presentation, click again.
• To stop the presentation, click .
NOTE:The following information is for wireless data presentation
mode only. Image display could be slow or not displayed smoothly if
displaying a video clip or animation. Refer to the frame-rate table below
for reference:

13
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Screen Variation %1Estimated frames per second2
<5 % 303
<10 % 283
<20 % 263
<40 % 233
<75 % 193
<=100 % 183
NOTE:
1. The percentage of screen variation is based on 1024 x 768.
Example, to display a 320 x 240 video clip on 1024 x 768 desktop,
the screen variation is 9.8%.
2. Actual frame rate could be different depending on factors such as
network environment, image content, signal conditions, locations,
and CPU performance.
3. Under clean WLAN environment using 802.11g connection, and no
screen stretching.
NOTE:Your computer will not enter S1 (standby mode) / S3 (sleep
mode) / S4 (hibernate mode) when running a wireless Display
presentation.
Using the Menu
Click to display the menu.

14 © 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Search Remote Box — Select this option and then click <Rescan> to
connect to another MirrorOp. The system remembers the last MirrorOp
connection.
Projection Quality — Select this option and click <Normal> (default)
or <Best> to adjust the image quality. The <Best> setting requires more
bandwidth and may decrease computer speed and perfomance.
Auto Power Management — Click this option to turn the PC’s windows
power scheme from current settings to “highest performance”. Click again
to restore your PC to the normal power scheme.
Auto WiFi Connect — Check box to automatically connect to WiFi.
Uncheck box to manually connect to the projector’s wireless network each
time you project your computer’s display over wireless.
Advanced Screen Capture — Click to enable tip windows and other
layered windows (including the main UI) on the connected display.
Note: The mouse cursor may blink when you are projecting your PC
screen!
About — Click to display the application version.
Exit — Click to close the application.

15
© 3M 2012. All Rights Reserved.
3M™ Mobile Projector MP410
Regulatory Notices
FCC STATEMENT–CLASS B
This equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instruction manual may cause interference to radio com-
munications. It has been tested and found to comply with the limits for a Class “B” computing
device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTICE:This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Instructions To Users:This equipment complies with the requirements of FCC equipment
provided that the following conditions are met. If the cables include an EMI ferrite core, attach
the ferrite core end of the cable to the projector. Use the cables which are included with the
projector or specified.
Note: Changes or modications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
WEEE Statement
The following information is only for EU-members States:
The mark shown to the right is in compliance with Waste Electrical and Electronic
Equipment Directive 2002/96/ EC (WEEE). The mark indicates the requirement
NOT to dispose the equipment as unsorted municipal waste, but use the return
and collection systems according to local law.

3M is a trademark of 3M Company
Mobile Interactive Solutions
3M Austin Center
6801 River Place Blvd.
Austin, TX 78726-9000
866-631-1656
www.3MPocketProjector.com
[email protected] © 3M 2012. All Rights Reserved.
78-6971-1616-4 Rev A.1
