EpiValley TATA indicom SXC-1080 User manual

SXC-1080
CDMA 1x USB MODEM
User Guide

Table of Contents 2
Introduction 3
For Your Safety 4
Parts of the USB Modem 5
Installing Software 6
A. Installing Dialer Client 6
B. Uninstalling the Dialer Client program 8
Using Dialer Client 9
Running the Dialer Client 9
Connect 10
Disconnect 10
Address Book 10
Setup 12
Window 12
Network 12
Connection Setting 13
Setup Info 14
PIN Code 15
SMS Write/Send 16
SMS Inbox 18
Sent Message 19
Linux 21
Troubleshooting 23
Specification 25
Supplied Accessory 27
Table of Contents
2

Please carefully read these guidelines
before you proceed. These safety
warranty and cautions are very important
for proper usage of SXC-1080.
Warning
• USB Modem must not be used in an
aircraft at all times.
• Do not use your Modem near petrol
stations, fuel depots, chemical plants or
blasting operations.
• For your safety, use the ONLY specific
PC.
• Do not handle the modem with wet
hands while it is being operated.
It may cause an electric shock or
damage your modem seriously.
• Keep the modem in a safe place out of
children's reach. It contains small parts
which may cause a choking hazard, if it’s
detached.
Caution
• Do not use the modem in areas with
special regulations against electronic
usage. (i.e. The hospitals where
sensitive medical equipment can be
affected by Modem usage)
• Only use ORIGINAL accessories to
avoid damage to your modem.
• All radio transmitters carry risks of
interference with electronics in close
proximity. Minor interference may affect
TVs, radios, PCs, etc.
Introduction
Congratulations on your purchase of the
advanced and compact SXC-1080 USB
Modem, designed to operate with the latest
digital mobile communication technology.
3
For Your Safety
4
The User Guide contains important
information on the proper use and
correct operation of SXC-1080 USB
Modem. Please read carefully to ensure
optimal performance and also to
prevent any misuse of the product, as
any improper usage outside of this User
Guide may result in warranty void.

A. Installing Dialer Client
• Please unplug the USB Modem from the
PC before installation.
• When you install new version of Dialer
client in your PC, please uninstall the
already existing one from your PC.
1. Insert “IInnssttaalllleerrCCDD” into the CD-ROM
drive.
2. When the first screen appears, click
the “IInnssttaallllaattiioonn” icon to start the
installation wizard.
**NNoottee::If Auto-Run did not start, double
click “TTAATTAA__GGAATTAA__SSXXCC11008800..eexxee”
on your CD-Rom Drive to start the
installation.
3. Clicking “UUsseerrMMaannuuaall” or “QQuuiicckk
GGuuiiddee
&&TTrroouubblleeSShhoooottiinngg” icon in
the first screen will prompt you to
“OOppeenn” or “SSaavvee” the Manual. Click
“OOppeenn” to see the Manual or click
“SSAAVVEE” to save the Manual into your PC.
Parts of the USB Modem
5
Installing Software
6
Front view Rear view
R-UIM Socket
USB Connector
USB Cap
LED Indicator

7. A window will appear as shown to indicate
that InstallShield Wizard completed is
completed. Click “FFiinniisshh” to exit the
wizard.
NNoottee::Since Driver is to be installed
automatically, please do not unplug the
USB modem from the PC while driver
installation.
Installation time for completion can be
different up to user's PC spec.
B. Uninstalling the Dialer Client
program
If you want to uninstall the Dialer Client
program, Select SSttaarrtt> AAllllPPrrooggrraamm>
EEppiivvaalllleeyy> TTAATTAAIInnddiiccoommDDiiaalleerr>
UUnniinnssttaallllTTAATTAAIInnddiiccoommDDiiaalleerras
shown.
Installing SoftwareInstalling Software
4. When the InstallShield wizard window
appear as follow, click the “NNeexxtt” to
continue for the next step.
5. Default installation directory is
“CC::\\PPrrooggrraammFFiilleess\\EEppiivvaalllleeyy\\TTAATTAA
IInnddiiccoommDDiiaalleerr..” which can be changed
by clicking on “CChhaannggee” button.
6. When the next screen appears, the
program is ready to be installed, click the
“IInnssttaallll” button to begin installation.
78

Using Dialer Client
10
Using Dialer Client
9
Running the Dialer Client
There are 2 ways to launch the installed
Dialer Client.
Either by pressing the shortcut icon
in the desktop, or by selecting SSttaarrtt>
All PPrrooggrraamm> EEppiivvaalllleeyy> TTAATTAA
IInnddiiccoommDDiiaalleerr> TTAATTAAIInnddiiccoomm
DDiiaalleerr..eexxeeas shown.
After initialization, the main window of
application will be displayed in the
screen as shown.
The main window has 6 Menu Buttons
with specific functions.
You should select appropriate
connection from the SELECT menu
before connecting to internet.
And after selecting the connection, click
the CONNECT button on the dialer.
Connect
This function is to connect wireless
internet via Dial Up connection network.
Disconnect
If you want to disconnect wireless
network, click the “DDiissccoonnnneecctt” button
in the main window. and will disconnect
the dialup connection.
Address Book
By using the Address book, you can save
contact details (Name, Phone Number,
Address and Etc.) as well as send SMS
to the already saved number.
1. If you want to save a new number, just
click the “AAdddd” button.
You will see Add Contact and Add Group.
And select “AAddddCCoonnttaacctt” for
adding a new number as shown.

Using Dialer Client
11
Using Dialer Client
12
2. You can use the “FFiinndd” option to find
already saved Numbers from the
Phone Book.
3. You can send a message by selecting
a Phone Book number from “AAddddrreessss
BBooookk” and then clicking the Send
button.
4.If you want to synchronize phone
book between PC and R-UIM Card,
click the “PPhhoonneeBBooookk” button as
shown.
Use left, right arrow buttons to select
a phone number and use copy/move
option to synchronize the selected
number.
Setup
This function is to customize the
application according to your
preferences.
1. WWiinnddooww
This is to set up the window display
function.
]AAllwwaayyssoonntthheettoopp: Display
window always on top.
]TTrraayyiiccoonnbblliinnkk:
When application receives
messages, tray icon blinks on
working bar.
]AAUUTTOOPPOOPP--UUPP: When application
receives messages, Message Box
window appears automatically.
]SSoouunnddnnoottiiffyy: When application
receives messages, it sounds to
announce.
To return main window, click the
“CClloossee” button.
2. NNeettwwoorrkk
In Network you can set Dial-Up
connection's Username, Password and

Using Dialer Client
13
Using Dialer Client
14
Dial Number. Also you can make
multiple profiles to access the internet
and see the internet Call logs.
]SShhoowwIInntteerrnneettLLoogg: If you click
this button, you can acknowledge
used data volume and time.

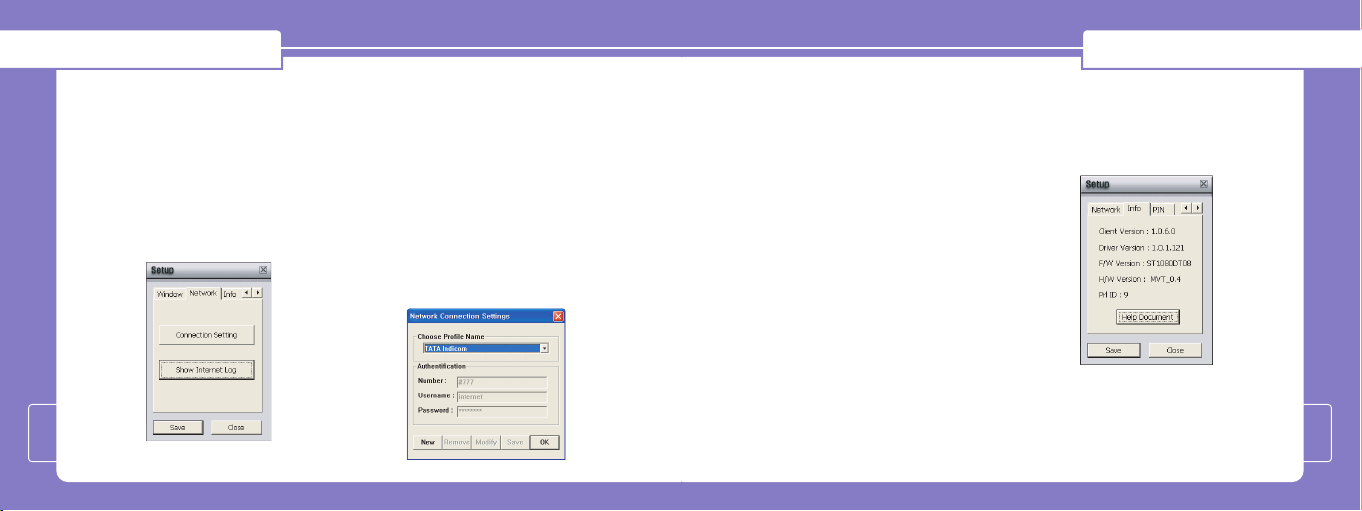

3. CCoonnnneeccttiioonnSSeettttiinngg
To choose Profile name, please follow
below procedure.
Click the “SSeettuuppssccrreeeenn” -> Click
the “NNeettwwoorrkk” -> Click the
“CCoonnnneeccttiioonnSSeettttiinngg”
Network Connection Settings screen
will be shown as below.
Choose the profile name you want to
set.
TATA Indicom Profile Name can't be
deleted, but it is able to modify
Authentication section by clicking
Modify button. In order to create new
profile name, click the “New” button
and choose the profile you want to
set. Once profile setting is finished,
please press OK button to close it.
4. SSeettuuppIInnffoo
This function is to show the
application version information.
To return to the main window, click
the “CClloossee” button.

Using Dialer Client
15
Using Dialer Client
16
5. PPIINNCCooddee
“PIN Code Change” can only be used
when “PIN Status” is enabled.
To enable “PIN Status”, input the
original PIN Code provided. Next,
input the original PIN Code and your
new PIN Code to change the PIN
Code.
If the PIN Code is entered incorrectly
for three consecutive times, the
following window will appear
prompting you to enter your PUK
Code.
If you do not know your PUK Code,
please contact the service provider.
SMS Write/Send
If you want to write and send SMS
(Short Message Service), click the “SSMMSS
WWrriittee//SSeenndd” button in main window,
and the picture appears as shown.

Using Dialer Client
18
Using Dialer Client
17
1. Fill in the number you want to send in
blank box, “TToo::____________________” .
In the “TToo::____________________”,
] You can use Multi-Send function by
dividing each recipients with a
semi-colon “;;”.
] You can choose the user name in
the phonebook instead of typing a
recipient number (Except for
phonebook stored in R-UIM).
] When you click “To”, the Address
book window will appear and you
can select recipients from your
address book.
2. Write a message in the blank box, and
click the“SSeenndd” button.
] DDeelliivveerryyaacckk: Select this function
to obtain notification when the
recipients received your Message.
] PPaaggeerrMMssgg: Select this function
to transmit just the sender number
without the contents.

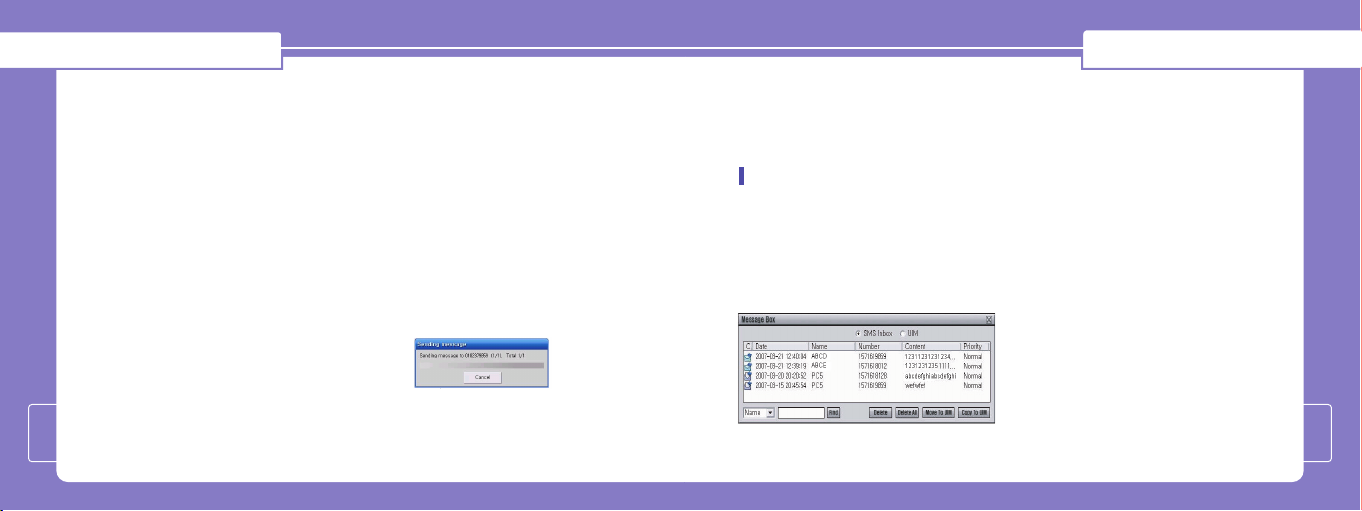

3. When the message is being sent, the
following window will be shown and
you will be returned to the main
window automatically after message
has been sent successfully.
**NNoottee::
The “CCaanncceell” function will
not work when the message to be
sent is already in progress.
But in case of multi-sending, it can
cancel to send next message except
for message in process.
SMS Inbox
You will be alerted when you receive new
SMS. All new SMS will be stored in the
“SSMMSSIInnbbooxx” menu. In SMS Inbox, you can
identify each message by Date, Name,
Number etc.
1. Select the message you want to read
and double click with the left mouse
button (or click the right mouse
button) to see the whole message.
You can also forward/reply/delete the
message on the "RReeaaddMMeessssaaggee"
window.
2. A pop up will appear asking whether
you want to transfer the R-UIM SMS to
PC. (This menu will not appear if the
SMS stored in the R-UIM is already on
the Dialer Client.
] Select “YYeess” to have all SMS in the
R-UIM transferred to PC.

Using Dialer Client
20
Using Dialer Client
19
] The message “PPlleeaasseeddeelleettee
ssttoorreeddmmeessssaaggee((ss))iinntthhee
RR--UUIIMMttoorreecceeiivveenneeww
mmeessssaaggee((ss))..”will appear if the
SMS inbox in the R-UIM is at its
maximum.
3. Click the “DDeelleettee” button to erase
message.
4. To return main window, click on
the top of the right.
Sent Message
This menu allows you to see the SMS
which is already sent or failed to send.
After sending the SMS, the message will
be moved to “SSeennttMMeessssaaggee” menu.
1. Select the sent message you want to
read, and then double click the left
mouse button. You can see the whole
message
2. Click the "ffoorrwwaarrdd" button to send
the message to new recipients and
click the "DDeelleettee" button to delete
the message.
3. If the message has failed to send, the
"FFaaiilleedd" comment will be shown in
the Status column. You can send it
again using "RReesseenndd" button.
4. To return to the main window, click
at the top right hand corner of
the window.

8. User should edit the configuration file
as given below.
[Dialer Defaults]
Modem = /dev/ttyACM0
Baud = 460800
Init1 = ATZ
Init2 = ATQ0 V1 E1 S0=0 &C1 &D2
+FCLASS=0
ISDN = 0
Modem Type = USB Modem
Phone = #777
Username = internet
Password = internet
stupid mode = 1
How to connect Internet
1. Open the terminal.
2. Type wvdial and press enter.
How to disconnect Internet
1. Press ctrl + c
Or
2. Close the terminal
Linux
22
Linux
**NNoottee::
SXC-1080 allows only internet
connection to PC with Fedora Core 6,
Ubuntu 6.06, SUSE 9.1 personal
version and 10.
Linux connection for Internet
1. Log in in the root user.
2. Connect the USB modem to PC
3. Run terminal in Linux
4. type following command.
wvdialconf /etc/wvdial.conf
5. wvdialconf will detect the modem,
its maximum baud rate, and a good
initialization string and will generate
or update the wvdial configuration file
based on this information.
6. A configuration file will be created as
below
[Dialer Defaults]
Modem = /dev/ttyACM0
Baud = 460800
Init1 = ATZ
Init2 = ATQ0 V1 E1 S0=0 &C1 &D2
+FCLASS=0
ISDN = 0
Modem Type = USB Modem
; Phone = <Phone number>
; Username = <Username>
; Password = <Password>
7. But the user still need to edit
/etc/wvdial.conf to specify the phone
number, login name, and password of
your internet account in order for
wvdial to work.
21

Troubleshooting
24
Troubleshooting
23
1. The message “MMooddeemmddrriivveerrnnoott
iinnssttaalllleedd..IInnssttaallllddrriivveerraannddrreessttaarrtt
pprrooggrraamm” is displayed on the Dialer Client.
] Dialer Client is not installed properly,
Reinstall Dialer Client.
2. There is no Antenna indicator on the
Dialer Client and ‘nnoossvvcc’ is displayed
and the LED of USB Modem is in red.
] Modem Number is registered incorrectly.
Please contact service provider for more
information.
3. The message “MMooddeemmuunnpplluuggggeedd..PPlluugg
mmooddeemm” is displayed on the Dialer Client.
] USB Modem is not connected to PC. If
connected, separate USB Modem from PC,
and reconnect one minute after. Next, go to
SSttaarrtt>>CCoonnttrroollPPaanneell>>SSyysstteemm>>
HHaarrddwwaarree>>DDeevviicceeMMaannaaggeerrto check
whether USB Modem is in it. If Modem is
not in the list, remove USB Modem from PC
and reconnect after one minute.
4. The message “IInnvvaalliiddMMooddeemmPPoorrtt,,
RReeiinnssttaallllddrriivveerr” is displayed on the
Dialer Client.
] The PC recognizes USB Modem as a
different system. Remove USB Modem
from PC, and reconnect after one minute.
Next, go to SSttaarrtt>>SSeettttiinngg>>CCoonnttrrooll
PPaanneell>>SSyysstteemm>>HHaarrddwwaarree>>
DDeevviicceeMMaannaaggeerrto check whether USB
Modem is in it. If Modem is not in the
You may find below a series of solutions to troubleshoot some known problems that may
occur when using SXC-1080 USB Modem along with certain types of hardware.
list, remove USB Modem from PC, and
reconnect after one minute. If the
Message “IInnvvaalliiddMMooddeemmPPoorrtt”
continues to appear, please re-install
Dialer Client after removing the previous
program.
5. Do not remove an R-UIM Card while USB
Modem is in use.
] This may harm the PC and Modem. Please
use the “Safely Remove Hardware”
command to disconnect the USB Modem
first or remove the UIM Card after the PC
is shut down.
6.  When “MMIINN__LLOOCCKK” message is
displayed,
] This message occurred when invalid R-
UIM card has been inserted.Please ensure
that a valid R-UIM card is inserted.
7.  When “PPHHOONNEE__LLOOCCKK” message is
displayed,
] This message occurred when invalid R-
UIM card has been inserted for more than
five times. Please contact service provider
to unlock.
8.  When the message “MMIINNoouuttooff
rraannggee” is displayed,
] Please enter valid MIN.
9. The message “CCoonnnneecctt” appears even
after connecting the Internet.
] Do not click “CCoonnnneecctt” again. It is
necessary to take time to connect to the
Internet using the “DDiiaall--uuppnneettwwoorrkk”.
10. If you fail to input correct pin number,
please contact service provider.
11. For software upgrade and customer support,
please visit at wwwwww..ssiittssvvcc..ccoomm

Specification
25
Specification
26
Function SXC-1080
Remarks
Main Operation
Chip
MSM6025,
RFR6122, RFT6122
CDMA
Standard
TIA/EIA/IS-2000,
IS-98D, Backwards
compatibility with
IS-95 A/B
Frequency
Band of
Operation
Cellular 800 Single
Band Support
Band Class 0
TX: 824 ~ 849 MHz
RX: 869 ~ 894 MHz
Transmit Power
200mW
Power supply 4.5
~ 5.5V DC
USB
Power
Function SXC-1080
Remarks
Data Rate Up to 153 Kbps
(TX:153Kbps /
RX:153Kbps)
Data options
Feed through :
Packet data,
A sync data
Protocol : SMS,
Simple IP
Connector &
Switches
USB Power input
connector
Hardware
Interface
USB 1.1 and 2.0
Software
Interface IS-707.3 AT
Command set
Function SXC-1080
Remarks
LEDs 2 LED (Power)
Function SXC-1080
Remarks
O/S support
MMSSWWiinnddoowwss::
2000, XP and Vista
(32 & 64 bit)
* WHQL certified
by Microsoft
LLiinnuuxx((IInntteerrnneett
uusseeoonnllyy))::
Redhat Enterprise
3 & 4
Fedora Core 5 & 6
SUSE Desktop
9 & 10
Debian 5 & 6
Ubuntu 5 & 6
PRL/OTA
support Use R-UIM
Phone book Use PC UI
Application
Antenna Internal type
Connect USB Power input
connector
Installation Laptop Computer/
Desktop PC
USB
Interface
3 colour
LED
Dimension W: 88, D: 28.9,
H: 10.6 (mm)
Weight Net (19.5g),
Gift box (100g)

MemoSupplied Accessory
27
SXC-1080
CDMA 1x USB MODEM
Quick Installation Guide
Gift box
Quick Installation Guide
Installation CD ED : 02

24
22
9
