Zhone 6310 User manual

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 1
Hotwire®ReachDSL®v1 (MVL®) Modem,
Model 6310-A4, with Inline Phone Filter
Installation Instructions
Document Number 6310-A2-ZN12-10
December 2005
Contents
End User License Agreement (Zhone and Affiliates) ............................................................... 1
Hotwire 6310 ReachDSL v1 (MVL) Modem Overview .......................................................... 3
Getting Started ........................................................................................................................... 6
Installing the Hotwire 6310 ReachDSL v1 Modem .................................................................. 7

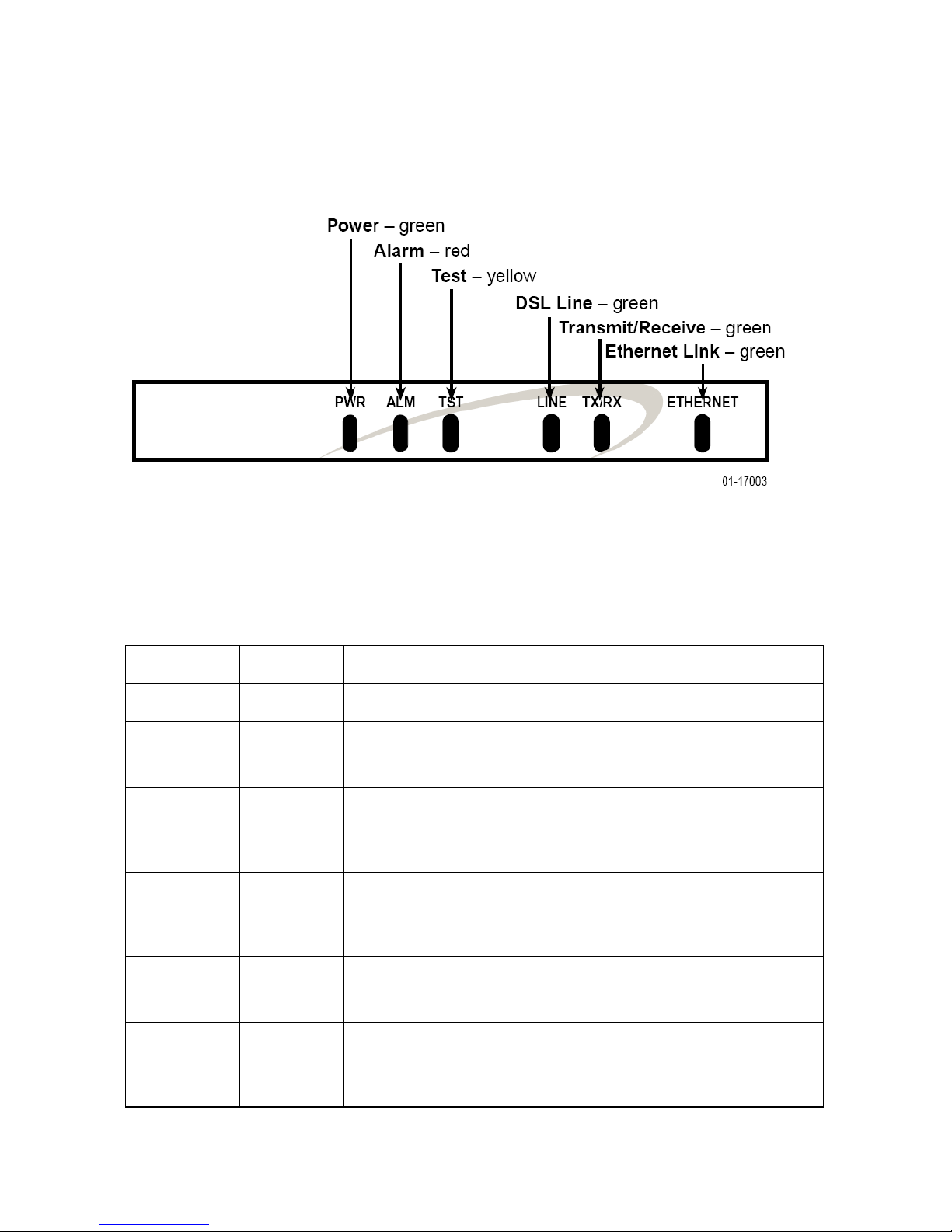

Power-On .................................................................................................................................. 10
Troubleshooting ......................................................................................................................... 11
HomeLink (for ReachDSL v1 Modems Only) .......................................................................... 12

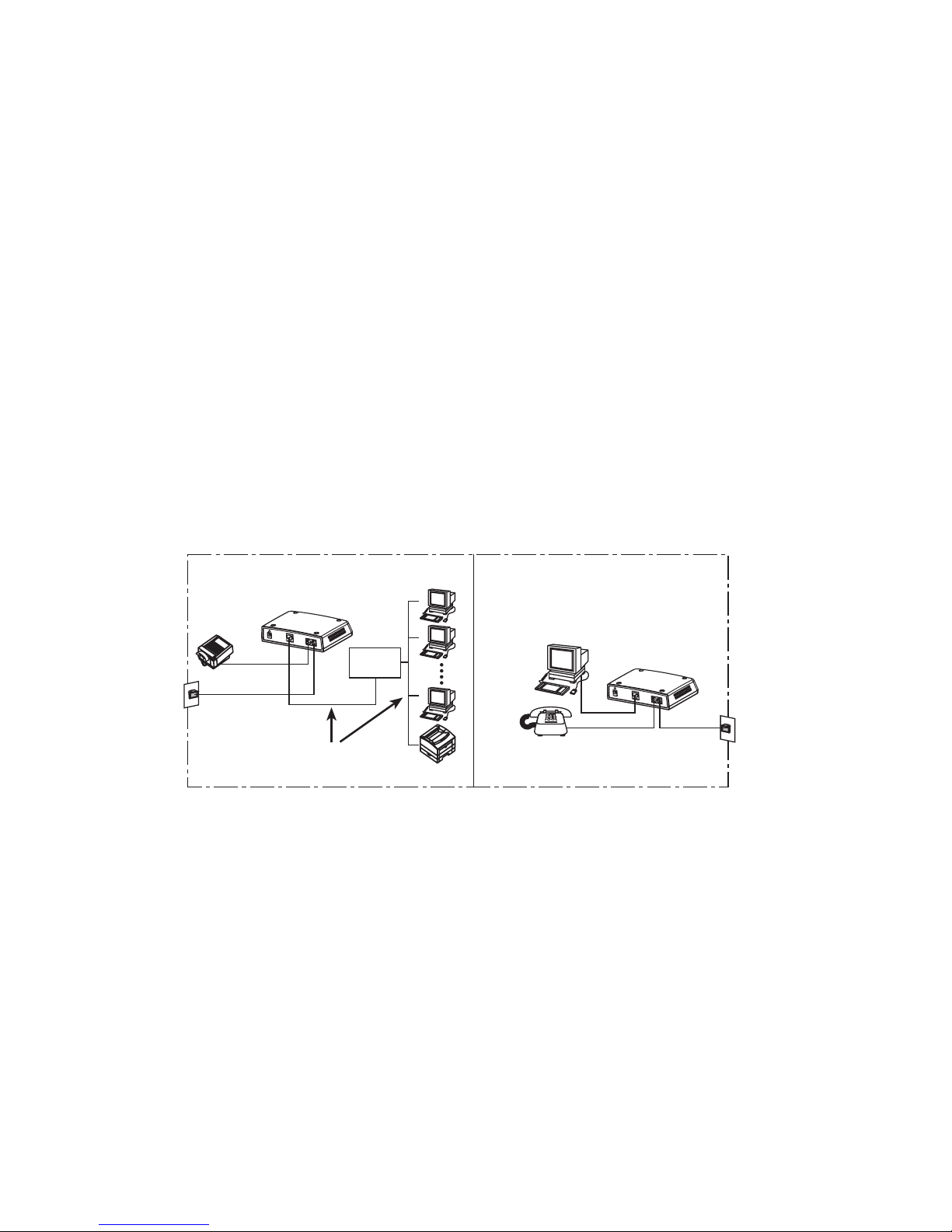

Increasing the Number of End-User Systems ........................................................................... 12
Cables & Connectors ................................................................................................................. 13

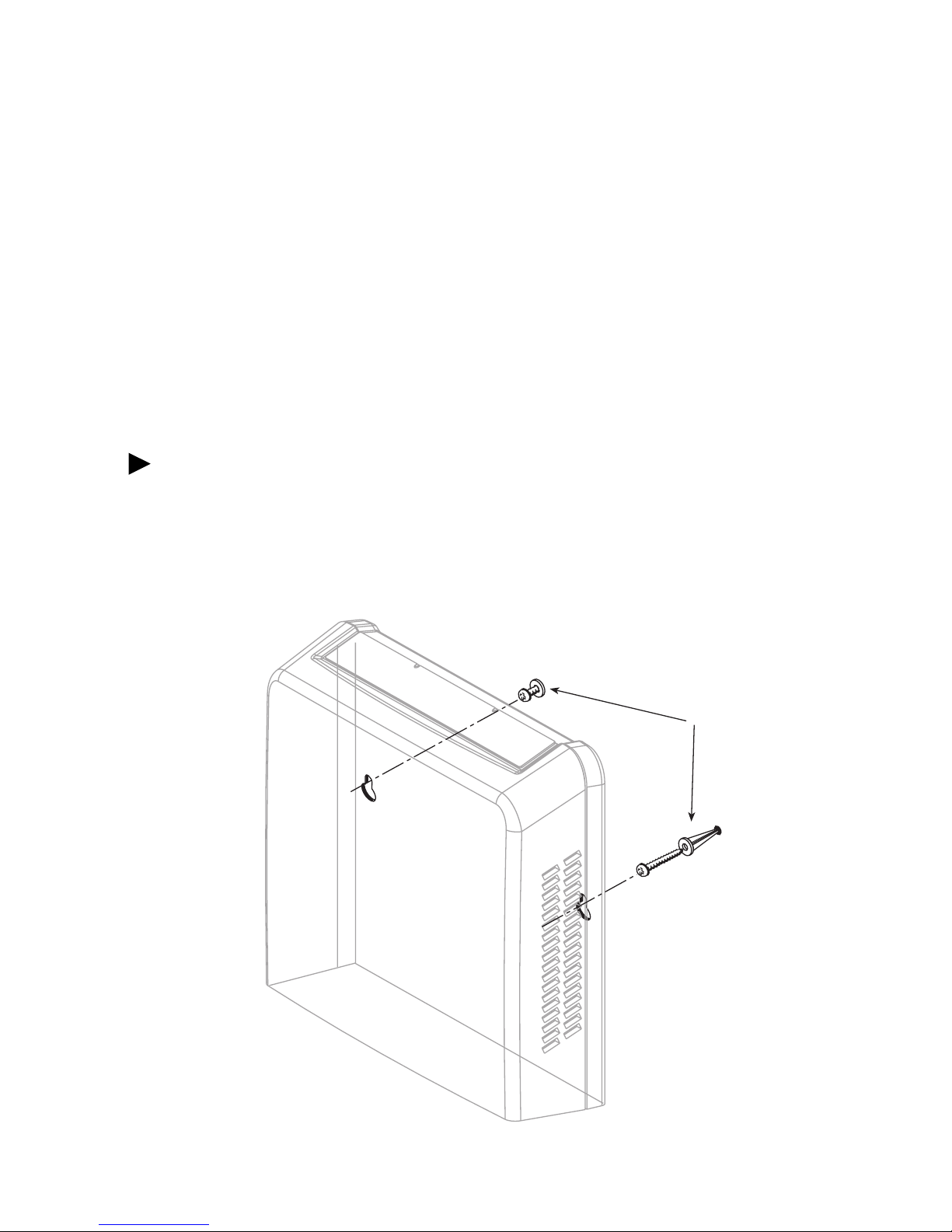

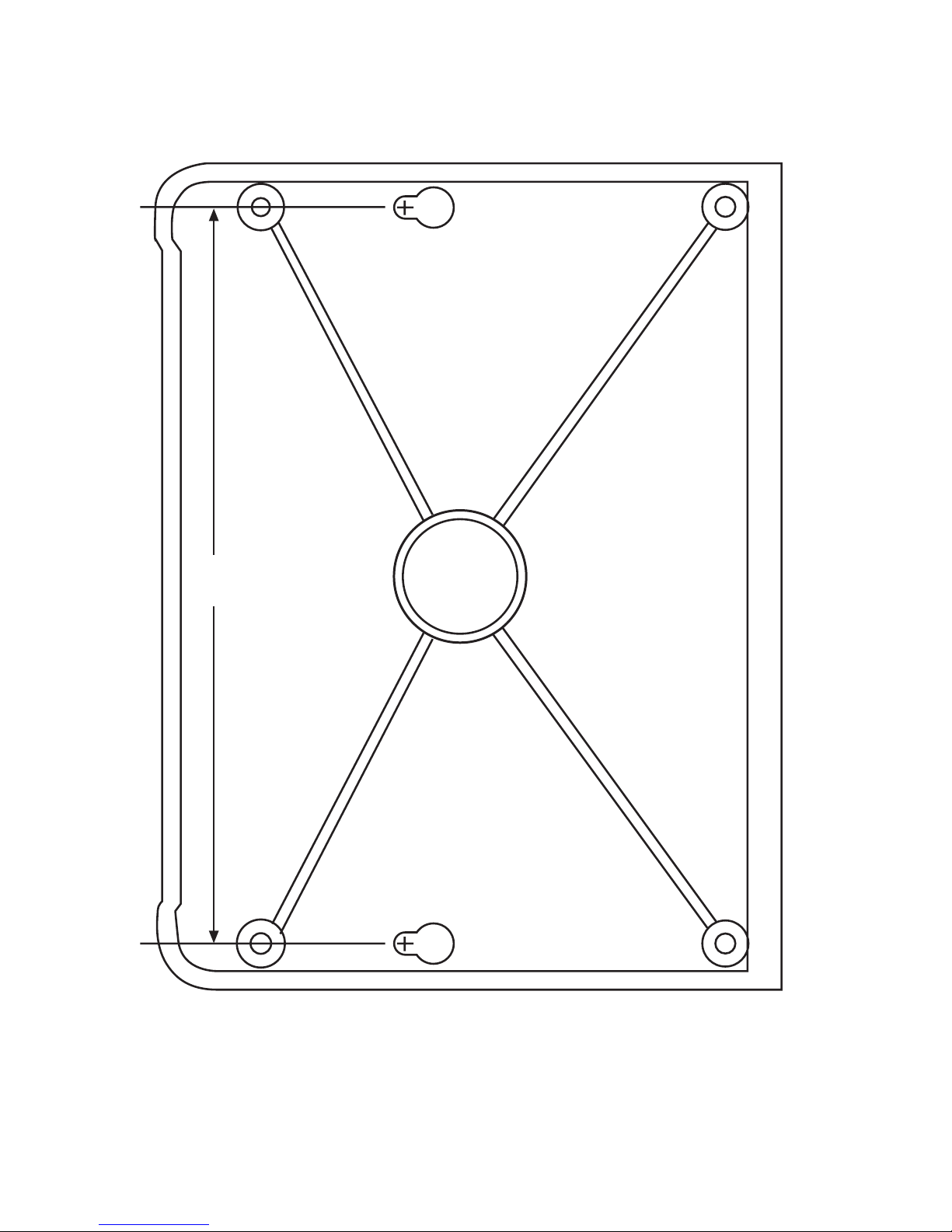

Optional ReachDSL Modem Wall Placement ........................................................................... 15
Technical Specifications for Hotwire 6310 ReachDSL v1 Modem .......................................... 17
Important Safety Instructions .................................................................................................... 18
Government Requirements ........................................................................................................ 21
Trademarks ................................................................................................................................22
Patent Notification .................................................................................................................... 22
Contacting Global Service and Support .................................................................................... 23
Technical Support ...................................................................................................................... 23
Service Requirements ................................................................................................................ 23
End User License Agreement (Zhone
and Affiliates)
License. Zhone Technologies, Inc. and/or an affiliate ("Zhone") hereby grants you
("User")—either an individual or a single business entity—the non-exclusive right to install,
access, run, or inter. act with ("Use") one copy of the enclosed software (which may have been,
or may be, provided on media, as part of a hardware platform, through download, or otherwise)
and associated documentation ("Software") on the first computer system on which User installs
the Software ("System") solely for internal business purposes (including, without limitation,
providing products and services to User's customers) and subject to the restrictions below).
Do not install this Software unless you agree to these provisions.
Return the Software promptly for a refund if you do not agree.

26310-A4 ReachDSL Modem 6310-A2-ZN12-10
Zhone may, in its sole discretion, make available future updates or upgrades to the Software each
of which is also Software subject hereto. Title to and all patent rights, copyrights and other
intellectual property rights in the Software are retained by Zhone and its direct and indirect
suppliers and licensors ("Licensors").
Restrictions. The Software may not be (a) Used on or from any system other than the System; (b)
Used with more than any maximum number of subscribers stated in the documentation
accompanying the Software; (c) Used so as to circumvent any technological measure included
therein or provided by Zhone from time to time to control access to or limit use of the Software;
(d) sublicensed, rented, leased or lent to third parties; (e) imported or exported into any
jurisdiction except in compliance with all applicable laws of the United States and such
jurisdiction; (f) transferred to a third party unless (A) User transfers the original and all surviving
copies to a third party who has agreed in writing to be bound hereby and (B) such third party pays
to Zhone such reasonable additional fee as Zhone may impose from time to time with respect to
such transfer; or (g) made available to third parties as part of any time-sharing or service bureau
arrangement. User shall not have the right to use the Software or any portion thereof for a use
other than that contemplated by its documentation. User will not copy all or any part of the
Software or attempt, or encourage or permit any third party, to modify, adapt, make derivative
works from, reverse engineer, reverse compile, disassemble or decompile the Software or any
portion thereof except and only to the extent that such activity is expressly permitted by law
notwithstanding this limitation. Violation of any of the foregoing shall be deemed a material
breach hereof. User may make a reasonable number of copies solely for archival or disaster
recovery and subject to the restrictions imposed by copyright law, but may not modify or
otherwise copy the Software. User agrees to reproduce product identification, copyright and
other proprietary notices of Zhone and Licensors on all copies. User's rights are only as expressly
stated herein. Zhone may immediately terminate your rights if you violate the provisions hereof.
Limited Warranty. Zhone warrants that the media containing the Software is free from defects in
material and workmanship for ninety (90) days following your purchase of the Software. You
may provide written notice of such defect (addressed to Zhone Technologies, Inc., Attention:
Customer Service, 7001 Oakport Street @ Zhone Way, Oakland, CA 94621) no later than ten
(10) days following expiration of such period and, as your sole and exclusive remedy, Zhone will
provide replacement media. NEITHER ZHONE NOR ITS LICENSORS MAKE ANY OTHER
WARRANTY, EXPRESS, IMPLIED OR STATUTORY. ZHONE AND ITS LICENSORS
DISCLAIM ALL WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE,
MERCHANTABILITY AND NON-INFRINGEMENT. Some states or other jurisdictions do not
allow the exclusion of implied warranties on limitations on how long an implied warranty lasts,
so the above limitations may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from one state or jurisdiction to another.
Limit of Liability. In case of any claim hereunder or related to the Software, neither Zhone nor its
Licensors shall be liable for direct damages exceeding the price paid by User for the Software or
for special, incidental, consequential or indirect damages, even if advised in advance of the
potential thereof.
U.S. Government Users. The Software is a "commercial item" as defined at 48 C.F.R. 2.101,
consisting of "commercial computer software" and "commercial computer software
documentation" as such terms are used in 48 C.F.R. 12.212. Under 48 C.F.R. 12.212 and 48
C.F.R. 227.7202-1 to 227.7202-4, U.S. Government Users acquire the Software only with the
rights set forth therein.

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 3
Third Party Licensors. This Zhone End User License Agreement may be accompanied by
differing or additional provisions applicable to portions of the Software provided by one or more
Licensors ("Licensor Provisions"). User acknowledges and agrees that its Use of such portions of
the Software is subject to the Licensor Provisions.
Hotwire 6310 ReachDSL v1 (MVL)
Modem Overview
The Hotwire®6310 ReachDSL®version 1 (formerly MVL®) Modem is a component in the
Hotwire ReachDSL System and interoperates with the Hotwire 8310 MVL, or Hotwire
8312/8314 ReachDSL Card in the DSLAM (Digital Subscriber Line Access Multiplexer)
system. This system provides high-speed Internet or corporate LAN access over traditional
twisted-pair copper telephone wiring.
The ReachDSL technology:
zUtilizes an inline phone filter on the ReachDSL modem’s PHONE jack.
zOperates over existing copper wire with existing telephone jacks.
zIncludes a second line pass-through from the ReachDSL modem’s LINE jack to PHONE
jack to accommodate an attached 2-line telephone.
zProvides rate adaptive data rates to dynamically adapt and allocate bandwidth to optimize
applications.
In addition, the ReachDSL v1 technology:
zTransforms a single copper pair into multiple virtual lines to support multiple services
simultaneously.
zSupports simultaneous multiple access of four ReachDSL v1 modems with up to
254 end-user systems sharing one common WAN interface.
zFeatures HomeLink, which provides peer-to-peer communications, including print and file
sharing applications (see HomeLink (for ReachDSL v1 Modems Only) on page 12).

46310-A4 ReachDSL Modem 6310-A2-ZN12-10
Hotwire ReachDSL System
Copper pairs run from the central office (CO) to the customer premises (CP) to create the local
loop. The local loop terminates on the customer premises at the demarcation point.
NOTES:
In this document:
— A telephone is used to represent any equipment that plugs into a phone jack and uses
the POTS line, such as a phone, modem, or fax machine.
— End-user system is used to represent any PC with an Ethernet connection and
ReachDSL-based service.
— RJ11 wall jack is used to represent either an RJ11 or an RJ14 wall jack. The RJ14 wall
jack is used for a phone with two lines.
— Service provider is used to represent any Internet Service Provider (ISP) or remote
LAN access provider.
01-17005
Customer Premises (CP)
DSL/POTS
Ethernet
Crossover
Cable
Ethernet
Cable
or
Central
Office
(CO)
Local Loop
Hub
DSL – Digital Subscriber Lines
POTS – Plain Old Telephone Service
End-user
Systems
(up to 32)
Network
Service
Provider
(NSP)
Demarcation
Point
ReachDSL
Modem

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 5
Phone Filter
Depending on the type of phone handset and the quality of the home or business wiring, a phone
filter is recommended to minimize background noise during a phone conversation. An internal
phone filter is included with the Hotwire 6310 ReachDSL v1 Modem. If additional telephones
are used on the same phone line as the ReachDSL modem, install one phone filter on each
telephone.
There are two Hotwire phone filters:
zHotwire 6035 Universal Phone Filter is designed for use with a tabletop phone.
zHotwire 6040 Universal Wall Jack Phone Filter is designed for use with a wall phone.
Product-Related Documents
To install a phone filter, refer to the appropriate document:
zHotwire 6035 Universal Phone Filter Installation Instructions
zHotwire 6040 Universal Wall Jack Phone Filter Installation Instructions
Contact your sales or service representative to order additional product documentation.
Product documents are available on the World Wide Web at www.zhone.com.
PHONELINE
ETHERNET
POWER
PHONELINE
ETHERNET
POWER
01-17006
RJ11
Wall Jack
RJ11
Wall
Jack
ReachDSL Modem
Customer
Premises (CP)
FAX
ReachDSL
Modem
6035
Phone Filter
6040
Wall Jack
Phone
Filter

66310-A4 ReachDSL Modem 6310-A2-ZN12-10
Getting Started
Before beginning your modem’s installation, make sure that you have all the equipment that you
need.
Package Checklist
Verify that your package contains the following:
zHotwire 6310 ReachDSL v1 Modem
zDSL interface cable with RJ11 connectors
zPower cord with power transformer
Wiring and Cables You Need
The following wiring and standard connectors are used with this product:
zStandard RJ11 (or RJ14) wall jack for the ReachDSL modem cabling.
zStandard Ethernet 8-pin, non-keyed modular plug for a PC or workstation. An Ethernet
straight-through or crossover cable is used.
—RefertoInstalling the Hotwire 6310 ReachDSL v1 Modem on page 7 for Ethernet
installation details.
—RefertoCables & Connectors on page 13 for ReachDSL modem and Ethernet cable
pin assignments.

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 7
Installing the Hotwire 6310 ReachDSL v1
Modem
Place the ReachDSL modem on a flat surface with clearance for the rear connectors.
Procedure
1If a telephone is connected at the RJ11
wall jack where the modem will be installed,
unplug the telephone line from the wall jack.
2Connect a telephone to the modem. (Optional –
go to Step 3 if you are not connecting a
telephone to the ReachDSL modem.)
Plug the existing telephone interface cable that
was unplugged in Step 1 into the jack labeled
PHONE.
3Use the supplied RJ11 6-pin interface cable for
the LINE connection. Insert one end of the cable
into the jack labeled LINE. Insert the other end of the cable into the RJ11 wall jack.
NOTE:
If you are installing a POTS splitter with another telephone, connect the telephone to
the jack labeled PHONE, then connect the jack labeled LINE to a wall jack. Do NOT
plug any cable into the POTS splitter jack labeled either MODEM or DSL. In
particular, make NO connections between a POTS splitter and the modem.
01-17015a
RJ11
Wall Jack
01-17015
RJ11
Wall Jack
PHONE LINE
ETHERNET
POWER
RJ11
6-pin
Interface Cable
PHONE LINE

86310-A4 ReachDSL Modem 6310-A2-ZN12-10

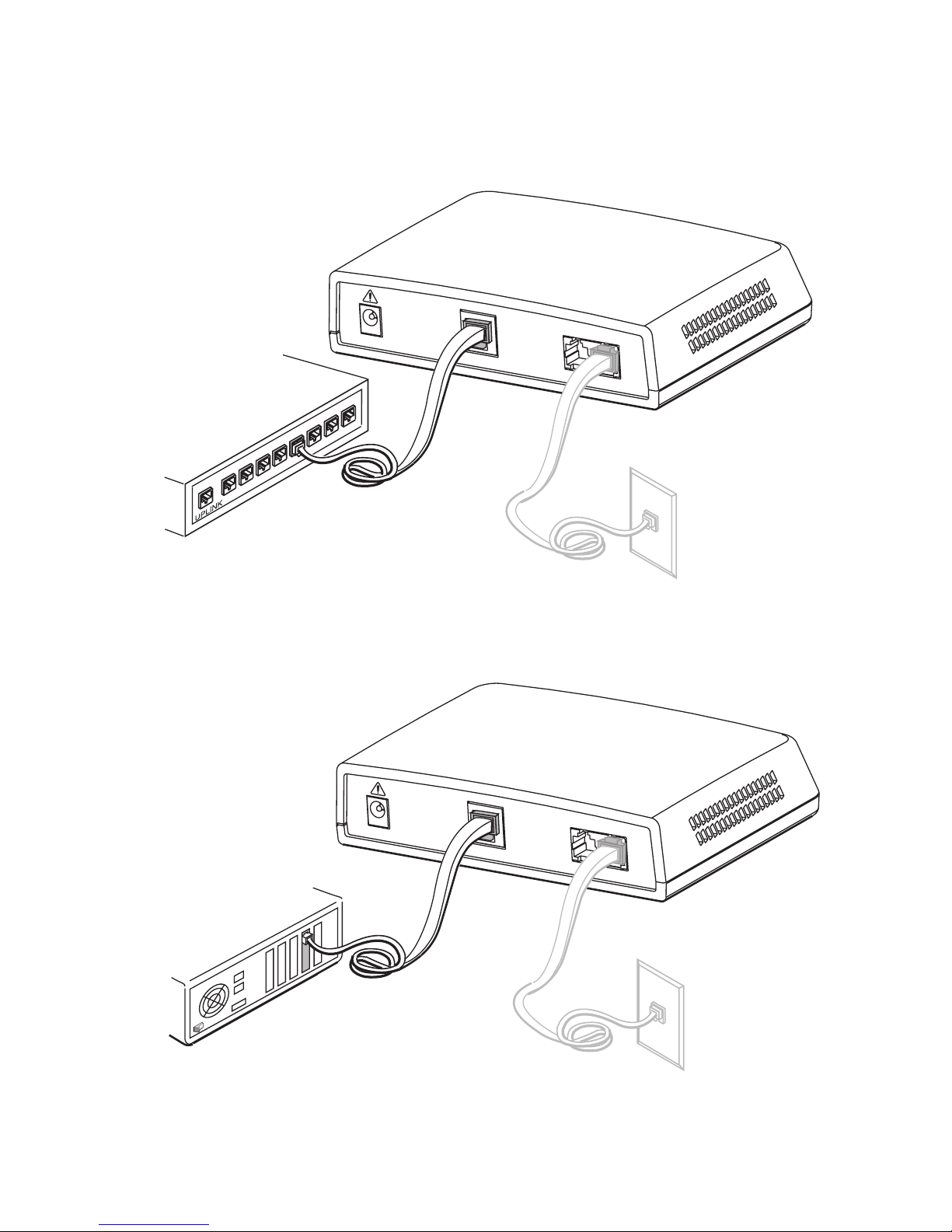

4Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the cable into the
jack labeled ETHERNET.
— Use a straight-through cable and connect the other end to an Ethernet hub.
(To connect to a hub’s Uplink connection, use an Ethernet crossover cable).
–or–
— Use an Ethernet crossover cable and connect the other end to a PC with an Ethernet
Network Interface Card (NIC) installed.
PHONE LINE
ETHERNET
POWER
01-17008
Ethernet
Line
Ethernet
Hub
87654321
Ethernet
Straight-Through
Cable
01-17009
Ethernet
Line
PC with Ethernet
Network Interface
Card
Ethernet
Crossover
Cable
PHONE LINE
ETHERNET
POWER

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 9

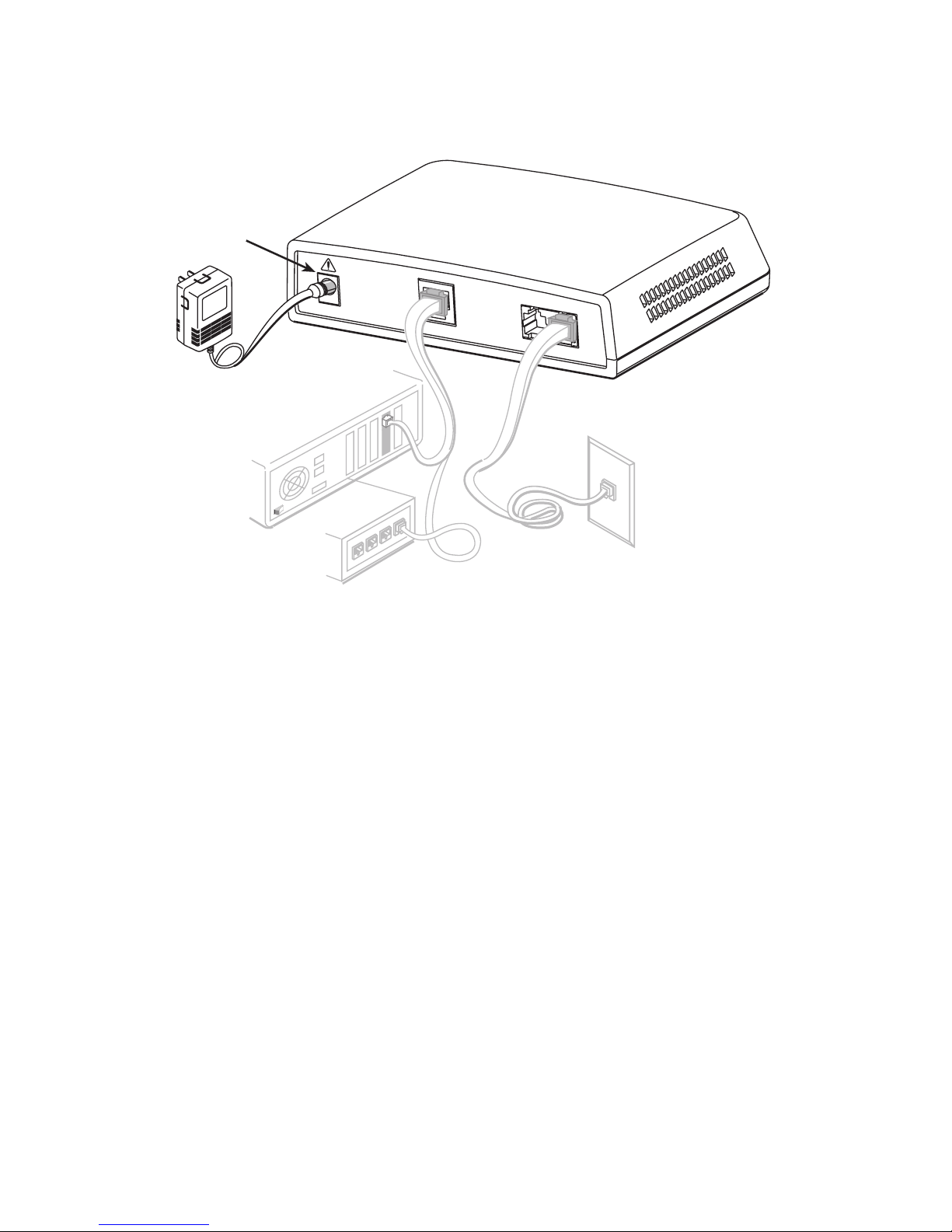

5Insert the supplied power cord’s round end into the jack labeled POWER. Plug the
transformer into an AC outlet.
The ReachDSL modem hardware installation is now complete. When the power cord is installed,
the ReachDSL modem goes through a power-on self-test.
PHONE LINE
ETHERNET
POWER
01-17010
Power
Jack
Transformer
or

10 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
Power-On
When power is applied, the ReachDSL modem performs self-diagnostics and the PWR LED is
on. The self-diagnostics includes a power-on self-test and all of the LEDs turn on for one second.
Status LEDs
All of the LEDs turn on and off during the power-on self-test. After a successful self-test, the
LEDs should appear as indicated in BOLD in the Condition column below.
Refer to Troubleshooting on page 11 for LED indications requiring action.
LED Condition Status
PWR ON ReachDSL modem has power.
ALM OFF
ON
No active alarms.
An alarm condition exists.
TST OFF
ON
No active tests.
The TST LED is on during the power-on self-test and during a
test initiated by the service provider.
LINE ON
OFF
The DSL link is active and ready to transmit and receive data.
The DSL link has not been established.
TX/RX ON
OFF
Data transmission is in progress on the DSL line.
The modem is not transmitting or receiving data.
ETHERNET ON
OFF
The Ethernet connection to the Ethernet hub or PC is active.
No Ethernet 10BaseT device is detected.

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 11
Troubleshooting
To improve data transmission throughput and minimize background noise during a telephone
conversation, make sure that:
zThe Hotwire 6310 ReachDSL v1 Modem is always powered on, even when not in use, and
zA Hotwire phone filter is installed on every telephone on the same line as the Hotwire 6310
ReachDSL v1 Modem (see Phone Filter on page 5).
LED Symptom Action
All LEDs are on. If LEDs remain on after ten minutes, the modem is not functional.
Contact the service provider.
ALM LED remains
on.
The power-on self-test may have failed. Unplug the unit and reapply
power. If the alarm LED is still on, contact the service provider.
ALM and TST LEDs
are blinking.
Firmware download may be in progress. If firmware download is not
in progress or the LEDs continue blinking after ten minutes, contact
the service provider.
Ethernet LED is off. Verify that the Ethernet cable is securely installed at both ends, and at
least one PC is connected and powered on.
Verify that the correct straight-through or crossover cable is installed.
Refer to Installing the Hotwire 6310 ReachDSL v1 Modem on page 7.
LINE LED is off. Verify that the LINE cable is securely installed on both ends. If the
problem continues, contact the service provider.
Verify that the line has dial tone. If there is no dial tone, contact the
service provider.
LINE LED is on and
there is no data
transmission.
The DSL link has been established but there is no data transmission.
Verify the Ethernet connection. If the problem persists, contact the
service provider.
LINE and Ethernet
LEDs are on and
there is no data
transmission.
The DSL line and Ethernet links have been established but there is no
data transmission. If the problem continues, contact the service
provider.
PWR LED is off. Check that the power cord is securely installed on both ends.
If no LEDs are on, the power supply may be defective. Test the outlet
to verify power. If the problem persists, contact the service provider.
If other LEDs are on, the PWR LED may be burned out. Unplug the
unit and reapply power; watch all LEDs during the power-on self-test
to verify if the PWR LED is functioning.
TST LED is on. A test initiated by the service provider may be active. Wait five
minutes. If the TST LED does not go off, contact the service provider.

12 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
HomeLink (for ReachDSL v1 Modems
Only)
HomeLink is a feature that provides peer-to-peer communications for PCs attached to different
Hotwire 6310 ReachDSL v1 modems at the customer premises.
For example, PCs that are not connected to the same physical Ethernet LAN can now take
advantage of the resources of the primary office computer. With the Microsoft Windows
operating system, multiple end-user systems can share resources, including:
zFile sharing
zPrint sharing
zSecondary computer backup
To enable the sharing of resources and review security considerations, see Microsoft’s Web site
at www.microsoft.com.
In this example of HomeLink, the PC in the family room could use the office printer.
Increasing the Number of End-User
Systems
A single end-user system is attached to the Hotwire 6310 ReachDSL v1 Modem by using an
Ethernet crossover cable. To increase the number of end-user systems, connect all the PCs to an
Ethernet hub using a straight-through cable.
On one line, the ReachDSL v1 system provides the capability to use up to four Hotwire 6310
ReachDSL v1 modems and 32 end-user systems in any combination.
PHONELINE
ETHERNET
POWER
PHONELINE
ETHERNET
POWER
01-17012
RJ11
Wall
Jack
ReachDSL v1
Modem
Office
Hub
FAX
Ethernet
Cable Printer
RJ11
Wall
Jack
ReachDSL v1
Modem
Family Room

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 13
Cables & Connectors
This section is reference information.
Standard twisted-pair CAT3 or better cables are recommended.
zThe LINE and PHONE interface connectors
use 6-pin, non-keyed modular plugs. RJ11 or
RJ14 6-pin connectors can be used.
Line & Phone Connectors
zThe LINE and PHONE jack pinouts are either filtered or unfiltered for POTS.
Pin # Function
1 Not used
2 Ring 2 (optional)
3 DSL Ring 1
4 DSL Tip 1
5 Tip 2 (optional)
6 Not used
PHONE Jack Pinouts LINE Jack Pinouts
Pin # 3, 4 Filtered for POTS Pin # 3, 4 DSL and POTS
Pin # 2, 5 2nd POTS unfiltered Pin # 2, 5 2nd line pass-through
98-15304a
6-Pin
RJ11 Plugs
Pin #1
Pin #6

14 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
zThe Ethernet interface connector uses an 8-pin, non-keyed modular plug.
— To connect the ReachDSL modem to an
Ethernet hub, use the straight-through
connection.
8-Pin Straight-through Connection
–or–
— To connect the ReachDSL modem directly to a PC with an Ethernet NIC card, use an
Ethernet crossover cable.
Pin # Function
1 10BaseT TX D+
2 10BaseT TX D–
3 10BaseT RX D+
4 & 5 Not used
6 10BaseT RX D–
7 & 8 Not used
98-16055a
8-Pin
Plug
Ethernet
Cable
Pin #1
Pin #8
10/100BaseT TX D+
10/100BaseT TX D–
10/100BaseT RX D+
Not Used
Not Used
10/100BaseT RX D–
Not Used
Not Used
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
10/100BaseT TX D+
10/100BaseT TX D–
10/100BaseT RX D+
Not Used
Not Used
10/100BaseT RX D–
Not Used
Not Used
Function Pin # FunctionPin #
8-Pin Ethernet Crossover Cable
99-16518
Pin #1/2 = Orange/White
Twisted Pair
Pin #3/6 = Blue/White
Twisted Pair

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 15
Optional ReachDSL Modem Wall
Placement
The Hotwire 6310 ReachDSL v1 Modem is designed for tabletop placement. The ReachDSL
modem can also be mounted on a wall. To mount the modem, you will need:
qTwo slotted-head #6 self-threading screws with plastic anchors
qDrill and 3/16" drill bit for the plastic anchors
qScrewdriver
A template with the dimensions for the two screws is provided. See ReachDSL Modem Hardware
Template on page 16.
Procedure
To mount the Hotwire 6310 ReachDSL v1 Modem:
1Use a drill to install the plastic anchors.
2Use a screwdriver to install the screws. Do not install the screws flush with the wall. Leave
enough clearance to hang the modem housing from the screws.
Wall
Fasteners
01-17004
Hotwire
ReachDSL
Modem

16 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
ReachDSL Modem Hardware Template
5.10
01-17014
To p
Bottom

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 17
Technical Specifications for Hotwire
6310 ReachDSL v1 Modem
Item Specification*
Height x Width x Depth 1.46"x 5.72"x 4.33"(3.71 cm x 14.54 cm x 11.00 cm)
Weight 0.45 lb. (0.20 kg)
Power
Class 2 Transformer normal
service input voltage range
Input: 100 VAC (+10%), 50 Hz;
120 VAC (+10%), 60 Hz; or
230 VAC (+10%), 50/60 Hz
Output: 5 VDC nominal, minimum 0.6A (SELV)
Approvals
FCC Part 15
CISPR 22
Other Certifications
Class B digital device
Class B
Refer to equipment’s label for approvals on product
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°F to 104°F (0°C to 40°C)
–22°F to 158°F (–30°C to 70°C)
5% to 95% (noncondensing)
Withstands normal shipping and handling
Heat Dissipation 2.35 watts at 5.0 VDC (nominal input voltage)
Interface Connectors
Line and Phone Interfaces
Ethernet Type II Frame
RJ11 or RJ14 6-pin
10BaseT 8-pin
*Technical Specifications subject to change without notification.

18 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
Important Safety Instructions
1Read and follow all warning notices and instructions marked on the product or included in
the manual.
2Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation
of the product and to protect it from overheating, these slots and openings must not be
blocked or covered.
3Do not allow anything to rest on the power cord and do not locate the product where persons
will walk on the power cord.
4Do not attempt to service this product yourself, as opening or removing covers may expose
you to dangerous high voltage points or other risks. Refer all servicing to qualified service
personnel.
5General purpose cables are used with this product for connection to the network. Special
cables, which may be required by the regulatory inspection authority for the installation site,
are the responsibility of the customer. Use a UL Listed, CSA certified, minimum No. 24
AWG line cord for connection to the Digital Subscriber Line (DSL) network.
6When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection authorities to
ensure compliance.
7A rare phenomenon can create a voltage potential between the earth grounds of two or more
buildings. If products installed in separate buildings are interconnected, the voltage
potential may cause a hazardous condition. Consult a qualified electrical consultant to
determine whether or not this phenomenon exists and, if necessary, implement corrective
action prior to interconnecting the products.
8Input power to this product must be provided by one of the following: (1) a UL Listed/CSA
certified power source with a Class 2 or Limited Power Source (LPS) output for use in
North America, or (2) a certified transformer, with a Safety Extra Low Voltage (SELV)
output having a maximum of 240 VA available, for use in the country of installation.
9In addition, since the equipment is to be used with telecommunications circuits, take the
following precautions:
— Never install telephone wiring during a lightning storm.
— Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.
— Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
— Use caution when installing or modifying telephone lines.
— Avoid using a telephone (other than a cordless type) during an electrical storm. There
may be a remote risk of electric shock from lightning.
— Do not use the telephone to report a gas leak in the vicinity of the leak.
!

6310-A2-ZN12-10 6310-A4 ReachDSL Modem 19
CE Marking
When the product is marked with the CE mark on the equipment label, this demonstrates full
compliance with the following European Directives:
zDirective 73/23/EEC – Council Directive of 19 February 1973 on the harmonization of the
laws of the member states relating to electrical equipment designed for use within states
relating to electrical equipment designed for use within certain voltage limits, as amended
by Directive 93/68/EEC.
zDirective 89/336/EEC – Council Directive of 3 May 1989 on the approximation of the laws
of the member states relating to Electro-Magnetic Compatibility (EMC), as amended by
Directive 93/68/EEC.
CANADA – EMI NOTICE:
!
This Class B digital apparatus meets all requirements of the Canadian
interference-causing equipment regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du réglement sur le
matérial brouilleur du Canada.
Japan – Notices
This is a Class B product based on the standard of the Voluntary Control Council for
Interference from Information Technology Equipment (VCCI). If this is used near a radio
or television receiver in a domestic environment, it may cause radio interference. Install
and use the equipment according to the instruction manual.

20 6310-A4 ReachDSL Modem 6310-A2-ZN12-10
Declaration of Conformity
This Declaration of Conformity is made by Zhone Technologies (formerly Paradyne
Corporation) pursuant to Parts 2 and 15 of the Federal Communications Commission’s Rules.
This compliance information statement pertains to the following products:
Trade Name: Hotwire
Model Number: 6310-A4-200
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The name, address, and telephone number of the responsible party is given below:
Zhone Technologies
8545 126th Avenue North
Largo, FL 33773-1502
Phone: [phone]
The authority to operate this equipment is conditioned by the requirement that no modifications
will be made to the equipment unless the changes or modifications are expressly approved by
Zhone Technologies, Inc.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
