3M™ProtectA®
Rebel™Bracket
Assembly & Operation Guide

Porta Gantry Rapide 1100 4
Porta Gantry Rapide 2200 6
Porta Gantry; S & M 8
Porta Gantry 10
T Davit 12
Porta Davit Quantum 14
Porta Davit Quantum Single Winch 16
Porta Davit Quantum Double Winch 18
Fitting device into Bracket (Gantries) 20
Fitting device into Bracket (Davits) 22
Contents

3
Lightweight.
Portable. Safe.
Please read the following instructions and guidance notes
carefully. These have been designed to aid users in carrying out
the correct assembly of the bracket for each of our compatible
lifting systems. Systems compatible with this product are:

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003520] for the PORTAGANTRY RAPIDE, both Small and Medium frame types.
Appropriate PPE should be worn: Gloves Protective Footwear

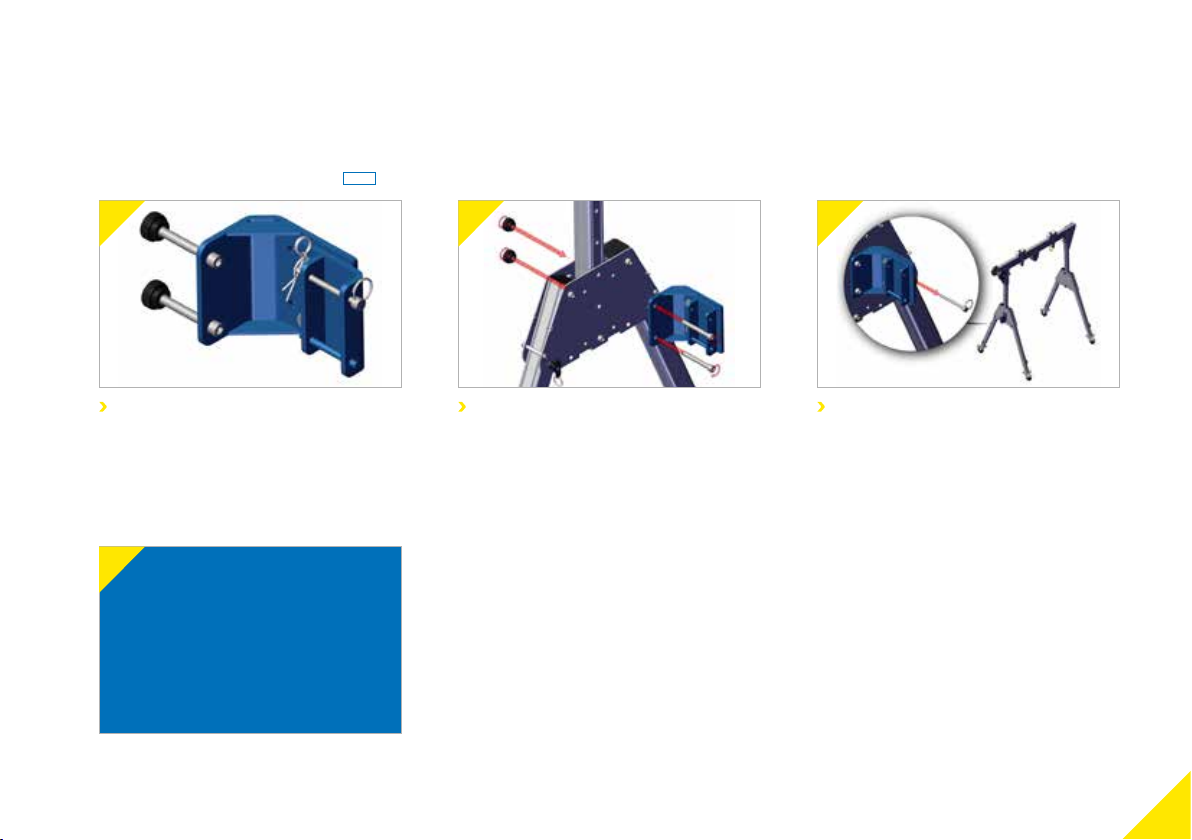

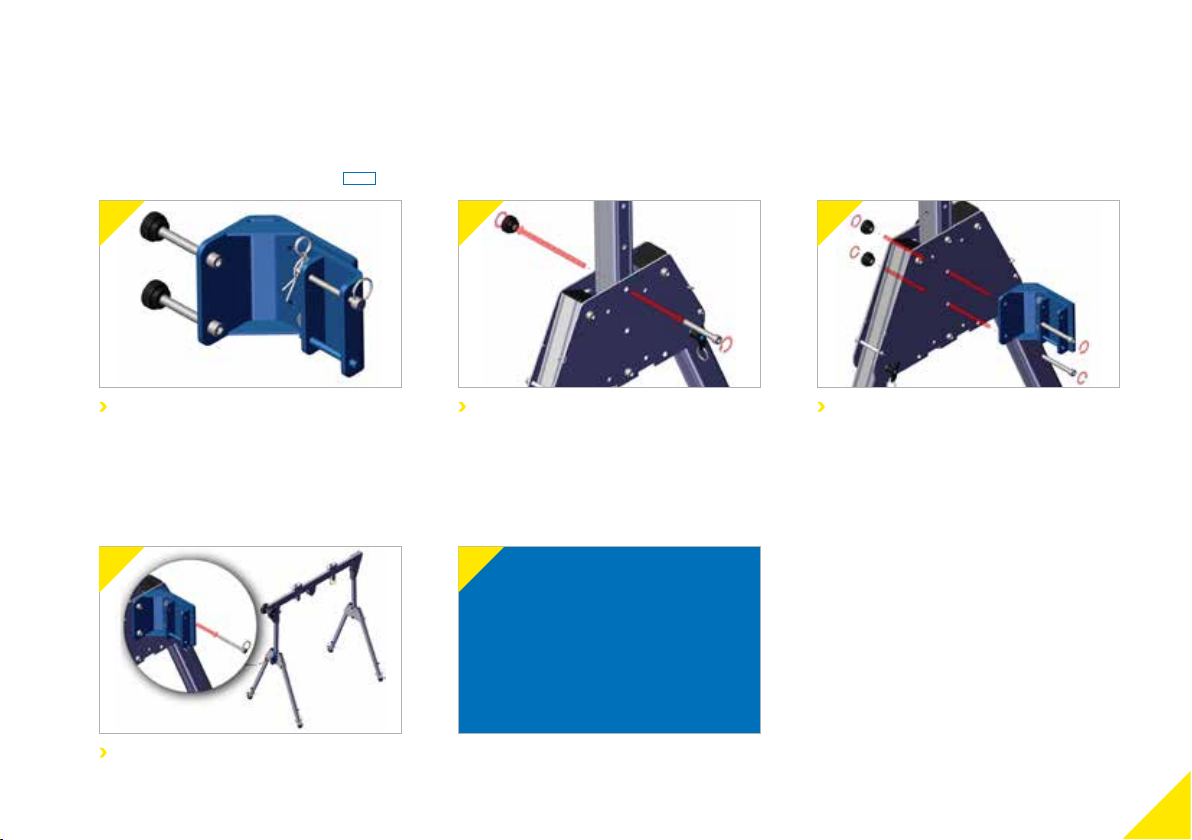

Assembly Instructions: PORTAGANTRY RAPIDE ®1100

31 2
Prepare bracket to receive the device; remove
the pin supplied with the bracket.
The bracket comes with the bolts supplied, as
shown above.
Remove the top bolt from the trap plate. Present bracket to trap plate , insert and secure
M12 bolt supplied with bracket.
See Page 20 to view the assembly instructions for
the fitting of the device onto the bracket.
5

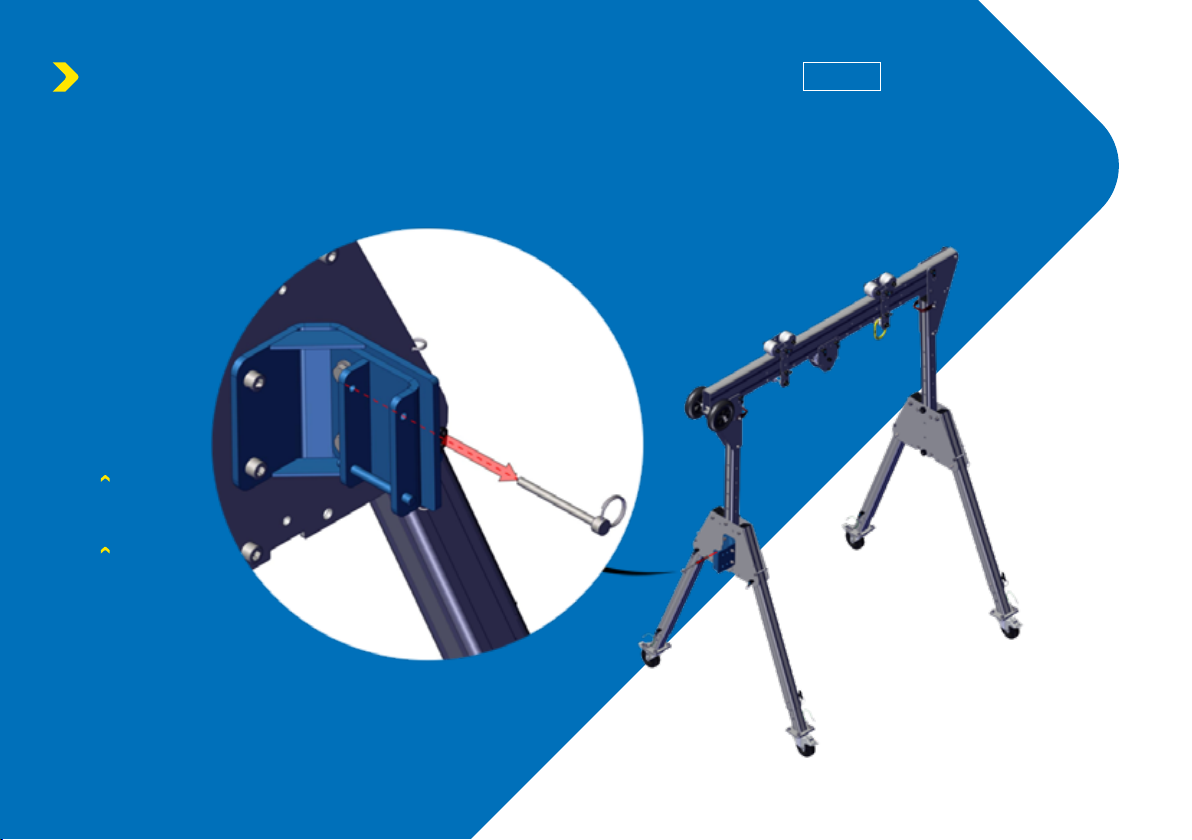

Assembling the PORTAGANTRY RAPIDE 1100: ProtectA Rebel Bracket
ProtectA Rebel Bracket - [US-RAWB003520]
4 5

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003520] for the PORTAGANTRY RAPIDE, both Small and Medium frame types.
Appropriate PPE should be worn: Gloves Protective Footwear

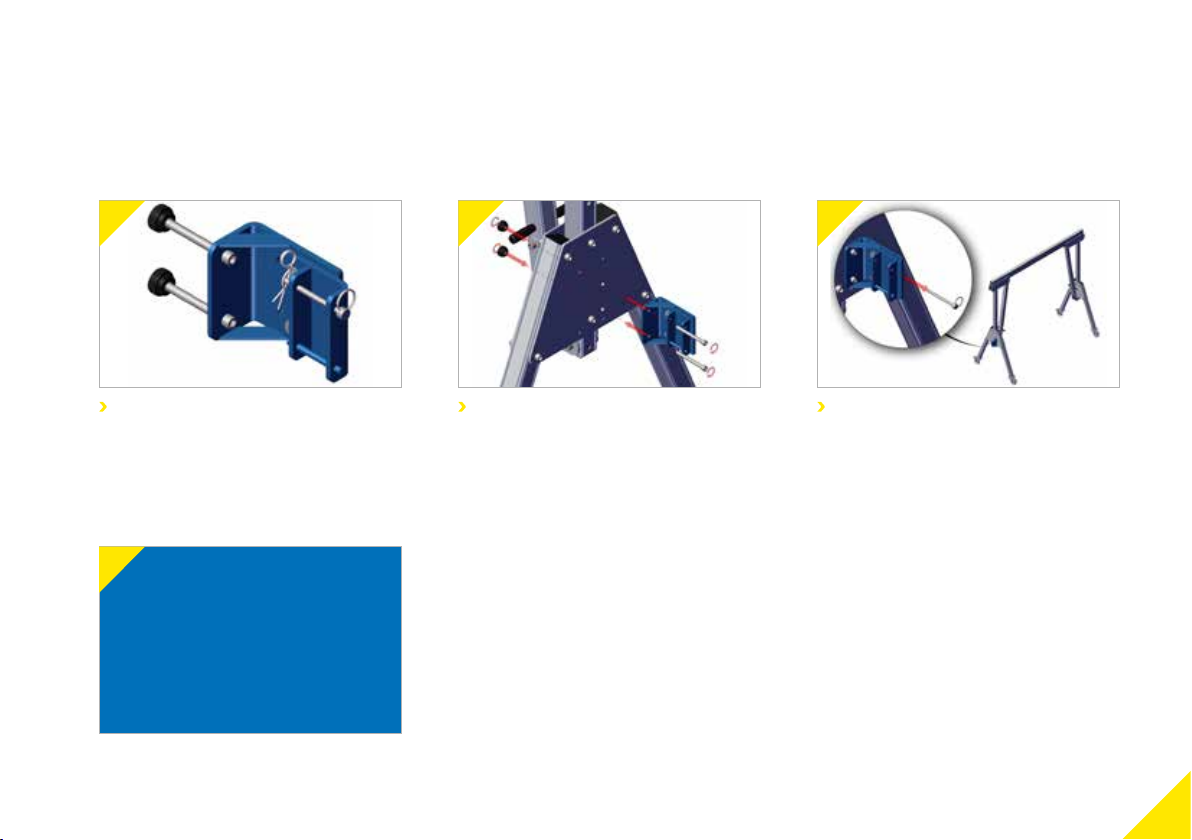

Assembly Instructions: PORTAGANTRY RAPIDE ®2200

See Page 20 to view the assembly instructions for
the fitting of the device onto the bracket.
31 2
The bracket comes with the bolts supplied, as
shown above.
Present bracket to trap plate as shown, use trap
plate centre holes to insert and secure both M12
bolts that have been supplied with the bracket.
Prepare bracket to receive the device; remove
the pin supplied with the bracket.
7
ProtectA Rebel Bracket - [US-RAWB003520]

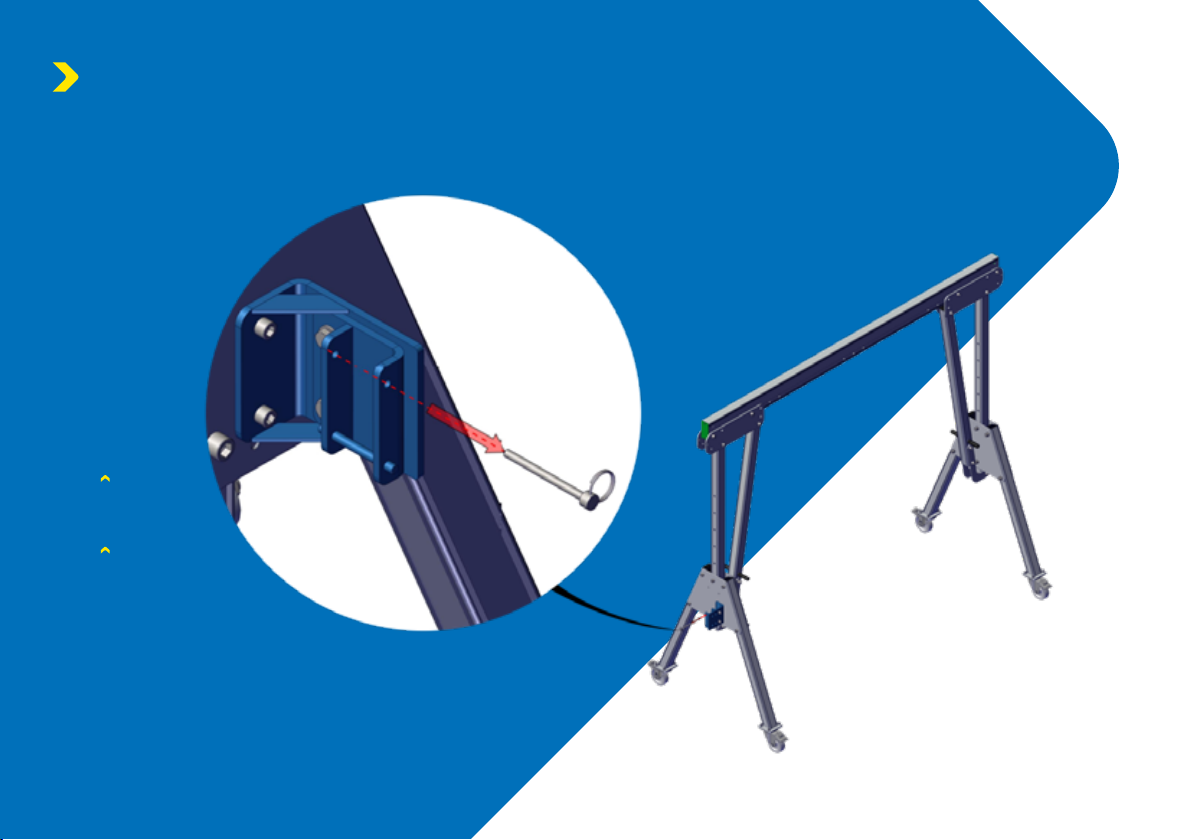

Assembling the PORTAGANTRY RAPIDE 2200: ProtectA Rebel Bracket
4

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB005022] for the PORTAGANTRY, both Small and Medium frame types.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: PORTAGANTRY®; S & M

See Page 20 to view the assembly instructions for
the fitting of the device onto the bracket.
31 2
The bracket comes with the bolts supplied, as
shown above.
Present bracket to trap plate as shown, use trap
plate centre holes to insert and secure both M12
bolts that have been supplied with the bracket.
Prepare bracket to receive the device; remove
the pin supplied with the bracket.
4
9
Assembling the PORTAGANTRY Small and Medium: ProtectA Rebel Bracket
ProtectA Rebel Bracket - [US-RAWB005022]

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: PORTAGANTRY®

Bracket is ready to receive the device.
The bracket comes with the pins supplied, as
shown above.
Present the bracket to the winch column, ensuring
that the correct holes line up ready to secure.
Insert the pins that have been provided with the
bracket.
31 2
See Page 20 to view the assembly instructions for
the fitting of the device onto the bracket.
5
11

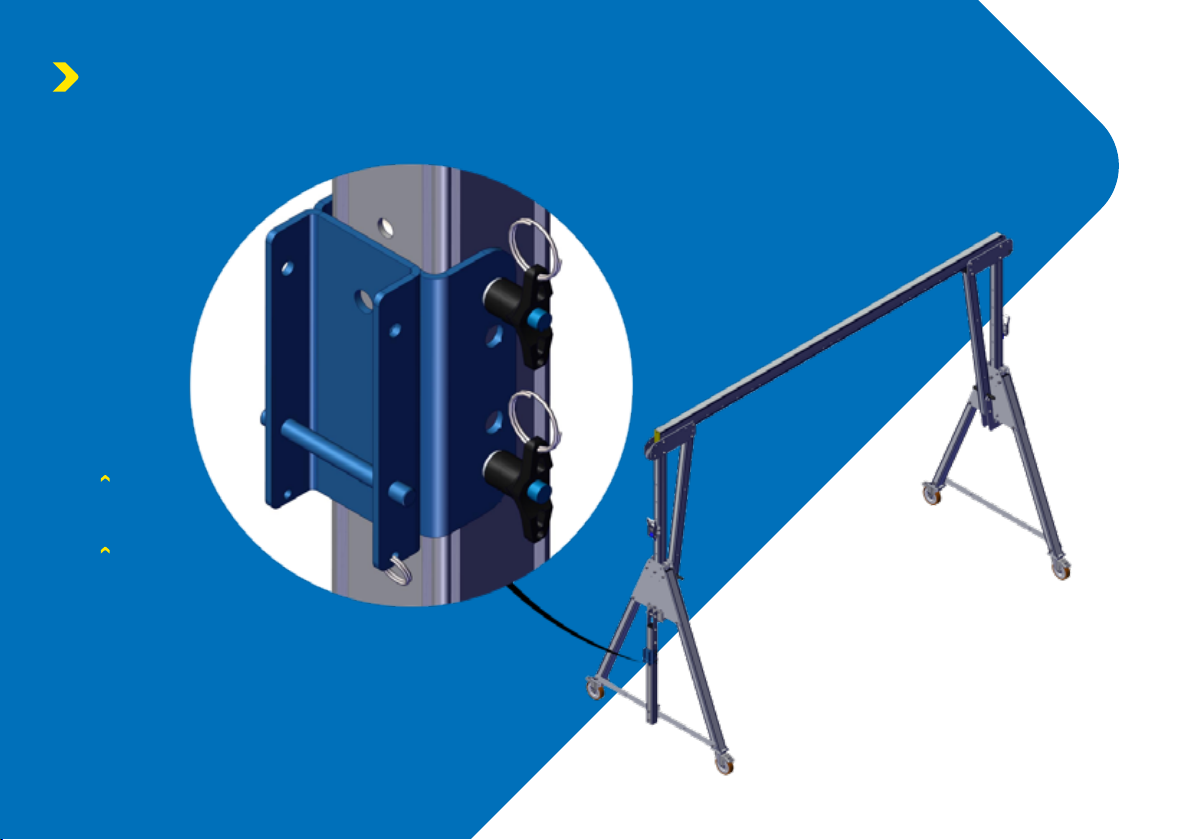

Assembling the PORTAGANTRY Intermediate and above sizes: ProtectA Rebel Bracket
ProtectA Rebel Bracket - [US-RAWB003000]
4

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: TDAVIT®

Bracket is ready to receive the device.
The bracket comes with the pins supplied, as
shown above.
Present the bracket to the TDAVIT column,
ensuring that the correct holes line up ready to
secure.
Insert the pins that have been provided with the
bracket.
31 2
See Page 22 to view the assembly instructions for
the fitting of the device onto the bracket.
5
4
13

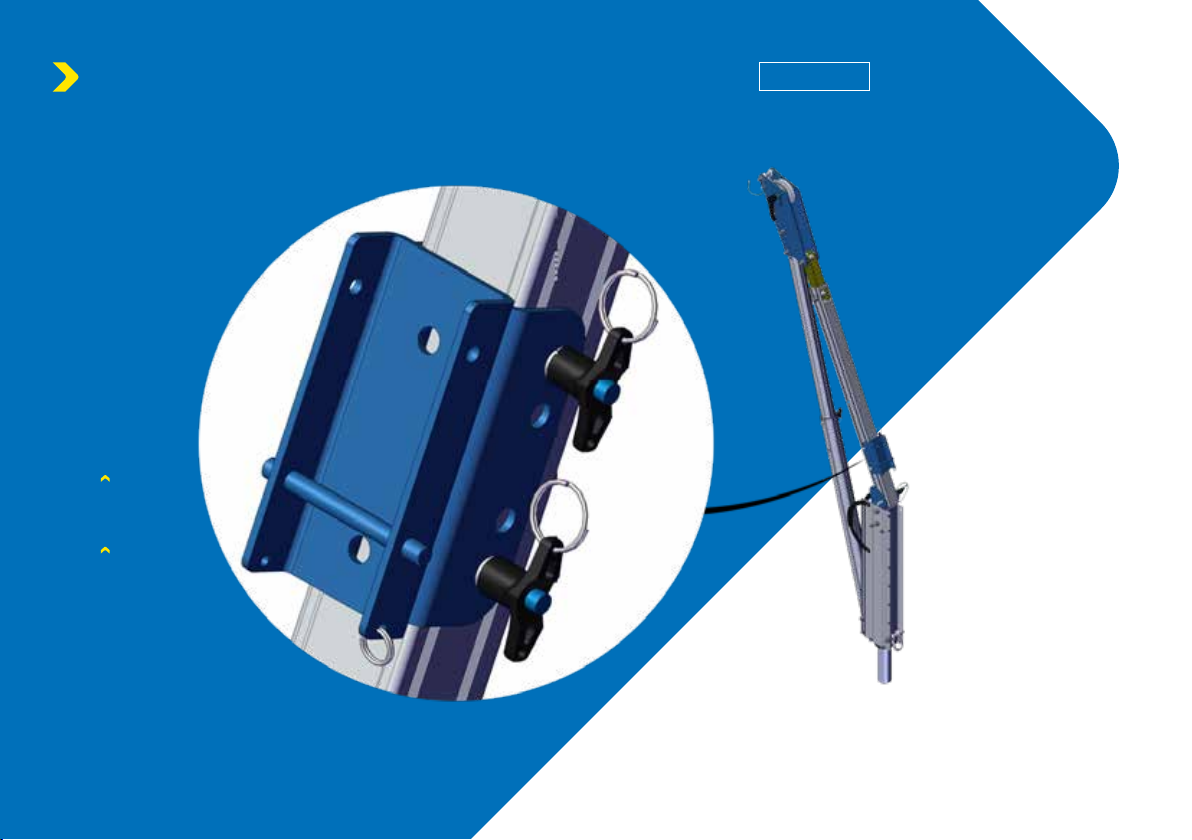

Assembling the TDAVIT: ProtectA Rebel Bracket
ProtectA Rebel Bracket - [US-RAWB003000]

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear

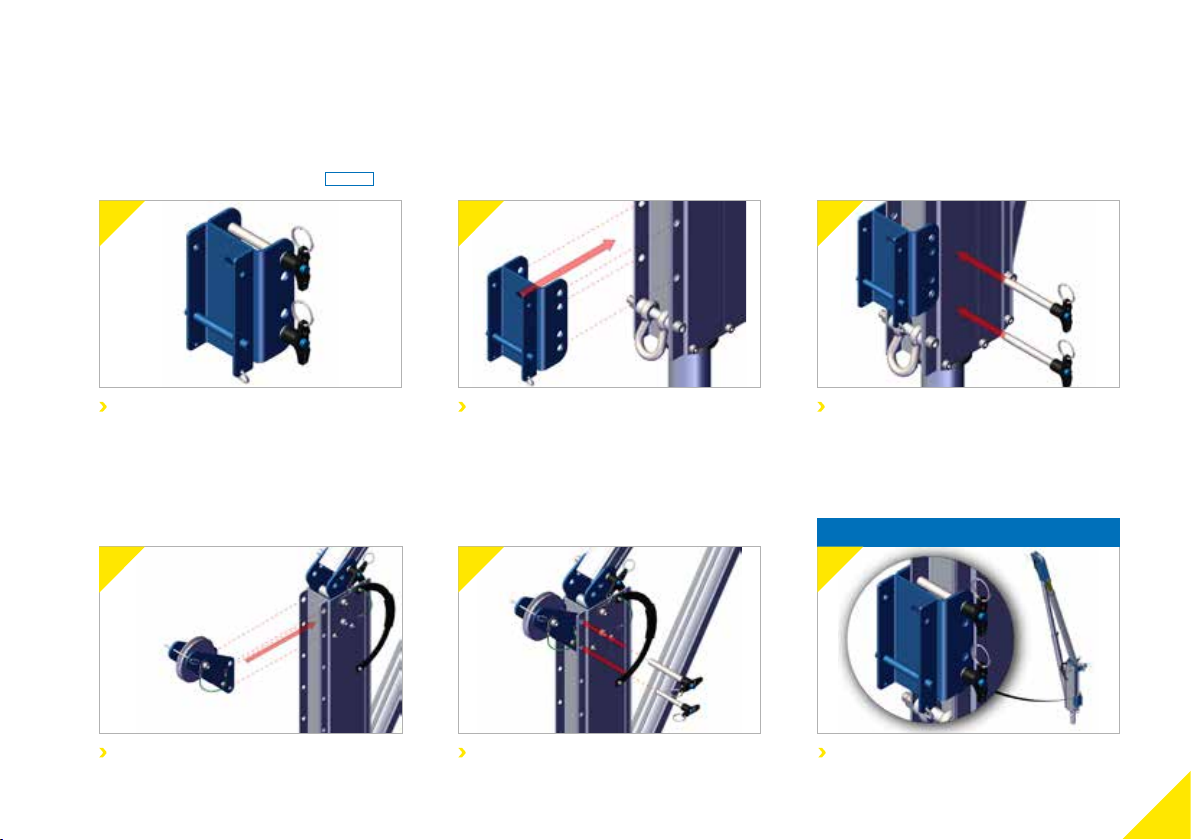

Assembly Instructions: PORTADAVIT QUANTUM ®
For this configuration a sheave bracket column is required.
US-RAWB000095 – Sheave bracket PDQ column Medium sheave (4-7mm).

Presen the sheave bracket to the top of the
column.
Insert the pins that have been provided to secure
the sheave.
31
Bracket is ready to receive the device.
2
The bracket comes with the pins supplied, as
shown above.
Present the bracket to the column, ensuring that
the correct holes line up ready to secure.
Insert the pins that have been provided with the
bracket.
15
Assembling the PORTADAVIT QUANTUM : ProtectA Rebel Bracket
ProtectA Rebel Bracket - [US-RAWB003000]
See page 22 for instructions to fit the device.
4 5 6

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003006] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: PORTADAVIT QUANTUM ®

Bracket is ready to receive the device.
31 2
The bracket comes with the pins supplied, as
shown above.
Present the bracket to the backstay, ensuring that
the correct holes line up ready to secure.
Insert the pins that have been provided with the
bracket.
See Page 22 to view the assembly instructions for
the fitting of the device onto the bracket.
5
17
ProtectA Rebel Bracket - [US-RAWB003006]
Assembling the PORTADAVIT QUANTUM Backstay (Single Winch): ProtectA Rebel Bracket
4

The following instructions detail the assembly of the ProtectA Rebel Bracket [US-RAWB003010] for the PORTADAVIT QUANTUM Backstay (Double Winch).
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: PORTADAVIT QUANTUM ®

Bracket is ready to receive the device.
31 2
The bracket comes with the pins supplied, as
shown above.
Present the bracket to the backstay, ensuring that
the correct holes line up ready to secure.
Insert the pins that have been provided with the
bracket.
See Page 22 to view the assembly instructions for
the fitting of the device onto the bracket.
5
4
19
ProtectA Rebel Bracket - [US-RAWB003010]
Assembling the PORTADAVIT QUANTUM Backstay (Double Winch): ProtectA Rebel Bracket

Assembly Instructions: Fitting the device (Gantries)
Appropriate PPE should be worn: Gloves Protective Footwear
The following instructions detail the assembly of the device being attached into the ProtectA Rebel bracket on all Gantries.
