4healthcare 4H415E60 Operator's manual

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 2 of 12
Table of Contents
1. PRODUCT DESCRIPTION............................................................................................3
2. SPECIFICATIONS.........................................................................................................3
3. PRODUCT OVERVIEW.................................................................................................4
4. OPERATING INSTRUCTIONS......................................................................................5
6. SAFETY PRECAUTIONS ............................................................................................11
7. CARE & MAINTENANCE INSTRUCTIONS .................................................................11
8. OPTIONS.....................................................................................................................11
9. WARRANTY ................................................................................................................11
10. SPARE PARTS ............................................................................................................12

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 3 of 12
1. PRODUCT DESCRIPTION
This Shower Commode has been designed to comfortably position the occupant in the most
desirable seating position at all times.
It uses a 24V Linak rechargeable electrical system to smoothly and easily operate the Tilt-in-
Space feature. The battery is removable and placed on a wall charger to re-charge.
It has simple to use swing-up arms with padded armrests, adjustable height swing-away leg
rests with padded calf rests. It also comes with flip-up footrests that pivot backwards and
forwards. The backrest can be easily removed for cleaning via the clip on/off feature.
The ‘X’ style head rest is height and depth adjustable.
The integrated push handle and Precision ball bearing 125mm locking castors make the unit
easy to maneuver and secure when transferring.
The Shower Commode is manufactured from durable and long lasting stainless steel which
is coated in an epoxy powder coated finish to provide easy cleaning.
2. SPECIFICATIONS
Maximum Occupant Weight of 255kg.
Seat Frame to Floor height: 550mm
Seat Frame Width: 600mm
Seat Frame to Top of Backrest Frame height: 625mm
Seat Frame to top of Head Rest: Low 850mm –High 1080mm
Push Handle to Floor height: 980mm
Armrest to Seat Frame height: 315mm
Footrest to Seat Frame height: Min-305mm Max-430mm, 5 x 25mm increments.
Backrest Tilt Angle: 10 –35 Degrees from vertical.
3 x Dia 125mm Total Lock Castors –Maintenance free
1 x Dia 125mm Directional Lock Castor –Maintenance free
Overall Dimensions;
Height: 1310mm (head rest removed)
Width: 700mm
Depth: 1070mm
Weight: 24.5kg

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 4 of 12
3.PRODUCT OVERVIEW
HEADREST
PADDED BACKREST –CLIP ON/OFF
PADDED SWING UP ARM
HANDMADE PADDED OPEN FRONT SEAT
(OPTIONAL)
SWING AWAY FOOTREST FRAME
FLIP UP FOOTREST
TOTAL LOCK CASTOR
DIRECTIONAL LOCK CASTOR
BASE FRAME
SEAT/BACKREST FRAME
HANDSET
RECHARGEABLE BATTERY
EMERGENCY STOP BUTTON

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 5 of 12
4. OPERATING INSTRUCTIONS
1. Tilt-in-Space
•When using the Tilt-in-Space function it is advisable to lock all castors.
•To tilt the seating position backwards grab the handset and hold down the recline
button, the seat and backrest frame will start to recline. Release the button when you
have reached the desired seating position.
•To tilt the seating position forwards, press the upright button.
•The electrics will automatically stop when the seating position has reached its
maximum recline position or upright position.
•When the commode is not in use it is advisable to place the removable battery on
charge.
HANDSET
RECLINE
UPRIGHT
TOTAL LOCK CASTOR
PRESS EDGE TO
LOCK
PRESS TOP EDGE
TO UNLOCK
FULLY RECLINED POSITION

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 6 of 12

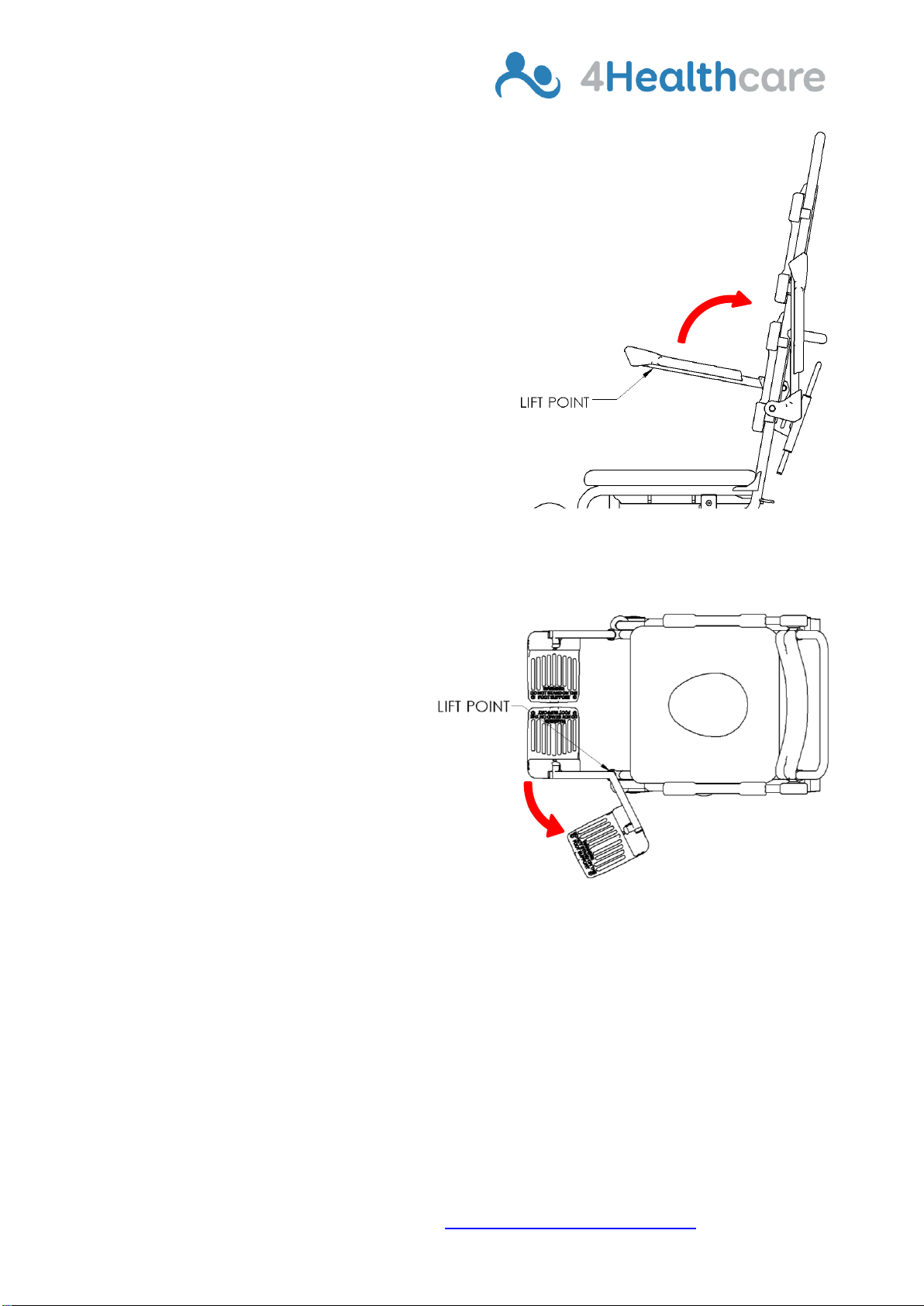

2. Swing up Arms
•To swing up the arm place your hand under the
tube and padded armrest and lift it up untill it clears
the backrest.
•When lowering the armrest make sure to gently
lower the arm untill it stops. Try not to let the arm
free fall into position.
3. Swing away footrests
•To swing the footrest leg away from the
front of the commode, hold the footrest
support tube at the top of the bend. Lift
the support tube up past the locating pin
at the bottom and swing away the leg to
the side.

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 7 of 12
4. Flip up footrest
•To flip the footrest up, hold it at the indicated
point. There will be some slight resistance to
move it but this is normal, lift it all the way up to
the support tube.
5. Swing away footrest height adjustment
•To adjust the height of the footrest, lift the
support tube up and pull the locating pin out
and select the required hole.
•Slide the support tube back into the swing
away mount and check footrest position.

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 8 of 12
6. Seat depth adjustment
•Use a 3mm Allen key to unscrew
the fasteners on the pan runner.
There are 2 positions spaced at
25mm, select desired hole and
screw fasteners in place.
Note, seat optional
7. Padded seat fitment –clip on/off
•To fit the seat to the commode, slide the cut out in the pan runner under the rear seat
crossbar. Lower the seat and push it towards the rear of the commode. Push down firmly at
the front of the seat and it will clip into the frame.
•To remove lift the front of the seat at the lift point shown and pull the seat towards the front
of the commode until the pan runner clears the rear seat crossbar.

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 9 of 12

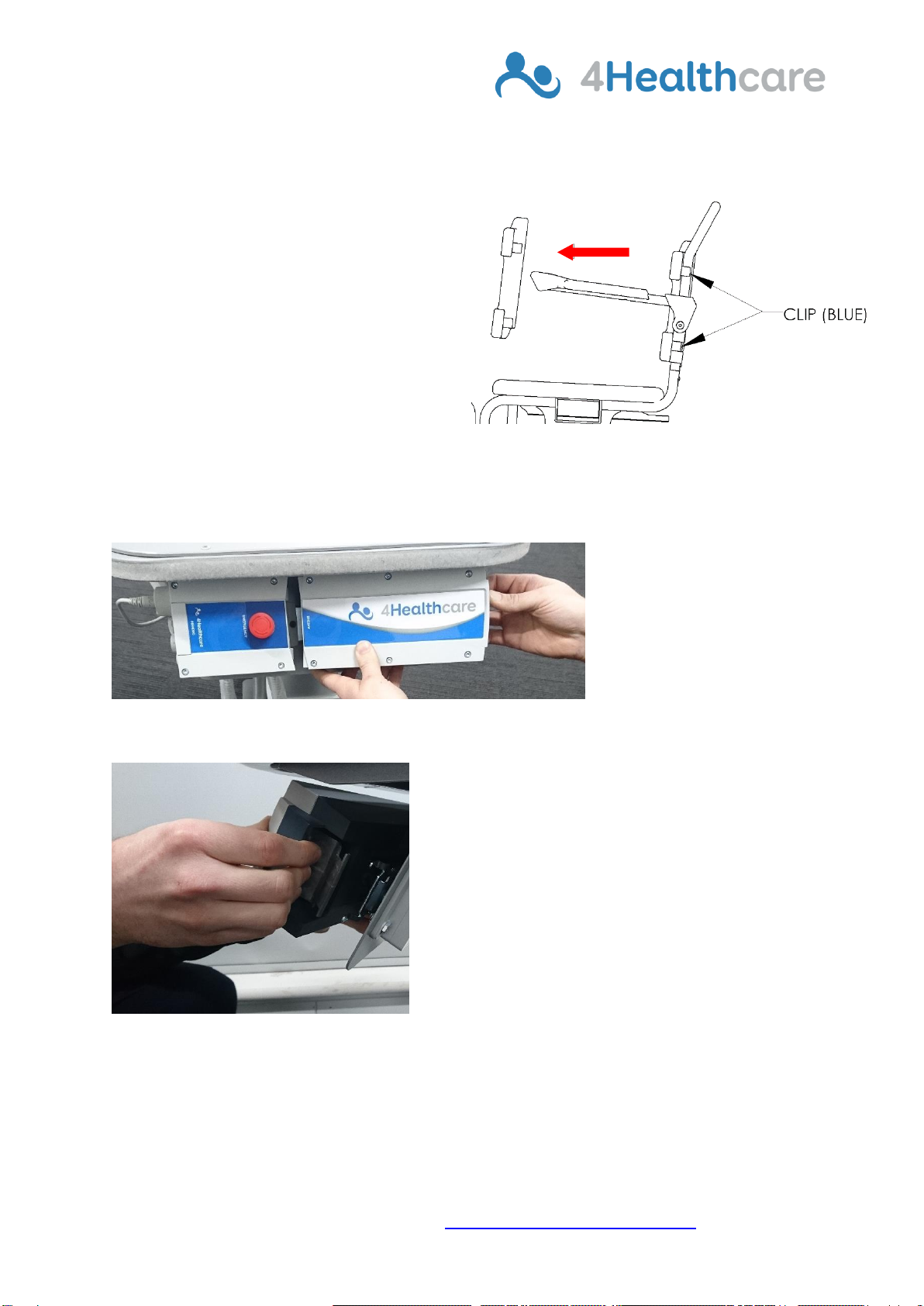

8. Padded backrest removal
•To remove the padded backrest firstly swing
away the footrests and stand in front of the
commode facing the backrest. Grab hold of
the backrest by a top corner then pull it
towards you until the clip is off the frame,
repeat process on the bottom corner then do
the other side.
9. Battery removal.
Support Battery
Release clip and slide battery to the right hand side.

Revision: IR Date: 22 July 2019
6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524
Website: www.4healthcare.com.au Email: customerservice@4healthcare.com.au
ABN 51 156 666 161
Page 11 of 12
6. SAFETY PRECAUTIONS
The Maximum Occupant Weight for the shower commode is 255kg.
Only use the commode indoors and on flat even surfaces.
DO NOT stand on the footrests, they are only intended for resting the feet on.
DO NOT use in swimming pools, intended for shower use only.
Ensure all brakes are engaged when transferring the client in and out of the commode.
Heavy uneven weight distribution may cause stress to the frame and may eventually result in
damage to the shower commode.
The weight capacity of the shower commode may be reduced if the user applies their weight
unevenly, forcefully or positions the chair unevenly.
7. CARE & MAINTENANCE INSTRUCTIONS
Important
Do not use abrasive cleaning agents. Non-phenolic disinfectants are recommended in a
diluted solution.
Spray the frame and components with the solution then wash with a sponge, rinse and dry
thoroughly with a clean cloth.
Maintenance
It is recommended to the user that a qualified 4Healthcare dealer check over all fasteners
and sub-assemblies on a regular basis or if there is cause for concern to the shower
commodes performance.
8. OPTIONS
Pan carrier
Pan
Lock down armrests
Side opening seat
Front opening seat
9. WARRANTY
The shower commode comes with a 24-month warranty.
If there are any problems with the commode please contact 4Healthcare on;
PH: 08 9302 4757
Email: enquiries@4healthcare.com.au
Or contact your local dealer
