7starlake PER35A User manual

User’s Manual
Revision Date: DEC. 28. 2012
PER35A
Perfect Box, Fanless Rugged System
User’s Manual

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
1
Safety Information
Electrical safety
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the
system.
When adding or removing devices to or from the system, ensure that the power cables for the devices are
unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing
system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These devices could interrupt the
grounding circuit.
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your local
distributor.
Operation safety
Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the
package.
Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If
you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become
wet.
Place the product on a stable surface.
If you encounter any technical problems with the product, contact your local distributor
Statement
All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior
written permission from the publisher.
All trademarks are the properties of the respective owners.
All product specifications are subject to change without prior notice

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
2
Specifications
System
CPU
Intel® 22nm Ivy Bridge Processor (Mobile) socket (rPGA988) Core™ i5-3610ME 2.7 GHz (3M
Cache, 35W)
Core™ i3-3120ME 2.4 GHz (3M Cache, 35W)
Memory type
2 x 204-pin SO-DIMM DDR3 1333/1600 MHz up to 16 GB
Chipset
Intel® QM77
Expansion Slot
1 x Mini-PCIe
Storage Device
1 x 2.5' SATA HDD/SSD
1 x CFast-SATA socket
Rear I/O
VGA
1
DVI-D
1
HDMI
1
Ethernet
2 x RJ45
Audio
Mic-in, Line-in, Line-out
USB
4 x USB 3.0
COM
8 x 232/422/485 variable
Antenna
Reserved two antenna holes
DC-Jack
1
Front I/O
Power Button
YES
Power LED
YES
HDD LED
YES
LPT
1
COM
5 x RS232
USB
4 x USB 2.0
Mechanical and Environment
Power Requirement
9V to 24V DC-in

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
3
Dimension (W x D x H)
299 x 59 x 216 mm
(11.77" x 2.3" x 8.5")
Operating Temp.
-20~ +60°C (ambient with air flow)
Storage Temp.
-20 to 80°C
Relative Humidity
10% to 90%, non-condensing
Certifications
CE, FCC

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
4
Revision History
Packing list
Ordering information

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
5
Table Contents
Safety Information .........................................................................................................................1
Specifications.................................................................................................................................2
Revision History .............................................................................................................................4
Packing list.....................................................................................................................................4
Ordering information .....................................................................................................................4
Table Contents ...............................................................................................................................5
Chapter 1: Product Introduction .....................................................................................................7
1.1 Key Features................................................................................................................7
1.2 Mechanical Dimensions...............................................................................................8
Chapter 2: Jumpers and Connectors Locations ................................................................................9
2.1 Front Panel Connector Pin Definitions................................................................................9
2.3 Internal Connectors.........................................................................................................13
Chapter 3: Getting Started............................................................................................................17
3.1 Installing a SATA Hard Drive.............................................................................................17
3.2 Installing System Memory ...............................................................................................18
3.3 Installing a CF-SATA Card .................................................................................................19
Chapter 4: AMI BIOS UTILITY ........................................................................................................20
4.1 Starting...........................................................................................................................20
4.2 Navigation Keys...............................................................................................................20
4.3 Main Menu.....................................................................................................................21
4.4 Advanced Menu..............................................................................................................22
4.4.1 ACPI Settings ........................................................................................................23
4.4.2 CPU Configuration ................................................................................................24
4.4.3 SATA Configuration ...............................................................................................26
4.4.4 Thermal Configuration..........................................................................................27
4.4.5 Intel Rapid Start Technology..................................................................................28
4.4.6 Intel TXT(LT) Configuration....................................................................................28
4.4.7 PCH-FW Configuration ..........................................................................................29
4.4.8 Intel Anti-Theft Technology Configuration..............................................................30
4.4.9 AMT Configuration ...............................................................................................31
4.4.10 USB Configuration...............................................................................................33
4.4.11 F81866 Super IO Configuration............................................................................34
4.4.12 F81866 H/W Monitor..........................................................................................35

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
6
4.4.13 Serial Port Console Redirection ...........................................................................36
4.4.14 CPU PPM Configuration.......................................................................................37
4.5 Chipset ...........................................................................................................................38
4.5.1 PCH-IO Configuration............................................................................................38
4.5.2 System Agent (SA) Configuration...........................................................................42
4.6 Boot Setting....................................................................................................................45
4.7 Security ..........................................................................................................................46
4.8 Save and exit...................................................................................................................47

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
7
Chapter 1: Product Introduction
1.1 Key Features

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
8
1.2 Mechanical Dimensions

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
9
Chapter 2: Jumpers and Connectors Locations
This chapter describes the jumpers and connectors on the systems’ motherboard.

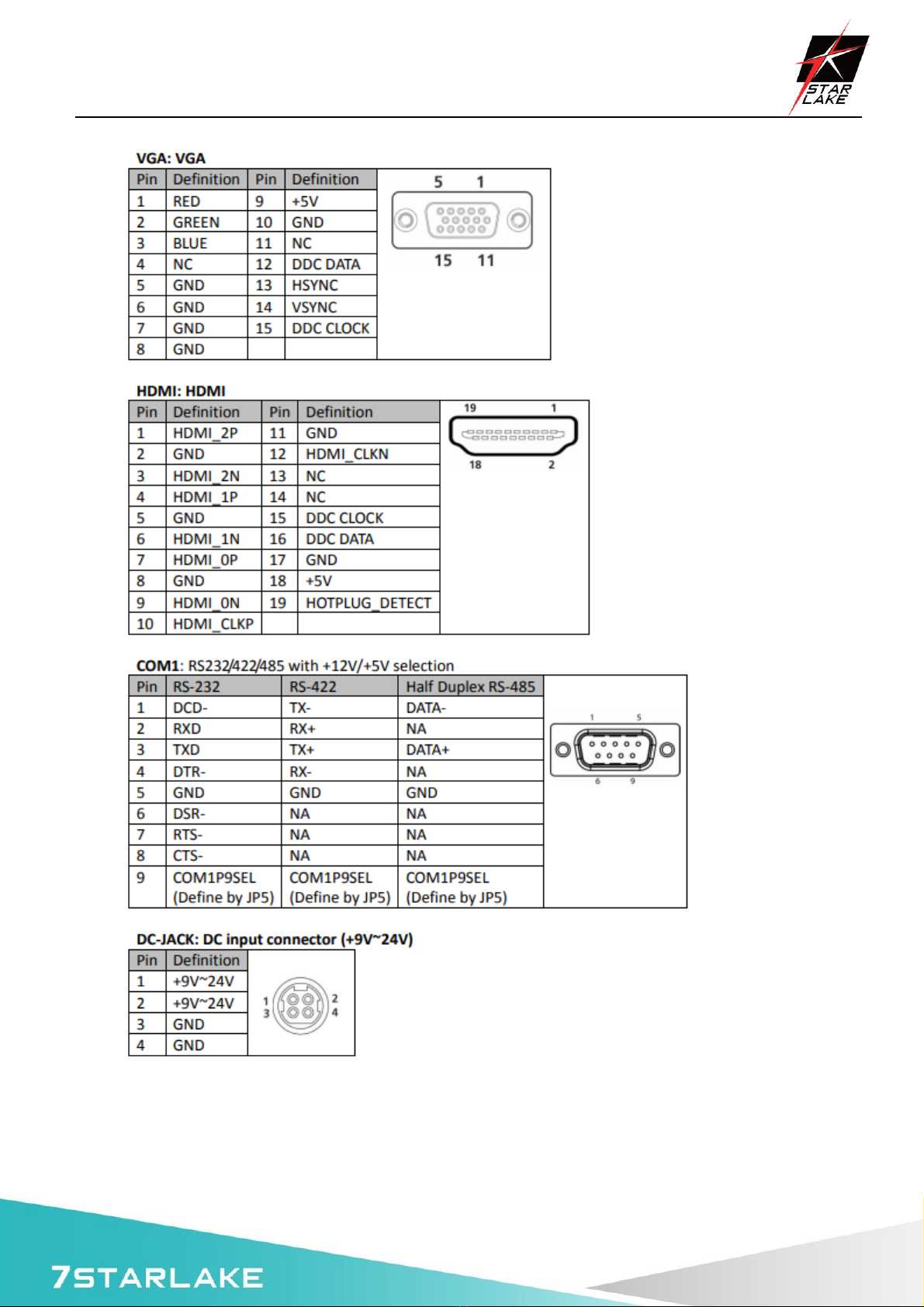

2.1 Front Panel Connector Pin Definitions

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
10

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
11

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
12

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
13

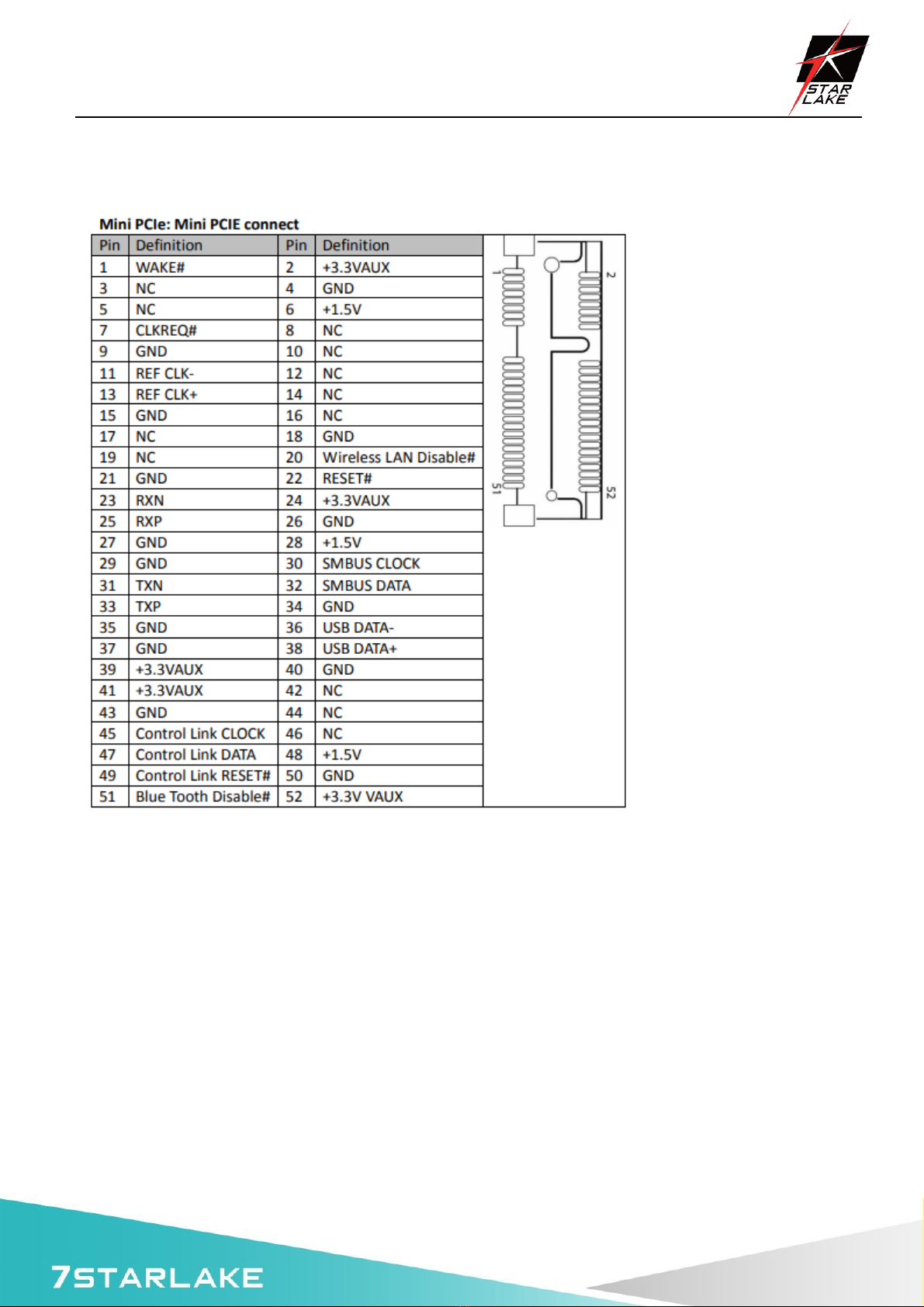

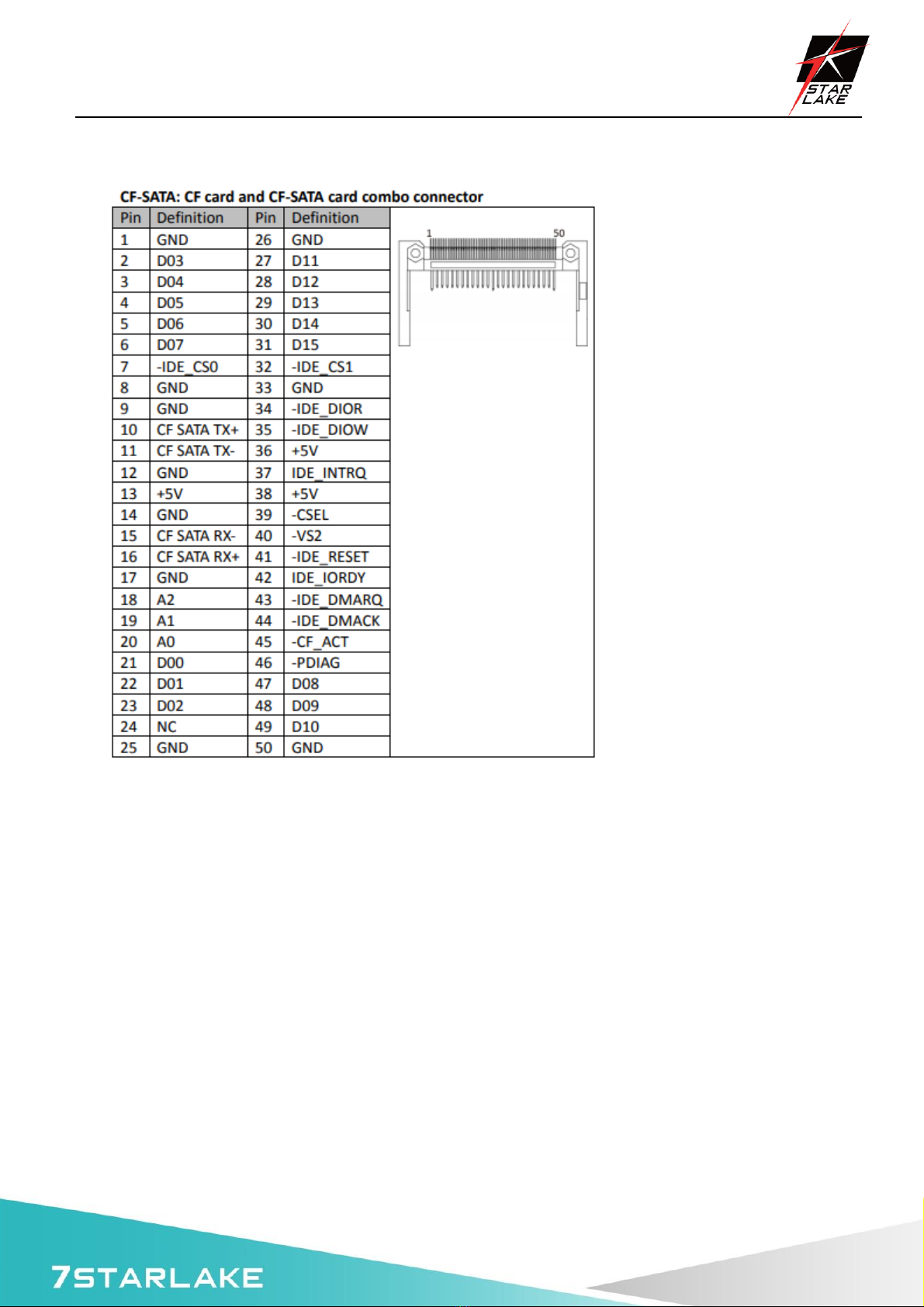

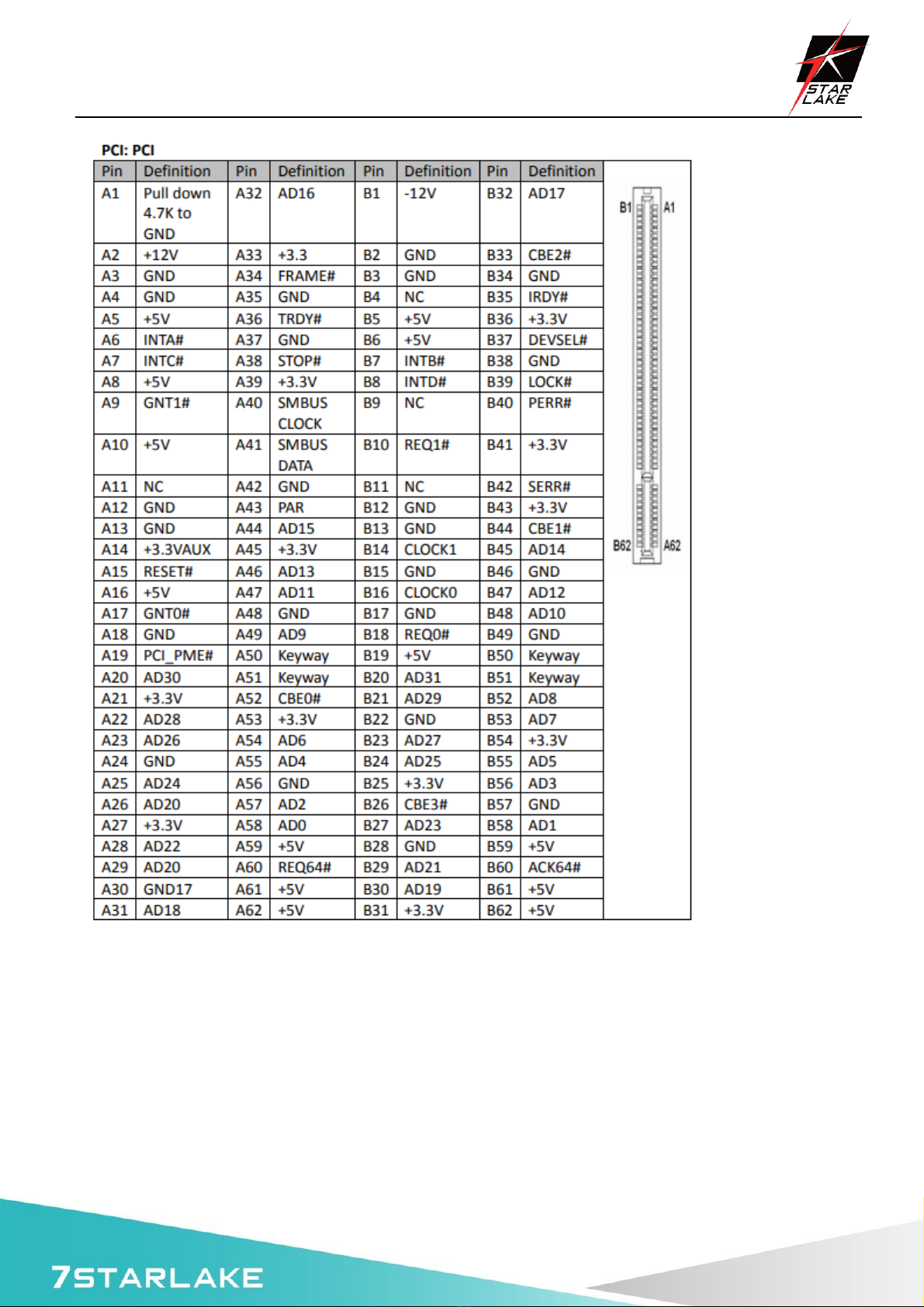

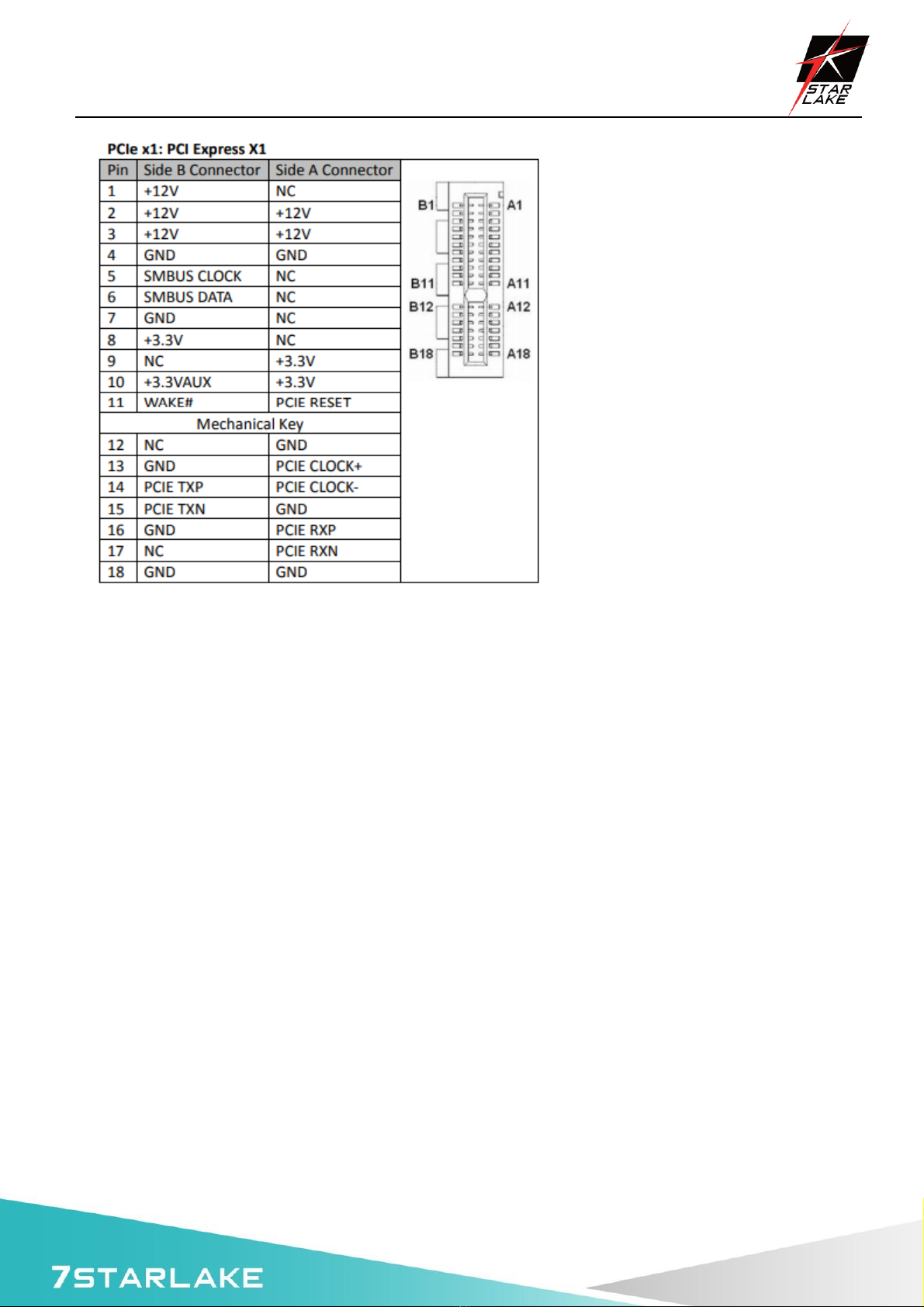

2.3 Internal Connectors

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
14

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
15

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
16

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
17
Chapter 3: Getting Started
3.1 Installing a SATA Hard Drive

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
18
3.2 Installing System Memory

PER35A User’s Manual
Revision Date: : DEC. 28. 2012
19

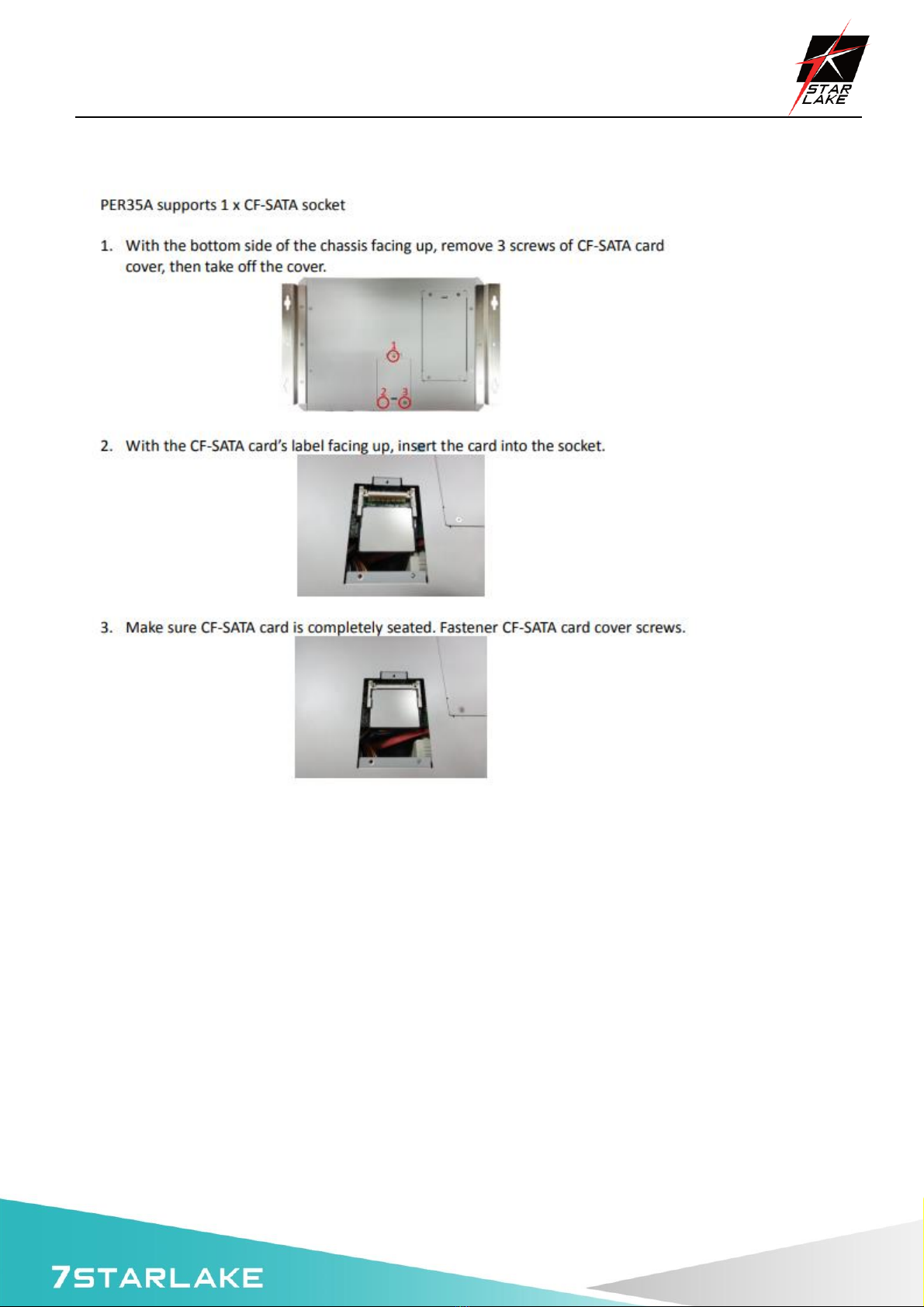

3.3 Installing a CF-SATA Card
