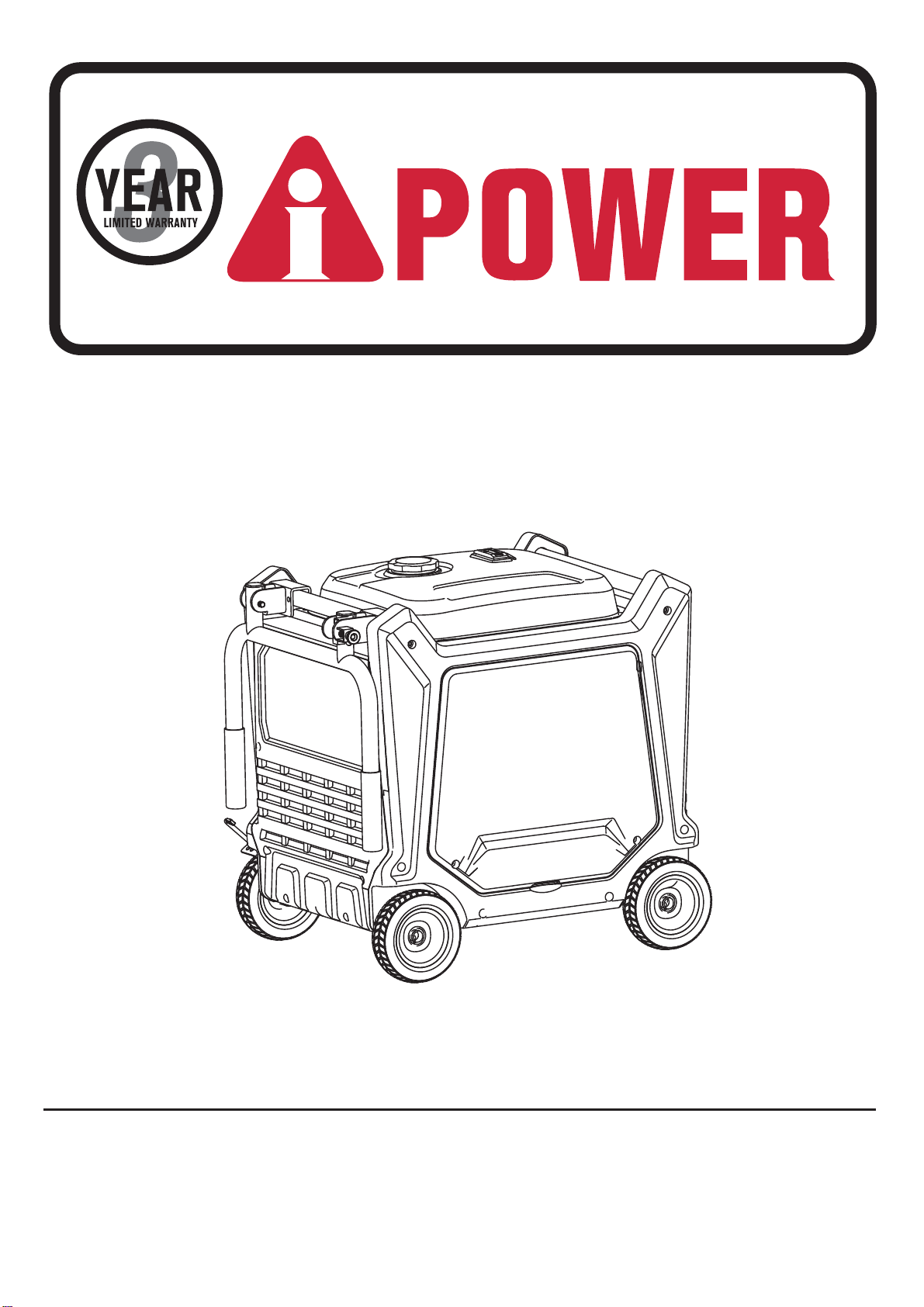

A-iPower SUA8000iE User manual

PORTABLE INVERTER GENERATOR
OWNER'S MANUAL & OPERATION INSTRUCTION
SAVE THIS MANUAL: This manual contains important information regarding safety,operation, maintenance and storage
of this product. Before use, read carefully and understand all cautions, warnings, instructions and product labels.
Failure to do so could result in serious personal injury and/or property damage.
SUA8000iE

Congratulations on your selection of this generator. We are certain you will be
pleased with your purchase of one of the finest generators on the market.
We want to help you get the best results from your new generator and to operate it
safely. This manual contains the information on how to do that, please read it
carefully.
When your generator needs scheduled maintenance, keep in mind that your
servicing dealer is specially trained in servicing generators and is supported by the
parts and service divisions. Your servicing dealer is dedicated to your satisfaction
and will be pleased to answer your questions and concerns.
Model:
Starting Watts:
Running Watts:
Ac Voltage:
Amperage
Frequency:
Phase:
Fuel Capacity:
Engine:
Engine Oil:
SUA8000iE
8000W
7000W
120V/240V
29.2A
60Hz
Single
6.87
US gallon (26.0 L)
SC460(459cc)
0.29
US gallon (1.1 L)
6.0h
11.0h
65dBA
100% Load Running Time
50% Load Running Time
Noise Level

Your safety and the safety of others are very important. And using this generator
safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating
procedures and other information on labels and in this manual. This information
alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all the hazards associated
with operating or maintaining a generator.
A FEW WORDS ABOUT SAFETY
Record the model and serial numbers as well as date and place of purchase for
future reference. Have this information available when ordering parts and when
making technical or warranty inquiries.
INTRODUCTION
3
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS .............................................5
SYMBOLS ..........................................................................................14
ELECTRICAL .....................................................................................15
FEATURES ........................................................................................17
ASSEMBLY ........................................................................................21
OPERATION ......................................................................................22
MAINTENANCE .................................................................................29
TROUBLESHOOTING .......................................................................35
WARRANTY .......................................................................................39
PARTS ASSEMBLY ...........................................................................36
PARTS LIST .......................................................................................37
WIRING DIAGRAM..............................................................................38
CONTENTS
4A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
5
DANGER:
Carbon Monoxide. Using a generator
indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains high levels
of carbon monoxide (CO), a poisonous
gas you cannot see or smell. If you can
smell the generator exhaust, you are
breathing CO. But even if you cannot
smell the exhaust, you could be
breathing CO.
Never use a generator inside
homes, garages, crawlspaces, or
other partly enclosed areas. Deadly
levels of carbon monoxide can
build up in these areas. Using a fan
or opening windows and doors
does NOT supply enough fresh air. Do not connect to a building’s
electrical system unless the
generator and transfer switch have
been properly installed and the
electrical output has been verified by
a qualified electrician. The
connection must isolate the
generator power from utility power
and must comply with all applicable
laws and electrical codes.
Do not allow children or untrained
individuals to use this unit.
Do not start or operate the engine in
a confined space, building, near
open windows, or in other
unventilated space where dangerous
carbon monoxide fumes can collect.
Carbon monoxide, a colorless,
odorless, and extremely dangerous
gas, can cause unconsciousness or
death.
Keep all bystanders, children, and
pets at least 10 feet away.
ONLY use a generator outdoors
and far away from open windows,
doors, and vents. These openings
can pull in generator exhaust.
Even when you use a generator
correctly, CO may leak into the home.
ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak
after the generator has been running,
move to fresh air RIGHT AWAY. See a
doctor. You could have carbon
monoxide poisoning.
WARNING:
Read and understand all instructions.
Failure to follow all instructions listed
below could result in electrocution, fire,
and/or carbon monoxide poisoning,
which can cause death or serious injury.
WARNING:
National Electric Code requires
generator to be grounded to an
approved earth ground. Before using
the ground terminal, consult a qualified
electrician, electrical inspector, or local
agency having jurisdiction for local
codes or ordinances that apply to the
intended use of the generator.
SAVE THESE INSTRUCTIONS
This manual contains important
instructions for this product that should
be followed during installation and
maintenance of the generator.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
6
Wear sturdy and dry shoes or boots.
Do not operate while barefoot.
Do not operate generator when you
are tired or under the influence of
drugs, alcohol, or medication.
Keep all parts of your body away
from any moving parts and all hot
surfaces of the unit.
Do not touch bare wire or
receptacles.
Do not use generator with electrical
cords which are worn, frayed, bare,
or otherwise damaged.
Before storing, allow the engine to
cool and drain fuel from the unit.
Do not operate or store the generator
in rain, snow, or wet weather.
Store the generator in a well-
ventilated area with the fuel tank
empty. Fuel should not be stored
near the generator.
Empty fuel tank, turn the engine/
choke lever to the off position and
restrain the unit from moving before
transporting in a vehicle.
Allow engine to cool for five minutes
before refueling.
To reduce the risk of fire and burn
injury, handle fuel with care. It is
highly flammable.
Do not smoke while handling fuel.
Store fuel in a container approved
for gasoline.
Position the unit on level ground,
stop engine, and allow to cool before
refueling.
Loosen fuel cap slowly to release
pressure and to keep fuel from
escaping around the cap.
Tighten the fuel cap securely after
refueling.
Wipe spilled fuel from the unit.
Never attempt to burn off spilled fuel
under any circumstances.
Generators vibrate in normal use.
During and after the use of the
generator, inspect the generator as
well as extension cords and power
supply cords connected to it for
damage resulting from vibration.
Have damaged items repaired or
replaced as necessary. Do not use
plugs or cords that show signs of
damage such as broken or cracked
insulation or damaged blades.
For power outages, permanently
installed stationary generators are
better suited for providing back-up
power to the home. Even a properly
connected portable generator can
become overloaded. This may result
in overheating or stressing the
generator components, possibly
leading to generator failure.
Use only authorized replacement
parts and accessories and follow
instructions in the Maintenance
section of this manual. Use of
unauthorized parts or failure to follow
maintenance instructions may create
a risk of shock or injury.
Inspect the unit before each use for
loose fasteners, fuel leaks, etc.
Replace damaged parts.
Maintain the unit per maintenance
instructions in this Operator’s Manual.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
7

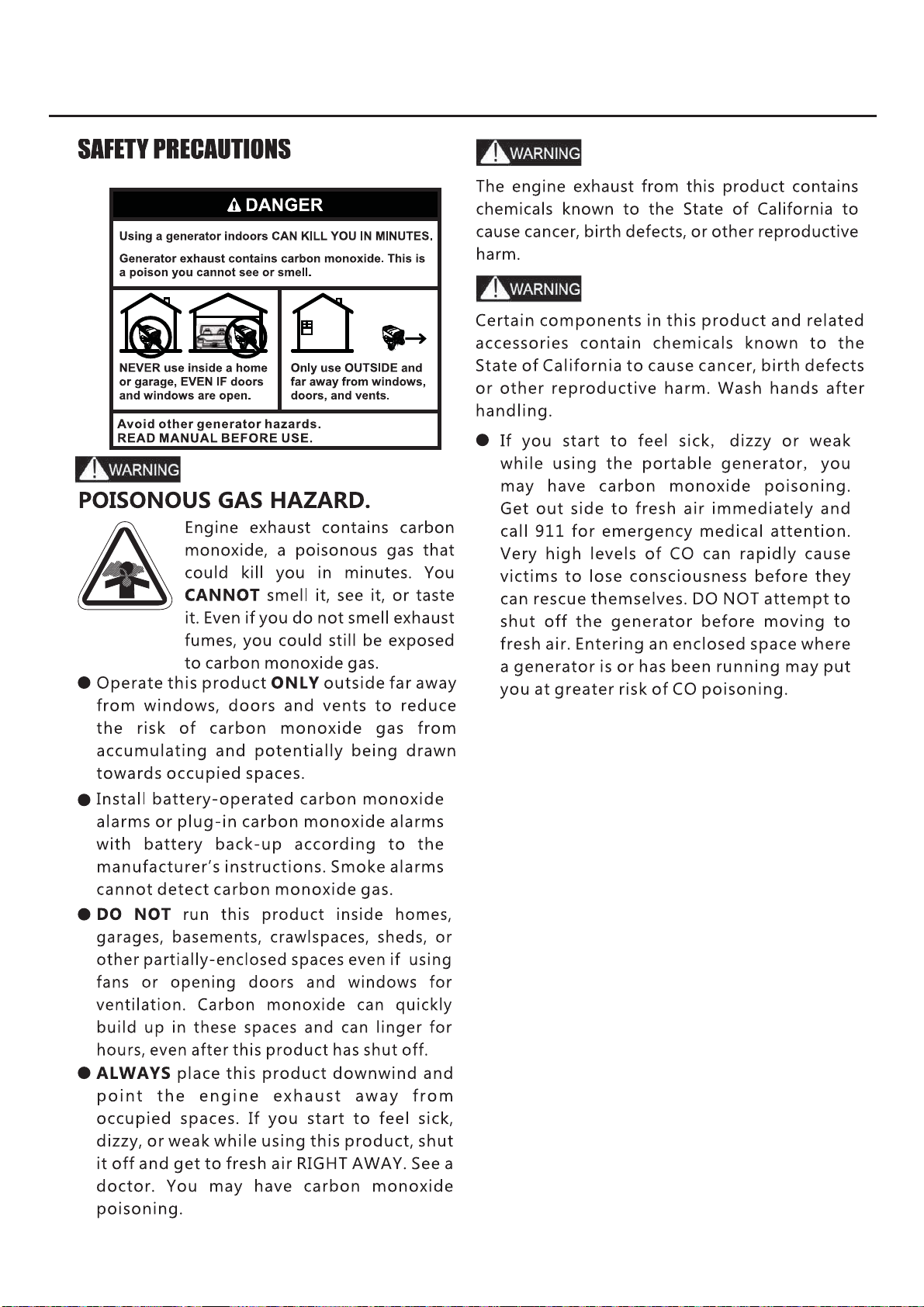

A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
8A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

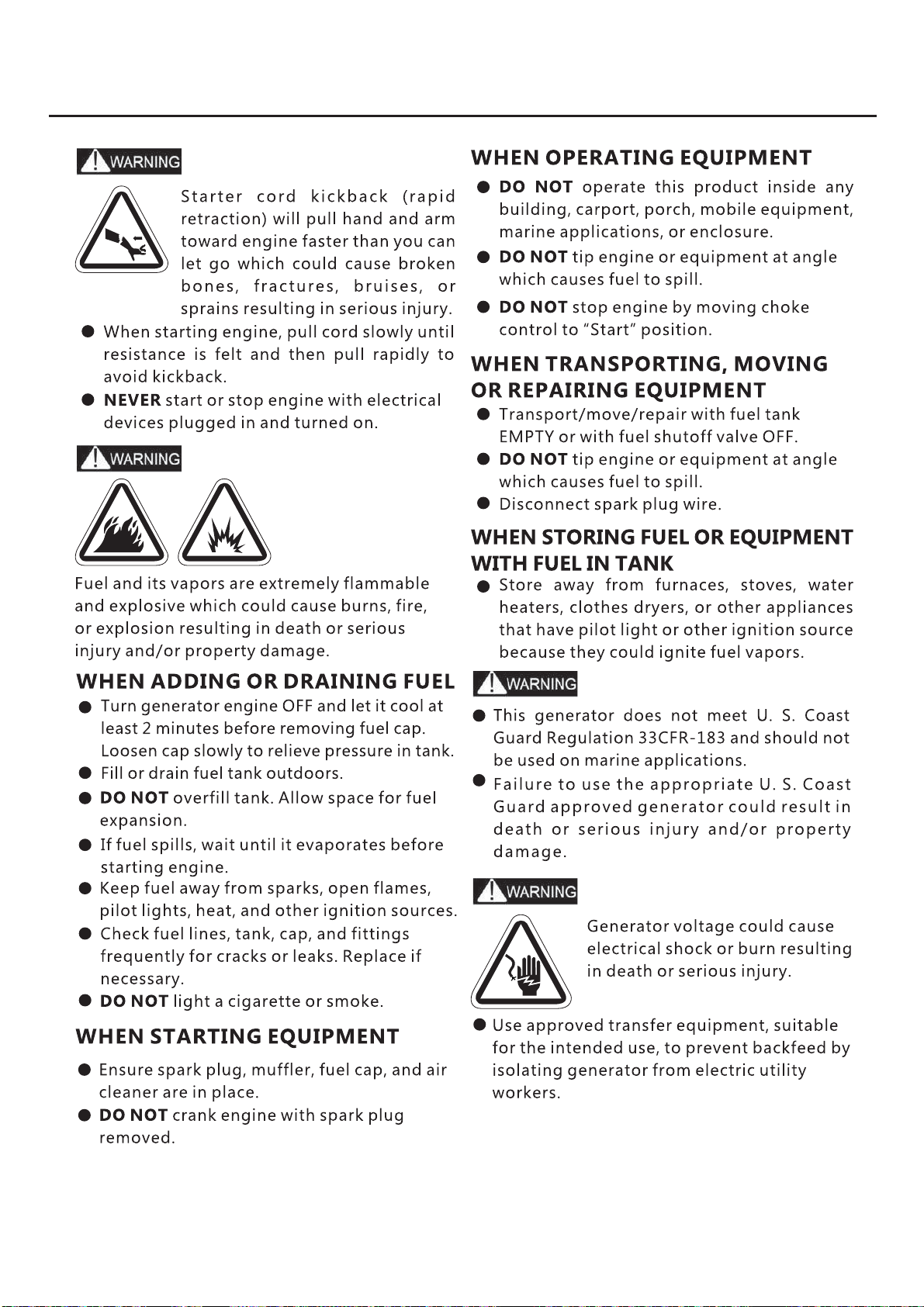

IMPORTANT SAFETY INSTRUCTIONS
9
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
10 A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
11

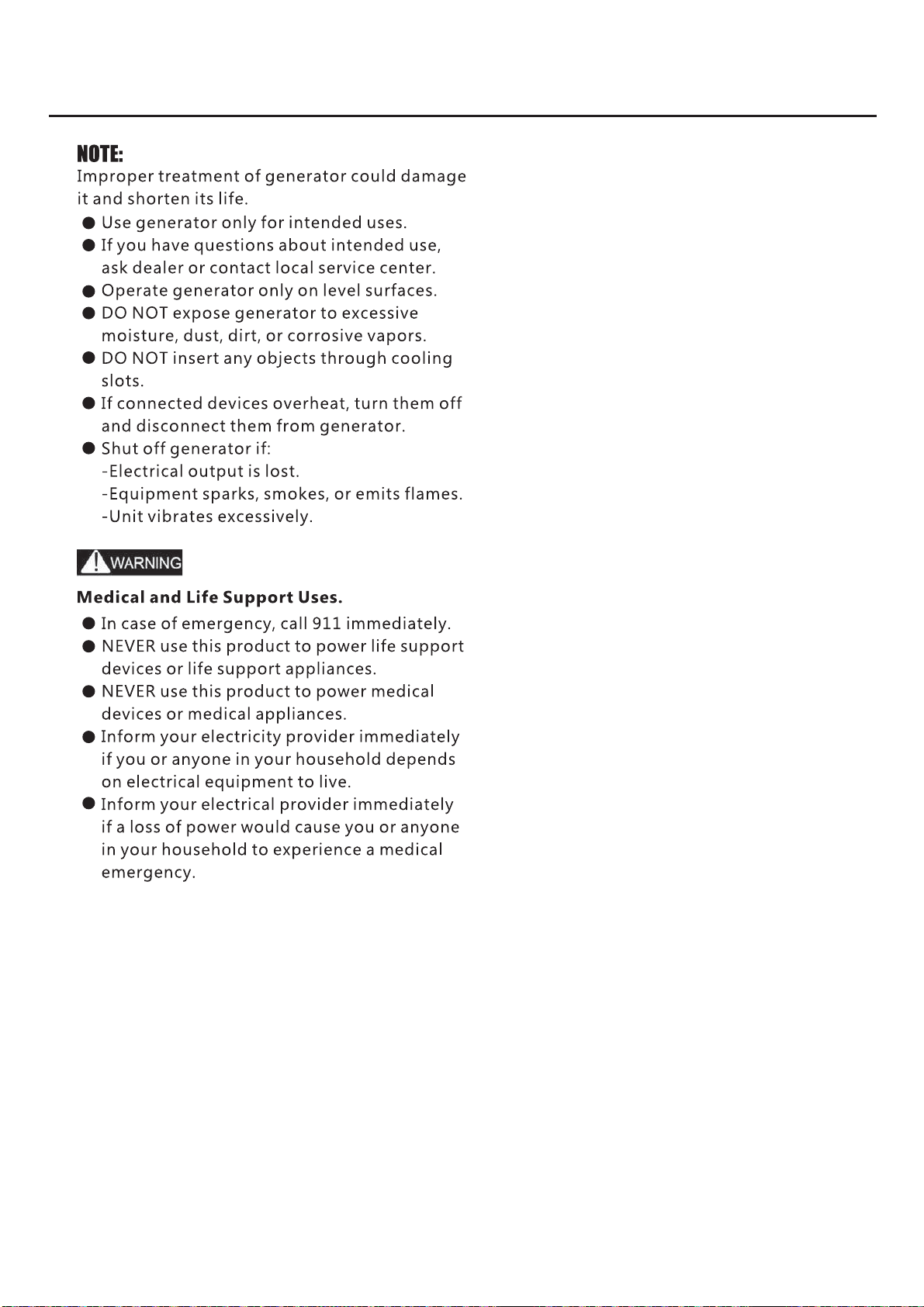

A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
12
Operate outdoors in a well-ventilated,
well-lit area isolated from working
areas to avoid noise interference.
Operate outdoors in a well-ventilated,
well-lit area isolated from working
areas to avoid noise interference.
Operating the generator in wet
conditions could result in
electrocution. Keep the unit dry.
Keep the generator a minimum of 3
feet away from all types of
combustible material.
Do not operate generator near
hazardous material.
Do not operate generator at a gas or
natural gas filling station.
Do not touch the muffler or cylinder
during or immediately after use; they
are HOT and will cause burn injury.
This generator has a neutral floating
condition. This means the neutral
conductor is not electrically
connected to the frame of the
machine.
Do not allow the generator’s gas tank
to overflow when filling. Fill to 1 in.
below the top neck of the gasoline
tank to allow for fuel expansion. Do
not cover the fuel tank cap when the
engine is running. Covering the fuel
tank cap during use may cause
engine failure and/or damage to the
tool.
Place the generator on a flat, stable
surface with a slope of no more than
4°.
Do not use this generator to provide
power for emergency medical
equipment or life support devices.
Exhaust contains poisonous carbon
monoxide, a colorless, odorless gas.
Breathing exhaust can cause loss of
consciousness and can lead to
death. If running in a confined or
partially-enclosed area, the air may
contain a dangerous amount of
carbon monoxide. To keep exhaust
fumes from building up, always
provide adequate ventilation.
Always use a battery-powered
carbon monoxide detector when
running the generator. If you begin
to feel sick, dizzy, or weak while
using the generator, shut it off and
get to fresh air immediately. See a
doctor. You may have carbon
monoxide poisoning.
WARNING:
When this generator is used to
supply a building wiring system:
generator must be installed by a
qualified electrician and connected to a
transfer switch as a separately derived
system. The generator shall be
connected through a transfer switch
that switches all conductors other than
the equipment grounding conductor.
The frame of the generator shall be
connected to an approved grounding
electrode. Failure to isolate the
generator from power utility can result
in death or injury to electric utility
workers.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

IMPORTANT SAFETY INSTRUCTIONS
SYMBOLS
13
Do not smoke when filling the
generator with gasoline.
Shut down the engine and allow to
cool completely before adding
gasoline or lubricant to the generator.
Do not remove the oil dipstick or the
fuel tank cap when the engine is
running.
Pay close attention to all safety
labels located on the generator.
Keep children a minimum of 10 feet
away from the generator at all times.
The unit operates best in
temperatures between 23°F and
104°F with a relative humidity of 90%
or less.
Operating voltage and frequency
requirement of all electronic
equipment should be checked prior
to plugging them into this generator.
Damage may result if the equipment
is not designed to operate within a
+/- 10% voltage variation, and
+/- 3 hz frequency variation from the
generator name plate ratings.
For outdoor use only.
Save these instructions. Refer to
them frequently and use them to
instruct others who may use this
product. If you loan someone this
product, loan them these instructions
also.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation,
which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation,
which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates
important information not related to an
injury hazard, such as a situation that may
result in property damage.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

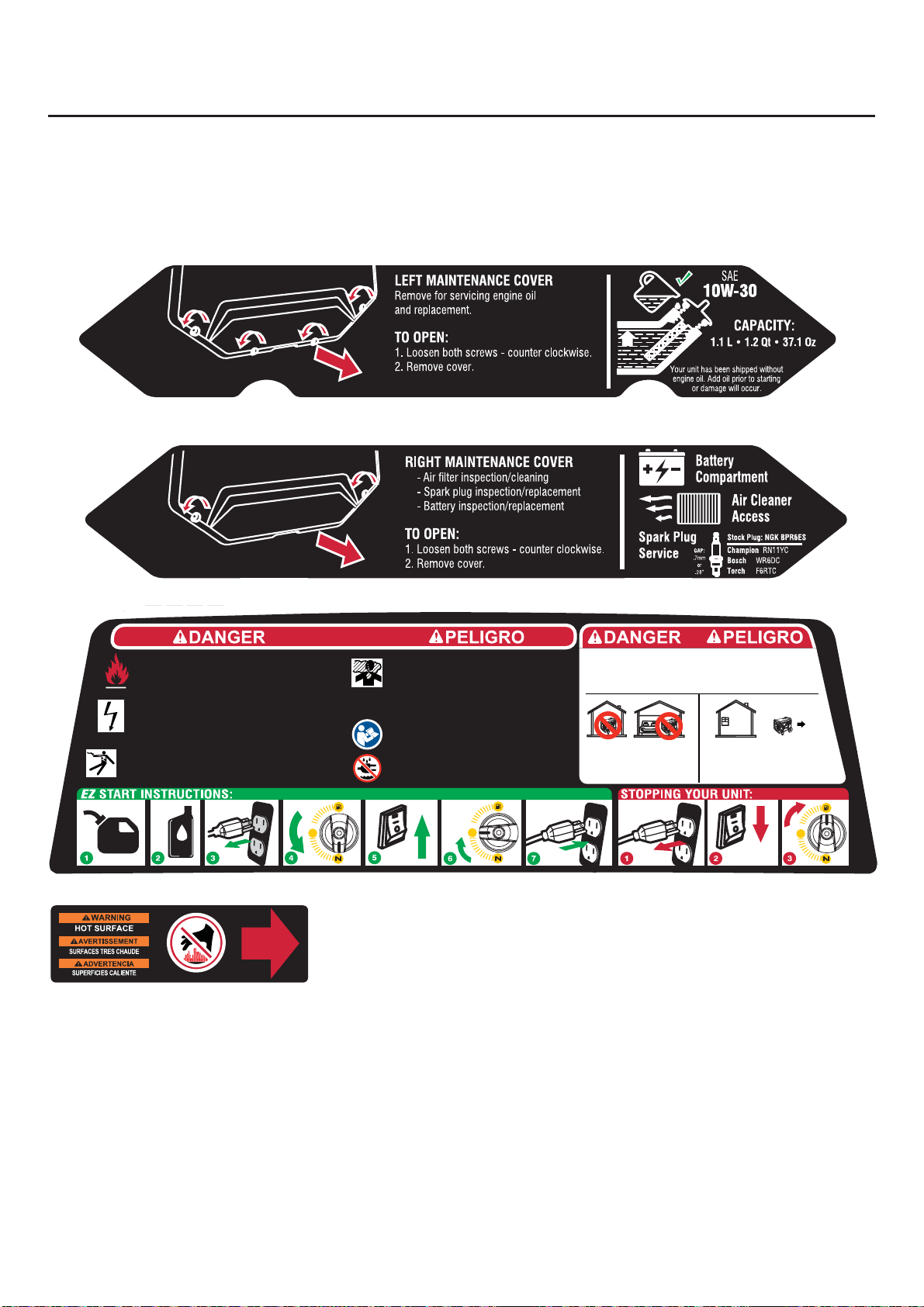

SAFETY LABELS
SYMBOLS
14
The information below can be found on the generator. For your safety, please study
and understand all of the labels before starting the generator.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].
Risk of fire. Check for any fuel overflow or leakage. Stop the engine
before refueling. / Riesgo de incendio. Revise si hay algún derrame o
ĨƵŐĂĚĞĐŽŵďƵƐƟďůĞƉĂƋƵĞĞůŵŽƚŽƌĂŶƚĞƐĚĞƉŽŶĞƌĐŽŵďƵƐƟďůĞ
You could be killed or seriously hurt if you do not follow the
Operator’s Manual instructions. ^DdZŽ>^/KEZ
'ZsDEdƐŝŶŽƐŝŐƵĞůĂƐŝŶƐƚƌƵĐĐŝŽŶĞƐĚĞůŵĂŶƵĂůŽƉĞƌĂĚŽƌ
Generator is a potential source of electric shock. Do not expose
to moisture, rain, or snow. Do not operate with wet hands or feet.
ůŐĞŶĞƌĂĚŽƌĞƐƵŶĂĨƵĞŶƚĞĚĞĚĞƐĐĂƌŐĂĞůĠĐƚƌŝĐĂEŽůŽĞdžƉŽŶŐĂĂ
ŚƵŵĞĚĂĚůĂůůƵǀŝĂŶŝŶĂůĂŶŝĞǀĞEŽŽƉĞƌĞĐŽŶŵĂŶŽƐŽƉŝĞƐŚƷŵĞĚŽƐ
Do not expose to rain or use in damp locations. EŽĞdžƉŽŶŐĂ
a la lluvia ni use en lugares húmedos.
Exhaust contains poisonous carbon monoxide gas that can
cause unconsciousness or DEATH. Operate in well ventilated,
outdoor areas away from open windows or doors. ůĞƐĐĂƉĞ
ĐŽŶƟĞŶĞŐĂƐǀĞŶĞŶŽƐŽĚĞŵŽŶſdžŝĚŽĚĞĐĂƌďŽŶŽƋƵĞƉƵĞĚĞĐĂƵƐĂƌ
ƉĠƌĚŝĚĂĚĞůĐŽŶŽĐŝŵŝĞŶƚŽŽDhZdKƉĞƌĞĞŶĄƌĞĂƐĞdžƚĞƌŝŽƌĞƐ
ďŝĞŶǀĞŶƟůĂĚĂƐůĞũŽƐĚĞƉƵĞƌƚĂƐŽǀĞŶƚĂŶĂƐĂďŝĞƌƚĂƐ
Failure to properly ground generator can result in electrocution,
especially if the generator is equipped with a wheel kit. >ĂŽŵŝƐŝſŶĚĞ
ĐŽŶĞĐƚĂƌĂƟĞƌƌĂĂĚĞĐƵĂĚĂŵĞŶƚĞĞůŐĞŶĞƌĂĚŽƌƉƵĞĚĞƌĞƐƵůƚĂƌĞŶĞůĞĐƚƌŽĐƵĐŝſŶ
ĞƐƉĞĐŝĂůŵĞŶƚĞƐŝĞůŐĞŶĞƌĂĚŽƌĞƐƚĄĞƋƵŝƉĂĚŽĐŽŶƵŶŬŝƚĚĞƌƵĞĚĂƐ
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF door and
windows are open.
Only use OUTSIDE
and far away from
windows, doors, and
vents.
START
OFF
OFF
STORAGE
RUN
START
CHOKE
OFF
STORAGE
RUN
START
CHOKE
OFF
STORAGE
RUN
START
CHOKE

ELECTRICAL
15
GENERATOR CAPACITY
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

16
ELECTRICAL
NOTICE:
With nothing connected to the generator, start the engine as described later in
this manual.
1.
Plug in and turn on the first load, preferably the largest load you have.2. Permit the generator output to stabilize (engine runs smoothly and attached
device operates properly).
3.
Plug in and turn on the next load.4. Again, permit the generator to stabilize.5. Repeat steps 4 and 5 for each additional load.6.
Never add more loads than the generator capacity. Take special care to consider
surge loads in generator capacity as previously described.
Do not overload the generator’s capacity. Exceeding the generator’s
wattage/amperage capacity may damage the generator and/or electrical devices
connected to it.
GENERATOR CAPACITY
To prolong the life of the generator and attached devices, it is important to take care
when adding electrical loads to the generator. There should be nothing connected to
the generator outlets before starting its engine. The correct and safe way to manage
generator power is to sequentially add loads as follows:
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

17
FEATURES

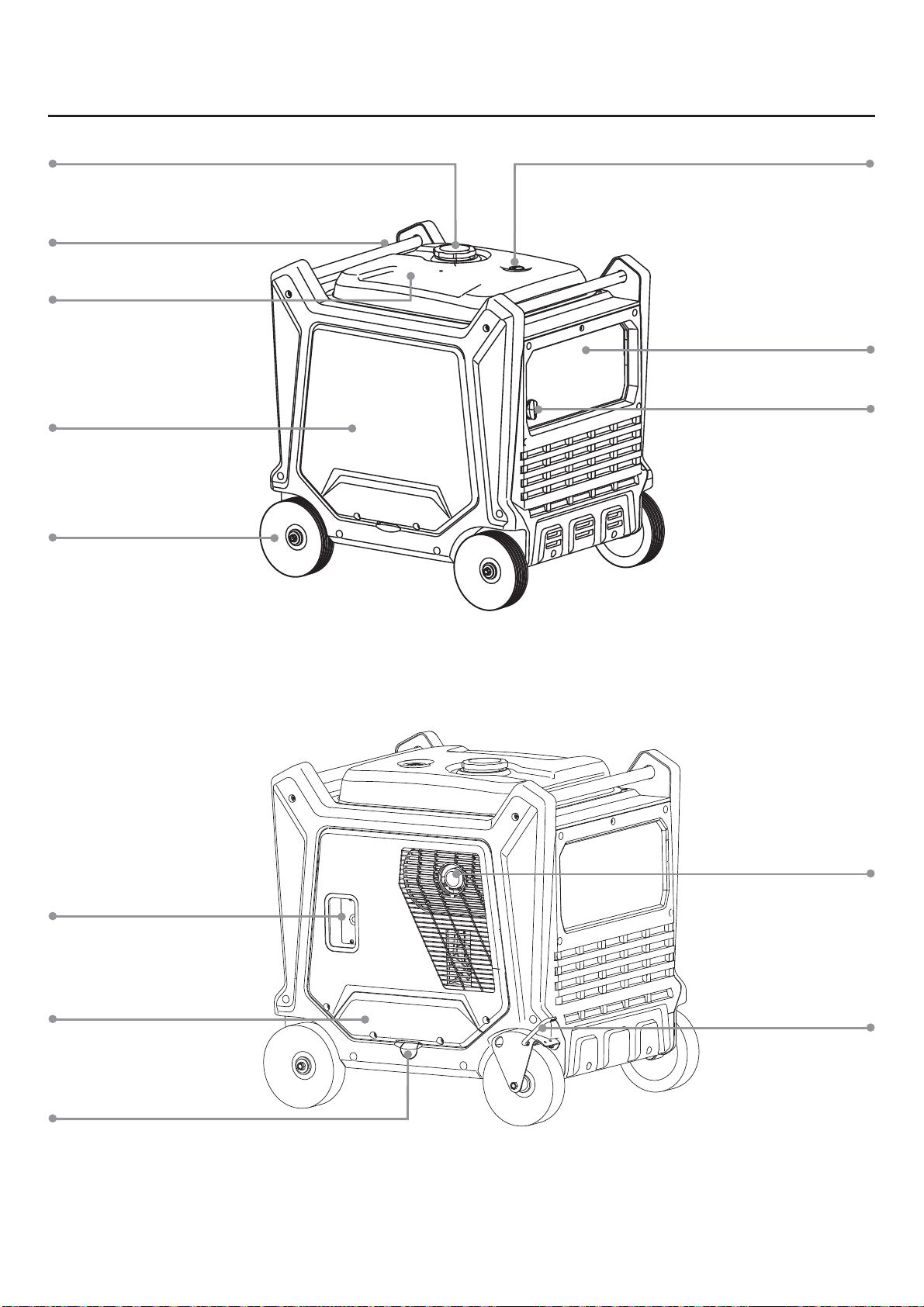

FUEL TANK CAP
BLACK RUBBER
SEAL (FRONT)
FUEL GAUGE
FUEL TANK
HANDLE
PANEL
MULTI-SWITCH
MUFFLER
WHEEL
LOCK
RIGHT MAINTENANCE
COVER
RECOIL
HANDLE
LEFT MAINTENANCE
COVER
(For Air filter / Spark
plug / Battery)
(OFF/RUN/START)
WHEEL
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

18
FEATURES
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

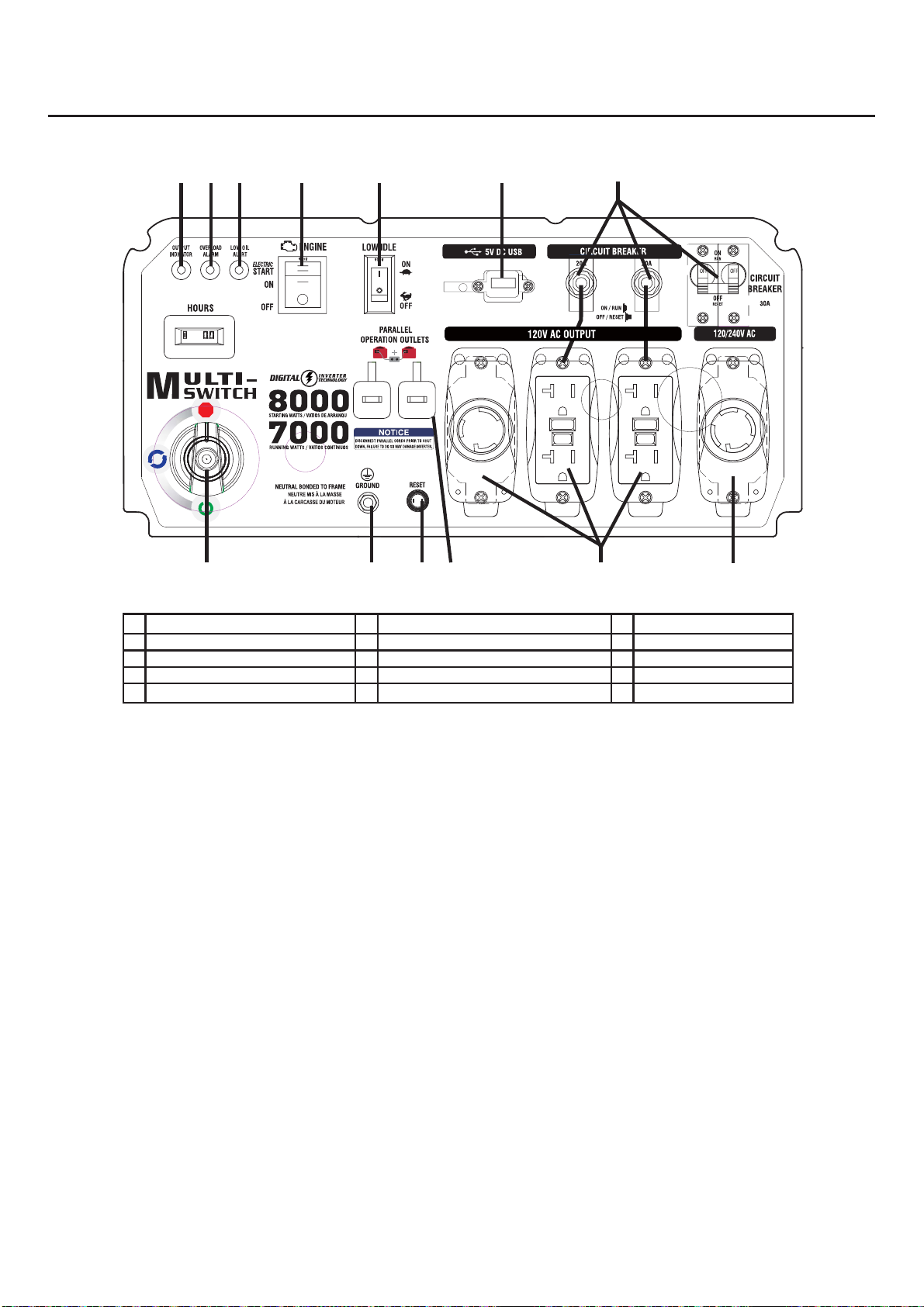

123 4 5 6 7
13 12 11 10 9 8
1 Output Indicator
2 Overload Alarm
3 Low Oil Alert
4 Engine Switch
5 Low Idle
6 5V DC USB
7 Circuit Breaker
8 120/240V AC
9 120V AC
10 Parallel Operation Outlets
11 Reset
12 Ground Terminal
13 Multi-Switch

19
FEATURES
NOTICE:
If high electrical loads are connected
simultaneously, turn the low idle mode
to the OFF position to reduce voltage
changes.
KNOW YOUR GENERATOR
The safe use of this product requires an
understanding of the information on the
product and in this operator’s manual as
well as a knowledge of the project you
are attempting. Before use of this
product, familiarize yourself with all
operating features and safety rules. FUEL GAUGE
The fuel gauge is a mechanical device
that measures the fuel level in the tank.
The red indicator in the window will
reference the level in relation to full or
empty.
FUEL TANK
To provide increased operating time,
start with a full tank before operation.
Always refuel with the engine OFF and
cool.
GROUND TERMINAL
The ground terminal is used to assist in
properly grounding the generator to help
protect against electrical shock. Consult
with a local electrician for grounding
requirements in your area.
LED DISPLAY
LEDs provide feedback to indicate
whether the generator is in use,
overloaded, or in need of lubricant.
OIL CAP/DIPSTICK
Remove the oil fill cap to check and add
lubricant to the generator when
necessary.
PARALLEL KIT (Optional)
The non-polarized parallel kit terminals
are used with a parallel kit (sold
separately) that will allow generators to
be linked together to increase output.
NOTE: Read and understand the parallel
kit’s instructions prior to use. Kit is for
usage with this unit only.
AC RECEPTACLES
The receptacles can be used for
operating appropriate appliances,
electrical lighting, tools, and motor loads.
AIR FILTERS
The air filters help to limit the amount of
dirt and dust drawn into the unit during
operation.
LOW IDLE MODE
The low idle mode is used to control the
speed of the engine and conserve fuel.
When the switch is in the ON (I) position
and no appliances are connected to the
unit, the engine will idle. If an appliance
is added, the engine speed will increase
to power the item. If the appliance is
removed, the engine will return to idle.
HANDLES
The generator is equipped with two
handles for easy transport. Both handles
should be used to move the generator.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].

FEATURES
20
MULTI-SWITCH
The multi-switch is used to control the
fuel and choke.
MAINTENANCE COVER
Open and close the maintenance cover
for maintenance of the generator.
Open the right maintenance cover for:
- Air filter inspection/cleaning
- Spark plug inspection/replacement
- Battery inspection/replacement
Open the left maintenance cover for:
- Engine oil inspection/replacement
VOLTAGE SELECTOR SWITCH
(Optional)
Select the voltage before starting the
engine.
Always disconnect or turn OFF all
appliances or tools connected to the
generator before changing the voltage
selector switch position.
The voltage selector switch changes
generator output to produce
"120V ONLY" or "120 V/240 V". If a
240 V appliance is connected to the
4-prong receptacle, the switch must be
in the "120 V/240 V" position. If only the
120 V 3-prong receptacles are being
used, select the "120 V ONLY" position.
Switch Position
120 V/240 V: The 120 V and 120/240 V
receptacles can be used simultaneously.
120 VONLY: ONLY the 120 V
receptacles can be used. Do not use the
120V/240 V receptacle in this position.
The most power will be available at the
30 A 120 V locking plug receptacle.
STARTER GRIP
Used when the battery voltage is too low
to turn the starter motor. Pulling the
starter grip to manual start the
generator’s engine.
DC RECEPTACLE (Optional)
Your generator has a 12 volt DC
receptacle for charging lead acid
batteries.
A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA
www.a-ipower.com 1-855-888-3598 or [email protected].
