A-Neuvideo ANI-ETHVGA User manual

ANI-ETHVGA
ETHERNET/USB to HDMI/VGA Display Converter
INSTRUCTION MANUAL

TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please
keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
CONTENTS
Introduction ...........................................................................2
Package Contents ................................................................ 2
System Requirements .......................................................... 2
Applications ......................................................................... 2
Features ............................................................................... 3
Specifications........................................................................3
Operation Controls and Functions ......................................... 4
FrontPanel........................................................................4
RearPanel.........................................................................4
Software Installation............................................................. 5
Install DisplayLink Software............................................. 5
Install USB Server Software............................................. 5
Using USB Server............................................................ 6
IP Property Setting.......................................................... 6
Using DisplayLink Manager.................................................. 8
Using More DisplayLink Manager................................... 9
Uninstall the Device Driver.................................................. 10
Connection, Installation & Troubleshooting.......................... 11
Connection Diagram....................................................... 11
Troubleshooting.............................................................. 11
1
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part
translated into any language or computer file, in any form or by
any means—electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise—without express written permission and
consent
© Copyright 2011. All Rights Reserved.
Version 1.1 March 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.

INTRODUCTIONS, CONTENTS, REQUIREMENTS &
APPLICATIONS
INTRODUCTION
The device that can send audio/video signals from a Notebook/PC over a local area network through regular Ethernet cables to a TV
which can be used as the primary display. When a keyboard and mouse are plugged in, the device will lets you to edit word processing
documents and play your music/movies on a TV. Supporting a direct connection up to 100 meters away when using network cables, this
gadget also includes two USB ports which let users operate printers, scanners and other USB devices at the same time, just like a PC.
This is useful in many different scenarios, for example: During meetings each attendee would be able to access a projector from their
laptop without having to fumble with any cables as long as they are connected to the network. This device can also be used as a simple
USB to HDMI signal converter thanks to its mini USB input port.
PACKAGE CONTENTS
Check that you have the following components;
(1) Ethernet/USB to HDMI/VGA Converter
(1) Driver CD
(1) Users Guide
(1) 5V/2.6A DC power adaptor
PACKAGE CONTENTS
System Hardware Requirements: 2.4 GHz single core CPU with at least 1GB RAM for optimal performance
Operating Systems:
• Windows XP Home or Professional 32 bits SP2
• Windows Vista 32 bits
• Windows 7
Note:
• 1080p resolution works best with an USB connection up to 2M long
• The ethernet interface does not support MAC OS whereas the USB can support Mac OS x v10.4.11 and v10.5.6
USB Port Extension:
• An available USB 2.0 port with USB to mini USB cable
Network Extension:
• An available Ethernet port at home or a commercial network with RJ-45 cable
APPLICATIONS
• Educational teaching
• Home entertainment
• Office Network
• Household network
2

FEATURES & SPECIFICATIONS
FEATURES
• Supports HDMI & VGA outputs
• 16/32-bit Color for high-quality images
• HD resolution up to 1920 x 1080
• HDMI and RGB display connectivity
• EDID selection with switch for VGA or HDMI output
• Experience the complete PC environment on a TV from 100M away
• Allows a TV to act as the primary PC display and use keyboard and mouse to browse the internet, Microsoft Office watch/listen
to movies/music from any networked computer
• Supports high performance 16-bit stereo, 48KHz audio sampling
• Supports TCP/IP ethernet protocols
• Supports 10/100/1000Mbps Ethernet
• Extend or mirror audio and video through a network or USB cable to an HDMI display
• Share HDMI display with multiple users through your existing office or home IP network
• Add an HDMI display to your computer through a USB 2.0 port
• Supports mirror and extended video modes
SPECIFICATIONS
• Video Resolution: Up to 1600 x 1200 /1920 x 1080 (wide)
• Video Input: 1 x Ethernet RJ-45; 1 x USB 2.0
• Network Protocol: TCP/IP
• Video Output Ports: 1 x HDMI, 1 x D-Sub 15pin VGA
• Extender Ports: 2 x USB Hubs (A type)
• Audio Output: 1Vp-p 47KΩ3.5Ø Phone jack
• Operating System Support: Windows, XP SP2, Vista 32bits and Window 7
• Power Supply: 5V DC/2.6A (US/EU standards, CE/FCC/UL certified)
• ESD Protection: Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
• Dimensions (WxDxH): 4.75”x3.5”x1” inches (119 x 88 x 25mm)
• Weight: 4.25 oz.
• Chassis Material: Plastic
• Silkscreen Color: Black
• Power Consumption: 11W
• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Relative Humidity: 20~90% RH (non-condensing)
2

OPERATION CONTROLS AND FUNCTIONS
The following sections describe the hardware components of the unit, include a step by step installation guide and other suggested settings.
FRONT PANEL
1. DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor included in the package to an
AC wall outlet.
2. INPUT LAN/USB Switch: This switch allows users to choose input source signal from ethernet or PC/laptop.
3. LAN IN: This slot is to connect with CAT5e/6 cable from your network system.
4. USB PORT: These ports act like a USB hub, allowing users to connect an External Hard Drive, Keyboard, or Mouse.
Note:
• These two USB ports cannot be connected to a USB extension hub, doing so will trigger the system to detect the external Hub
and will cause a system failure.
• Before removing the USB device, the user must follow the USB devices hardware removal procedure. Failure to do so will cause
the system to crash.
5. Mini USB IN: This port support mirror or video extension (via USB cable) from the PC/laptop source device to your HDMI display,
including both video and audio output signals.
REAR PANEL
1.HDMI OUT: This slot is to plug the output HDMI display with HDMI cable for video and audio output.
2. EDID control switch: The default setting for this switch is on HDMI, leave the switch here as long as the connected display is
compatible. When switch to off it’ll allows users to use the built in EDID, the device must re-powered in
order to execute this function.However, from off to HDMI/VGA will not require such action. Built in EDID as
follow: 640 x 480, 720 x 480, 768 x 576, 800x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1360 x 768, 1366
x 768, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080.
3. AUDIO OUT: This slot is to connect with two side 3.5 phone jack cable to active speakers or PC monitor with speaker output for
audio signal output.
4. VGA OUT: This slot is to connect to display monitor or TV that has D-Sub 15 pin input for video signal output.
4

SOFTWARE INSTALLATION
The following sections list the procedures to follow when installing the USB to HDMI and USB device drivers. Insert the provided CD into your
CD-ROM drive then begin the USB Install Disc and follow the below steps to install the driver.
INSTALL DISPLAYLINK SOFTWARE
Insert the CD driver included in the package and double click on the DisplayLink icon to execute the setup.
INSTALL USB SERVER SOFTWARE
Double click on the USB Server Setup icon to execute the set up and click finish when the setup is complete.
When both DisplayLink and USB Server has been installed completely the USB Server’s icon
should appear on the desktop and the button right side of the desktop.
5

SOFTWARE INSTALLATION CONT’D

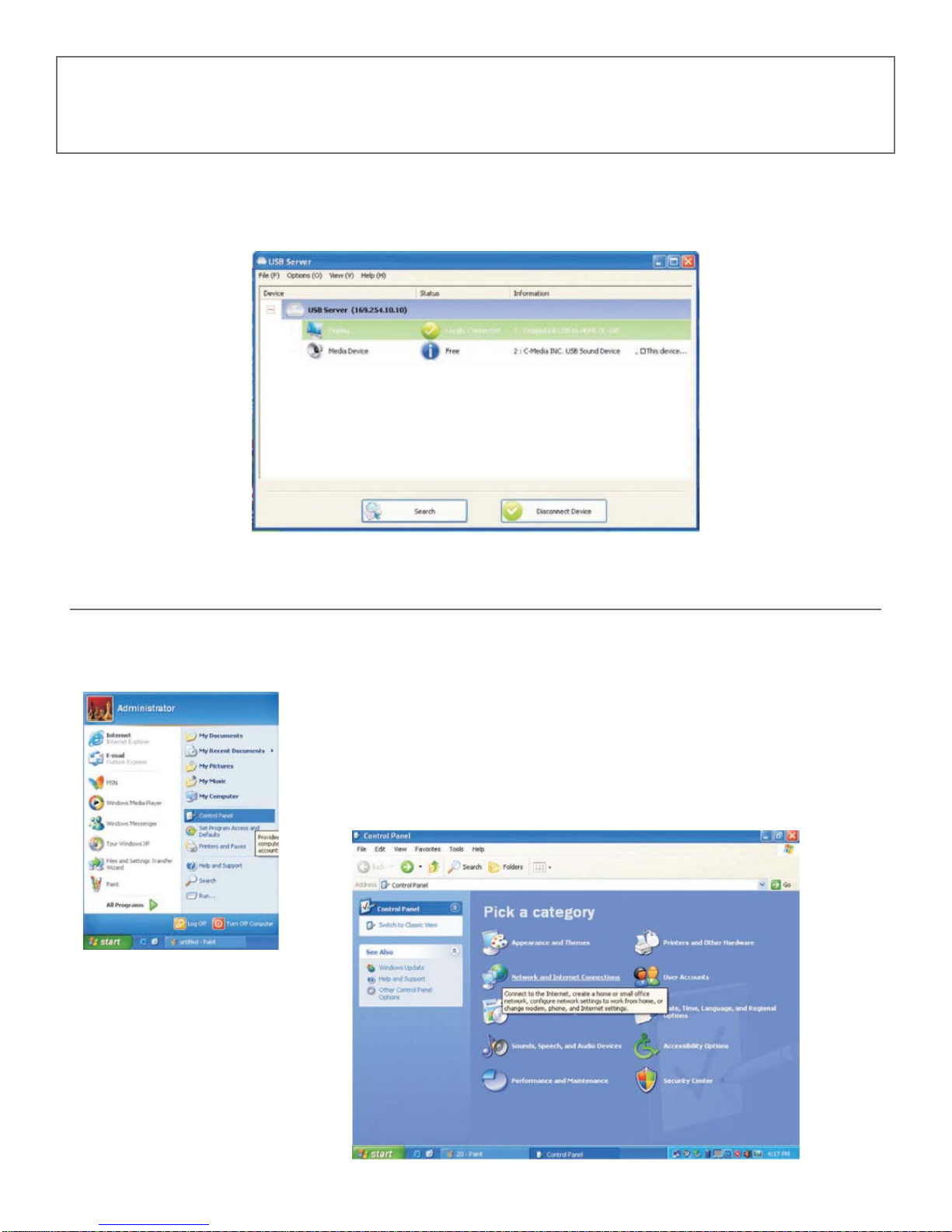

USING USB SERVER
Double click on the Launch USB Server icon from the desktop or from the button right side and the USB Server window will appear on
the desktop. Connect both PC/Laptop and the device with RJ-45 cable and click on Search and switch the INPUT switch on the
device to LAN.
Once the connection is done click on Connect Device next to the Search for both Display and Media. When the connection is done the
Status will appear with “” mark. When disconnecting click on “Disconnect Device”.
IP PROPERTY SETTING
When selecting LAN INPUT a special IP setting is required. Please follow the setting below to make the correct setting.
Click Control Panel from the Window’s start.
6

SOFTWARE INSTALLATION CONT’D
Click on the Network and Internet Connection and select Network Connections.
Double click on the Local Area Connection Double click on the Internet Protocol (TCP/IP)
Click on “Use the follow IP address” and set the IP address and Subnet mask. The IP address setting should remain at 169.254.10.X (X
can be 0~255) and Subnet mask can remain as 255.255.0.0
7

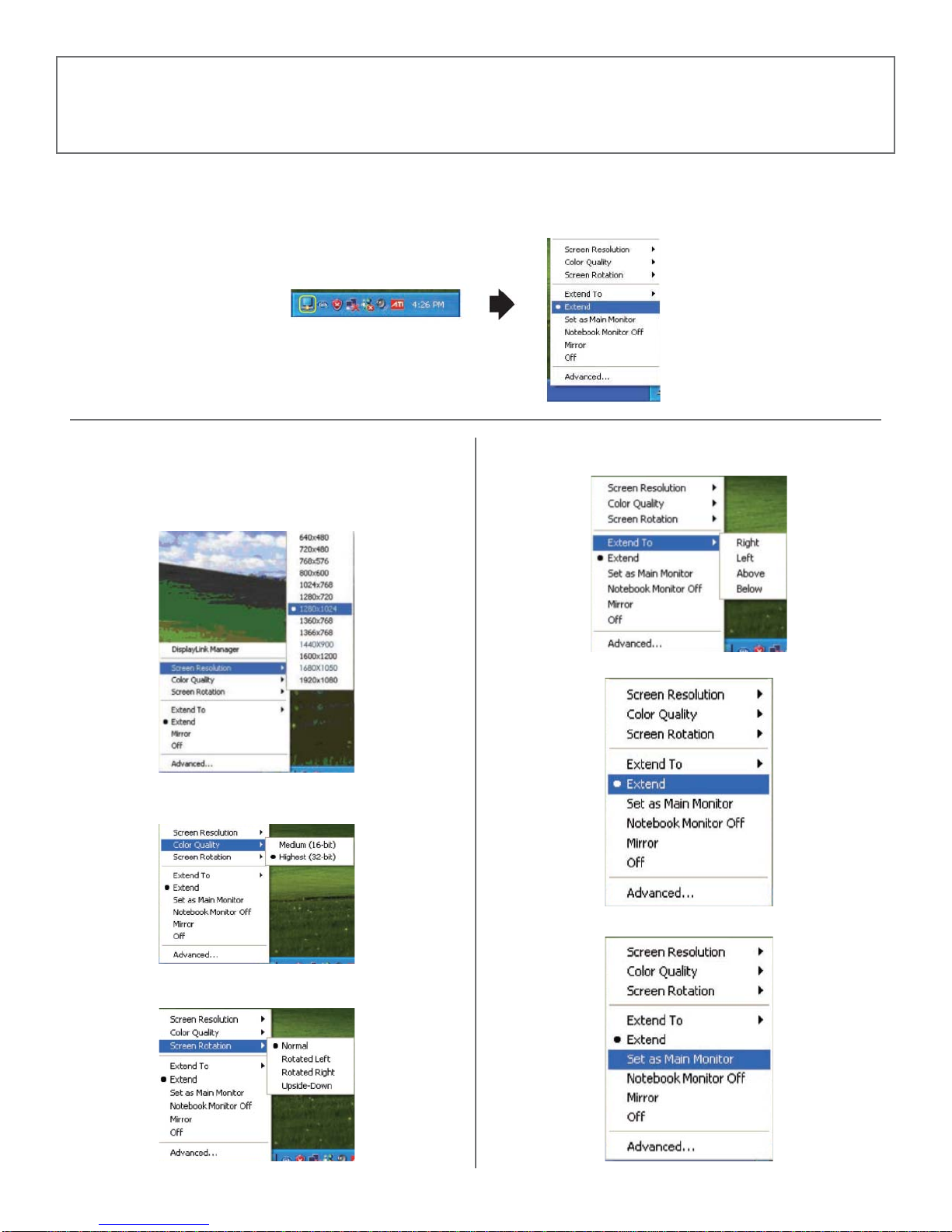

USING DISPLAYLINK MANAGER
USING DISPLAYLINK MANAGER
After the driver is installed, a utility (DisplayLink Manager) will automatically appear in the system tray. The utility allows you to quickly
change the settings and resolution for DisplayLink Manager. Right click on the icon will bring out the context menu.
• Screen Resolution: Select the screen resolution
(available only in extended mode).
NOTE: When the display has a built in EDID the screen will
show the display’s resolution, if no EDID is present the screen
has the following resolution (see below image)
• Color Quality: Select the screen color quality
(available only in extended mode).
• Screen Rotation: Rotate the screen on the additional monitor
by 90, 18 or 270 degrees.
8
• Extend to: Reposition the extended screen to the top, bottom,
left or right of the primary display.
• Extend: Set the DisplayLink Manager to Extended mode.
• Set As Main Monitor: Set the monitor to be the main monitor.

USING DISPLAYLINK MANAGER CONT’D
USING MORE DISPLAYLINK MANAGER
You don’t have to install a new driver as long as you have completed the above installation process in advance. It will automatically define
the ID of the new Display Link Manager and will list everything in the Display properties or the display manager menu.
NOTE: When connecting more DisplayLink Manager to a computer, a system with higher CPU performance is recommended.
• Notebook Monitor off: Set the PC/Notebook’s monitor off.
• Mirror: Set the DisplayLink Manager to Mirror mode. You can
see the same desktop image on the additional monitor.
9
• Off: Disable the DisplayLink Manager on the system.
• Advanced Display Properties: Opening the display will allow
you to adjust the resolution, color, quality, position and refresh
rate.

UNINSTALL THE DEVICE DRIVER
Follow the steps below to uninstall the Multi View driver.
Step 1: Open the Control Panel: Start →Control Panel →Add or Remove Programs.
Step 2: Select DisplayLink Core Software and click Remove.
Step 3: Click Yes to confirm the removal.
Step 4: Click Yes to restart your computer.
Then select DisplayLink Graphics and click Remove. Finally, select USB Server and click Remove.
10

CONNECTION AND INSTALLATION & TROUBLESHOOTING
CONNECTION DIAGRAM
TROUBLESHOOTING
Situation
The device driver has been installed, but the
DisplayLink Manager is not working.
DVD player is not working when moved to the
extended display
The mouse does not move passed the right
side during extended desk top mode.
11
END OF DOCUMENT
Check Point
1. Make sure you restart your computer after the driver installation.
2. Check all the connectors are plugged in correctly.
3. Make sure the USB port that you are using is USB 2.0.
4. Check the additional monitor is connected correctly and the power is on.
5. Make sure the operating system, the Display-Link Manager is compatible with
Windows XP, Vista (32bit) and Windows 7.
6. Try a different USB 2.0 or computer.
7. Check USB cable’s specification.
1. Change another software player.
1. Check the display settings and make sure that your display number 2 is on the
right side of display number 1.
