A-Neuvideo ANI-PS112 User manual

ANI-PS112
HD/SD Digital Multi-Format Live Video Production Switcher
INSTRUCTION MANUAL
www.A-NeuVideo.com
Frisco, Texas 75034
[phone] V.1.1

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
flow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualified service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports first, then remove the power cable; finally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualifier service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

TABLE OF CONTENTS
INTRODUCTION
This High Definition HD/SD digital A/V Mixer has two (2) input BUSES, each with six
(6) inputs (2 x HDMI’s, 2 x Component and 2 x S-Video/Composite video) and also
a Background Color feature for greater efficiency. The device has 1 x HDMI, 2 x
Components / 2 x S-Video or 2 x Composite video output ports and also allows you to
make adjustments to the position of your video. The compatible output resolutions are
HD/SD, NTSC, NTSC-4.43, PAL, PAL-M, PAN-N, SECAM, 480i, 576i, 480p, 576p, 720p
50/60 and 1080i 50/60. The output resolutions can also be automatically adjusted so it

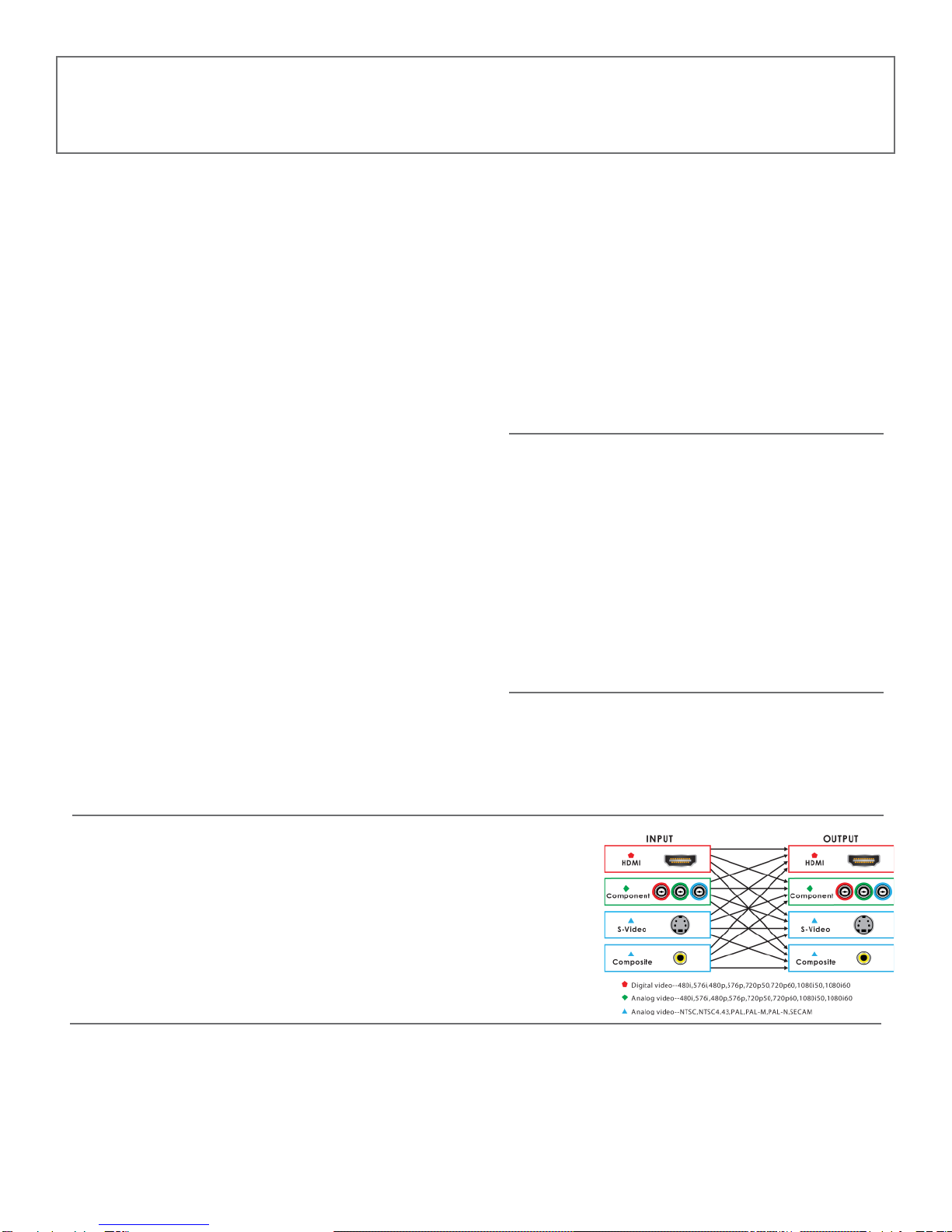

is more consistent. Please refer to the diagram on the right for additional information.
PACKAGE CONTENTS
ANI-PS112 SD/HD Video and Audio Mixer 1× Component (YPbPr) Cable
1x HDMI Cable 1× Metal Joystick
1x S-Video Cable Users Guide
1x Stereo Audio and Composite Video Cable 12 V/5.0 A DC power adaptor
1× Stereo Audio to 3.5 mm Jack cable
CONTENTS
Introduction & Contents ........................................................1
Features ................................................................................2
Specifications........................................................................3
Connector and Installation ..................................................4
Front Panel Connection .................................................4
Rear Panel Connections ................................................4
Output Resolutions .........................................................4
Operation Controls and Functions ........................................ 2
Position/Time ..................................................................5
Wipe Modes ....................................................................6
Digital Effects .................................................................7
Mode Control ..................................................................8
Adjust .............................................................................9
Video Source Select .....................................................10
Audio/VideoMixer..........................................................11
Audio Level ...................................................................12
Rear Panel ...................................................................13
Operation.............................................................................14
Basic Operation ...........................................................14
Input Signal Selection and Background color Selection ..14
Video Mix .....................................................................14
Video Wipe ...................................................................15
WIPE PATTERN Selection .........................................15
Multiple Pattern Selection ..........................................17
ONE-WAY WIPE ..........................................................17
REVERSE WIPE .........................................................17
Picture-In-Picture ..........................................................18
KEY...............................................................................19
AUTO FADE/WIPE Selection .....................................20
DIGITAL EFFECT .........................................................20
AUDIO MIXER .............................................................20
OSD ADJUST .............................................................21
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part
translated into any language or computer file, in any form or by
any means—electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise—without express written permission and
consent
© Copyright 2012. All Rights Reserved.
Version 1.1 APRIL 2013
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
1

FEATURES
FEATURES
• Selective size and position for digital effects area and PIP windows.
• Automatic fade and wipe with speed preset control.
• Digital effects- Still,Mosaic,Paint and Negative.
• 96 wipe patterns.
• Chroma key & Luminance key.
• High Picture Quality.
• 3x8 background color.
• Joystick control for digital effect position.
• Fade control for Video and Audio.
• Video and Audio mixing.
• 2x HDMI source inputs.
• 2x Component (YPbPr) source inputs.
• 2x Composite / S-Video source inputs.
• 1x HDMI recording output.
• 2x Component (YPbPr) recording outputs.
• 1x Composite and S-Video recording outputs.
• 1x Composite and S-Video preview outputs with On-screen Display.
• Auxiliary audio input.
• Microphone input and headphone output.
• Picture in Picture control (3 window sizes).
• Each A/B BUS can adjust the Contrast/Brightness/Color/Hue/Detail and Aspect Ratio.
• Supports Lip-Sync delay up to 170 ms.
• Composite supports 3D comb filter and YC separation.
• Motion and Edge Adaptive De-interlacing.
Note: When the selected source input is not connected or has HDCP protection, only a blue screen will be displayed.
2

SPECIFICATIONS
SPECIFICATIONS
SOURCE INPUT: 6 (SOURCE 1/6)
• HDMI Input: 2x Digital Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p50/60)
• Component Input: 2x Analog Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60)
• Y/C Input: 2x
• Y Signal: 1.0 Vp-p 75Ω, Mini Din 4-pin connector
• C Signal: 0.3 Vp-p 75Ω, Mini Din 4-pin connector
• Video Input: 2x 1.0 Vp-p 75Ωcomposite signal, Pin-Jack (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM)
• Audio Input: 4x −6 dBs/20 kΩPin Jack (L/R)
EXTERNAL SOUND INPUT
• MIC Input: 1x (MIC); −60 dBv/600Ω
• AUX Input: 1x (AUX); −6 dBs/20 kΩ, Pin Jacks (L/R)
RECORDING OUTPUT
• HDMI Output: 1x Digital Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60)
• Component Output: 2x Analog Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60)
• Y/C Output: 1x
• Y Signal: 1.0 Vp-p 75Ω, Mini Din 4-pin connector
• C Signal: 0.3 Vp-p 75Ω, Mini Din 4-pin connector
• Video Output: 1x 1.0 Vp-p 75Ωcomposite signal, Pin-Jack (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM)
• Audio Output: 2x −6 dBs/20 kΩPin Jack (L/R)
PREVIEW OUTPUT (OSD)
• Y/C Output: 1x
• Y Signal: 1.0 Vp-p 75Ω, Mini Din 4-pin connector
• C Signal: 0.3 Vp-p 75Ω, Mini Din 4-pin connector
• Video Output: 1x 1.0 Vp-p 75Ωcomposite signal, Pin-Jack (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM)
HEADPHONE OUTPUT
• Headphone: 1x; −20 dBv~ −80 dBv, 8Ωunbalanced, phone-5 jack
EFFECTS
• Video: Still, Mosaic, Paint, Negative, Wipe, Mix, Fade, Picture-In-Picture, Chroma key, Luminance key
Background color: 8x (White, Yellow, Cyan, Green, Magenta, Red, Blue, Black)
WIPE PATTERNS: 96 patterns
S/N (TYPICAL): Video: 48 dB (composite), 50 dB (HDMI, Component,Y/C) Audio: 60 dB
POWER SOURCE:12 V DC 3 A
POWER CONSUMPTION: Approx. 15 W
DIMENSIONS (WxDxH): 10.5 x 14.6 x 4 in (267× 370 × 103.5mm)
WEIGHT: 4.4 lbs / 2 Kgs
SYSTEM REQUIREMENTS
• HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Source
• HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Recording Device
• HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Monitor or display
3

HARDWARE DESCRIPTION
FRONT PANEL
 PHONES: Connect ear phone to listen the audio signal.
 MIC: Connect the MIC to insert audio.
REAR PANEL
 Source 3 HD stereo audio input 1.
 Source 4 HD stereo audio input 2.
 Source 5 SD stereo audio input 1.
 Source 6 SD stereo audio input 2.
 Auxiliary Audio input Jack.
 Program audio out 1 Audio output Jack.
 Program audio out 2 Audio output Jack.
 Power ON/OFF Switch.
 Source 1 HDMI input 1.
 Source 2 HDMI input 2.
 Source 3 HD Component Video input 1.
 Source 4 HD Component Video input 2.
 Source 5 SD Composite Video or YC input 1.
 Source 6 SD Composite Video or YC input 2.
 HDMI program video output.
 Program out 1 HD YPBPR Video output jack.
 Program out 2 HD YPBPR Video output jack.
 SD PREVIEW out(OSD) Video and YC output jack.
 SD Recording out Video and YC output jack.
 DC INPUT 12V 3A.
4

CONNECTOR AND INSTALLATION
REAR PANEL CONNECTIONS
OUTPUT RESOLUTIONS
The output can select HD or SD system. Users can use SD PREVIEW to adjust the output system resolution, or a short cut is to press
two keys for 1 second simultaneously.
The combinations below:
 button +  button = 480p60
 button +  button = 576p60
 button +  button = 720p50
 button +  button = 720p60
 button +  button = 1080i50
 button +  button = 1080i60
 button +  button = NTSC
 button +  button = NTSC 43
 button +  button = PAL
 button +  button = PAL M
 button +  button = PAL N
 button +  button = SECAM50
5

OPERATION CONTROLS AND FUNCTIONS
POSITION/TIME
Time Control
For adjusting the transition time of the Auto Fade and the Auto Wipe functions.
Joystick Control
This joystick control has two functions; control the position of the square wipe pattern and P-IN-P picture.
FUNCTIONS
One-way wipe button
Reverse wipe button
Multiple wipe button
Straight wipe button
Split wipe button
Corner wipe button
Diagonal wipe button
Triangle wipe button
Square wipe button
6

7
OPERATION CONTROLS AND FUNCTIONS
MODE CONTROL
Wipe button
For selecting the wipe effect.
PIP button
Picture in picture mode can be selected by pressing this button.
Mix(Fade) button
Press this button to select the fade In/Out mode.
KEY button
This button allows you to tune in a best performance point for the blue key and luma key effects.
EDGE button
Used to select sharp edge / soft edge or color edge.
COLOR button
Used to select eight different frame colors.

8
OPERATION CONTROLS AND FUNCTIONS
DIGITAL EFFECTS
A-bus digital effect ON button.
A-bus Still button and OSD left adjust.
 A-bus Paint button and OSD right adjust.
 A-bus Negative button and OSD up adjust.
 A-bus Mosaic button and OSD down adjust.
 B-bus digital effect ON button.
 B-bus Still button.
 B-bus Paint button.
 B-bus Negative button.
 B-bus Mosaic button.
ADJUST
 Adjust button
When LED switched off, the SDP review output side will show AB-bus / output source and output format. When LED illuminate, the user
can press /  / and  buttons to adjust the values.
 DEMO button
When LED illuminate, the auto DEMO will switch to ON and the system will auto sequence Demo 96 wipe patterns, press the TIME
button to adjust the auto sequence.
 SCAN button
Press and hold SCAN button for 3 seconds, the system will enter into SCAN function and will SCAN the input ports from 1 to 6 and record
each port’s format to the system.

9
OPERATION CONTROLS AND FUNCTIONS
VIDEO/AUDIO MIXER
 AUDIO FOLLOW
When turn on the Audio Follow A/B bus’s sound indicator will follow the VIDEO slider movement. When turn off the Audio Follow, the audio
indicator will become independent to adjust from  and .
 AUTO/WIPE
AUTO FADE/WIPE can be performed with START  button when the button  is set to ON.
 START button
Automatic MIX and WIPE operation can be performed by pressing the START button. Transition time can be adjusted via TIME . When
transition time lapsed, the LED goes off.
 VIDEO slide
Wipe, PIP and Key effects can be controlled by this Video slide which moves A/B bus outputs horizontally or vertically.
AUDIO MIXER
 INPUT A: Controls the audio level of input A.
 INPUT B: Controls the audio level of input B.
 AUX: Controls the audio level of the Auxiliary input.
 MIC: Controls the audio level of the Microphone input.

10
OPERATION CONTROLS AND FUNCTIONS
VIDEO SOURCE SELECT
 /  Used to select Source1,HDMI1.
 /  Used to select Source2,HDMI2.
 /  Used to select Source3,HD input 1.
 /  Used to select Source4,HD input 2.
 /  Used to select Source5,SD input 1. When connecting both S-Video and CV at the same the time S-Video will be the first priority
source to be display.
 /  Used to select Source5,SD input 2. When connecting both S-Video and Video at the same the time S-Video will be the first priority
source to be display.
 /  A-bus background color select, can select one out of eight colors. B-bus background color select, can select one out of eight
colors.
AUDIO LEVEL
 Audio level indicator.(Audio level)
This indicator shows the audio output level of REC out 1 and REC out 2.

11
OPERATION
BASIC OPERATION
Turn the power switch at the rear panel to the ON Position. The LEDs on the panel will light up and the unit is now in initial mode for
operation.
INPUT SIGNAL SELECTION AND BACKGROUND COLOR SELECTION
→Slide the Video slide  to the A-bus position.
→Press any of the Source thru Source and Background color button. You will see the corresponding picture on the screen.
→Press a Background color button to select the background color you need. Any of the 8 Background colors-Blue/Red/Magenta/
Green/Cyan/Yellow/White/Black can be selected by repeatedly pressing the Background color selection button .
→The same procedures applies to the B-bus.
* When the selected input source is not connected with a source input or HDCP protection, the image will show with Blue screen.

12
OPERATION
VIDEO MIX
→Press the MIX button .
→Press one of the A-bus selection button.
→Press one of the B-bus selection button.
→Mix effect will be controlled by video slide  by sliding A to B or B to A.
VIDEO WIPE
Reset the operation panel to initial mode:
→Press the WIPE button .
→Press one of the A-bus selection button.
→Press one of the B-bus selection button.
→WIPE effect will be controlled by video slide  which moves A/B bus outputs horizontally or vertically.
→Press EDGE button to select frame sharp edge/soft edge/ color edge.
→When frame color is “color edge”, press COLOR button to select one of eight colors to display.

13
OPERATION
WIPE PATTERN SELECTION
There are Six wipe modes available can be selected as follows:
→Press the straight wipe button repeatedly to toggle
through the available wipe patterns. Four are available: Left to
right, right to left, top to bottom and bottom to top.
→Press the corner wipe button repeatedly to toggle
through the available wipe patterns. Four are available: Top right
to bottom left, bottom right to top left, bottom left to top right and
top left to bottom right.
→Press the diagonal wipe button repeatedly to toggle
through the available wipe patterns. Four are available: Top right
to bottom left, bottom right to top left, bottom left to top right and
top left to bottom right.
→Press the triangle wipe button repeatedly to toggle
through the available wipe patterns. Four are available: Left to
right, Bottom to top, top and bottom simultaneously and left and
right simultaneously.
→Press the split wipe button repeatedly to toggle through
the available wipe patterns. Four are available: Left and right
simultaneously, top and bottom simultaneously, all four corners
simultaneously and rectangles from left and right simultaneously.
→Press the ‘Shape’ wipe button repeatedly to toggle
through the available wipe patterns. Four are available: Circle,
oval, diamond and rectangle. The position of each wipe pattern in
this section can be set via the Joystick Control .

14
OPERATION
MULTIPLE PATTERN SELECTION
Reset the operation panel to initial mode:
→Press the WIPE button to place the unit in WIPE mode.
→Select a wipe pattern e.g. straight wipe by pressing button .
→Press the MULTI button repeatedly to have the desired multiplication effect.
Four options are available: x1, x2, x4 and x8.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Operate the video slide  to control the wipe pattern.
*The same procedure applies to the other wipe patterns.
ONE-WAY WIPE
→Press the WIPE button to place the unit in WIPE mode.
→Select a wipe pattern e.g. straight wipe by pressing button .
→Press the ONE-WAY 3button.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Operate the video slide  to control the wipe pattern.
REVERSE WIPE
→Press the WIPE button to place the unit in WIPE mode.
→Select a wipe pattern e.g. straight wipe by pressing button .
→Press the REVERSE button.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Operate the video slide  to control the wipe pattern.
* The wipe
pattern moves
in the normal
direction the
Video Slider
control  is
operated.
* The wipe
pattern moves
in the normal
direction the
Video Slider
control  is
operated.

15
OPERATION
PICTURE-IN-PICTURE
Reset the operation panel to initial mode:
→Move the Video Slider  fully to the A or B-bus position.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Press the PIP button to put the unit into picture-in-picture mode.
→The PIP mode can be selected by pressing ~ buttons:
Shows the picture-in-picture box at 1⁄2 size without the frame edge.
Shows the picture-in-picture box at 1⁄3 size without the frame edge.
Shows the picture-in-picture box at 1⁄4 size without the frame edge.
Shows the picture-in-picture box at 1⁄2 size with the frame edge.
Shows the picture-in-picture box at 1⁄3 size with the frame edge.
Shows the picture-in-picture box at 1⁄4 size with the frame edge.
→Other PIP features
3 PIP sizes selectable for sub-picture PIP channel.
The color of the edge can be changed by pressing background color select button .
When you slide the video slide to the A-bus position PIP picture dissolves into back ground scene.
Sub-picture PIP channel may be placed into different positions using Joystick .
No Border Border

16
OPERATION
KEY
Reset the operation panel to initial mode:
How to use the LUMA KEY effect:
→Press the KEY button to place the unit in KEY mode.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Press the LUMA KEY button . The darker areas of the picture will become transparent and allow the image of the other source
to show through.
→Use the Video Slider  to control the LUMA KEY level.
→Press button or to change the source that is being keyed.
→Press the LUMA KEY again to reverse the LUMA KEY effect.
How to use the BLUE KEY effect:
→Press the KEY button to place the unit in KEY mode.
→Press one of the A-bus selection buttons to select a source.
→Press one of the B-bus selection buttons to select a source.
→Press the BLUE KEY button . The blue areas of the picture will become transparent and allow the image of the other source to
show through.
→Use the Video Slider  to control the LUMA KEY level.
→Press button or to change the source that is being keyed.
→Press the Blue KEY again to reverse the BLUE KEY effect.

17
OPERATION
AUTO FADE/WIPE SELECTION
Reset the operation panel to initial mode:
→Press the ON button to enter into AUTO FADE/WIPE mode.
→FADE/WIPE transition time can be adjusted with the TIME control .
→Press the WIPE button to select the wipe effect.
→Press the MIX button to select MIX (FADE) effect.
→Press the START button  to start Auto wipe or fade effect.
NOTE: When in AUTO FADE/WIPE mode the Video Slider  is disabled.
DIGITAL EFFECT
Digital effect section which generates digital special effects for the A-bus and B-bus source video signals. The selected effect(s) can be
added to either the A-bus or B-bus at one time.
NOTE: The mosaic effect is not available in the picture-in-picture frame in PIP mode.
 /  A-bus, B-bus digital effect ON button.
 /  STILL button - creates a still frame.
 /  PAINT button - creates a ‘paint’ effect. Repeatedly pressing the PAINT button will
cycle through 3 levels of the effect.
 /  NEGATIVE button - creates a negative image.
 /  MOSAIC button - creates a ‘pixillated’ effect. Repeatedly pressing the MOSAIC
button will cycle through 3 levels of the effect.
AUDIO MIXER
The Audio can be controlled either separately or in combination with a video source.
 When the AUDIO FOLLOW’s LED illuminate the Audio
may be adjust by Video slider  along with the video. When
the LED is off the Audio will be adjusted by  and  buttons.
 Adjusts the A-bus source’s audio level.
 Adjusts the B-bus source’s audio level.
 AUX: Controls the audio level of the auxiliary input.
 MIC: Controls the audio level of the microphone input.

18
OPERATION
OSD ADJUST
Reset the operation panel to initial mode:
 When turn off the OSD adjust in SD PREVIEW, output will show A/B-bus and output system information. As shown below.
INFORMATION
A INPUT: HDMI 1
SYSTEM: 1080i60
B INPUT: YPbPr 1
SYSTEM: 480p60
OUTPUT: NTSC F/W Version
 When turn ON the function in OSD PREVIEW, output will show the adjust screen. As shown below.
MENU [1][2][3]
A PICTURE
CONTRAST [ 58]
BRIGHT [ 31]
COLOR [ 31]
HUE [ 31]
DETAIL [ 10]
ASPECT [FULL]
OSD adjustment function and range setting as below diagram:
CONTRAST [ 58 ] 0~63
BRIGHT [ 31 ] 0~63
[1] A PICTURE COLOR [ 31 ] 0~63
HUE [ 31 ] 0~63
DETAIL [ 10 ] 0~63
ASPECT [FULL] AUTO FULL 16:9 4:3
CONTRAST [ 58 ] 0~63
BRIGHT [ 31 ] 0~63
MENU [2] B PICTURE COLOR [ 31 ] 0~63
HUE [ 31 ] 0~63
DETAIL [ 10 ] 0~63
ASPECT [FULL] AUTO FULL 16:9 4:3
A AUDIO [AUTO] AUTO-CH1-CH2-CH3-CH4-CH5-CH6
B AUDIO [AUTO] AUTO-CH1-CH2-CH3-CH4-CH5-CH6
[3] SETUP VOLUME [ 127 ] 0~127
LIP SYNC [33MS] 0~170
OUTPUT [NTSC] NTSC-NTSC 43-PAL-PAL M-PAL N
DEFAULT SECAM-480p60-576p50-720p50-720p60-
1080i50-1080i60
When in MENU mode, press ◄ ►to adjust the page. Press  ▼and  ▲to
select the functions; once the functions are selected press ◄and  ►to adjust the
values.
NOTE: The values are not saved to the unit’s memory until you exit the OSD ADJUST mode.
When the unit is turned off the system will change the value back to its default value. Press
ADJUST  to exit the OSD adjust screen and the system will automatically save to the
memory.
