Instruction Manual
使用說明書
Air Purifier 空氣淨化器
Model/型號: KJ1200F-B01-HK
Please read this manual before use.
使用前請細閱本說明書

Table of Contents
Important Notes
……………………………………………………………………
11
Product Characteristics
……………………………………………………………………
12
Product Features
……………………………………………………………………
12
Product Specifications
……………………………………………………………………
12
Packing List
……………………………………………………………………
13
Filters Installation
……………………………………………………………………
13
Operation Instructions
……………………………………………………………………
15
Maintenance
……………………………………………………………………
17
Troubleshoot
……………………………………………………………………
21
Warranty
……………………………………………………………………
22

11
Important Notes
Thank you for choosing A.O. Smith Air Purifier. To optimize the performance of the air purifier, please read and
follow this instruction manual. Also please keep this manual in a safe place for future reference.
1. For the initial operation or after replacement of filters, please remove the packing of filers according to the
instruction. Otherwise, the machine will not perform properly.
2. Do not disassemble, repair or modify the machine; any unauthorized disassemble, repairing or modification
may cause malfunction, danger or fire.
3. Do not touch, insert or remove the power plug with wet hands, otherwise it may cause risk of electric shock.
4. Do not spill water to the machine or immerse machine into water; otherwise it may cause fire or risk of
electric shock.
5. Do not operate the machine in an environment with flammable gas or metal dust; otherwise it may cause
fire.
6. Do not operate the machine in a humid, wet, hot or large temperature difference environment; otherwise
condensation inside the machine may cause risk of electric shock or fire.
7. Do not operate the machine in a greasy environment; otherwise it may rupture the casing of the machine
and resulting in exposure of electrical parts to cause fire or injury.
8. Do not damage power cord; power cord cannot be pressed, bended, pulled or twisted. Also, do not place
heavy object on the power cord, do not let power cord caught between objects. If the power cord is
damaged, it may cause fire or risk electric shock.
9. Do not operate the machine if the power plug is damaged, deformed or in an unsafe condition, otherwise it
may cause fire or risk of electric shock.
10. The machine cannot be placed outdoor, must avoid direct sunlight to prevent the casing is faded.
11. Do not place the machine near heat source; otherwise the casing of the machine may be deformed.
12. Do not insert finger or object into the air inlet or outlet; otherwise it may cause body injury or damage to
the machine.
13. Do not operate the machine while spraying insecticides. The substance of insecticides can be accumulated in
the machine. If the machine operates again, the substance will volatilize to the air and damage to health.
14. Do not block the air inlet or outlet; otherwise clean air will not circulate throughout the room also may
damage the machine.
15. Do not clean the machine with volatile detergent or spray insecticides on the machine. This kind of
substances can deform the casing of the machine and cause risk of electric shock or fire.
16. Do not sit or stand on the machine. Sitting or standing on the machine may lead to potential injury.
17. The machine cannot remove carbon monoxide. It cannot be used as a safety device in case of accidents with
combustion processes and hazardous chemicals.
18. The machine can only be operated when it stands vertically; otherwise it may cause malfunction to the
machine.
19. Unplug the machine if not in use over a period of time.
20. Unplug the machine while maintenance, repairing or moving the machine.
21. This machine is not suitable to be operated by the following person: Person with reduced physical, sensory
or mental capabilities and knowledge unless they have been given supervision or instruction concerning use
of the appliance in a safe way. Child shall not play with the machine.
22. To optimize the performance, suggest placing the machine in the middle of the room and reserve 50cm of
clearance space to all sides of the machine.
Caution: If any part of the machine is damaged, please contact Customer Services for assistance. This
machine can only be inspected, maintained or repaired by a competent person who is authorized by A.O
Smith. Otherwise, the warranty will be voided also may dangerous to user.

12
Product Characteristics
Physical filtration compounds have been applied to the machine as the purification principle:
Plastic mesh filter: can capture substances in the air, such as hair and large particle pollutants; also help
extending the lifespan of main-filters.
Pre-filters: constructed by PET, Modified Actived Carbon and Transition Metal Oxides Catalytic to strengthen
the effect on odor removal.
Main-filters: constructed by HEPA (High-Efficiency Particulate Arrestance) and Modified Actived Carbon.
This combination can capture the size of solid pollutants above 0.3μm (Micrometer); also remove
decoration pollution, such as formaldehyde, methylbenzene and TVOC. An extra layer of anti-bacteria agent
has been applied to the HEPA to inhibit bacteria to grow for healthiness.
Product Features

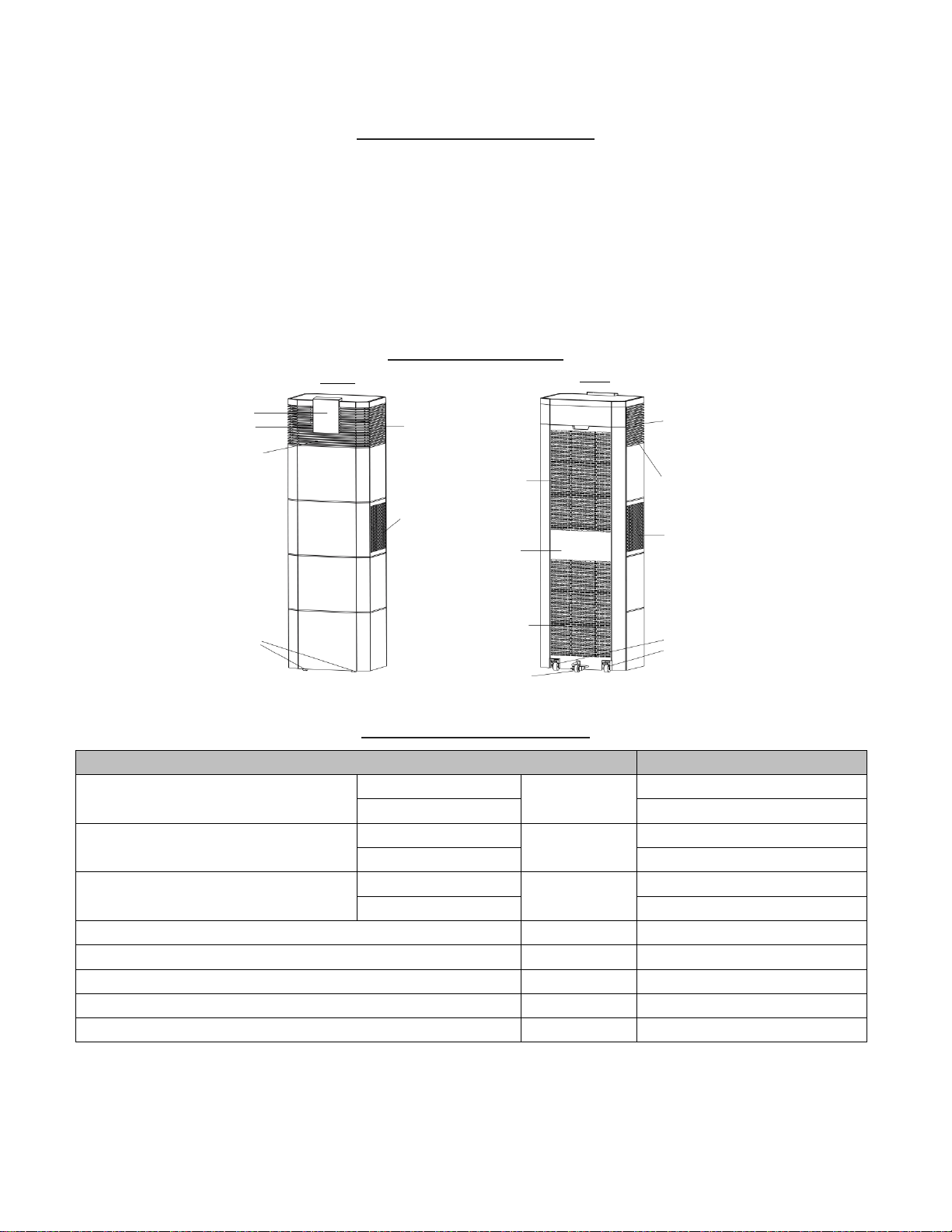

Product Specifications
Model
KJ1200F-B01-HK
Clean Air Delivery Rate (CADR)
Particulate Matter
m3/h
1200
Formaldehyde
500
Cumulate Clean Mass (CCM)
Particulate Matter
Grade
P4
Formaldehyde
F4
Purification Efficiency
Particulate Matter
m3/(W.h)
8.2
Formaldehyde
3.4
Applicable Area
m2
84~144
Rated Input
W
146
Noise Level
dB(A)
68
Voltage
―
220V~/50Hz
Dimension (W x D x H)
mm
450 x 296 x 1420
Back Cover
Control Panel
Front Air Outlet
Gas Sensor
PM2.5 Sensor/
Dust Sensor
Power Plug
Wheels
Lower Right Air
Outlet
Upper Right Air
Outlet
Air Inlet
Air Inlet
Upper Left Air Outlet
Lower Left Air Outlet
Front
Back
Rotatable Wheels
(With Lock)

13
Packing List
Filters Installation
1. Pre-filters installation
No.
Item
Unit
QTY
Note
1
Air Purifier
No.
1
―
2
Instruction Manual
No.
1
―
3
Sensor Filter
PC.
2
1 piece has been pre-installed in factory, 1 piece included as gift.
4
Plastic Mesh Filter
PC.
2
Have been pre-installed in factory.
5
Pre-filters
PC.
4
2 pieces have been pre-installed in factory, 2 pieces included as gift.
6
Main-filters
PC.
2
Have been placed inside the unit, remove packing before operate.
1
Disconnect the power supply &
make sure wheels are unlocked.
Ease the unit and open the back
cover to remove filters.
2
Assemble the mesh filter & pre-filter
by fastening the tap to the notch as
direction shown above. (Make sure the
pre-filter handles pass through the
mesh filter.)
3
Install 2 Mesh/Pre-filter sets to
the unit as direction shown
above and make sure the handles
are toward outside.
Important Note:
Mesh/Pre-filter set has to be removed when replacing the Main-filter.
Filters have been pre-installed in factory; packing of filters must be removed before the unit is being
operated.
After Pre/Main-filter is being replaced, turn on the unit and reset Filter Lifespan Indicator immediately.
Wheels cannot be locked
while back cover is being
removed
Installation Direction
Pre-Filter
Notch
Mesh Filters
Tab
Pre-filter Handle
(Pass through the
mesh filter)
Mesh/Pre-Filter Set
Installation Direction
Pre-filter Handle
(Insert to Notch)
(Toward Outside)
Mesh Filter Handle
(Toward Outside)

14
2. Main-filters installation (Remove the Mesh/Pre-filter set beforehand)
1
Disconnect the power supply &
make sure wheels are
unlocked. Open the back cover
and remove Mesh/Pre-filter
set. Remove the packing of
Main-filter.
2
After the packing of Main-filter is being
removed. Install Main-filter with
handles toward outside as direction
shown above.
3
After all filters are installed, close
the back cover, turn on the unit and
reset the Filter lifespan indicator
(Please refer to Filter lifespan
indicator reset instruction).
Installation Direction
Main-filter Handle
Main-filter

15
Operation Instructions

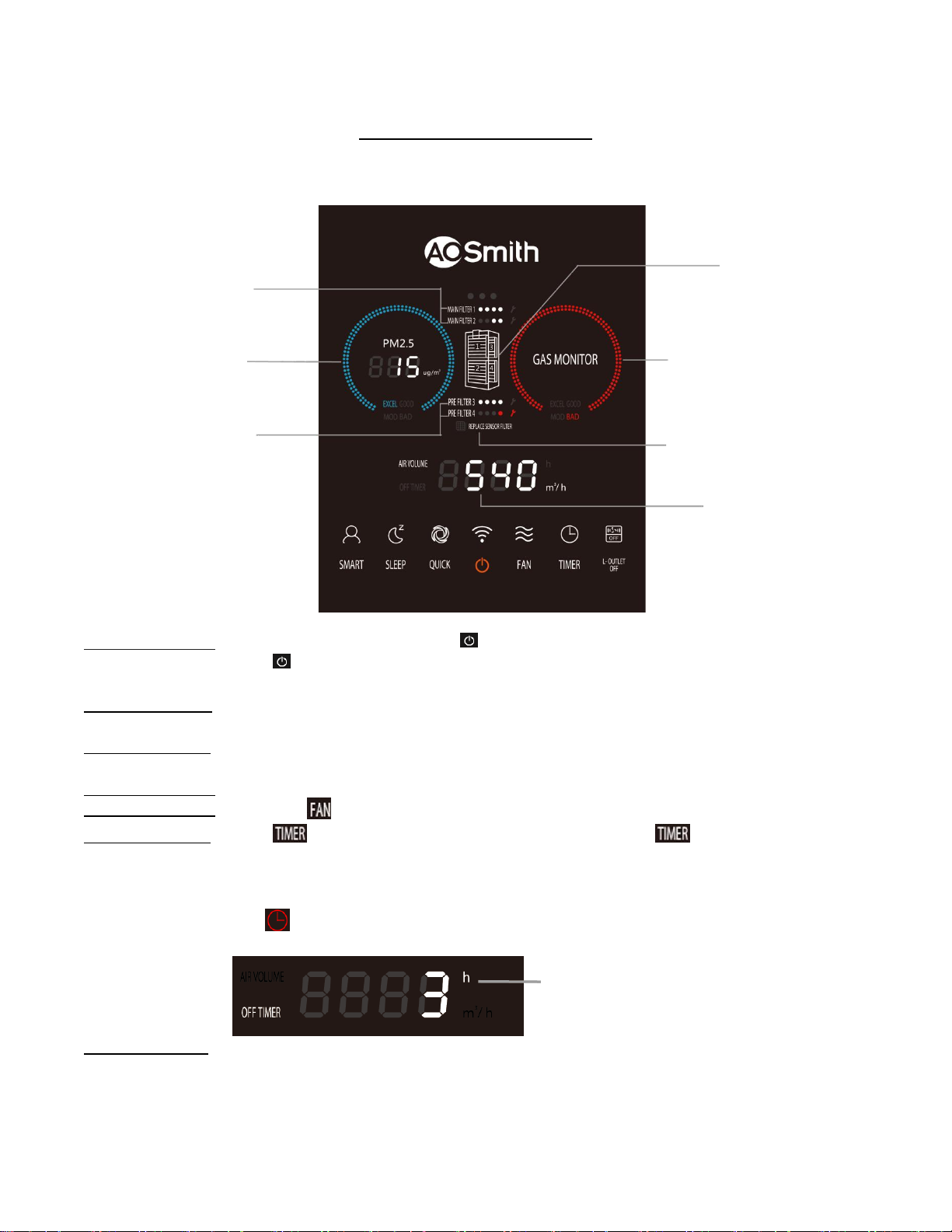

Control Panel of Air Purifier
To Operate______
A “beep” will be heard and the will light up after the plug is connected to the power.
Press to turn on the unit, sensors will initialize and all icons will light up one by one and
the unit will run in “SMART” mode as default.
SMART_________
Intelligence system will detect air quality, brightness of surrounding and change its setting
automatically to the optimize performance.
SLEEP__________
Indication light will go off & lower the wind speed to create a peaceful environment for
sleeping.
QUICK__________
Suggest selecting this mode if environment is badly polluted.
FAN____________
Press the “ ” button to adjust wind speed: “Low ～”“Mid ≈”“High ≋”
TIMER _________
Press button to active and set the off timer. After the mode is being activated,
the “Air Volume Monitor” will turn into a timer display. Each time the button is being
pressed, the off timer will increment by 1 hour and the maximum setting is 12 hours. After
the setting is completed, the display will resume to “Air Volume Monitor” and the off timer
icon will appear. The unit will turn off automatically when timer countdown to 0. To
cancel this function, set the timer to 0 or restart the unit.
L-OUTLET OFF___
Under this mode, the fan at lower air outlet will turn off and the total output flow rate will
reduce by half.
Main-Filter Lifespan
Indicator
Pre-Filter Lifespan
Indicator
Wind Speed Monitor
(Off Timer Indicator)
PM2.5 Pollution
Monitor & Meter
Filters Position
Indicator
Gas Pollution Monitor
Sensor Filter Lifespan
Indicator
Set hour displays on Off Timer
(Example of 3 hrs. shut of timer)

16

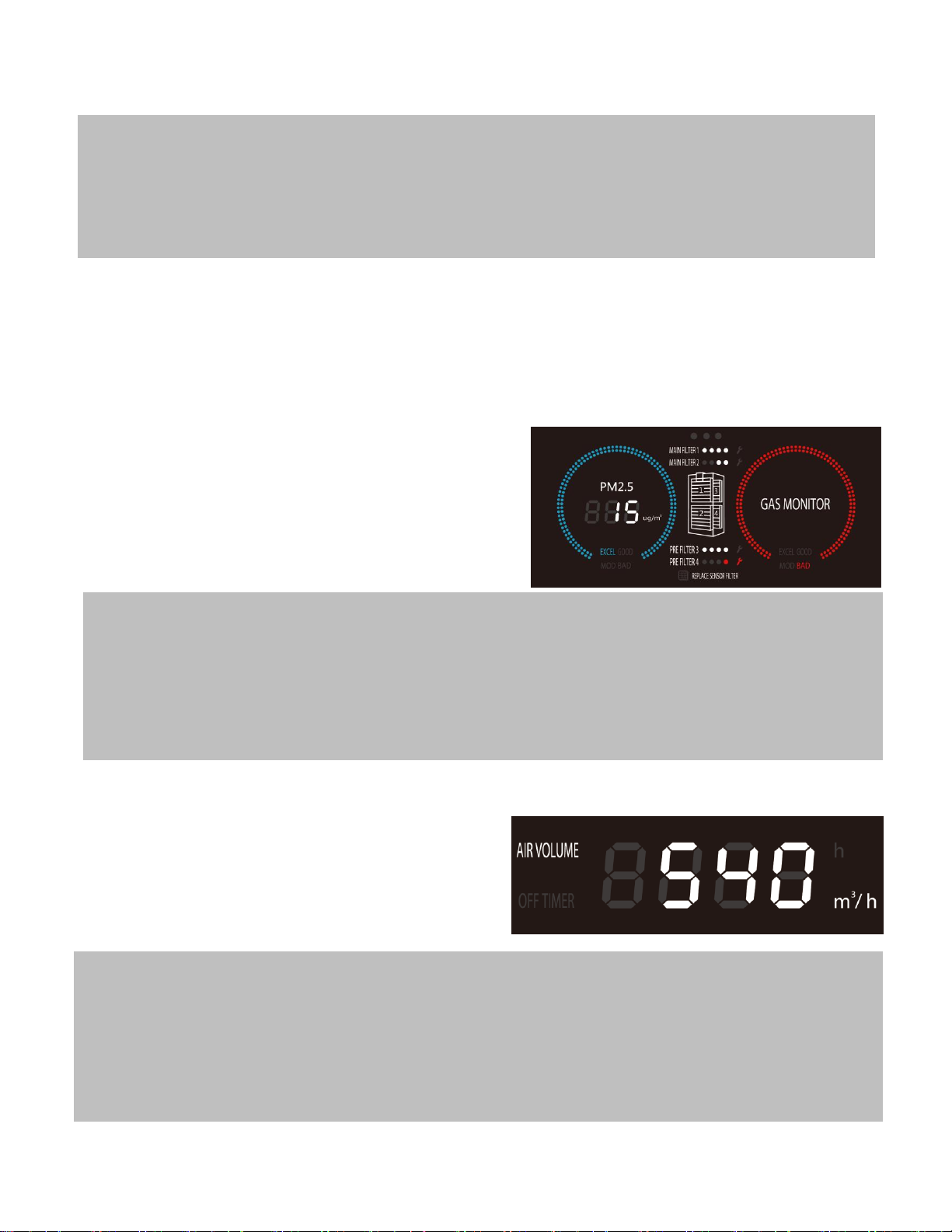

PM2.5 Monitor
The PM2.5 sensor can measure the volume of PM2.5 in nearby area and display the actual measurement on the
real-time monitor. The air quality will also be analyzed and categorized into 4 grades, which are “Excellent”,
“Good”, “Moderate” and “Bad”.
Gas Monitor
The Gas sensor can detect the existence of gas pollutants in nearby area, the air quality toward gas pollutants
will also be analyzed and categorized into 4 grades, which are “Excellent”, “Good”, “Moderate” and “Bad”.
Air Cleanliness Halo
The PM2.5 and Gas Monitor also equipped with Air
Cleanliness Halo, the Halo will change in color to illustrate 4
different grading of air cleanliness as below:
Excel
------------------------------
Blue
Good
------------------------------
Yellow
Mod
------------------------------
Orange
Bad
------------------------------
Red
Air Volume Monitor
The Air Volume Monitor shows the current output flow rate and the flow rate of the selected mode.
Output flow rate in different mode(Upper & lower fan turn on)
SLEEP------------------------------------
260m3/h
LOW -------------------------------------
400m3/h
MID--------------------------------------
660m3/h
HIGH-------------------------------------
900m3/h
QUICK------------------------------------
1200m3/h
Note:
The sensors will initialize after the first time of the unit is being connected to the power supply; or being
turned on again after the unit is not in used for a period of time. The process of initialization will take 2-5
minutes to complete. After this process is completed, the PM2.5 and Gas indicator will light up
automatically.
As default, the SMART mode will active when the unit is being turn on.
Note：
The gas sensor is not designed to detect a specific type of gas pollutant. When user measures a specific
type of gas pollutant such as formaldehyde, the result of measurement may differ from the unit’s sensor.
If strong odor is smelled, Quick mode is suggested to activate for fast purification.
The measured value of PM2.5 from the unit is for reference only; the precision of the sensor can be
interfered by other appliances, such as humidifier. When the fan switches between high to low wind
speed, the reading of PM2.5 will fluctuate temporarily.
Note：
SMART mode will change its setting according to the air quality and brightness of the surrounding
environment. Therefore, output flow rate will change time by time.
The output flow rate shown on the Air Volume Monitor will fluctuate according to the change of selected
mode.
To create a peaceful environment for sleeping, some indicators and the Air Volume Monitor will light off
when the SLEEP mode is selected.

17
Wheels Lock
Maintenance
1. Outer casing of the unit
Clean the unit with a soft clean cloth regularly.
Clean the louvers of air inlet and outlet with a vacuum cleaner or soft clean cloth regularly.
To deal with tough stains, wipe the unit’s casing with a cloth dipped in diluted mild detergent. Please make
sure the unit is completely dry before operate.
2. Sensor Filter Indicator
The sensor measures the volume of PM2.5 by
contacting the pollutants in the air. The PM2.5 and
dust sensor are protected by a filter to ensure
sensitivity, accuracy and durability. The filter is placed
inside a cartridge for ease of replacement.
As shown on the right, the filter is needed to be replaced when the Sensor Filter Indicator lights up.
1
Step down the lock lever as shown above
to secure the rotatable wheels.
2
Release the rotatable wheels by lifting
up the lock lever when the unit is
needed to be moved.
Caution:
The power plug must be unplugged before cleaning or maintenance the unit.
Please use a soft cloth or cotton swab to clean the unit, other hard object may damage unit casing.
Only mild detergent can be used for cleaning, otherwise the unit casing will be damaged.
The Gas sensor is built inside the unit, it is inaccessible for cleaning.

18
I. Replace Sensor Filter
II. Reset Filter Lifespan Indicator Instruction
The below indicator reset instruction is located between the upper and lower filters compartment.
Please reset corresponding lifespan indicator after filter has been replaced.
III. Reset Sensor Filter
While the unit is on, press the sensor reset button as shown on
the right for 3 seconds. When a “beep” is heard, the
corresponding indicator will also light off. It means the
indicator has been reset properly.
1
Disconnect the power supply & make sure wheels are
unlocked. Open the back cover & remove all filters at the upper
compartment.
2
Pull out the cartridge to replace filter as shown
above.
3
After the cartridge is pulled out, remove the old filter as
direction shown above.
4
Insert a new filter to the cartridge as shown above and
install the cartridge to the unit.
Note：The sensor filter has been pre-installed in factory; no installation is needed for the initial operation.
Sensor Filter Cartridge
Indicators Reset Instruction &
Reset Buttons
Sensor Filter (Old)
Sensor Filter (New)

19
3. Plastic Mesh Filter
The Plastic Mesh Filter can be washed with water, suggest washing it once every two months. After the
Plastic Mesh Filter is being washed, please air dry the filter in a well ventilated environment before it is
installed to the unit.
4. Main/Pre-Filter Lifespan Indicator
Provides proper cleaning can extend the lifespan of the filters. User can remove both pre-filters and main-
filters from the unit; then clean the dust on the filters surface with a vacuum cleaner. (No cleaning or
maintenance is needed for the interior of the filters, please be reminded that washing or exposing the filters
to the sun light is prohibited.)
As shown above, lifespan of Pre/Main-filter is represented by 4 white dots. White dot will go out by each
gradually along with the running hour of the unit.
As shown above, when the last remaining white dot turns into pink and the “Replacement Icon ” appears. It
reminds user the corresponding filter is needed to be replaced soon.
When the remaining pink dot turns to red and filter is not yet to be replaced. The “Replacement Icon ” will
flash three times along with alarm to alert user to replace filter immediately. If no action has been taken, the
performance of purification will be affected and the unit will be shut down by electronic system eventually to
prevent secondary pollution.
Note：Only the Plastic Mesh Filter is washable; never wash Pre/Main-filter.
Main-filter 1 & 2
Pre-filter 2 & 4
Note:
Main-filter indicator 1 corresponds to the Main-filter at upper compartment; Main-filter indicator2
corresponds to the Main-filter at lower compartment.
Pre-filter indicator 3 corresponds to the Pre-filter at upper compartment; Pre-filter indicator 4
corresponds to the Pre-filter at lower compartment.

20
I. Reset Main/Pre-filter Lifespan Indicator
After a filter has been replaced, the corresponding lifespan indicator has to be reset immediately. Please
refer to the indicator reset instruction.
Pre/Main-filter Locator
Reset buttons and the corresponding filters
Please replace filter according to the instruction. When a filter is replaced, turn on the unit and reset the
corresponding filter lifespan indicator immediately. The following indicator reset example applies to all
Pre/Main-filter.
Reset Main-filter 1: Press reset button 1 for 3 seconds. When a “beep” is heard, the corresponding indicator on
the control panel will resume to 4 white dots and the “Replacement Icon” will go out. It represent main-filter 1
has been reset properly.
Note：Do not reset other lifespan indicator if the corresponding filter has not been replaced.

21

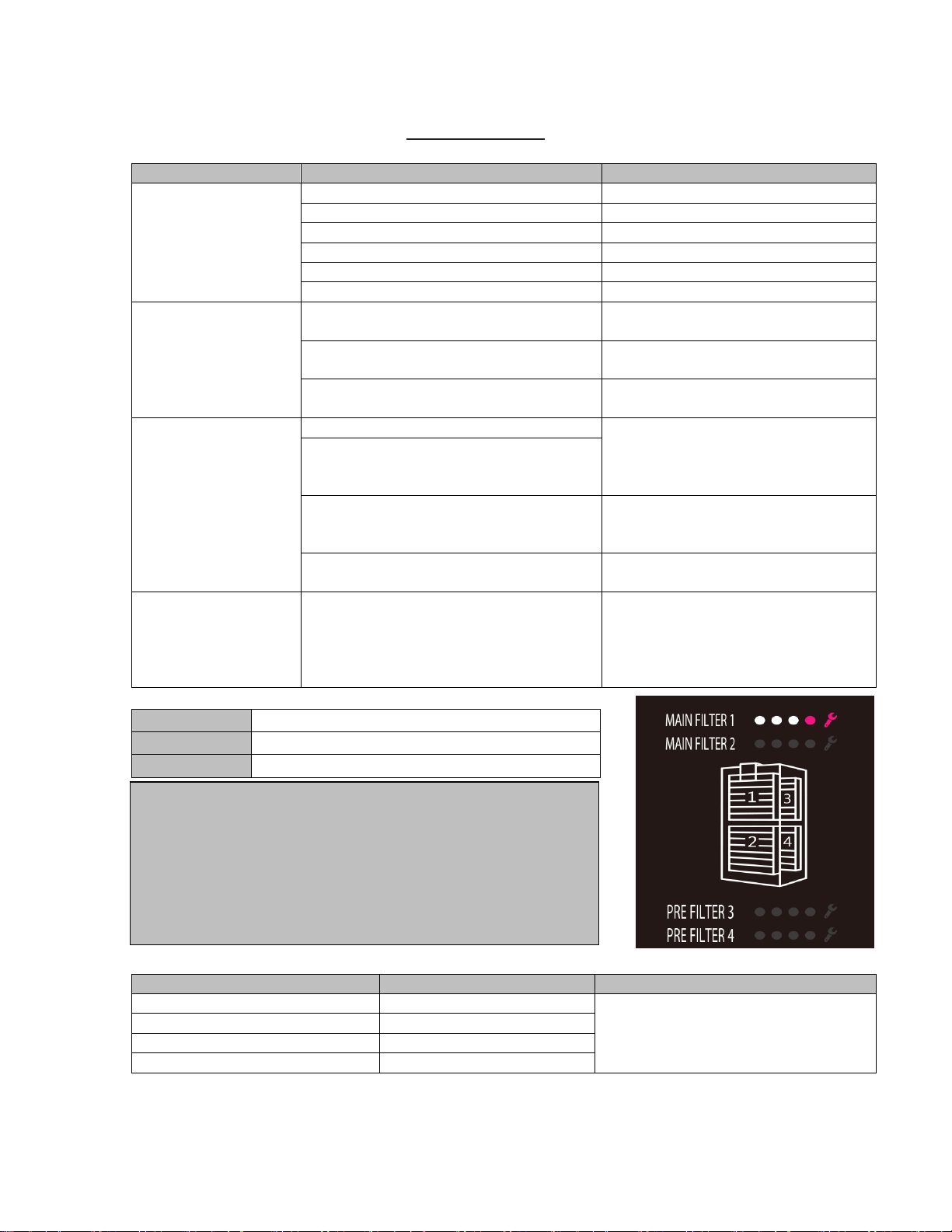

Troubleshoot
1. Problems caused by abnormal use or environment:
Symptoms
Possible Cause
Solution
No wind from the unit
Is the power supply normal?
Check power supply
Is the power plug plugged properly?
Check power plug
Are the packing of filters not been removed?
Check main/pre-filters
Is any object blocking the air in/outlet?
Remove the object
Is there no filter installed?
Check and install a filter
Is filter installed inside out?
Reinstall filter properly
The result of
purification is not
obvious
Is there any obstacle around the unit that
blocks air circulation?
50cm of clearance space is suggested to
reserve around the unit
Is there any dust or filth has been
accumulated in the air in/outlet?
Clean air in/outlet, louvers, sensors and
filters regularly
Is filter needed to be replaced?
Check & replace filter if replacement
icon lights up, and reset indicators
Odor from the unit
Odor of new material?
Operate the unit in a well ventilated
environment until the odor disappears
Odor of cigarette, insecticide, air freshener
or perfume has been inhaled during the unit
is operating?
Is the unit operates in a strong odor
environment such as smoking room or
barbeque restaurant?
In this circumstance, filters needed to be
replaced and reset indicators frequently
even not prompted by indicators
Is there any dust or filth has been
accumulated in the air in/outlet?
Clean air in/outlet, louvers, sensors and
filters regularly
The air flow rate
doesn’t react to the
change of color and
grading on Air Pollution
Indicator
Is any mode selected other than the SMART
Mode?
The air flow rate will react to the change
of color and grading on Air Pollution
Indicator automatically only in the
SMART Mode.
2. Causes of indicator flashing:
Symptoms
Indicator flashes as shown on the right
Possible Cause
Filter 1 has not been installed or installed inside out
Solution
Install/reinstall filter 1
3. Causes of error code
Symptoms
Possible Cause
Solution
E0/E1
Fan failures
Contact Customer Services
E3/E4/E5/E6
Communication failures
F0/F1/F2
PM2.5/ Dust sensor failures
F6/FA/Fb/FC/Fd/FE
Gas sensor failures
Note：
The solution above is an example for filter 1, also applies to
other Pre/Main-filter. If other Pre/Main-filter has not been
installed or has been installed inside out, the corresponding
indicator will also flash. When filter is being installed properly,
the corresponding indicator will stop flashing and light up as
normal.

22
Services and Warranty
Terms & conditions for A.O. Smith Air Purifier (Applies only to Hong Kong & Macau SAR)
1. With the purchase of air purifier, the comprehensive warranty period will begin where A.O. Smith Holdings
(Barbados) SRL (hereinafter referred to as “A.O. Smith Hong Kong”) will provide rectifications to any
manufacturing defects free of charge according to the terms and conditions hereinafter.
2. One year comprehensive warranty only applies to air purifier which is used for household purpose. Charges
and fees may occur if air purifier is used for commercial purpose.
3. Application for one year warranty must be completed and returned to A.O. Smith Hong Kong via fax, e-mail,
or post, within 14 days of purchase. The warranty will become effective after the receipt of the application,
without any confirmation notice or written documents in return.
4. Except the casing and filters, the one year comprehensive warranty only limits to the electrical parts. A.O.
Smith Hong Kong reserves the rights to choose to repair or replace each faulty component subject to the
evaluation of A.O. Smith Hong Kong service and maintenance crews.
5. If a product or part is discontinued or out of stock at the time of repair, maintenance or replacement, A.O.
Smith Hong Kong has the option to repair or replace the covered product or parts with the same model or
like kind, specifications and quality at A.O. Smith Hong Kong sole discretion. A.O. Smith Hong Kong will not
make any form of compensation, refund or offer for the price difference of any product or spare-part.
6. A.O. Smith Hong Kong reserve the rights to choose to provide on-site or workshop repairing service. And A.O.
Smith Hong Kong will not provide air purifier borrowing service.
7. After the one year comprehensive warranty, all spare-parts, inspection, rectification and transportation
costs will be charged to the customer.
8. Under no circumstances shall coverage extend to any loss or damage to a person or property for any loss of
profit, incidental, contingent, special or consequential damages or any direct or indirect loss.
9. This warranty does not include and will be voided if:
a) Damages resulting from act of God, human negligence, improper installation or abnormal usage;
b) The air purifier has been inspected or repaired or being tampered with/by any unauthorized personnel;
c) Non-standard parts and/or accessories are installed and/or used with the air purifier;
d) Failed to produce a valid sales invoice or warranty card;
e) Original invoice and / or installation are altered or modified;
f) The serial number on air purifier’s body is removed or altered.
In case of any disputes, A.O. Smith Holdings (Barbados) SRL reserves the right to make the final decision.
Where this disclaimer is available in English, the Chinese version is the governing version and shall prevail
whenever there is a discrepancy between the two versions.

此頁特意留空/This page is intentionally left blank.

此頁特意留空/This page is intentionally left blank.
