Water Heater
HSE-SBS 6, 10, 15 and 25 Litres
Higher energy rating.
Handy remote control.
Hig
h
er energy rating

Congratulations!
And welcome to the A. O. Smith family.
We would like to thank you for the trust you have shown in choosing an A. O. Smith water
heater. You can be sure it will live up to your expectations. Thousands of delighted users all
over the world trust A. O. Smith water heaters for their families. This user guide will introduce
you to your water heater. Follow the instructions carefully and look forward to enjoying long
years of trouble-free service.
A. O. Smith is a company known for its innovative technologies and energy-efficient solutions.
Ours are the only water heaters with the Blue Diamond®Glass Lining for the inner tank. This
cutting edge technology prevents sediment and scaling, fights corrosion and extends the life
of your water heater. We also offer you an exciting range of colour options for the front panel
of your water heater. Choose the one that matches your bathroom décor best.
Our customer-centric approach manifests itself in many other ways too. If you need any
information or assistance with your water heater, just call us from any phone, anywhere in the
country to our Toll Free Customer Care No. 1800-103-2468.
Or
Factory Address:
A. O. Smith India Water Products Private Limited
(formerly known as A. O. Smith India Water Heating Private Limited)
Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk,
Ramanagara District, Karnataka – 562 112, India.
CIN: U31909KA2006PTC040282
A. O. Smith India Water Products Private Limited was established in 2006. Since then, the
A. O. Smith team has conducted numerous focus group studies and spent endless research
hours determining what India wanted in a water heater. Backed by 75 years of proven
technological advances, A. O. Smith India has created a stylish design with features demanded
by the Indian consumer.
The A. O. Smith plant with manufacturing facilities spread over 76,000 sq. ft. is located on
20 acres, just outside Bengaluru, in the KIADB Industrial Area, Harohalli. The India operations
is the 16th A. O. Smith manufacturing facility worldwide. In 2013, additional 150,000 sq. ft.
was added in Bengaluru factory. A. O. Smith's India plant has extensive engineering and
technical resources and has the latest technologies incorporated. A. O. Smith is the first
manufacturer to invest in and produce glass lined water heaters in India.
Today, A. O. Smith Corporation is one of the largest water heater manufacturers in the world
and is a global leader in innovative technology and energy efficient solutions.
About A. O. Smith

Read Before Operation.............................................................. 1
General...................................................................................... 2
Specifications............................................................................ 3
Key Features .............................................................................. 5
Safety Precautions..................................................................... 6
Installation ............................................................................... 6
Connecting to Water Supply..................................................... 8
Operation ................................................................................ 11

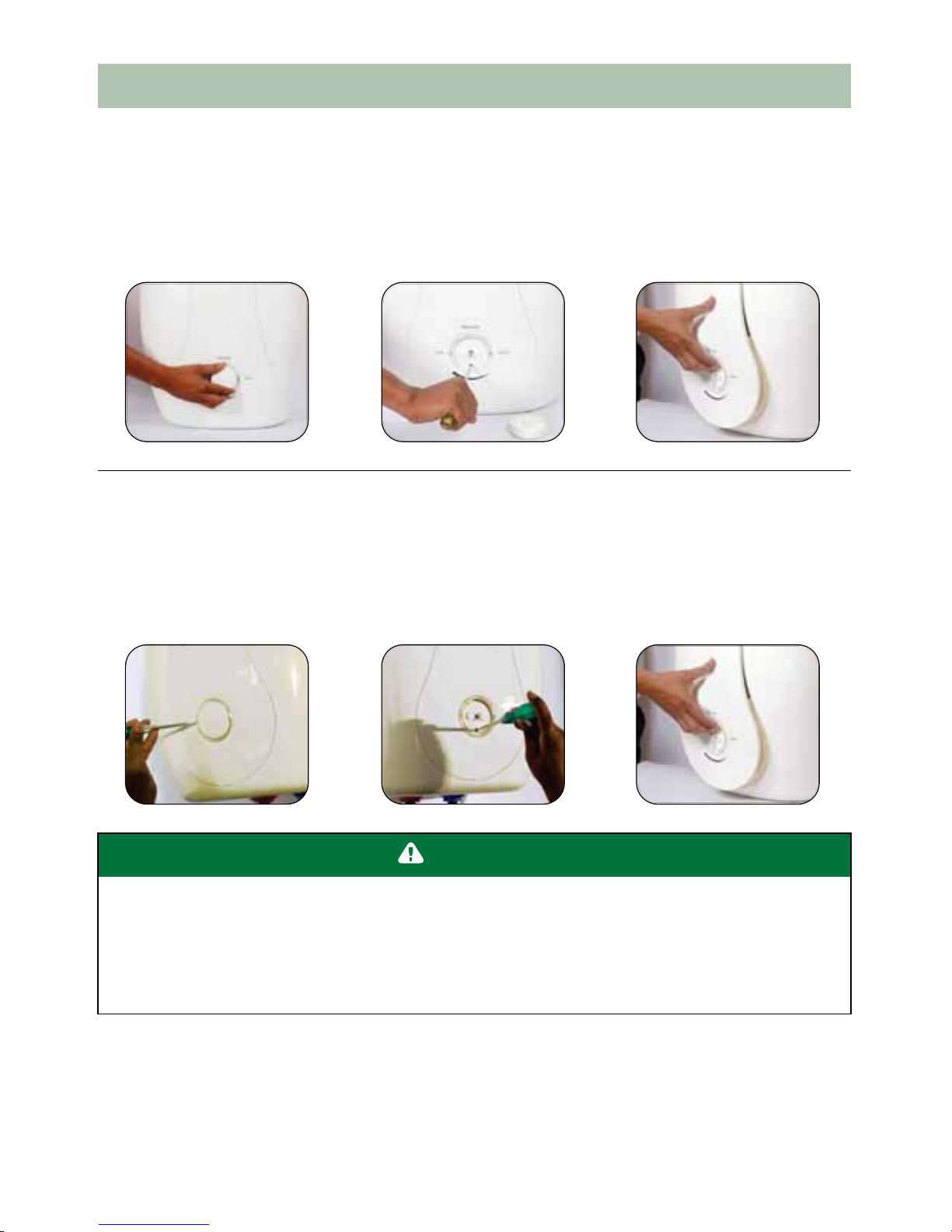

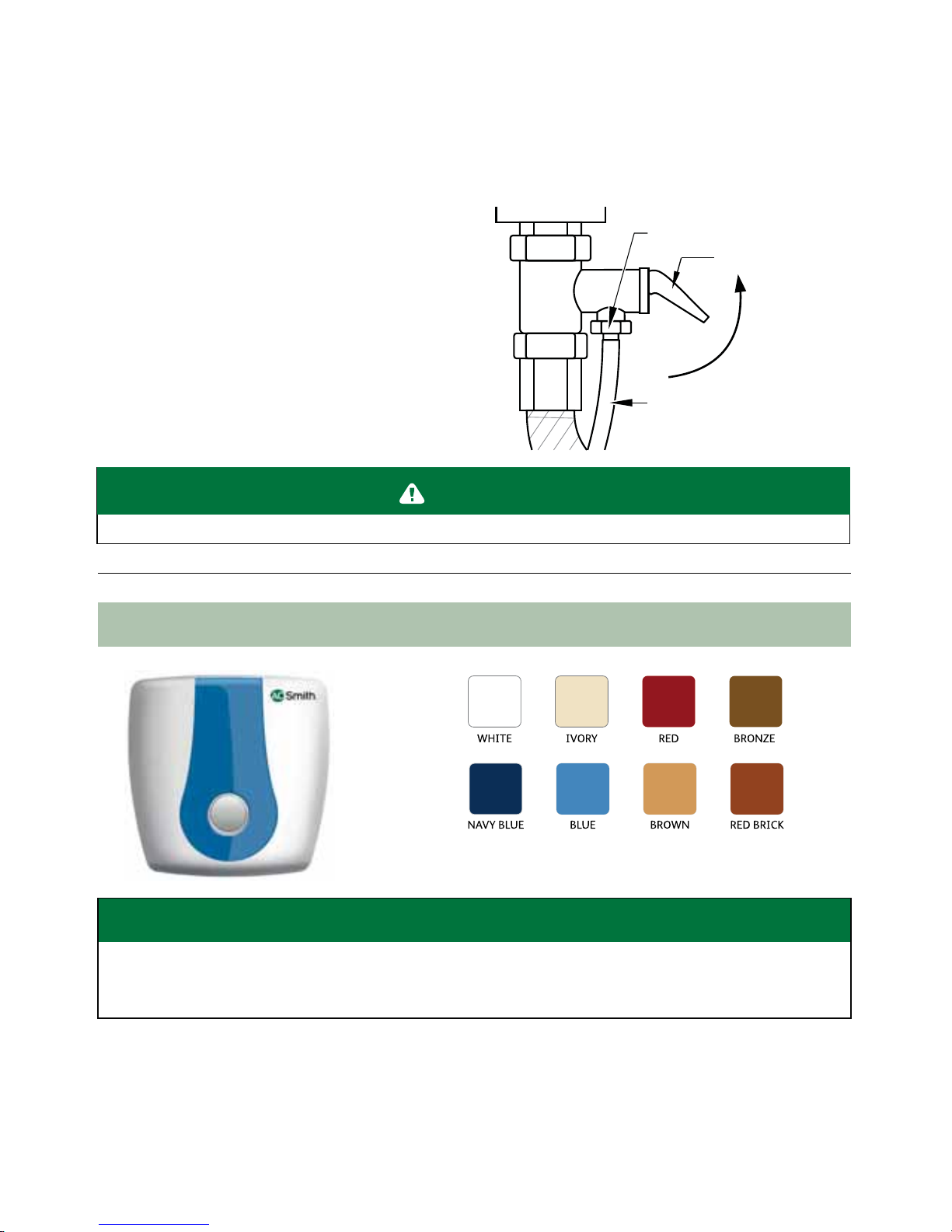

A. O. Smith Colour Match System®......................................... 15
Troubleshooting ...................................................................... 17
Circuit Diagram ...................................................................... 18
Warranty.................................................................................. 19
Jurisdiction.............................................................................. 20
Expert Company Service ......................................................... 20
Service and Maintenance ....................................................... 22
Contents
What's in the box?
HSE-SBS 6 and 10 Litres
HSE-SBS 15 and 25 Litres
Discharge Tube
User Guide Wall Mounting
Accessories
User Guide
Discharge Tube
Wall Mounting
Accessories
Electric
Water Heater
Electric Water Heater
with wired Remote control
Remote Accessories
and Battery

1
Read Before Operation
On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has been
thoroughly checked, packed and quality certified before leaving our factory.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged or the
quantity is short, do not accept them until the freight or express delivery agent makes an
appropriate notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but upon opening
the packaging if any loss or damage has taken place while in transit, inform the carrier’s
agent / A. O. Smith representative immediately.
About this manual
This manual is a guide to good practice for operating and periodic maintenance of the
A. O. Smith HSE-SBS water heater.
Do not operate the water heater before reading the user manual.
Please follow instructions in this manual to ensure personal safety and proper operation of
this product. Always install, operate, inspect and maintain this product in accordance with
all applicable standards. Please store this user manual carefully for any future reference.

2
General
Indicates a potentially hazardous situation, which if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or property damage.
This is the safety alert symbol. This symbol alerts you to potential hazards
that can hurt you and others. All safety messages will follow the safety
alert symbol and either the word “DANGER” or “WARNING”.
DANGER
WARNING
CAUTION
Important
These instructions have been written as a guide for the proper installation and operation of
your water heater. A. O. Smith will not accept any liability where these instructions have
not been followed. However, for your safety and to avoid damage caused by improper
installation, it is recommended that water heater must be installed by a Qualified Service
Technician.
Before proceeding with the installation instructions:
1. Inspect the water heater and its component parts for possible damage. Do Not
install or attempt to repair any damaged component parts. If you detect any
damage in the water heater, please contact the Dealer where the water heater
was purchased or call A. O. Smith Customer care.
2. Verify that the voltage being supplied corresponds to that which is marked on the
water heater manual.
WARNING
DO NOT use this water heater if any part has been under water. Immediately contact a
Qualified Service Technician to inspect the water heater and contact A. O. Smith Service
personnel to replace any part of the control system which has been under water. Failure to
follow this instruction can result in property damage, serious injury or death.
Safety
Your safety and the safety of your loved ones is paramount. There are several safety related
messages in this manual, which have been provided during various steps such as the
installation, operation and maintenance of your HSE-SBS water heater. These messages point
out potential hazards and also educate on how to reduce any potential risks. Please always
read and follow all safety messages as provided in this user manual.

3

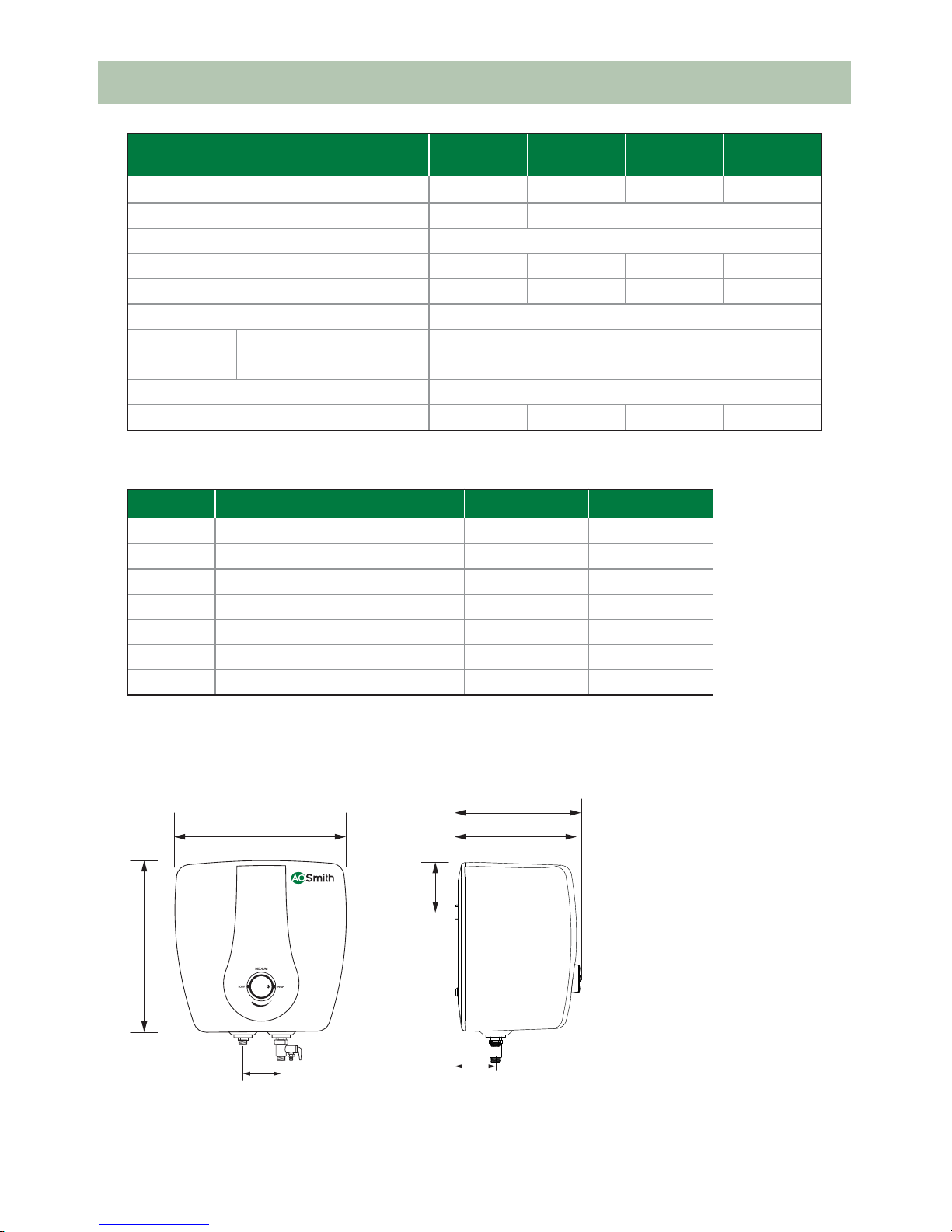

Specifications
Note: Image may vary from the actual product.
*Dimension G is applicable only for HSE-SBS-006 and HSE-SBS-010 models.
Figure 1
Model HSE-SBS HSE-SBS HSE-SBS HSE-SBS
-006 -010 -015 -025
Volume [L] 6 10 15 25
Power [W] 3000 2000
Voltage/Frequency [V/Hz] 230~/50
Actual Stdg. Loss [kWh/24h/45°C diff.] 0.350 0.445 0.500 0.560
Reheating Time for 35°C rise [in min.] 5 11 18 29
Temperature range [°C] 25-75 ±5
Rated water N/cm280
pressure Water head (metres) 80
Inlet/Outlet connections [inch] ½ BSP
Net Weight (kgs) 6.3 8.2 9.8 13
Dimensions
Model HSE-SBS-006 HSE-SBS-015 HSE-SBS-025 HSE-SBS-025
A [mm] 317 373 373 444
B [mm] 317 373 373 444
C [mm] 100 100 100 100
D [mm] 85 95 125 125
E [mm] 105 120 130 135
F [mm] 247 266 337 371
G* [mm] 258 277 N/A N/A

4
*Safety valve has been factory fit with the water heater and set at 0.8 MPa (8 Bar) rated pressure.
CAUTION
Do not tamper or detach the Safety Valve from the water heater.
WARNING
Part Description Model No.
1 Cold water inlet pipe with diffuser All Models
2 Hot water outlet pipe All Models
3 Safety Valve* All Models
4 Temperature Control Knob HSE-SBS-006/HSE-SBS-010
4A Wired Remote control HSE-SBS-015/HSE-SBS-025
5 Decorative Front Panel All Models
6 Blue Cap All Models
7 Red Cap All Models
8 Anode All Models
9 Heating Element All Models
10 Thermal Cut-out All Models
11 Thermostat HSE-SBS-006/HSE-SBS-010
12 Wall Mount Slot All Models
Figure 2
2kWCkWh
HEATING SET
ON/OFF
ENERGY
METER

5
Key Features
Blue Diamond®Glass Lining
Blue Diamond®technology increases the life of the inner tank. The lining is
stronger and more corrosion resistant than any other in the industry.

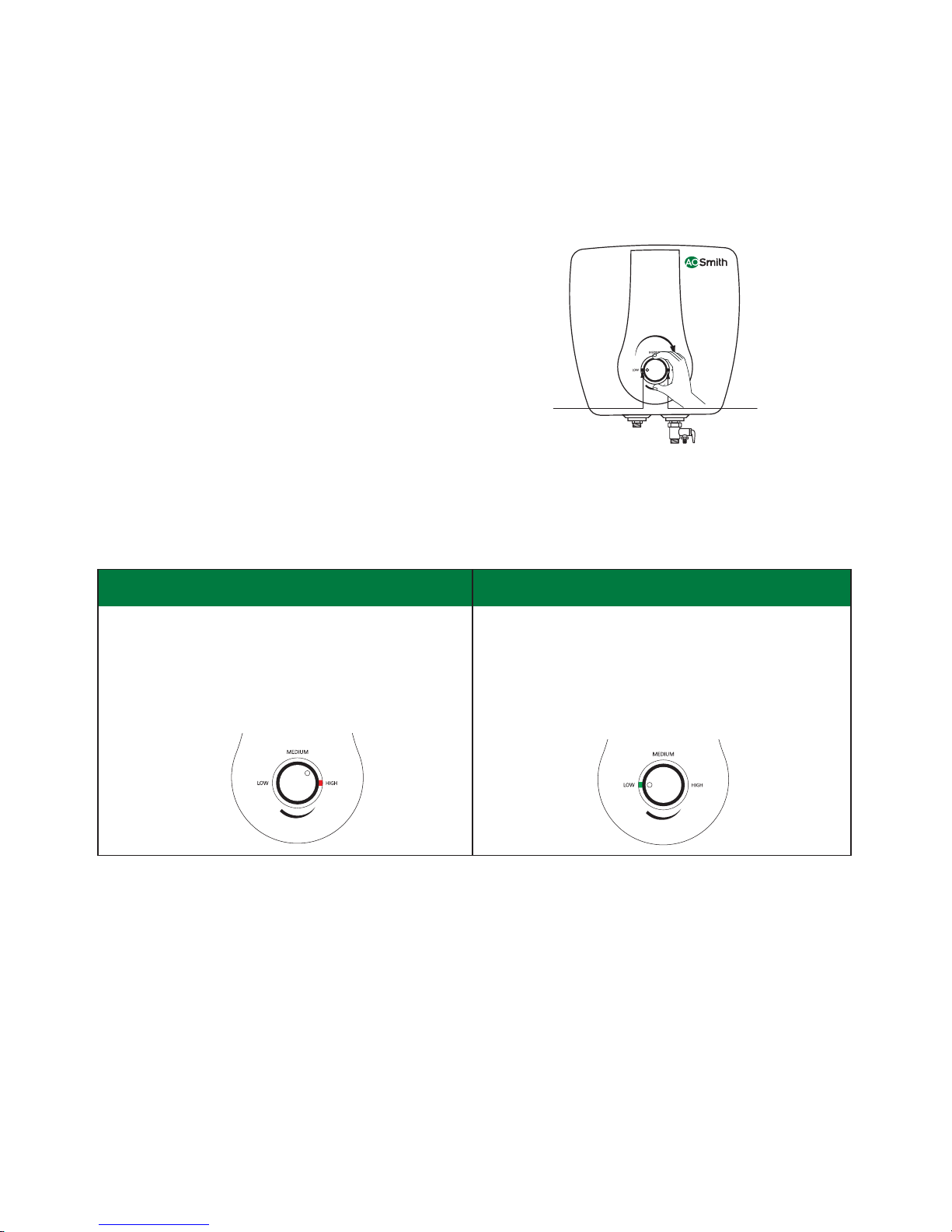

Temperature Control Knob
The temperature control knob allows you to set the temperature precisely
between 25ºC and 75ºC. Only for HSE-SBS-006 & 010 Litres models.

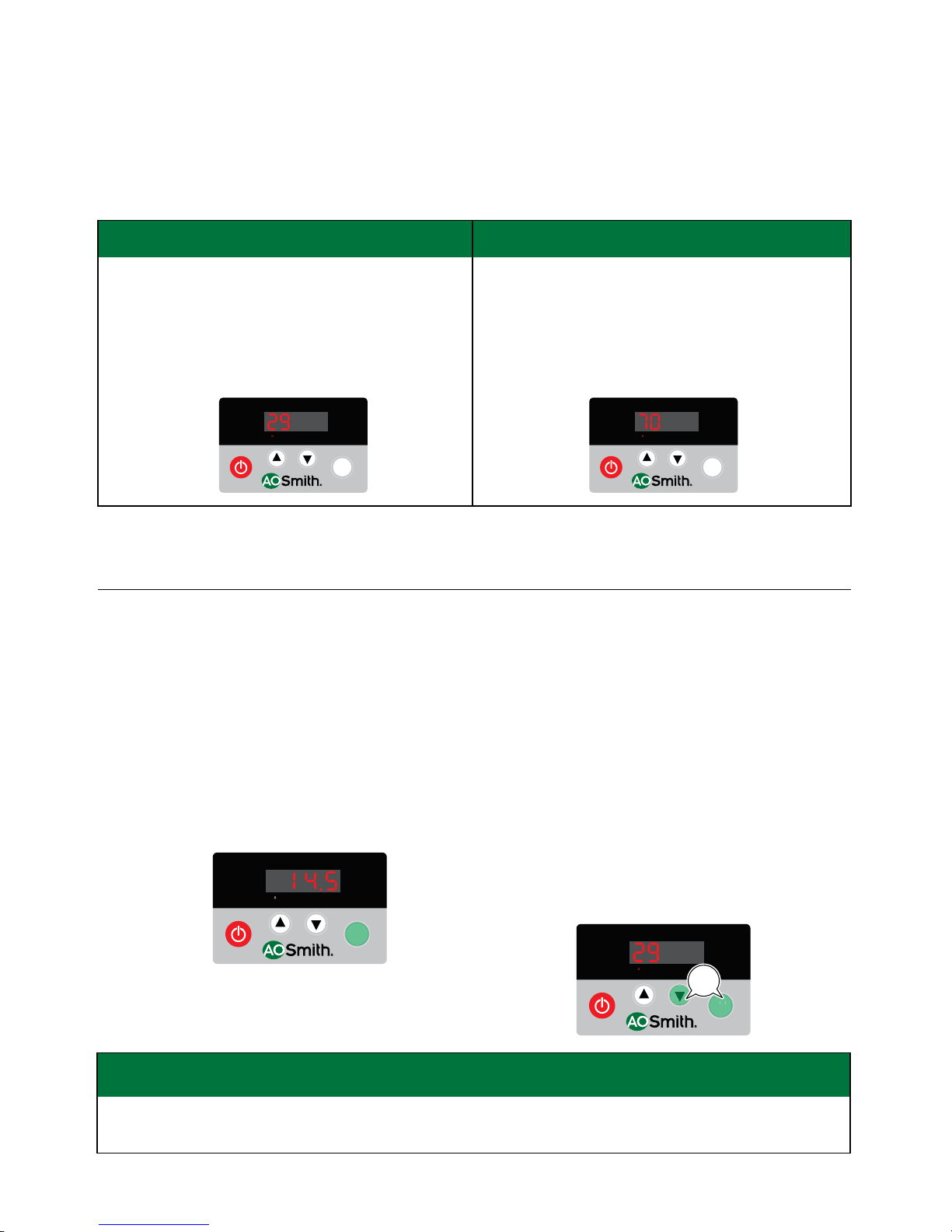

Remote Control
Displays the temperature and the total energy consumed by the water heater.
Temperature can be precisely set between 25ºC and 75ºC. It is easy to
operate the water heater with remote control even if it is placed in an
enclosed area by connecting with an approximately 8 feet wire.
Only for HSE-SBS-015 & 025 Litres models.
Safety Valve
The safety valve is designed to automatically relieve pressure and discharge
water, in case the pressure overshoots the preset limits.
Thermal Cutout
If the water temperature exceeds the highest preset level, the thermal cutout
cuts off the power supply to assure safety.
Glass Coated Heating Element
Scale and sediment build-up on the surface of the element can lead to prema-
ture failure. A. O. Smith Glass Coating helps to prevent scale formation and
extends the life of the heating element.
Anode Rod
The tank has an anode rod which has stainless steel core that is designed to
protect the tank from corrosive elements. The anode rod uses a special cathodic
action to fight these elements and thus prolong the life of the water heater.
Note: A. O. Smith reserves the right to amend or modify the specifications and features at any
time, as and when required without any prior notification.

Do not install the water heater where there is
direct sunlight or rain. It is has to be installed
indoor only.
During Installation
6
Do not install the water heater where water
splashes on the water heater.
Figure 3 Figure 4
Safety Precautions
Installation
Before installing, ensure that the following tools are available:
Figure 5
Tools Required
Hammer
Bubble Level Indicator Measuring Tape Impact
Drill Tool
Adjustable
Wrench Teflon Tape Ruler
CAUTION
CAUTION

7
Figure 6

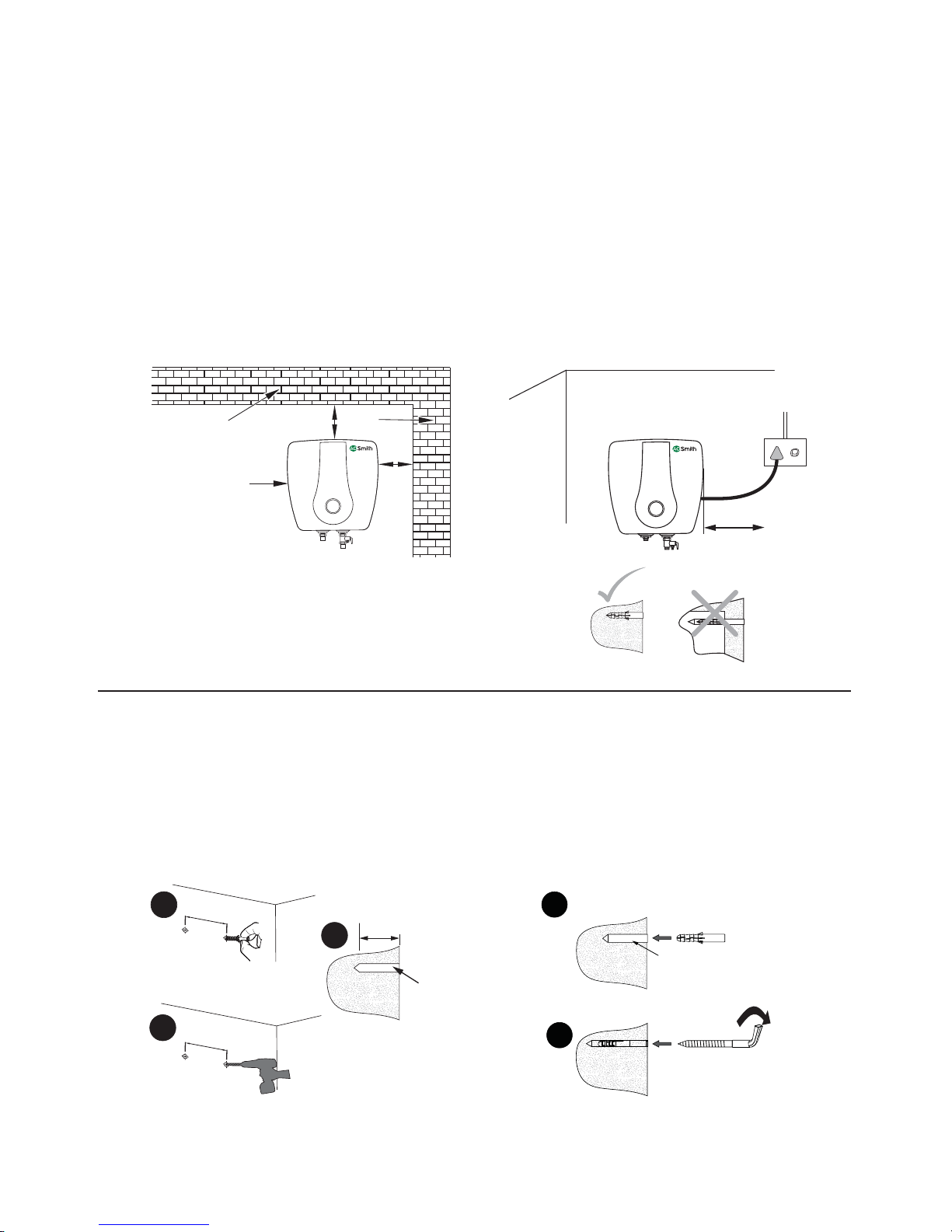

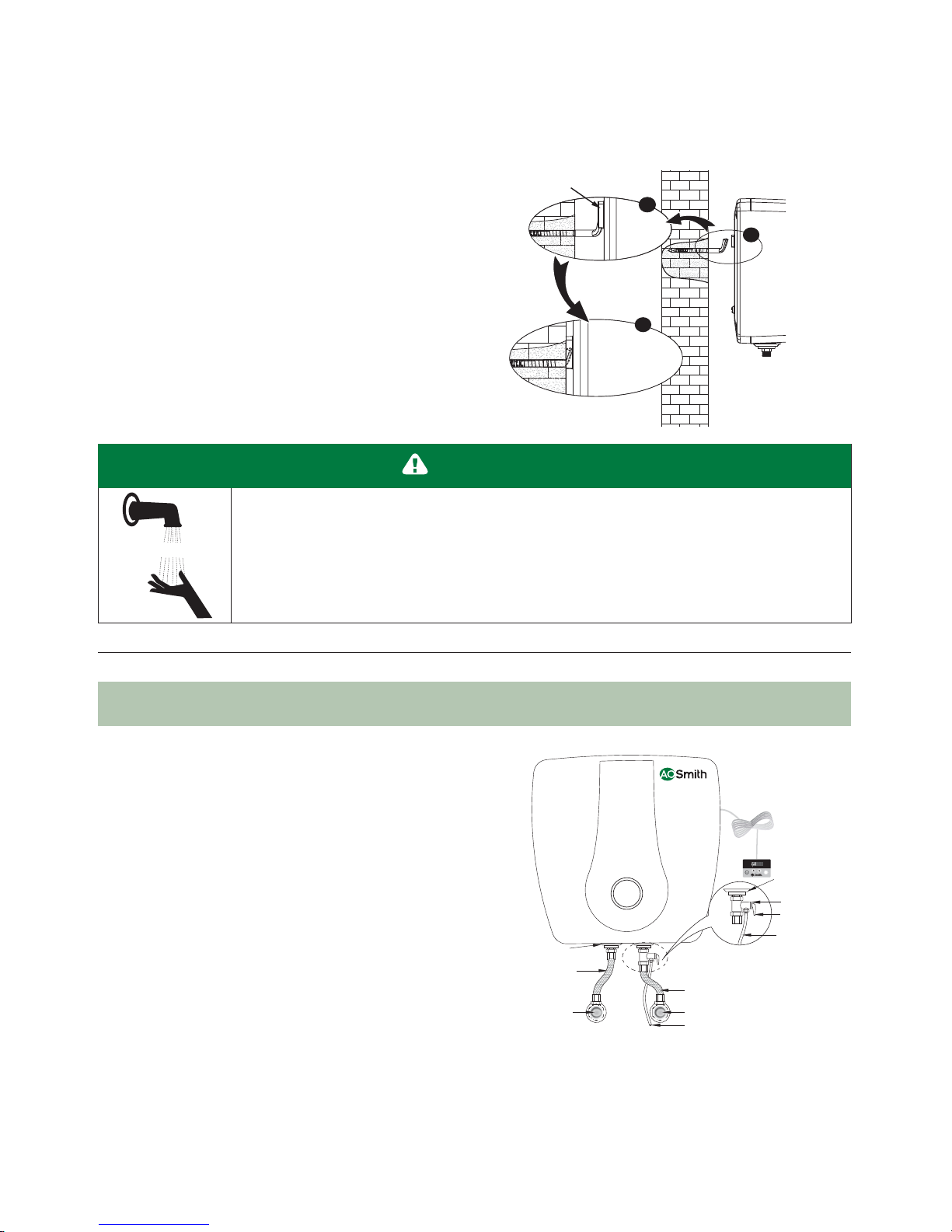

Mounting the Water Heater
 Before locating the position for
installation of the water heater, make sure
that there is sufficient clearance between
the ceiling and the side wall.
 Select a place to mount water heater
vertically with water connection at the
bottom.
 :DWHUKHDWHUPXVWEHORFDWHGZLWKLQ
3-1/2ft. (approx.) from a grounded
230V electrical outlet.
 0DNHVXUHWKDWWKHZDOOFDQZLWKVWDQG
at least twice the weight of the water
heater when completely filled with
water.

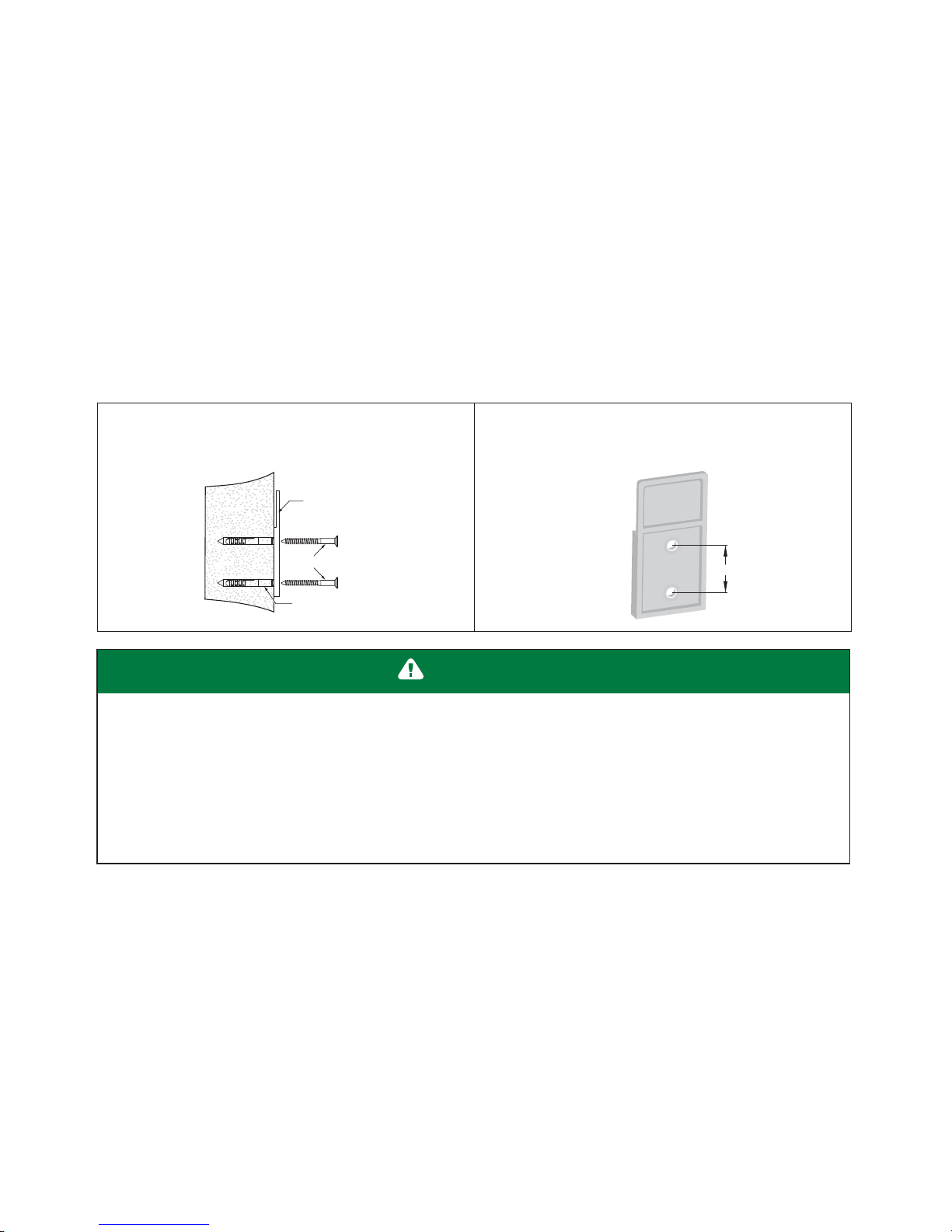

Figure 7
Figure 8
 8VHDGULOOELWZLWKGLDPHWHURIPPWR
drill 2 holes at least 90mm deep in the
wall (Fig. 8 : Step 3). The two holes
should be aligned horizontally. The
horizontal distance between the 2 holes
should be 73.6mm (Fig. 8 : Step 2).
 ,QVHUWWKH([SDQVLRQ$QFKRUVLQWRWKH
holes (Fig. 9 : Step 1).
 3ODFHWKH+DQJLQJVFUHZVRYHUWKH
expansion anchors and tighten the
Hanging Screws by rotating it till it gets
fixed steadily (Fig. 9 : Step 2).
Figure 9
Expansion
Anchors
Hole
Concrete
Wall
Concrete
Wall
1
Hanging
Screws
2
73.6 mm
1
2
3
Hole
ConcreteWall
90 mm
73.6 mm
DrillingTool
Water heater
Ceiling Wall

8
 3ODFHWKHZDWHUKHDWHURQWKH+DQJLQJ
Screws using the Wall Mount Slots
(Fig. 10). Tug downwards on the water
heater to ensure that the water heater is
fixed steadily.
Figure 10
Connecting to Water Supply
*Flexible Hoses to be procured by the customer, not part of standard product.
**Safety Valve comes included with the water heater.
 0DNHQHFHVVDU\SOXPELQJZLWKUHIHUHQFH
to the Installation Diagram (Fig. 11).
 $26PLWKUHFRPPHQGV1\ORQ6WDLQOHVV
Steel (SS) braided hoses (Flexible Hoses)
having a minimum pressure rating of 8
Bar and hoses should be compatible for
hot water applications.
 &RQQHFWWKHFROGZDWHUSLSHWRWKHLQOHW
[Blue Cap].
 &RQQHFWWKHKRWZDWHUSLSHWRWKHRXWOHW
[Red Cap].
 $WWDFKWKH'LVFKDUJHWXEHWR6DIHW\9DOYH
as shown in Installation Diagram (Fig. 11). Figure 11 Installation Diagram
2kWCkWh
HEATING SET
ON/OFF
ENERGY
METER
DANGER
Hot Water is dangerous, especially for children, aged or the disabled. The Water
Heater allows you to control the temperature of your hot water. Water
Temperatures over 52°C can cause severe burns instantly or death from scalds.
Do not leave a child or an infirm person in the bath unsupervised.
HOT
2
Water
Heater
1
3
Wall Mount
Slot

9
 0DNHVXUHDVXLWDEOH7HIORQWDSHLVXVHGIRUDOOSOXPELQJFRQQHFWLRQVWRSUHYHQWOHDNDJH
 'LVFKDUJHWXEHVKRXOGEHLQVWDOOHGGRZQZDUGVZLWKRXWDQ\ORRSVIROGVRUNQRWV(QVXUH
that the free end of the Discharge tube is placed over a suitable drain and away from the
users.
 'LVFKDUJHWXEHLVSURYLGHGWRUHOHDVHWKHGLVFKDUJHIURPWKHZDWHUKHDWHUWKURXJKWKH
Safety Valve) in case excessive pressure is developed. The contents of the discharge from
the Safety Valve may be hot and may cause burns to the users and damage nearby objects
if not properly routed to a drain.
 ,WLVUHFRPPHQGHGWRRSHUDWHWKH'LVFKDUJH/HYHULQWKH6DIHW\9DOYHRQDUHJXODUEDVLVWR
ensure that there are no blockages and also to remove any lime deposits that would have
been formed inside the water heater.
 (QVXUHWKDWWKHZDWHUKHDWHULVLQSRZHU2))FRQGLWLRQZKHQWKH'LVFKDUJH/HYHULVEHLQJ
operated. Ensure that the water is filled completely in the water heater before switching it
ON.
 8VHRQO\1\ORQ6WDLQOHVV6WHHO66EUDLGHGKRVHV)OH[LEOH+RVHVKDYLQJDPLQLPXP
pressure rating of 8 Bar and hoses should be compatible for hot water applications.
 )DLOXUHWRIROORZWKLVLQVWUXFWLRQFDQUHVXOWLQSURSHUW\GDPDJH
CAUTION

10
CAUTION
 Do not install the Wired Remote control where water splashes on the Wired Remote
control.
 It is recommended that the Wired Remote control should be installed on the Remote
Bracket.
 Do not use wet hands while operating the Remote.
 Make sure to install the Wired Remote control close to the water heater.
Installation of Wired Remote control
For convenience of operation, please install the Wired Remote control on the wall near the
water heater. The length of the wire for wired remote control is approximately 8 feet.
(For HSE-SBS-015 and HSE-SBS-025 models)
1. Mark the holes on the wall. The 2 holes should be aligned vertically. The vertical distance
between the 2 holes should be 24mm (Fig. 13).
2. Drill 2 holes of 30mm depth on the wall by using an electric Impact Drill tool (Fig. 8) of
diameter 6mm bit.
3. Fix the bracket on the wall by Expansion Anchors and screws as shown in (Fig. 12).
Installation of Bracket for wired
remote control
Figure 12 Figure 13
Bracket for wired remote control
Wall Screws
Bracket
Expansion Anchor
24mm

11

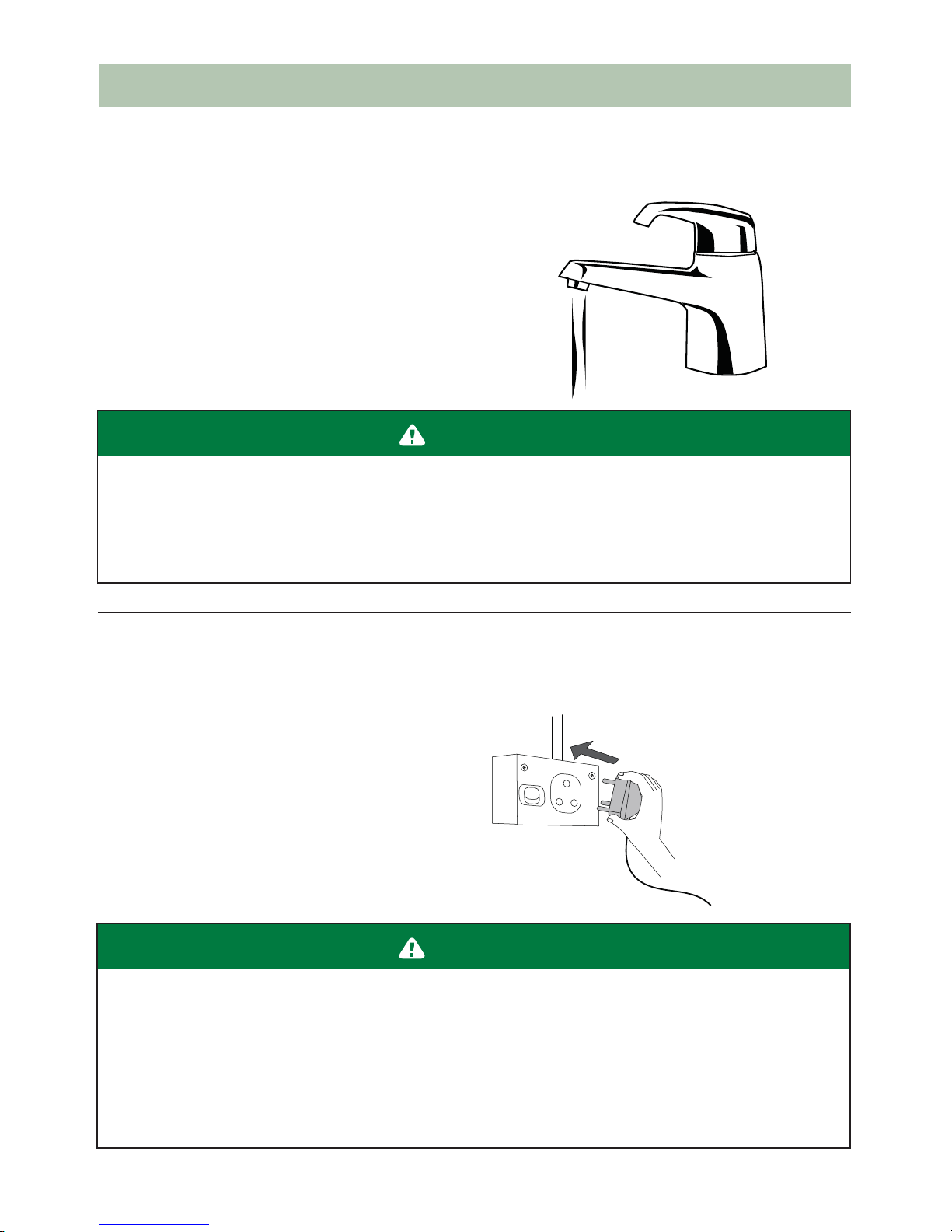

Filling the Tank
Operation
1. Open a hot water faucet to permit air to escape.
2. Open the cold water inlet valve fully, filling the
water heater and the piping.
3. Close hot water faucet when water flows.
4. Check all the connections to see if there is any
leakage. In case of a leakage, drain the water
heater completely, repair the leaking joint and
then refill the water heater.
CAUTION
 This water heater should not be operated with insufficient amount of water. Failure to
do so may result in damage to the water heater and injuries to the user. This will also
make the warranty null and void.
 Once the Mounting, Safety valve, Plumbing and Water filling is completed, then only the
power supply should be switched ON.
Figure 14
Connecting to Electrical Supply
Figure 15
The power cord and plug are connected with
this water heater. Find a separate socket for
power plug and make sure the socket is in
firm contact with the plug. Ensure that
reliable earthing has been done.
CAUTION
 Connect the water heater using independent sockets, do not use any adapters. Use
multimeter to check whether the live line and neutral line are not reverse, to ensure
complete safety.
 Before installing the water heater, confirm that the power of water heater matches electric
meter capacity and supply wire.
 The water heater should be earthed reliably. It is prohibited to connect the earth wire to
neutral wire or faucet water pipe.

12
Figure 16
Temperaute Conrol Knob (For HSE-SBS-006 and HSE-SBS-010 models)
Switch on the water heater’s power supply. The Power indicator lamp glows.
When the temperature of the water drops by 5°C from the set temperature due to usage of
water, the water heater again enters into the heating mode.
Modes
There are two types of modes depending on
the actual water temperature inside the inner
tank of the water heater:
Temperature setting
Turn the Temperature control knob clockwise
for the device to commence heating and
change the set temperature. The Heating
indicator lamp will glow. [The set temperature
increases if the Temperature control knob is
turned clockwise.] Temperature can be set in
the range of 25°C to 75°C. Recommended to
keep Temperature control knob notch position
always in medium or above level.
Heating
indicator
lamp
Power
indicator
lamp
Figure 17
Heating mode Standby mode
When the actual temperature of the water
is less than the set temperature, it enters
into Heating mode. The Heating indicator
lamp glows as shown in (Fig. 17).
After the water heater reaches set temperature,
it will enter into the Standby mode due the
thermostat cut-off and the Power indicator
lamp glows and Heating indicator lamp switch
off as shown in (Fig. 18).
Figure 18

13
Figure 19
Wired Remote control (For HSE-SBS-015 and HSE-SBS-025 models)
The Wired Remote control for the water heater allow the customer to control the functions
of the water heater and to diagnose certain fault conditions.
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
Backlight LED indicators
Indicates the dierent modes of the
Water Heater.
Energy Meter
Used to display the total Energy
consumption of the Water Heater.
Thermostat
Increases or decreases the set
temperature.
Power button
Used to switch ON/OFF the
water heater.
LED Display
Indicates the water temperature, energy
consumed and Error messages ash in the
event of a failure.
Figure 20
Figure 21
Initial Power
When the water heater power supply plug is
connected, it is in initial power on state, i.e.
the water heater is ready for heating the
water. The Wired Remote control will perform
the diagnosis function and all LED indicators
will glow and then switch off as shown in
(Fig. 20).
Power ON/OFF
To turn the Wired Remote control on or off,
press the Power button. While heating, the
display shows actual temperature of water
inside the tank and the LED indicators glow
as shown in (Fig. 21).
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
Figure 22
Temperature Setting
Press the Sand Tbuttons until the required
temperature is displayed on the LED display. Wait
for few seconds without pressing any buttons, the
value flashing in the display will be changed as set
temperature and stored in memory. It will return
to its normal mode and the heating of the water is
based on the new set temperature. While setting,
the LED display glows as shown in (Fig. 22).
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
or
Default set temperature (factory setting) is 70°C.
NOTICE

14
There are two types of modes depending on the actual water temperature inside the inner
tank of the water heater:
Modes
When the temperature of the water drops by 5°C from the set temperature due to usage of
water, the water heater again enters into the heating mode.
Figure 23
Heating mode Standby mode
When the actual temperature of the water
is less than the set temperature, it enters
into Heating mode. The Heating LED
indicator glows as shown in (Fig. 23).
After the water heater reaches set temperature,
it will enter into the Standby mode due the
thermostat cut-off and Heating LED indicator
switch off as shown in (Fig. 24).
Figure 24
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
Figure 25
Energy Meter
This is used to display the energy consumed
by water heater for 5 seconds in kWh. The
new value will be added to the consumed
value and displays the total consumed value.
The Energy Meter value displayed is
cumulative. The LED display glows as shown
in (Fig. 25).
Reset function
Press and hold the ENERGY METER and T
button simultaneously for 5 seconds, the
changed set temperature and the Energy
Meter value will be restored to factory
settings (set temperature value is made 70°C
and Energy Meter value resets to 0 kWh) and
water heater goes into initial power state.
While resetting, all LED indicators will glow
up for a while and then switch off as shown
in (Fig. 26).
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
2kW
CkWh
HEATING SET
ON/OFF
ENERGY
METER
ENE
R
G
Y
METER
5 sec
Figure 26
 Energy Meter values are indicative only.
 To reset the Energy Meter (Refer “Reset Function”).
NOTICE

15
Draining the Tank
Figure 27
Discharge Tube
Discharge Lever
Safety Valve Port
Whenever the water heater is not used for an
extended period, unplug the unit and drain. If
it is below freezing temperature, you will
need to unplug the unit and drain it.
 Switchoff the electric supply to the water
heater.
 Open the hot water faucet until the water
runs cool.
 Close cold water supply.
 Drain the water by lifting the Discharge
Lever of Safety Valve upwards (Fig.27).
Please turn off the power supply to the water heater prior to draining the water heater.
CAUTION
A. O. Smith Colour Match System®
NOTICE
The product of your choice comes with either white or ivory body colours, along with the
same coloured front panels.
The A. O. Smith ColourMatch System®allows your water heater to match the colours
of your bathroom.
Call the A. O. Smith Customer Care Centre [1800-103-2468] to registerb your product within
60 days of purchase and ask for one of the Decorative Front Panel colour options which will
be delivered to you at no cost. This option is available only one time after purchase.
Colours shown are only indicative and may vary
from actual colours available.

16
Changing the Decorative Front Panel
Please follow the instructions as shown in (Fig. 28).
For HSE-SBS-006 and HSE-SBS-010 models
Figure 28
1. Pull out the Knob. 2. Unscrew the screw on the
Decorative Front Panel. 3. Remove the Decorative Front Panel to change.
Please follow the instructions as shown in (Fig. 29).
For HSE-SBS-015 and HSE-SBS-025 models
Figure 29
1. Remove the cap using
the flat screw driver. 2. Unscrew the screw on the Decorative Front Panel. 3. Remove the Decorative Front Panel to change.
 Please ensure to switch off the power supply while changing the Decorative Front
Panel and pull out the power plug from the socket.
 An insulation layer is provided below the front panel which should not be replaced.
 While changing the front panel ensure that, none of the internal components are
damaged or removed.
WARNING
