A.O. Smith HeatBot Wi-Fi User manual

User Manual
Water Heater
HeatBot®-Wi-Fi
15 and 25 Litres
®
HeatBot®
Wi-Fi
Wi Fi
Enabled
Built to be Smart.
Built to be Beautiful.
WORKS WITH

Contents
What’s in the box?
1. Electric Water Heater
2. User Manual
3. Wall Mounting Accessories
General Information .......................................................................1
Safety Instructions .........................................................................2
Specications..............................................................................3
Safety Precautions .........................................................................5
Installation ................................................................................5
Plumbing instructions .....................................................................7
Operation .................................................................................8
Downloading and Installing AO Smith Smart App..........................................10

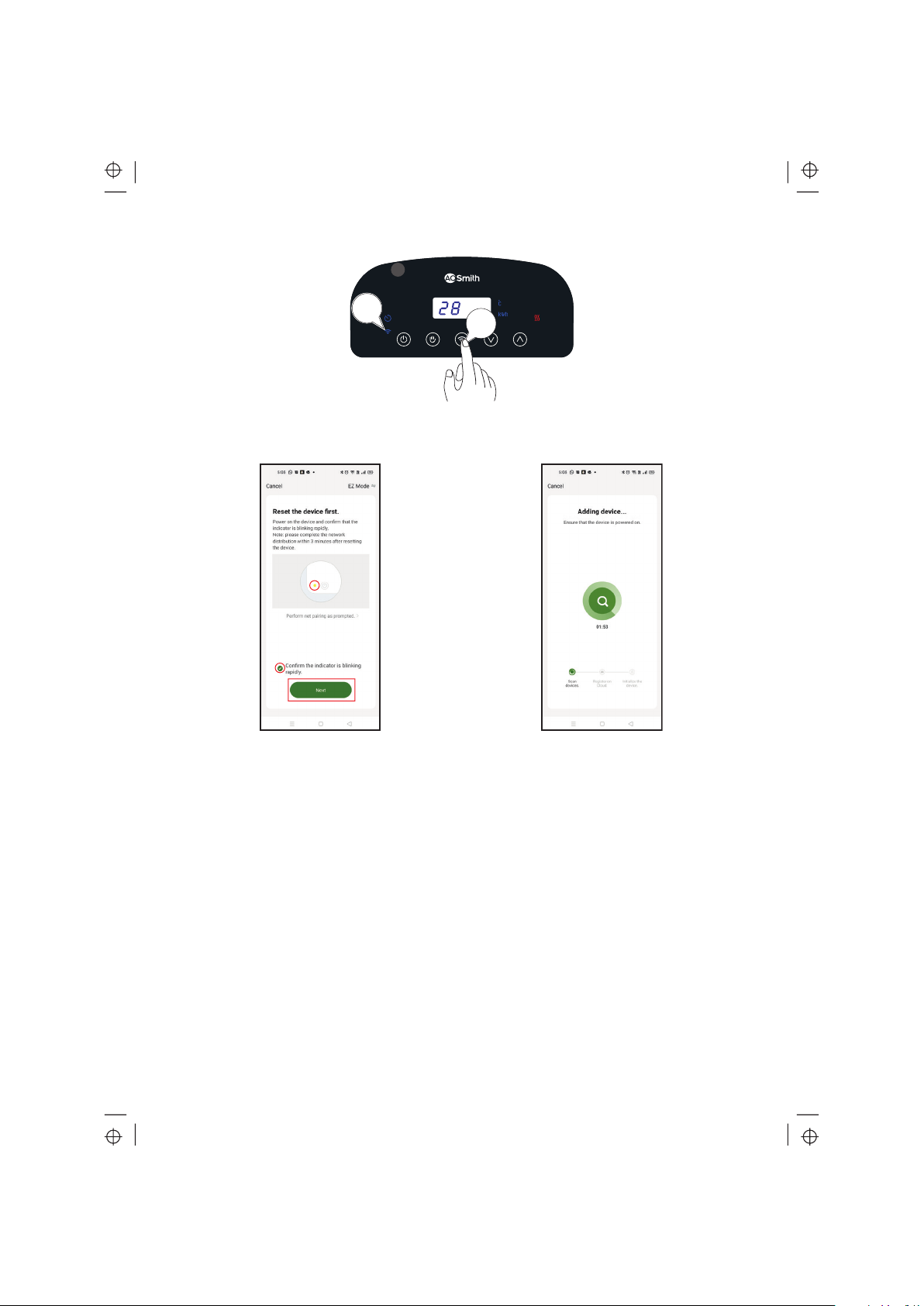

Connecting HeatBot®-Wi-Fi Water Heater to the Wi-Fi connection through your
AO Smith Smart App......................................................................11
Conguring HeatBot®-Wi-Fi Water Heater with Alexa.......................................16
Troubleshooting..........................................................................18
Circuit Diagram...........................................................................19
A . O . Smith Advantage . . . ................................................................24

General Information
On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has been thoroughly
checked, packed and quality certied before leaving our factory.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged or the quantity
is short, do not accept them until the freight or express delivery agent makes an appropriate
notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but upon opening the
packaging if any loss or damage has taken place while in transit, inform the carrier’s agent / A. O.
Smith representative immediately.
About this manual
This manual is a guide to good practice for operating and periodic maintenance of the A. O.
Smith HeatBot®-Wi-Fi Water Heater. Do not operate the Water Heater before reading the user
manual.
Please follow instructions in this manual to ensure personal safety and proper operation of
this product. Always install, operate, inspect and maintain this product in accordance with all
applicable standards. Please store this user manual carefully for any future reference.
Disposal of this Product
(Waste Electrical and Electronic Equipment)
This marking on the product, accessories or User Manual indicates that the product and its
electronic accessories (e.g. Remote, batteries and other replaceable electronic accessories)
should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote
the sustainable re-use of material resources.
Household users should contact their local government oce, for details of where and how
they can take these items for environmentally safe recycling. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
1

Safety Instructions
Your safety and the safety of your loved ones is paramount. There are several safety related
messages in this manual, which have been provided during various steps such as the installation,
operation and maintenance of your HeatBot®-Wi-Fi Water Heater. These messages point out
potential hazards and also educate on how to reduce any potential risks. Please always read and
follow all safety messages as provided in this user manual.
This is the safety alert symbol. This symbol alerts you to potential hazards
that can hurt you and others. All safety messages will follow the safety alert
symbol and either the word“DANGER”or“WARNING”.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which if not avoided, could result
in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury or property damage.
WARNING
Do not use this Water Heater if any part has been under water. Immediately contact an
Authorised Service Technician to inspect the Water Heater and contact A. O. Smith Service
personnel to replace any part of the control system which has been under water. Failure to
follow this instruction can result in property damage, serious injury or death.
IMPORTANT
These instructions have been written as a guide for the proper installation and operation of
your Water Heater. A. O. Smith will not accept any liability where these instructions have not
been followed. However, for your safety and to avoid damage caused by improper installation,
it is recommended that Water Heater must be installed by an Authorised Service Technician.
Before proceeding with the installation instructions:
1. Inspect the Water Heater and its component parts for possible damage. Do Not install or
attempt to repair any damaged component parts. If you detect any damage in the Water
Heater, please contact the dealer where the Water Heater was purchased or call A. O. Smith
Customer Care Centre.
2. Verify that the voltage being supplied corresponds to that which is marked on the Water
Heater manual.
2

Specications
Model name HeatBot®-Wi-Fi
Volume [L] 15 25
Power [W] 2000
Voltage/Frequency [V/Hz] 230~/50
Actual Stdg. Loss [kWh/24h/45°C di.] 0.435 0.511
Reheating time for 35°C rise [in min.] 12 22
Temperature range [°C] 25-75*
Rated
water
pressure
N/cm280
Water head (metres) 80
Inlet/Outlet connections [inch] ½ BSP
Net Weight (kgs.) 10.4 13.7
*The maximum set temperature may vary ± 5 °C.
Dimensions
Model 15 L 25 L Model 15 L 25 L
A (mm) 408 486 D (mm) 121 145
B1 (mm) 372 420 E (mm) 102 137
B2 (mm) 395 444 F1 (mm) 327 360
C (mm) 100 100 F2 (mm) 364 400
Figure 1
A
C
B2
B1 F1
E
D
F2
3

Figure 2
5
Without Service CoverWith Service Cover
Bottom view Side view
9
11
8
10
1
76
3
2
4
Part Description Part Description
1 Cold water inlet 7 Red Cap
2 Hot water outlet 8 Heating Element and Anode
3 Multi-function Safety valve 9 Thermal Cut-out
4 Digital display 10 Thermistor
5 Service Cover 11 Wall Mount Slot
6 Blue Cap
4

Safety Precautions
During Installation
Do not install the Water Heater where there is
direct sunlight or rain. It is has to be installed
indoor only.
Figure 3
CAUTIO
N
Do not install the Water Heater where water
splashes on the Water Heater.
Figure 4
CAUTIO
N
Installation
Before installing, ensure the tools Adjustable wrench, Teon tape, Measuring tape, Hammer,
Bubble level indicator and Impact drill tool are available.
Mounting the Water Heater
•It is recommended as per IS 302-1 to have 6
inches clearance from wall.
•Select a place to mount Water Heater
vertically with water connection at the
bottom.
Figure 5
Water
Heater 6 inch.
6 inch.
CeilingCeiling
Wall
Wall
•Water Heater must be located within 3 ft.
(approx.) from a 230 V electrical outlet with
proper grounding.
•Make sure that the wall can withstand at
least twice the weight of the Water Heater
when completely lled with water.
Figure 6
3 ft.3 ft.
False
Wall
Solid
Concrete
Wall
Solid
Concrete
Wall
Solid
Concrete
Wall
Solid
Concrete
Wall
5

Installation (contd...)
•Use Mounting Template to mark holes (Step
1).
•Use a drill bit with diameter of 10 mm to
drill 2 holes at least 80 mm deep in the wall
(Step 3). The two holes should be aligned
horizontally.
Figure 7
3
1
2
Hole
80 mm
Drilling
Tool
Mounting
Template
Concrete
Wall
Concrete
Wall
•Insert the Expansion Anchor into the hole
(Step 1).
•Insert the Mounting screw over the
Expansion Anchor and tighten the
Mounting screw by rotating it till it gets
xed steadily (Step 2).
Figure 8
Expansion
Anchor
Hole
Mounting
screw
Concrete
Wall
Concrete
Wall
Concrete
Wall
Concrete
Wall
1
2
Mount the Water Heater on the Mounting screw through the Wall mount bracket. Tug
downwards on the Water Heater to ensure that the Water Heater is xed steadily on the Wall
mount bracket.
Figure 9
Concrete
Wall
Concrete
Wall
Wall Mount
Bracket Wall Moun
t
Bracket
Mounting
Screw
Body
cover
Body
cover
Concrete
Wall
Concrete
Wall
6

Plumbing instructions
Figure 10 Installation Diagram
Cold
Water Ta p
Hot
Water Ta p
*Flexible
Hose
Teon
tape
**Multi-function
Safety valve
Discharge
Outlet
1
3
2
Teon
tape
*Flexible Hoses to be procured by the customer, not part of standard product.
**Multi-function Safety valve comes included with the Water Heater.
1. Remove MFSV from the inlet pipe by rotating it in anti-clockwise direction.
2. Wrap the Teon tape around the inlet and outlet connections of the Water Heater to prevent
leakage.
3. Connect MFSV to the inlet pipe by hand tightening it in clockwise direction.
4. Make necessary plumbing with reference to the Installation Diagram. (Refer“Installation
Diagram”)
5. Connect the cold water pipe to the inlet [Blue Cap].
6. Connect the hot water pipe to the outlet [Red Cap].
Note:
•Make sure to connect Multi-function Safety valve to the Water Heater before connecting inlet
to the cold water tap.
•A. O. Smith recommends Nylon/ Stainless Steel (SS) braided hoses (Flexible Hoses) having a
minimum pressure rating of 8 Bar and hoses should be compatible for hot water applications.
•The Multi-function Safety valve may drip during the usage of the heater. As the water is heated,
it expands and tries to ow back through the inlet pipe, but is prevented by the presence of
the non-return valve (an external valve provided before cold water tap). Hence water may drip
from the Multi-function Safety valve. Therefore, Discharge outlet is provided to discharge water
from the Water Heater. To avoid dripping, it is recommended to install non-return valve at a
distance of at least 40 feet away from the inlet of the Water Heater.
7

CAUTION
•The Multi-function Safety valve should never be removed or blocked by any means to
prevent it from dripping or releasing the excess pressure inside the heater. Failure to do so
may result in damage to the Water Heater and injuries to the user. This will also make the
warranty null and void.
•Discharge outlet is provided to release the discharge from the Water Heater(through the
Multi-function Safety valve) in case excessive pressure is developed. The contents of the
discharge from the Multi-function Safety valve may be hot and may cause burns to the
users and damage nearby objects, therefore it is recommended to take pre-cautions while
discharging water from the Water Heater.
•It is recommended to operate the Discharge lever in the Multi-function Safety valve on a
regular basis to ensure that there are no blockages and also to remove any lime deposits that
would have been formed inside the Water Heater.
•Ensure that the Water Heater is in power OFF condition when the Discharge Lever is being
operated. Ensure that the water is lled completely in the Water Heater before switching it
ON.
•Make sure a suitable Teon tape is used for all plumbing connections to prevent leakage.
•Use only Nylon/ Stainless Steel (SS) braided hoses (Flexible Hoses) having a minimum
pressure rating of 8 Bar and hoses should be compatible for hot water applications.
•Failure to follow this instruction can result in property damage.
Operation
Filling the Water Heater Tank
Figure 11 1. Open a nearby hot water faucet to permit
air to escape.
2. Open the cold water inlet valve fully, lling
the Water Heater and the piping.
3. Close hot water faucet when water ows.
4. Check all the connections to see if there is
any leakage. In case of a leakage, drain the
water completely, repair the leaking joint
and then rell the Water Heater.
CAUTION
•This Water Heater should not be operated with insucient amount of water. Failure to do
so may result in damage to the Water Heater and injuries to the user. This will also make the
warranty null and void.
•Once the Mounting, Multi-function Safety valve, Plumbing and Water lling is completed,
then only the power supply should be switched ON.
•Do not splash water directly or clean with benzene, pesticides, thinner, alcohol, etc., but use
a soft, dry cloth to clean the Water Heater.
8

Connecting to Electrical Supply
Figure 12 The power cord and plug are connected with
this Water Heater. Find a separate socket for
power plug and make sure the socket is in
rm contact with the plug. Ensure that reliable
earthing has been done.
CAUTION
•Connect the Water Heater using independent sockets, do not use any adapters. Use
multimeter to check whether the live line and neutral line are not reverse, to ensure
complete safety.
•Before installing the Water Heater, conrm that the power of Water Heater matches electric
meter capacity and supply wire.
•The Water Heater should be earthed reliably. It is prohibited to connect the earth wire to
neutral wire or faucet water pipe.
•If the power supply cord is damaged, it must be replaced by the manufacturer or Authorised
Service Technician in order to avoid a hazard.
Installation of Wireless Router
1. Install the Wireless router using user manual.
2. HeatBot®-Wi-Fi supports only Wi-Fi 2.4 Ghz products.
9

Downloading and Installing AO Smith Smart App
You can download AO Smith Smart App from Google Play Store or Iphone App Store and install
as per steps shown below.
1. Search“AO Smith
Smart App” in
search bar and
select App.
2. Install “AO Smith
Smart App”.
3. Click on“Sign Up”
and register.
4. Read and Agree
User Agreement
and Privacy Policy.
Click on “Agree”.
5. Enter ”E-mail Id”
and click on“Get
Verication Code”.
6. Enter ”Verication
Code” received in
E-mail.
7. Set ”Password” and
click ”Done”.
8. Click on ”Go to
App”.
[email protected]m
10

Connecting HeatBot®-Wi-Fi Water Heater to the Wi-Fi connection
through your AO Smith Smart App
Switch ON the Water Heater and follow the steps as shown below.
9. Click on ”Add
device” or ” ”icon
on top right corner.
10.Select ”Water
Heater (Wi-Fi)”
category.
11.Enter the ”Wi-Fi name” or enable the
location in the mobile, so that App auto
selects the ”Wi-Fi name”. Enter the“Wi-Fi
password” and click on ”Next”.
xxxxxxxxx
xxxxxxxxx
Next
Conguring Wi-Fi of the Water Heater
Press and hold the Wi- button on the Water Heater for 3 secs or more secs (refer“Figure 13”)
and check the status of the Wi-Fi LED indicator.
Wi-Fi LED indicator
Wi-Fi LED
indicator
Blinking fast If the Wi-Fi LED is blinking fast, it indicates that the Water
Heater is in the conguration mode.
Blinking slow If Wi-Fi LED is blinking slow, press and hold the Wi-Fi button
once again for 3 secs or more secs to make the Wi-Fi LED
blinking fast.
Note: As conguration is possible only in fast blinking mode.
11

Figure 13
Press and
hold for
3 sec
Wi-Fi LED
indicator
12.If Wi-Fi LED is blinking fast, check rapid
blinking option in App and click on ”Next”.13. Now the Water Heater will be added and congured with cloud.
12

AO Smith Smart App Overview
Figure 14
Power ON/OFF
Used to switch ON/OFF the Water Heater .
Auto/Timer mode
Used to toggle between Auto and Timer mode.
Working condition
Indicates that the Heater is in Auto or
Standby or Sleep mode.
Temperature Setting
Increases or decreases the set temperature
by scrolling over pattern or using + or - option.
Set Temperature
Displays the set temperature of the Heater.
Current Temperature
Displays the current temperature of the Heater.
Timing mode
Used to set the Timer for switching ON/OFF
time of the Water Heater.
Pattern
Used to set the Heater in Pre-set modes.
Instant Heating
Used to switch ON the Heater instantly when
it is in timer mode.
Power consumption
Displays the total Energy consumption by
the Heater.
LED Display Panel Overview
Figure 15
Power button
Used to switch ON/OFF the Water Heater .
Timer indicator
Indicates that Heater is in Timer mode.
Wi-Fi indicator
Indicates that Heater is in connected to Wi-Fi.
Heating indicator
Indicates that the Jeater is in Heating mode.
Override button
Used to switch ON the Heater instantly when
it is in timer mode.
Wi-Fi button
Used to confugire the Water Heater with
Wi-Fi connection.
Temperature Setting
Increases or decreases the set temperature
using or option.
LED Display
Displays the temperatures and Energy
consumed by the Heater.
The AO Smith Smart App or LED Display panel allows the customer to control the functions of
the Water Heater.
13

Initial Power
When the Water Heater power supply plug is connected, it is in initial power on state, i.e. the
Water Heater is ready for heating the water. The LED display will perform the diagnosis function
and all indicators will glow and then switch o.
Power ON/OFF
Press the Power button on the LED display or in App to switch on the Water Heater.
Temperature Setting
Press the or button in LED display and in App until the required temperature is displayed
on the LED display panel and in App. Wait for few seconds without pressing any buttons, the
value ashing in the display will be changed as set temperature and stored in memory. It will
return to its normal mode and the heating of the water is based on the new set temperature.
AO Smith Smart App displays both set temperature and current water temperature in the tank.
Pre-set Temperature Modes
There are dierent pre-set temperature modes for customer convience. The customer can
select any pre-set temperature modes as per his/her hot water requirements. These pre-set
temperature modes are available in AO Smith Smart App.
There are 5 pre-set temperature modes for 15L capacity: Pedicure , Washing , Mopping
Bucket , Shower modes.
There are 7 pre-set temperature modes for 25L capacity: Pedicure , Washing , Mopping
Bucket , Bucket 2X 2X , Shower and Shower 2X 2X modes.
When customer selects any pre-set temperature modes, the water heater set temp will be
replaced with pre-set temperature mode. If the temperature setting option is touched in App,
the pre-set temperature modes will be override by set temperature value, the selected pre-set
temperature mode will be deselected.
Pre-set modes temperature setting
Pre-set Mode Set temp - 15L Set temp - 25L
Pedicure 45⁰C 45⁰C
Bucket 45⁰C 45⁰C
Shower 75⁰C 60⁰C
Washing 60⁰C 65⁰C
Mopping 68⁰C 68⁰C
Bucket 2X NA 65⁰C
Shower 2X NA 75⁰C
Ready to bath
This is a feature where user gets notied in App when hot water is ready to take bath. This
indicates that the set temperature or pre-set temperature mode is reached.
14

Auto mode
This mode is normal Water Heater working mode and the Heating element will be ON when the
water temperature is less than 5⁰C of set temperature.
Timer mode:
Timer mode is set, when the Water heater has to switch ON only on specied timings and other
time it will be in Standby mode.
This is done by selecting Timer mode and setting time in the App. From Monday to Sunday any
days or all days in a week can be selected in Timer mode function. The heating will start as per
Timer set time and switch o the heating when the set temperature is reached.
Also customer to change to Timer mode in the Main APP UI once the timer schedules are set. The
User will have the option to select Auto mode/Timer mode.
Customer also has the option to select the Set temperature or Pre-set modes for every timer
schedules
Override/Instant Heating
This feature is enabled only when the heater is in Timing mode. It is used to heat for one time
when the heater is outside the Timing mode schedule range. This is done by pressing Override
” ”button in LED display panel or in App.
One Time Heating
In this mode, if no day is selected in Timer mode scheduling, then one time heating will happen
and the event will be automatically disabled after water temperature reaches to set temperature.
Sleep Mode
Sleep mode is activated when the Water Heater is in standby mode and no key is pressed in LED
display or App or user intervention for 10 minutes. Press any of the buttons in the LED display
panel or App to enable normal mode. Sleep mode is activated to reduce energy consumption
and A. O. Smith indicator glows in less brightness.
Trend Charts of Energy Consumed
This is used to display the energy consumed by Water Heater in kWh. The new value will be
added to the consumed value and displays the total consumed value. The Energy Meter value
displayed is cumulative. Energy consumption* is displayed in graphical for every day/week/
month/year in App.
Cost of Energy consumption*- This is the feature where customer can calculate cost of energy
consumed in the unit (KWh) by entering the unit charge.
*The Energy consumption and cost of Energy consumed shown in the App are only for indicative
purpose. The total cost of your electricity bill depends on factors like Electricity board slabs
(unit charges), other appliances and etc., for more details contact your Electricity board for unit
charges.
15

Conguring HeatBot®-Wi-Fi Water Heater with Alexa
•Congure the HeatBot®-Wi-Fi Water heater in the ”AO Smith Smart App” .
•Change appropriate name for your devices which will be used in “AO Smith Smart” skills;
1. Download Amazon “Alexa” APP from Android ,iOS or Amazon APP market (Refer
“Downloading and Installing AO Smith Smart App”)
2. Congure Echo/Echo Dot devices with “Alexa” APP.
3. Search “AO Smith Smart” skill from the “Alexa” APP skills category.
4. Click Enable skill of “AO Smith Smart”, and you’ll be navigated to “AO Smith Smart” login page;
5. Input your AO Smith Smart account username and password, you’ll be redirect to the success
page;
6. Now the Alexa Integration setup is nished.
As an example, change the Water heater device name as “AO Smith Water Heater” (Device name
can be changed as per customer desire and same device name should be used in “AO Smith
Smart” skills.
Figure 16 Alexa, turn on the “AO Smith Water Heater”
Alexa, turn o the “AO Smith Water Heater”
Alexa, set the “AO Smith Water Heater” to60 degrees
Alexa, increase the “AO Smith Water Heater” temperature
Alexa, decrease the “AO Smith Water Heater” temperature
Alexa, what’s the temperature of the “AO Smith Water Heater”
Heating / Standby Operation
There are two types of operation depending on the actual water temperature inside the inner
tank of the Water Heater and set temperature.
Heating operation Standby operation
When the actual temperature of the water is
less than the set temperature, it enters into
Heating operation. The Heating LED indicator
glows as shown in “Figure 17”.
Figure 17
After the Water Heater reaches set
temperature, it will enter into the Standby
operation due the cut-o power and Heating
LED indicator switch o as shown in“Figure
18”.
Figure 18
When the temperature of the water drops by 5°C from the set temperature due to usage of
water, the Water Heater again enters into the Heating operation.
16
