Aastra MBU 400 User manual

8/6/2009 © 2008 Aastra Communications, Ltd.1Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Aastra Telecom Inc.
MBU-400 & 420d Handset
Sales and Marketing Overview
[email protected]
Your Connection to the World

8/6/2009 © 2008 Aastra Communications, Ltd.2Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
MBU-400
Power Local Area
Network Analog FXO
Reset Button
Indicator Lights Approximate dimensions
8” tall x 8” wide x 1”deep

8/6/2009 © 2008 Aastra Communications, Ltd.3Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
420d Handset
Power
Handset Charger Base
Color Display
SoftKeys
Volume up
Approximate dimensions
5” tall x 2” wide x 3/4”deep
Volume down
Speakerphone

8/6/2009 © 2008 Aastra Communications, Ltd.4Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Value Proposition for
MBU-400 & 420d Handset
Your Connection to the World.

8/6/2009 © 2008 Aastra Communications, Ltd.5Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Value Proposition
»Fully integrated SIP and Analog office telephone solution.
The MBU 400 offers the home office worker the ability to
answer both their residential analog line and their business
SIP line on a single cordless handset.
»4 simultaneous calls - (traditional cordless options only
allow a single active connection at any one time)
»Configurable/Provisionable via TFTP/ download server.
»True multi-user capability (Up to 8 handsets with 8 individual
VoIP telephone numbers plus a single PSTN connection)
»Tight integration with AastraLink Pro 160.
»DECT 6.0 technology

8/6/2009 © 2008 Aastra Communications, Ltd.6Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Target Markets
»AastraLink Pro 160 customers looking for a mobility option.
»Small office of 2 to 3 people which cannot afford the
expense and ownership of a key system.
»Home office users who want to integrate their home analog
telephone line into their business VOIP line.
»SOHO businesses looking to use VOIP as a second line but
want to retain their current analog line as the primary and
have both integrated together.
»SOHO businesses where cabling infrastructure is poor.
»Families looking to add a low cost second and third line
which they want integrated with their current analog service.

8/6/2009 © 2008 Aastra Communications, Ltd.7Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
MBU-400
Key Applications and selling
features
Your Connection to the World

8/6/2009 © 2008 Aastra Communications, Ltd.8Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
MBU-400 Features
»PSTN
– Call Forwarding (No answer, Busy & All)
– Call Waiting
– Caller ID (Name and Number)
– Call Transfer
– Call Hold
»SIP
– STUN (Simple Traversal of UDP through Network Address Translators RFC 3489)
– G.711 A & μlaw, G.729 AB, iLBC
– DHCP Option 66 for TFTP
– SIP Protocol: RFC 3261
–Hold
: RFC3264, RFC 2543
– Transfer: RFC3515, RFC 3891, Draft-ietf-sipping-cc-transfer-07
–MWI
: RFC 3842
– SIP INFO: RFC 2967
–DTMF
: RFC 2833 and In-band
–RTP
: RFC3550, 3551
–CLID
: RFC 3325 P-asserted Identity
– Subscribe/Notify: RFC 3265
»Other Features
–DoNotDisturb
– Receive Analog PSTN & Digital SIP calls through one handset
– Mobile phone type color display
– silent/vibrate function
– Intercom between handsets

8/6/2009 © 2008 Aastra Communications, Ltd.9Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
“Certified” Call Controls
»Broadsoft
– BroadWorks Platform Rel 13.0 and 14 (SP3)
»Sylantro
– Feature Application Server Rel 3.2.1
»Asterisk
– Open Source Communications Platform

8/6/2009 © 2008 Aastra Communications, Ltd.10 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Start Guide
Your Connection to the World

8/6/2009 © 2008 Aastra Communications, Ltd.11 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup
»Plug in the MBU-400.
»Plug in the charger base for
420d handset.
»Place handset in charger
base.
»Plug in Network Cable into
LAN port in the back of the
MBU-400.
»Wait for POWER & I-NET
Indicator lights to achieve
steady illumination
Indicator
Lights

8/6/2009 © 2008 Aastra Communications, Ltd.12 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup

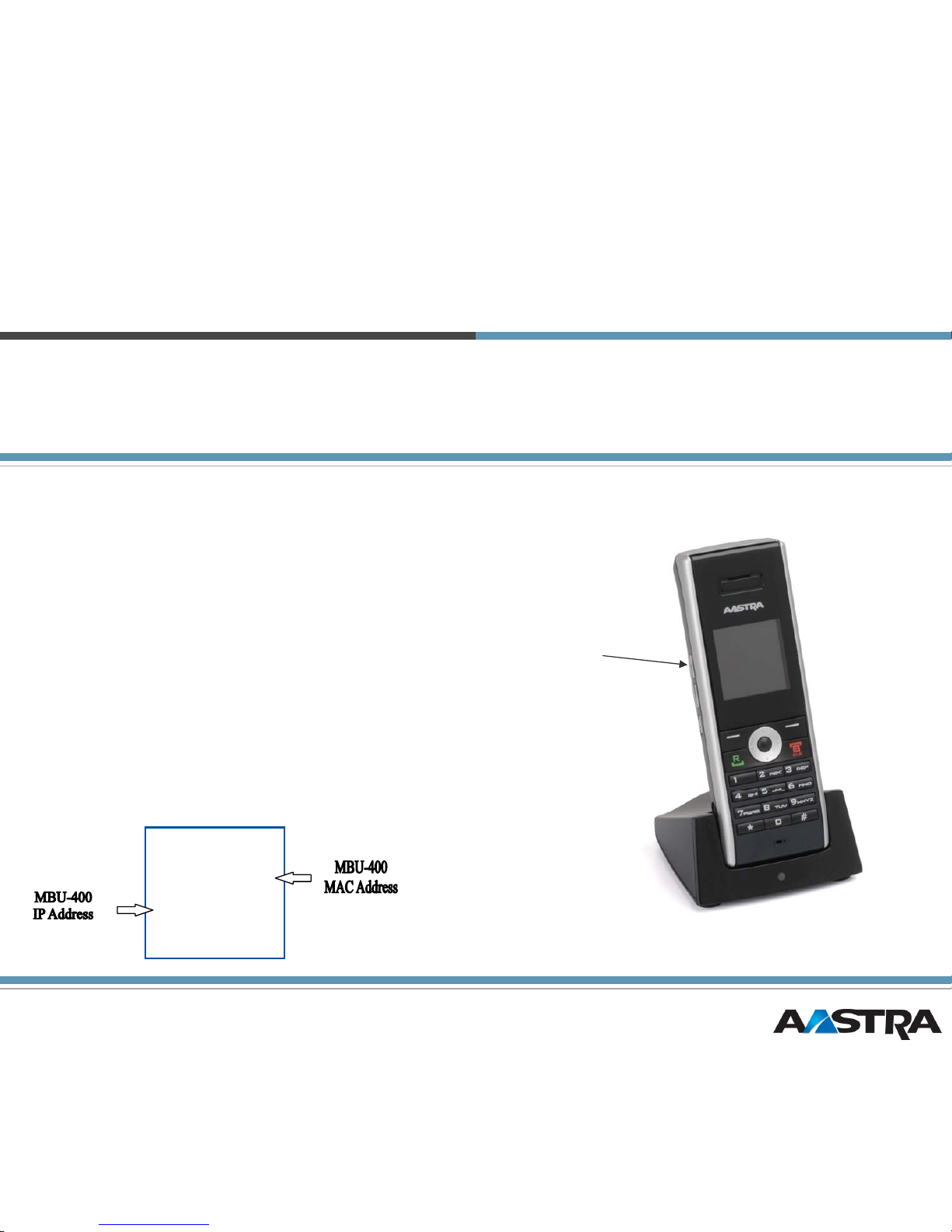

»On the left hand side of the 420d
handset depress the Volume Up
Key indicated by a + sign.
»The screen on the handset will
say connecting… please wait
»After the 420d handset has
connected to the MBU-400 the
screen will look like this …
Volume up
Key
--Network--
MAC Address
00-08-7g-98-45-cf
IP address
192.345.43.54 (D)
Boot Status
Failed
Connecting
…
please wait

8/6/2009 © 2008 Aastra Communications, Ltd.13 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.

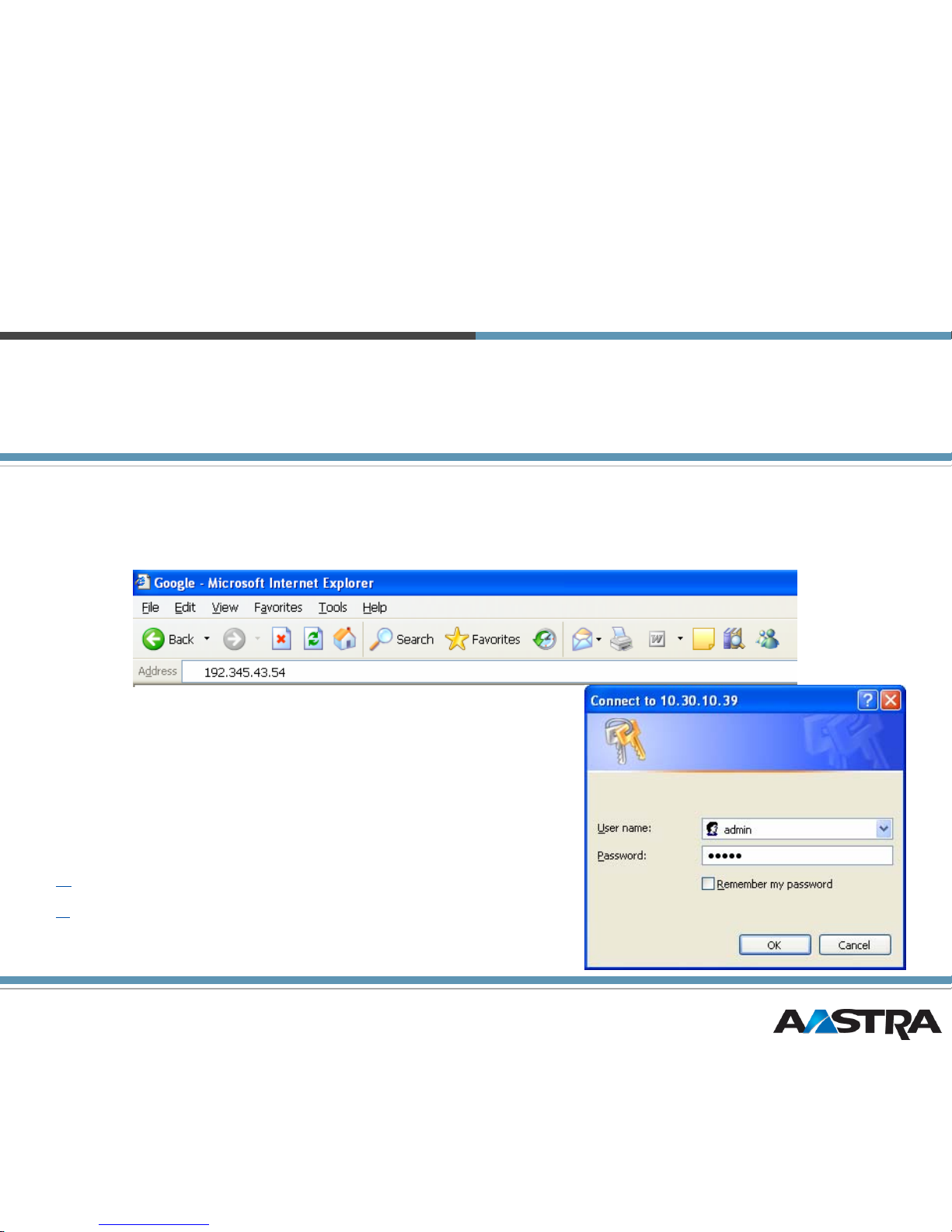

»Open Internet Explorer
– Enter IP Address provided by 420d handset into Internet Explorer address bar
Quick Setup
»You will be prompted with a Log in screen to
connect to the MBU-400
»Default Administrator login out of the box is…
Username: admin
Password: 22222

8/6/2009 © 2008 Aastra Communications, Ltd.14 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup

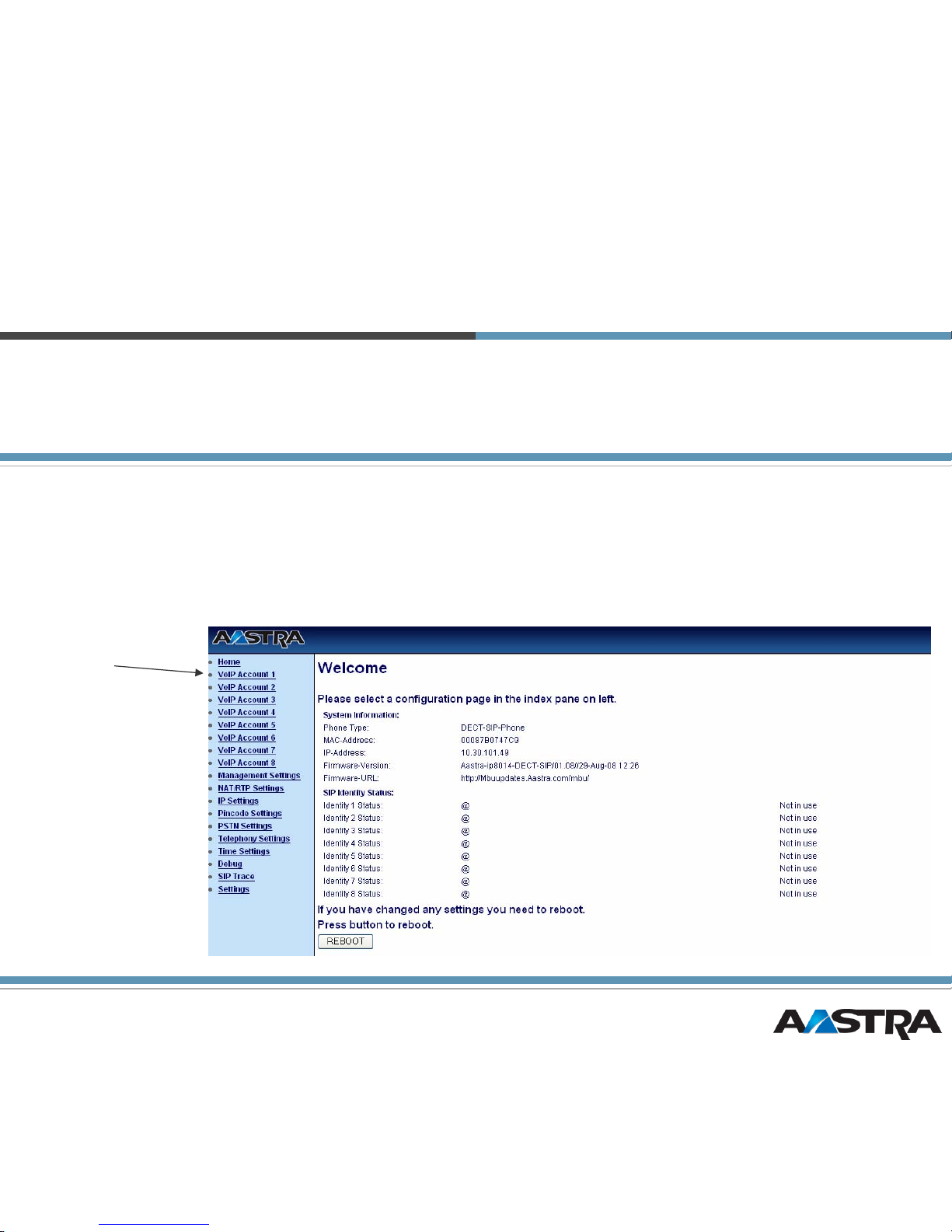

»The Welcome page of the MBU-400 WebUI looks like this
»To Provision a SIP line click on the VoIP Account 1 link
VoIP Account 1
Link

8/6/2009 © 2008 Aastra Communications, Ltd.15 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup

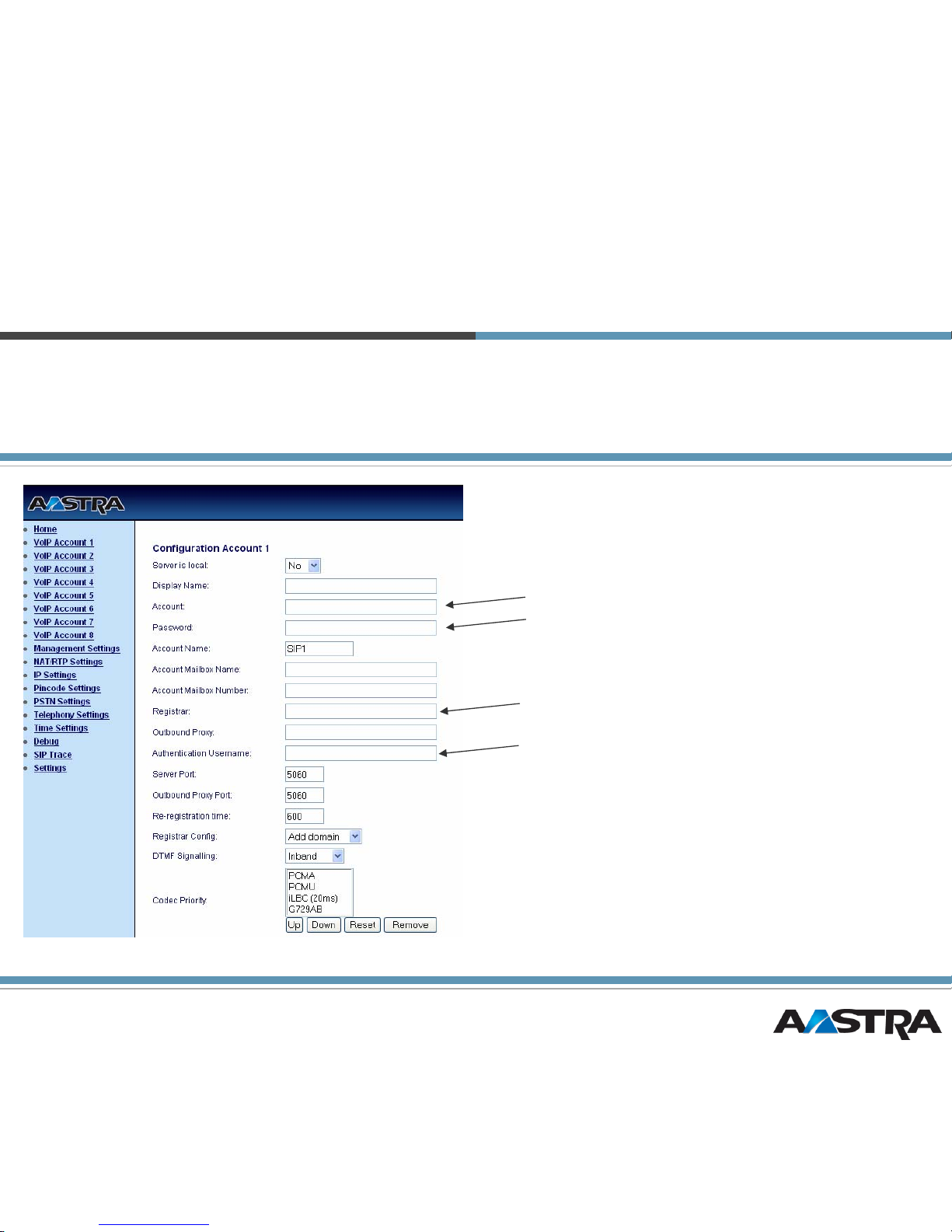

»Information required
from SIP service
provider
– Username
– Password
– Registrar server
»Fill in SIP account
information into
corresponding fields.
Username
Username
Password
Registrar Server

8/6/2009 © 2008 Aastra Communications, Ltd.16 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup
»After filling in the SIP provider information
click on the Save button at the bottom.
»The screen will blank then show this
message.
»You will be redirected back to the
Welcome page.
Save Button

8/6/2009 © 2008 Aastra Communications, Ltd.17 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup
»Click the Reboot button to load your new settings into the MBU-400
Reboot Button

8/6/2009 © 2008 Aastra Communications, Ltd.18 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Quick Setup
»Wait for the MBU-400 to
reboot.
»Wait for POWER & I-NET
Indicator lights to achieve
steady illumination
»The VoIP Indicator light will
also illuminate if the settings
were input properly.
»If all three indicator lights
illuminate then the Handset is
ready to make a call.
Indicator
Lights

8/6/2009 © 2008 Aastra Communications, Ltd.19 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
SIP Mobility
»MBU-400 DECT
architecture

8/6/2009 © 2008 Aastra Communications, Ltd.20 Webinar use only. No Copies or Distribution should be made without the prior written consent of Aastra.
Interconnect Capabilities
»Number of PSTN lines: 1
»Number of SIP Trunks: 8 (direct ID’s, unlikely application)
»Number of SIP Provisioned Numbers: 8
»Number of Handsets per MBU: 8
»Number of Concurrent calls: 4 (3 SIP & 1 PSTN)
