AB Regin Corrigo E User manual

Corrigo E manual
Ventilation application
© Copyright AB Regin, Sweden, 2013

DISCLAIMER
The information in this manual has been carefully checked and is believed to be correct. Regin however, makes no warranties
as regards the contents of this manual and users are requested to report errors, discrepancies or ambiguities to Regin, so that
corrections may be made in future editions. The information in this document is subject to change without prior notification.
The software described in this document is supplied under licence by Regin and may be used or copied only in accordance
with the terms of the licence. No part of this document may be reproduced or transmitted in any form, in any fashion,
electronically or mechanically, without the express, written permission of Regin.
COPYRIGHT
AB Regin. All rights reserved.
TRADEMARKS
Corrigo E, E tool©, EXOdesigner, EXOreal, EXOline, EXO4, EXO4 Web Server, Optigo, Regio and Regio tool are registered
trademarks of AB Regin.
Windows, Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows Server 2003 are registered
trademarks of Microsoft Corporation.
Some product names mentioned in this document are used for identification purposes only and may be the registered
trademarks of their respective companies.
Revision Q, June 2013
Software revision: 3.2

Table of contents
CHAPTER 1 ABOUT THE MANUAL ..................................................................................................6
More information ........................................................................................................................6
CHAPTER 2 ABOUT CORRIGO E ......................................................................................................7
2.1 News in version 3.2................................................................................................................7
2.2 Application choice .................................................................................................................8
2.3 Technical data......................................................................................................................11
CHAPTER 3 INSTALLATION AND WIRING...................................................................................... 14
3.1 Installation ...........................................................................................................................14
3.2 Wiring ..................................................................................................................................14
CHAPTER 4 COMMISSIONING ...................................................................................................... 26
4.1 How to do it .........................................................................................................................26
CHAPTER 5 FUNCTIONAL DESCRIPTION ....................................................................................... 29
5.1 Temperature control ...........................................................................................................29
5.2 Extra control circuit .............................................................................................................42
5.3 Humidity control..................................................................................................................42
5.4 Fan control...........................................................................................................................43
5.5 Pump control .......................................................................................................................49
5.6 Damper control....................................................................................................................50
5.7 Extended running and External switch ................................................................................51
5.8 Time-switch outputs ............................................................................................................51
5.9 Alarms..................................................................................................................................51
CHAPTER 6 STARTING AND STOPPING THE UNIT ......................................................................... 53
6.1 Start conditions....................................................................................................................53
6.2 Stop conditions ....................................................................................................................53
6.3 Start sequence .....................................................................................................................54
6.4 Stop sequence .....................................................................................................................54
CHAPTER 7 DISPLAY, LEDS AND BUTTONS ................................................................................... 55
7.1 Display .................................................................................................................................55
7.2 LEDs .....................................................................................................................................55
7.3 Buttons ................................................................................................................................55
7.4 Navigating the menus ..........................................................................................................55
CHAPTER 8 ACCESS RIGHTS.......................................................................................................... 57
8.1 Log on ..................................................................................................................................57
8.2 Log off ..................................................................................................................................57
8.3 Change password.................................................................................................................58
8.4 Change password to remove automatic logoff ...................................................................58
CHAPTER 9 RUNNING MODE ....................................................................................................... 59
9.1 Running mode, unit .............................................................................................................59
9.2 Selected functions ...............................................................................................................59
9.3 Alarm events........................................................................................................................60
9.4 Inputs/Outputs ....................................................................................................................60
CHAPTER 10 TEMPERATURE ........................................................................................................ 61
CHAPTER 11 AIR CONTROL........................................................................................................... 65
CHAPTER 12 HUMIDITY CONTROL................................................................................................ 68
CHAPTER 13 TIME SETTINGS ........................................................................................................ 69
13.1 Time / Date ........................................................................................................................69
13.2 Timer Normal speed ..........................................................................................................69
13.3 Timer Reduced speed ........................................................................................................70

13.4 Extended running ..............................................................................................................70
13.5 Timer outputs 1…5.............................................................................................................70
13.6 Holidays .............................................................................................................................71
CHAPTER 14 MANUAL / AUTO ..................................................................................................... 72
CHAPTER 15 SETTINGS ................................................................................................................. 75
15.1 Control temp......................................................................................................................75
15.2 Control pressure ................................................................................................................76
15.3 Control flow .......................................................................................................................76
15.4 Humidity control................................................................................................................77
15.5 Control Extra unit...............................................................................................................77
15.6 Alarm settings....................................................................................................................77
15.7 Save and restore settings...................................................................................................79
CHAPTER 16 CONFIGURATION ..................................................................................................... 80
16.1 Inputs and outputs.............................................................................................................80
16.2 Control function.................................................................................................................82
16.3 Fan control.........................................................................................................................83
16.4 Extra control circuit ...........................................................................................................84
16.6 Extra sequence Y5..............................................................................................................84
16.7 Heating coil ........................................................................................................................84
16.8 Exchanger ..........................................................................................................................85
16.9 Chiller.................................................................................................................................85
16.10 Pump control ...................................................................................................................86
16.11 Free cooling .....................................................................................................................87
16.12 Support control................................................................................................................87
16.13 CO2/VOC Demand control...............................................................................................88
16.14 Fire function.....................................................................................................................88
16.15 Humidity control..............................................................................................................89
16.16 Exchanger de-icing...........................................................................................................89
16.17 Cooling recovery ..............................................................................................................89
16.18 Minimum limit dampers ..................................................................................................89
16.20 External setpoint..............................................................................................................89
16.21 Run indication / Motor protection ..................................................................................90
16.22 Actuator type...................................................................................................................90
16.23 Running time, 3-position actuators .................................................................................91
16.24 Step controllers................................................................................................................91
16.25 Recirculation ....................................................................................................................93
16.26 Pretreatment ...................................................................................................................93
16.27 Alarm setting ...................................................................................................................94
16.28 Communication ...............................................................................................................98
16.29 Other parameters ..........................................................................................................100
16.30 System ...........................................................................................................................103
CHAPTER 17 EXPANSION MODEL ............................................................................................... 106
17.1 Port 1 ...............................................................................................................................106
17.2 Port 2 ...............................................................................................................................106
17.3 Wiring ..............................................................................................................................106
CHAPTER 18 OTHER FUNCTIONS................................................................................................ 108
18.1 Alarm handling.................................................................................................................108
18.2 Free text...........................................................................................................................108
18.3 Revision number ..............................................................................................................108
18.4 Language..........................................................................................................................109
18.5 Indication LEDs ................................................................................................................109
18.6 Changing the battery .......................................................................................................109
18.7 Start-up wizard ................................................................................................................110
18.8 Energy calculation............................................................................................................112
18.9 SFP (Specific Fan Power)..................................................................................................112
INDEX ........................................................................................................................................ 113

APPENDIX FREQUENCY CONVERTERS ........................................................................................ 117

6 About the manual Manual Corrigo E Ventilation, revision Q
Chapter 1 About the manual
This manual covers all the models in the Corrigo E series used with the ventilation application. This
revision covers program revisions from 3.2.
More information
More information about Corrigo E can be found in:
•Manual E tool©– Manual of how to configure the controllers using the PC software E
tool©
•Corrigo E ventilation user guide – A simplified manual
•Lon-interface variable list – Variable list for the Corrigo E series
•Network variables for EXOline and Modbus – Variable list for EXOline and Modbus
communication
•Corrigo E ventilation Modbus Communication Guide – A guide to Modbus
communication and the most common Modbus variables
•Editable PDF files for Corrigo
•CE - Declaration of conformity, Corrigo E
The information is available for download from Regin's website, www.regin.se.

Manual Corrigo E Ventilation, revision Q About Corrigo E 7
Chapter 2 About Corrigo E
Corrigo E series comprises three model sizes: 8, 15 or 28 in-/outputs.
In each model of Corrigo E generation 2, all applications are loaded in a separate memory area. The
models have article number E...-S (where S stands for Second generation). From version 3.0, there
are models with two communication ports. By connecting one/two expansion units to port two on
these units, it is possible to increase the number of inputs and outputs. The 2-port Corrigo models
have article number E...2-S (where the number two stands for 2 ports). For more detailed
information, see chapter 17.
The controllers are available with or without front panel display and buttons. For units without front
panel display and buttons a separate, cable-connected terminal E-DSP with display and buttons is
available.
All configuration and normal handling can be done using the display and buttons or using the
configuration tool E tool©, installed on a PC and connected via the communication cable E-cable.
2.1 News in version 3.2
•Split of analogue output signal Y1 Heating/Y3 Cooling (change-over).
•Digital output connected to split sequence.
•Extra sequence Y5 added.
•Temperature-dependent air flow compensation has been added. It can be set either to affect
normal speed or both normal and reduced speed.
•Air flow compensation depending on controller output, one for heating output and one for
cooling output.
•Separate setpoint at reduced speed.
•Runtime indication as digital output.
•New room units for remote control, with or without display or as touch display.
•Outdoor temperature-dependent room/extract air-compensated setpoints.
•Inverted function on digital out alarm indication.
•Communication with two LS frequency converters.
•Extract air fan (EAF) can now be run during recirculation.
•Energy calculation.
•Port 2 has been updated and can now communicate with a SCADA system via Modbus
(earlier, port 2 could only communicate with E tool©).
•New fan control function. Frequency controlled extract air fan with a supply air fan as
slave.
•Possible to change temperature unit from Celsius to Fahrenheit, as well as to set flow unit
either to m3/h (cubic meters per hour) or CFM (cubic feet per minute).
•Program date in display (date when software version was manufactured).
•The digital heating output now has a PWM function (Pulse-Width Modulation).
•New analogue input signal, external flow setpoint.
•Configuration of min./max. input signal (volt) for pressure transmitters.
•Modbus communication with EBM fans.

8 About Corrigo E Manual Corrigo E Ventilation, revision Q
•Frost protection on extra sequence Y4.
•SFP (Specific Fan Power) – A way to calculate power consumption per flow unit (kW /
m3/s).
•Romanian language support.
•Changeable X value (outdoor temperature) for outdoor compensated setpoints in display
and web site.
•The order of priority for fire alarms has been changed.
•CO2/VOC control on extra sequence Y4.
2.2 Application choice
On delivery, the main memory in the Corrigo is empty. All the application programs that can be run
in the Corrigo are located in a separate memory area.
On the first start-up, the controller will start a special program for downloading a suitable
application and suitable languages to the main memory.
For certain customised models, an application has already been selected when the product is
delivered. If so, the selected application will be started immediately.
Corrigo E Controller
08:01:01 00:00
Select application
with down arrow
First press OK to set the date and time. Use the up and down arrows to change values and the right
and left arrows to move between fields. When the date has been set, press OK and the cursor will
move to the scheduler. Set the time in the same way as the date and press OK to confirm.
Press down arrow to go to to ”Application choices”.

Ventilation
Heating
Boiler
Expansion Unit 1
Expansion Unit 2
Use the up and down arrows to move the cursor in the left edge of the display to the application you
wish to load. Press right arrow to choose the selected application and go to Language choice.
Ventilation
Choose language
English
Accept changes:No
Press OK to choose language. Use the up and down arrows to move between languages and press
OK to confirm your choice.
When another language than English is chosen, both English and the selected language will be
loaded.
To make the final confirmation of the created programs and language choices, change No to Yes
and confirm by pressing OK.
After a few seconds, the display will show a start display in English for the chosen application.
After another few seconds, the display text will change to the selected language, if another language
than English has been selected.
Regulator vent. sys
08:06:03 09:32
System:Stopped
Sp: 19.5 Act: 20.1°C

Manual Corrigo E Ventilation, revision Q About Corrigo E 9
2.2.2 Ventilation application
The temperature controller is based on a supply air PI-controller for heating control with a pre-
programmed set of control modes. A number of different control functions as well as analogue and
digital in- and output functions can be bound to this controller. The choice of which functions are to
be used is free, the only restriction is the physical number of inputs and outputs of the different
models. The maximum number of I/Os is 3*28 (a 2-port Corrigo with two expansion units).
The Corrigo is designed for DIN-rail mounting.
The program for an air handling unit contains, apart from other things, the following functions:
Different temperature control modes:
Supply air control.
Outdoor compensated supply air control.
Room temperature control (cascade control).
Extract air control (cascade control).
Outdoor temperature dependent supply air or room temperature control.
Outdoor temperature dependent supply air or extract air control.
Outdoor compensated room temperature control.
Outdoor compensated extract air control.
With control of:
Heat exchanger (Liquid connected- , plate- or rotating) or mixing dampers.
Heating coil; Water with frost protection or electric.
Chiller: Water-heated or DX in up to three steps.
Circulation pumps heating, cooling, exchanger.
Fan control
1- or 2-speed supply air fans and extract air fans.
Frequency controlled supply and extract air fans with pressure or flow control, manual control or
external control from a VAV system. Pressure controlled supply air fan with slave connected extract
air fan (output dependent or flow dependent). Pressure controlled extract air fan with slave
connected supply air fan (output dependent or flow dependent).
Humidity control
Either humidification or dehumidification, or both humidification and dehumidification.
Timer control
For starting and stopping the unit. Up to five timer outputs for control of external functions such as
lighting, doorlocks etc.
Demand control
In buildings with strongly varying occupancy the fan speeds or mixing dampers can be controlled
by the air quality measured by a CO2/VOC sensor.

10 About Corrigo E Manual Corrigo E Ventilation, revision Q
Support control
When using the control function room control or extract air temperature control, it is possible to
utilise support-heating and/or support-cooling. Minimum running time is settable 0…720 minutes
(factory setting 20 minutes).
Free cooling
The function is used during the summer to cool the building during the night using cool outdoor air
thereby reducing the need to run chillers during the day. The function can also be activated during
daytime if the temperature so allows.
Enthalpy control for free cooling/heating
This function is used to override the mixing damper to increasing recirculation depending on the
result of the enthalpy calculation.
Cooling recovery
If the extract air is colder than the outdoor air and cooling is required, the heat exchanger control is
reversed in order to return the cool extract air. This function also activates the heating function
“Free heating” (see section titled “Free heating” below).
Free heating
If the extract air is cooler than the outdoor air and heating is required, outdoor air will primarily be
used.
Recirculation control
Recirculation of air using a supply air fan and recirculation damper, with or without temperature
control.
Pretreatment
Preheating or precooling of the intake air via an underground intake channel.
Step controllers Heating/Cooling
As an alternative to the analogue control of ”Actuator heating Y1” or ”Actuator cooling Y3”, step
controllers can be used to control heating or cooling in steps using digital control.

Manual Corrigo E Ventilation, revision Q About Corrigo E 11
Corrigo E hardware overview
Model E8-S E8D-S E15-S E15D-S E28-S E28D-S
Analogue Inputs
2
2
4
4
4
4
Digital Inputs
3
3
4
4
8
8
Universal Inputs
-
-
-
-
4
4
Analogue Outputs
1
1
3
3
5
5
Digital Outputs 2 2 4 4 7 7
RS485*
Yes
Yes
Yes
Yes
Yes
Yes
LON Option Option Option Option Option Option
WEB (TCP/IP) Option Option Option Option Option Option
2-port No No Option Option Option Option
Display No Yes No Yes No Yes
Ext. display Option No Option No Option No
*Communication port RS485 is not available for option WEB (TCP/IP). However, a 2-port Corrigo
with TCP/IP and RS485 can be selected, where RS485 is used for expansion units etc.
Corrigo E model overview
Model with display Model without display Description
E8D-S,
E15D-S,
E28D-S
E8-S,
E15-S,
E28-S
Standard controller with RS485 port
E8D-S-LON,
E15D-S-LON,
E28D-S-LON
E8-S-LON,
E15-S-LON,
E28-S-LON
Controller with both LON and RS485 ports
E8D-S-WEB,
E15D-S-WEB,
E28D-S-WEB
E8-S-WEB,
E15-S-WEB,
E28-S-WEB
Controller with TCP/IP port and built-in web
server
E152D-S,
E282D-S E152-S, E282-S Controller with two RS485 ports for connection of expansion units
E152D-S-WEB,
E282D-S-WEB E152-S-WEB, E282-S-WEB Controller with RS485 port and built-in web server. For connection of expansion units
2.3 Technical data
Protection class ..................................................................................................................IP20
Display........................................................4 rows of 20 characters. Background illumination.
LEDs
Yellow .......................................................................................................Settable parameter
Red ...............................................................................................................Alarm indication
Clock ..................................................................Year base 24 hour clock with battery backup.
Automatic summer-/winter-time changeover.
Operating system..........................................................................................................EXOreal
Supply voltage....................................................24 V AC ±15%, 50…60 Hz or 21…36 V DC
Power consumption.......................................5 VA, 3 W (DC), model WEB: 9 VA, 5 W (DC)
Dimensions....................................................................148x123x60 (WxHxD incl. terminals)
Casing..........................................................................Standard Euronorm (8.5 modules wide)
Mounting................................................................................................................On DIN-rail
Operation
Climatic conditions according to IEC 721-3-3........................................................Class 3k5
Ambient temperature...................................................................................................0...50°C
Ambient humidity..............................................................................................Max 95% RH
Mechanical requirements according to IEC721-3-3 ..............................................Class 3M3
Vibration..........................................................IEC60068-2-6, Test FC, vibration Sinusoidal
Shock................................................................................................IEC60068-2-27, Test Ea

12 About Corrigo E Manual Corrigo E Ventilation, revision Q
Transport
Climatic conditions according to IEC 721-3-2........................................................Class 2k3
Ambient temperature............................................................................................... -20...70°C
Ambient humidity..............................................................................................Max 95% RH
Mechanical requirements according to IEC721-3-2 ..............................................Class 2M2
Vibration..........................................................IEC60068-2-6, Test FC, vibration Sinusoidal
Shock................................................................................................IEC60068-2-27, Test Ea
Free fall.............................................................................................IEC60068-2-27, Test Ed
Storage
Climatic conditions according to IEC 721-3-1........................................................Class 1k3
Ambient temperature..............................................................................................-20...70°C
Ambient humidity..............................................................................................Max 95% RH
Battery
Type.................................................................................... Replaceable Lithium cell, CR2032
Battery life ...................................................................................................Better than 5 years
Warning.................................................................................................... Low battery warning
Battery backup...............................................................................Memory and real time clock
Communication
EXOline Port 1, insulated via a built-in RS485 contact.
EXOline Port 2, insulated via a built-in RS485 contact (only 2-port Corrigo models).
The basic version of Corrigo E can communicate with Modbus. You do not need an activation code.
Corrigo E can be ordered with a communication port for TCP/IP or LON.
EMC emission and immunity standard
This product conforms to the requirements of the EMC Directive 2004/108/EC through product
standards EN 61000-6-1 and EN 61000-6-3.
RoHS
This product conforms to the Directive 2011/65/EU of the European Parliament and of the Council.
Inputs
Analogue inputs AI..............................................Settable 0…10 V DC or PT1000, 12 bit A/D
Digital inputs DI.......................................................................................Potential-free closure
Universal inputs UI...........................................Can be set to act as either an analogue input or
... a digital input with specifications as above
Outputs
Analogue outputs AO...............................................Configurable 0…10 V DC; 2…10 V DC;
... 10…0 V DC or 10…2 V DC
8 bit D/A short-circuit protected
Digital outputs DO ...........................................Mosfet outputs, 24 V AC/DC, 2 A continuous.
Totally max 8 A.
Options
LON...................................................................FT3150, gives a second communication route
WEB (TCP/IP-port)..............................Replaces RS485 for EXOline (Port 1) communication
2-port Corrigo models ........................Two serial ports or one serial port and one TCP/IP port
External hand terminal, E-DSP ...........................For use with Corrigo E units without display

Manual Corrigo E Ventilation, revision Q About Corrigo E 13
Position of the terminals on Corrigo E

14 Installation and wiring Manual Corrigo E Ventilation, revision Q
Chapter 3 Installation and wiring
3.1 Installation
Corrigo E can be mounted in a DIN-standard casing (minimum 9 modules), on a DIN-rail in a
cabinet or, using a suitable front-mounting kit, in a cabinet door or other control panel.
Ambient temperature: 0…50°C.
Humidity: Max. 90 % RH, non-condensing.

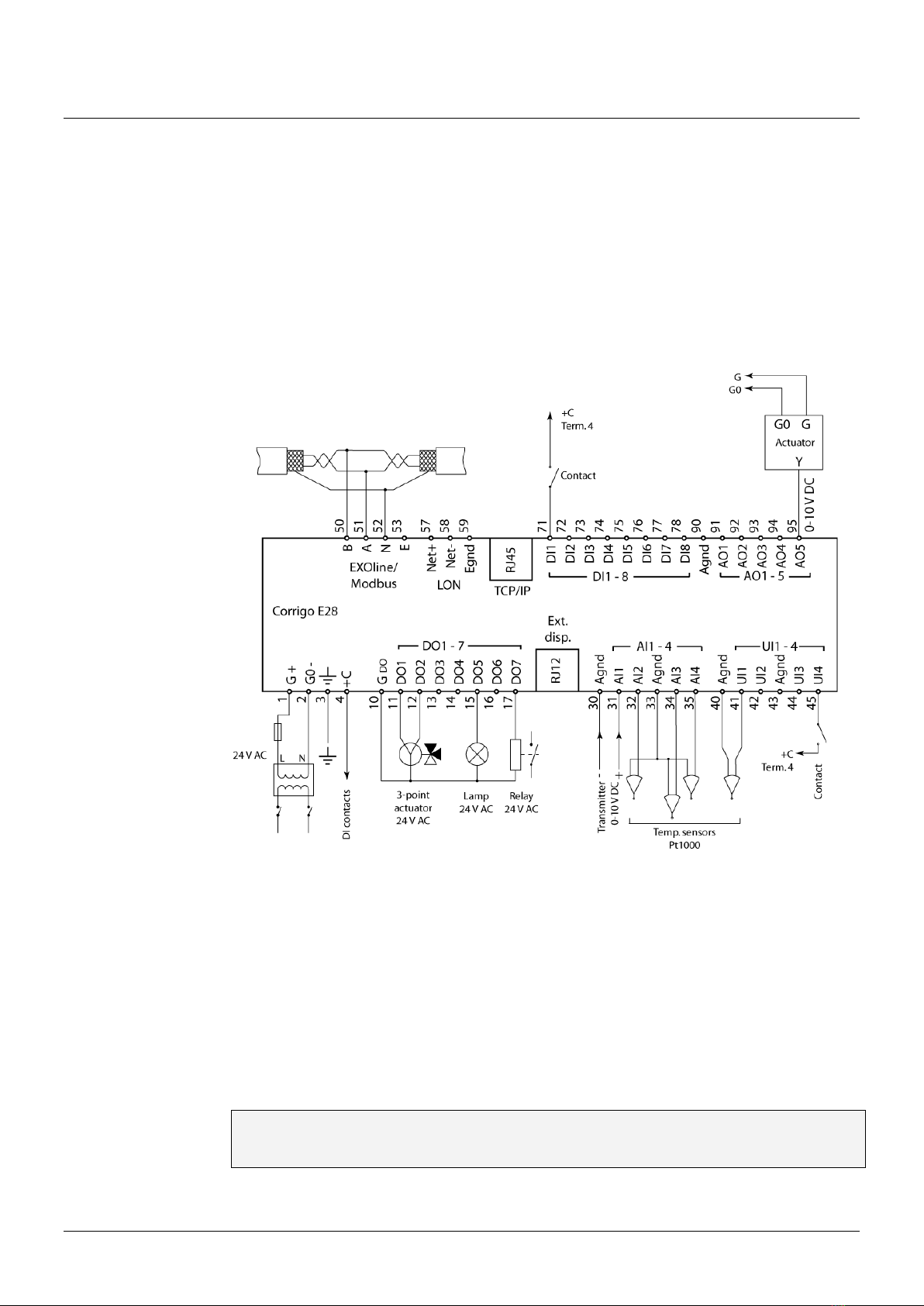

The picture below shows a wiring example for Corrigo E28.
3.2 Wiring
At the end of this chapter there are wiring diagrams showing the factory set configuration. There are
also empty wiring diagrams. Since the function of most of the inputs and outputs depends on the
programming of the unit the final wiring diagram cannot be filled in until the installer has decided
how to use the inputs/outputs. It is important to ensure that the wiring is performed correctly and in
accordance with the instructions given in this manual.
3.2.1 Supply voltage
24 V AC ±15%, 50…60 Hz or 21…36 V DC
If Corrigo E and its connected actuators share the same transformer, it is essential that the same
transformer pole is used as reference for all the equipment. The equipment may otherwise not
function as intended and may also suffer damages.

Manual Corrigo E Ventilation, revision Q Installation and wiring 15
3.2.2 Inputs and outputs
The list of input and output functions in section 3.2.3 is a handy instrument to help you keep track
of which inputs and outputs you will need to configure.
Analogue inputs
Analogue inputs must refer to an Agnd terminal placed in the same terminal block as the input being
wired.
Analogue inputs can, depending on the configuration, be used for either PT1000 temperature
sensors or for 0…10 V DC analogue input signals, for example from a pressure transmitter.
Digital inputs
Digital inputs must refer to +C on terminal 4. Digital inputs may only be wired to voltage-free
contacts. Any external voltage applied to a digital input may harm the unit. The input signal can be
set to either NO or NC.
Universal inputs
A universal input can be configured to act as either an analogue input or as a digital input.
A universal input configured as an analogue input can, depending on the configuration, be used for
either PT1000 temperature sensors or for 0…10 V DC analogue input signals, for example from a
pressure transmitter.
Universal inputs configured as an analogue input must refer to an Agnd terminal placed in the same
terminal block as the input being wired.
A universal input configured as a digital input must, just like other digital inputs refer to C+ on
terminal 4. It may only be wired to voltage-free contacts.
Analogue outputs
Analogue outputs must refer to the Agnd terminal placed in the AO terminal block.
All analogue outputs can be individually set to any one of the following signals:
0…10 V DC
2…10 V DC
10…0 V DC
10…2 V DC
If the Corrigo E and the actuators connected to it share the same transformer it is essential that the
same transformer-pole is used as reference for all the equipment. Failure to do so will prevent the
equipment from functioning as intended and may also lead to damages.
Digital outputs
Digital outputs should normally refer to GDO on terminal 10. GDO is internally connected to G on
terminal 1 and supplies 24 V AC or DC depending on the choice of supply voltage.
All the digital outputs are controlled by MOSFET transistors. The outputs are internally connected
with G0and can deliver max 2 A per output. However, the total power for all the DOs must not be
over 8 A.
A number of different wiring alternatives are possible depending on the type of supply voltage to
the Corrigo and the relay type.

16 Installation and wiring Manual Corrigo E Ventilation, revision Q

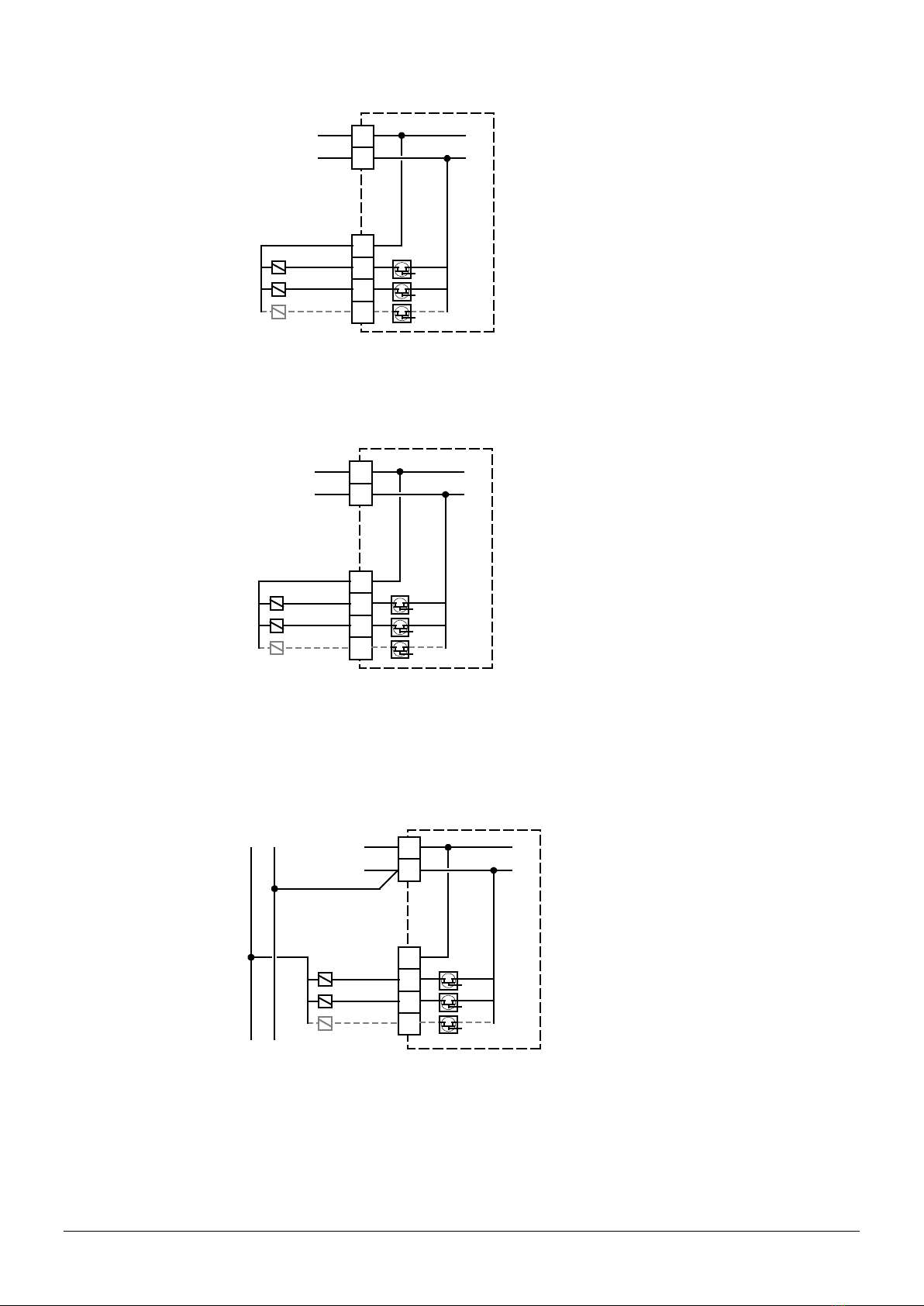

24 V AC supply and 24 V AC relays
24 V DC supply and 24 V DC relays
24 V AC supply and 24 V DC relays
G
G0
10
11
12
L
N
24 VAC
G
G
0
10
11
12
+
-
24 V DC
+ -
+ -
+ -
G
G0
10
11
12
L
N
24 VAC
24 V DC
+ -
+ -
+ -
+ -
24 V AC
24 V AC

Manual Corrigo E Ventilation, revision Q Installation and wiring 17

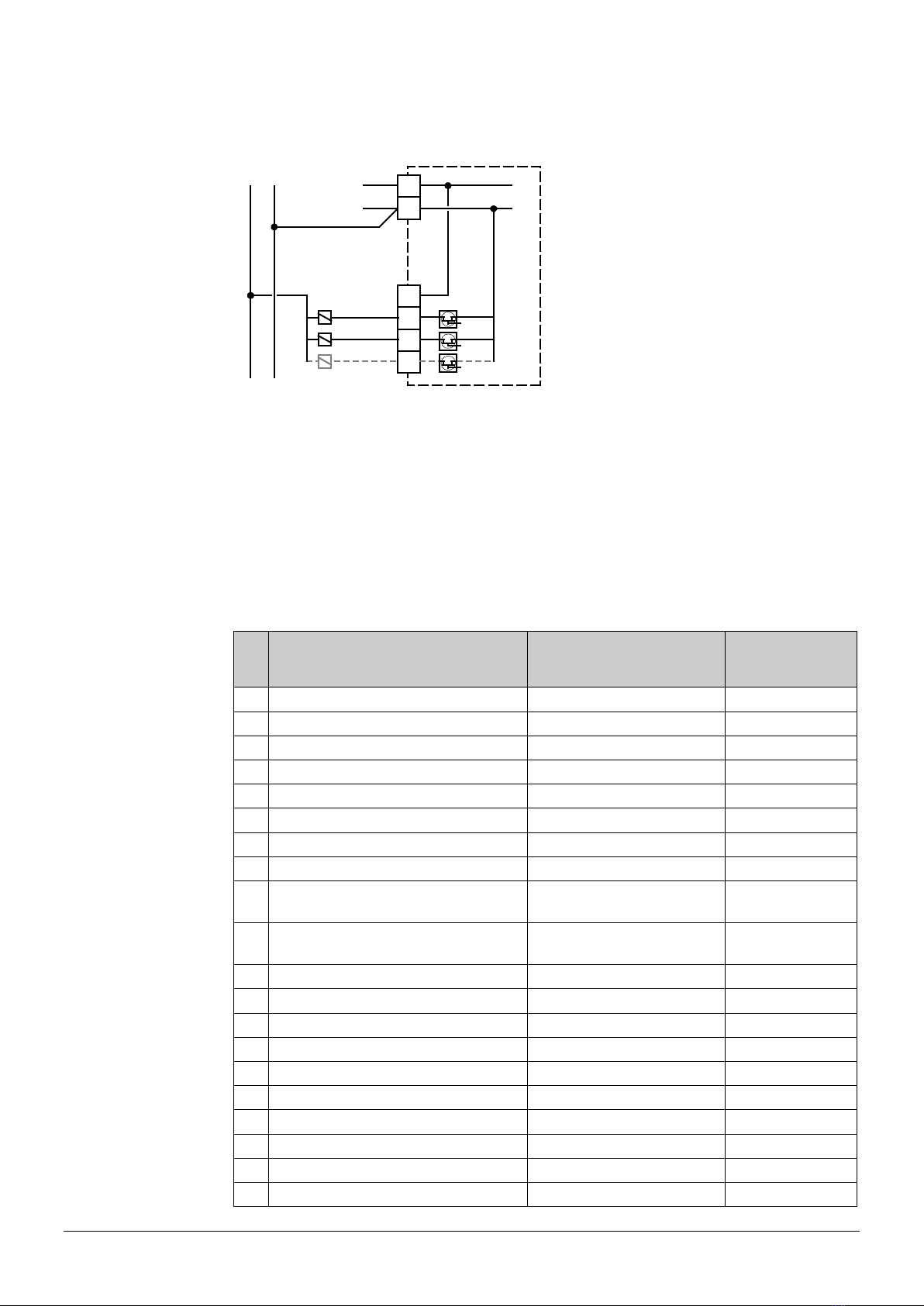

24 V DC supply and 24 V AC relays
3.2.3 Input and outputlists
The lists below are intended to be used during commissioning to help you keep track of the desired
input and output functions.
The left column contains a description of the in-/output signal, the middle column displays the name
of the corresponding signal in E tool©and the right column shows the text displayed in the Corrigo
E controller.
Analogue input signal
Description E tool©Display
Inactive input
Not used
Not used
Outdoor temperature sensor Outdoor Temp Outdoortemp
Supply air temperature sensor
Supply Air Temp
Supplytemp
Extract air temperature sensor Extract Air Temp Extracttemp
Exhaust air temperature sensor Exhaust Air Temp Exhausttemp
Room temperature sensor 1
Room Temp 1
Roomtemp1
Room temperature sensor 2 Room Temp 2 Roomtemp2
CO2sensor, 0…10 V DC
CO2 Sensor
CO2
Pressure transmitter supply air, 0…10
V DC SAF Pressure SAF pressure
Pressure transmitter extract air, 0…10
V DC EAF Pressure EAF pressure
De-icing sensor, heat exchanger
Deicing Temp
Deicingtemp
Frost protection sensor Frost Protection Temp Frost prot. temp
Room humidity sensor
Humidity Room
Humidity room
Duct humidity sensor Humidity Duct Humidity duct
Outdoor humidity sensor Humidity Outdoor Humidity out
Temperature sensor, Extra controller
Extra unit temp
Extra unit temp
External control supply air fan External control SAF SAF ext. Ctrl
External control extract air fan
External control EAF
EAF ext. Ctrl
Pressure transmitter supply air 2 SAF Pressure 2 SAF pressure 2
Intake temperature Intake Temp Intaketemp
G
G0
10
11
12
+
-
24 V DC
24 VAC
L N
24 V AC

18 Installation and wiring Manual Corrigo E Ventilation, revision Q
Description E tool©Display
Extra temperature sensor 1 Extra Sensor Temp 1 Extrasensor
Extra temperature sensor 2
Extra Sensor Temp 2
Extrasensor 2
Extra temperature sensor 3 Extra Sensor Temp 3 Extrasensor 3
Extra temperature sensor 4
Extra Sensor Temp 4
Extrasensor 4
Extra temperature sensor 5 Extra Sensor Temp 5 Extrasensor 5
Extra pressure transmitter supply air Extra SAF Pressure Extra SAF Pressure
Extra pressure transmitter extract air
Extra EAF Pressure
Extra EAF Pressure
External flow pressure transmitter External flow setpoint Ext sp flow
Digital input signal

Description E tool©Display
Inactive input
Not used
Not used
Filter guard, supply air Filter Guard 1 Filter alarm 1
Filter guard, extract air Filter Guard 2 Filter alarm 2
Run-indication/alarm circulation pump,
Heating Heat Pump Indication P1-Heating
Run-indication/alarm circulation pump,
exchanger Exchange Pump Indication P1-Exchanger
Run-indication/alarm circulation pump,
Cooling Cooling Pump Indication P1-Cooling
Fire alarm
Fire Alarm
Fire alarm
Fire damper end-switch monitoring Fire Damper Indication Fire damper-ind
Extended operation, Normal Extended Operation, Normal Ext run 1/1
Extended operation, Reduced
Extended Operation, Reduced
Ext run 1/2
External switch External Switch External switch
External alarm
External Alarm
External alarm
Flow switch Flow Switch Flow guard
Rotation guard exchanger Exchange Rotation Rot.sent.exch
Run-indication/alarm supply air fan
SAF Indication
SAF-Ind
Run-indication/alarm extract air fan EAF Indication EAF-Ind
Deicing thermostat exchanger
Deicing
De-icing
Frost protection thermostat water heater Frost Protection Frostprotection
High temperature limit switch Overheated Electric heater Overheatprotection
Recirculation start
Recirculation
Recirculation
Change over Change over Change over
The universal inputs on Corrigo E28 can be individually configured as either analogue inputs, using
any of the analogue input signals above, or as digital inputs using any of the digital inputs above.

Manual Corrigo E Ventilation, revision Q Installation and wiring 19
Analogue output signal

Description E tool©Display
Inactive output Not used Not used
Y1 Actuator Heating
Heating Y1
Y1-Heating
Y2 Actuator Exchanger Exchanger Y2 Y2-Exchanger
Y3 Actuator Cooling
Cooling Y3
Y3-Cooling
Frequency converter, supply air fan SAF SAF
Frequency converter, extract air fan EAF EAF
Actuator Humidity control Dehumidification/
Humidification Humidity
Split of any one of temp outputs Y1, Y2,
Y3 or Y1 Heating/Y3 Cooling outputs Split Sequence
Extra controller
Extra unit control
ExtraUnitCtrlVa
Y1 Heating / Y3 Cooling, Change-over
output
Y1 Heating/Y3 Cooling Y1-Heat/Y3-Cool
Y4 Extra Sequence Extra Sequence Y4 Y4-extra sequence
Y5 Extra Sequence Extra Sequence Y5 Y5-extra sequence
Digital output signal

Description E tool©Display
Inactive output Not used Not used
Start/stop Supply air fan Normal SAF Start 1/1 Normal Speed SAF 1/1-speed
Start/stop Extract air fan Normal
EAF Start 1/1 Normal Speed
EAF 1/1-speed
Start/stop Supply air fan Reduced SAF Start 1/2 Reduced Speed SAF 1/2-speed
Start/stop Extract air fan Reduced EAF Start 1/2 Reduced Speed EAF 1/2-speed
Start/stop circulation pump, heating Heating Pump Start P1-Heating
Fire damper Fire Damper Fire damper
Sum alarm A- and B-alarm
Sum Alarm
Sum alarm
Sum alarm A-alarm Sum Alarm A A-sum alarm
Sum alarm B-alarm Sum Alarm B B-sum alarm
Start/stop circulation pump, cooling Cooling Pump Start P1-Cooling
Start/stop circulation pump, liquid
exchanger
Exchanger Start P1-Exchanger
Activation-signal SAF frequency
converter
SAF Freq Start SAF-frequence
Activation-signal EAF frequency
converter
EAF Freq Start EAF-frequence
Activate heating Heating Activate Heat start
Activate cooling Cooling Activate Cool start
Activate exchanger
Exchanger Activate
Exch start
Exhaust air close-off damper Exhaust Air Damper Exhaust air d
Fresh air close-off damper
Outdoor Air Damper
Fresh air dam
Recirculation damper Recirculation Air Damper Recirc. damper
Heating 3-position actuator, increase Heating Increase Heat-inc

20 Installation and wiring Manual Corrigo E Ventilation, revision Q

Description E tool©Display
Heating 3-position actuator, decrease Heating Decrease Heat-dec
Exchanger 3-position actuator, increase Exchanger Increase Exch-inc
Exchanger 3-position actuator, decrease Exchanger Decrease Exch-dec
Cooling 3-position actuator, increase
Cooling Increase
Cool-inc
Cooling 3-position actuator, decrease Cooling Decrease Cool-dec
Step controller heating, step 1 Heat Step 1 Heat step1
Step controller heating, step 2 Heat Step 2 Heat step2
Step controller heating, step 3 Heat Step 3 Heat step3
Step controller heating, step 4
Heat Step 4
Heat step4
Step controller cooling, step 1 Cool Step 1 Cool step1
Step controller cooling, step 2 Cool Step 2 Cool step2
Step controller cooling, step 3 Cool Step 3 Cool step3
Extra time channel 1 Time Channel 1 Timer 1
Extra time channel 2
Time Channel 2
Timer 2
Extra time channel 3 Time Channel 3 Timer 3
Extra time channel 4 Time Channel 4 Timer 4
Extra time channel 5 Time Channel 5 Timer 5
Humidity Humidity/DeHumidity Humidity
External controller active
Extra unit active
ExtraUnitActi
Heating/cooling step 1 Heat/cool step 1 HeatCoolStep1
Heating/cooling step 2 Heat/cool step 2 HeatCoolStep2
Heating/cooling step 3 Heat/cool step 3 HeatCoolStep3
Free cooling operation Free cool run Free cool run
Pretreatment
Pretreatment
Pretreatment
Free cooling operation Free cool run Free cool run
Pretreatment Pretreatment Pretreatment
Split sequence active Split Sequence Split sequence
Run indication Run indication Run ind.
Pulse modulated heating output
Heating PWM
Heating PWM
