IMB MB9016A User manual

口罩点焊机
Earloop Welting Machine
（MB9016A）
使用说明书
Instruction Manual
常州智谷机电科技有限公司
CHANGZHOU WISDOM & VALLEY ELECTRICAL TECHNOLOGY CO.,LTD
在使用本设备之前请先阅读本使用说明书
Please read the operation manual of the touch
screen interface before using the device
请将本使用说明书放在便于查阅的地方保管
Please keep this operation manual of touch screen
interface in convenient place for reference
2022.04.03
版本信息/ Version

感谢购买 IMB 工业用缝纫机。
在使用此机器之前，请仔细阅读以下的说明，这样可以更好地帮到您了解此机器的相关
操作。
这些说明是根据现行的条例明确阐述了正确的工作方法。
Thank you for purchasing this industrial sewing machine from IMB
Before using this automatic unit, please read the following instructions, which will help
you to
understand how the machine operates.
These instructions illustrate the correct working methods to comply with current
regulations.
在没有得到IMB授权许可的前提下，此说明书的任何部分是不可以被复制或者转录的。
说明书的内容可能被修改，而不需预先通知。
No part of this manual may be copied or transcribed without requesting prior authorization
from IMB
The contents of this manual may be subject to change without advance notification.
我们将欣然接受各位提出的改进此说明书的任何建议和指示
We are happy to receive suggestions and/or indications on ways we could improve this manual.
本机介绍说明分为二部分，具体请参照《MB3008A 衬衫缝后复司机-使用说明书》、《MB3008A 衬衫缝
后复司机-零件手册》
The introduction of this machine is divided into three parts. For details, please refer
to 《MB9016A Operation manual》 and 《MB9016A Parts Manual》.

ENGLISH

Catalog
1、Basic information of the equipment............................................................................................................1
2、Technical parameters of the equipment......................................................................................................2
3、Safety precautions........................................................................................................................................3
4、key function description.............................................................................................................................. 5
4.1. Function description of the button.................................................................................................... 5
5、Operating instructions................................................................................................................................. 7
5.1. Preparation before operation............................................................................................................. 7
5.2. Operation process description............................................................................................................7
5.2.1 Boot device............................................................................................................................... 7
5.2.2 Place ear band...........................................................................................................................7
5.2.3 Press pedal................................................................................................................................ 7
5.2.4 Shutdown.................................................................................................................................. 7
6、Debugging method...................................................................................................................................... 8
6.1 Frequency adjustment......................................................................................................................... 8
6.2 Power adjustment................................................................................................................................8
6.3 Introduction to parameter setting.......................................................................................................9
7、Electrical wiring..........................................................................................................................................10
8、Common problems and Solutions............................................................................................................. 11
8.1 Alarm interface.................................................................................................................................. 11
9、Daily maintenance requirements.............................................................................................................. 12
10、Knowledge product protection statement.............................................................................................. 13

1
1、Basic information of the equipment
1：Stand 2：Table 3：Control box 4：Ultrasonic
components 5：Pedal 6：Welting assembly 7：Touch screen 8：Power switch
1
2
3
4
5
8
6
7

2
2、Technical parameters of the equipment
1
Size
1200(length）X550(width）X1000(height）
2
Weight
Kg
3
Frequency
0-2000W（adjustable）
4
Voltage
0-2000V AC
5
Working time
0～9.99min Adjustable
6
Temperature
+5℃～+50℃
7
Working frequency
20KHz
8
Power
AC220V 50Hz
9
Frequency tracking accuracy
+0.5KHz

3
3、Safety precautions
Considerations for safe use of automata
1. In order to prevent accidents caused by electric shock, please do not open
the cover of the electrical box of the motor or touch the parts in the electrical
box when the power is connected.
1. In order to prevent personal injury, please do not operate the machine in
the state of removing the belt guard, finger protector and other safety devices.
2. In order to avoid being involved in the machine's personal accident, please
do not let your fingers, hair, clothes near the pulley, v-belt, motor, and do
not put items on it during the operation of the sewing machine.
3. To prevent personal injury, please do not put your finger near the needle
when turning on the power or running the machine.
4. In order to prevent personal injury, please do not put your fingers in the
wire pole guard during the operation of the sewing machine.
5. When the machine is running, it turns at a high speed. To prevent damage
to the hand, never let the hand near the cutter during operation. In addition,
when changing the cable, please be sure to turn off the power.
6. In order to prevent personal injury, please be careful not to pinch your
fingers when the machine moves up and down or when you return to the original
position.
7. Please do not cut off the power or air supply while the machine is running.
8. In order to prevent accidents caused by sudden starting, please remove the
cloth guide when the preparation work is finished and the sewing state is
reached.
9. In order to prevent accidents caused by electric shock, please do not operate
the sewing machine when the ground wire of the power supply is removed.
10. In order to prevent accidents caused by electric shock and damage to
electrical parts, be sure to turn off the power switch before inserting or
unplugging the power plug.
11. In order to prevent accidents caused by damage of electrical parts, please
stop the operation for safety when it thunders and pull the power plug.
12. In order to prevent accidents caused by damage to electrical parts,
condensation will occur when moving from a cold place to a warm place
immediately, so please wait until the water drops dry before switching on the
power.
13. As this product is a precision machine, please pay full attention to it
during operation, do not splash water or oil on the machine, and do not let
the machine fall and give the machine impact.
This machine is A class A industrial machine. The use of this machine in the
home environment may cause the phenomenon of radio interference. At this point,
please take appropriate measures to solve the problem of radio interference.
15. After the power switch is turned off when the accumulator moves, the
accumulator lever moves, so please be careful not to clip your finger, etc.

4
16. When the power switch is turned off during the foot press action, please
be careful not to pinch your fingers.
17. During folding operation, please be careful not to clip the cylinder to
your finger when putting your finger into the folding machine.
* important safety information:
√ improper operation of the machine may cause personal injury. Please read this
instruction carefully and operate correctly before operation.
√Please ventilate the machine before it is officially powered on.
√ do not turn on the internal parts of the electric cabinet or touch screen
while the power is on.
√ this machine should be used after receiving training or under special
instruction to ensure the safety of the user.

5

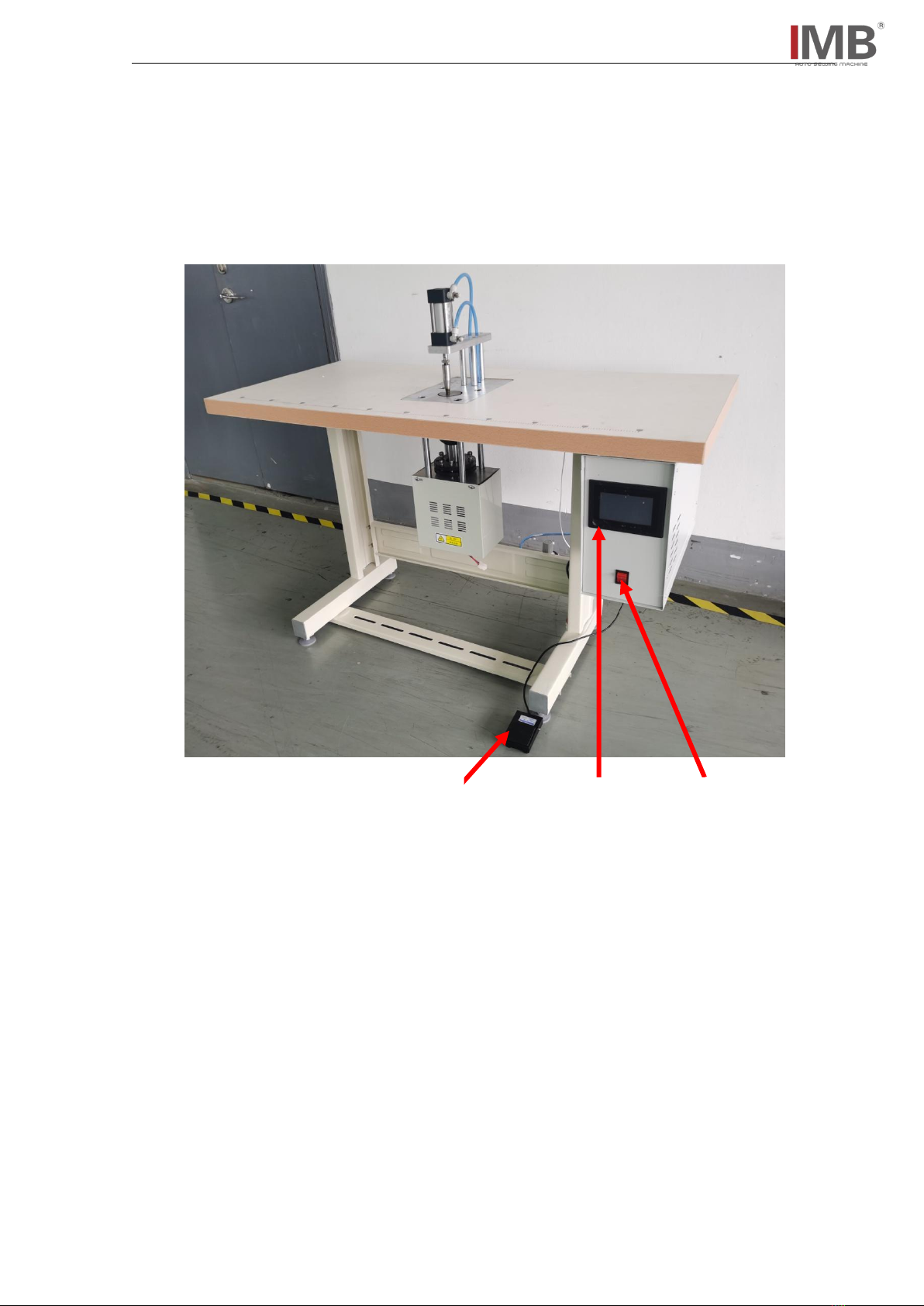

4、key function description
4.1. Function description of the button
（1）：Power switch: press the power button, the indicator light is on, and the device is
powered on
（2）：Touch screen ------------ see interface description for details
（3）：Pedal: press foot switch, machine welding action。
（3）
3
（2）
2
（1）

6
a：main interface
b：Debugging interface
c：Parameter setting interface

7
5、Operating instructions
5.1. Preparation before operation
√Clean the sundries on the machine table to ensure that there are no sundries hindering
the operation of the machine
√Check the pressure of the air pressure gauge to make it meet the use requirements of
the machine
5.2. Operation process description
5.2.1 Boot device
Press the power switch (1), the indicator light is on, and the device is powered on。
5.2.2 Place ear band
Manually place the ear strap and mask under the welding head。
Note: the hand cannot be placed in the working area where the welding head is pressed down。
5.2.3 Press pedal
Press the pedal (3), press down the ultrasonic welding head, and weld the ear band on
the mask。
5.2.4 Shutdown
After operation, press the power switch, the indicator light goes out, and the equipment
is powered off。

8
6、Debugging method
6.1 Frequency adjustment
In case of poor welding or replacement of the lower die, the ultrasonic frequency shall
be adjusted。
1）a main interface-----Press ---- Enter the password input interface（Default
password：0000)---- Enter the password and enter the B debugging interface；
2）First, select press when the power is 50%---- Auto search frequency
（Can be used above 19.55）；
3）After placing the welding ear belt and mask, step on the foot switch (3), press down
the welding head, and conduct ultrasonic welding；
In case of faulty welding，Press Increase the frequency properly, and step on
the foot welding again；
In case of penetration，press Reduce the frequency properly and step on the foot
welding again；
Repeat several times to get the best frequency and welding effect；
Press the return key after setting to return to the main interface。
6.2 Power adjustment
The recommended ultrasonic power is 60% - 100%；
If you need to adjust the ultrasonic power，Press Make appropriate addition
and subtraction；
Press ，Only ultrasonic wave generating action can determine whether the
power is appropriate according to the sound；
Press the return key after setting to return to the main interface。

9

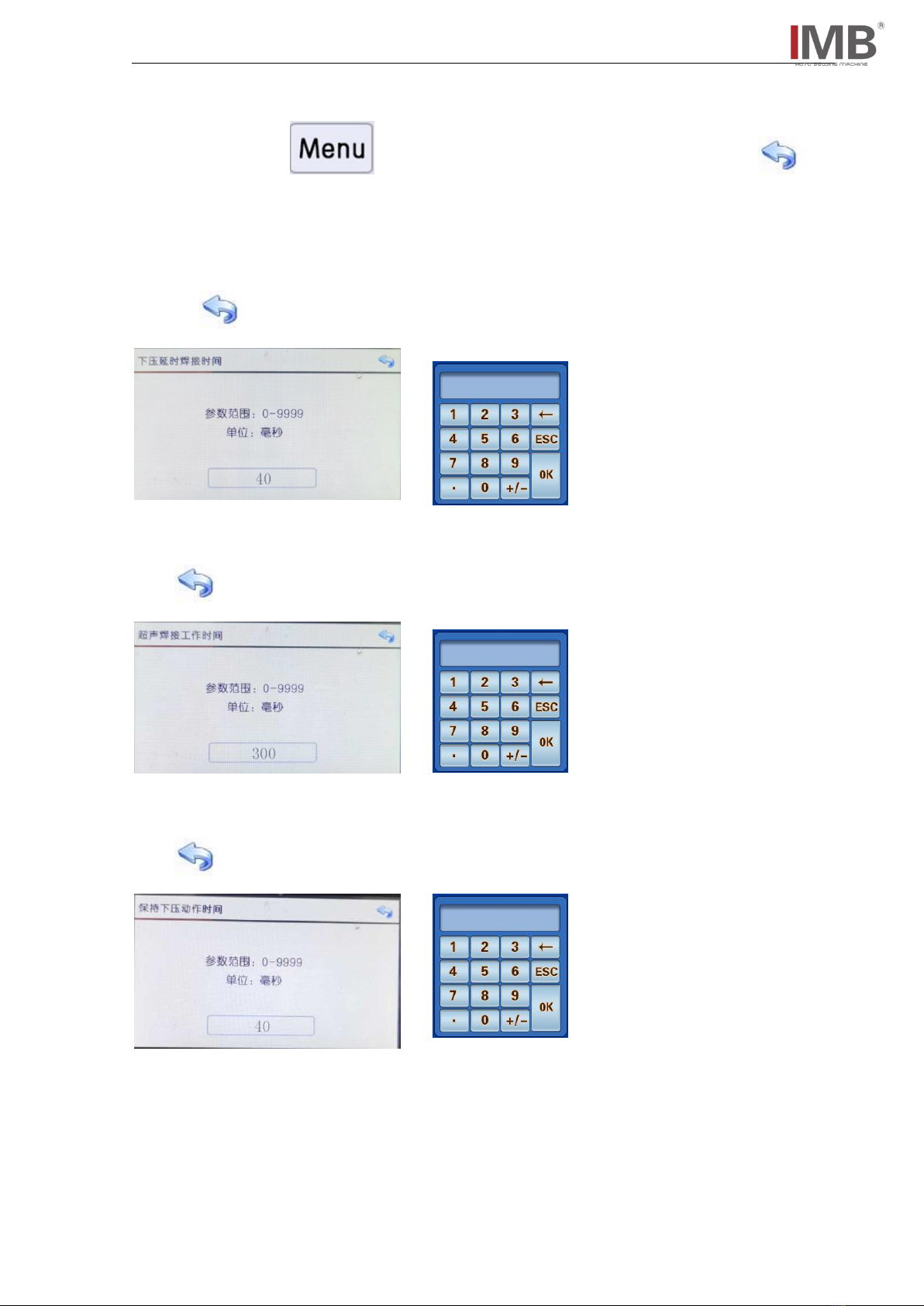

6.3 Introduction to parameter setting
Main interface press ，Enter the parameter setting interface c；（Press Can
return to the main interface）
P-11 Parameters do not need to be adjusted；
P-12 Delay welding time of pressing（The default parameter is 40）
Click P-12 to adjust the interface, input the value to be changed, and then press
OK,press Return to the previous interface。
P-13 Ultrasonic welding working time (default parameter is 300)
Click P-13 to adjust the interface and input the value to be changed，Press OK after input
press Return to the previous interface。
P-14 Holding down action time (default parameter is 40)
Click P-14 to adjust the interface and input the value to be changed，Press OK after input
press Return to the previous interface。
The above is the standard value, different products need to adjust the parameters。

10
7、Electrical wiring

11
8、Common problems and Solutions
8.1 Alarm interface
Abnormal current fault
Turn off the power switch in case of alarm ----- Turn on the power switch again
Alarm can be eliminated；
If the alarm still exists, please contact the manufacturer's after-sales service。

12
9、Daily maintenance requirements
9.1. See the following table for the list and requirements of equipment maintenance
NO
Project
Frequency
Solution
Daily
Weekly
Monthly
Half
year
1
Dust removal
√
Remove dust from equipment surface and
parts
2
Clean up oil
√
Clean the greasy dirt on the table board,
needle board and shuttle core
3
Air pipe
interface
√
The air pipe interface is tight without
air leakage
4
Electric
control panel
√
Cooling fan operates normally, clean
dust in time

13
10、Knowledge product protection statement
MB9016A Earloop Welting Machine was designed by Changzhou wisdom & valley Electric
Technology Co., Ltd.。The intellectual property rights of this achievement belong to
Changzhou wisdom & valley Electric Technology Co., Ltd. and are protected by national
intellectual property laws and regulations. Without the written permission of the right
holder, the patented technology of the achievement shall not be implemented, and the
information related to the achievement shall not be copied, sold or disseminated through
the network. For any illegal infringement, Changzhou wisdom & valley Electric Technology
Co., Ltd. will pursue its legal responsibility according to law
