ABB VD4 Series User manual
—
MEDIUM VOLTAGE PRODUCTS
VD4/R-VD4/L-VD4/R-SEC-VD4/L-SEC
Installation and operating instructions
12...24 kV - 630...1250 A - 12...25 kA
Table of Contents
I. Foreword 3
II. Environmental protection program 3
1. Packing and transport 4
2. Inspection on arrival 5
3. Storing 6
4. Handling 7
5. Description 8
6. Instructions for circuit breaker operation 21
7. Installation 23
8. Putting into service 26
9. Maintenance 27
10. Application of the X-ray emission Standards 30
11. Spare parts and accessories 31
12. Overall dimensions 32
13. Quality of the products and environmental
protection 39
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS2
—
For your safety!
• Make sure that the installation room (space,
divisions and environment) is suitable for the
electrical apparatus.
• Make sure that all the installation, putting into
service and maintenance operations are carried
out by skilled personnel with in-depth knowledge
of the equipment.
• Make sure that all the installation, service and
maintenance operations comply with the
standards and laws so as to ensure that the
installations are constructed in accordance with
the rules of good workmanship and safety in the
work place.
• Strictly comply with the instructions in this
manual.
• Make sure that the rated performance of the
apparatus is not exceeded during service.
• Make sure that the personnel are provided with
this manual and are aware of all the relevant
information while operating on the apparatus.
• Pay special attention to the information in the
manual highlighted by the following symbol:
Responsible behaviour safeguards your own
and others’ safety!
Please contact the ABB Assistance Service
for any further requirements.
MEDIUM VOLTAGE PRODUCTS 3
This publication contains the information required
for installing the following medium voltage circuit
breakers and putting them into service: VD4/R -
VD4/L - VD4/R-SEC and VD4/L-SEC, hereinafter
called VD4.
Please read the manual carefully to ensure that the
product is used correctly.
Similarly to all the apparatus we manufacture, the
VD4 circuitbreakers are also designed for
different installation configurations.
However, these devices can be subjected to
further technicalconstruction modifications (at
the customer’s request) so as to adapt them to
special installation requirements.
Consequently, the manual may not contain
instructions concerning special customized
configurations.
The VD4 circuit breakers are manufactured in
compliance with Standard ISO 14000
(Environmental management guidelines).
The manufacturing processes are implemented in
accordance with the environmental protection
—
I. Foreword
—
II. Environmental protection program
Besides this manual, it is therefore always
necessary to consult the latest technical
documentation (electric circuit and wiring
diagrams, assembly and installation drawings, any
protection coordination studies, etc.), especially
regarding any variants requested in relation to the
standard configurations.
Only use original spare parts for maintenance
operations.
Please also consult the technical catalogue of the
circuitbreaker and the spare parts catalogue for
further details.
standards when it comes to reducing both energy
consumption and the production of waste. All this
is thanks to the environmental management
system applied in the medium voltage apparatus
manufacturing facility.
All the installation, putting into service,
running and maintenance operations must
be carried out by suitably qualified
personnel with in-depth knowledge of the
apparatus.
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS4
—
1. Packing and transport
The circuit breaker is shipped in special packing,
in the open position and with the springs
discharged.
Each piece of apparatus is protected by a plastic
cover to prevent water from infiltrating during the
loading and unloading stages and to keep the
dust off during storage.
MEDIUM VOLTAGE PRODUCTS 5
—
2. Inspection on arrival
Upon arrival, check the condition of the
apparatus, that the packing is undamaged and
that the nameplate data (see fig. 1) correspond to
the information in the order confirmation and
shipping note. Also make sure that all the
materials described in the shipping note are
included in the supply. Should any damage or
irregularity be noted in the supply on unpacking,
notify ABB (directly or through the agent or
supplier) as soon as possible and in any case
within five days of receipt. The apparatus is only
supplied with the accessories specified at the
time of ordering and validated in the order
confirmation sent by ABB.
Before proceeding with any operation,
always make sure that the springs of the
operating mechanism are discharged and
that the apparatus is in the open position.
The following documents accompany the
apparatus when it is shipped:
instruction manual (this document)
test certificate
identification label
copy of the shipping documents
wiring diagram.
Other documents, sent prior to shipment of the
apparatus, are:
order confirmation
original shipping notification
any drawings or documents referring to special
configurations/ conditions.

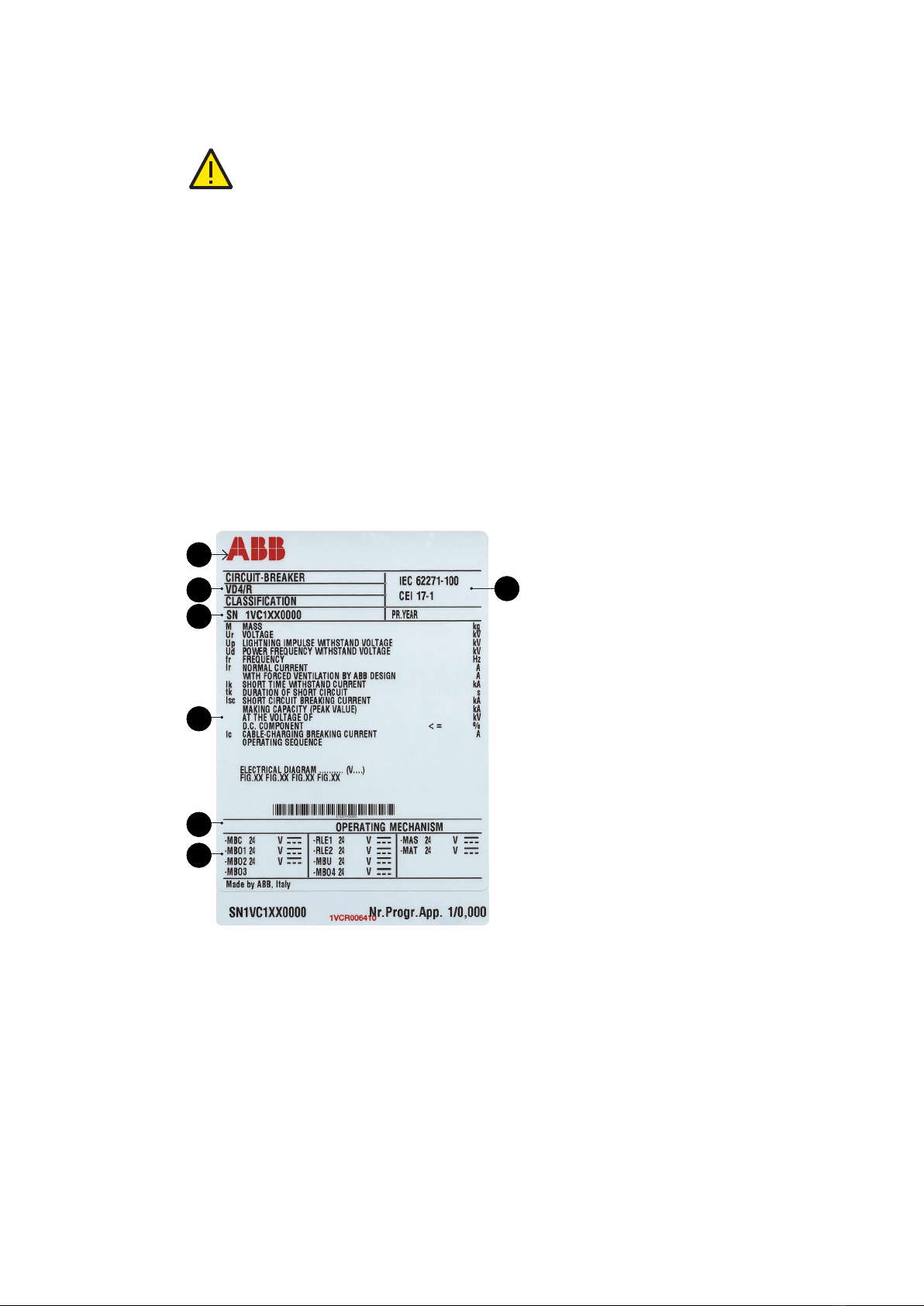

Key
A Circuit breaker rating plate
B Operating mechanism rating plate
1 Type of apparatus
2 Symbols indicating compliance with Standards
3 Serial number
4 Circuit breaker specifications
5 Characteristics of the operating mechanism auxiliaries
Figure 1
A
1
3
4
B
5
2
A
1
3
4
B
5
2
A
1
3
4
B
5
2
A
1
3
4
B
5
2
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS6
—
3. Storing
When the apparatus must be stored for a certain
period of time, our workshops can (on request)
provide suitable packing for the specified storage
conditions.
On arrival, the apparatus must be carefully
unpacked and checked as described in the
Checking on arrival section (chap. 2).
If the apparatus cannot be installed immediately,
it must be repacked in the original packing
materials.
Insert at least one standard packet of special
hygroscopic substance per piece of apparatus
inside the packing.
Should the original packing no longer be available
and the apparatus cannot be installed
immediately, it should be stored indoors in a well-
ventilated, dry, dust-free, noncorrosive
environment, well away from any easily flammable
materials and at a temperature between -5 °C and
+40 °C.
Avoid any accidental impact or positions which
stress the structure of the apparatus.
MEDIUM VOLTAGE PRODUCTS 7
—
4. Handling
Before proceeding with any operation, always
make sure that the springs of the operating
mechanism spring are discharged and that the
apparatus is in the open position.
When handling the apparatus, take great care to
prevent the insulating parts and the terminals of
the circuit breaker from being stressed.

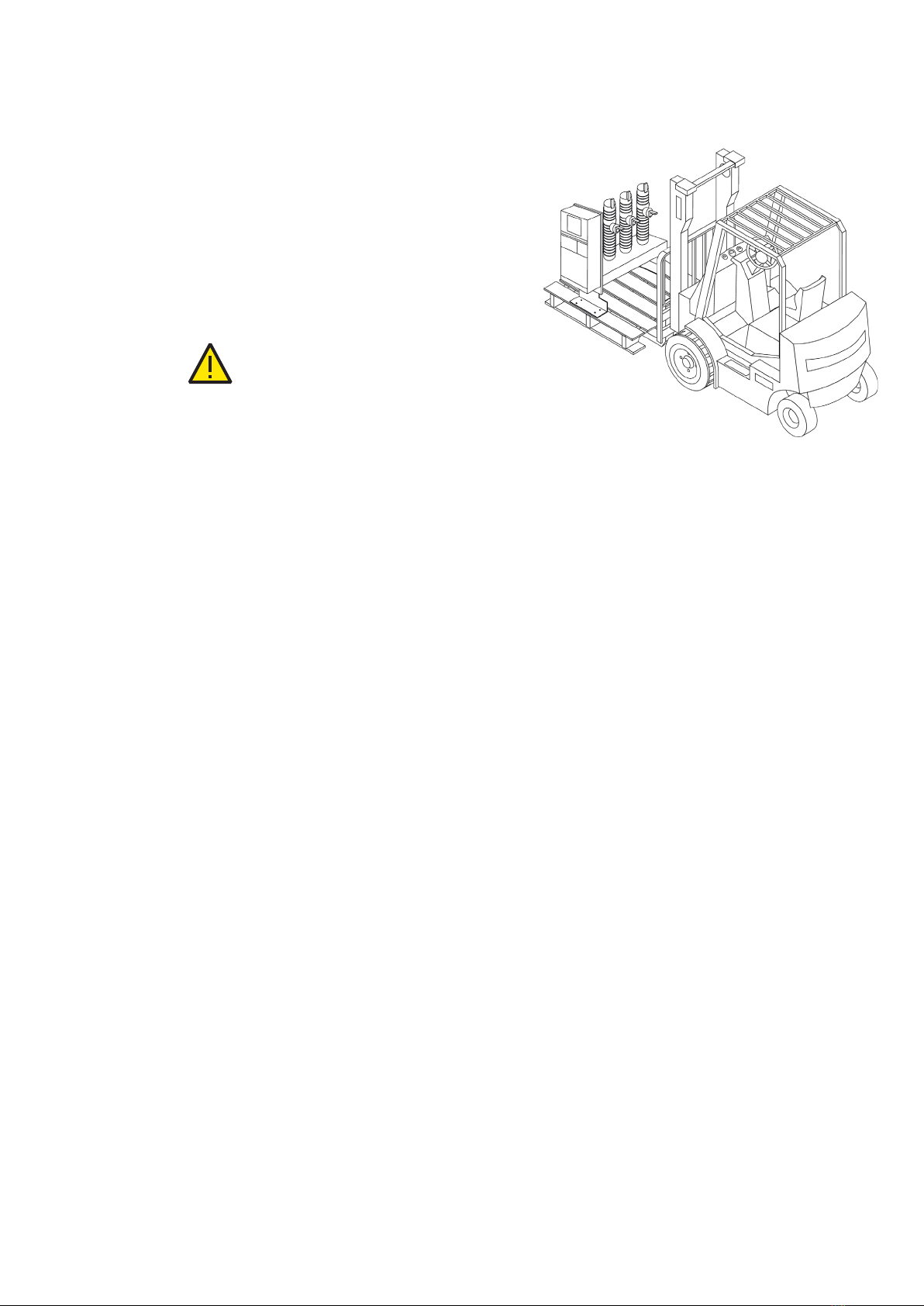

The apparatus must not be handled by
inserting lifting devices directly under the
apparatus itself. If this technique is
unavoidable, place the circuit breaker on a
pallet or a sturdy supporting surface (see
fig. 2). Figure 2
9
10
4 5
2 6
1
3
11
7
8
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS8
—
5. Description
5.1 General
VD4 series circuit breakers are devices under
vacuum for indoor installation. Please refer to the
corresponding technical catalogue code
1VCP000263 for the relative electrical
performance.
Please contact ABB for special installation
requirements.
VD4 series medium voltage vacuum circuit
breakers with lateral operating mechanism for
indoor installation feature the separate pole
construction technique.
Each pole houses a vacuum interrupter which is
encased in the resin when the cylinder is moulded
thanks to a special manufacturing process.
This construction method protects the vacuum
interrupter from shock, pollution and
condensation.
The operating mechanism is the EL trip-free
stored energy type with independent opening and
closing regardless of the operator’s action. The EL
operating mechanism is widely used in all VD4
series circuit breakers with frontal control.
The circuit breaker can be remote controlled when
fitted with dedicated electrical accessories
(gearmotor, opening and closing release).
The operating mechanism, the three poles and the
current sensors (if provided) are installed on a
metal frame without wheels.
The construction is particularly compact, sturdy
and of limited weight.
VD4 series circuit breakers with lateral operating
mechanisms are life-long sealed pressure devices
(Standards IEC 62271- 100 and CEI-EN 62271-100).
Additionally, VD4 series circuit breakers have been
type tested for low temperature and marine
applications (Germanischer Lloyd).
Figure 3
Key
1 Lever for loading the closing springs in
the manual mode
2 Circuit breaker open/closed indicator
3 Rating plate
4 Opening pushbutton
5 Closing pushbutton
6 Signalling device for closing springs
loaded/discharged
7 Operation counter
8 Terminals
9 Earthing screw
10 Delivery terminal box
11 Key lock (circuit breaker open) (*)
(*) Warning! To activate the key lock: open
the circuit breaker, keep the opening
pushbutton depressed, then turn the key
and remove it from the housing.
MEDIUM VOLTAGE PRODUCTS 9
5.1.1 Available versions
VD4 circuit breakers with lateral operating
mechanism are available in the following versions:
fixed, with rh lateral operating mechanism and
230 mm pole center-distance
fixed, with lh lateral operating mechanism and
230 mm pole center-distance
fixed, with rh lateral operating mechanism and
300 mm pole center-distance
fixed, with lh lateral operating mechanism and
300 mm pole center-distance
removable, with rh lateral operating mechanism,
version for UniSec switchgear, 230 mm pole
center-distance
removable, with lh lateral operating mechanism,
version for UniSec switchgear, 230 mm pole
center-distance.
Depending on the version, they can be equipped
on request with two or three current sensors and
with a REF 601 series device for protection
against overcurrents.
5.2 Reference Standards
The VD4 circuit breakers conform to standards IEC
62271- 100, CEI-EN 62271-100 and those of the
major industrialized countries.
5.3 Fixed circuit breakers
The fixed circuit breaker (fig. 4) is the basic
version complete with structure and front
protection shield. There are two drilled supports
in the lower part of the structure to allow the
circuitbreaker to be fixed.
The terminal box (10) is available for the electrical
connections of the circuit breaker’s auxiliary
circuits.
The earthing screw is located in the rear part of
the circuitbreaker. See the key to figure 4 for
further details.
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS10
—
5. Product description
5.3.1 General specifications of fixed circuit breakers with rh lateral operating mechanisms (12 - 17.5 - 24 kV)
Circuit breaker VD4/R12 VD4/R17 VD4/R24
Standards
Rated voltage Ur [kV]
Rated insulation voltage Us [kV]
Impulse withstand voltage Up [kV]
Rated frequency fr [Hz]
Ir [A]
Rated duty breaking capacity
(symmetrical rated short-circuit current)
Isc [kA] – – – – – –
– –
Ik [kA] – – – – – –
– – )
Making capacity Ip [kA] – – – – – –
– –
Sequence of operations
Opening time [ms]
Arcing time [ms]
Total break-time [ms]
Closing time [ms]
Overall dimensions
(maximum)
H [mm]
W [mm]
D [mm] ) ))
Pole center-distance P [mm]
Weight () [kg] )) )
) ) ) )
Standardized dimensions table )))
)))
Wiring diagram without protection
device installed
Operating temperature [°C] ) ) )
Tropicalization
Electromagnetic compatibility
(1) 230 mm pole center-distance
(2) 300 mm pole center-distance
(3) increase the indicated weight by 20 kg for circuit breakers with REF 601 devices and 3 current sensors
(4) the rated current of the REF 601 device must be set in the relay in accordance with the circuit breaker’s rated current
(5) “IEC” or “CEI 0-16” version. If the “CEI 0-16” is required, the circuit breaker is always supplied with 3 phase current sensors (Rogowsky coils) installed on the actual circuit breaker and with a
loose toroidal TA. In the “CEI 0-16” version, the REF 601 device opens the circuit breaker by means of the undervoltage release -MU
(6) for operating temperature up to -25 °C and storage temperature up to -40 °C, please ask ABB
(7) rated short-time withstand current 25 kA x 2 s
H
WD
MEDIUM VOLTAGE PRODUCTS 11
5.3.2 General specifications of fixed circuit breakers with lh lateral operating mechanisms (12 - 17.5 - 24 kV)
Circuit breaker VD4/L12 VD4/L17 VD4/L24
Standards
Rated voltage Ur [kV]
Rated insulation voltage Us [kV]
Impulse withstand voltage Up [kV]
Rated frequency fr [Hz]
Ir [A]
Rated duty breaking capacity
(symmetrical rated short-circuit current)
Isc [kA] – – – – – –
– – –
Ik [kA] – – – – – –
– – –
Making capacity Ip [kA] – – – – – –
– – –
Sequence of operations
Opening time [ms]
Arcing time [ms]
Total break-time [ms]
Closing time [ms]
Overall dimensions
(maximum)
H [mm]
W [mm]
D [mm] )))
Pole center-distance P [mm]
Weight () [kg] ) ) )
) ) ) )
Standardized dimensions table ) ) )
) ) )
Wiring diagram without protection
device installed
Operating temperature [°C] ) ) )
Tropicalization
Electromagnetic compatibility
(1) 230 mm pole center-distance
(2) 300 mm pole center-distance
(3) increase the indicated weight by 20 kg for circuit breakers with REF 601 devices and 3 current sensors
(4) the rated current of the REF 601 device must be set in the relay in accordance with the circuit breaker’s rated current
(5) “IEC” or “CEI 0-16” version. If the “CEI 0-16” is required, the circuit breaker is always supplied with 3 phase current sensors (Rogowsky coils) installed on the actual circuit breaker and with a
loose toroidal TA. In the “CEI 0-16” version, the REF 601 device opens the circuit breaker by means of the undervoltage release -MU
(6) for operating temperature up to -25 °C and storage temperature up to -40 °C, please ask ABB
H
W
D
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS12
—
5. Product description
5.3.3 General specifications of fixed circuit breakers with rh lateral operating mechanisms for ABB UniSec witchgear (12-17.5-24 kV)
Circuit breaker VD4/R-SEC12 VD4/R-SEC17 VD4/R-SEC24
Standards
Rated voltage Ur [kV]
Rated insulation voltage Us [kV]
))
Impulse withstand voltage Up [kV]
Rated frequency fr [Hz]
Ir [A]
Rated duty breaking capacity
(symmetrical rated short-circuit current)
Isc [kA] –
–
)) –
– – –
Ik [kA] –
–
)) –
)) ) – – ) – )
Making capacity Ip [kA] –
–
–
– – – –
Sequence of operations
Opening time [ms]
Arcing time [ms]
Total break-time [ms]
Closing time [ms]
Overall dimensions
(maximum)
H [mm]
W [mm]
D [mm]
Pole center-distance P [mm]
Weight () [kg]
) ) ) )
Standardized dimensions table
Wiring diagram
Operating temperature [°C] ) ) )
Tropicalization
Electromagnetic compatibility
(1) for 12.08.20 and 17.08.20, versions with withstand voltage up to 42 kV are available
(2) rated duty breaking capacity 21 kA at 17.5 kV. Rated short-time withstand current 21 kA x 3 s
(3) rated short-time withstand current 25 kA x 2 s
(4) increase the indicated weight by 20 kg for circuit breakers with REF 601 devices and 3 current sensors
(5) “IEC” or “CEI 0-16” version. If the “CEI 0-16” is required, the circuit breaker is always supplied with 3 phase current sensors (Rogowsky coils) installed on the actual circuit breaker and with a
loose toroidal TA. In the “CEI 0-16” version, the REF 601 device opens the circuit breaker by means of the undervoltage release -MU
(6) the rated current of the REF 601 device must be set in the relay in accordance with the circuit breaker’s rated current
(7) for 12.08.20 and 17.08.20, 24.12.20, 17.12.25 and 24.12.25, versions with operating temperature up to -25 °C and storage temperature up to -40 °C are available
H
W
D
MEDIUM VOLTAGE PRODUCTS 13
5.3.4 General specifications of fixed circuit breakers with lh lateral operating mechanisms for ABB UniSec switchgear (12-17.5-24 kV)
(1) for 12.08.20 and 17.08.20, versions with withstand voltage up to 42 kV are available
(2) rated duty breaking capacity 21 kA at 17.5 kV. Rated short-time withstand current 21 kA x 3 s
(3) rated short-time withstand current 25 kA x 2 s
(4) increase the indicated weight by 20 kg for circuit breakers with REF 601 devices and 3 current sensors
(5) “IEC” or “CEI 0-16” version. If the “CEI 0-16” is required, the circuit breaker is always supplied with 3 phase current sensors (Rogowsky coils) installed on the actual circuit breaker and with a
loose toroidal TA. In the “CEI 0-16” version, the REF 601 device opens the circuit breaker by means of the undervoltage release -MU
(6) the rated current of the REF 601 device must be set in the relay in accordance with the circuit breaker’s rated current
(7) for 12.08.20 and 17.08.20, versions with operating temperature up to -25 °C and storage temperature up to -40 °C are available
Circuit breaker VD4/L-SEC12 VD4/L-SEC17 VD4/L-SEC24
Standards
Rated voltage Ur [kV]
Rated insulation voltage Us [kV]
))
Impulse withstand voltage Up [kV]
Rated frequency fr [Hz]
Ir [A]
Rated duty breaking capacity
(symmetrical rated short-circuit current)
Isc [kA] – –
– –
)) – –
– – – –
Ik [kA] – –
– –
)) – –
)) ) – – ) – –
Making capacity Ip [kA] – –
– –
– –
– – – –
Sequence of operations
Opening time [ms]
Arcing time [ms]
Total break-time [ms]
Closing time [ms]
Overall dimensions
(maximum)
H [mm]
W [mm]
D [mm]
Pole center-distance P [mm]
Weight () [kg]
) ) ) )
Standardized dimensions table
Wiring diagram
Operating temperature [°C] ) ) )
Tropicalization
Electromagnetic compatibility
H
W
D
5
6
2
3
4
1
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS14
—
5. Product description
5.4 Standard equipment
5.4.1 VD4/R fixed circuit breakers with rh lateral
operating mechanisms (230 or 300 mm
distance between centers) and VD4/L fixed
circuit breakers with lh lateral operating
mechanisms (230 or 300 mm distance
between centers)
The coded basic version of the fixed circuit
breakers is always the three-pole type and comes
equipped with:
1 opening pushbutton
2 closing pushbutton
3 operation counter
4 circuit breaker open/closed indicator
5 lever for loading the springs in the manual
mode (built into the operating mechanism)
6 indicator for closing springs loaded/relieved.
The basic wiring ends in the terminal box. This
latter is equipped with a withdrawable part that
allows the customer to create a disconnectable
connection (see pictures).
The basic version also includes the following
accessories to be specified at the time of
ordering:
Kit 1 set of five opened/closed auxiliary contacts
or alternatively, with a surcharge, ten or
fifteen auxiliary contacts.
Each shunt opening device uses an NO
auxiliary contact to shut off its power supply
after the circuit breaker has been opened.
This means that there is one NO auxiliary
contact less for every opening release
installed.
Kit 2 opening release
Kit 3 key lock.
Figure 5a
Figure 4
Figure 5b Figure 5c
MEDIUM VOLTAGE PRODUCTS 15
5.4.2 Circuit breakers for UniSec switchgear with
rh or lh lateral operating mechanisms
(230 mm distance between centers)
The coded basic version of the circuit breakers for
UniSec switchgear is the same as that of the fixed
circuit breakers, with the following specific
exceptions and equipment:
the dustproof enclosure of the operating
mechanism is equipped with a specific side
frame for the UniSec switchgear
the base is equipped with wheels to make the
switchgear easier to move and rack-in to the
compartment
the wiring ends at the terminal box equipped
with a withdrawable part and can be accessed
without removing the operating mechanism’s
dustproof enclosure. The terminal box is actually
situated at the front and projects over the upper
edge of the enclosure
the front enclosure has a transparent sliding
shutter over the mechanical indicators, the
operating pushbuttons and the hand lever that
loads the closing spring. This protection
prevents hot gas from escaping if an arc forms
in the UniSec circuit breaker compartment. On
request, this shutter can be equipped with a
padlock to prevent it from sliding and thus
inhibit the opening and closing buttons from
being used
9 auxiliary contacts are available on request,
with a surcharge, as an alternative. Since each
shunt opening device uses an NO auxiliary
contact to shut off its power supply after having
opened the circuit breaker, there is an
unavailable NO auxiliary contact for every
opening release installed
on request, this version can be supplied with
just the REF 601 protection device.
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS16
5.5 Available types
5.5.1 VD4/R 12-17-24 rh lateral operating mechanism
U [kV] In [A] Isc [kA] Description Pole center distance Wiring diagram
without relay
—
5. Product description
MEDIUM VOLTAGE PRODUCTS 17
5.5.2 VD4/L 12-17-24 lh lateral operating mechanism
U [kV] In [A] Isc [kA] Description Pole center distance Wiring diagram
without relay
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS18
5.5.3 VD4/R-SEC 12-17-24 rh lateral operating mechanism, version for UniSec switchgear
U [kV] In [A] Isc [kA] Description
Pole center distance
Wiring diagram
without relay
—
5. Product description
MEDIUM VOLTAGE PRODUCTS 19
5.5.4 VD4/L-SEC 12-17-24 lh lateral operating mechanism, version for UniSec switchgear
U [kV] In [A] Isc [kA] Description
Pole center distance
Wiring diagram
without relay
VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS20
5.6 Characteristics of the electrical accessories
—
5. Product description
Shunt opening release (-M01); Additional shunt
opening release (-M02); Shunt closing release (-MC)
Electronic time delay device for undervoltage
release (installed outside the circuit breaker)
Auxiliary contacts of the circuit breaker
Rated current and breaking capacity in class
AC11 and DC11
Summary of the total quantity of auxiliary contacts available(*)
Undervoltage release (-MU)
Motor operator (-MS)
Un
Un
Operating limits
Power on inrush (Ps)
Inrush time
Holding power (Pc)
Opening time
Closing time
Insulation voltage
Un
Un
Adjustable opening time
(release + time-lag device)
Un
Rated current
Insulation voltage
Electrical resistance
Un
Un
Operating limits:
– circuit breaker opening
– circuit breaker closing
Power on inrush (Ps)
Inrush time
Holding power (Pc)
Opening time
Insulation voltage
Specifications
Un
Un
Operating limits
Power on inrush (Ps)
Rated power (Pn)
Inrush time
Loading time
Insulation voltage
Un CosϕT In Icu
Total quantity
Standard equipment Alternative available on
request. This is the obligatory
(the additional opening
release) is also required
Alternative not available Alternative available
on request
Standard equipment Alternative available on
contacts
Alternative not available As above
(*) Each opening release required uses an auxiliary contact to shut off its power supply after having opened the circuit breaker. Thus the number of auxiliary
contacts really available diminishes in the same way as the number of opening releases installed.
Other manuals for VD4 Series
11
This manual suits for next models
4
Table of contents
Other ABB Industrial Equipment manuals
Popular Industrial Equipment manuals by other brands
Mitsubishi Electric
Mitsubishi Electric RH-3FH Series instruction manual
Leibinger
Leibinger JET3 Service manual
Mitsubishi Electric
Mitsubishi Electric MELDAS MDS-B Series instruction manual
Festo
Festo YXCA operating instructions
S&C
S&C Vista SD 101 instruction sheet
SMC Networks
SMC Networks LEHR Series Operation manual
