ABCORE WAB-400 User manual

ABCORE FITNESS,Inc. Corporate Office
20 Progress Street, East Stroudsburg, PA 18301
Tel. [phone]．Toll Free [phone]
www.fitnessabcore.com
OWNER'S MANUALWAB-400

ASSEMBLY INSTRUCTIONS
Page
WAB-400
HARDWARE ILLUSTRATION
1.1
(A1)HEX BOLT 1/2'X3-1/2"L PARTIAL QTY.2
(A2)HEX BOLT 3/8"'X3"L PARTIAL QTY.8
WAB400-012007
(A3)HEX BOLT 5/16"X2-3/4"L PARTIAL QTY.2
(A4)HEX BOLT 5/16"X1"L PARTIAL QTY.4
2
13456
(A5)ROUND CROSS SCREW M5X10L PARTIAL QTY.2

ASSEMBLY INSTRUCTIONS
Page
WAB-400
HARDWARE ILLUSTRATION
1.2
WAB400-012007
2
13456
(B1)NYLON LOCK NUT1/2" QTY.2
(B2)NYLON LOCK NUT3/8" QTY.8
(B3)DOMED CAP NUT1/2" QTY.4
(C1)1/2"(I.D)FLAT WASHER Ø34 QTY.4
(C2)3/8"(I.D)FLAT WASHER Ø27 QTY.16
(C3)5/16"(I.D)FLAT WASHER Ø24 QTY.6
(C4)M5(I.D)FLAT WASHER Ø12 QTY.2
(C5)Ø29XØ16X2t FLAT WASHER QTY.6
(C6)SPRING WASHER 5/16" QTY.6

ASSEMBLY INSTRUCTIONS
Page
WAB-400
HARDWARE ILLUSTRATION
2
WAB400-012007

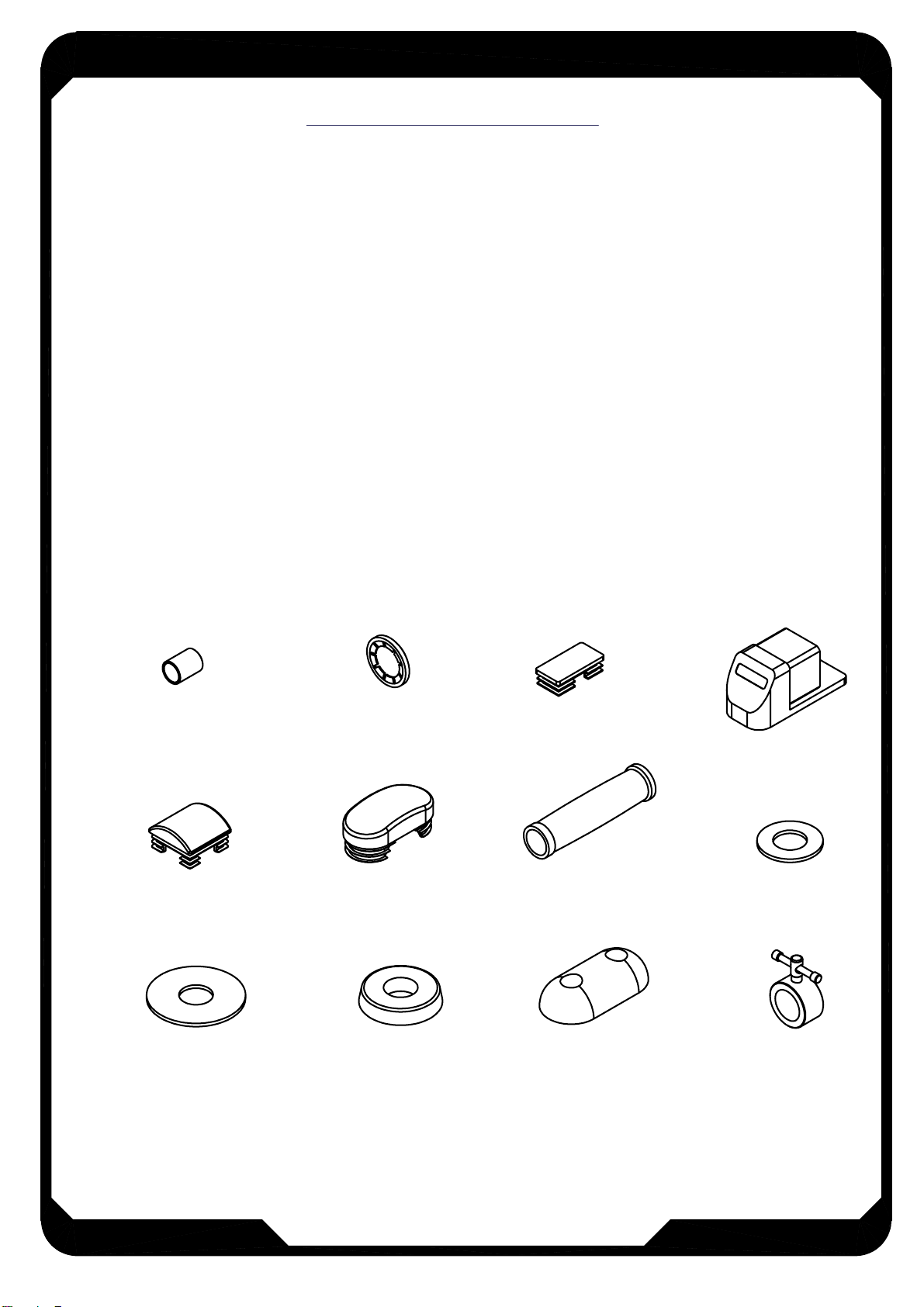

D1. Ø3/4"XØ15.8X25L STEEL BUSHING (8110-072)
D2. Ø1" ROUND END CAP (8341-033)
D3. 1"X2" END CAP(9211-009)
D4. 50mmX50mmX1.8t END CAP(9211-082)
D5. 45mmX45mmX1.8t END CAP(9211-091)
D6. 40X80X2tX35H END CAP(9211-113)
D7. Ø1"X135L RUBBER GRIP(9212-055)
D8. 2" NYLON WASHER (9214-001)
D9. 3" NYLON WASHER (9214-008)
D10. Ø2-1/2"X1/2"tX26 RUBBER DOUNT(9310-011)
D11. Ø58X116X29t RUBBER DOUNT(9310-057)
D12. Ø1" SHAFT COLLAT(RC-07T)
D1. D2. D3. D4.
D5. D6. D7. D8.
D9. D10. D11. D12.
--------------------------[2PCS]
---------------------------------------------[2PCS]
-------------------------------------------------------[6PCS]
-------------------------------------[4PCS]
-------------------------------------[1PCS]
------------------------------------------[2PCS]
------------------------------------------[2PCS]
------------------------------------------------[4PCS]
------------------------------------------------[2PCS]
---------------------------[1PCS]
-------------------------------[1PCS]
-------------------------------------------------[1PCS]

ASSEMBLY INSTRUCTIONS
Page
WAB-400
3
WAB400-012007
PARTS ILLUSTRATION SHEET
A[2PCS] B[1PCS] C[1PCS]
D[1PCS] E[1PCS] F[1PCS]
G[1PCS] H[1PCS]
I[1PCS] 6650-001

ASSEMBLY INSTRUCTIONS
Page
WAB-400
4
WAB400-012007
PARTS ILLUSTRATION SHEET
J[1PCS]
6660-001 K[1PCS] 6630-001
L[1PCS]
6640-004
M[1PCS]
8220-079 N[1PCS] 8220-079 O[2PCS] 8312-090
P[1PCS]
n25.4X2.5tX420L
108
n
15
Q[2PCS]
8210-100
n
15
80
R[2PCS]
8210-101
S[1PCS]
280217 T[1PCS]
9121-059 U[1PCS] 9111-062

ASSEMBLY INSTRUCTIONS
Page
WAB-400
5
WAB400-012007
PARTS ILLUSTRATION SHEET
V[1PCS]
9161-049 W[2PCS] 9161-052

ASSEMBLY INSTRUCTIONS
Page
WAB-400
6
WAB400-012007
Above shows STEP 1
assembled and completed
Warning Labels
A
A
OC2X2
A2X2
C
D4X4
O
C2X2
A2X2
C2X2 B2X2
B2X2
C2X2
D6
D6

ASSEMBLY INSTRUCTIONS
Page
WAB-400
7
WAB400-012007
Above shows STEP 2
assembled and completed
R
C5
G
B3
Q
C5
C5
D1
B3

ASSEMBLY INSTRUCTIONS
Page
WAB-400
8
WAB400-012007
Above shows STEP 3
assembled and completed
B
D11 A2X2
C2X2
A1X2 C1X2
D
B1X2
C1X2
FLAT ALLEN HEAD M12X15L X2
D3
C2X2
B2X2

ASSEMBLY INSTRUCTIONS
Page
WAB-400
9
WAB400-012007
Above shows STEP 4
assembled and completed
F
C5
D1
B3
C5
R
B3
Q
C5

ASSEMBLY INSTRUCTIONS
Page
WAB-400
10
WAB400-012007
Above shows STEP 5
assembled and completed
K
ROUND INNER HEAD M8X16L
M8 WASHER
M8 WASHER
ROUND INNER HEAD M8X16L

ASSEMBLY INSTRUCTIONS
Page
WAB-400
11
WAB400-012007
Above shows STEP 6
assembled and completed
D12
D10
M
D3
D3
H
D7X2
D9
LV
D9 E
C2X2
A2X2
ROUND INNER HEAD M8X16L
M8 WASHER B2X2
C2X2
ROUND INNER HEAD M8X16L
M8 WASHER
3/8"X2-3/4"L HEX BOLT
3/8" WASHER
1/2" WASHER
1/2"X1"L HEX BOLT

ASSEMBLY INSTRUCTIONS
Page
WAB-400
12
WAB400-012007
Above shows STEP 7
assembled and completed
step 1.
step 2.
1
21/2" WASHER
1/2"X3/4"L HEX BOLT
J
S3/8" WASHER Ø27
3/8" LOCK NUT

ASSEMBLY INSTRUCTIONS
Page
WAB-400
13
WAB400-012007
Above shows STEP 8
assembled and completed
D3
I
A4X4
D3
D5
T
C6X4
C3X4
5/16"X1/2"L ROUND BOLT
5/16" SPRING WASHER

ASSEMBLY INSTRUCTIONS
Page
WAB-400
14
WAB400-012007
Above shows STEP 9
assembled and completed
5/16"X1/2"L ROUND BOLT
5/16" SPRING WASHER
P
D8X2
WX2 D8X2
D2X2
N
U
A5C4
A5 C4
A3
C6
C3
A3
C6
C3
