Abexo ELIOX User manual

is a trademark of
AB Tecno srl
Via Cicogna, 95
40068 S. Lazzaro di Savena (BO)
www.abexo.tech

2
OLMAX
n.6 n.5
n.13 n.10

Batterie
asgm/Barriere
Schlüssel/3419
sb900/solar
Platte/004
sb/802 (optional)
sb/803 (optional)


¡¢
£¤
¥

¦¡¡¡¢
§¨
¦¡¡£¤
¦

¡£¤¢¤¥
¨
§¨

©ª
¦©ª
¦©ª©ª¨¨
©ª©ª
©ª©ª
¨©ª
«

«¡¡¦¡§

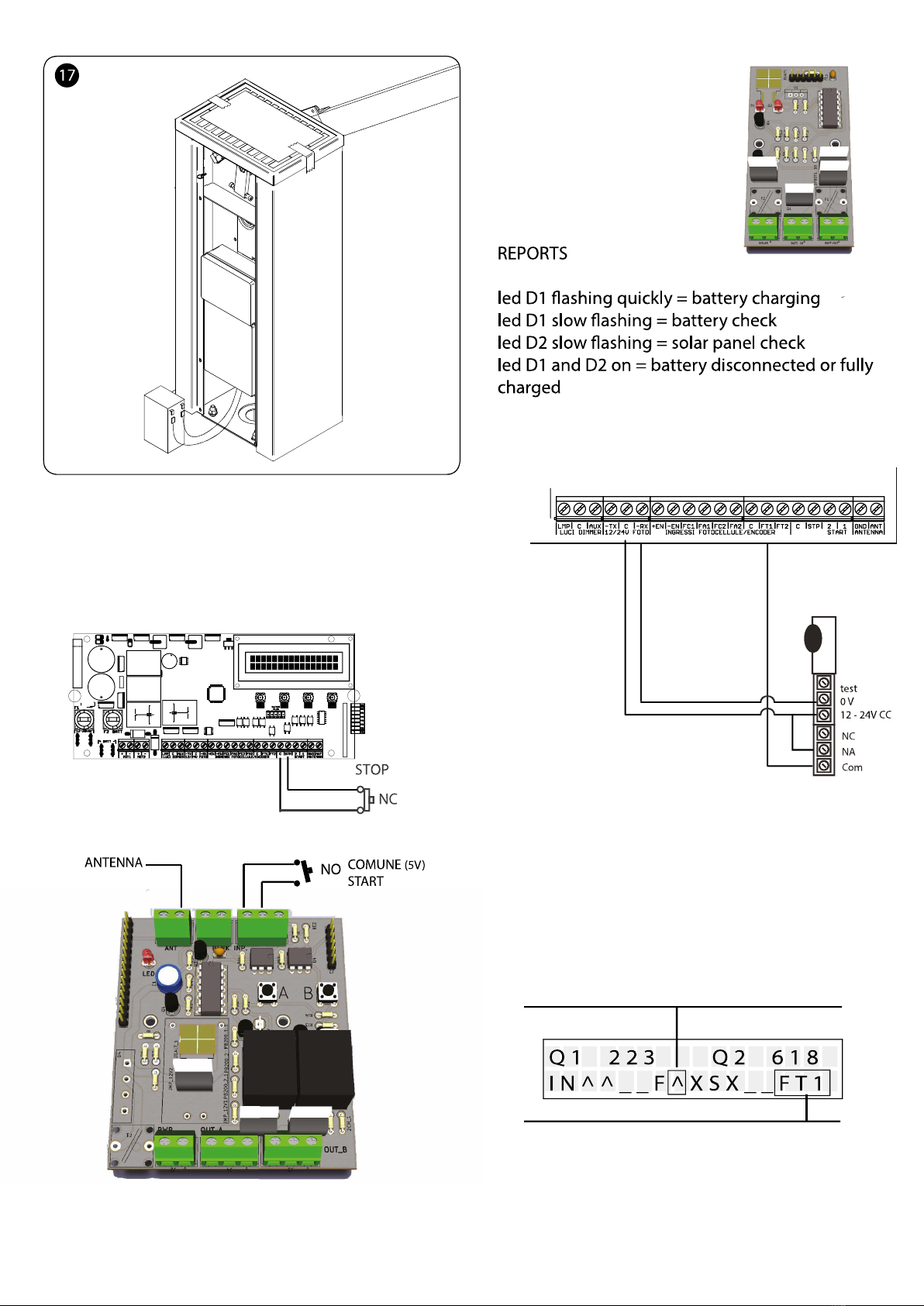

Solar charger check
Battery connection
CN3-BT CONTROL UNIT
D4
R18
P2 4P3PP1
IC17
IC5
If the photocell is not perfectly centered or sees an obstacle
then the FT1 error appears on the display when you try to
carry out a closing maneuver.
Reflex photocell
Connect the battery to the 2 cables that come our of the box.
Connect the red cable to the red terminal [+]
Connect the black cable to the black terminal [-]
Wiring accessories
After connecting the reflex photocell to the
control unit, the polarized mirror must be instal-
led on the opposite side from the barrier.
To check that the mirror is positioned correctly,
use the procedure in par. 5.6.
Check that in the second line of the control unit
display, the FT1 input marker is high ^ when there
are no obstacles and becomes low _ when there
are obstacles in front of the photocell.

¡§
¥¡
¡§
¥
¥
¦
¡
¥
« ¬ ®
©ª
¦
©¯ª©£«ª
©ª£¡¦°
©ª
©ª
¦¦
©ª¡§
¦
¦±
©ª¦
Limit switch C1/Encoder 1
Limit switch A1/Encoder 2
Limit switch C2
Limit switch A2
Photocell 1
Photocell 2
Stop command
Start 1 command
Start 2 command

Contact: closed
Contact: open
Contact: deactivated
(see Par. 9)
ERROR
OK: no error
STP: stop
OPN: OPEN command entered
FT1: photocell 1
FT2: photocell 2
OC1: obstacle current - motor 1
OC2: obstacle current - motor 2
OE1: obstacle - encoder motor 1
OE2: obstacle - encoder motor 2
DR1: overcurrent - motor 1
DR2: overcurrent - motor 2
ZC1: No current motor 1
ZC2: No current motor 2
VOW: tension - too low
Limit switch C1/Encoder 1
Limit switch A1/Encoder 2
Limit switch C2
Limit switch A2
Photocell 1
Photocell 2
Stop command
Start 1 command
Start 2 command
Q1: position motor 1
Q2: position motor 2

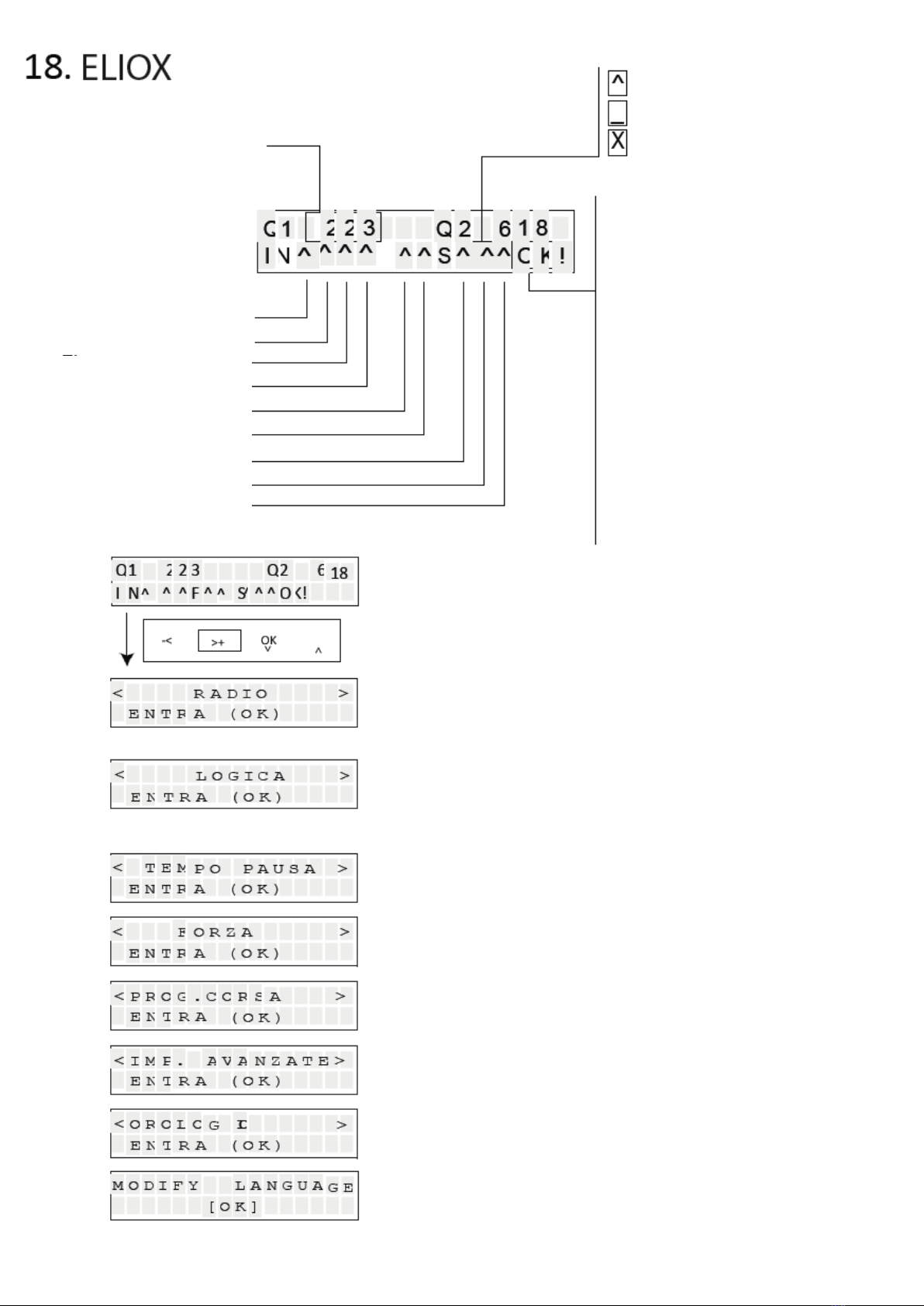

18.1 MENU “STATUS”
Press button >+ to change menu and go to the
following one
Press OK and select the chosen logic
Press OK and then press the button of the transmitter you want
to program (do not program a transmitter on solar automations!)
Press OK and select the time that the gate must remain open,
with AUTOMATIC or CONDOMINIUM logic.
Press OK and select the force of the gate
Press OK and enter the throttle programming procedure
(the kit are already programmed)
Press OK and enter the password (ask it by calling us or by email)
to enter the advanced menu (see par. 2)
Press OK to change the time (see par. 13)
Press OK to change the language

²«¦¦
£¦
¦¥¦¦¦
¦¦
¦
«¦¦
¦
¦
¦¦
«¤¡¦£¦
¦¦
¦¢
¢
¦¦
«¦
¦
¦
¦¦
«¤¡¦£¦
¦¦
¢
¦¦
¡¦¤
¡¨
¨

16. GENERAL SAFETY
This installation manual is intended for qualified personnel.
The installation, electrical connections and adjustments must be
made in compliance with the following European Directives:
2004/108/EC, 2006/95/EC and subsequent amendments.
Read the instructions carefully before starting the installation.
Incorrect installation can be a source of danger.
The packaging materials (plastic, polystyrene, etc..) should not be
disposed of properly and should not be left within reach of
children as they are potential sources of danger.
Before starting the installation, check the integrity of the product.
Do not install the product in explosive areas and atmospheres:
presence of flammable gases or fumes are a serious safety hazard.
Before installing the motors, make all structural changes relating
to construction safety clearances and protection or segregation of
all areas of crushing, shearing, trapping and general danger.
Verify that the existing structure has the necessary strength and
stability.
The motor manufacturer is not responsible for the workmanship
in the construction of frames to be motorized or for any deforma-
tion occurring during use.
The safety devices (photocells, safety edges, emergency stops,
etc..) must be installed taking into account: applicable laws and
directives in force, Good Working Methods, installation environ-
ment, the logic of the system and the forces developed by the
motorized door or gate.
The safety devices must protect any areas of crushing, shearing,
trapping and general danger of the door or gate.
The signs required by law to identify danger areas.
Each installation must clearly show the identification details of the
motorized door or gate.
Before connecting the power supply, make sure the data plate
correspond to those of the electricity distribution network.
Install on the power supply, if necessary, a switch / isolating switch
with a contact opening distance equal to or greater than 3 mm.
Check that upstream of the electrical system there is a differential
switch and a suitable circuit breaker.
When prompted, connect the motorized door or gate to an
effective system of earth terminal in accordance with applicable
safety standards.
While performing installation, maintenance and repair, interrupt
the power supply before opening the cover to access the electrical
parts.
The electronic parts must be done by arranging grounded antista-
tic conductive bracelets.
The motor manufacturer is not liable for any components which
are incompatible with the safety and efficient operation.
For repairs or replacements of products only original spare parts
must be used.
The installer must supply all the information relating to the
automation, manual and emergency operation of the motorized
door or gate, and operating instructions and deliver it to the user
of the automation.
Everything that is not EXPRESSLY specified in these instructions is
not permitted.
The access to the electrical compartment must be performed by
qualified personnel only.
MAINTENANCE (EVERY 6 MONTHS)
Remove the power supply 230V or batteries to obscure the solar panel
if present.
Clean and grease the levers and chains in the mechanism.
Check that the screws that connect the gearmotor to the barrier and
the screws that connect the spring to the barrier are tight.
Check the tightness of the linkage and that the system works without
unusual play.
Check the manual release. Check the balance of the spring. Replace
any worn parts. Check the state of charge of the battery and recharge
or replace if necessary.
Reconnect the power supply 230V or batteries and the solar panel if
present.
Check the function of electromechanical limit switches. Check the
function of obstacle detection. Check the proper functioning of all
functions of control and safety.
DISMANTLING
When the automation system is disassembled to be reassembled on
another site you need to:
- Turn off the power and disconnect the batteries and the solar
panel if present
- Unlock the automation and bring the rod in the fully open position so
that the balancing spring is unloaded and relock the automation.
- Remove the barrier from its anchorage to the ground
- Preparing a new anchor to the ground at the new site (order founda-
tion plate base PLATE/004)
- Replace any damaged or worn parts.
DEMOLITION
Disposal of materials must be carried out in accordance with local
regulations. In the case of scrapping, the sure to unlock the automa-
tion and bring the rod in the fully open position so that the balancing
spring is unloaded before disassembling the automatism.
Materials must be separated for recycling (electrical components -
copper - aluminum - plastic - etc ...).
The batteries must be removed safely (12V - 12Ah).
Remove and dispose of them separately as required by law.
The smooth operation is only ensured if the data are respected
in this manual. The Company is not liable for damages caused by not
respecting the installation standards and the instructions contained in
this manual. The descriptions and illustrations in this manual are not
binding. Preserving the essential characteristics of the product, the
Company reserves the right to make changes at any time deemed
appropriate to improve the technical, manufacturing and commercial
product, without being required to update this publication.

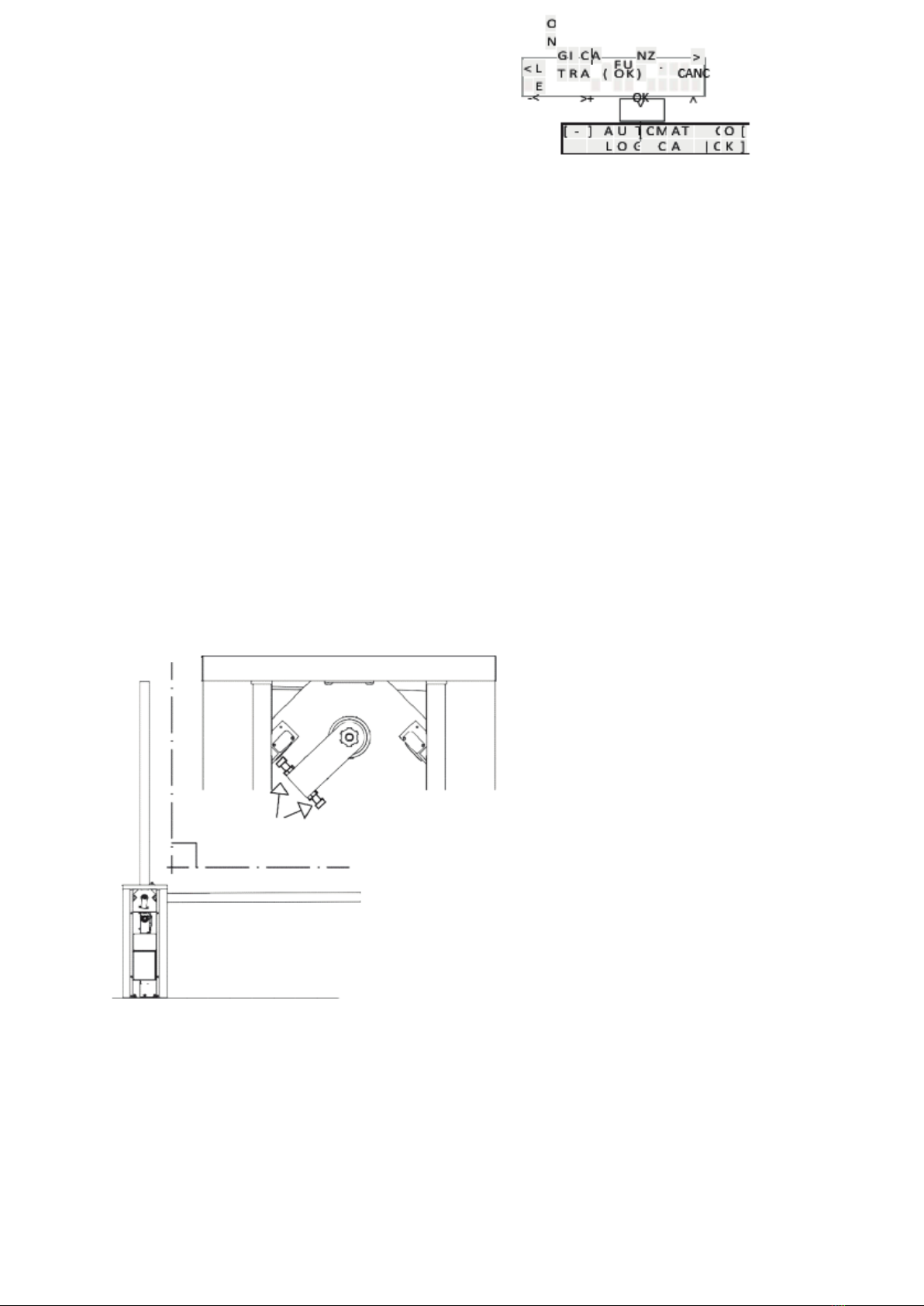

EMERGENCY MANOEUVRE IN CASE OF MALFUNCTION OR LACK OF ELECTRICITY
Enter the key in the front lid and turn it. Remove the lid by pulling
it up as shown in the picture.
Rotate downwards the black lever.
ATTENTION: be sure that no person, animal, object is near the
boom! It could quickly move upwards or downwards.
GENERAL WARNINGS FOR SAFETY
The following precautions are an integral and essential part of the product and must be supplied to the user.
Read them carefully as they contain important information regarding the safe installation, use and maintenance.
You need to keep these instructions and pass them on to any future user of the system.
This product must be used only for the purpose for which it was designed. Any other use is considered improper
and therefore dangerous. The manufactures' can not be held responsible for any damage caused by improper,
incorrect or unreasonable.
Avoid operating in the proximity of the hinges and of moving mechanical parts.
Do not enter the field of action of the motorized barrier while it is moving.
Not obstruct the motion of the motorized barrier since this may be dangerous.
Do not allow children to play or stay within range of the motorized barrier.
Keep out of the reach of children radio controls and / or any other control device, to prevent the motorized door or
gate from being activated involuntarily.
In case of failure or malfunction of the product, turn off the power switch, do not attempt to repair or intervene
directly and contact only qualified personnel.
Failure to comply with the above may create a hazardous situation.
All cleaning and maintenance of the motorized barrier must be performed by qualified personnel.
It is essential to perform the periodic maintenance of the barrier by qualified personnel.
