AbiS Storm User manual

Storm
Automatic Electric Hand Dryer
User Manual
Visit ABIS Electronics Help Center:
https://www.abiselectronics.co.uk/apps/help-center
ABIS Electronics,
85 Great Portland Street, London,
W1W 7LT, UK
https://www.abiselectronics.co.uk
To register for warranty, please visit:
https://www.abiselectronics.co.uk/pages/warranty-registrati
on-form

Waterproof Grade
Sensing Distance
Air Speed
Drying Time
Overall Size 267 x 235 x210
275 x 238 x 210
IPX1
12 ± 3 cm
20 m/s
10-15S
Features:
Technical Parameters:
Rated Voltage AC 220 - 240V
AC 110 - 127V
115°C
121°C
50/60 HZ
2300W
Rated Frequency
Rated Power
Temperature Controller
Cut-out Temperature
Thermal Fuse
Note before installation:
1. Warning: do not use the hand dryer near water, in places such as
bathtubs, showers, basins, or other containers with water.
2. Children should be supervised to ensure they do not play with the
device. The hand dryer is intended to be used indoors only.
Warning
3. Professional installation is highly recommended to install power
lines to avoid electric shock hazards.
4. Ensure the device is unplugged before installation.
5. Ensure you install an earth leakage circuit breaker to prevent shock
and fire hazards.
6. Do not unassemble, repair or alter the hand dryer on your own to
avoid the risk of an electric shock, fire, and other accidents.
Attention
1. Before installation, ensure there are no other objects around
400mm. Do not install the hand dryer on the stainless steel or artificial
marble surface to avoid misoperation.
2. The hand dryer unit should be firmly fixed to the even surface
(wall).
3. Do not install the hand dryer near corrosive or flammable gases or
objects. It may cause fire or product damage and malfunction.
4. Do not install the hand dryer in an environment with high
temperature or dust, as it may cause product damage.
1. The hand dryer is equipped with an automatic infrared sensor. It
requires no touch to use the hand dryer, making it an extremely
hygienic option.
2. The motor has been designed in Germany, offering a quick hand
dry time of 8 seconds.
3. The product is equipped with shock-proof features making it an
extremely safe product.
4. The product installation is easy and requires only a few minutes. All
you need to do is to install it using 4 screws on the wall, and the
product is ready to be used.

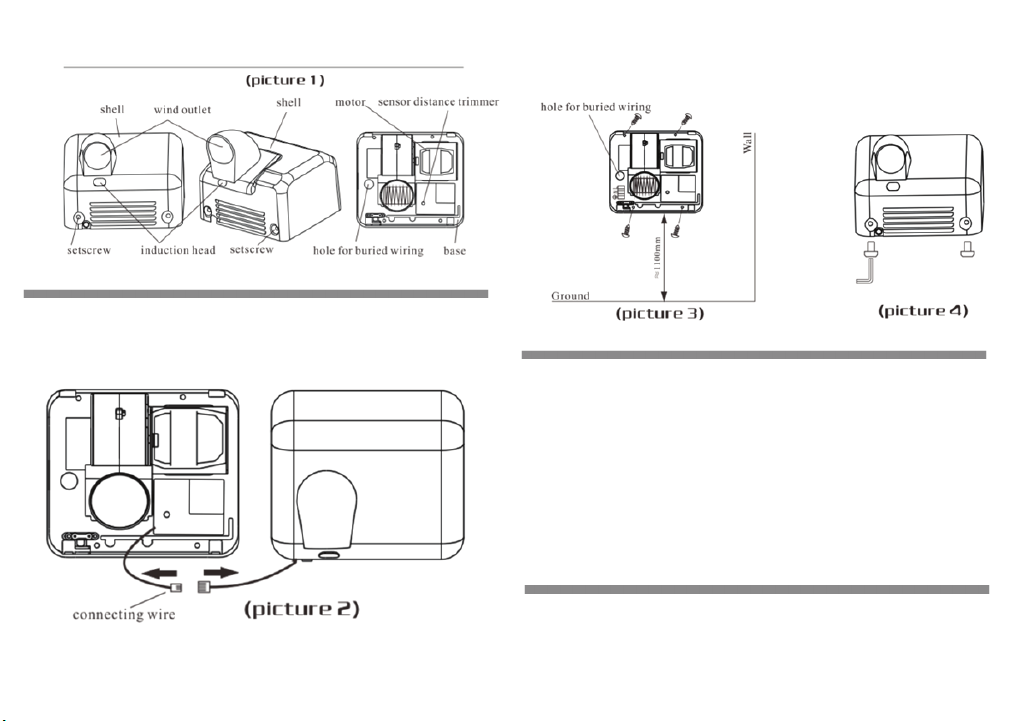

Components Name:
1. The hand dryer is equipped with an automatic infrared sensor. It
requires no touch to use the hand dryer, making it an extremely
hygienic option.
2. The motor has been designed in Germany, offering a quick hand
dry time of 8 seconds.
3. The product is equipped with shock-proof features making it an
extremely safe product.
4. The product installation is easy and requires only a few minutes. All
you need to do is to install it using 4 screws on the wall, and the
product is ready to be used.

Usage:
1. After washing hands, place hands under air outlet around 10 cm
away. The hand dryer will be automatically activated using the
automatic sensor. Please retreat the hands when hands are dried, and
it will stop working in 2 seconds.
1. Drill 4 holes in the wall.
2. Screw the two fixing screws off the cover with the hexagonal
wrench and remove the panel. Detach sensor connecting wire.
Installation Method:
Test Operation:
After installation, please test the hand dryer operation according to
the steps below:
1. The hand dryer should be in standby mode after the power has
been switched on.
2. When hands are placed 10cm below the nozzle, the airflow
should automatically start blowing.
3. In 2 seconds after the hands have been moved away from the
nozzle, the hand dryer should stop automatically.
4. The hand dryer should automatically stop after 60 seconds of
work.
4. Put the cover on the machine and cover it using the hexagon
wrench.
3. Using the screws, fix the machine on the wall & connect it to
electric power. (Please Note: We recommend the installation to be
done by a professional electrician only).

Tips:
2. After 60 seconds of continuous usage, the hand dryer will stop
automatically.
3. Do not dry any clothes or handkerchiefs, etc.
4. Do not pull the electric cord abruptly to avoid any short circuits.
5. Do not use the hand dryer for extremely long hours. The wind
outlet might get extremely hot and damage the sensor.
1. If the hand dryer sensor is not working or turning on automatically,
please adjust the sensor distance trimmer. The trimmer is indicated in
Picture 1.
2. The closer you place your hands to the hand dryer, the faster they
dry.
3. Be careful of the surface heating when in use continuously.
1. Ensure the device is unplugged before cleaning. Clean the shell
with a natural detergent when dirty.
2. Do NOT use alkalescent, lacquer thinner, abrasive detergents, or
detergents containing acid.
3. Do NOT use friction tools, such as nylon brushes to avoid shell
scratching.
4. When cleaning the shell, avoid the water drops inside the hand
dryer to prevent electric shock or short circuit.
5. To extend the service life, it is recommended to unplug the device
when it is not in use.
6. In case of the device break down, immediately unplug it from the
power and contact the professional electrician for repair.
Maintenance:
Terms of Guarantee:
1. The product warranty period is one year from the purchase date.
2. During the warranty period, in case of a warranty case, the device
can be replaced for free. The original invoice and the quality insurance
card stamped by the dealer will need to be presented by the
customer.
3. The following are NOT in the scope of free maintenance:
a. Improper use and fault caused by demolition, unassembling,
and repair by a technical specialist without ABIS
authorization.
b. Faults caused by fires, earthquakes, thunder, and other
natural disasters.
c. Abnormal voltage
d. Faults caused by non-matching power.
e. Faults caused by long-time operation in unacceptable
working conditions.
f. Warranty card and insurance card filled out incorrectly or
not explicitly.
4. After the 1-year warranty period, the maintenance of the product
is no longer free, while our company remains committed to service.
7. If the hand dryer is not in use for a long time period, unplug it from
the power supply, and store it in a box inside a dry and clean space
after cleaning.
Step-by-Step Installation Guide:
Scan the QR code to read our Ultimate Guide on How
to Install an Electric Hand Dryer - Complete
Installation Guide on ABIS Electronics
