Abit IP35 Pro User manual

Hardware Setup BIOS Setup Driver & Utility Multilingual QIG Appendix
IP35 Pro
Motherboard
Socket 775
User’s Manual
About this Manual:
This user’s manual contains all the information you may
need for setting up this motherboard. To read the user’s
manual of PDF format (readable by Adobe Reader), place
the “Driver & Utility CD” into the CD-ROM drive in your
system. The auto-run screen will appear, click the
“
Manual” tab to enter its submenu. If not, browse the
root directory of the CD-ROM via the File Manager, and
double click the “AUTORUN” file.
 Intel P35 / ICH9R
 FSB 1333 MHz
 Dual Channel DDR2 800
 Dual PCI-E X16 Slots
 Dual Gigabit LAN
 6x Internal, 2x External SATA
3Gb/s Connectors
 USB 2.0 / IEEE 1394
 7.1-Channel HD Audio
 abit uGuru™ Technology
 abit Silent OTES™ Technology
 External CMOS Clearing
Switch
 Quick Power & Reset Button
 Vista Premium HW Ready

ii IP35 Pro
IP35 Pro
User’s Manual
English + Multilingual QIG
P/N: 4310-0000-89
Rev. 2.00, May 2007
Copyri
g
ht and Warranty Notice
The information in this document is sub
j
ect to chan
g
e without notice and does not represent a
commitment on part of the vendor, who assumes no liability or responsibility for any errors that
may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the quality,
accuracy or fitness for any particular part of this document. In no event shall the manufacturer be
liable for direct, indirect, special, incidental or consequential dama
g
es arisin
g
from any defect or
error in this manual or product.
Product names appearin
g
in this manual are for identification purpose only and trademarks and
product names or brand names appearin
g
in this document are the property of their respective
owners.
This document contains materials protected under International Copyri
g
ht Laws. All ri
g
hts reserved.
No part of this manual may be reproduced, transmitted or transcribed without the expressed
written permission of the manufacturer and authors of this manual.
If you do not properly set the motherboard settings, causin
g
the motherboard to malfunction or
fail, we cannot guarantee any responsibility.
The Following Information is Only for EU-member States:
Directive 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE): The use of the symbol indicates that this product may not be
treated as household waste. By Ensurin
g
this product is disposed of correctly,
you will help prevent potential ne
g
ative consequences for the environment
and human health, which could otherwise be cause by inappropriate waste
handling of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

Hardware Setup BIOS Setup Driver & Utility Multilingual QIG Appendix
IP35 Pro iii
Contents
1. Hardware Setup ............................................................... 1-1
1.1 Specifications............................................................................... 1-1
1.2 Motherboard Layout ..................................................................... 1-2
1.3 Choosing a Computer Chassis ....................................................... 1-3
1.4 Installing Motherboard ................................................................. 1-3

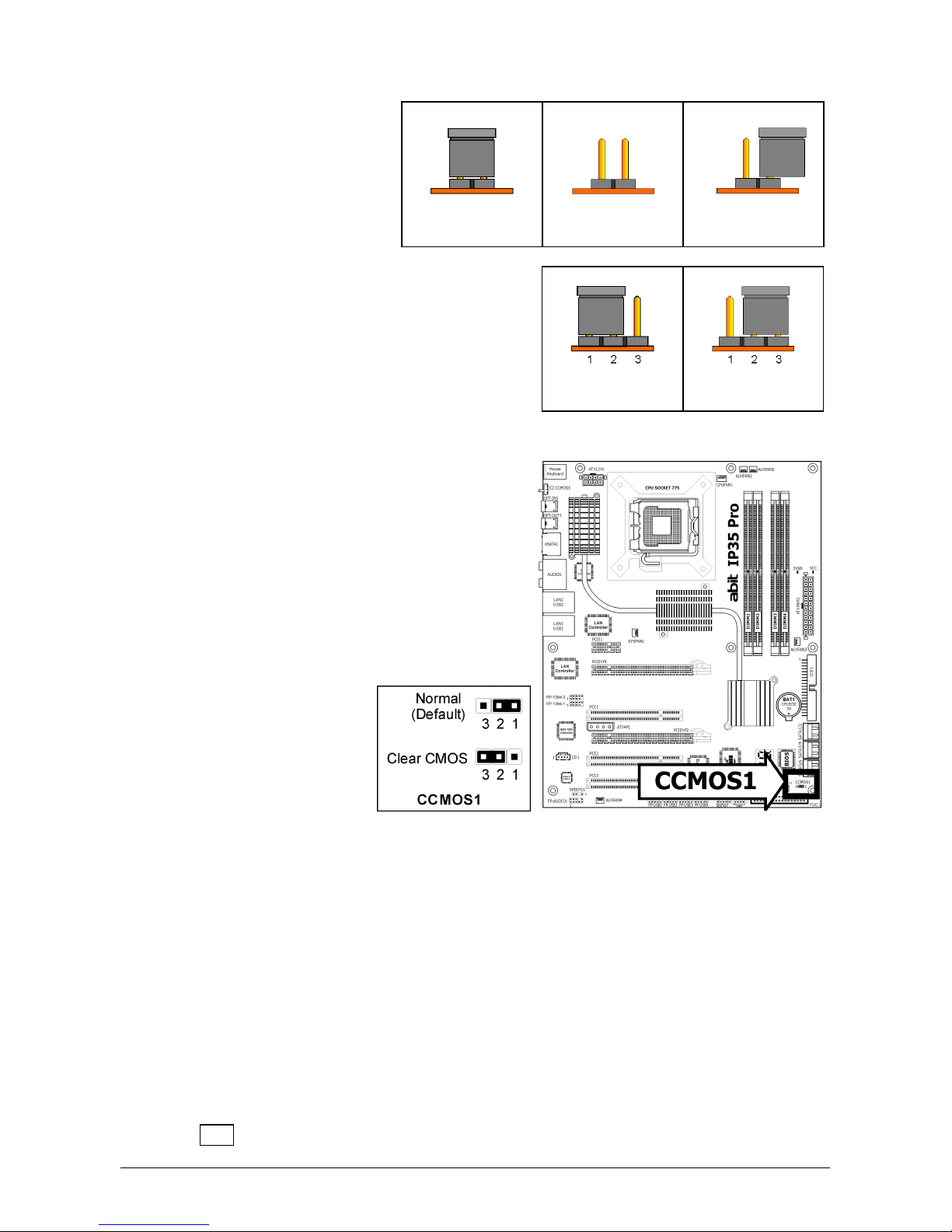

1.5 Checking Jumper Settings............................................................. 1-4

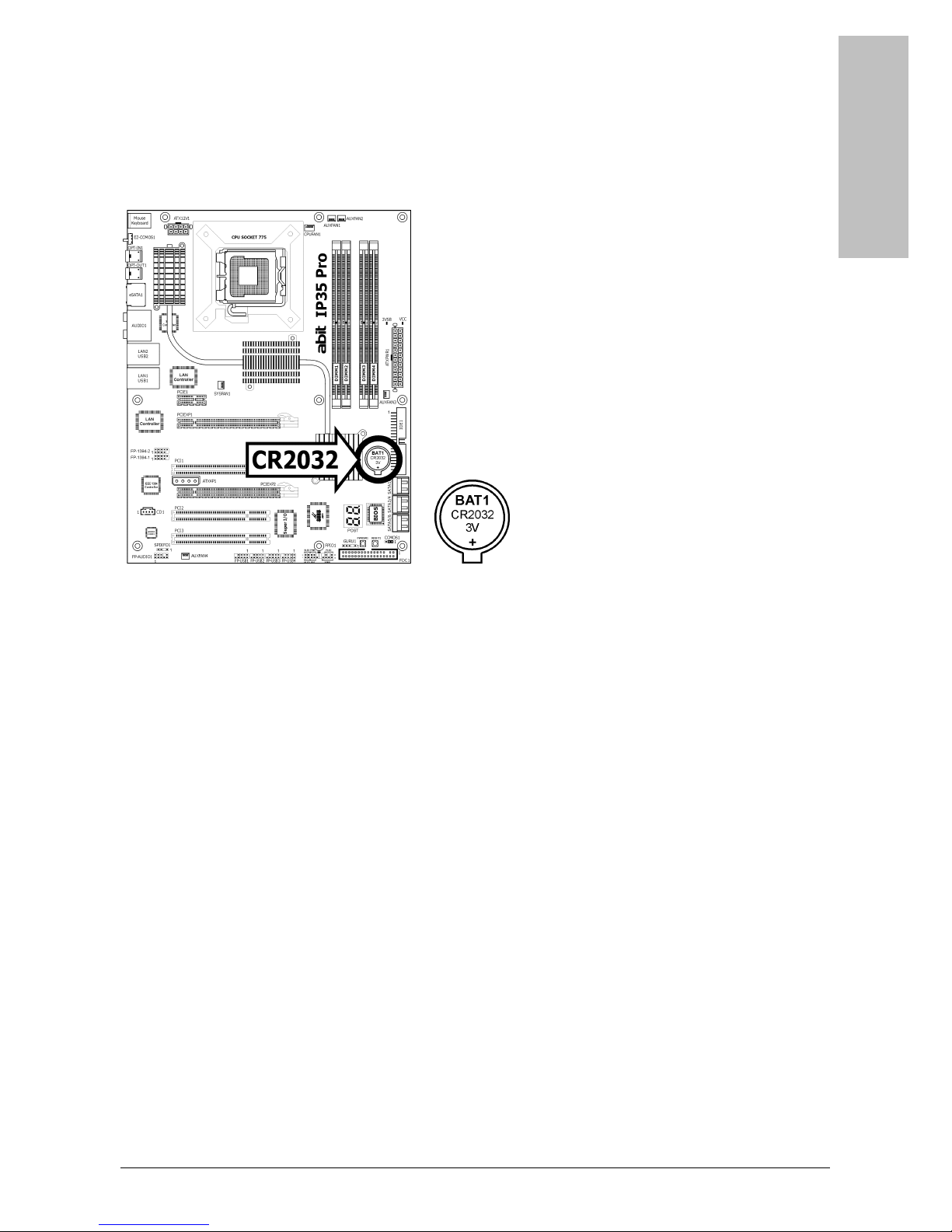

1.5.1 CMOS Memory Clearing Header and Backup Battery .............. 1-4
1.6 Connecting Chassis Components ................................................... 1-6

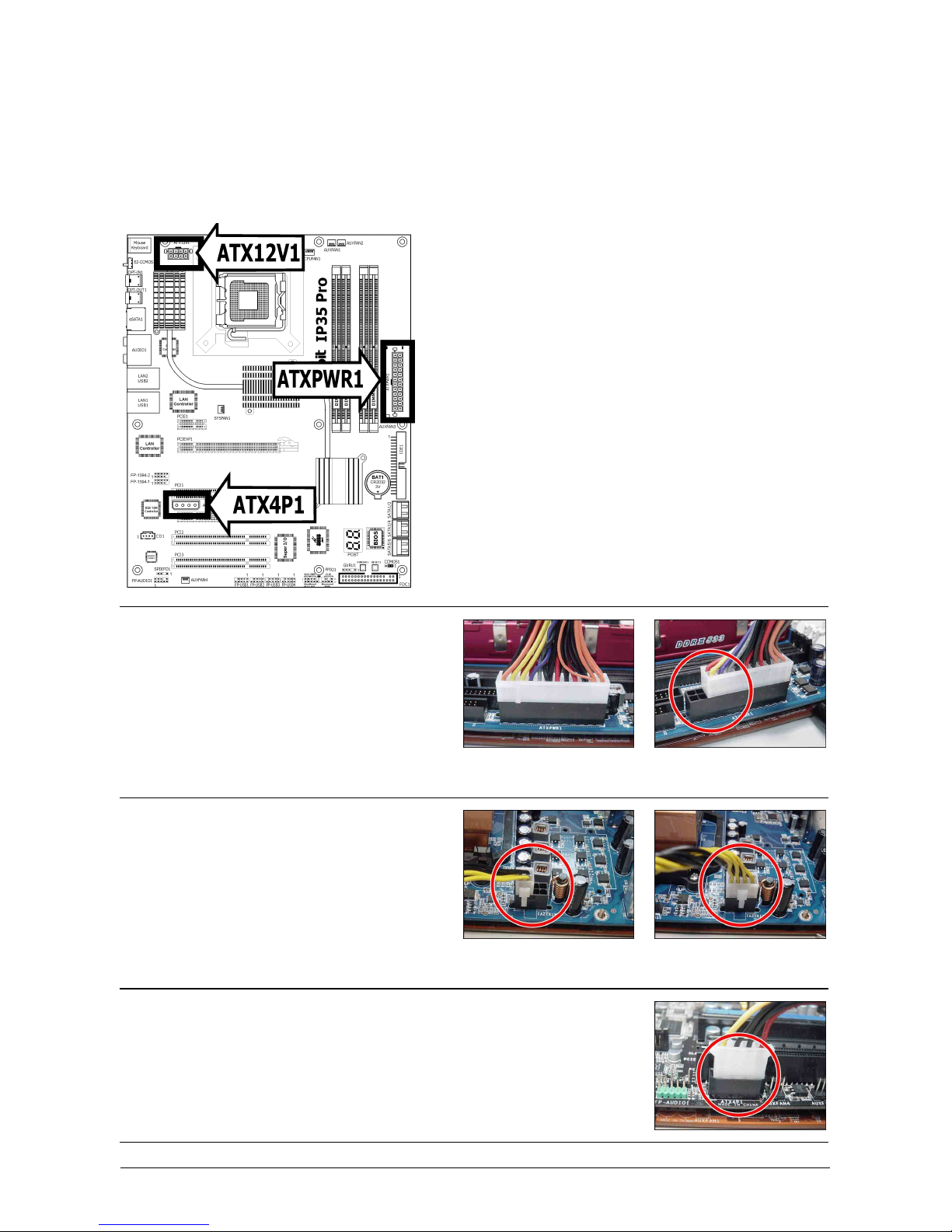

1.6.1 Power Connectors ............................................................... 1-6
1.6.2 Front Panel Switches & Indicators Headers ........................... 1-7
1.6.3 FAN Power Connectors ........................................................ 1-7
1.7 Installing Hardware...................................................................... 1-8

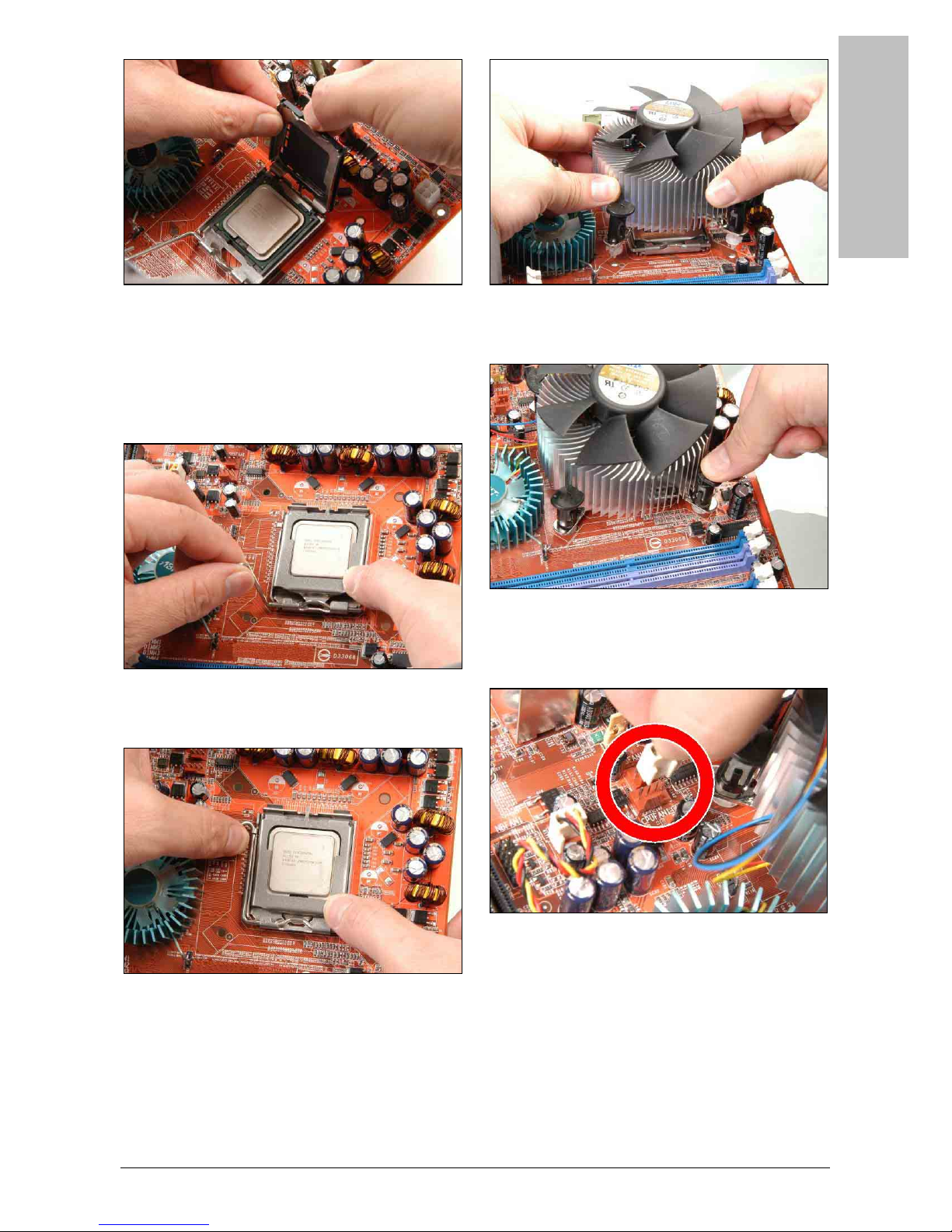

1.7.1 CPU Socket 775................................................................... 1-8

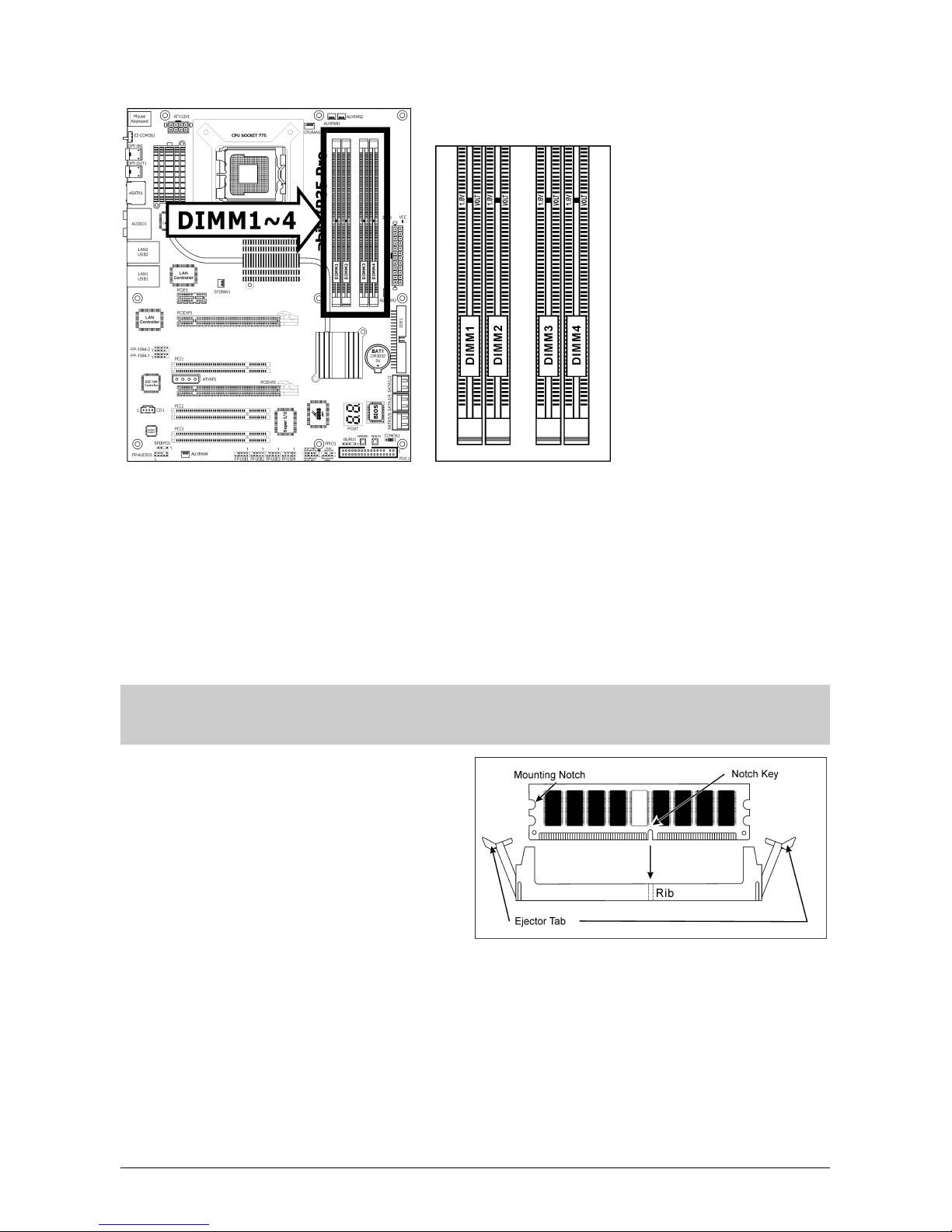

1.7.2 DDR2 Memory Slots........................................................... 1-10

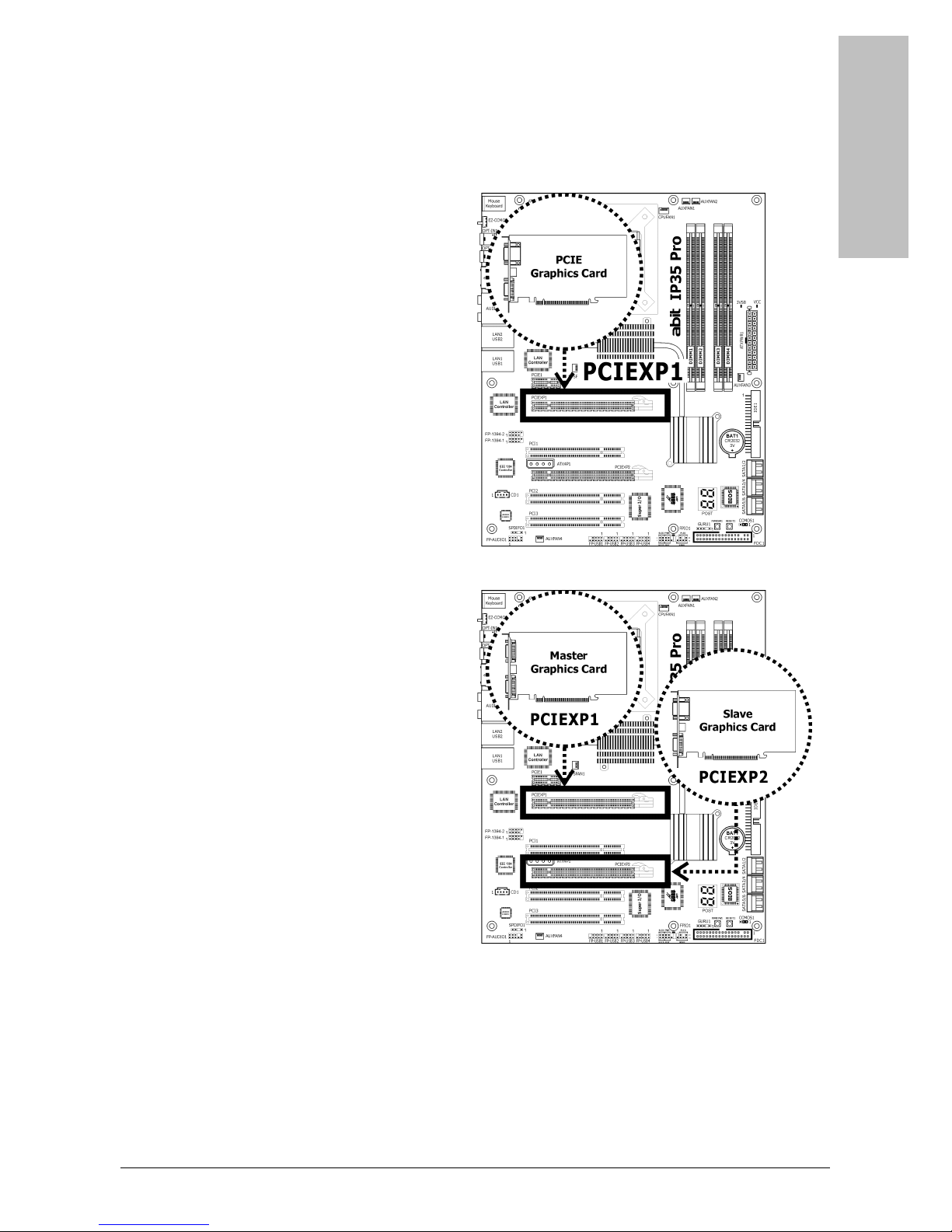

1.7.3 PCI Express X16 Add-on Slots (Install Graphics Card) .......... 1-11
1.8 Connecting Peripheral Devices .................................................... 1-12
1.8.1 Floppy and IDE Disk Drive Connectors ................................ 1-12
1.8.2 Serial ATA Connectors ....................................................... 1-13

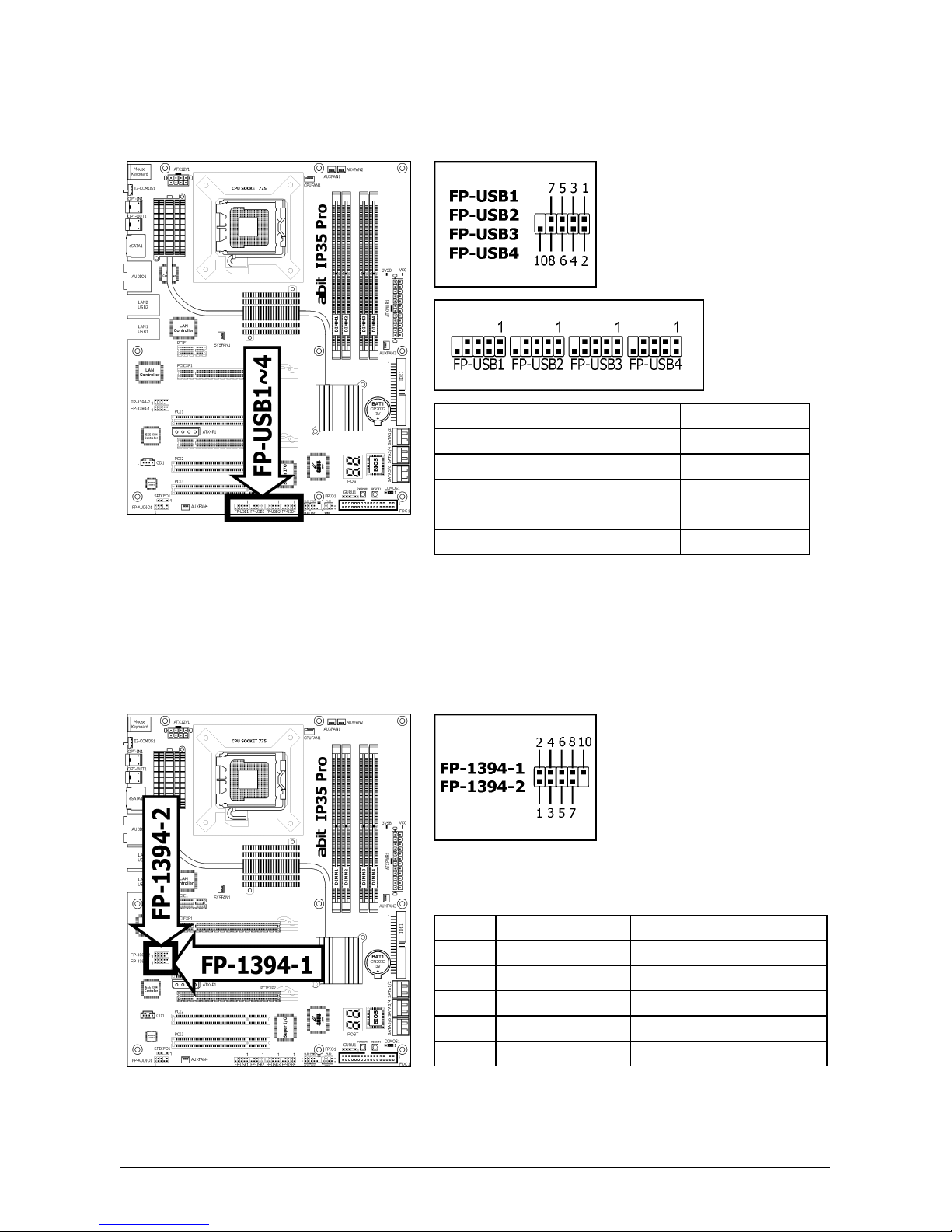

1.8.3 Additional USB 2.0 Port Headers......................................... 1-14
1.8.4 Additional IEEE 1394 Port Headers ..................................... 1-14
1.8.5 Internal Audio Connector ................................................... 1-15

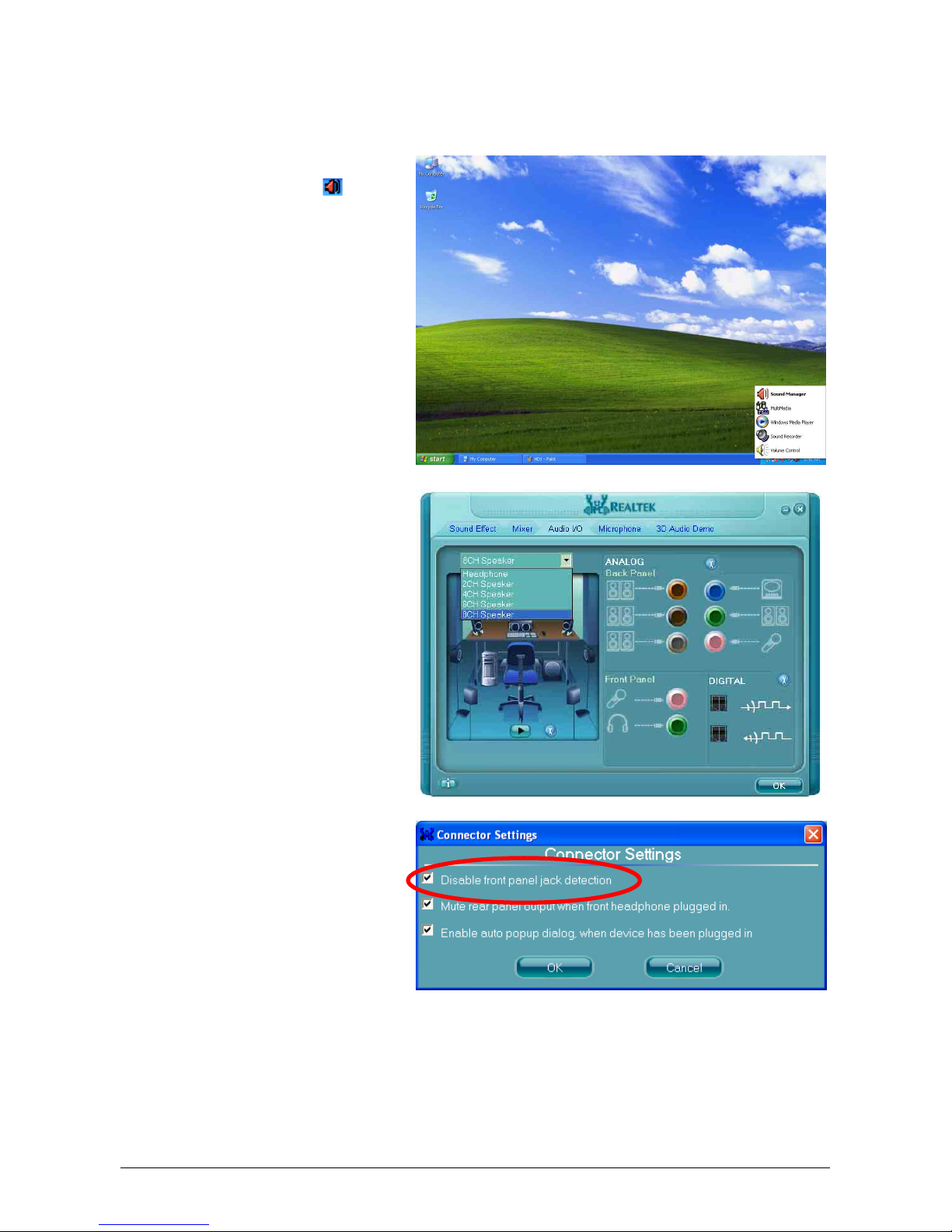

1.8.6 Front Panel Audio Connection Header ................................. 1-15
1.8.7 S/PDIF Output Connection Header...................................... 1-17
1.8.8 PCI and PCI Express X1 Slots ............................................. 1-17
1.8.9 Guru Panel Connection Header........................................... 1-18
1.9 Onboard Indicators and Buttons.................................................. 1-19
1.9.1 POST Code Displayer ......................................................... 1-19
1.9.2 Power Source Indicators .................................................... 1-20
1.9.3 Onboard Buttons ............................................................... 1-20
1.10 Connecting Rear Panel I/O Devices ........................................... 1-21
2. BIOS Setup....................................................................... 2-1
2.1 μGuru™Utility .............................................................................. 2-2
2.1.1 OC Guru ............................................................................. 2-2
2.1.2 ABIT EQ.............................................................................. 2-4
2.2 Standard CMOS Features............................................................ 2-10
2.3 Advanced BIOS Features ............................................................ 2-13
2.4 Advanced Chipset Features......................................................... 2-16
2.5 Integrated Peripherals................................................................ 2-17
2.6 Power Management Setup .......................................................... 2-21
2.7 PnP/PCI Configurations .............................................................. 2-23
2.8 Load Fail-Safe Defaults............................................................... 2-24
2.9 Load Optimized Defaults............................................................. 2-24
2.10 Set Password ........................................................................... 2-24
2.11 Save & Exit Setup..................................................................... 2-24
2.12 Exit Without Saving .................................................................. 2-24

iv IP35 Pro
3. Driver & Utility ................................................................. 3-1
3.1 CD-ROM AUTORUN ...................................................................... 3-1
3.2 Intel Chipset Software Installation Utility ....................................... 3-2
3.3 Intel Matrix Storage Manager........................................................ 3-2
3.4 Audio Driver ................................................................................ 3-3
3.5 LAN Driver................................................................................... 3-4
3.6 JMicron SATA Driver..................................................................... 3-4
3.7 USB 2.0 Driver ............................................................................. 3-4
3.8 abit μGuru ................................................................................... 3-5
3.9 SATA RAID Driver (for Windows Vista) .......................................... 3-6
3.10 SATA RAID Driver (for Windows XP, 2003, or 2000) ..................... 3-6
4. Multilingual Quick Installation Guide .............................. 4-1
4.1 Français//Guide d'Installation Rapide............................................. 4-1
4.2 Deutsch//Kurze Installationsanleitung............................................ 4-2
4.3 Italiano//Guida all’installazione rapida ........................................... 4-3
4.4 Español//Guía rápida de instalación............................................... 4-4
4.5 Português//Guia de instalação rápida ............................................ 4-5
4.6 Русский//Краткое руководство по установке .............................. 4-6
4.7 Eesti//Kiirpaigaldusjuhend ............................................................ 4-7
4.8 Latviski//Ātrās instalēšanas instrukcija........................................... 4-8
4.9 Lietuvių//Trumpas instaliavimo vadovas ........................................ 4-9
4.10 Polski//Instrukcja szybkiej instalacji........................................... 4-10
4.11 Magyar//Gyorstelepítési útmutató.............................................. 4-11
4.12 Türkçe//HızlıKurulum Kılavuzu.................................................. 4-12
4.13 اللغة العربية//دليل التركيب السريع....................... 4-13
4.14 فارسی// راﻩنمای نصب سریع............................................... 4-14
4.15 日本語//クイックインストールガイド ...................................... 4-15
4.16 한국어//빠른 설치 가이드 ....................................................... 4-16
4.17 Bahasa Malaysia//Panduan Pemasangan Ringkas ....................... 4-17
4.18 ไทย//คู่มือการติดตั้งอย่างย่อ ........................................................ 4-18
4.19 繁體中文................................................................................. 4-19
4.19.1 規格............................................................................... 4-19
4.19.2 快速安裝略說.................................................................. 4-20
4.20 简体中文................................................................................. 4-21
4.20.1 规格 ............................................................................... 4-21
4.20.2 快速安装略说.................................................................. 4-22
5. Appendix .......................................................................... 5-1
5.1 POST Code Definitions.................................................................. 5-1
5.1.1 AWARD POST Code Definitions............................................. 5-1
5.1.2 AC2005 POST Code Definitions............................................. 5-4
5.2 Troubleshooting (How to Get Technical Support?).......................... 5-5
5.2.1 Q & A ................................................................................. 5-5
5.2.2 Technical Support Form....................................................... 5-8
5.2.3 Contact Information............................................................. 5-9

Hardware Setup
IP35 Pro 1-1
1. Hardware Setup
1.1 Specifications
CPU
• LGA775 Socket for Intel processor of:
Core 2 Extreme Edition / Core 2 Quad /
Core 2 Duo, &
Pentium Extreme Edition / Pentium Dual
Core / Pentium D / Pentium 4.
• Supports FSB 1333MHz
Chipset
• Intel P35 / ICH9R
Memory
• 4x 240-pin DIMM slots support
maximum memory capacity up to 8GB.
• Supports Dual Channel DDR2 800/667
Un-buffered Non-ECC memory.
LAN
• Onboard Dual Gigabit LAN Controller
Audio
• Onboard 7.1-Ch HD Audio Codec
• Supports S/PDIF In/Out
• HDMI Audio Header Ready
Serial ATA
• 6x Internal SATA 3Gb/s connectors
offered by Intel ICH9R support Intel
Matrix Storage Tech (AHCI & RAID 0, 1,
5, and 10).
• 2x External SATA 3Gb/s connectors
offered by JMicron JMB363 support
RAID 0, 1, and JBOD.
IEEE 1394
• Supports 2x IEEE 1394a ports at
400Mb/s transfer rate.
Expansion Slots
• 1x PCI-E X16 Slot (X16 Bandwidth)
• 1x PCI-E X16 Slot (X4 Bandwidth)
• 1x PCI-E X1 Slot
• 3x PCI Slots
Internal I/O Connectors
• 1x Floppy Port
• 1x Ultra ATA 133 IDE Connector
• 6x SATA 3Gb/s Connectors
• 4x USB 2.0 Headers
• 2x IEEE 1394 Headers
• 1x FP-Audio Header
• 1x CD-In Connector
• 1x S/PDIF Out Header
• 1x GURU Header
Rear Panel I/O
• 1x PS/2 Keyboard Connector
• 1x PS/2 Mouse Connector
• 1x External CMOS Clearing Switch
• 1x Optical S/PDIF In Connector
• 1x Optical S/PDIF Out Connector
• 2x eSATA Connectors
• 1x 7.1-Ch Audio Connector
• 4x USB 2.0 Connectors
• 2x RJ-45 Gigabit LAN Connectors
abit Engineered
• abit uGuru™Technology
• abit Silent OTES™Technology
• External CMOS Clearing Switch
• Quick Power & Reset Button
RoHS
• 100% Lead-free Process and RoHS
Compliant
Miscellaneous
• ATX Form Factor (305mm x 245mm)
• Vista Premium HW Ready
※ Specifications and information contained herein are subject to change without
notice.
