WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
PRODUCT
SUNCORE A1
SUNCORE A3
SUNCORE A5
SUNCORE A7
SUNCORE T3
SUNCORE T5
SUNCORE T7
MODEL
AC-SMA1
AC-SMA3
AC-SMA5
AC-SMA7
AC-SMT3
AC-SMT5
AC-SMT7
UPC-A
819137021167
819137021174
819137021181
819137021198
819137021211
819137021218
819137021235
MANUAL CODE SC2008X1

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning .........................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation .....................................................................................
Starter Guide .................................................................................
Programming .................................................................................
Other Settings ................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 13
Page 16
Page 28
Page 29
Page 30

6
PRODUCTWARNING
DO NOT SUBMERGE IN WATER.
DO NOT place heated objects under this seedling mat.
DO NOT puncture or tear open this seedling mat.
DO NOT wrap or cover with insulated material.
DO NOT use this mat outdoors.
This mat is not recommended for use by children 12 years and under. Children should be
supervised to ensure they do not play with this heating mat.
This mat’s controller has a polarized plug (one blade wider than the other) and will only fit in your
electrical plug one way. If the plug doesn’t fit, flip it and try again. If it still doesn’t fit, contact us or
an electrician for assistance. DO NOT trim, cut, or otherwise modify the polarized plug.
Improper use of this seedling mat may result in electrical shock, fires, serious injuries or death.

7
KEY FEATURES
HEAT DISTRIBUTION
Improve germination and
rooting, emitting a steady
stream of heat and insulating
your seed tray.
EXTREME TEMP.
Durable build with materials
designed to last under extreme
temperature and climate
conditions.
STORAGE BAG
A water resistant bag made
with nylon fabric and drawstring
opening to easily store your
seedling mat.
HEATING FILM
Lined with far infrared
technology to evenly provide
uniform heating distribution
throughout your seedling trays.
WATER-RESISTANT MAT
IP-67 rated heating pad using
multiple layers of PVC matting
providing high durability and
preventing liquid damage.
SMART CONTROLLER
T-series models includes a
controller that triggers the mat
to turn on based on temp.,
humidity, timer, or schedule.

8
SUNCORE SEEDLING MAT (Included in both Series)
PRODUCT CONTENTS
SEEDLING
M AT
(x1)
STORAGE
MAT COVER
(x1)
PRODUCT
MANUAL
(x1)
WALL HANG
CONTROLLER
(x1)
WALL-HANG
WOOD SCREWS
(x2)
SENSOR
PROBE
(x1)
WIRE
TIE
(x1)
CABLE TIE
MOUNT
(x1)
SUNCORE SEEDLING MAT (Included in T-Series ONLY)

9
INSTALLATION
STEP 1
Unroll the seedling mat flat on to the ground.
*Do not allow the mat to overlap on to itself.
STEP 2
Connect the AC power plug to a power outlet to
turn on the seedling mat.
For T-series models, please continue to pages
10 to 12 to setting up the controller with the mat.
ALL MODELS

10
INSTALLATION
STEP 1
Locate the connector plug of the sensor probe
and plug it into the sensor port at the bottom
side of the controller.
STEP 2
Position the corded sensor probe and secure
it by using the included zip ties and tie mounts
if needed.
The probe can be placed inside a humidity
dome seedling tray to monitor the current levels.
*Do not allow the probe to be submerged in
water.
T-SERIES MODELS

11
INSTALLATION
STEP 3
To mount the controller, locate a spot free of
obstruction. Secure the controller using the
included mounting screw set.
STEP 4
On the back end of the controller is an opening
to hang the device.
T-SERIES MODELS

12
INSTALLATION
STEP 6
To power the seedling mat with the controller,
plug it into of the two ac outlets located on the
controller.
STEP 5
Lastly, to power the controller, plug the outlet’s
power cord into an AC power outlet.
T-SERIES MODELS

13
STARTER GUIDE
GROWING SEASONS
Use this seedling mat to get a head start on
the gardening season. Start the germination
process during late winter or spring, especially
if you are in a colder region.
GERMINATION
Different seeds require different temperatures to
germinate. Before you begin, refer to your seed
package and the table on the seedling mat for
recommended temperature settings.
TEMPERATURE
If your seed packet does not specify a
temperature, keep the temperature between
65°F and 75°F (18-24°C).
Note: Make sure to also keep track of the
ambient room temperature; along with your
local weather, this can also affect your
germination process.

14
STARTER GUIDE
SOWING SEEDS
Sow 2-3 seeds per cell; not every seed will
germinate. Cover the seeds completely with
your grow media. Set the optional humidity
dome over the tray. Place the seed tray on the
seedling mat and turn it on to begin heating.
HUMIDITY
Humidity domes and plastic covered pots can
be used alongside the seedling mat to introduce
moisture, which help accelerate plant growth.

15
STARTER GUIDE

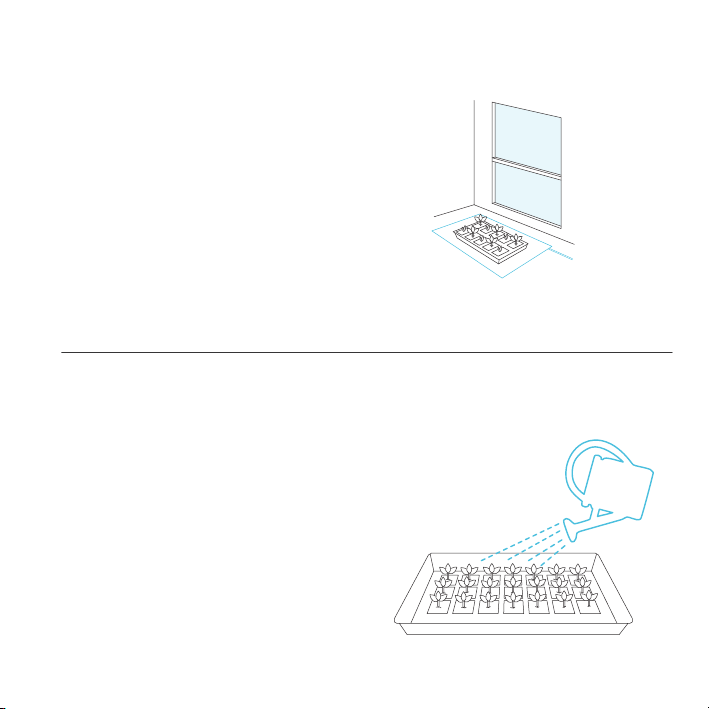

LIGHTING
If you have a lot of light coming into your
home, you may place the container by a bright,
south-facing window. Rotate the tray daily.
Be careful when using the seedling mat along
with grow lights; this may dry out your soil and
overheat your seedlings’ roots.
WATERING
Before you use your seedling mat, water your
seed tray’s starter mix/pellets, which should
appear dark brown. Dry off any excess water.
Add small amounts of water whenever the mix/
pellets appear light brown.
Once the seeds begin to germinate, prop up
your greenhouse dome about 1-1.5 inches.
When half of the tray has germinated seedlings,
remove the tray from the seedling mat and
greenhouse dome.

16
1. MODE BUTTON
This button cycles through each of the controller’s mode: OFF, ON, AUTO (4 triggers), TIMER TO
ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On and Off).
3. SETTING BUTTON
This button cycles through each of the controller’s settings: DISPLAY BRIGHTNESS, F/C, CLOCK,
CALIBRATION (Temperature and Humidity), and BUFFER (Temperature and Humidity).
2. UP / DOWN BUTTON
Adjusts the parameters of the mode that you are in. In most modes, the up button increases and
down button decreases the setting. Holding both buttons simultaneously sets the parameters to off.
PROGRAMMING
4. OUTLET STATUS
Displays the outlet controller’s power status, indicating whether or not electricity is being fed to your
device. ON will display if your device is being powered and OFF will display if your device is not
being powered.
ON
TO
ON
TIMER TO
PM
123
5
6
7
8
9
10
411

17
5. PROBE TEMPERATURE
Current temperature that the probe is detecting. Displays “--“ if no probe is plugged in. Includes a
trend indicator that signals a rise, steady, or fall in temperature within the last hour.
9. CURRENT TIME
Displays the current time. The internal battery sustains the clock so it does not default to 00:00 if
power is cut off. Please see page 18 for instructions on how to set up the clock time.
7. CONTROLLER MODE
Displays the mode that the controller is currently in. Pressing the mode button cycles through the
available modes.
10. COUNTDOWN
Displays TO ON or TO OFF countdown to show the amount of time before the timer to on, timer to
off, cycle, or schedule modes activates or deactivates the fan. TO ON represents the amount of
time that is left before your device turns on. TO OFF represents the amount of time that is left
before your device turns off.
11. USER SETTING
Displays the value you have set for the current mode that you are in. Press the up or down button
to adjust the value.
8. STATUS ICONS
Flashes or displays the alert icons from the controller. Icons include TIMER ALERT and DISPLAY
LOCK.
6. PROBE HUMIDITY
Current humidity that the probe is detecting. Displays “--“ if no probe is plugged in. Includes a trend
indicator that signals a rise, steady, or fall in humidity within the last hour.
PROGRAMMING

18
CONTROLLER MODES
Pressing the mode button will cycle through the controller’s available programming modes: OFF,
ON, AUTO (4 triggers), TIMER TO ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On
and Off).
ON MODE
Your device will be on regardless of temperature
humidity, and time-based triggers.
OFF MODE
Your device will be off regardless of temperature
humidity, and time-based triggers.
Note that you can hold the mode button while in
any other mode or settings to quickly jump back to
OFF Mode.
PM
OFF
ON
PM
PROGRAMMING

19
AUTO MODE (HIGH TEMPERATURE TRIGGER)
Pressing the up or down button sets the high
temperature trigger. Your device will be turned
on if the probe’s reading meets or exceeds this
threshold.
If the probe’s reading falls below this trigger point,
your device will be turned off. This turn-off point
can be adjusted using the buffer setting as shown
on page 26.
You may also set this trigger below the low
temperature trigger to create a specific range, in
which your device will only be on when it’s within
this range.
AUTO MODE (LOW TEMPERATURE TRIGGER)
Pressing the up or down button sets the low
temperature trigger. Your device will be turned on
if the probe’s reading meets or falls below this
threshold.
If the probe’s reading rises above this trigger point,
your device will be turned off. This turn-off point
can be adjusted using the buffer setting as shown
on page 26.
You may also set this trigger above the high
temperature trigger to create a specific range, in
which your device will only be on when it’s within
this range.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
PM
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
PM
PROGRAMMING

20
AUTO MODE (LOW HUMIDITY TRIGGER)
Pressing the up or down button sets the low
humidity trigger.Your device will be turned on if the
probe’s reading meets or falls below this threshold.
If the probe’s reading rises above this trigger point,
your device will be turned off. This turn-off point can
be adjusted using the buffer setting as shown on
page 26.
You may also set this trigger above the high
humidity trigger to create a specific range, in which
your device will only be on when it’s within this
range.
AUTO MODE (HIGH HUMIDITY TRIGGER)
Pressing the up or down button sets the high
humidity trigger.Your device will be turned on if the
probe’s reading meets or exceeds this threshold.
If the probe’s reading falls below this trigger point,
your device will be turned off. This turn-off point can
be adjusted using the buffer setting as shown on
page 26.
You may also set this trigger below the low humidity
trigger to create a specific range, in which your
device will only be on when it’s within this range.
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
PM
Note that this trigger can activate as long
as you are in AUTO Mode, even if you are
viewing a different trigger within AUTO Mode.
PM
PROGRAMMING
