Viessmann Vitoligno 300-H Operating instructions

Operating instructions
for the system user
VIESMANN
Heating system with Ecotronic weather-compensated, digital boiler
and heating circuit control unit
VITOLIGNO 300-H
5549 811 GB 9/2014 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for heating system users.
This appliance can also be operated by
children of 8 years and older, as well as
by individuals with reduced physical,
sensory or mental faculties or those lack-
ing in experience and knowledge, provi-
ded such individuals are being super-
vised or have been instructed in the safe
use of this appliance as well as in any
risks arising from it.
!Please note
Supervise children in the proxim-
ity of the appliance.
■ Never permit children to play
with the appliance.
■ Cleaning and maintenance
must not be carried out by
unsupervised children.
Appliance connection
■ The appliance may only be connected
and commissioned by authorised con-
tractors.
■ Only operate the appliance with suita-
ble fuels.
■ Observe the specified electrical con-
nection requirements.
■ Modifications to the existing installa-
tion may only be carried out by author-
ised contractors.
Danger
Incorrectly executed work on the
heating system can lead to life
threatening accidents.
Work on electrical equipment
must only be carried out by a
qualified electrician.
Work on the appliance
■ All settings and work on the appliance
must be carried out as specified in
these operating instructions.
Further work on the appliance may
only be carried out by authorised con-
tractors.
■ Never change or remove attachments
or fitted accessories.
■ Never open or retighten pipe connec-
tions.
Danger
Hot surfaces can cause burns.
Never touch the hot surfaces
inside the appliance or those of
uninsulated pipes, fittings or flue
pipes.
Safety instructions
For your safety
5549 811 GB

3
If you smell flue gas
Danger
Flue gas can lead to life threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the installation site.
■ Close all doors in the living
space.
In case of fire
Danger
Fire presents a risk of burns and
explosion.
■ Shut down the heating system.
■ Use a tested fire extinguisher,
class ABC.
What to do if the heating system
develops a fault
Danger
Fault messages indicate faults in
the heating system. If faults are
not rectified, they can have life
threatening consequences.
Do not acknowledge fault mes-
sages several times in quick suc-
cession. Inform your heating con-
tractor so the cause can be ana-
lysed and the fault rectified.
Conditions for siting
Danger
Sealed vents result in a lack of
combustion air. This leads to
incomplete combustion and the
formation of life threatening car-
bon monoxide.
Never cover or close existing
vents.
Do not make any subsequent
modifications to the building
characteristics that could affect
safe operation (e.g. cable/pipe-
work routing, cladding or parti-
tions).
Danger
Easily flammable liquids and
materials (e.g. naphtha, solvents,
cleaning agents, paints or paper)
can cause deflagration and fire.
Never store or use such materials
in the installation room or in direct
proximity to the heating system.
!Please note
Incorrect ambient conditions can
lead to heating system damage
and can put safe operation at
risk.
■ Ensure ambient temperatures
are above 0 °C and below
35 °C.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through continu-
ous drying of washing).
Safety instructions
For your safety (cont.)
5549 811 GB

4
Extractors
The operation of appliances that extract
air to the outside (cooker hoods, extrac-
tors, air conditioning units, etc.) can cre-
ate vacuum pressure. If the boiler is
operated at the same time, this can lead
to reverse flow of the flue gas.
Danger
The simultaneous operation of
the boiler and appliances that
extract air to the outside can
result in life threatening poison-
ing due to reverse flow of the flue
gas.
Take suitable steps to ensure an
adequate supply of combustion
air. If necessary, contact your
heating contractor.
Auxiliary components, spare and
wearing parts
!Please note
Components not tested with the
heating system may damage the
system or affect its function.
Have all installation or replace-
ment work carried out exclusively
by qualified contractors.
Safety instructions
For your safety (cont.)
5549 811 GB

5
Introductory information
Intended use......................................................................................................... 8
Commissioning..................................................................................................... 8
Your system is preset at the factory..................................................................... 9
Terminology.......................................................................................................... 10
Energy saving tips................................................................................................ 10
Where to find the controls
Boiler controls and components........................................................................... 11

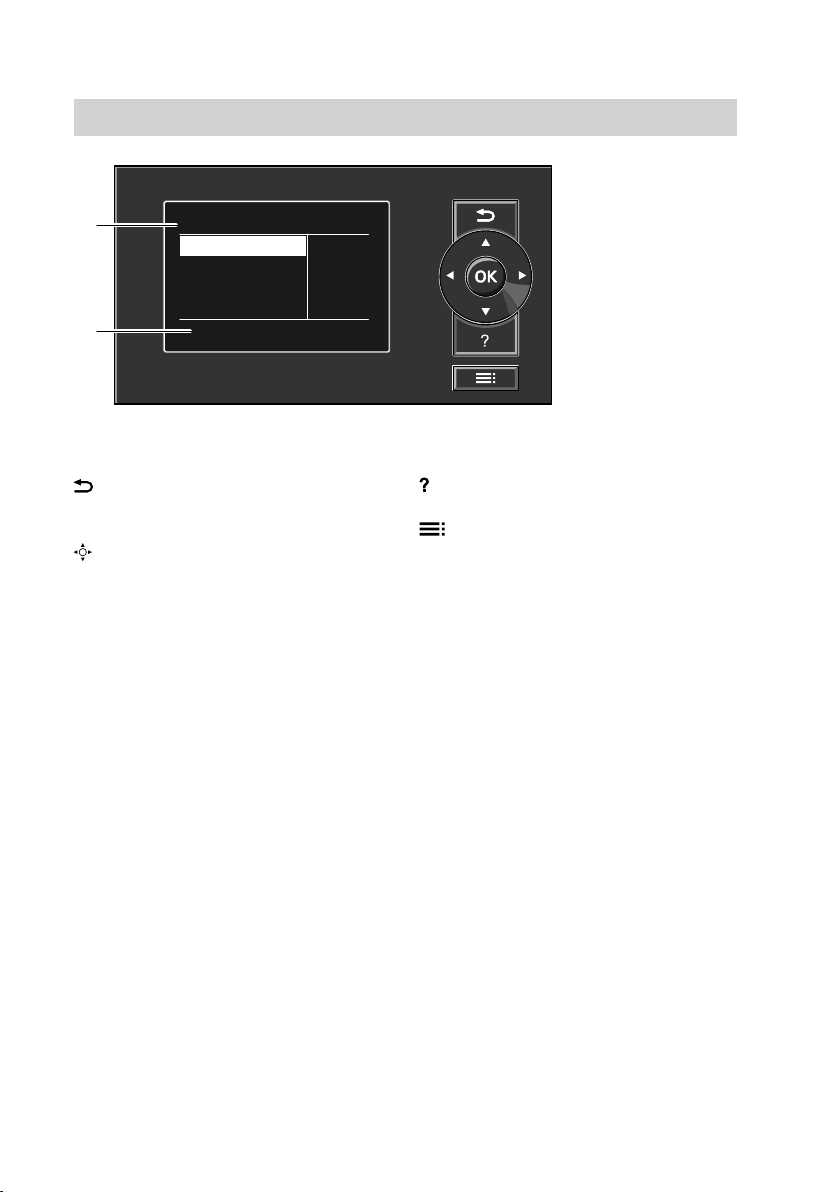

Controls and display elements of control unit....................................................... 12
Boiler operation
Heat-up preparations............................................................................................ 13
Action in case of overheating............................................................................... 13
■ Boiler water temperature has reached 95 °C.................................................... 14
Control unit operation

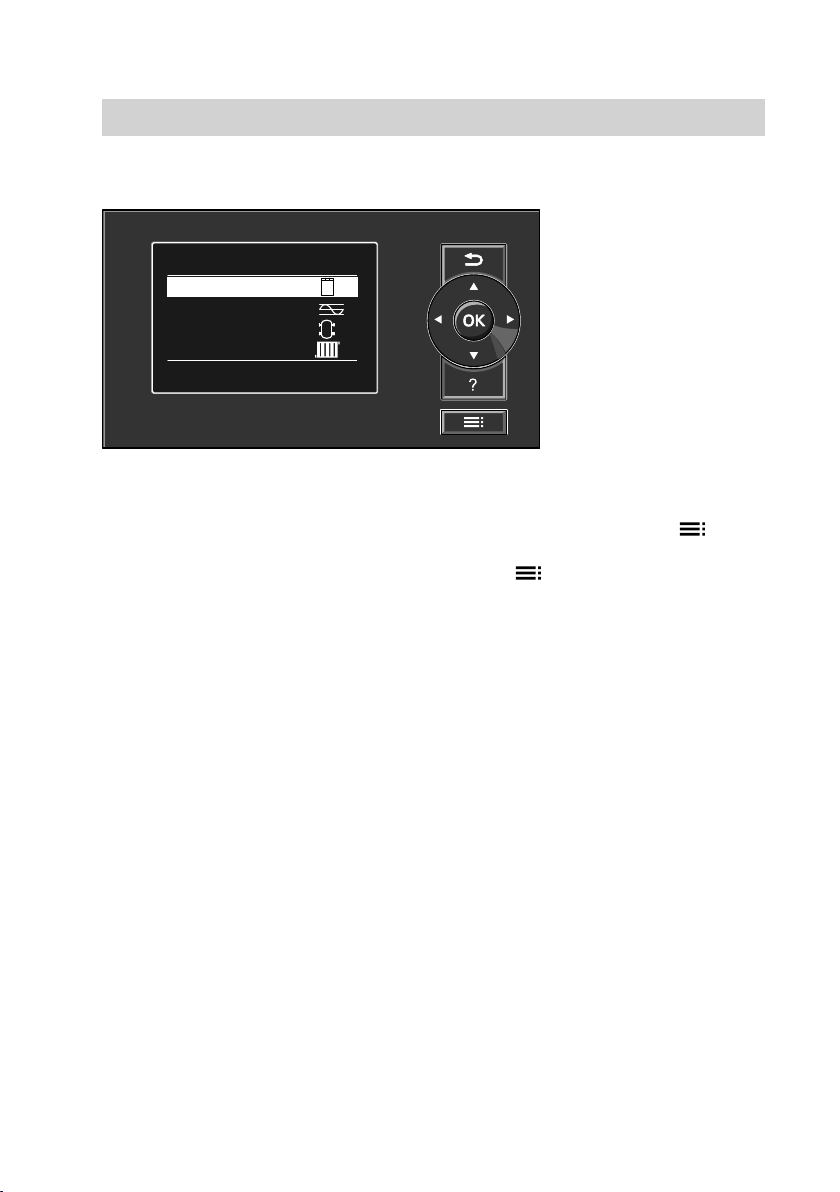

Navigation in the control unit menu...................................................................... 16

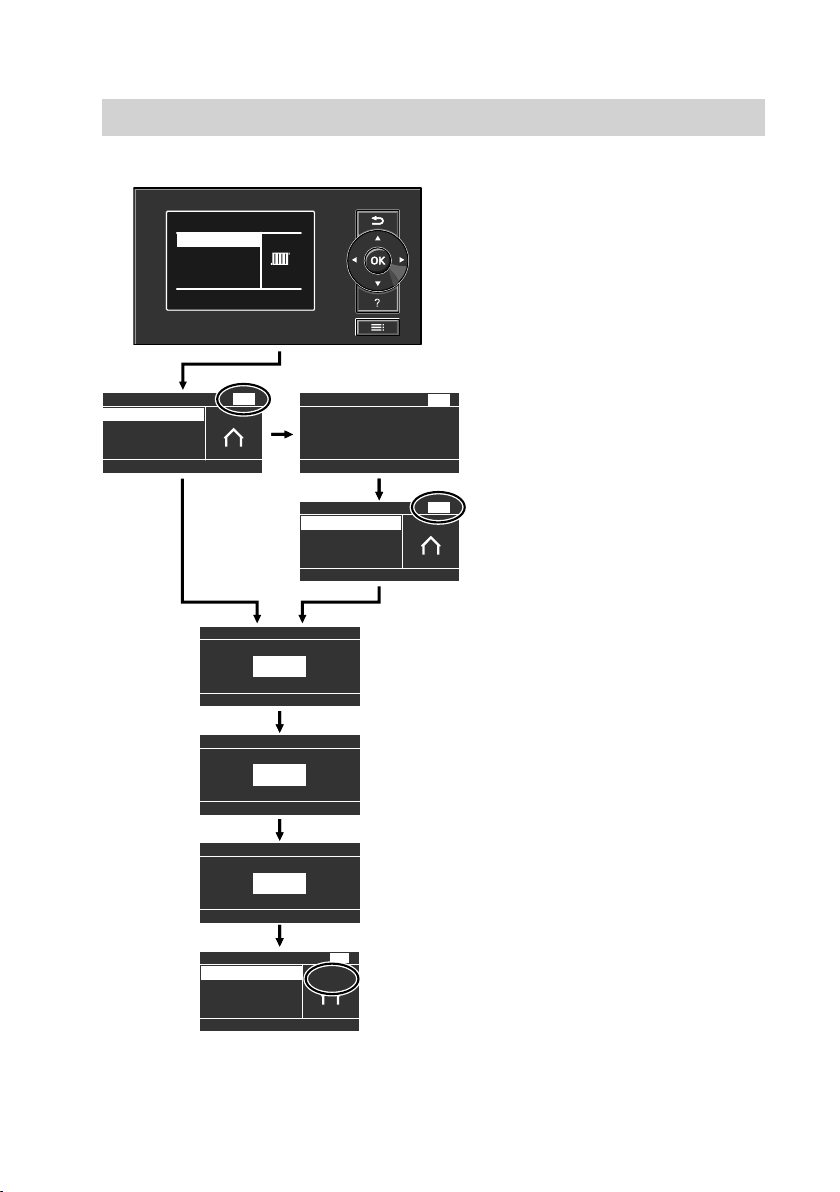

Menu structure of the control unit......................................................................... 18
Central heating
Required settings................................................................................................. 22
Selecting a heating circuit.................................................................................... 22
Setting the room temperature............................................................................... 23
Setting the operating program.............................................................................. 24
Setting a time program......................................................................................... 24
■ Setting switching times..................................................................................... 25
■ Deleting a time phase....................................................................................... 26
■ Resetting time phases to the factory settings................................................... 26
Changing the heating curve................................................................................. 26
Stopping central heating....................................................................................... 30
Comfort and energy saving functions
Selecting party mode............................................................................................ 31
Selecting economy mode..................................................................................... 32
Selecting the holiday program.............................................................................. 33
DHW heating
Required settings................................................................................................. 35
Setting the DHW temperature.............................................................................. 35
Setting the operating program.............................................................................. 35
Index
Index
5549 811 GB

6
Setting the time program...................................................................................... 36
■ Setting time phases.......................................................................................... 36
■ Deleting a time phase....................................................................................... 37
■ Resetting time phases to factory settings......................................................... 37
Stopping DHW heating......................................................................................... 38
Heating water buffer cylinder
Selecting the operating program.......................................................................... 39
Setting the time program...................................................................................... 40
■ Setting time phases.......................................................................................... 40
■ Deleting a time phase....................................................................................... 41
Setting the heating curve...................................................................................... 41
Fuel supply
Blocking times for automatic fuel supply.............................................................. 43
■ Setting blocking times....................................................................................... 43
■ Deleting blocking times..................................................................................... 44
Further adjustments
Setting the display contrast.................................................................................. 45
Setting the brightness of the display.................................................................... 45
Naming heating circuits........................................................................................ 45
Setting the time and date..................................................................................... 46
Language selection.............................................................................................. 47
Setting the temperature unit (°C/°F)..................................................................... 47
Changing boiler water temperature...................................................................... 47
Changing the set value of residual oxygen.......................................................... 48
Setting the minimum system temperature............................................................ 48
Restoring factory settings..................................................................................... 49
Scanning
Scanning fault messages..................................................................................... 50
Scanning information............................................................................................ 51
■ Scanning temperatures..................................................................................... 53
Shutting down the heating system for an extended period
Shutting down the heating system for an extended period.................................. 55
Shutdown............................................................................................................. 55
What to do if...
Rooms are too cold.............................................................................................. 56
Rooms are too hot................................................................................................ 57
There is no hot water............................................................................................ 58
Index
Index
5549 811 GB

7
The DHW is too hot.............................................................................................. 58
"Fault" is shown in the display.............................................................................. 58
Ordering fuel....................................................................................................... 59
Maintenance and cleaning
Care, inspection and maintenance....................................................................... 60
Replacing fuses.................................................................................................... 61
Cleaning information............................................................................................ 61
Maintenance intervals.......................................................................................... 61
Emptying the ash box........................................................................................... 62
Cleaning the light barriers.................................................................................... 63
Appendix
Terminology.......................................................................................................... 64
Efficient and clean operation................................................................................ 65
Dismantling and disposal..................................................................................... 66
■ Dismantling....................................................................................................... 66
■ Disposal............................................................................................................ 66
Energy saving tips............................................................................................. 67
Keyword index.................................................................................................... 68
Index
Index (cont.)
5549 811 GB

8
The appliance is only intended to be
installed and operated in sealed unven-
ted heating systems that comply with
EN 12828, with due attention paid to the
associated installation, service and
operating instructions. It is only designed
for the heating of heating water that is of
potable water quality.
Intended use presupposes that a fixed
installation in conjunction with permissi-
ble, system-specific components has
been carried out.
Commercial or industrial usage for a pur-
pose other than heating the building or
DHW shall be deemed inappropriate.
Any usage beyond this must be
approved by the manufacturer in each
individual case.
Incorrect usage or operation of the appli-
ance (e.g. the appliance being operated
for longer periods when open) is prohibi-
ted and will result in an exclusion of lia-
bility. Incorrect usage also occurs if the
components in the heating system are
modified from their intended use (e.g. if
the flue gas and ventilation air paths are
sealed) or if other fuels than those inten-
ded for this appliance are used.
Commissioning
The commissioning and matching up of
the control unit to local conditions and
the structural characteristics of the build-
ing must be carried out by your heating
contractor.
Service instructions
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector (where applicable) will
also provide you with information on
additional activities concerning your
combustion equipment (such as regular
testing, cleaning, etc.).
Prepare and carry out the emissions
tests according to 1st BImSchV:
Service instructions
Introductory information
Intended use
5549 811 GB

9
Your boiler's control unit is set at the fac-
tory.
■ The heating circuits are set to the
"Heating" operating program.
■ The domestic hot water heating is set
to the "DHW" operating program.
Your heating system is therefore ready
for operation:
Central heating
■ From 06:00 to 22:00 h your rooms are
heated to 22 °C "Set room temp"
(standard heating mode).
■ From 22:00 to 06:00 h your rooms are
heated with "Set red room temp"
(room temperature for reduced heat-
ing mode, night setback).
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings at any
time to suit your individual require-
ments (see from page 22).
DHW heating
■ DHW is heated to 60 °C "Set DHW
temperature" every day from 00:00
to 24:00 h.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings at any
time to suit your individual require-
ments (see from page 35).
Frost protection
■ Your boiler, DHW cylinder and heating
water buffer cylinder are protected
against frost.
Wintertime/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Power failure
■ All data is retained if there is a power
failure.
Introductory information
Your system is preset at the factory
5549 811 GB

10
The appendix contains a chapter entitled
"Terminology" to provide you with a bet-
ter understanding of the functions of your
boiler.
Energy saving tips
Use the adjustment options offered by
your boiler control unit:
■ For central heating, select the operat-
ing program that meets your current
requirements:
– For short periods of absence (a few
hours e.g. shopping trips), select
"Economy mode" (see page 32).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, select the
"Holiday program" (see
page 33).
The operating program for central
heating is automatically set to
"Standby mode" while the holiday
program is active.
– If, for an extended period, you do not
want to heat the rooms and you do
not require DHW, select the
"Standby mode" operating pro-
gram for the relevant heating circuits
and for DHW.
– See page 24 for the relevant
heating circuits
– See page 35 for DHW heating
■ Never set the DHW cylinder tempera-
ture excessively high (see page 35).
Contact your heating contractor for addi-
tional energy saving functions offered by
the control unit for your boiler.
For recommendations for energy saving,
see page 67.
Introductory information
Terminology
5549 811 GB

11
A
B
C
D
AProgramming unit of the control
unit
BReset button for high limit safety cut-
out behind the casing
CFront door
DAsh box
Note
You will find an overview of the cleaning
and maintenance tasks from page 60.
Where to find the controls
Boiler controls and components
5549 811 GB

12
The programming unit
The programming unit is mounted on the
front at the top, above the front door.
Danger
There is a risk of falling due to
slipping and tripping on the ash
box.
Do not stand on the ash box.
Buffer
Heating
DHW
Boiler
Buffer drawing
Select with (
You can adjust all control unit settings
centrally at the programming unit. Con-
trol unit operation is described from
page 16.
Where to find the controls
Controls and display elements of control unit
5549 811 GB

13
1. Check the heating system pressure
at pressure gauge A:
The system pressure is too low if the
indicator points to the area below the
red field. Top up with water or notify
your local heating contractor.
Minimum system pressure: 1.0 bar
(0.1 MPa)
2. Check that the vents of the installa-
tion room are unrestricted.
Note
With open flue operation, the com-
bustion air is drawn from the installa-
tion room.
3. Verify that the heating system or the
heating water buffer cylinder is draw-
ing off heat. Open the thermostatic
valves on the radiators if necessary.
4. Ensure that all heating flow and heat-
ing return shut-off gate valves are
open.
5. Check that all covers on the boiler are
closed.
6. Ensure that power is supplied to the
boiler.
Action in case of overheating
The high limit safety cut-out protects
your boiler from overheating.
Note
Modifications to these components, of
any kind whatsoever, are prohibited and
will render all warranties void.
Replace faulty components only with
genuine spare parts from Viessmann.
Boiler operation
Heat-up preparations
5549 811 GB

14
Note
If the boiler overheats again after a short
time or overheats regularly, notify your
heating contractor.
Boiler water temperature has reached 95 °C
High limit safety cut-out
The reset button of high limit safety cut-
out A is located behind the boiler cas-
ing.
Triggering the function
When the boiler water temperature
exceeds 95 °C the high limit safety cut-
out responds.
Note
The high limit safety cut-out can only be
reset manually.
Cancelling the function
Note
The high limit safety cut-out can only be
reset (unlocked) once the boiler water
temperature is approx. 70 °C.
Check or let your heating contractor
check that the thermally activated safety
valve has reset after every triggering of
the high limit safety cut-out.
Boiler operation
Action in case of overheating (cont.)
5549 811 GB

15
A
1. Open the front door.
2. Press green button A of the high
limit safety cut-out. You will hear a
faint "click". The high limit safety cut-
out has been reset.
3. Close the front door.
4. Acknowledge the excess tempera-
ture on the programming unit of the
control unit with d.
Boiler operation
Action in case of overheating (cont.)
5549 811 GB

16
Buffer
Heating
DHW
Boiler
Buffer drawing
Select with (
B
A
ADisplay of operating phase
BDialogue line
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
Scrolls through the menu or adjusts
values.
dConfirms your selection or saves
the setting.
Calls up the help text relevant to the
selected menu point.
Calls up the extended menu.
The selected menu point is highlighted in
white.
Dialogue line B then shows the neces-
sary instructions.
Control unit operation
Navigation in the control unit menu
5549 811 GB

17
Example: Procedure for settings with different dialogue lines
Vv
or
OK
Ú
OK OK
OK
DHW
Additional boiler
Information
48°C
Heating
Boiler water temp
Select with (
OK
Heating circuit 1
Operating program
Party mode
Economy mode
20°C
ÙÚ
Set room temperature
HC1
ÙÚ
HC1
Select with (
Heating circuit 2
Operating program
Party mode
Economy mode
20°C
ÙÚ
Set room temperature
HC2
ÙÚ
HC2
Select with (
Heating circuit 1
Operating program
Party mode
Economy mode
22°C
ÙÚ
Set room temperature
HC1
Heating circuit selection ÙÚ
HC2
Was selected
Heating circuit 2
Set room temperature HC1
20°C
Change with (
Set room temperature HC1
22°C
Adopt with OK
Set room temperature HC1
22°C
Adopted
Select with (
22°C
Control unit operation
Navigation in the control unit menu (cont.)
5549 811 GB

18
There are 2 control levels available, the
"Standard menu" and the "Extended
menu".
Standard menu
Buffer
Heating
DHW
Boiler
Buffer drawing
Select with (
You can call up the settings you require
most frequently from the standard
menu:
■ Selecting the set room temperature
■ Selecting the operating program
■ Selecting the comfort function "Party
mode"
■ Selecting the energy saving function
"Economy mode"
■ Scanning the operating status
■ Calling up temperatures, e.g. outside
temperatures
■ Calling up information
■ Scanning information, warning and
fault messages
Call up the standard menu as follows:
■ If the screensaver is active:
Press any key.
■ From anywhere in the menu:
Keep pressing until the standard
menu appears.
Control unit operation
Menu structure of the control unit
5549 811 GB

19
Extended menu
Menu
Select with (
Boiler
Heating
Charging
Buffer
In the extended settings menu, you can
call up and adjust the settings of the con-
trol unit's range of less frequently
used functions, e.g. holiday program
and time programs.
Call up the extended menu as follows:
■ If the screensaver is active:
Press any key followed by .
■ From anywhere in the menu:
Press .
Screensaver
■ The screensaver will become active if
you have not adjusted any settings on
the programming unit for a few
minutes.
■ Depending on the operating phase,
the screensaver will inform you about
the current values of the boiler or heat-
ing water buffer cylinder.
Control unit operation
Menu structure of the control unit (cont.)
5549 811 GB

20
Screensaver during operating phase "Boiler load operation"
Boiler load operation
Overview Boiler
73°C 56°C
Flue gas
135°C
25%
A
H
B
C
D
E
F
G
ABoiler flow temperature
BOperating phase
CBoiler return temperature
DFlue gas temperature
EDialogue line
FHeating output of the boiler
GFeed pump rate
HPellet hopper fill level
Screensaver during operating phase "Buffer drawing"
Buffer drawing
Overview Buffer
53%
A
B
73°C
62°C
34°C
E
F
D
C
AOperating phase
BHeating water buffer cylinder heat-
up condition in %
CDialogue line
DBuffer temperature, bottom
EBuffer temperature, middle
FBuffer temperature, top
Control unit operation
Menu structure of the control unit (cont.)
5549 811 GB
