AC Infinity AC-HCA22 User manual

USER MANUALUSER MANUAL
MOUNTING BARS
GROW TENT ACCESSORY BARS

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE HCA2211X1
PRODUCT
Grow Tent Mounting Bars (2x2)
Grow Tent Mounting Bars (2x4)
Grow Tent Mounting Bars (3x3)
Grow Tent Mounting Bars (4x4)
Grow Tent Mounting Bars (5x5)
MODEL
AC-HCA22
AC-HCA24
AC-HCA33
AC-HCA44
AC-HCA55
UPC-A
819137023550
819137023567
819137023574
819137023581
819137023598

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation .....................................................................................
Tent Setup .....................................................................................
Weight Restrictions ........................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 12
Page 13
Page 14
Page 15

6
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void
this product’s warranty.
Do not use a mounting bar to replace a grow tent roof bar. These bars are not replacements
and will not support the weight of LED grow lights or heavy ventilation equipment.
This product pairs with those that have rotating parts. Safety precautions should be exercised
during the installation, operation, and maintenance of this product.
1.
2.
3.
4.
PRODUCT WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS OR DAMAGE TO PRODUCTS, OBSERVE THE
FOLLOWING:

7
KEY FEATURES
TIGHTER GRIP
Grip padding with various
thickness levels ensure a
tighter hold onto any grow
tent frame of any size.
ADJUSTABLE
Hook-and-loop straps can
loop around thick tent poles
and can be adjusted to raise
or lower the mounting bars.
HEAVY DUTY
Made of thick, resilient steel
that can support the weight
of equipment like clip-on
fans and LED side lighting.
*Cubic feet per minute
GREATER SUPPORT
Included support clamps
doubles the bars' weight
capacity to carry more or
larger accessories.
VERSATILE
Capable of many arrays to
create support systems for
inter-canopy side lighting,
trellises, and more.
CFM* INCREASE
Retains your grow tent's shape
to maximize interior space for
more plants and equipment by
preventing tent wall bowing.

8

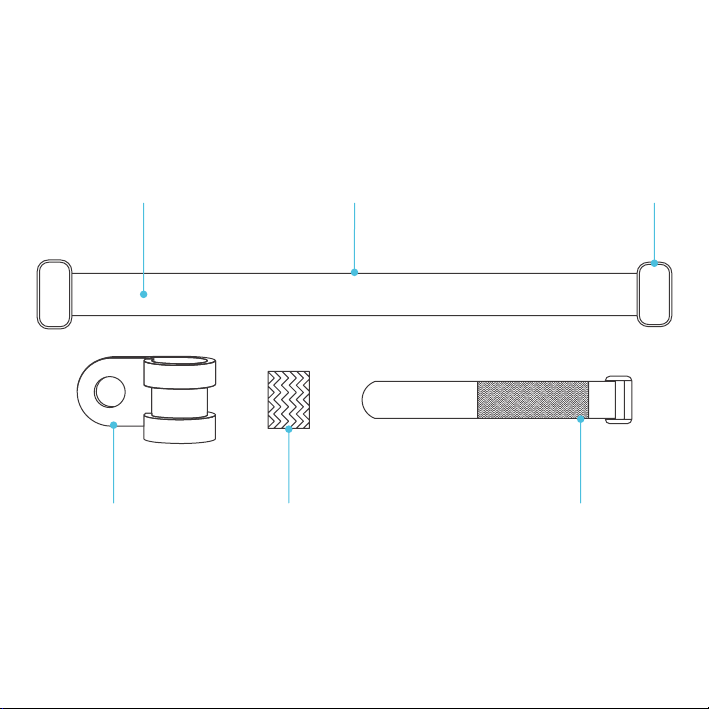

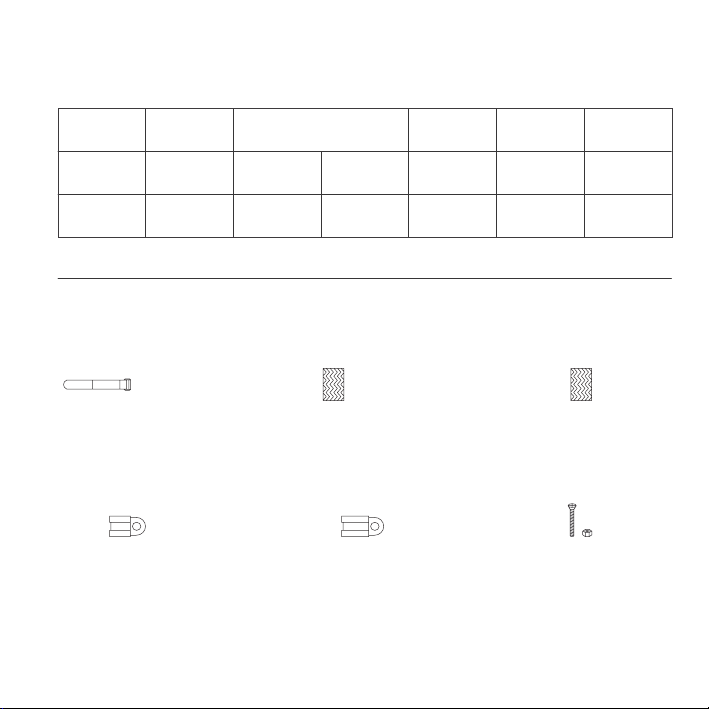

PRODUCT CONTENTS
ALL MODELS
HOOK AND
LOOP STRAP
(x8)
THIN ADHESIVE
SILICONE PAD
(x8)
THICK ADHESIVE
SILICONE PAD
(x8)
MACHINE SCREW
AND NUTS
(x8)
SUPPORT CLAMP
(for poles at least 16mm)
(x4)
SUPPORT CLAMP
(for poles at least 22mm)
(x4)
LENGTH
QUANTITY
AC-HCA24
2 FT
x2
AC-HCA44
4 FT
x4
AC-HCA55
5 FT
x4
AC-HC22
2 FT
x4
AC-HC33
3 FT
x4
4 FT
x2

9
INSTALLATION
STEP 2
Place the adhesive silicone pads at the ends of
each mounting bar, matching the correct size
pads on both sides so that the bar fits snug on
the grow tent poles.
STEP 1
Remove your grow tent* walls before installing
the mounting bars.
*Sold separately

10
INSTALLATION
STEP 3
Route the hook-and-loop straps through the bar
opening located at its ends, making sure the
buckle is outside and the padded side is inside.
This strap can loop around up to two bar openings.
OR
STEP 4
Wrap the hook-and-loop strap around the grow
tent pole and route it through its buckle. Tighten
and secure the strap.
OR

11
INSTALLATION

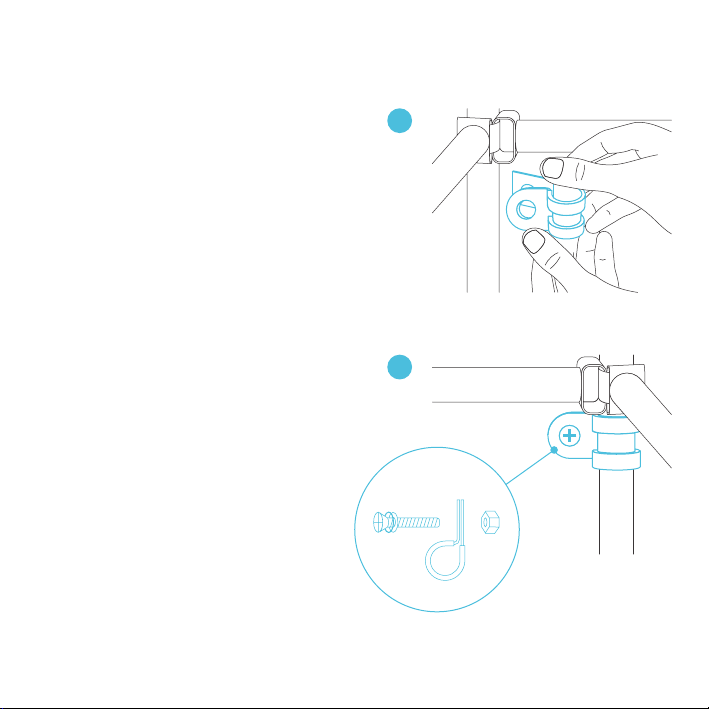

STEP 5
Select the support clamp size that best matches
your grow tent bar for greater reinforcement.
Apply smaller clamps for poles at least 16mm
and larger clamps for poles at least 22mm.
Open the support clamp around the bar.
Tighten and secure the clamp with the nut
and screw so that its flat side is parallel to
your grow tent's walls.
1.
2.
1
2

12
TENT SETUP
STANDARD ORIENTATION
The standard orientation will prevent your grow
tent from bowing.
This configuration can also be used as a
support system that allows elastic trellis nets to
hook onto the side bars.
SUPPORT ORIENTATION
The support orientation will provide general use
support throughout your grow tent.
This configuration can be used to support your
plant's weight, carry accessories, or produce
separate spaces within your tent.
It will also enable targeted environmental
adjustments such as inter-canopy lighting when
using grow light bars or spot airflow when using
clip-on fans.

13

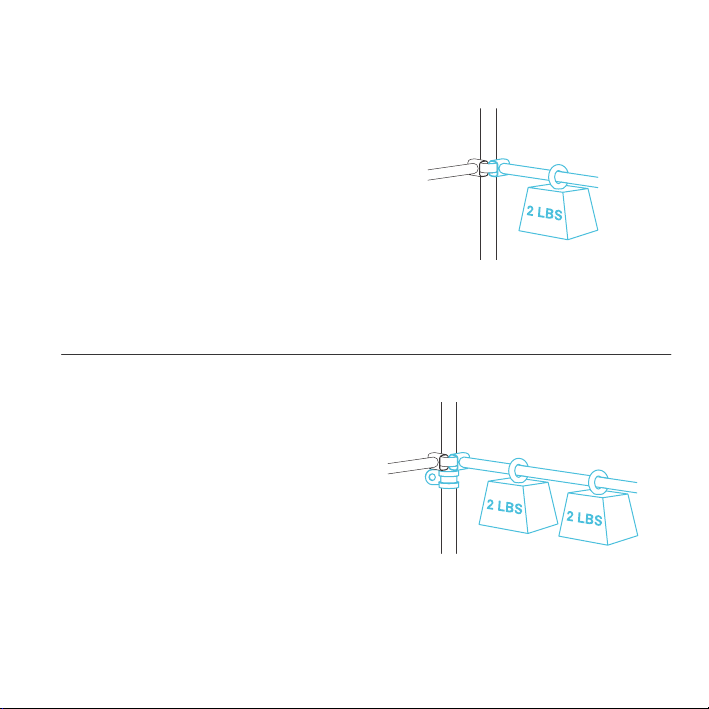

WEIGHT RESTRICTIONS
SINGLE BAR
A single mounting bar can hold up to 2 lbs
when installed onto a CLOUDLAB grow tent.*
SINGLE BAR AND SUPPORT CLAMP
A single mounting bar with a support clamp
can hold up to 4 lbs when installed onto a
CLOUDLAB grow tent.
*CLOUDLAB grow tent sold separately

14

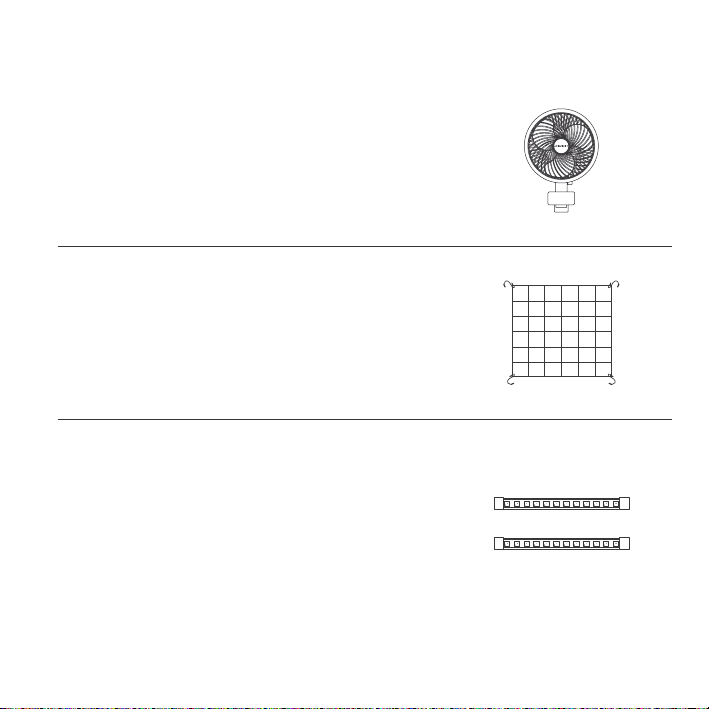

AC INFINITY PRODUCTS
Discover the latest innovations in environmental controls at acinfinity.com
Grow devices will be sold separately and may still be in development at the time of your purchase of this product.
Grow Light Bars
The IONBEAM series is a line of grow light bars designed
to maximize plant growth by accelerating your plant’s
photosynthesis. Features the latest LED technology to
efficiently produce full-spectrum and targeted lighting, as well
as magnetic mounting to use as inter-canopy lighting. Includes
a digital controller with programming modes to schedule and
activate ten intensity levels.
Trellis Nets
A tearproof grow tent net designed to improve lateral plant
growth and provide weight-bearing support capable of handling
heavier vegetation. Using versatile steel hooks, this durable
trellis netting is crafted to securely clip onto grow tent’s frames
and withstand acute stretching.
Circulator Clip Fans
The CLOUDRAY series is a line of clip fans designed to provide
precise air circulation for all stages of a plant’s growth cycle.
Features digital controls to achieve ten speed levels, as well as
a heavy-duty clamp constructed to tightly grip onto grow tent
poles of all sizes.

15
