USER MANUAL
ADVANCE GROW SYSTEM
COMPLETE INDOOR PLANT KIT

3
PROUD TO PRESENT TO YOU
THE ADVANCE GROW SYSTEM
Thank you for choosing AC Infinity. As growers, we’ve dreamt of
applying commercial levels of automation technology to our systems,
scaled down for home growing, without the commercial level price
tag. Now we’ve made it possible.
This complete indoor growing system is the culmination of four years
of development, implementing smart controls into all the technology a
grow space uses to create a fully automated system. Each grow tent
kit contains equipment that is collectively rated to grow your desired
number of plants and can be controlled using its grow tent controller
or the AC Infinity app.
We are committed to product quality and friendly customer service,
so please contact us if you have any questions or suggestions.
Don’t forget to share your growing journey with this complete indoor
growing system on social media @acinfinityinc!
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
PRODUCT
Advance Grow Tent Kit (2x2) COMPACT
Advance Grow Tent Kit (2x2)
Advance Grow Tent Kit (2x4)
Advance Grow Tent Kit (3x3)
Advance Grow Tent Kit (4x4)
Advance Grow Tent Kit (5x5)
MODEL
AC-PKA22
AC-PKB22
AC-PKB24
AC-PKB33
AC-PKB44
AC-PKB55
UPC
819137022829
819137022836
819137022843
819137022850
819137022867
819137024038
MANUAL CODE PK2210X1

5
MANUAL INDEX
Manual Index .................................................................................................
Product Warning ...........................................................................................
Product Contents .........................................................................................
Quick Build Guide ........................................................................................
CLOUDLINE: Mixed Flow Inline Fan System ..............................................
Duct Carbon Filter: Premium Australian Charcoal ....................................
Product Contents ...................................................................................

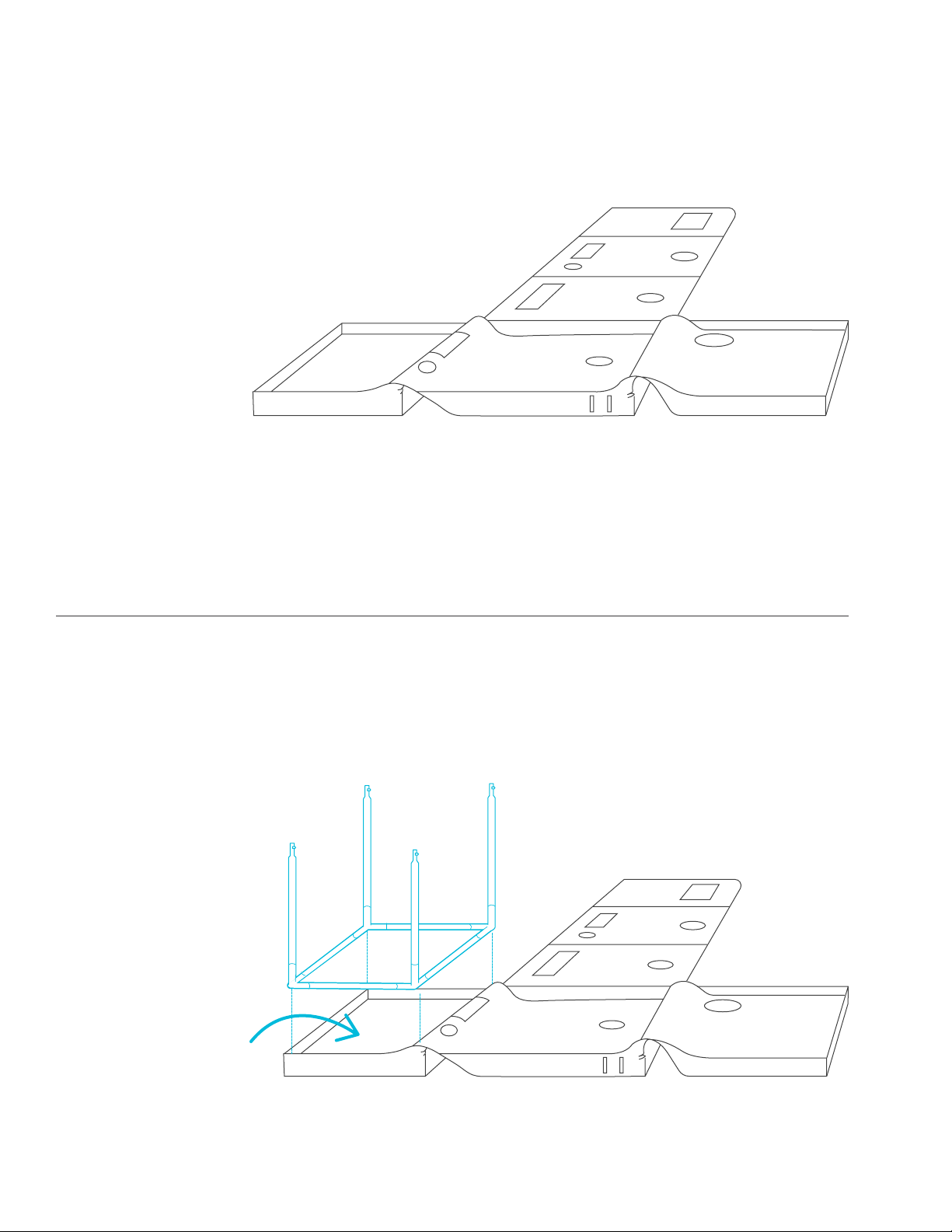

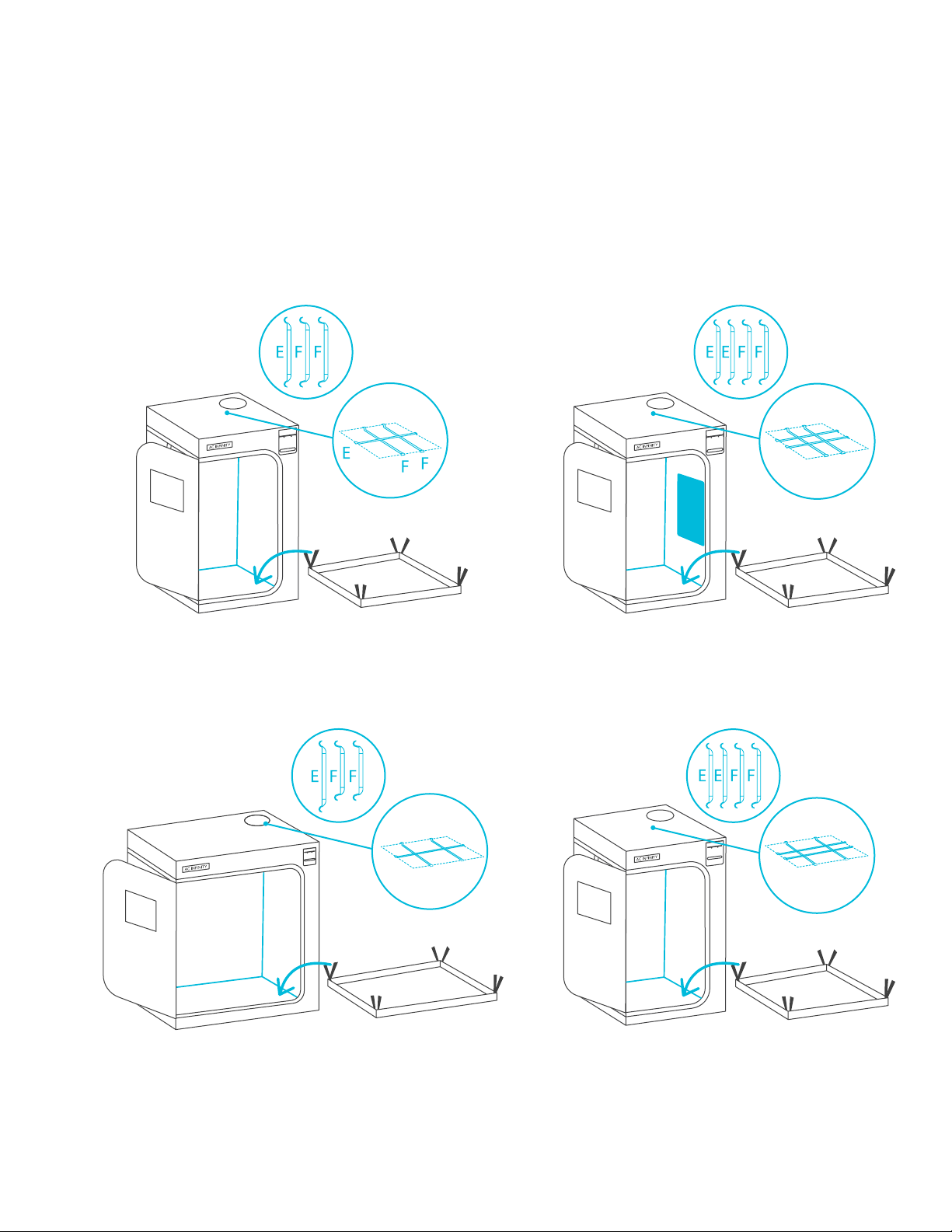

Tent Setup .............................................................................................

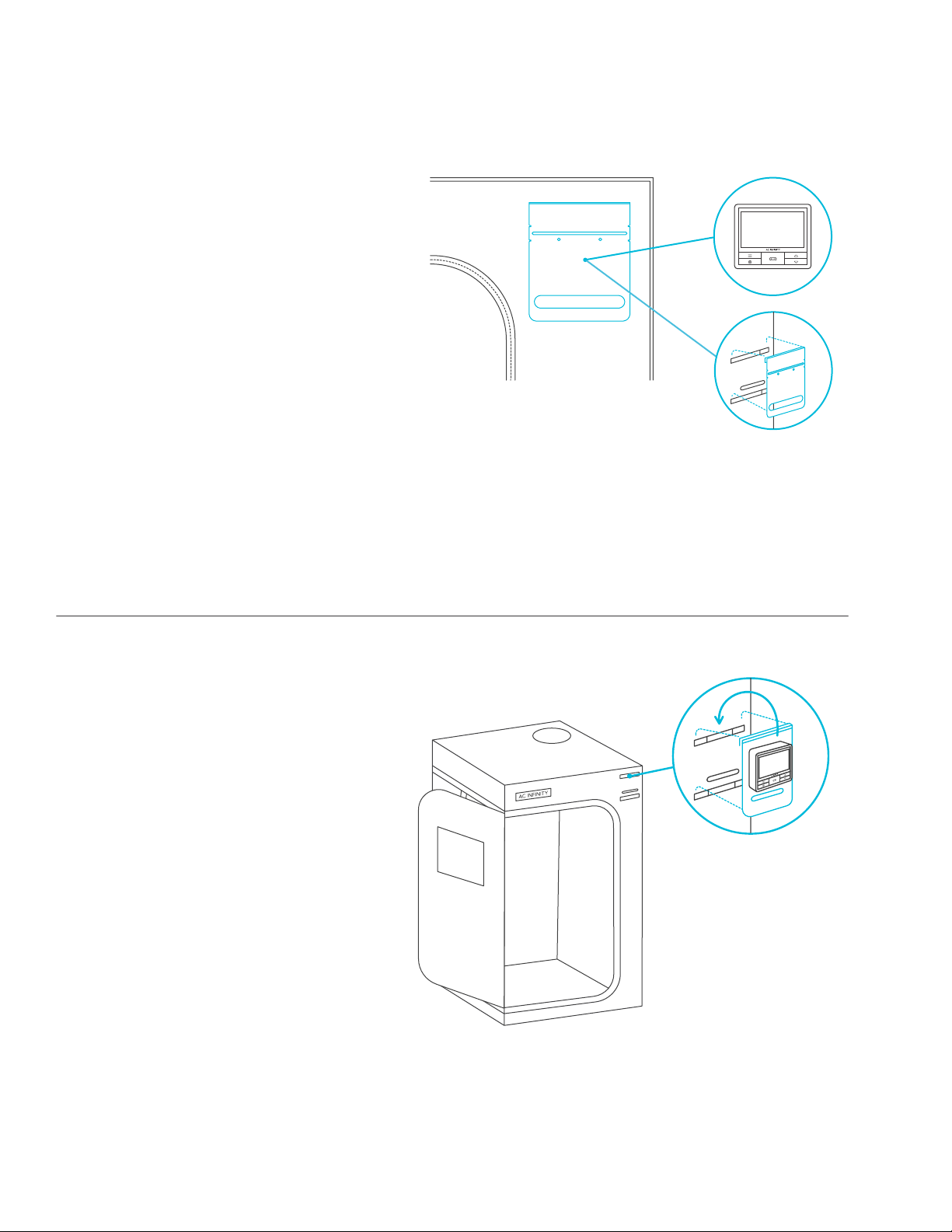

Controller Plate Setup ...........................................................................
Mounting Guide .....................................................................................
Ventilation Guide ...................................................................................
Configuration Setup ...............................................................................
Product Contents ...................................................................................
Mounting ................................................................................................
Overhead Hanging ................................................................................
Motor Cap ..............................................................................................
Configuration Setup ...............................................................................
Cleaning ................................................................................................
Product Contents ...................................................................................
Installation .............................................................................................
Overhead Hanging ................................................................................
Configuration Setup ...............................................................................
Maintenance ..........................................................................................
Page 5
Page 7
Page 8
Page 10
Page 12
Page 13
Page 15
Page 20
Page 22
Page 23
Page 24
Page 26
Page 27
Page 28
Page 33
Page 36
Page 37
Page 38
Page 40
Page 41
Page 42
Page 43
Page 47
Page 50
Page 52
Page 53
Page 55
Page 57
Page 60
Page 63
Page 65
Page 67
IONBOARD / IONFRAME EVO: Grow Light System ..................................
Product Contents ...................................................................................
Installation .............................................................................................
Driver Mounting: IONFRAME EVO ........................................................
Overhead Hanging ................................................................................
Powering and Setup ..............................................................................
Starter Guide .........................................................................................
Programming .........................................................................................
CLOUDLAB: Advance Grow Tent ...............................................................

6
CLOUDRAY: Oscillation Fan System ..........................................................
Warranty ........................................................................................................
Product Contents ...................................................................................
Recommended Usage ...........................................................................
Installation .............................................................................................
Cleaning ................................................................................................
Programming .........................................................................................
CONTROLLER 69 PRO: UISTM Controller ....................................................
Product Contents ...................................................................................
Powering and Setup ..............................................................................
Mounting ................................................................................................
UISTM Platform ........................................................................................
UISTM Compatibility ................................................................................
Adding More Devices ............................................................................
Programming .........................................................................................
Other Settings ........................................................................................
Download the App .................................................................................
Add a Device .........................................................................................
Frequently Asked Questions .................................................................
Page 68
Page 69
Page 70
Page 71
Page 74
Page 76
Page 78
Page 79
Page 80
Page 82
Page 84
Page 85
Page 86
Page 88
Page 112
Page 113
Page 114
Page 121
Page 124
MANUAL INDEX

7
Ensure your power source conforms to the electrical requirements of this product.
Check your local code restrictions for additional safety measures that may be needed for a
proper code compliant installation.
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void this
product’s warranty.
Do not attempt to hardwire this product. Performing any retrofitting actions may result in
personal injury and/or electrical damage, and will void this product’s warranty.
This product must not be used in potentially hazardous locations such as flammable, explosive,
chemical-laden, or wet atmospheres.
Ducted products must always be vented to outdoor areas.
Do not cover power cords with rugs or other fabric materials.
This product has rotating parts. Safety precautions should be exercised during the installation,
operation, and maintenance of this product.
Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings as
it may cause electric shock, fire, or damage to this product. Do not block or tamper with this
product in any manner while it is in operation.
Do not depend on the on/off programming as the sole means of shutting power from this
product. Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped,
or is damaged in any manner.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:

8
PRODUCT CONTENTS
OVERVIEW
CONTROLLER 69 PRO
UIS Controller
BOX B
CLOUDLINE
Inline Fan
BOX C
(NOT included in AC-PKB55)
CLOUDLAB
Advance Grow Tent
BOX A
ALUMINUM
DUCTING TAPE
BOX I
HOOK AND LOOP
CABLE TIES
BOX I
STAINLESS STEEL
PRUNING SNIPS
BOX I
ELASTIC
TRELLIS NETTING
BOX I
GARDEN PLANT
TWIST TIES
BOX I
FABRIC POTS,
5 gal.
BOX H
INLINE
CARBON FILTER
BOX F
DUCTING
AND CLAMPS
BOX G
CLOUDRAY
Clip Fan
BOX E
IONBOARD
LED Grow Light
BOX D
(NOT included in AC-PKB55)
IONFRAME EVO
LED Grow Light
BOX D
(ONLY included in AC-PKB55)
CLOUDLINE PRO
Inline Fan
BOX C
(ONLY included in AC-PKB55)

9
PRODUCT CONTENTS
DETAILS
BOX A
GROW TENT
BOX B
GROW TENT
CONTROLLER
BOX C
INLINE FAN
BOX D
LED GROW LIGHT
BOX E
CLIP-ON FAN
BOX F
CARBON FILTER
BOX G
DUCTING
BOX H
FABRIC POTS
BOX I
TRELLIS
NETTING
BOX I
TWIST TIES
BOX I
PRUNING SNIPS
BOX I
DUCTING TAPE
BOX I
HOOK AND
LOOP TIES
BOX G
CLAMPS
BOXES C & F
HANGING STRAPS
BOXES D
ROPE CLIP HANGERS
BOXES D
CONTROLLER CORD
BOXES E
L-SHAPED
CONTROLLER CORD
CLOUDLAB 422,
24” x 24” x 48”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE A4,
Inline Fan 4 in.
x1
IONBOARD S22,
2x2 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fan
x1
Inline Carbon Filter, 4 in.
x1
4 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x2
Elastic Trellis Netting
2’ x 2’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
4 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x1
CLOUDLAB 722,
24” x 24” x 72”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE A4,
Inline Fan 4 in.
x1
IONBOARD S22,
2x2 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fan
x1
Inline Carbon Filter, 4 in.
x1
4 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x2
Elastic Trellis Netting
2’ x 2’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
4 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x1
CLOUDLAB 642,
24” x 48” x 72”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE A6,
Inline Fan 6 in.
x1
IONBOARD S24,
2x4 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fan
x1
Inline Carbon Filter, 6 in.
x1
6 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x4
Elastic Trellis Netting
2’ x 4’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
6 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x1
CLOUDLAB 733,
36” x 36” x 72”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE A6,
Inline Fan 6 in.
x1
IONBOARD S33,
3x3 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fan
x1
Inline Carbon Filter, 6 in.
x1
6 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x6
Elastic Trellis Netting
3’ x 3’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
6 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x1
CLOUDLAB 844,
48” x 48” x 80”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE A6,
Inline Fan 6 in.
x1
IONBOARD S44,
4x4 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fans
x2
Inline Carbon Filter, 6 in.
x1
6 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x8
Elastic Trellis Netting
4’ x 4’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
6 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x2
Advance Grow
Tent Kit (2x2)
COMPACT
AC-PKA22
Advance Grow
Tent Kit (2x2)
AC-PKB22
Advance Grow
Tent Kit (2x4)
AC-PKB24
Advance Grow
Tent Kit (3x3)
AC-PKB33
Advance Grow
Tent Kit (4x4)
AC-PKB44
Advance Grow
Tent Kit (5x5)
AC-PKB55
CLOUDLAB 866,
60” x 60” x 80”
x1
CONTROLLER 69 PRO,
4 Ports
x1
CLOUDLINE PRO T6,
Inline Fan 6 in.
x1
IONFRAME EVO8,
5x5 Coverage
x1
CLOUDRAY S6,
Oscillating Clip Fans
x2
Inline Carbon Filter, 6 in.
x1
6 in. Flexible Ducting,
8 ft. Length
x1
Fabric Pots, 5 gal.
x12
Elastic Trellis Netting
5’ x 5’
x1
Wire Plant Tie, Black
x1
Micro-Tip Shears
x1
Aluminum Tape, 5 ft.
x1
Hook and Loop
Cable Tie
x10
6 in. Silver Metal Clamp
x2
Nylon Hanging Straps
x2 per box
Adjustable Hangers
x2
UIS Male-Male
Controller Cord
x1
UIS Male-Male
Controller Cord
x2

10
QUICK BUILD GUIDE
1Build the Grow Tent (BOX A).
Refer to pages 12-25.
Install the Inline Fan with Straps (BOX
C), Ducting and Clamps (BOX G) to your
preferred configuration.
Refer to pages 26-39.
You may connect and hang
the Carbon Filter with Straps
(BOX F) to your ductwork.
Refer to pages 40-51. Use
Duct Tape (BOX I) to seal any
gaps in the ducting.
Clamp the Clip Fan
(BOX E) onto the tent
frame. Refer to pages
68-77.
2
3 5
Hang the Grow Light
using Rope Hangers
(BOX D) by the roof
support beams. Refer to
pages 52-67. Turn the
knob to “UIS” to pair and
connect with the controller.
4

11
Add potting mix and plant seeds into the Fabric Pot (BOX H), and set it inside of the grow
tent to finish the build.
The Grow Tent Controller is pre-programmed with the following settings:
Use the Hook and Loop Ties (BOX I)
to manage the wires.
Plug all the electronic devices
into available AC outlets.
Mount the Grow Tent Controller (BOX B) onto the Controller Plate (BOX A).
Refer to page 20.
Set the Grow Tent Controller’s (BOX B) clock time to your local time. Refer to
page 102.
Plug the probe into the probe port. Plug the Inline Fan’s controller cable (BOX C)
into Port 1, the Grow Light’s controller cable (BOX D) into Port 2, and the Clip Fan’s
controller cable (BOX E) into Port 3. Plug the second Clip Fan’s controller cable (BOX
E) into Port 4 (AC-PKB44 and AC-PKB55 models only). Refer to page 80.
7 8
6
Port 1 – Inline Fan set to Fan Speed Level 5 scheduled between 6:00pm
and 12:00pm, and to Level 2 scheduled between 12:00pm and 6:00pm.
Port 2 – Grow Light set to Brightness Intensity Level 10 scheduled
between 6:00pm and 12:00pm and to Level 0 scheduled between
12:00pm and 6:00pm.
Port 3 – Clip Fan set to Level 5.
Port 4 – Clip Fan set to Level 5 (AC-PKB44 and AC-PKB55 models only).
9
QUICK BUILD GUIDE

12
CLOUDLAB SERIES
ADVANCE GROW TENT

13
ADVANCE GROW TENT
PRODUCT CONTENTS
CONTROLLER
MOUNTING
PLATE
x1 x1 x1 x1 x1 x1
WALL HANG
SCREWS WITH
NUTS
x4 x4 x4 x4 x4 x4
CONTROLLER
HOOK AND
LOOP PADS
x6 x6 x6 x6 x6 x6
NYLON
HANGING
STRAPS
x2 x2 x2 x2 x2 x2
CONTROLLER
PLATE BOLTS
WITH NUTS
x4 x4 x4 x4 x4 x4
Advance Grow
Tent Kit (2x2)
COMPACT
AC-PKA22
Advance Grow
Tent Kit (2x2)
AC-PKB22
Advance Grow
Tent Kit (2x4)
AC-PKB24
Advance Grow
Tent Kit (3x3)
AC-PKB33
Advance Grow
Tent Kit (4x4)
AC-PKB44
Advance Grow
Tent Kit (5x5)
AC-PKB55
GROW TENT
CLOUDLAB 422,
24” x 24” x 48”
x1
CLOUDLAB 722,
24” x 24” x 72”
x1
CLOUDLAB 642,
24” x 48” x 72”
x1
CLOUDLAB 733,
36” x 36” x 72”
x1
CLOUDLAB 844,
48” x 48” x 80”
x1
CLOUDLAB 866,
60” x 60” x 80”
x1

14
PRODUCT CONTENTS
CLOUDLAB
x8
A
x4 x4 x8 x1 x2
BC
D1
E F
x8
A
x4 x4 x8 x2 x2
BCE F
D1
CLOUDLAB SERIES Included only with
CLOUDLAB 422
CLOUDLAB 722
AC-CBA422
AC-CBA722
FRAME POLES
CLOUDLAB SERIES Included only with
CLOUDLAB 733
CLOUDLAB 844
CLOUDLAB 866
AC-CBA733
AC-CBA844
AC-CBA866
FRAME POLES
CLOUDLAB SERIES Included only with
CLOUDLAB 642 AC-CBA642
FRAME POLES
x4
A1
x4 x4 x8 x1 x2
BC
E
F
x4
A2
D
NOTE: Pole lengths may vary between all models.

15
STEP 1
Insert the eight (A) poles* and into the
floor end of the corner (D1) pieces to
create two bases.
When assembling, make sure the feet of
each corner (D1) piece faces the floor
with the arrow facing down.
STEP 2
Insert the four (B) poles into Base One.
Insert the four (C) poles into Base Two.
D1
D1
D1
D1
X2
A / A1
A / A1
A / A2 A / A2
*Poles in CLOUDLAB 642 are labeled A1 & A2.*
TENT SETUP
CLOUDLAB
Base One Base Two
BB
B
B
CC
C
C

16
CLOUDLAB
STEP 3
Unzip the tent so that three of the walls
lay flat.
Floor Roof
Door
STEP 4
Guide Base One into the floor of the
tent, making sure its corners meet the
tent’s corners.
TENT SETUP
Floor
Base One

17
CLOUDLAB
STEP 6
Pull the roof over the assembled frame.
STEP 5
Insert the poles of Base Two into the poles
of Base One to complete the frame.
Two people are recommended for this portion of the tent assembly.
Two people are recommended for this portion of the tent assembly.
TENT SETUP
Base One
Base Two
BBB
C
CC

18
CLOUDLAB
STEP 8
You can neatly hold the window wall
open any time by using its attached hook
and loop strap.
STEP 7
Pull the upper and lower zippers to close
the walls and door.
TENT SETUP
*CLOUDLAB 733 / 844 / 866 are built with additional side doors.

19
CLOUDLAB
STEP 9
Add the roof support beams (E) then
(F). Insert the spill pool into the tent and
secure the hook and loop straps around
the poles.
TENT SETUP
CLOUDLAB 642 CLOUDLAB 844 / 866
CLOUDLAB 422 / 722 CLOUDLAB 733
*CLOUDLAB 733 / 844 / 866 are built with additional side doors.
E
FF
E
E
FF
E
FF

20
STEP 1
Magnetically mount the controller onto
the bracket.
Refer to pages 82-83 for additional
controller mounting methods.
STEP 2
Slide the controller bracket assembly into
the tent straps.
CLOUDLAB 866 will include a lower third
strap for an alternate mounting location.
CONTROLLER PLATE SETUP
CLOUDLAB
