AC Infinity AC-HDA5 User manual

1
USER MANUAL
PROPAGATION SYSTEM
HUMIDITY CONTROLLED ENVIRONMENT

3
WELCOME
Thank you for choosing AC Innity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinnity.com
and click contact for our contact information.
EMAIL
support@acinnity.com
WEB
www.acinnity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE HD2208X1
MODEL
AC-HDA5
AC-HDM5
AC-HDL5
AC-HMX5
AC-HDA7
AC-HDL7
AC-HMX7
PRODUCT
Humidity Dome, Medium Heavy-Duty
Heated Humidity Dome, Medium Heavy-Duty
Propagation Kit, Medium Heavy-Duty
Propagation System, Medium Heavy-Duty
Humidity Dome, Large 1020
Propagation Kit, Large 1020
Propagation System, Large 1020
UPC-A
819137023208
819137023420
819137023215
819137023413
819137023864
819137023871
819137023888

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation: Humidity Dome ...........................................................
Installation: IONBEAM LED Light Bars ..........................................
Installation: SUNCORE Seedling Mat ............................................
Controller Mounting .......................................................................
Cleaning ........................................................................................
Programming .................................................................................
Starter Guide .................................................................................
Connecting to UISTM ......................................................................
Other AC Innity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 9
Page 10
Page 12
Page 14
Page 15
Page 16
Page 18
Page 20
Page 26
Page 28
Page 29

6
Ensure your power source conforms to the electrical requirements of this product.
Read all instructions before installing and using this product.
Be careful not to damage or cut the wire insulation (covering) during the installation. Do not
permit wires to come in contact with any sharp edges.
If you are unfamiliar or have doubts about performing this product's installation, seek the
services of a qualied, trained, and licensed professional. Inappropriate installation will void
this product's warranty.
This product must not be used in potentially hazardous locations such as ammable,
explosive, chemical-laden or wet atmospheres.
Do not cover power cords or seedling mat with rugs or other fabric materials.
Safety precautions should be exercised during the installation, operation, and maintenance of
this product.
Do not block or tamper with this product in any manner while it is in operation as it may cause
electric shock, re, or damage to this product.
Do not depend on the on/off programming as the sole means of shutting power from this
product. Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped,
or is damaged in any manner.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

7
M
HL

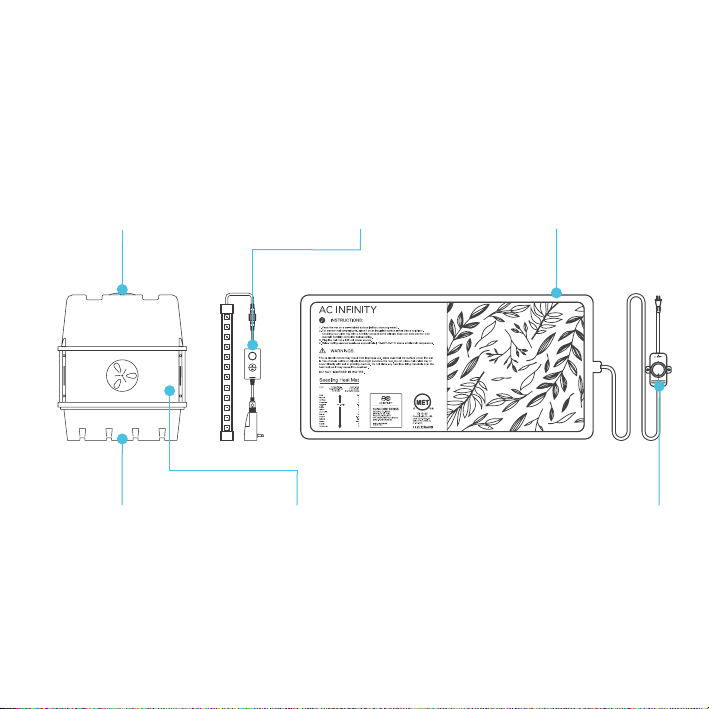

KEY FEATURES
LOCKED-IN HUMIDITY
Dual built-in rotating vents
set atop the humidity dome
provide precise control to
lock in moisture or lower
internal humidity levels.
SEED STARTING BASE*
IP-67 rated heating pad
improves germination and
rooting, emitting a steady
output of heat while insulating
your seedling tray.
TEMPERATURE CONTROL
Built-in dial controller gradually
adjusts the far infrared heating
lm to provide uniform heating
output in custom low, medium,
and high settings.
HEAVY-DUTY BUILD
Long-lasting, durable
tray with a 5x8 cell grid
design that supports up to
40 seedlings and drains
excess water.
CLONE-FRIENDLY
Transparent dome extender
with adjustable vents
provides a higher ceiling
to t taller plants in clone
propagation applications.
DOME LED LIGHTING*
Two LED light bars and a
controller with four intensity
settings to follow the plant's
growth cycle, as well as four
daily repeating timer settings.
*Included only in select models
MEDIUM HEAVY-DUTY SERIES

8
M
HL
KEY FEATURES
LOCKED-IN HUMIDITY
Dual built-in rotating vents
set atop and on the sides the
humidity dome provide precise
control to lock in moisture or
lower internal humidity levels.
SEED STARTING BASE*
IP-67 rated heating pad
improves germination and
rooting, emitting a steady
output of heat while insulating
your seedling tray.
TEMPERATURE CONTROL
Built-in dial controller gradually
adjusts the far infrared heating
lm to provide uniform heating
output in custom low, medium,
and high settings.
HEAVY-DUTY BUILD
Long-lasting, durable
tray with a 6x12 cell grid
design that supports up to
72 seedlings and drains
excess water.
CLONE-FRIENDLY
Transparent dome with
adjustable vents provides
a higher ceiling to t taller
plants in clone propagation
applications.
DOME LED LIGHTING*
Two LED light bars and a
controller with four intensity
settings to follow the plant's
growth cycle, as well as four
daily repeating timer settings.
*Included only in select models
LARGE 1020 SERIES

9
HUMIDITY DOME
IONBEAM LED LIGHT BARS (AC-HDL5, AC-HMX5, AC-HDL7, AC-HMX7)
SUNCORE SEEDLING MATS (AC-HDM5, AC-HMX5, AC-HMX7)
HEAVY-DUTY MODELS ONLY

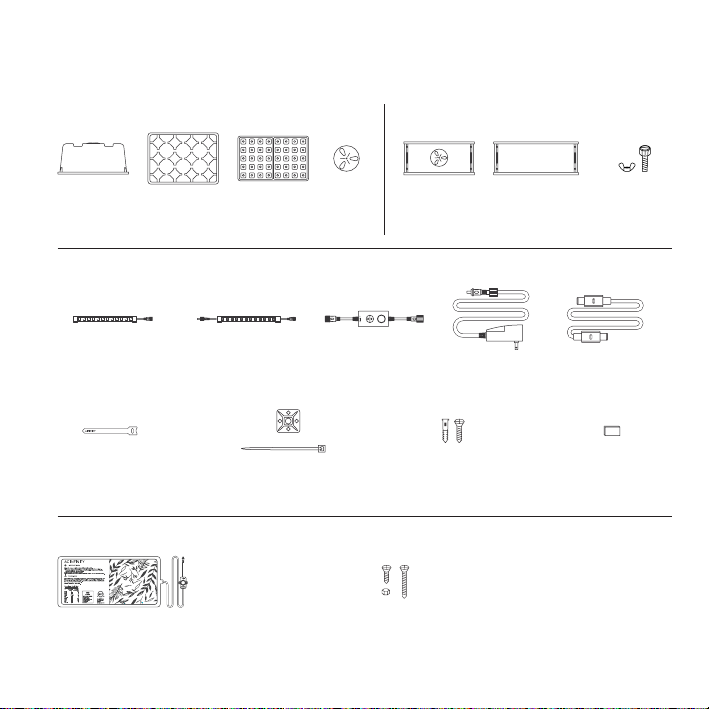

PRODUCT CONTENTS
LIGHT BAR
(SINGLE-CORDED)
(x1)
LIGHT BAR
(DUAL-CORDED)
(x1)
LIGHT
CONTROLLER
(x1)
POWER
ADAPTER
(x1)
UIS EXTENSION
CORD (M-M)
(x1)
HOOK AND LOOP
CABLE TIES
(x4)
WIRE
MOUNT
(x1)
WOOD SCREWS
(WALL MOUNT)
(x1)
ADHESIVE
MAGNET
(x1)
CONTROLLER
SCREW SET
(x2)
SEEDLING
MAT
(x1)
M
HL
HUMIDITY
DOME
(x1)
VENTED
PANEL
(x2)
SIDE
PANEL
(x2)
BASE
TRAY
(x1)
VENT
DISKS
(x4)
SEEDLING
TRAY
(x1)
BOLT AND
WING NUTS
(x8)

10
STEP 1
Place the seedling tray into the base tray.
For Large 1020 Series humidity domes,
proceed to step 3.
INSTALLATION
STEP 2
Assemble the dome extender*, keeping the
vented panels on opposite ends and applying
the plastic screw and nuts to secure the corners.
HUMIDITY DOME
*Not included in Large 1020 models.

11

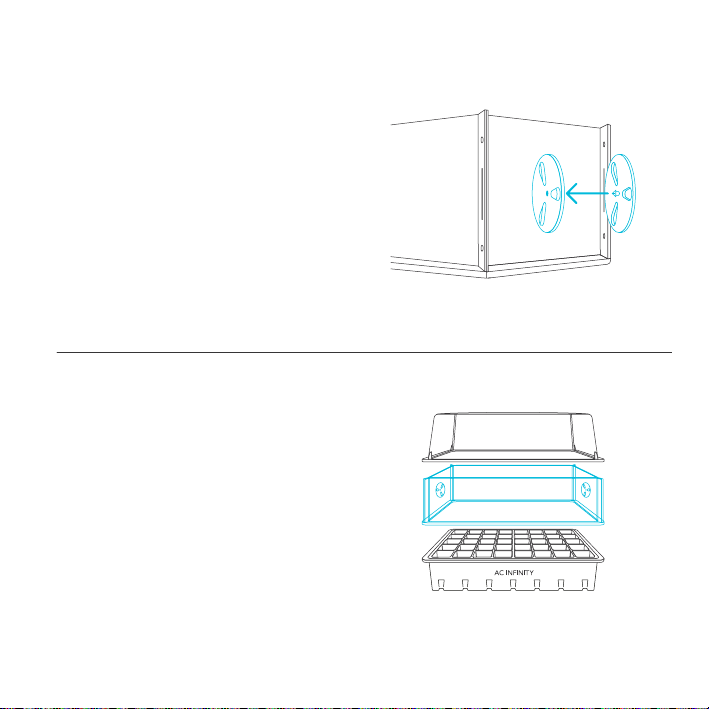

STEP 4
Place the dome over the tray.
You may also place the dome extender* in
between the tray and dome as an option.
STEP 3
Snap the vent disks into the side openings.
Adjust the vents as needed.
INSTALLATION
HUMIDITY DOME
*Not included in Large 1020 models.

12
INSTALLATION
IONBEAM LED LIGHT BARS
STEP 1
Assemble the light bar chain.
Connect the single-corded LED light bar's
female port to the dual-corded LED light
bar's male connector.
Connect the light controller's male
connector to the other end of the dual-
corded LED light bar.
Connect the power adapter to the
light controller.
A
B
C
MF
A.
Secure all connections using the twist-on pieces.
B.
C.
Included in AC-HDL5, AC-HMX5, AC-HDL7, and AC-HMX7 models.

13
INSTALLATION
IONBEAM LED LIGHT BARS
STEP 2
Place the LED light bars on top of the dome.
Its diodes should t snugly into the divots of
the dome.
STEP 3
Plug the power adapter into a wall outlet to
power the LED light bars.

14
INSTALLATION
SUNCORE SEEDLING MAT
STEP 1
Unroll the seedling mat at on to the ground.
Do not allow the mat to overlap onto itself.
STEP 2
Connect the AC power plug to a power outlet to
turn on the seedling mat.
Included in AC-HDM5, AC-HMX5, and AC-HMX7 models.

15
CONTROLLER MOUNTING
IONBEAM LED LIGHT BARS
STEP 1 — WALL MOUNTING
Locate a spot free of obstruction and secure
the anchor into your wall. Twist the wood screw
into the anchors.
STEP 2 — WALL MOUNTING
Use the mounting hole located on the back of
the controller for wall mount.
MAGNET MOUNTING
You may magnetically mount the light controller
by applying the included adhesive magnet onto
your humidity dome.

16
CLEANING
STEP 1
Dip or soak a cloth with your preferred solvent.
STEP 2
Separate each section and wipe each item to
clear them of any debris.

17

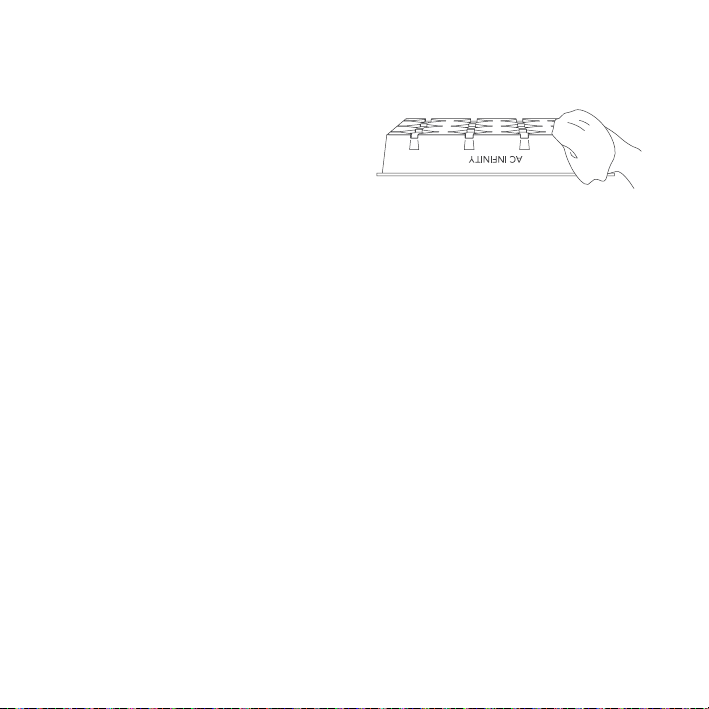

CLEANING
STEP 3
Using a dry cloth, pat or wipe each item and set
them aside upside-down to dry.

18
PROGRAMMING
1. LIGHTING
Pressing the light button will increase the light
intensity level in 10/30/60/100% increments,
displayed with white LED indicators. Pressing
this button at 100% intensity will cycle to 0%.
Holding the light button will shut off the lighting.
Pressing it again will return the light intensity to
its previous setting.
2. CYCLE TIMER
Pressing the clock button will set the timer
in 3/6/12/18-hour increments, displayed with
orange LED indicators.
Within a 24-hour cycle, lighting will be active for
the amount of time set here (ex. 3 hours for a
3HR timer). It will deactivate for the rest of the
24-hour cycle (ex. 21 hours).
Pressing the clock button at the 18HR setting
will deactivate the timer, cycling from 3HR
onwards when pressing this button again.
3. UIS CONNECTION
Refer to the programming section of your selected
UIS controller for programming instructions.
2
1
3
LIGHT CONTROLLER

19
HEATING CONTROLLER
PROGRAMMING
LIGHT INDICATOR
When the controller is turned on and receiving
power, the LED at the top of the controller will
light up to show it is on.
M
HL
ON
Turn the knob clockwise until you hear and feel
a click to turn on the seedling mat.
OFF
Turn the knob counterclockwise from ON until you
hear and feel a click to turn off the seedling mat.
SPEED CONTROL
Turning the knob will gradually adjust the heat
between low, medium, and high.

20

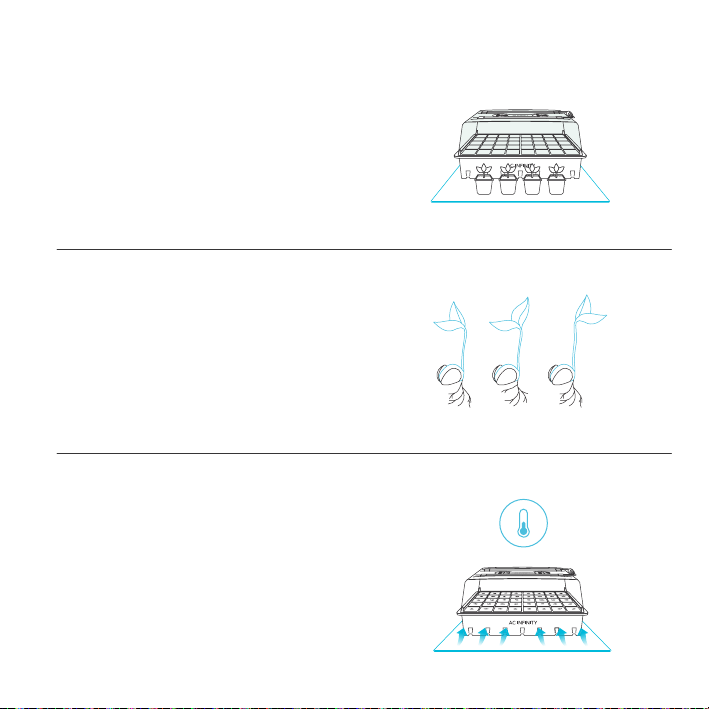

STARTER GUIDE
GERMINATION
Different seeds require different temperatures to
germinate. Before you begin, refer to your seed
package and the table on the seedling mat for
recommended temperature settings.
GROWING SEASONS
You may use a seedling mat to get a head start
on the gardening season. Start the germination
process during late winter or spring if you live in
a colder region.
TEMPERATURE
If your seed packet does not specify a
temperature, keep the temperature between
65°F and 75°F (18-24°C).
Make sure to also keep track of ambient room
temperatures; along with your local weather,
this can also affect your germination process.
HUMIDITY DOME AND SEEDLING MAT
