AC Infinity IONBEAM S11 User manual

1
USER MANUAL
IONBEAM
GROW LIGHT BAR SYSTEM

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE NE2211X1
MODEL
AC-NES11
AC-NES16
AC-NEU11-2
AC-NEU11-4
PRODUCT
IONBEAM S11
IONBEAM S16
IONBEAM U2
IONBEAM U4
UPC-A
819137023352
819137023369
819137024090
819137024106

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation .....................................................................................
Powering and Setup........................................................................
Controller Mounting .......................................................................
Starter Guide: Full Spectrum Lighting ...........................................
Starter Guide: UV Lighting .............................................................
UISTM Platform ...............................................................................
Connecting to UISTM ......................................................................
Programming .................................................................................
Other Settings ................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 14
Page 15
Page 17
Page 19
Page 21
Page 22
Page 23
Page 27
Page 28
Page 29

6
Ensure your power source conforms to the electrical requirements of this product.
Read all instructions before installing and using this product.
Be careful not to damage or cut the wire insulation (covering) during the installation. Do not
permit wires to come in contact with any sharp edges.
If you are unfamiliar or have doubts about performing this product's installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void
this product's warranty.
This product must not be used in potentially hazardous locations such as flammable,
explosive, chemical-laden or wet atmospheres.
Do not cover power cords with rugs or other fabric materials.
Safety precautions should be exercised during the installation, operation, and maintenance of
this product.
Do not block or tamper with this product in any manner while it is in operation as it may cause
electric shock, fire, or damage to this product.
Do not depend on the on/off programming as the sole means of shutting power from this
product. Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped,
or is damaged in any manner.
Do not stare directly at the LED lighting fixture. Doing so can cause damage to your eyes and
compromise your eyesight.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

7
*S-series only
KEY FEATURES
HUMIDITY-RESISTANT
Unibody design constructed
to IP65 standards to protect
against liquids and dust with
a tightly formed seal.
UISTM COMPATIBILITY
Compatible with select UIS
controllers to connect with
additional lights and access
custom programming.
LED LIGHTING
Full or targeted spectrum
LED light bars deliver optimal
coverage for enhanced light
quality over entire grow cycles.
DIGITAL CONTROLLER
Included controller displays
OFF, ON, and SCHEDULE
modes to activate the ten
intensity levels.
EASY INSTALLATION
Magnetic ends on the LED
light bars allow for quick and
toolless mounting on any steel
surface such as tent frames.
VERSATILE MOUNTING
Cold-rolled steel bars with
matte black powder coating
provide sturdy bases for
placement on any grow tent.

8
PRODUCT CONTENTS
IONBEAM U2 (AC -NEU11-2)
S-SERIES & IONBEAM U4 (AC - NE U11 - 4)
UIS EXTENSION
CORD (M-M)
(x1)
HOOK AND LOOP
CABLE TIES
(x4)
WIRE
MOUNT
(x4)
WOOD SCREWS
(WALL MOUNT)
(x6)
CONTROLLER
PLATE BOLTS
(x2)
HEX
NUTS
(x3)
BAR EXTENSION
CORD (M-F)
(x1)
UIS EXTENSION
CORD (M-M)
(x1)
HOOK AND LOOP
CABLE TIES
(x4)
WIRE
MOUNT
(x8)
WOOD SCREWS
(WALL MOUNT)
(x10)
CONTROLLER
PLATE BOLTS
(x2)
HEX
NUTS
(x3)
BAR EXTENSION
CORD (M-F)
(x3)
MOUNTING
BAR
(x2)
LIGHT BAR
(DUAL-CORDED)
(x1)
LIGHT BAR
(SINGLE-CORDED)
(x1)
SCHEDULE
CONTROLLER
(x1)
EC POWER
ADAPTER
(x1)
MOUNTING
BAR
(x4)
LIGHT BAR
(DUAL-CORDED)
(x3)
LIGHT BAR
(SINGLE-CORDED)
(x1)
*
SCHEDULE
CONTROLLER
(x1)
EC POWER
ADAPTER
(x1)
*
*S-series shown

9
INSTALLATION

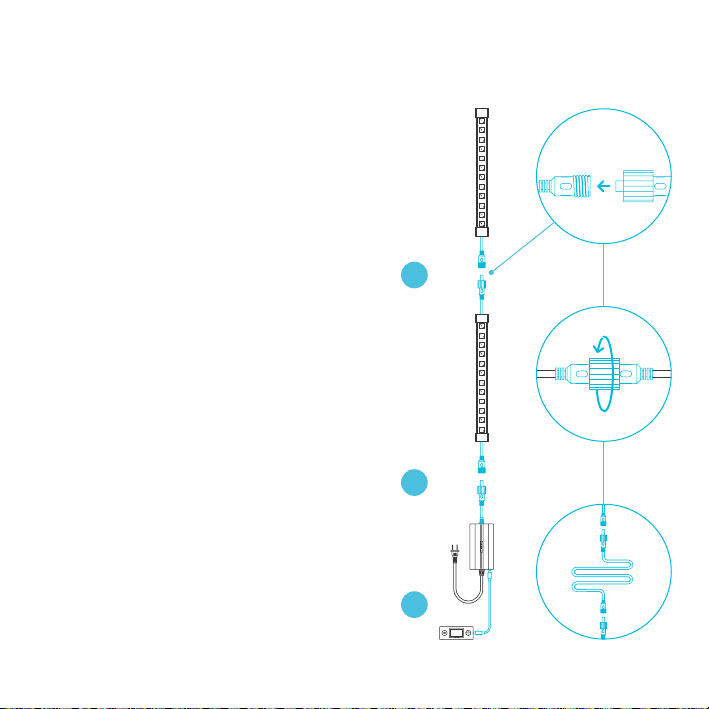

LIGHT BAR CHAIN ASSEMBLY
1
2
3
MF
STEP 1
Connect the single-corded LED light bar's
female port to the dual-corded LED light bar's
male connector.
STEP 2
Connect the EC power adapter's male
connector to the other end of the dual-corded
LED light bar.
EXTENDING THE CHAIN
You may connect the included bar extension
cord in between any link in this light bar chain
to lengthen it. Secure all connections using the
twist-on pieces.
STEP 3
Connect the power adapter to the
schedule controller.

10
INSTALLATION

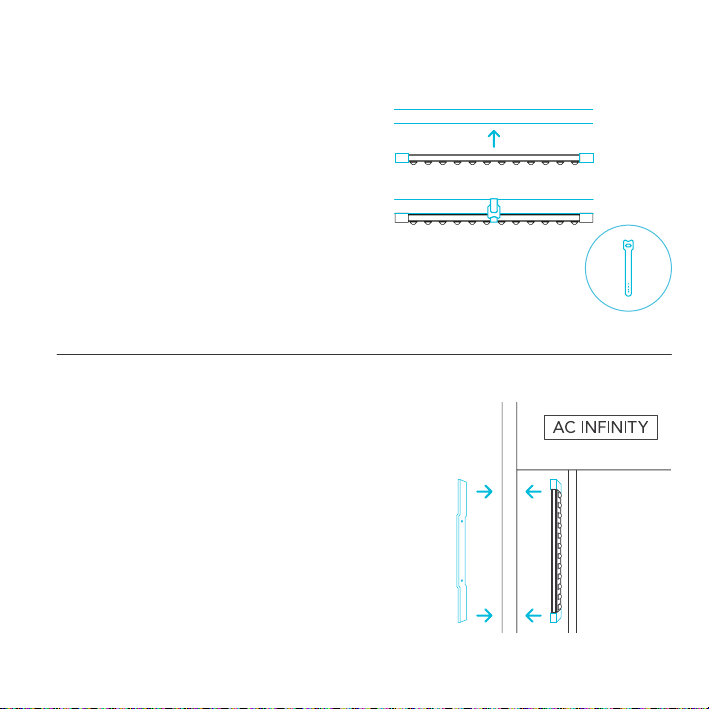

CANVAS MOUNTING
You may magnetically mount the light bar(s) to
the wall or ceiling of your grow tent.
Set the included mounting bar(s) on the outer
side of your tent. Place the light bar(s) at the
exact spot on the inner side.
Once mounted, you can move the light bar and
mounting bar connection along your grow tent
surface as needed.
Test that the magnetic connection through the
canvas is secure before use.
POLE MOUNTING
You may magnetically mount the light bar(s)
directly on your grow tent steel pole.
You may also use the included hook and
loop cable ties around the light bar(s) and
mounting bar to adjust the lighting angle and
for extra security.
LIGHT BAR MOUNTING

11
INSTALLATION
LIGHT BAR MOUNTING
STEP 2 — WALL MOUNTING
Drill holes into the marked locations.
STEP 1 — WALL MOUNTING
Make sure your mounting area is free from
obstruction. Use a mounting bar to mark your
drilling holes with the logo facing the wall.

12
INSTALLATION

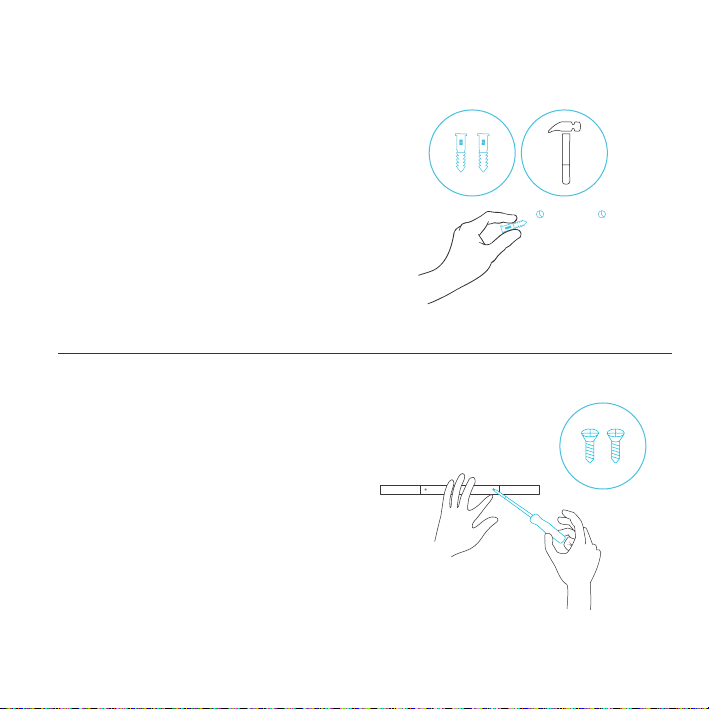

STEP 4 — WALL MOUNTING
Align the mounting bar holes with the wall
anchors, making sure the logo faces the wall.
Screw or drill in the wood screws to secure the
mounting bar.
Repeat steps 1-4 as needed.
STEP 3 — WALL MOUNTING
If you are mounting onto anything other than a
wood support or stud, insert the included four
wall anchors into the drilled mounting holes.
You may need to use a hammer to secure them
through the holes.
LIGHT BAR MOUNTING

13
INSTALLATION
LIGHT BAR MOUNTING

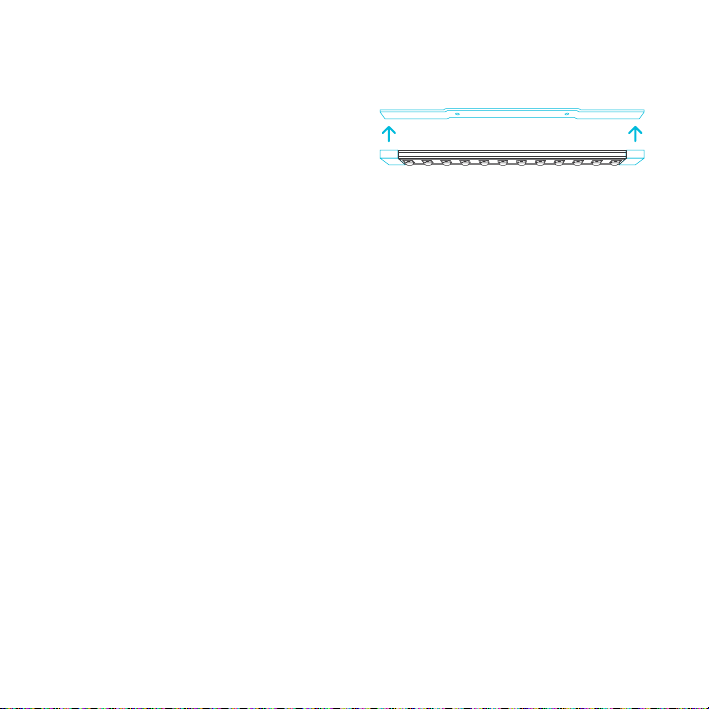

STEP 5 — WALL MOUNTING
Set the light bar(s) magnet ends onto the
mounting bar(s).

14

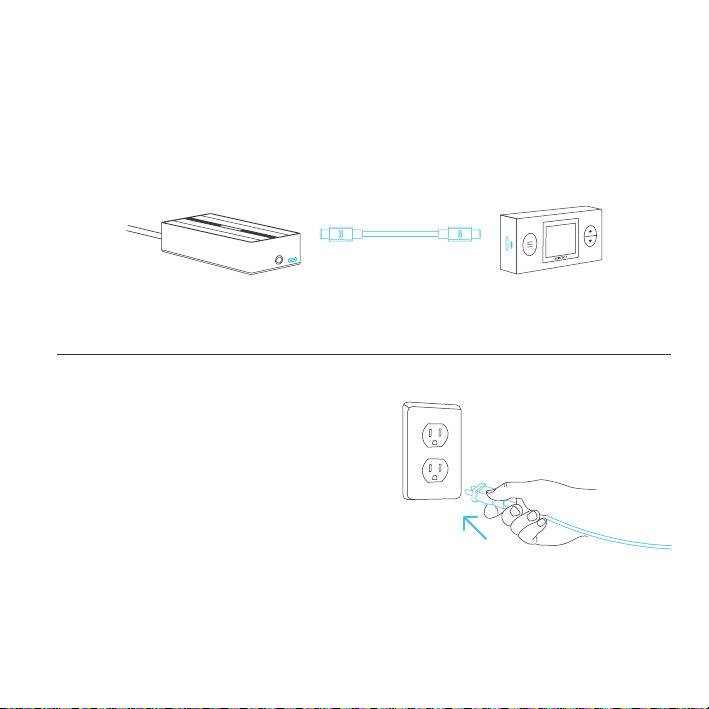

POWERING AND SETUP
STEP 1
Use the included UIS M-M extension cord to
connect the fan's EC Motor box to one of the
controller's ports.
STEP 2
Plug the power adapter into a wall outlet.

15
CONTROLLER MOUNTING
STEP 1 — WALL MOUNTING
Locate a spot free of obstruction and secure
the anchor into your wall. Twist the wood screw
into the anchors.
STEP 2 — WALL MOUNTING
Hang the controller by the screw using the
holes on the backside.

16
CONTROLLER MOUNTING
MAGNET MOUNTING
The controller will magnetically mount onto
the CLOUDLAB series advance grow tent's
controller mounting plate or any steel surface.
The magnet is located under the
controller's label.
PLATE MOUNTING*
Screw the controller plate bolts into the slot or
mounting holes at the upper half of the plate.
Hang the controller by the bolts using the holes
on the backside.
*Controller plate not included

17
STARTER GUIDE
The chart below offers suggested mounting heights and light intensities for each stage in the
growing process. These factors will vary based on the plant you are growing. Height refers to the
minimum recommended distance from the canopy (tip of the plant) to the light.
*Also recommended for plant propagation.
GROW
STAGE Height Intensity Set-Up
FULL SPECTRUM LIGHTING
Seedling
Stage 1 IN.
Level 1*
Vegetative
Stage 2 IN.
Level 3

18
STARTER GUIDE
GROW
STAGE Height Intensity Set Up
Flowering
Stage 6 IN.
Vegetative
Stage 6 IN.
FULL SPECTRUM LIGHTING
Level 6
Level 10

19
STARTER GUIDE
UV LIGHTING
Use of UV lighting is recommended only in the flowering stage to enhance fruit and flower
development. This lighting can be left on for a few hours a day or the entire daily light cycle.
These factors will vary based on the plant you are growing. Height refers to the minimum
recommended distance from the canopy (tip of the plant) to the light.
Height
1 FT.
1 FT.
1 FT.
Models
IONBEAM U2
(AC-NEU11-2)
IONBEAM U2
(AC-NEU11-2)
IONBEAM U2
(AC-NEU11-2)
COVERAGE
2' x 2'
2' x 4'
3' x 3'
Intensity
Level 10
Level 10
Level 5

20
STARTER GUIDE
UV LIGHTING
1 FT.
1 FT.
Height
IONBEAM U4
(AC-NEU11-4)
IONBEAM U4
(AC-NEU11-4)
Models
Intensity
Level 10
Level 10
4' x 4'
COVERAGE
5' x 5'
