AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
Table of Contents
1.0 Limitations: Compliance with this Section is Mandatory.......................................5
1.1 Normal Category Limitations .......................................................................5
1.1.1 Airspeed Limitations .............................................................................................5
1.1.2 Powerplant Limitations..........................................................................................5
1.1.3 Weight and Balance...............................................................................................6
1.1.4 Flight Load Factors................................................................................................6
1.1.5 Kinds of Operation ................................................................................................7
1.1.6 Heated Pitot Operation ..........................................................................................7
1.1.7 Unusable Fuel........................................................................................................7
1.1.8 Placards..................................................................................................................7
1.2 Acrobatic Category Limitations....................................................................8
1.2.1 Airspeed Limitations .............................................................................................8
1.2.2 Powerplant Limitations..........................................................................................9
1.2.3 Weight and Balance...............................................................................................9
1.2.4 Flight Load Factors................................................................................................9
1.2.5 Kinds of Operation ................................................................................................9
1.2.6 Inverted Flight .......................................................................................................9
1.2.7 Maneuvers ............................................................................................................10
2.0 Procedures ..........................................................................................................11
2.1 Normal Procedures.......................................................................................11
2.1.1 Emergency Fuel Pump..........................................................................................11
2.1.2 Parachutes.............................................................................................................11
2.1.3 Inverted Fuel and Oil Systems..............................................................................12
2.1.4 Rotating Beacons and Strobe Lights.....................................................................12
2.1.5 Fuel System ..........................................................................................................12
2.1.6 Alternate Air .........................................................................................................12
2.1.7 Cold Weather Operation.......................................................................................13
2.1.8 Acrobatic Operation .............................................................................................13
2.1.9 Pre-Flight Check...................................................................................................14
2.1.10 Pre-Start Check.....................................................................................................15
2.1.11 Engine Start ..........................................................................................................16
2.1.12 Cockpit Pre-Flight ................................................................................................16
2.1.13 Engine Run-Up.....................................................................................................16
2.1.14 Take-Off ...............................................................................................................16
2.1.15 Climb (Normal) ....................................................................................................16
2.1.16 Cruising ................................................................................................................17
2.1.17 Landing Check-List ..............................................................................................17
2.1.18 Balked Landing (Go Around)...............................................................................17
2.1.19 After Landing .......................................................................................................17
2.1.20 Shut Down and Securing Aircraft ........................................................................17
2.1.21 Noise Characteristics ............................................................................................18
2.2 Emergency Procedures.................................................................................18
2.2.1 Engine Restart.......................................................................................................18
2.2.2 Alternate Air .........................................................................................................18
2.2.3 Fuel Pressure Loss ................................................................................................18
2.2.4 Engine Fire (Ground)............................................................................................18
2.2.5 Engine Fire (In Flight)..........................................................................................19
2.2.6 Electrical System Malfunction / Fire ....................................................................19
2.2.7 Emergency Exits...................................................................................................19

FAA APPROVED
Page 4 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
Table of Contents (continued)
3.0 Performance Information ...................................................... ACA Addendum:.....1
3.1 Climb Speed.........................................................................................................................1
3.2 Service Ceiling.....................................................................................................................1
3.3 Airspeed Correction .............................................................................................................1
4.0 Loading Information................................................................................................2
4.1 Moment and Loading...........................................................................................................2
4.2 Weight and Balance .............................................................................................................2
4.3 Equipment............................................................................................................................2
4.4 Moment Diagram and Loading Envelope............................................................................3
4.5 Weight and Balance Report .................................................................................................4
4.6 Equipment List.....................................................................................................................5

FAA APPROVED
Page 5 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
1.0 Limitations: Compliance with this Section is Mandatory
1.1 Normal Category Limitations
1.1.1 Airspeed Limitations
Calibrated Air Speed Airspeed Indicator
Speed Designation MPH Knots Marking
Maneuvering (VA) 107 93 None
Normal Operating Range 54-160 47-139 Green Arc
Maximum Structural Cruising (VNO) 160 139
Caution Range 160-200 139-174 Yellow Arc
Never-Exceed (VNE) 200 174 Red Radial Line
Green Arc extends from power-off stall speed (VS1) to maximum structural
cruising speed (VNO).
Yellow Arc extends from maximum structural cruising speed to never-exceed
speed (VNE). Operate in this range with caution, and only in smooth air.
Red Radial Line marks the never-exceed speed, which is the maximum safe
airspeed.
1.1.2 Powerplant Limitations
Engine: Lycoming AEIO-360-H1B
Engine Limits: For all operations, 2700 RPM (180 HP)
Fuel: 91/96 minimum grade aviation gasoline
(100/130 may be used 100% of the time).
Propeller: Hartzell Constant Speed HC-C2YR-4CF/FC7666A-2
Diameter Limits 72” to 74”
Pitch Settings at 30 in. st. low 11.0 ±0.2°high 28.0 ±1.0°
Caution: “Avoid Cont. RPM 2600-2700 Acro Only.”
Propeller:
(Alternate)
(2-Blade)
MT Constant Speed MTV-15-B-C/C188-34
Diameter Limits 73” to 74”
Propeller:
(Alternate)
(3-Blade)
MT Constant Speed MTV-9-B-C/C188-18a
or MTV-9-B-C/C188-18b
Diameter Limits 73” to 74”

FAA APPROVED
Page 6 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
Powerplant Instrument Markings
Instrument Markings
Cylinder Head Temperature Green Arc
Red Radial
90°-500°F
500°F
Fuel Pressure Green Arc
Red Radial
14-45 psi
14 and 45 psi
Oil Temperature Green Arc
Red Radial
100°-245°F
245°F
Oil Pressure Green Arc
Yellow Arc
Red Radial
60-100 psi
25-60 psi
25 psi & 100 psi
Tachometer
(Hartzell)
Green Arc
Red Arc
Green Arc
Red Arc
Red Radial
500-2000 RPM
2000-2250 RPM
2250-2700 RPM
2600-2700 RPM
2700 RPM
Tachometer
(MT)
Green Arc
Red Arc
Red Radial
500-2600 RPM
2600-2700 RPM
2700 RPM
Manifold Pressure Red Radial 29 in.
1.1.3 Weight and Balance
Maximum Gross Weight 1950 Lbs.
Center-of-Gravity Limits (+14.7 in.) to (+18.5 in.) at 1950 lb.
(+11.5 in.) to (+18.5 in.) at 1550 lb. or less
Straight line variation between points given.
Datum Wing Leading edge
Each operator must assure that the airplane is properly loaded. See Section 4.0
for Weight and Balance procedures.
1.1.4 Flight Load Factors
Maneuvering Load Factors at 1950 lb. Gross Weight:
Normal Category: Positive: +3.80 G
Negative: -1.52 G
Maximum load factors for Normal Category operation are shown by the ends of
the green arc on the accelerometer. Load factors within the yellow arc range are
permitted only in Acrobatic Category.
1.1.5 Kinds of Operation

FAA APPROVED
Page 7 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
Only VFR, day or night, operation are approved Flight into known icing
conditions is not approved.
1.1.6 Heated Pitot Operation
When Pitot Heat is “ON,” magnetic compass may deviate as much as 30°. Use
Pitot Heat only as required.
1.1.7 Unusable Fuel
Any fuel remaining in the tanks when fuel gauge reads “E” (Empty) cannot be
safely used in flight.
1.1.8 Placards
In Full View of Pilot:
“Normal Category Airspeed Limits
Maneuvering Speed 107 MPH (93 Knots) CAS
Demonstrated Crosswind Velocity 20 MPH (17 Knots)”
“Solo from front seat only. No acrobatic maneuvers, including spins, approved in normal
category. Day or night VFR operation only. Flight into known icing prohibited. To
recover from normal or inverted spin, use full opposite rudder and neutralize elevator”
(Standard)
“This airplane must be operated as a normal or acrobatic category airplane in compliance
with the operating limitations stated in the form of placards, markings and manuals.
Markings and placards (except accelerometer markings) refer to normal category only.
See airplane flight manual for acrobatic category information weight and balance
information and other operating limitations.”
“No Smoking” (When Ashtrays are Not Installed)
“Magnetic Compass May Deviate As Much as 30°When Pitot Heat is On.”
(When Pitot Heat is Installed)

FAA APPROVED
Page 8 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
On Tachometer Face (Hartzell Propeller Only)
“Avoid. Cont. RPM
2000-2250 All Oper.
2600-2700 Acro Only”
In Baggage Compartment
“Maximum Baggage 100 Lbs.”
On Forward Left Side Window
“Do Not Open Above 130 MPH”
“Alternate Emergency Exit Unlatch – Push Out Past Stop”
On Fuel Shutoff Control
“Fuel 40 Gal Useable - Down ‘ON’”
On Emergency Door Release Handle
“Emergency Door Release
Pull Pin – Pull Handle”
Adjacent to Fuel Gauge
“Fuel In Tank When Gauge Reads ‘E’ (Empty) Cannot Be Safely Used In Flight.”
Adjacent to Strobe Light Switch
“Turn Strobe Light Off When Taxiing in Vicinity of Other Aircraft or When Flying in
Fog or Clouds. Standard Position Lights to be used for All Night Operations.”
On Front Seat Rear Leg (Adjustable Front Seat Only)
“Rear Seat P/N 7-1500 or 7-1501 and Rear Control Stick P/N 4-1711 Req’d with This
Seat Installation.“
On Rear Control Stick (With Adjustable Front Seat Only)
“Rear Stick P/N 4-1711”
On Rear Seat Front Leg (With Adjustable Front Seat Only)
“Rear Seat P/N 7-1500” or “Rear Seat P/N 7-1501” (as Appropriate)
1.2 Acrobatic Category Limitations
1.2.1 Airspeed Limitations
With the exception of the maneuvering speed (VA), all airspeed limitations given
in section 1.1.1 are applicable to the Acrobatic Category. For the Acrobatic
Category, the maneuvering speed is 132 MPH (CAS) at maximum gross weight
(1800 lbs.). Since VAdecreases as operating weight decreases, subtract 3 MPH
for each 100 lbs. decrease in operating weight below 1800 lbs. (See Section 2.1.8)
1.2.2 Powerplant Limitations

FAA APPROVED
Page 9 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
All Powerplant limitations given in Section 1.1.2 are applicable to the Acrobatic
Category. In addition, the following limitations apply to the Acrobatic Category:
1. Minimum Acrobatic Oil: 6 Qts.
2. Avoid Extended Right Knife Edge Flight.
3. Avoid 2600-2700 RPM Acrobatic Flight.
1.2.3 Weight and Balance
Maximum Gross Weight 1800 Lbs.
Center-of-Gravity Limits (+13.5 in.) to (+18.5 in.) at 1800 lb.
(+11.5 in.) to (+18.5 in.) at 1550 lb. or less
Straight line variation between points given.
Datum Wing Leading edge
Carrying of baggage during acrobatics is prohibited.
Each operator must assure that the airplane is properly loaded. See section 4.0 for
weight and balance procedures.
1.2.4 Flight Load Factors
Maneuvering Load Factors at 1800 lb. Gross Weight:
Acrobatic Category: Positive: +6 G
Negative: -5 G
Gust load factors are less than maneuvering load factors. Maximum load factors
for Acrobatic Category operation are shown by red radial lines on the
accelerometer. The accelerometer is required for Acrobatic Category operations.
1.2.5 Unusable Fuel
Any fuel remaining in the tanks when fuel gauge reads “E” (Empty) cannot be
safely used in flight.
1.2.6 Inverted Flight
The inverted-fuel header tank provides fuel for at least 2.0 minutes of continuous
inverted flight. As much as one minute of positive “g” flight may be required to
completely refill an exhausted header tank.

FAA APPROVED
Page 10 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
1.2.7 Maneuvers

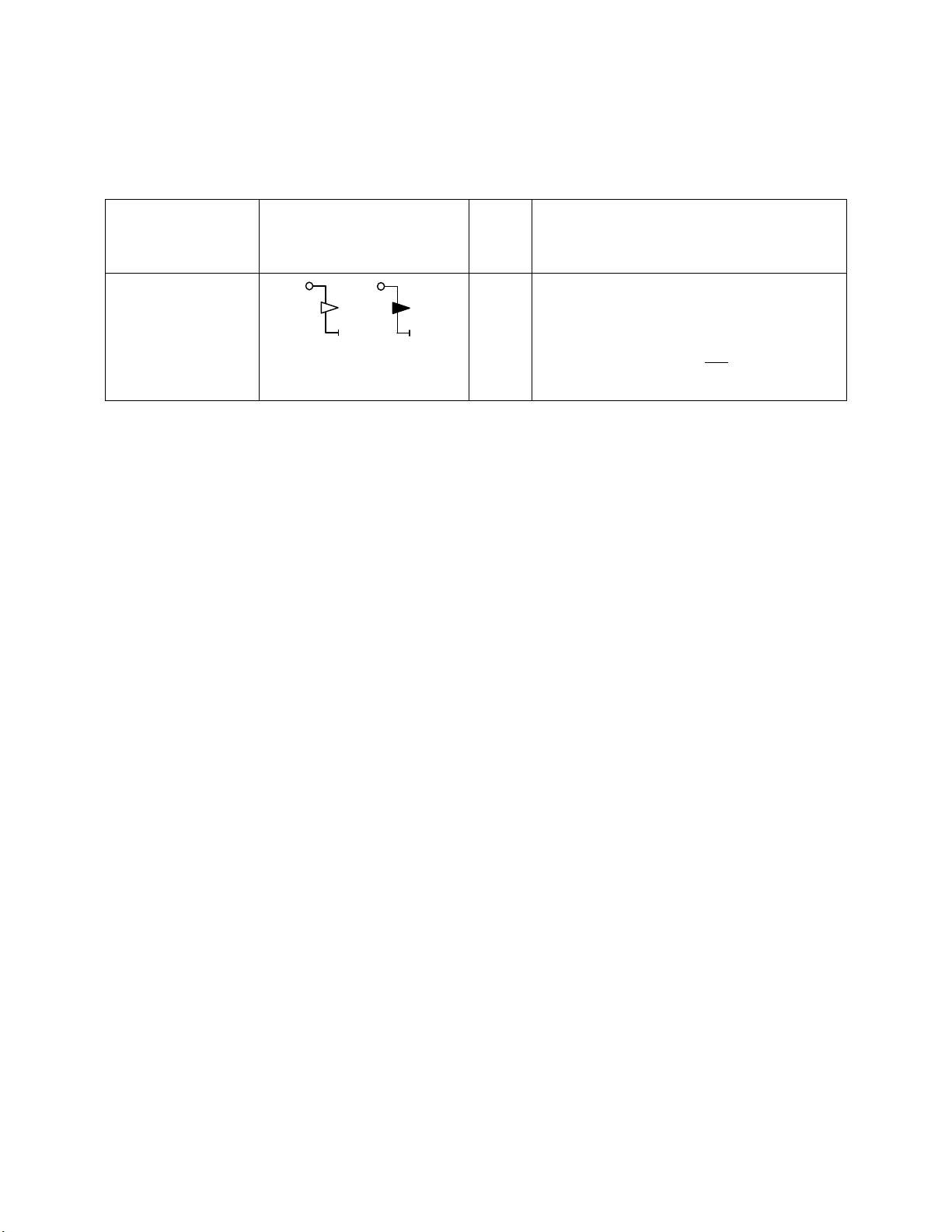

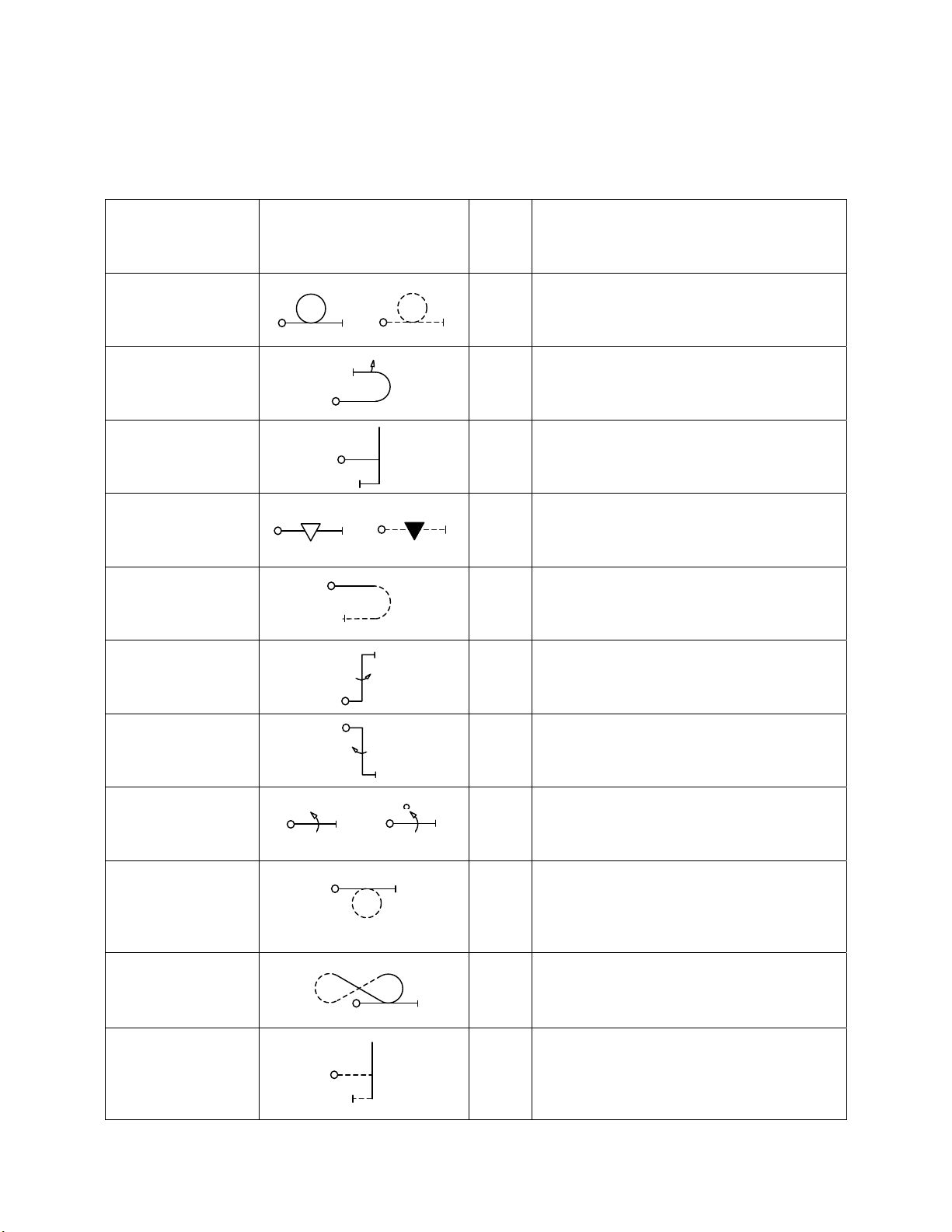

Basic Approved Acrobatic Maneuvers and Recommended Entry Speeds
Maneuver Aresti Symbol
Entry
Speed
IAS
MPH
Remarks – Airspeeds I.A.S. MPH
Loop
Normal – Inverted
140*
Enter 3.5 to 4 G’s
Speed at Top Approx. 40 MPH
Exit 3.5 to 4 G’s**
Speed 140 – 150 MPH
Immelman
145*
Enter +4 G’s
Speed at Top Approx. 50 MPH
Exit +1 G
Hammer Head Turn
140*
Enter +4.5 G’s
Speed at Top Before Turn: 40 MPH
Exit +4.5 G’s** 140 MPH
Snap Roll
Normal & Inverted
90
Enter with Power
Exit with Power
No Full or Abrupt use of Flight Controls above VA
English Bunt
70
Enter with or without Power
–3.5 to –4.0 G’s** when Pushing
Thru from Vertical to Inverted
Exit Inverted 140-150 MPH*
Vertical Slow Roll
Up
180*
Enter 180
MPH Level Flight +4.5 Pull Up.
Exit 40
MPH Up Push Over to Level Flight.
Caution: Flight Above VC(160 MPH-CAS) in
Smooth Air Only
Vertical Slow Roll
Down
60
Enter 60
MPH
Push Over to Vertical Down
Exit 150
MPH*
Pull Out 4.5 G’s** to Level Flight
Slow or Barrel Roll
130
Use Smooth Application of Controls
No Full or Abrupt Use of Controls Above VA
Outside Loop
(Enter from the top)
70
Enter 70 MPH or Slower With or Without
Power. Push 3.5 to 4 G’s** to Inverted Speed
at the Bottom 140-150 MPH*
Add Full Power, Push Up 3.5 to 4 G’s**.
Exit Straight & Level 40-50 MPH
Horizontal Eight
Inside – Outside
140*
Enter +4 G’s Pull Up, Hold 45°Down
Inverted,
Enter Outside Loop 140 MPH* -3.5 to –4 G’s.
Exit From 45°Down Normal Flight – 140 MPH
Hammer Head Turn
(Inverted Entry
& Exit)
140*
Enter –3.5 to –4 G’s
Speed at Top Before Turn 40 MPH
Exit From Vertical Down –3.5 to –4 G’s**
to Level Flight Inverted

FAA APPROVED
Page 11 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
1.2.7 Maneuvers (Continued)
Basic Approved Acrobatic Maneuvers and Recommended Entry Speeds
Maneuver Aresti Symbol
Entry
Speed
IAS
MPH
Remarks – Airspeeds I.A.S. MPH
Spin
Normal – Inverted
Stall
Recover with Positive Movement of Stick to
Neutral Position & Opposite Rudder Until
Rotation Stops – Then Neutral Rudder &
Smooth Recovery from Dive to Level Flight.
Free Release at Control is Not Adequate for
Recovery. Positive Movement of Controls by
the Pilot is Required for Spin Recovery.
Note: Refer to Section 2.1.8 for acrobatic operation procedures that apply to all
approved maneuvers.
Note: Variations or combinations of the above maneuvers are approved, provided that
the speed and load factor limitations are not exceeded.
Note: The following maneuvers are not approved:
(1) Tail Slide
(2) Lomcevak
* No Full or Abrupt use of flight controls above VA(Maneuvering Speed).
** Proper use and application of controls and maneuvering load factors are essential
to speed control. Improper and/or inadequate application of maneuvering load
factors may result in rapid acceleration resulting in unsafe flight situations.
2.0 Procedures
2.1 Normal Procedures
2.1.1 Emergency Fuel Pump
The emergency fuel pump is used only to (1) provide fuel pressure for priming
prior to starting engine and (2) provide fuel pressure in case the engine-driven
pump fails. The emergency pump should be off during normal flight.
2.1.2 Parachutes
Backpack style parachutes may be used by removing seat back cushions.

FAA APPROVED
Page 12 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.1.3 Inverted Fuel and Oil Systems
The inverted fuel system consists of a 1.5 gal. header tank in the forward cabin
with a standpipe to draw fuel from the center of the tank. One-half (0.75 gals.) of
the tank capacity is useable in inverted flight. The system is completely
automatic; however, sufficient time (see Section 1.2.6) must be allowed between
periods of continuous inverted flight to allow the header tank to refill.
The inverted oil system consist of an inverted/upright shuttle valve, an oil/air
separator canister and a system of interconnecting lines. This system is
completely automatic (see also Section 2.1.7).
Oil pressure may be interrupted momentarily in certain aircraft attitudes or during
certain combinations of maneuvers. These interruptions are normal but should
not be allowed to extend beyond 15 seconds (avoid extended right knife edge
flight).
2.1.4 Rotating Beacons and Strobe Lights
Particularly at night, reflections from clouds, haze or dust can produce optical
illusion and intense Vertigo. Under these conditions, rotating beacons and strobe
lights should be turned off prior to entering.
2.1.5 Fuel System
The total useable fuel capacity is 40 gallons, of which approximately 20 gallons is
carried in each wing tank. The wing tanks are interconnected both in the vent
system and the fuel feed system, and may be considered as one tank. Fuel feeds
simultaneously from both tanks and the total fuel quantity in each tank is shown
by a right and left tank gauge. The gauges are marked in fractions of the total fuel
(E, ¼, ½, ¾, F) and reads “E” (Empty) with unusable fuel in the tanks. Fuel tank
caps are not vented and must seal completely to prevent a difference in fuel level
between the two tanks.
2.1.6 Alternate Air
Avoid using alternate air on the ground. With alternate air on, induction air is not
filtered and abrasive dirt particles may enter the engine. In flight, use alternate air
only when icing is suspected, i.e. since heat cause partial loss of power, do not
use when landing unless atmospheric conditions indicate that icing is probable,
because full power may be needed on a go-around.
2.1.7 Cold Weather Operation

FAA APPROVED
Page 13 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
For operational procedures related to cold weather operation consult the
Lycoming Operators Manual. Due to the length of oil lines, special care should
be exercised during starting to assure that engine oil pressure is obtained within
30 seconds after start.
It is recommended that the engine compartment be preheated prior to start if the
ambient temperature is below 20°F.
2.1.8 Acrobatic Operation
Maneuvering speed (VA) is maximum speed (for an established operating weight)
at which full and / or abrupt use of the elevator control will not cause load factors
in excess of the +6 G’s in Normal Operations or –5 G’s in Inverted or Outside
Operations.
Full and / or abrupt movement of ailerons may be used at speeds up to VA
provided that the load factor does not exceed +4 G’s or –3.2 G’s. Use of ailerons
above VAor above +4 G’s or –3.2 G’s should be smooth and limited to
deflections which will cause a roll rate not exceed that roll rate achieved with full
aileron at VA.
Caution: Full abrupt use of the ailerons with simultaneous use of full abrupt
elevator at VA may produce loads in excess of design limits.
Propeller RPM is limited to 2600 RPM maximum during acrobatic maneuvers.
For solo acrobatic operations, determine that the rear seat folding back has
restrainer cables to prevent back from folding completely forward and interfering
with rear stick movement. Ascertain that all loose or hanging objects, including
unused seatbelts, are removed from the aircraft or are secured to prevent
movement in flight.

FAA APPROVED
Page 14 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.1.9 Pre-Flight Check (See Page 14)
1) a. Release controls.
b. Check ignition switches “OFF.”
c. Check fuel quantity on fuel gauges.
d. Fuel valve “ON.”
e. Inspect seat belt for condition.
*f. Secure rear seat belt, shoulder harness and all other loose or hanging
objects if not in use.
g. Emergency locator transmitter - armed.
2) a. Check right wing root cover for security.
b. Check aileron for freedom of movement and security.
c. Check wing & struts for general condition.
3) a. Check right main wheel for proper inflation.
b. Visually check fuel quantity, then check filler cap security.
c. Check pitot-static tube for stoppage.
d. Check if pitot heat is functioning if going into know IMC.
4) a. Check oil level and secure dip stick. Inspect engine compartment for
general condition, fuel leaks, oil leaks, etc.
b. On first flight each day, drain fuel from gascolator.
c. Check that the oil dip stick access door is properly latched.
d. Check windshield for cleanness.
e. Check prop for nicks and prop spinner for security.
f. Check prop blade shanks for evidence of excessive bearing grease
leakage.
g. Check air filter for cleanliness and security
5) a. Check left main wheel for proper inflation.
b. Check left fuel tank quantity, and then check filler cap security.
c. Inspect stall warning vane for freedom.
d. Inspect fuel vent for stoppage.
6) a. Check wing root cover for security.
b. Check aileron for freedom of movement and security.
c. Check wing & struts for general condition.
* Determine that the rear seat folding back has restrainer cables to prevent back from folding
completely forward and interfering with rear stick movement.

FAA APPROVED
Page 15 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
7) a. On first flight each day, drain fuel from aft fuselage drain.
b. Inspect bottom of aircraft for general condition.
c. Inspect right static port for stoppage.
8) a. Check tail surfaces & brace wires for general condition.
b. Check control surfaces for freedom of movement and security.
c. Check tail wheel security and proper inflation.
d. Inspect left static port for stoppage.
Pre-Flight Inspection (See Page 9)
2.1.10 Pre-Start Check
1) Seat belts - Adjust and secure.
2) Fuel Valve handle - “ON”.
3) Brakes - Test and set.
4) Radios and electrical equipment - “OFF”.

FAA APPROVED
Page 16 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.1.11 Engine Start
1) Mixture - “Rich”.
2) Alternate Air - cold.
3) Throttle cracked open.
4) Prime - as required.
5) Propeller area - clear.
6) Master switch - “ON”.
7) ignition switches - “ON”.
8) Starter button - “Start”. (release when engine starts)
9) Oil pressure - check.
2.1.12 Cockpit Pre-Flight
1) Cabin door - latched.
2) Flight controls - Check for freedom and operation.
3) Trim tab - take-off setting.
4) Flight instruments and radios - set.
2.1.13 Engine Run-Up
1) Throttle setting - 1800 RPM.
2) Magnetos - check
(200 RPM maximum drop - 50 RPM max. differential between mags.)
3) Alternate Air - Check operation.
4) Engine instruments - within green arc.
5) Propeller control - Check operation. (Constant speed propeller)
2.1.14 Take-Off
1) Alternate Air - cold.
2) Throttle - full open.
3) Mixture full rich. (or as required by field evaluation)
4) Engine instruments within green arc.
5) Propeller control full increase - RPM (Constant speed propeller)
2.1.15 Climb (Normal)
1) Throttle - full open.
2) Mixture - rich or leaned as required.
3) Engine instruments - within green arc.
4) Climb speed - Best rate of climb.

FAA APPROVED
Page 17 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.1.16 Cruising
1) Power - as desired. (2550 RPM max.)
2) Elevator Trim - adjust.
3) Mixture - Lean to best power with 75% power or less.
4) Engine instruments - within green arc.
5) Alternate Air - as required.
2.1.17 Landing Check-List
1) Mixture - rich.
2) Alternate Air - check operation and return to cold.
(Unless icing conditions exist.)
3) Propeller control - full increase RPM.
4) Airspeed - 75-80 mph.
2.1.18 Balked Landing (Go Around)
1) Throttle - full open.
2) Alternate Air - cold.
3) Airspeed 75 mph.
4) Trim - Re-Set.
2.1.19 After Landing
1) Alternate Air - cold.
2.1.20 Shut Down and Securing Aircraft
1) Parking - into the wind if possible.
2) Park Brake - set.
3) Radios and electrical equipment - “OFF”.
4) Mixture - idle cut-off (Pulled full out).
5) Ignition and master switches - “OFF”.
6) Control lock - secure seat belt around front control stick.
7) Flaps - full down.

FAA APPROVED
Page 18 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.1.21 Noise Characteristics
The noise level for this airplane
measured in accordance with FAR 36,
Appendix G at full throttle, 2700 RPM.
All Propellers: 76.79 dBA
No determination has been made by the Federal Aviation Administration that the
noise levels of this airplane are or should be acceptable or unacceptable for
operation at, into, or out of, any airport
2.2 Emergency Procedures
2.2.1 Engine Restart
Caution: If propeller ceases to turn, diving will not cause windmilling.
Fuel starvation may occur after a series of inverted maneuvers since the header
tank may have had insufficient time to refill. (See section 1.2.6)
Check:
1) Assume ERECT Flight Attitude
2) Throttle – ¾ Forward
3) Mixture – Full Forward
4) Propeller – Full Forward
5) Fuel Valve – On
6) Emergency Fuel Pump – On
7) Magnetos – On
8) Master –On
9) Starter – Engage if Windmill RPM is Insufficient
2.2.2 Alternate Air
If induction ice is indicated (gradual decrease in manifold pressure), use full
alternate air until all ice is dissipated.
2.2.3 Fuel Pressure Loss
For fuel pressure loss or fluctuation, turn “ON” the Emergency Fuel Pump.
2.2.4 Engine Fire (Ground)
1) Mixture - idle cut-off.
2) Fuel valve off.
3) Master & magneto switches - OFF.
4) Cabin heater off.
5) Extinguish with fire extinguisher.

FAA APPROVED
Page 19 of 19
AIRPLANE FLIGHT MANUAL - MODEL 8KCAB Revision: H
Issued:
2.2.5 Engine Fire (In Flight)
1) Fuel valve - OFF.
2) Master switch - OFF.
3) Cabin heaters - OFF.
4) Accomplish emergency landing and evacuate aircraft.
2.2.6 Electrical System Malfunction / Fire
The ammeter indicates current to or from the battery.
A steady discharge on the ammeter indicates an inoperative alternator system.
Turn off unnecessary electrical equipment to reduce battery drain. Master switch
may be turned off to conserve battery power if necessary.
Indication of electrical fire(s) may be wisps of smoke or the smell of hot or
burning insulation. Should an electrical file develop, the following procedures
are recommended:
1) Master switch “OFF”.
2) All electrical switches “OFF”.
3) Open air vents or windows ONLY if absolutely necessary for ventilation.
4) Proceed to the nearest suitable airport for landing.
If electrical power is necessary for safety of flight under the above conditions, the
following procedures are recommended:
1) Disengage and isolate each power circuit.
2) Engage each circuit separately. Allow sufficient time to analyze for faulty
operation.
3) When faulty circuit is identified, disengage faulty circuit.
4) Properly functioning circuits may be re-engaged.
5) Land as soon as practicable for repairs.
2.2.7 Emergency Exits
The right cabin door can be removed by releasing the upper window latches and
pulling the safety pin and then pulling upon the red emergency door release
handle and pushing door away from aircraft. If necessary, exit may be made from
left side of aircraft by opening left window. Force forward portion of window
past its hinge stops by pushing out on forward window frame.
