Before You Start Testing
About the meter and test strips
• Carefully read and follow the instructions in the Getting Started Guide, the Standard Owner’s Booklet, the
Advanced Owner’s Booklet, and Package Inserts for the test strips and control solutions. Not following the
instructions may lead to a wrong result or improper treatment, causing you health problems.
• Set the time and date on your meter before you begin testing.
• Inspect the test strip container before using the test strips for the rst time. If you see any damage to the
container cap or if anything prevents the cap from closing properly, do not use the test strips. Contact
ACCU-CHEK Customer Care Service Center at 1-800-688-4578. Damaged test strips can cause inaccurate
results, which could lead to improper treatment.
• Carefully dispose of used test strips and lancets.
• Home use of the ACCU‑CHEK Aviva Expert system is limited to capillary whole blood testing.
Roche USA – 45702
V4/1 – 05071739002 – Schwarz –
Roche USA – 45702
V4/2 – 05071739002 – Cyan –
Roche USA – 45702
V4/3 – 05071739002 – Magenta –
Roche USA – 45702
V4/4 – 05071739002 – Yellow –
45702_std.indb 1 10/29/09 1:41:46 PM

ii
About Your New Meter
• The meter is designed and can be used for testing fresh capillary whole blood samples (for example, blood
from a ngertip or forearm).
• Only use ACCU‑CHEK Aviva test strips. Other test strips will give inaccurate results.
• Although you always apply whole blood to the test strip, the system has been calibrated to deliver
plasma-like values for easier comparison to lab results.
• The meter, test strips, and control solution are only for use outside the body (in vitro). Do not eat the test
strips. Do not swallow or inject the control solution, or use the control solution for any purpose other than
testing the ACCU-CHEK Aviva Expert system.
45702_std.indb 2 10/29/09 1:41:46 PM

iii
About Testing Yourself or Others
wWARNING:
Certain substances can interfere with the ACCU-CHEK Aviva Expert blood glucose system and cause falsely
high results. For example, peritoneal dialysis solutions containing icodextrin (such as Extraneal) or certain
immunoglobulin therapies that contain maltose (such as Octagam 5 %) cause inaccurate results. For more
information, refer to the Test Strip Package Insert or ask your healthcare professional.
• If you are very dehydrated or urinating frequently, you may get an inaccurate test result. If you think you are
dehydrated, call your healthcare professional right away.
• Some people with diabetes do not experience symptoms of low blood sugar (hypoglycemia). Others, such as
children or people who are unconscious or have certain disabilities, may not be able to communicate their
symptoms to caregivers. For these reasons, do not change any treatment without rst talking to a
healthcare professional.
• Run a control test when you open a new box of test strips or if you think that your test result is incorrect.
Running a control test lets you know that the meter and test strips are working properly.
45702_std.indb 3 10/29/09 1:41:47 PM

iv
• Refer to the Test Strip and Control Solution Package Inserts for additional health‑related information.
• It is always a good idea to have a back‑up testing method available. Failure to test could cause a delay in
treatment decisions and lead to a serious medical condition. Examples of back-up testing methods include
a back-up meter or testing by a lab. Ask your healthcare professional or pharmacist about other possible
back-up methods.
DO NOT CHANGE YOUR TREATMENT BASED ON A SINGLE RESULT THAT DOES NOT MATCH
HOW YOU FEEL OR IF YOU BELIEVE THAT YOUR TEST RESULT COULD BE INCORRECT.
If your blood sugar result doesn’t match how you feel and you have followed the instructions in your owner’s
booklets, follow your healthcare professional’s instructions or call your healthcare professional.
Special Information to Consider When Using This Meter
• Do not use this device to measure blood sugar if you or a person to whom you are providing care is
experiencing cardiovascular collapse (severe shock) or decreased peripheral blood ow.
• Consult your healthcare professional to determine if it is appropriate for your child to be taught how to use
the meter system or any other medical products.
45702_std.indb 4 10/29/09 1:41:47 PM

1
Contents
Before You Start Testing i
Introduction 7
The ACCU-CHEK Aviva Expert System 8
1 Understanding Your New System 11
1.1 Overview 12
1.2 The ACCU‑CHEK Aviva Expert Meter at a Glance 13
1.3 Summary of Features 18
1.4 Screen Content and Navigation 27
2 Testing Your Blood Sugar 33
2.1 Overview 34
2.2 Coding Your Meter 35
2.3 Using the ACCU-CHEK Aviva Expert System 37
2.4 Performing a Blood Sugar Test 39
45702_std.indb 1 10/29/09 1:41:47 PM

2
2.5 Detailed Blood Sugar Results 48
2.6 Understanding Blood Sugar Test Results 52
2.7 Unusual Test Results 56
2.8 Symptoms of High or Low Blood Sugar 58
3 Control Testing 61
3.1 Overview 62
3.2 Why Perform Control Tests 63
3.3 About the Control Solutions 64
3.4 Performing a Control Test 65
3.5 Understanding Control Test Results 71
4 Managing Your Data 77
4.1 Overview 78
4.2 Viewing or Modifying Your Data 81
4.3 Adding New Data 88
4.4 Reporting Your Data 91
4.5 Downloading Your Data to a Computer 128
45702_std.indb 2 10/29/09 1:41:47 PM

3
5 Changing Meter Settings 131
5.1 Overview 132
5.2 Setting bG Test Reminders: After High bG, After Low bG, After Meal 133
5.3 Setting Alarm Clock Reminders: bG Test, Injection, Other 139
5.4 Setting Date Reminders: Dr. Visit, Lab Test 144
5.5 Setting Bolus Advice for the First Time 149
5.6 Setting Time Blocks, Health Events, Advice Options: Bolus Advice Set Up 158
5.7 Setting Warning Limits: Hyper, Hypo 167
5.8 Turning Key Lock On or Off 170
5.9 Setting the Language 173
5.10 Setting Units: Carbs, Insulin Increment, Max Bolus 176
5.11 Setting the Beeper, Vibrate, Key Sound 179
5.12 Setting the Time Format, Time, Date 182
5.13 Setting Time Blocks: Bolus Advice Not Set Up 185
5.14 Backlight Settings 193
45702_std.indb 3 10/29/09 1:41:47 PM

4
6 Icons, Reminders, Warnings, and Errors 195
6.1 Overview 196
6.2 List of Icons 197
6.3 Conrming a Reminder, Warning, or Error 199
6.4 List of Reminders 200
6.5 List of Warnings 210
6.6 List of Errors 215
7 Care and Maintenance 219
7.1 Overview 220
7.2 Changing the Batteries 221
7.3 Power-Saving Tips 224
7.4 Cleaning the Meter 225
7.5 Maintenance and Testing 226
8 Troubleshooting 227
8.1 Overview 228
8.2 Troubleshooting the ACCU-CHEK Aviva Expert Meter 229
45702_std.indb 4 10/29/09 1:41:47 PM

5
9 Technical Information 243
9.1 Overview 244
9.2 Product Limitations 245
9.3 Specications 246
9.4 Product Safety Information 248
9.5 Disposing of the Meter, Strips, Lancets, and Batteries 250
9.6 Warranty 252
9.7 Additional Supplies 259
9.8 Information for Healthcare Professionals 260
Appendices 263
Appendix A: Abbreviations 263
Appendix B: Carb Units 265
Appendix C: Explanation of Symbols 266
Appendix D: Meter Settings and Range Limits 267
Glossary 273
Index 281
45702_std.indb 5 10/29/09 1:41:47 PM

6
45702_std.indb 6 10/29/09 1:41:47 PM

7
Your new meter includes three booklets:
• Getting Started Guide:
Use this booklet to set up the meter.
• Standard Owner’s Booklet:
Use this booklet for instructions on how to operate
the standard features of the meter.
• Advanced Owner’s Booklet:
Use this booklet for instructions on how to operate
the advanced features of the meter.
Should you have any questions, please contact one
of our customer support and service centers. A
listing is at the back of this booklet.
This booklet includes information about:
• Understanding your new ACCU‑CHEK Aviva Expert
system
• Coding the meter
• Testing your blood sugar
• Control testing
• Managing your data
• Changing the meter settings
• Understanding the icons, reminders, warnings, and
errors
• Care and maintenance
• Troubleshooting
• Technical information
Introduction
Whether the ACCU-CHEK Aviva Expert meter is your first blood sugar meter or you have used a meter for
some time, please take the time to read the Getting Started Guide, the Standard Owner’s Booklet, and the
Advanced Owner’s Booklet carefully before you use your new meter. To use it correctly and dependably, you
need to understand its operation, screen displays, and all individual features.
If you have questions, we are here to help. Just call ACCU‑CHEK Customer Care Service Center at
1-800-688-4578. You can also visit www.accu-chek.com for diabetes management tools.
45702_std.indb 7 10/29/09 1:41:47 PM

8
The ACCU‑CHEK Aviva Expert System
The ACCU-CHEK Aviva Expert meter is for quantitative blood sugar testing using ACCU‑CHEK Aviva test
strips. The meter has many features including:
• Bolus advice calculation
• Daily time blocks that can be adjusted to fit your lifestyle
• Data management
• Data transfer
• Date reminders
• bG test reminders: Alarm clock reminders, Target bG levels, and Health events
• An electronic diary that allows you to enter meal time, carbs, health, and bolus information with your
blood sugar test results
For detailed information about the features of the meter, see Chapter 1, “Understanding Your New System.”
45702_std.indb 8 10/29/09 1:41:47 PM

9
iNOTE:
Blood sugar and bG are interchangeable and mean the same thing.
Intended Use
The ACCU‑CHEK Aviva Expert blood sugar monitoring system is intended for the quantitative measurement of
blood glucose. The ACCU‑CHEK Aviva Expert system is intended for self‑testing outside the body (in vitro
diagnostic use) by people with diabetes and/or by professionals in a clinical setting as an aid to effective
diabetes management. Testing sites include traditional ngertip site along with palm, forearm, upper arm,
thigh, and calf.
The ACCU-CHEK Aviva Expert meter is also indicated for the management of diabetes by calculating an insulin
dose or carbohydrate intake based on user-entered data.
45702_std.indb 9 10/29/09 1:41:47 PM

10

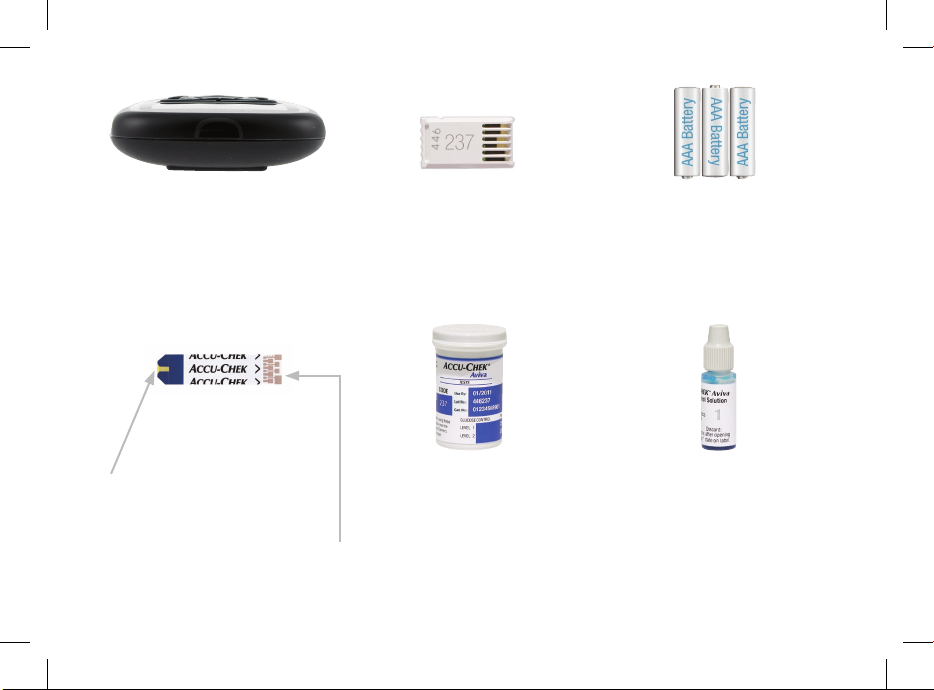

The system includes:
• ACCU‑CHEK Aviva Expert meter with three AAA batteries (already inserted)
• ACCU‑CHEK Aviva test strips and code key
• ACCU‑CHEK Aviva control solution
wWARNING:
Any object coming into contact with human blood is a potential source of infection (see: Clinical and
Laboratory Standards Institute: Protection of Laboratory Workers from Occupationally Acquired Infections;
Approved Guideline – Third Edition; CLSI document M29‑A3, 2005).
Why Regular Blood Sugar Testing Is Important
Testing your blood sugar regularly can make a big difference in how you manage your diabetes every day.
Discussing your results with your healthcare professionals and following their advice about medicine,
exercise, and food plans can help you better control your diabetes.
Important Information About Your New Meter
• The meter is designed for testing fresh whole blood samples (for example, blood from your ngertip or
forearm). The meter is for outside the body (in vitro) use. It should not be used to diagnose diabetes.
• This meter requires ACCU‑CHEK Aviva test strips. Other test strips will give inaccurate results.
• The meter comes with the time and date preset. You may need to change the time to your time zone.
• If you have followed the steps in this booklet but still have symptoms that do not seem to match your test
results, or if you have questions, talk to your healthcare professional.
45702_std.indb 10 10/29/09 1:41:47 PM

1
11
1Understanding Your New System
1.1 Overview 12
1.2 The ACCU‑CHEK Aviva Expert Meter at a Glance 13
1.3 Summary of Features 18
1.4 Screen Content and Navigation 27
45702_std.indb 11 10/29/09 1:41:47 PM

12
1.1 Overview
Your new meter has several features to assist you in managing your diabetes. It is important you understand
the features and how to operate the meter correctly.
iNOTES:
• This booklet shows sample screens. The screens in this booklet may look slightly different from
the screens on the meter. If you have any questions about the meter screens, contact ACCU‑CHEK
Customer Care Service Center at 1-800-688-4578.
• On the meter display, the code chip is referred to as a code key. Code key and code chip are
interchangeable and mean the same thing.
• Blood sugar and bG are interchangeable and mean the same thing.
45702_std.indb 12 10/29/09 1:41:47 PM

1
13
Bolus Advice
My Data
Settings
bG T e st
10:02 am 2 Feb 08
1.2 The ACCU‑CHEK Aviva Expert Meter at a Glance
Display
Shows menus, results,
messages, and data stored in
the diary.
Buttons
Press to enter menus or the
diary, adjust settings, and
scroll through results.
Left/Right Soft Keys
Press to select the menu or
option above the key.
Power On/Off Button
Press to turn the meter on
or off.
Test Strip Slot
Insert golden end of test strip
here.
Infrared (IR) Window
Transfers data from the
meter to a computer.
Code Key Slot
Insert code key here with
code number facing away
from you.
Battery Door
Remove the battery door
by pushing the tab and
pulling up the door.
Backlight Button
Press to adjust the backlight level.
45702_std.indb 13 10/29/09 1:41:51 PM

14
Top View
Infrared (IR) Window
Code Key
(for example)
Batteries
Insert batteries according to the
+ and - symbols in the battery
compartment.
Test Strip
Yellow Window - Touch blood drop
or control solution here.
Golden End ‑ Insert this end of the
test strip into the meter.
Test Strip Container
(for example)
Control Solution Bottle
(for example)
45702_std.indb 14 10/29/09 1:41:52 PM
