AccuPel DVG-5000 User manual
AccuPel DVG-5000 Digital Video
Calibration Generator
User Manual
6/10/11
2AccuPel DVG-5000 Digital Video Calibration Generator
1
Table of Contents
Introduction ..................................................................................................... 6
22 Versatile 2D Digital Video Formats with 4 Output Signal Types...................................... 6
33 Additional 3D Digital Video Formats (Optional Feature) ................................................ 6
Separate High-Precision 10-Bit & 8-Bit Signal Values......................................................... 7
Maximum Accuracy Direct-Drive Digital (D3) Pattern Generation........................................ 7
Easy-to-Use Infrared Remote Control............................................................................... 7
OSD Menus.................................................................................................................... 7
USB Control Interface ..................................................................................................... 7
Front Panel Controls ........................................................................................ 8
LED Indicators ............................................................................................................... 8
Output Selector.............................................................................................................. 8
Output Indicator LEDs .................................................................................................... 8
50 Hz / 60 Hz Selection .................................................................................................. 8
Format Selector ............................................................................................................. 9
Format Indicator LEDs .................................................................................................... 9
Group Selector ............................................................................................................... 9
Group Indicator LEDs ..................................................................................................... 9
Gray Scale Window & Gray Field Values ........................................................................... 9
Prior & Next Pattern Selector Buttons ............................................................................ 10
On Screen Display (OSD)................................................................................ 11
Pattern Information...................................................................................................... 11
OSD Menu System ....................................................................................................... 11
OSD Menu Navigation................................................................................................... 11
OSD Menus.................................................................................................................. 12
User Level .............................................................................................................. 12
Output ................................................................................................................... 13
Sync ...................................................................................................................... 13
Misc....................................................................................................................... 14
USB Port ................................................................................................................ 14
Defaults (Power Up)................................................................................................ 14
(AVI) InfoFrame* ................................................................................................... 14
............................................................................................................................. 15
3D Mode (DVG-5000 Optional Feature) .................................................................... 15
Selected Remote Control Functions ............................................................... 16
Rear Panel I/O ............................................................................................... 17
Digital RGB/YCbCr Video Output.................................................................................... 17
USB Input/Output Port ................................................................................................. 17
+6V DC Regulated Input............................................................................................... 17
2
Test Patterns.................................................................................................. 18
Color 75 Group.............................................................................................................18
Color 100 Group ...........................................................................................................18
Special Group...............................................................................................................18
PLUGE Group ...............................................................................................................19
Gray Scale Groups ........................................................................................................19
Gray Field Group ..........................................................................................................20
Characteristics ............................................................................................... 21
Picture Formats (59.94 & 60.00 Hz based) .....................................................................21
Picture Formats (50.00 Hz based) ..................................................................................21
3D Mode 33 Structure/Formats Included (Optional Feature) ............................................22
Output Formats ............................................................................................................22
Calibration Patterns (113 Patterns) ................................................................................23
Video Output Connector................................................................................................24
Control Interfaces.........................................................................................................24
Power Supply ...............................................................................................................24
Limited Warranty ........................................................................................... 25
Appendix 1: USB Interface............................................................................. 26
USB Control Port...........................................................................................................26
USB Driver..............................................................................................................26
Serial Protocol.........................................................................................................26
AccuPel HDG-4000/HDG-3000 Compatibility ..............................................................26
DVG-5000 Command Syntax ....................................................................................26
Confirmation and Error Messages .............................................................................26
Query Commands ...................................................................................................27
USB Interface Command Tables.....................................................................................27
Appendix 2: IR Remote Control Functions .................................................... 34
Output Selection...........................................................................................................34
Sync Selection ..............................................................................................................34
Format Selection ..........................................................................................................35
Pattern Selection ..........................................................................................................36
Sequential Group & Pattern Selection .......................................................................36
Direct Group & Pattern Selection ..............................................................................36
User-Defined Pattern List .........................................................................................36
Other Functions............................................................................................................38
On Screen Display (OSD) Systems .................................................................................38
Pattern Information.................................................................................................38
OSD Menu System ..................................................................................................39
OSD Menu Navigation..............................................................................................39
OSD Menus.............................................................................................................39
3D Mode (Optional Feature) ..........................................................................................43
Structure ................................................................................................................43
Blank Eye ...............................................................................................................43
Infoframe ...............................................................................................................43
Crosstalk ................................................................................................................43
4
5
AccuPel DVG-5000
Digital Video
Calibration Generator
User Manual
Version 1.10
Safety Information
•Do not expose the DVG-5000 to rain or moisture. Do not operate the DVG-
5000 with the covers removed.
•Use only the supplied power module. Route power cords so they will not be
stepped on or pinched by anything placed on or against them.
•Keep the DVG-5000 away from wet locations such as bathtubs, sinks, wet
basements or swimming pools.
•Unplug the DVG-5000 before cleaning. Use a damp cloth for cleaning. Do
not use cleaning fluids or aerosols, which could enter the unit and cause
damage, fire or electrical shock.
•Do not attempt to calibrate or service this unit. Never remove the covers.
Disconnect it and contact Display Calibrations, LLC directly for service.
6
Introduction
Introduction
The AccuPel DVG-5000 Digital Video Calibration Generator is a professional test
equipment device exclusively for commercial or industrial calibration and testing of
video displays or video processors.
22 Versatile 2D Digital Video Formats with 4 Output Signal Types
The DVG-5000 produces 22 2D digital video formats compliant with CEA-861-E
including:
•480i/p
•576i/p
•720p50/59.94/60
•1080i50/59.94/60
•1080p23.98sf/24sf
•1080p23.98/24/25
•1080p29.97/30
•1080p47.95/48
•1080p/50/59.94/60
All 22 formats are available with YCbCr 4:4:4, YCbCr 4:2:2, RGB-Video, and RGB-
PC signal output for compatibility with HDMI®and DVI inputs.
33 Additional 3D Digital Video Formats (Optional Feature)
The DVG-5000 3D Option produces 33 additional 3D signal formats. Each 3D signal
format is a combination of an industry-standard 3D structure (Frame Packing, Side-
by-Side (Half), or Tom-and-Bottom) and a specific video format (e.g. 1080p24). All
3D formats that industry-conforming display devices are required to accept are
included, plus additional 3D formats used for Blu-ray Disc playback and cable and
satellite broadcast distribution.
All DVG-5000 2D test patterns are available in all 33 3D video formats. All 3D for-
mats are available in 10-bit native (and 8-bit native) YCbCr 4:2:2, and Deep Color
(10-bit native) and 8-bit native YCbCr 4:4:4, RGBVideo, and RGB-PC output
modes. A special interactive 3D Crosstalk Measurement Test Pattern is also
included. Left eye and right eye images can also be viewed separately or together
on all test patterns.
Frame Packing Side-by-Side (Half) Top-and-Bottom
(8 Formats) (14 Formats) (11 Formats)
1080p23.98/24 1080i59.94/60 1080p23.98/24
720p59.94/60 1080i50 720p59.94/60
720p50 1080p23.98/24 720p50
1080p29.97/30 720p59.94/60 1080p59.94/60
1080p25 720p50 1080p29.97/30
1080p59.94/60 1080p50
1080p29.97/30 1080p25
1080p50
1080p25
7
Introduction
Separate High-Precision 10-Bit & 8-Bit Signal Values
To provide maximum accuracy, Luma and Chroma values for ITU Rec. 601 (SD)
and ITU Rec. 709 (HD) are computed using 64-bit double-precision floating-point
math and then rounded to 8-bit and 10-bit values.
Separate 10-bit and 8-bit component video values are stored for all 113 basic pat-
terns to eliminate accuracy errors that occur when rounding, truncating, or dither-
ing 10-bit output values to create 8-bit output values.
RGB-Video, RGB-PC, and YCbCr 4:4:4 10-bit video values are output by selecting
the 30-bit or 36-bit Deep Color output modes. Users can also select 10-bit or 8-bit
YCbCr 4:2:2 (20-bit/16-bit) output.
Maximum Accuracy Direct-Drive Digital (D3) Pattern Generation
For maximum timing accuracy and minimum jitter all video patterns, digital sync,
and timing signals are generated using individual low-noise, high-stability, precision
crystal oscillators for standard-definition, 59.94 Hz high-definition, and 50/60 Hz
high-definition video formats.
A proprietary AccuPel pattern and timing generation IC directly drives the HDMI
digital video output transmitter with 30-bit and 24-bit RGB/YCbCr video values
depending on output signal type. There is no digital signal truncation, dithering, or
color-matrix conversion in the 30-bit or 24-bit digital video path that would reduce
bit-level accuracy. No clock synthesizers, format converters, or frame buffers are
used to ensure maximum signal timing accuracy.

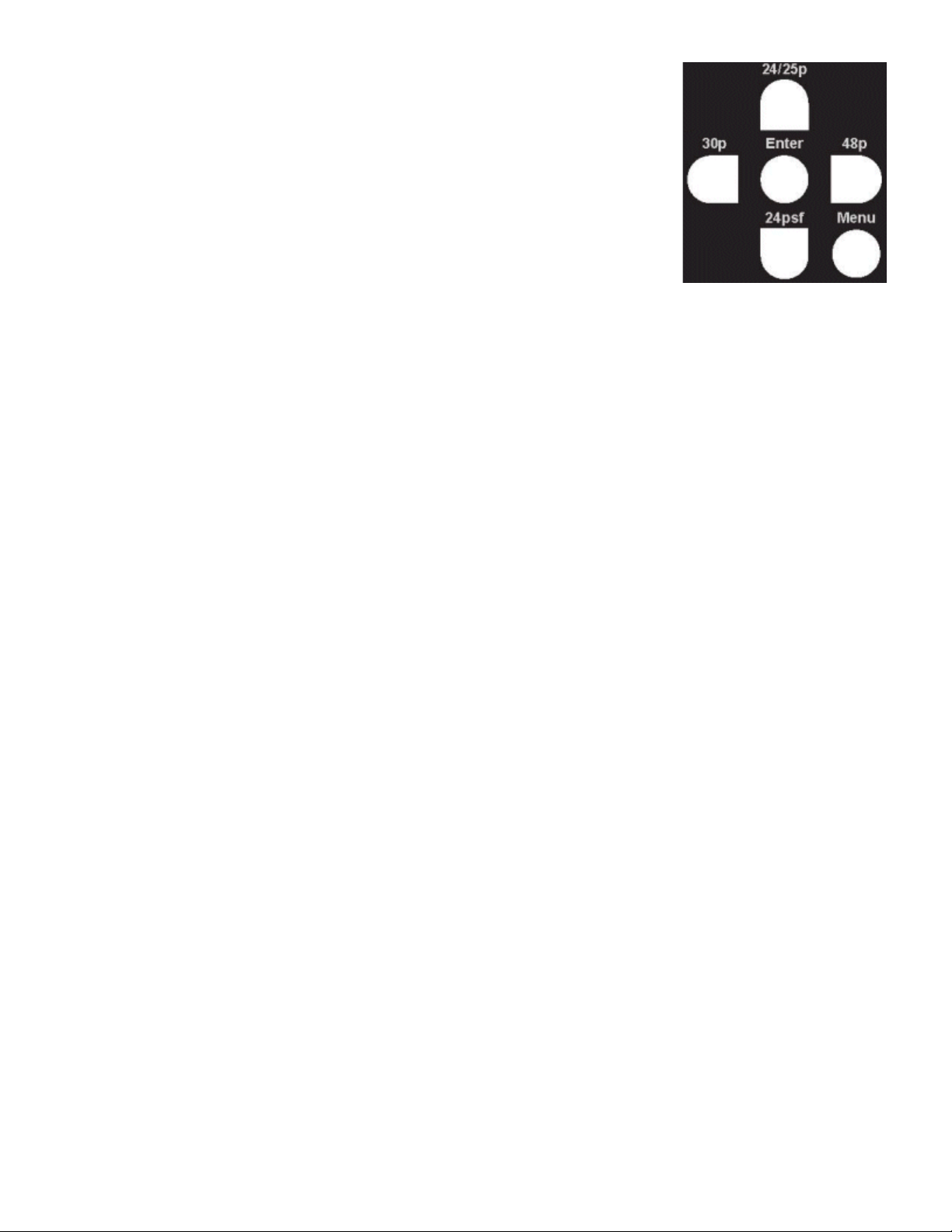

Easy-to-Use Infrared Remote Control
A 41-key IR remote control is standard to provide maximum standalone ease of
use. Dedicated keys are provided to directly select each Output mode, Format
mode, Pattern Group, and specific Luma values within Groups. There are also dedi-
cated keys to move forward or backward within Groups or Patterns. Pattern switch-
ing is virtually instantaneous because patterns are not loaded from ROM or flash
memory. A user defined Pattern List provides another easy way to switch between
favorite patterns. Single key pushes will store or delete up to 10 patterns in the
Pattern List, and move forward or backward through the Pattern List.
The IR remote control also provides keys to enter user-defined Luma and Color val-
ues, select special features, and to navigate the On-Screen-Display (OSD) menus.
Detailed documentation for the IR remote control can be downloaded from
http://www.accupel.com.
OSD Menus
OSD (On-Screen-Display) menus provide access to advanced features including the
ability to specify user defined Luma and Color values, change output bit-depth,
blank individual R/G/B/Y/Cb/Cr output channels, modify color-encoding, set power-
up default modes, configure the USB interface, and more options.
USB Control Interface
The USB Control Interface provides full operation of all DVG-5000 functions, includ-
ing direct selection of every pattern. Detailed documentation for the USB Interface
can be downloaded from http://www.accupel.com.
8
Front Panel Controls
Front Panel Controls
LED Indicators
Each time power is applied to the DVG-5000 the PLUGE, Gray Scale, and Gray Field
LEDs will illuminate in sequence for about 4 seconds as the generator is initialized.
The inactive Format LEDs blink once when any IR remote control command is
received. A rapidly blinking LED indicates that an IR remote control numeric key is
expected next (e.g. after Pat# key for direct selection by % value). Any slowly
blinking LED indicates that a special feature mode is active (e.g. Slow Edges).
Output Selector
The Output button selects the type of digital video signals produced by the DVG-
5000.
YCbCr 4:4:4 signals
RGB-Video signals
YCbCr 4:2:2 signals
RGB-PC signals
Output Indicator LEDs
•YCbCr 444 – YCbCr 4:4:4 signals. *
•RGB Video – RGB-Video signals. *
•YCbCr 422 – YCbCr 4:2:2 signals. *
•RGB PC – RGB-PC signals. **
* Y,R,G,B 64-940 (10-bit) or 16-235 (8-bit), black (0%) to reference white (100%)
-7% to 109% total valid range (used in Ramps, High-GS mode, etc.) Cb, Cr 64-
960 (10-bit) or 16-240 (8-bit)
** R,G,B 0-1023 (10-bit) or 0-255 (8-bit), black (0%) to reference white (100%)
50/60Hz Selection 50 Hz / 60 Hz Selection
Select 50 Hz modes by pressing and holding the Format button for about 1 second.
When the 50 Hz LED illuminates release the Format button. If you continue to hold
the Format button the 50 Hz/60 Hz modes will alternate once per second. The 60
Hz LED is illuminated for both 59.94 and 60 Hz formats (selectable in the OSD
menu).
Output Selector Format Selector Group Selector Pattern Selector
Output Indicator LEDs 50/60Hz Indicator Format Indicator LEDs Group Indicator LEDs
9
Front Panel Controls
480i, 480p, 576i,
576p, 720p, 1080i,
1080p formats
Format Selector
Press and release the Format button to change the video format in the following
order—1080i, 720p, SD i, SD p, 1080p60(50), 1080p24(25), and a 1080p User
selectable format (when 60 Hz is enabled). SD i (SD p) is the standard-definition
interlaced (progressive) format—480i(p) in the 60 Hz mode (automatically set to
59.94 Hz), and 576i(p) in the 50 Hz mode.
The 1080p User format can be selected in the OSD Defaults menu to produce
1080p24sf, 1080p30, or 1080p48. All formats can also be selected directly using
the IR remote control or the USB control interface.
Format Indicator LEDs
The SD i LED indicates 480i when the 480i/p LED is illuminated, and 576i when the
576i/p LED is illuminated. Similarly, the SD p LED indicates 480p and 576p.
The 1080p LED and one other LED that indicates the 1080p frame rate (60/50/24/
25/User) will be illuminated simultaneously to indicate 1080p formats.
Group Selector
The Group button selects a group of patterns. Repeatedly pressing and releasing
the Group button circulates through the pattern groups.
Press and hold the Gray Scale Button when the Gray Scale LED is illuminated to
cycle from GS to Low-GS to High-GS and back to GS groups.
8 pattern groups
113 basic patterns
Group Indicator LEDs
Color 75 - 16 calibration patterns that include color bars and primary, complemen-
tary, and gray color windows and color fields at 75% signal levels. User-defined
color values can be specified in the OSD User Level/Color menu.
Color 100 - 16 calibration patterns that include color bars and primary, complemen-
tary, and gray color windows and color fields at 100% signal levels. User-defined
color values can be specified in the OSD User Level/Color menu.
Special - 14 patterns for calibrating or evaluating overscan, horizontal and vertical
size, geometry, convergence, contrast, sharpness, banding, and detail enhance-
ment. User-defined checkerboard luma values can be specified in the OSD User
Level/Checkerboard menu.
PLUGE - 10 patterns for adjusting black-level, contrast, and color temperature.
Gray Scale – 3 Groups of 14 patterns each for measuring and adjusting linearity,
color temperature, gamma, and grayscale tracking. The default group includes 14
patterns with 0%-100% luma values in 10% increments. The Low-GS group
includes 14 patterns with 0% to 10% luma values in 1% increments, and the High-
GS group includes 14 patterns with 100% to 109% luma values in 0.9% incre-
ments. The Low-GS and High-GS groups can be selected from the IR remote con-
trol. User-defined window luma values can also be specified in the OSD User Level/
Window menu.
Gray Field - 15 patterns for measuring and adjusting full-field uniformity, color tem-
perature, gamma, and grayscale tracking using full-field patterns. User defined full-
field luma values can be specified in the OSD User Level/Field menu.
Gray Scale Window
& Gray Field Values
(binary code)
Gray Scale Window & Gray Field Values
When the Gray Scale window or Gray Field patterns are changed (from the front
panel or the IR remote control) the PLUGE, Color 75, Color 100, and Special LEDs
10
Front Panel Controls
temporarily produce a binary code that represents the luma value of the window of
field. The binary code persists for about 1 second and will then disappear.
Gray Scale Window
& Gray Field Values
(text display)
The LED binary display is for the benefit of users connected to devices other than
displays. The OSD Pattern Information provides a direct on-screen text display of
the window or field luma value.
Prior & Next Pattern Selector Buttons
Selects the next or prior pattern in the current pattern group.
Grayscale Window/Field PLUGE LED Color 75 LED Color 100 LED Special LED
Normal Low-GS High-GS Binary Code Bit 3 Binary Code Bit 2 Binary Code Bit 1 Binary Code Bit 0
10 1 100.9 On
20 2 101.8 On
30 3 102.7 On On
40 4 103.6 On
50 5 104.5 On On
60 6 105.4 On On
70 7 106.3 On On On
80 8 107.2 On
90 9 108.1 On On
100 10 109.0 On On
11
On Screen Display (OSD)
On Screen Display (OSD)
Pattern Information
Each time a pattern is changed the name of the pattern, which includes important
signal identification information, is displayed on-screen for a short duration. The
duration can be selected in the OSD Misc menu (approximately 0.25, 0.5, 1.0, 1.5,
or 2.0 seconds), and the duration can be saved as a power-up default value. Press
the Info button on the remote control to display the pattern information continu-
ously. Press the Info button again to resume the default display period.
CIE xyY values are shown on the Info line for windows and fields in the Color75 and
Color100 pattern groups. The CIE x,y and Y (luminance relative to an equal ampli-
tude gray color) values are defined by the Color Gamut of applicable HD or SD
standards, and can be used as target values to adjust a Color Management System
(CMS). It can be advantageous to calibrate a display to have selectable Color Gam-
uts for the same signal format, therefore the target Color Gamut for HD, SD 60 Hz,
and SD 50 Hz signals can be changed in the Misc menu. The Color Gamut selection
changes only the CIE xyY target values for the display, and does not affect the gen-
erator’s output signals.
OSD Menu System
The OSD Menu is produced in all digital output signal formats. The OSD Menu pro-
vides additional features such as:
•user-defined luma values and colors
•selectable RGB and YCbCr individual channel blanking (set to the black
level)
•advanced signal parameters (YCbCr color-encoding, 59.94/60 Hz frame
rates HDMI 10-bit and 12-bit Deep Color YCbCr 4:2:2 bit-depth and filter-
ing, Digital Sync Polarity)
•AVI InfoFrame parameters
•USB port control
•user-defined generator power-up default modes.
OSD Menu Navigation
Press the Menu button to display the OSD window, which is organized into three
columns. The left column of the OSD window currently lists seven menus—User
Level, Output, Sync, Misc, USB Port, Defaults, and AVI InfoFrame. Use the cursor
keys to highlight (green text) the desired menu, and then move into the middle col-
umn and highlight a menu item. The current status of each highlighted menu item
is shown in the right column. To change a setting move into the right column and
highlight one of the alternative settings that will be listed in that column. In most
cases it is not necessary to press the Enter key unless “Enter” appears in the right
column. In that case highlight “Enter” and press the remote control Enter key to
proceed.
12
On Screen Display (OSD)
Press the Menu button to turn the OSD menu on or
off. The highlighted (green text) cursor position in the
OSD menu is maintained when the menu is turned on
or off, so it is easy to turn the menu off when making
measurements or adjusting a calibration setting, and
then turn it back on again to make additional changes
to the same menu item.
Menu items that are not applicable to the current sig-
nal output type are dimmed and not accessible in the
menu. For instance, the YCbCr 4:2:2 Filter selection
menu item is not accessible unless the YCbCr 4:2:2
output mode is active.
OSD Menus
User Level
Field Set a user-defined integer luma % value for the
User Field in the Gray Field group. Select Factory
and press Enter to restore the original 100% User
Field. Select “Cancel” and press Enter to leave the
menu without making any change.
Window Set a user-defined integer luma % value for the
User Window in the Gray Scale group. Select Fac-
tory and press Enter to restore the original 100%
User Window. Select “Cancel” and press Enter to
leave the menu without making any change.
Checkerboard Set a user-defined integer luma % value for the
User Checkerboard and User Inverse Checker-
board in the Special group. Select Factory and
press Enter to restore the original 50% User
Checkerboards. Select “Cancel” and press Enter to
leave the menu without making any change.
Color Set user-defined integer R, G, B % values for the
User Window and User Field in the Color 75 and
Color 100 groups. The equivalent YCbCr values will
automatically be calculated for both ITU Rec. 601
(SD) and ITU Rec. 709 (HD) when using or switch-
ing to those output types. The “White” bars in the
color bar patterns are also changed to allow com-
parison with other known colors. Select Factory
and press Enter to restore the original 75% gray
and 100% white colors. Select “Cancel” to leave
the menu without making any change.
The IR Remote Control manual has more information about entering User
values.
13
On Screen Display (OSD)
Output
Sync
Channels Enable/disable any combination of RGB or YCbCr
output signal channels. This allows you to create
red, green, blue, yellow, cyan, or magenta RGB
geometry, linearity, and ramp patterns, or pro-
duce Y (luma) only signals for the color bar pat-
terns. The former can be especially useful for
adjusting convergence in displays with separate
RGB convergence controls.
Color Enc Select standard YCbCr HD/SD ITU Rec. 709/Rec.
601 color-matrix encoding, or reverse the encod-
ing (HD/SD Rec. 601/Rec. 709). This is particularly
useful to quickly verify correct display color decod-
ing visually.
HD V Rate Select 59.94 or 60.00 Hz field/frame rate for HD
signals.
HDMI/DVI Select HDMI or DVI output. Some older video
monitors and computer monitors will not display
HDMI protocol signals.
Deep Color Select 8-bit RGB/YCbCr 4:4:4 digital signals, or
RGB/YCbCr 4:4:4 Deep Color 10-bit or 12-bit sig-
nal output. Only available when HDMI signal out-
put is also selected.
422 Filer Select YCbCr 4:2:2 signal filtering On or Off. When
Off is selected the Cb/Cr signals are decimated
from 4:4:4 to 4:2:2 signals without filtering. Only
available when YCbCr 4:2:2 signal output is active.
422 Bits Select 8-bit or 10 bit YCbCr digital video output
signals. Only available when YCbCr 4:2:2 signal
output is active.
HD std + Select positive or negative HD digital sync. HD
standard is positive.
SD std - Select positive or negative SD digital sync. SD
standard is negative.
Position - Change Hsync (+/- 99 pixels) and Vsync (+/- 15 lines) position.
Use with overscan pattern to measure H & V overscan precisely in pixels
and lines. Use Pos, Neg, and SoG keys to increment, decrement, and zero
(reset) sync position.
NOTE: Some displays don't use sync signals to position the video frame
and Sync Position will have no or unpredictable effect on those displays.
Some displays use Hsync position to determine the Cb/Cr phase for
YCbCr 4:2:2 signals and changing Hsync Position will alter color on
those displays.
14
On Screen Display (OSD)
Misc
USB Port
Defaults (Power Up)
(AVI) InfoFrame*
Info Serial number and options information.
Disp Time Selects the time duration that pattern names are
displayed when switching patterns. The IR remote
control INFO key will continuously display pattern
names if desired.
Gamut HD Select Rec709, SMPTE-C, or EBU. Changes the CIE
xyY target values shown on the OSD Color75/
Color100 Pattern Info line for HD (1080i/p, 720p)
signals to the color gamut defined by the selected
standard. The default standard is ITU Rec. 709.
This setting has no effect on generator signals.
Gamut SD60 Select Rec709, SMPTE-C, or EBU. Changes the CIE
xyY target values shown on the OSD Color75/
Color100 Pattern Info line for SD 60 Hz (480i/p)
signals to the color gamut defined by the selected
standard. The default standard is SMPTE-C. This
setting has no effect on generator signals.
Gamut SD50 Select Rec709, SMPTE-C, or EBU. Changes the CIE
xyY target values shown on the OSD Color75/
Color100 Pattern Info line for SD 50 Hz (576i/p)
signals to the color gamut defined by the selected
standard. The default standard is EBU. This setting
has no effect on generator signals.
USB Baud Baud Rate selection.
USB Flow Flow control selection.
60/50 Hz Power up in 60 Hz or 50 Hz output formats mode.
USB Baud Power up baud rate.
User Format Power up with front panel User Format set to out-
put 1080p24sf, 1080p30, or 1080p48.
Disp Time Power up with the pattern name display duration
set to 0.25, 0.5, 1.0, 1.5, or 2.0 seconds.
Save Items Save all of the above power up default items to
non-volatile memory.
Output Auto or manual selection of the Output Signal Type
parameter (Auto, Off, RGB, YCbCr 4:2:2, YCbCr
4:4:4).
Color Enc Auto or manual selection of the YCbCr color encod-
ing parameter (Auto, Off, Rec. 601, Rec. 709).
15
On Screen Display (OSD)
3D Mode (DVG-5000 Optional Feature)
For more information about the 3D Mode menus and special Crosstalk test pattern,
refer to Appendix 2: IR Remote Control Functions on page 34.
Levels Auto or manual selection of the Output Signal Lev-
els parameter (Auto, Off, Video, PC).
Format Auto or manual selection of the Output Signal For-
mat parameter (Auto, Off).
Pixel Rep Auto or manual selection of the Output Signal Pixel
Replication parameter (Auto, 1x, 2x).
* Only available when HDMI is selected
Structure Select 3D Off (2D), 3D Frame Packing, 3D Side-
by-Side (Half), or 3D Top-and-Bottom Structure
video signals.
Blank Eye Select None, Left or Right. Blanks the left or right
eye image for all 3D signals.
Infoframe Select 3D CEA-861 Vendor Specific Infoframe On
or Off.
Crosstalk Select Crosstalk to produce a special test pattern
and menu to measure the amount of 3D crosstalk
between left eye and right eye images as seen
through 3D glasses.
16
Selected Remote Control Functions
Selected Remote Control Functions
Please read the IR Remote Control chapter for a complete discussion of additional
remote control features including how to enter User Luma & Color Levels, and User
Pattern Lists.
Edge Selects Fast or Slow digital video edge transitions. The Slow
Edge mode changes the edge transition rate of the DVG-5000
signals to a rate chosen specifically for each video format. The
currently selected Output LED will blink slowly when the Slow
Edge mode is enabled.
ALT Gray
Scale*
Press this button combination to select or alternate between
0%-10% Low-GS (Gray Scale) patterns and 100%-109% High-
GS patterns. Press the Gray Scale button only to return to the
0%-100% Gray Scale patterns. The Gray Scale LED will blink
slowly when the Low-GS or High-GS mode is enabled.
Mute This button produces a 0% black field. Press any button on the
remote control (including Mute) to restore the previous pattern.
Func Mute Press this button combination to alternate between HDMI and
DVI output modes if the OSD menu is not visible on some dis-
plays in the HDMI (default) output mode. This is normally only
the case on older video displays and computer monitors with
DVI only inputs that may be incompatible with HDMI protocols.
*100%-109% patterns are not available for RGB-PC signals because the maxi-
mum signal amplitude is 100% (digital 255 or 1023) for RGB PC signals.
17
Rear Panel I/O
Rear Panel I/O
Digital RGB/YCbCr Video Output
The HDMI connector provides RGB-Video, RGB-PC, YCbCr 4:4:4, or YCbCr 4:2:2
digital video signals. A passive HDMI to DVI output adapter or cable can be used to
connect to DVI inputs.
USB Input/Output Port
USB input/output. Use a Type A to Type A USB cable to connect the DVG-5000 to a
computer. Requires a DVG-5000 USB driver that can be downloaded from
http://www.accupel.com. (See the DVG-5000 USB Interface manual for details.)
+6V DC Regulated Input
Use the supplied DVG-5000 6V DC regulated power module only. Use of any other
power module invalidates the DVG-5000 warranty.
Digital RGB/YCbCr Video Output USB Input/Output Port +6V DC Regulated Input
18
Test Patterns
Test Patterns
Color 75 Group
•75% Tri-split Color Bars – Check or adjust Color Saturation and Hue
controls by matching color bars while individually viewing each primary
color. (Use display controls to enable single primary colors, or view
through color filters.) Similar to SMPTE Color Bars, but offset and split for
easier use.
•75% Color Bars - Standard Color Bars at 75% levels.
•75% Color Windows – Primary, complementary, and gray windows pro-
vide accurate CIE color measurements by using the same screen area.
•75% Color Fields – Primary, complementary, and gray fields to measure
color field uniformity and chroma noise.
Color 100 Group
•100% Tri-split Color Bars – Check or adjust Color Saturation & Hue at
100% levels.
•100% Color Bars - Standard Color Bars at 100% levels.
•100% Color Windows - Primary, complementary, and gray windows pro-
vide accurate CIE color measurements by using the same screen area.
•100% Color Fields - Primary, complementary, and gray fields to measure
color field uniformity and chroma noise.
•User Color - Replaces 75% and 100% gray colors in both Color 75 and
Color 100 group patterns to provide easy comparison with other standard
colors.
Special Group
•Low APL Overscan - Measure/adjust overscan and corner/edge geome-
try, convergence, and focus. 0% luma background. 0%-7% horizontal and
vertical overscan lines in 1% intervals.
•High APL Overscan - Measure/adjust overscan and corner/edge geome-
try, convergence, and focus. 100% luma background. 0%-7% horizontal
and vertical overscan lines in 1% intervals.
•Cross-Hatch - Low APL pattern to measure geometry & convergence.
•Inverse Cross-Hatch - High APL pattern for geometry & convergence.
•Dual Needle Pulse – Adjust CRT Contrast. Measure short-term CRT high-
voltage stability and check for CRT Scan Velocity Modulation.
•Color Pixel Multiburst - Adjust chroma-luma delay and signal peaking
(Sharpness/Detail Controls). Red/cyan, black/white, and blue/yellow
bursts.
1080p - 5,4,3,2,1 pixel bursts - 14.85, 18.56, 24.75, 37.13, 74.25 MHz
1080i/p & 720p - 5,4,3,2,1 pixel bursts - 7.43, 9.28, 12.38, 18.56, 37.13
MHz
480p & 576p – 5,4,3,2,1 pixel bursts - 2.70, 3.38, 4.50, 6.75, 13.5 MHz
480i & 576i – 5,4,3,2,1 2x pixel bursts - 1.35, 1.69, 2.25, 3.38, 6.75 MHz
•Luma Pixel Multiburst - Adjust signal peaking (Sharpness/Detail Con-
trols).
1080p - 5,4,3,2,1 pixel bursts - 14.85, 18.56, 24.75, 37.13, 74.25 MHz
Table of contents
