ElproSys DiagProg4 User manual
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
2
1LEGAL RESERVATIONS AND AGREEMENT OF USE 3
2MENU NAVIGATION ( MULTI-TOUCH SCREEN) 4
3MAIN SCREEN 5
4KEYPAD 6
5MENU ICONS –DESCRIPTION 6
6SETUP 7
7SUBMENU INFORMATION 8
8SUBMENU TESTS 8
9TOOLS 9
10 MENU –SUBJECT OF PROGRAMMING 10
11 EXEMPLARY PROGRAMMING 11
12 BASIC SETTINGS 12
13 DIAGPROG4 MANUAL UPDATE 14
14 MAINTENANCE 14
15 DISPLAY FIRMWARE UPDATE 15
16 RESTART DIAGPROG4 15
17 DIAGPROG4 MANAGER 16
18 DESCRIPTIVE MENU 17
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
3

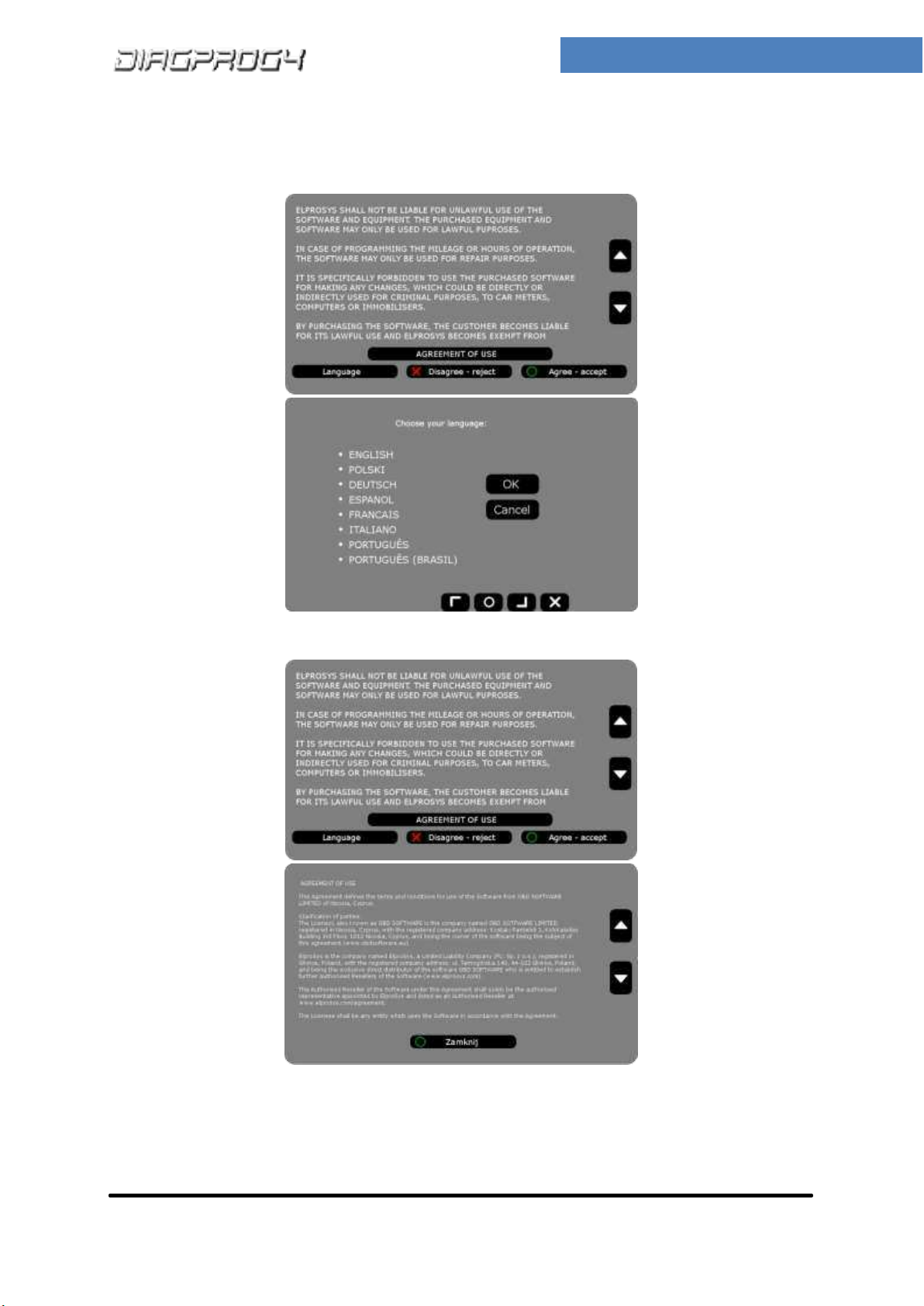

1LEGAL RESERVATIONS AND AGREEMENT OF USE
Once Diagprog4 device is switched on user should select language from the supported languages list.
Language selection will result in the change of language in the entire menu.
User should review LEGAL RESERVATIONS and AGREEMENT OF USE. By selecting the Agree –accept
button user accepts AGREEMENT OF USE and Diagprog4 device will switch on.
It is necessary to accept AGREEMENT OF USE each time device is switched on.
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L

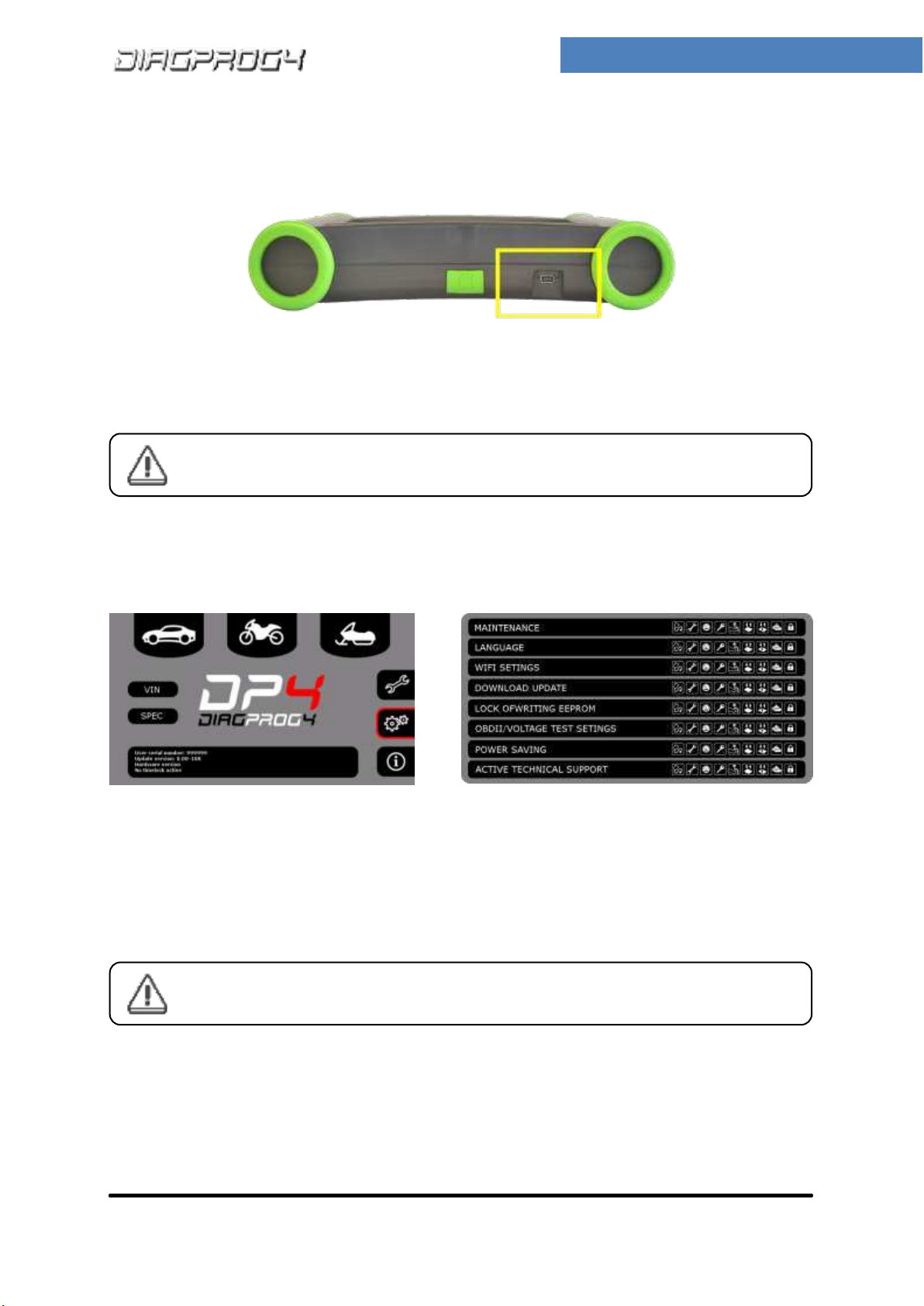

4
2MENU NAVIGATION ( MULTI-TOUCH SCREEN)
Simple gestures —tapping or pressing with fingers —is enough to select menu options.
In order to navigate the menu using keypad press Accept button to activate it and fully use
keypad.
- Accept, - Cancel, - Top, - Bottom
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
5
3MAIN SCREEN
To navigate the main screen please use main screen icons or top/bottom buttons on the keypad.
MAIN SCREEN ICONS
ICONS
FUNCTION
Cars
Selection of a car model
Motorbikes
Selection of a motorbike model
Other
Selection of a quad, scooter, tractor model
Tools
Basic Tools
Setup
Basic Setup
Information
Information about Diagprog4
Special programs
Runs special/diagnostic functions
VIN programs
Read car’s VIN numer. Car selection based on VIN number.
Accept Icon
Allows to accept
Cancel Icon
Allows to cancel
Top Icon
Allows to MOVE UPWARDS in the menu
Bottom Icon
Allows to MOVE DOWNWARDS in the menu
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
6
4KEYPAD
Keypad below the multi-touch screen is another way to navigate DiagProg4 menu.
KEYPAD –BUTTONS
BUTTONS
FUNCTION
Accept Button
Button to ACCEPT
Cancel Button
Button to CANCEL
Top Button
Button to MOVE UPWARDS in the menu
Bottom Button
Button to MOVE DOWNWARDS in the menu
5MENU ICONS –DESCRIPTION
Example of MENU
DIAGNOSTICS
EEPROM READ/WRITE
SERVICES –ADVANCED EDITING
FLASH READ/WRITE
DIAGNOSTICS AND REPAIR OF CAR
MODULES
ADVANCED DIAGNOSTIC FUNCTIONS
IMMOBILIZER
FUNCTIONS FOR ADVANCED USERS
CLEAR CRASH DATA
MENU ICONS –description
DIAGNOSTICS
Automotive diagnostics e.g. read and
clear trouble codes DTC, service, module
identification.
SERVICES –ADVANCED EDITING
Service inspection - reading, writing,
editing
DIAGNOSTICS AND REPAIR OF CAR MODULES
Option diagnostics and repair of car
modules
IMMOBILIZER
Immobilizer
CLEAR CRASH DATA
Clearing accident data
EEPROM READ/WRITE
Reading and writing EEPROM content
FLASH READ/WRITE
Reading and writing FLASH content
ADVANCED DIAGNOSTIC FUNCTIONS
Advanced diagnostic functions
FUNCTIONS FOR ADVANCED USERS
Functions for advanced users
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
7

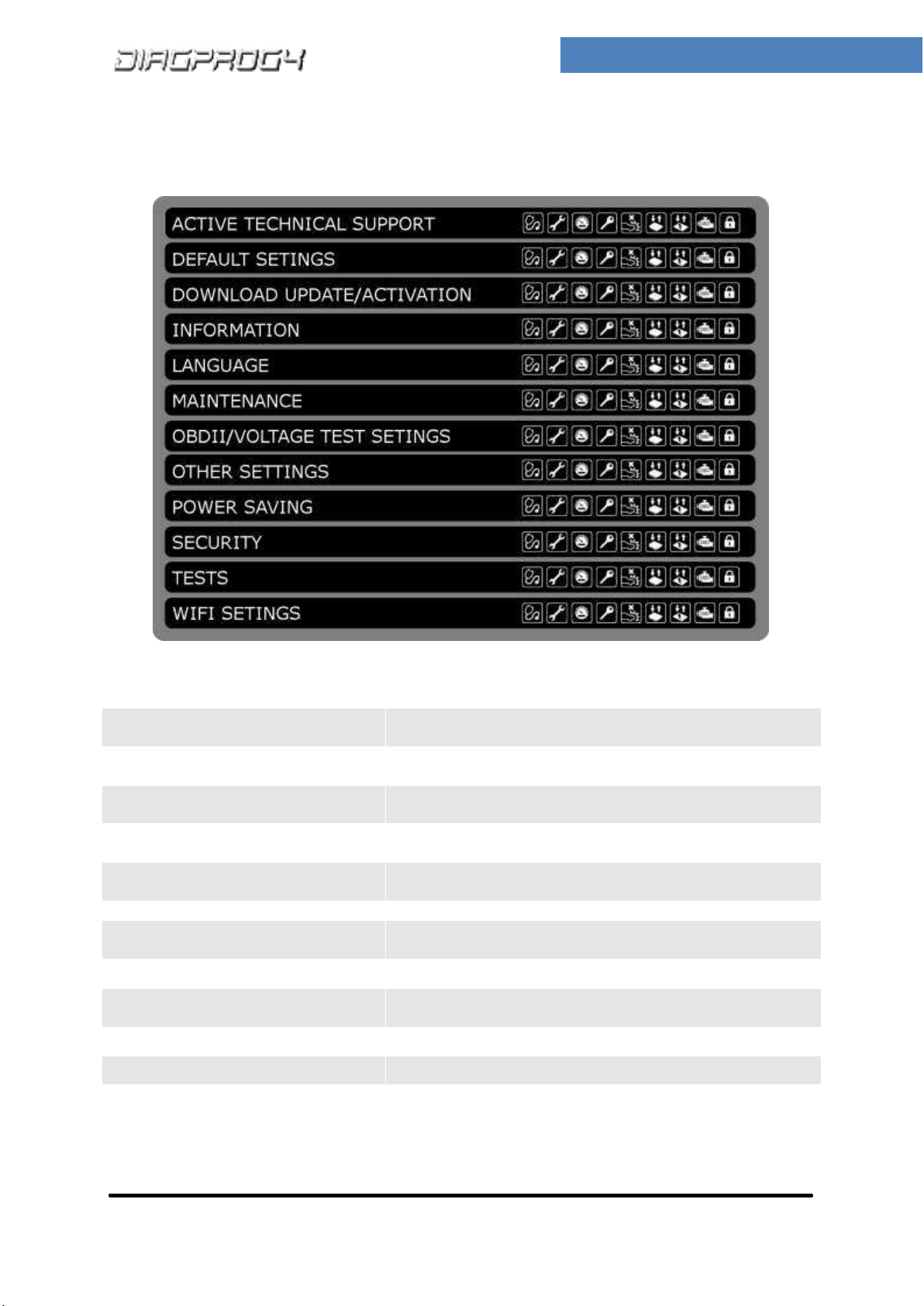

6SETUP
SETUP MENU FEATURES
ICON
DESCRIPTION
ACTIVE TECHNICAL SUPPORT
Provides access to all data sent automatically to seek active
technical support
DEFAULT SETTINGS
Restoring the device to the original state once initially used
DOWNLOAD UPDATE/ ACTIVATION
Allows user to check for new updates/ activations
INFORMATION
Information about DiagProg4
LANGUAGE
Menu language selection: Polish, English, German, French, Italian,
Spanish, Portuguese, Brazilian
MAINTENANCE
File synchronisation between device and files on the server
OBDII/VOLTAGE TEST SETTINGS
Power supply to connected module and OBDII connector
OTHER SETTINGS
Settings modification: e.g. contrast, volume
POWER SAVING
Switch ON/OFF screensaver
SECURITY
DiagProg4 additional security measures
TESTS
Tests available for the user
WIFI SETTINGS
WIFI settings modification
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
8
7SUBMENU INFORMATION
ABOUT DIAGPROG4
Information about DiagProg4
CONTROL NUMBER
Used for registration in customer zone at www.diagprog4.com
DATE/TIME
Information about date and time
DEVICE LIMITS
Information about DiagProg4 limits
AGREEMENT OF USE
Information about DiagProg4 Agreement of Use
IMPORT DP3 LICENSES
Allows to transfer all active programs from Diagprog3 to
Diagprog4
OPEN-SOURCE LICENSE
Information about Open-Source license DiagProg4
8SUBMENU TESTS
EXTERNAL INTERFACE TEST
External interface test
CHECK SDHC CARD FAT32 SYSTEM
Micro SDHC card compatibility with FAT32 system test
MULTIPLEX TEST
MULTIPLEX test
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
9
9TOOLS
ICON
DESCRIPTION
CAN ANALYZER (Internal use only)
Programs For Internal Use Only
CAN PLAYER (Internal use only)
Programs For Internal Use Only
CAN TERMINATION CONTROL
Enables/ disables High Speed CAN Termination
DOWNLOAD UPDATE/ ACTIVATION
Allows user to check for new updates/ activations
EEPROM PROGRAMMER
Write EEPROM memory
EXTERNAL UNIT POWER
Power supply to connected module
HEXEDITOR
File editing in hexadecimal system
J1850 ANALYZER (Internal use only)
Programs For Internal Use Only
K-L ANALYZER (Internal use only)
Programs For Internal Use Only
MICROCONTROLLER PROGRAMMER
Write FLASH + EEPROM
RESTART DIAGPROG4
Immediate restart in order to reload operating system
RESTORE THE BACKUP MODULE
Restore backup file saved on SD card
SENDING LOG FILE
Send *.LOG file to ElproSys server for technical support
SUPPORT SCRIPT
Runs support script prepared for user by technical support team
UDS COMMUNICATION CONTROL
Enables/ disables UDS communication
UNIT CALCULATOR
Enables metric conversion
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
10

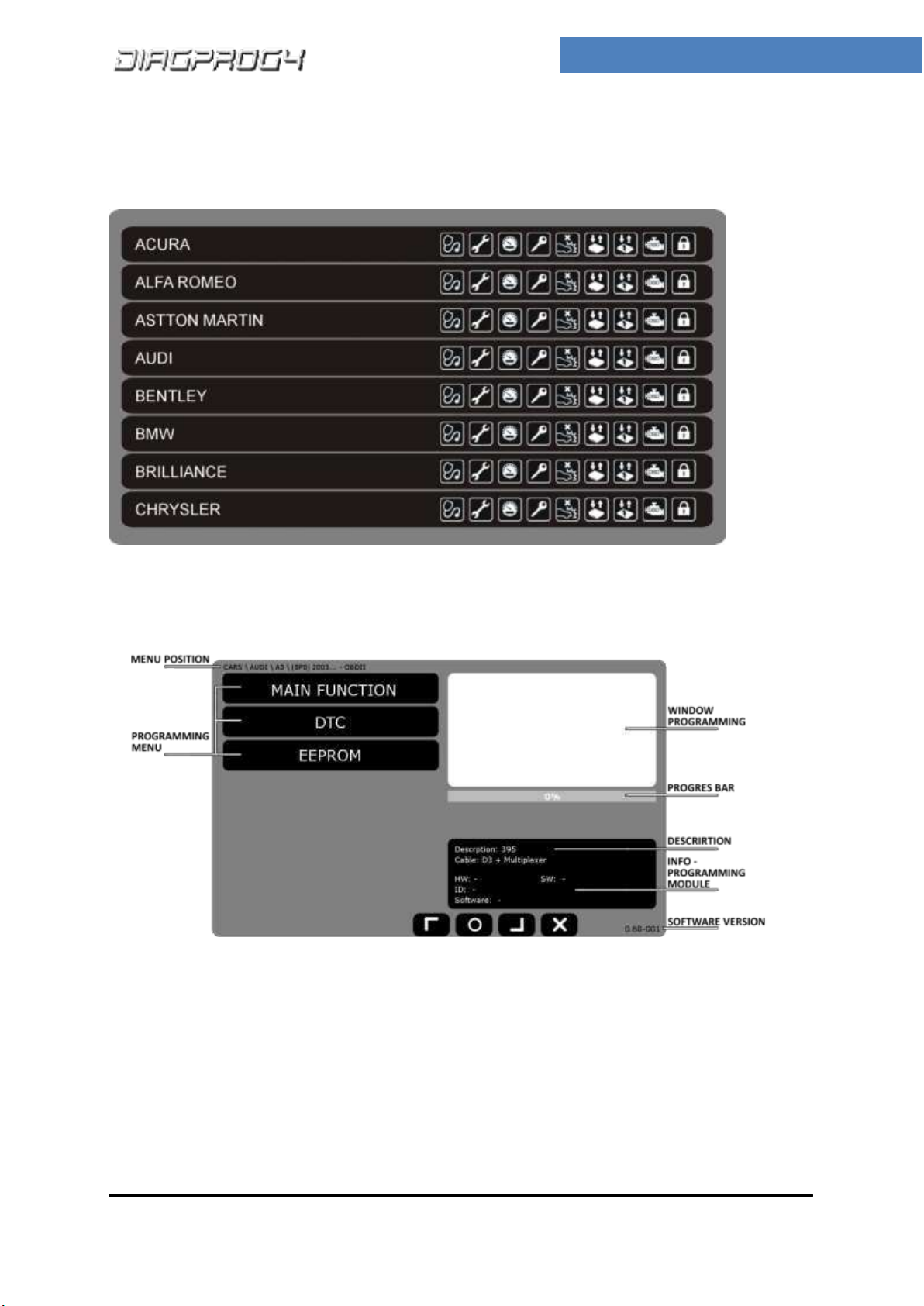

10 MENU –SUBJECT OF PROGRAMMING
Menu –Subject of programming can be Menu for CARS, MOTORBIKES and OTHER VEHICLES.
EXEMPLARY PROGRAMMING MENU
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
11

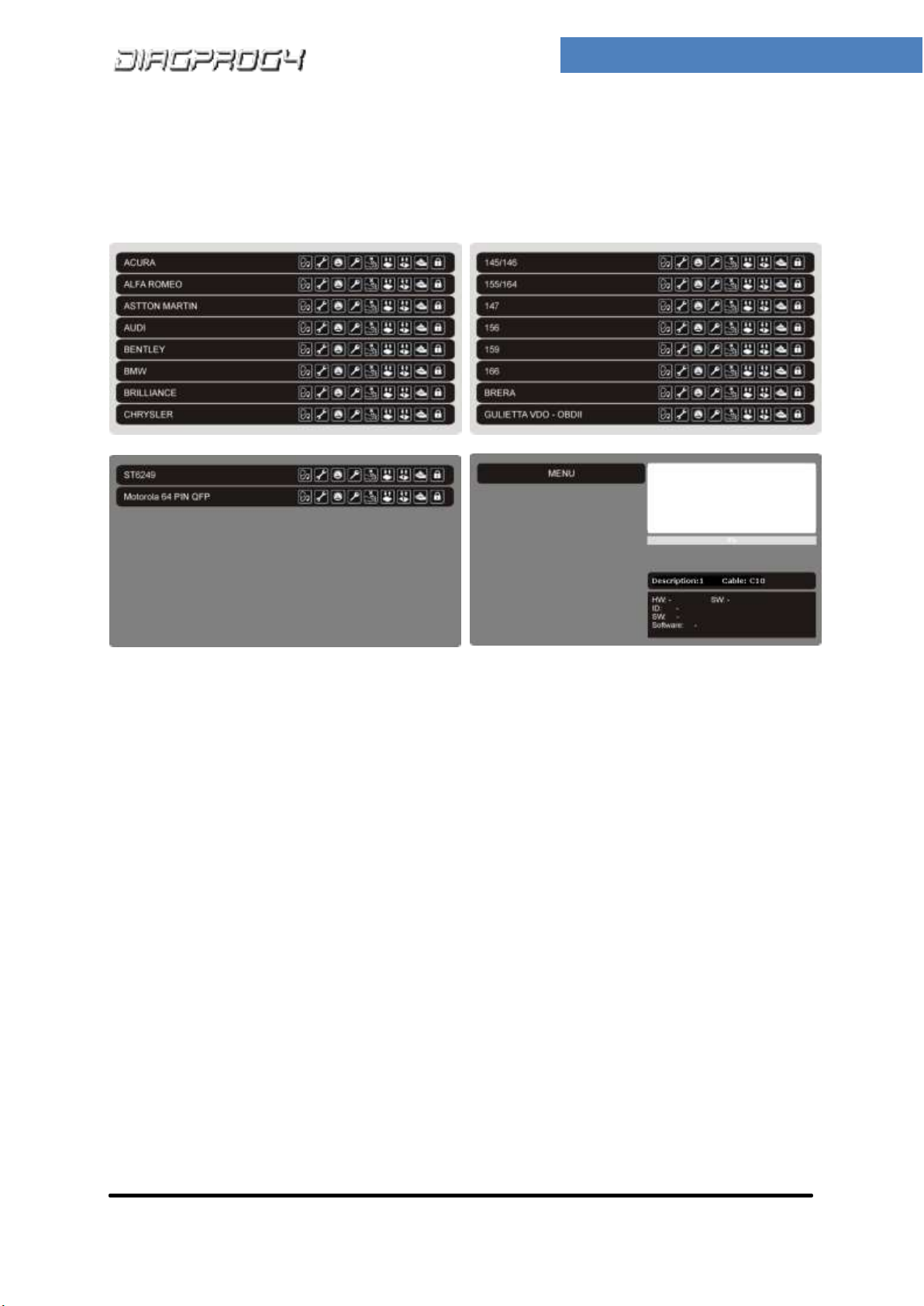

11 EXEMPLARY PROGRAMMING
Exemplary programming of Alfa Romeo \ 146/146 \ ST5249
MENU FOR BRAND SELECTION
MENU FOR MODEL SELECTION
MENU FOR MODULE SELECTION
MENU FOR THE TYPE OF PROGRAMMING SELECTION
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
12
12 BASIC SETTINGS
WIFI settings
Select SETUP , next select WIFI settings from the menu and connect to WIFI network.
Select available WIFI network and enter
password.
If WIFI network connection is correct then
information about network will be displayed
next time WIFI SETTINGS are selected until the
device
is disconnected from the network.
Information about WIFI enabled by default is stored on SD card. Without SD card device will not
remember WiFi network.
LANGUAGE settings
Select SETUP , next select LANGUAGE from the menu and accept with OK button.
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
13
SENDING LOG FILE
If any error occurs during module programming DiagProg4 sends LOG file to ElproSys server for
Technical Support.
SENDING LOG FILE MANUALLY
Select TOOLS , next select SENDING LOG FILE from the menu.
Sending LOG file is only possible when device is within WIFI network range.
If LOG file is sent successfully message will be displayed on the screen.
LOG file can be sent using dedicated software - DiagProg4 Manager.
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
14
13 DIAGPROG4 MANUAL UPDATE
Connect DiagProg4 to PC via mini USB cable (Linux, Unix, MAC OS, Android or Windows), it will
appear as an additional external drive.
Save update.dpu file, received directly from ElproSys or its representative in the main folder of
microSDHC card and restart the device which will be automatically updated.
14 MAINTENANCE
MAINTENANCE enables remote maintenance of the device in order to ensure optimal technical
parameters.
Once MAINTANANCE option is selected device will automatically run microSDHC card test and will
synchronize files with Elprosys server. Before you start make sure to:
- insert microSDHC card
- connect DP4 to WIFI network (Internet)
DiagProg4 can be updated using dedicated software - DiagProg4 Manager.
File synchronisation can be completed using dedicated software - DiagProg4
Manager.
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
15

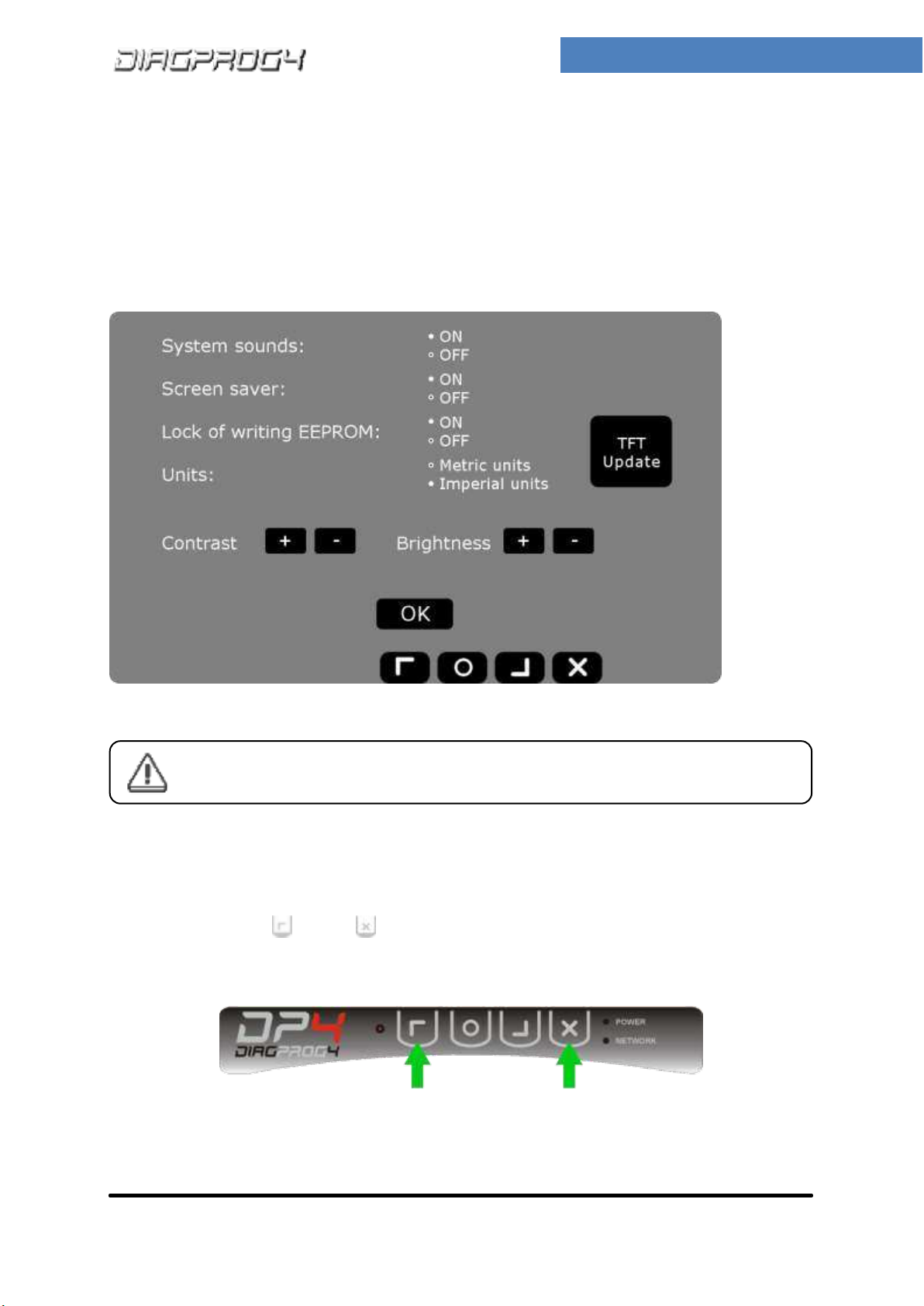

15 DISPLAY FIRMWARE UPDATE
Display firmware update is downloaded automatically.
User has to select from DP4 menu:
SETUP →OTHER SETTINGS →TFT Update
Estimated installation time : around 1 minute
16 RESTART DIAGPROG4
If the device screen does not respond to touch, it is possible to restart it to restore its efficiency.
Press and hold buttons - up and - cancel for at least 3 seconds to restart DiagProg4 device.
IMPORTANT: Do not turn off power supply before finishing update.
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
16

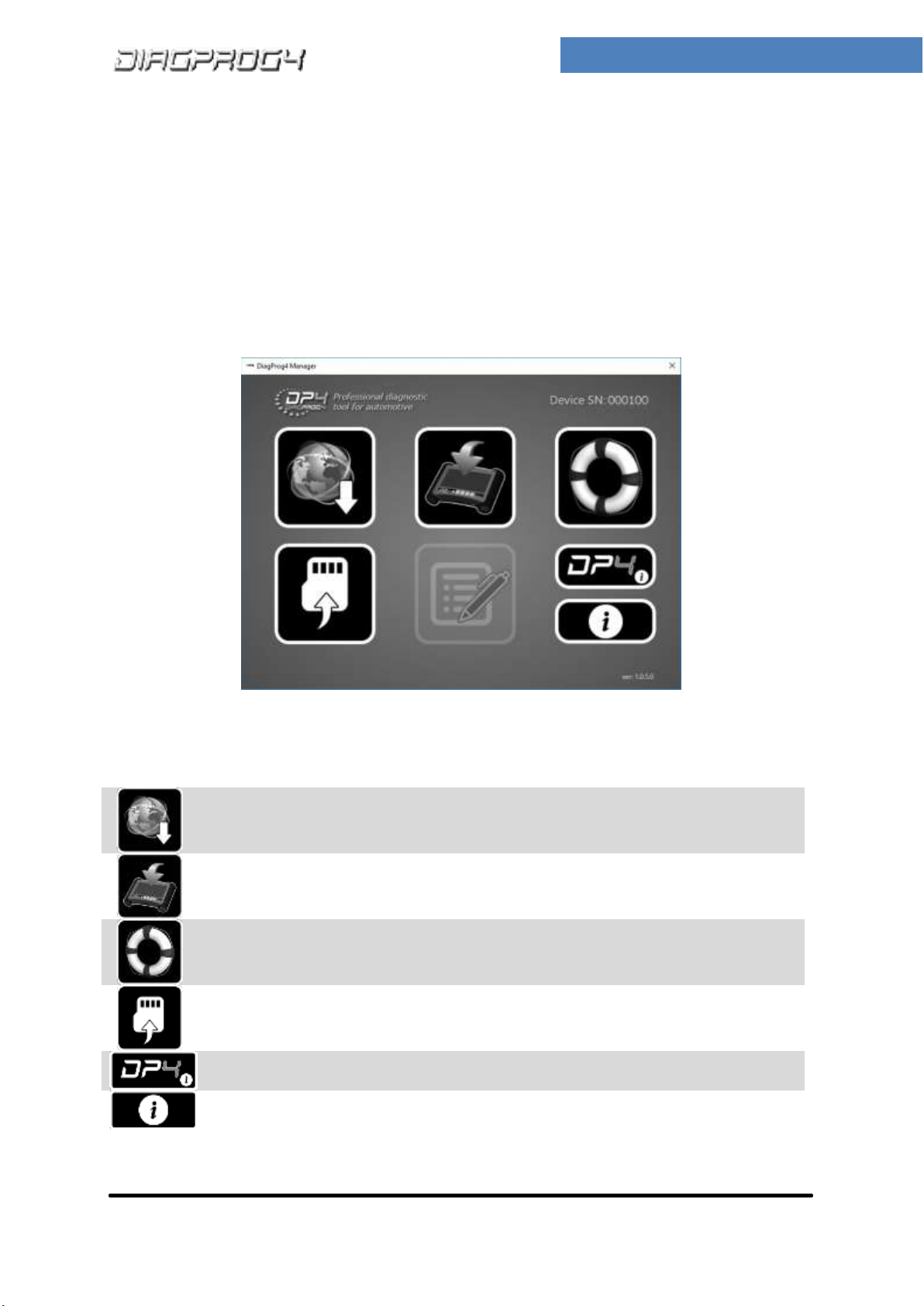

17 DIAGPROG4 MANAGER
DIAGPROG4 MANAGER –PC tool
DIAGPROG4 MANAGER connects DiagProg4 with PC, allowing data synchronisation between devices.
Software used to manage device using PC.
DiagProg4 connection with PC:
It is required to use mini USB cable supplied by manufacturer in order to connect DiagProg4 with PC.
DiagProg4 should be connected to an additional power source.
Software update
Use this option to download latest update and
activations from Elprosys server.
File synchronization
Use this option to download necessary data files
(BSI, Flash, etc.) from Elprosys server
Technical support
Use this option to send data - like LOG file,
activation status etc. required to seek technical
support
MicroSD card manager
Use this option to view memory card data
Info about DiagProg4
Use this option to view device details
Info about DiagProg4 Manager
Use this option to view information about
DiagProg4 Manager
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
17
18 DESCRIPTIVE MENU
Some DiagProg4 functions will show additional hints. When a position is selected from the menu
device will display additional descriptive menu. In order to display hint select a position from the
menu, press it and hold it.
System requirements:
Operating system: Windows Vista, Windows 7, Windows 8, Windows 10.
RAM: 1 GB (Recommended)
Free disk space: At least 2 GB (Recommended)
Software requirements: .Net Framework 4.5 or above
DIAGNOSTIC TESTER
©Elprosys
April 2019 − Rev. 3.1
I N S T R U C T I O N M A N U A L
18
RECORD OF CHANGES
Date
Author
Changes
03.03.2016
Czupryna Sylwester
Adding LEGAL RESERVATIONS and AGREEMENT OF USE
03.03.2016
Czupryna Sylwester
Software number (SN) is displayed on the main screen.
03.03.2016
Czupryna Sylwester
New „DIAG” icon replacing „VIN”icon on the main screen
03.03.2016
Czupryna Sylwester
Change in SETUP MENU –adding new positions:
- MAINTENANCE
- OBDII/VOLTAGE TEST SETTINGS
03.03.2016
Czupryna Sylwester
Change in SUBMENU INFORMATION –adding new positions:
- CONTROL NUMBER
- AGREEMENT OF USE
- DP3 LICENSES IMPORT
- OPEN-SOURCE LICENSE
03.03.2016
Czupryna Sylwester
Change in TOOLS MENU –adding new positions:
- SENDING LOG FILE
- RESTART DIAGPROG4
03.03.2016
Czupryna Sylwester
Adding description for option: SENDING LOG FILE manually
03.03.2016
Czupryna Sylwester
Adding description for option: MAINTANANCE
03.03.2016
Czupryna Sylwester
Adding description for option: RESTART DIAGPROG4
03.03.2016
Czupryna Sylwester
Adding description for option: DESCRIPTIVE MENU
03.04.2017
Czupryna Sylwester
Change in TOOLS MENU –adding new positions:
- DOWNLOAD UPDATE/ ACTIVATION
- SUPPORT SCRIPT
- UDS COMMUNICATION CONTROL
03.04.2017
Czupryna Sylwester
Hardware version is displayed on the main screen.
03.04.2017
Czupryna Sylwester
Adding additional language: Brazilian
03.04.2017
Czupryna Sylwester
Adding DISPLAY FIRMWARE UPDATE
03.04.2017
Czupryna Sylwester
Adding DIAGPROG4 MANAGER –PC tool
07.02.2019
Czupryna Sylwester
Display firmware update
20.03.2019
Czupryna Sylwester
Change in programming menu
Other manuals for DiagProg4
3
Table of contents
Other ElproSys Test Equipment manuals
