Ace Acetrap15N User manual

Balance line
Balance line
Dedicated
strainer
Outlet
Inlet
Type A
Type B
USER GUIDE
Be sure to read the user guide before installation
and use.
The product warranty is included in the user guide.
www.acetrap.com
1. Thank you very much for purchasing this product.
2. Please read this manual thoroughly before using the product and keep it in
an easy-to-find place.
3. In order to fully demonstrate the performance of this product, please observe
the operation method and precautions for use.
-This manual is intended to protect users' safety and prevent property damage.-
Be sure to read it and use it correctly
youtube search : acetrap
https://youtu.be/VSvrPt3-zWM
Installation_receiver tank, etc.
Inlet connection_ Among the two inlets on the side,
according to the level of the inlet, connect using a ball valve
and union as shown in the figure. The connecting inlet
should have a horizontal or downward sloping flow and
should not be angled upwards, such as on a camel, to
connect to the trap. This is because condensate does not
naturally flow into the trap.
Balance line_ Use a pneumatic hose or metal tube
(6-8 mm) to connect a balance line with the same pressure
as the inlet pressure. The balance line is usually taken from
a level above the level where the condensate collects
(mainly from the gauge if it is a tank).
AIR
for compressed air system
ATM C2000-08
ACETRAP®
ACE Co.,Ltd
Receive Tank
Filter
Field end
Dryer
If the balance line is not
installed, condensate does
not flow into the trap due to
the air pocket1phenomenon.
It doesn't work.
Caution
Caution
Caution
Caution If there is strong vibration (reciprocating
compressor) in the inlet line, use a flexible
hose, etc. to block the vibration.
(Air pocket1Tip :
https://acetrap.com/eng/acetrap/installation.html
Type C
Always install traps
horizontally.
Do not install
upside down.
(Air vent2installation Tip :
https://acetrap.com/eng/acetrap/installation.html
To facilitate the inflow of condensate in places where it is
difficult to connect the balance line, install Air Vent2.
In this case, use the lower of the two on the side of the
housing for the inlet, and install the air vent on the side of
the balance line on the top of the housing. Air vents are
optional and must be ordered separately.
This installation method is used when
the inlet line goes from top to bottom
without bending. In this case, the
balance line is unnecessary, and you
can connect it directly to the top of
the housing entrance as shown in the
figure.
Installation where the inlet descends
from above_ Filters, field lines, etc.
Installation in places where it is difficult to
install a balance line_ Dryer, etc.
Inlet
Air vent
Dedicated
strainer
The air vent should
always be slightly
opened, and it should be
checked frequently.
(If it is not opened, condensate will not enter the trap and
it will not work).

•Acetrap15N
•Acetrap15NS
Model
IN₁
Acetrap15N
Acetrap15H
Acetrap15NS
Acetrap15L
W
L
L₁
L₁
H
H₁
H₃
H₂
W
L
H
H₁
H₃
H₂
IN OUT Pilot Air Weight
(kg)
LL1HH1H2H3
106 19 78 14
W
82
95
177 60 M5 1.1
1.2
1/2” 3/8”
pilot air
pilot air
OUT
OUT
IN₂
IN₃
IN₁
IN₂
IN₃

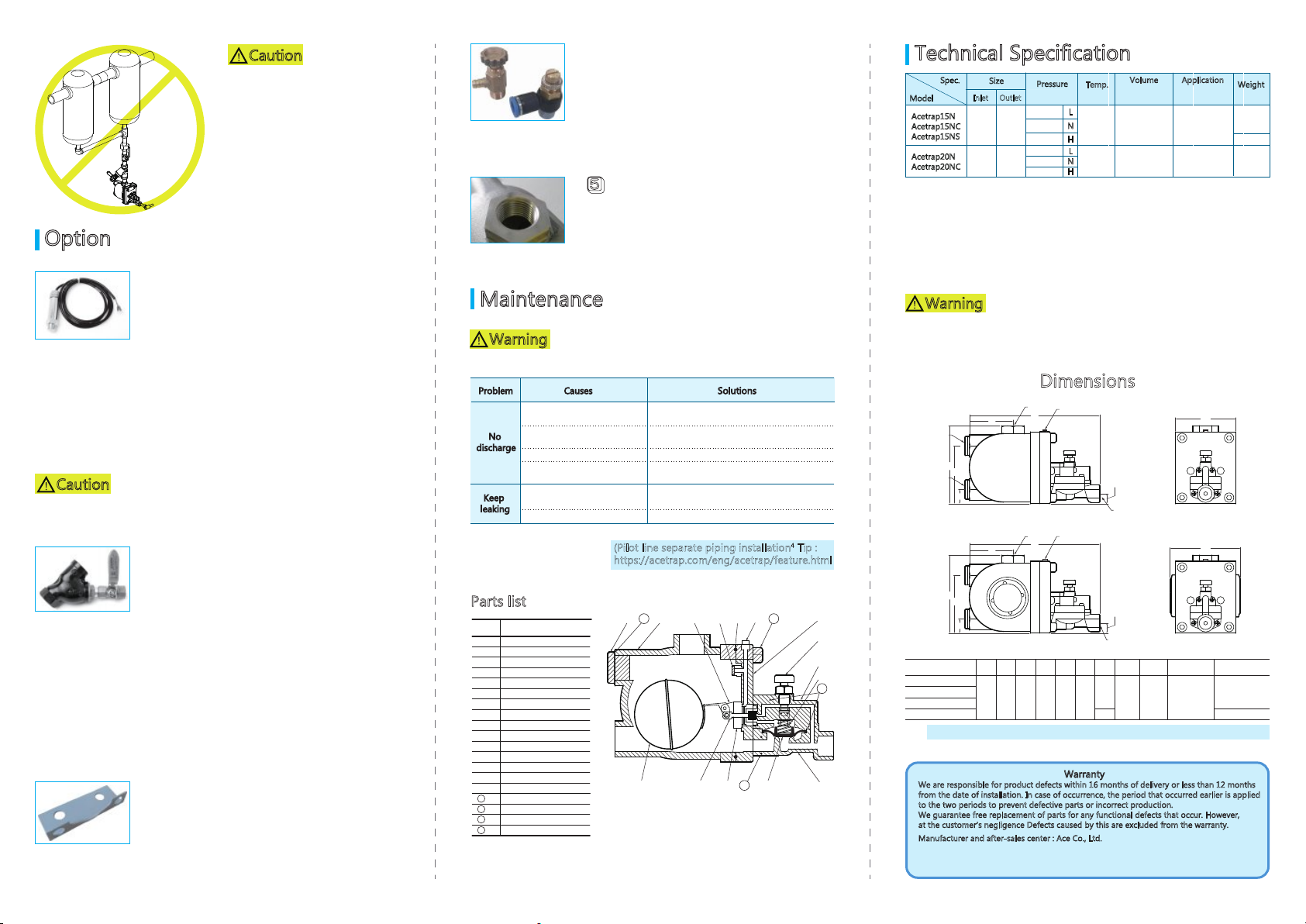

Caution
Caution
Since the heater is hot during operation,
there is a risk of burns if touched with bare
Option
󱀣 If it is installed in an outdoor service
tank or in the shade of a building,
the condensate may freeze in winter,
causing damage to the ball float inside
and, in severe cases, damage to the
housing. At this time, use a dedicated
heater to prevent the condensate from freezing. Also, if
freezing is expected on the inlet pipe coming into the trap,
it should be kept warm by wrapping it with an insulating
material or a heating wire. Use the lower of the two side
inlets of the housing for the heater.
Power specifications are 220 Volts or 110 Volts.
󱀤 If foreign matter larger than the
nozzle diameter3of the ace trap occurs,
connect a dedicated strainer to the front
of the trap. To clean the strainer, close
the inlet and balance air and fully open
the ball valve connected to the strainer.
In this state, slightly open the balance air to clean it
thoroughly. It can be cleaned easily without disassembly
and assembly, and since the discharged air has pressure,
connect it to the exhaust pipe of the trap, taking care not
to splash foreign objects on people and the floor of the site.
(Note: Ball valve nozzle diameter3;
Acetrap 15 is 5Ø, Acetrap 20 is 7Ø)
①Heater
②Dedicated strainer
󱀥 Using an installation bracket can
provide a more stable installation.
To install the bracket, unscrew the two
wrench bolts under the housing plate
and connect the bracket first, and then
fix it by anchor bolts into the floor.
③Mounting bracket
Do not use two tanks with
different pressures for one
trap. Because the two tanks
have a differential pressure,
condensate moves from the
high pressure tank to the
low pressure tank, and the
trap does not function
properly.
Maintenance
(Pilot line separate piping installation4Tip :
https://acetrap.com/eng/acetrap/feature.html
Parts list
󱀦The air vent is a function that simply
blows the air out of the container to the
atmosphere. At this time, the pressure in
the inner vessel is lowered, and it serves
to attract condensate into the vessel.
There are several shapes, and types are
1/4” and 1/2”.
④Air vent
⑤NPT thread
Warning
Warning
The product is always under pressure.
Be sure to work after removing the pressure.
Problem Causes Solutions
No
discharge
Keep
leaking
No condensate inflow.
Damage to parts due to
freezing.
Air chamber damage.
Blockage of inlet or outlet
lines. Inlet piping cleaning and replacement.
Replace the air chamber set.
Pilot line foreign object
interference.
Consumables are worn out. Replacement of related consumables.
Pilot line separate piping4.
Replace all damaged parts.
Check that the balance line is properly
installed.
Copyright © ACE
Plastic outlet sets are standard, aluminum metal is optional.
Replacement parts available for supply:
(M) maintenance parts, (R) Repair parts
①
①
②
③
④⑥ ⑦
⑧
⑨
⑩
⑪
⑬
⑤
④
⑥
⑦
⑨
⑤
⑮
⑭
⑭
②
③
⑧
Housing
Pilot Air Bolt
Diaphragm Spring
Housing Plug
Needle Valve
Air Chamber Braket
Mesh Filter
Test key
Diaphragm
Ball-Float
Air Chamber
Lower Discharge¹
Upper Discharge¹
DESCRIPTIONNo.
Housing Plate
Housing O-ring
Dicharge Body O-ring
Housing Bolt
Upper Discharge O-ring
Housing Plug Gasket
⑫
⑩
⑪
⑬
⑮
⑫
16
16
17
17
18
18
19
19
M
M
MR
MR
R
R
R
R
R
R
MR
50 1.1
1.2
2.3130
Volume
(ℓ/hr)
Normal/Peak
Application
(㎥/hr)
(Compressor)
Weight
(kg)
1~4
4~10
10~16
1~4
4~10
10~16
0~60
0~60
3 / 15
6 / 30
1/2” 3/8”
3/4” 1/2”
Inlet Outlet
Temp.
(℃)
Acetrap20N
Acetrap20NC
Technical Specification
Dimensions
The above specifications are subject to change without notice. 2021.06
Acetrap15N
Acetrap15NC
Acetrap15NS
Size Pressure
(bar)
L
N
H
L
N
H
Model
Spec.
Warranty
We are responsible for product defects within 16 months of delivery or less than 12 months
from the date of installation. In case of occurrence, the period that occurred earlier is applied
to the two periods to prevent defective parts or incorrect production.
We guarantee free replacement of parts for any functional defects that occur. However,
at the customer's negligence Defects caused by this are excluded from the warranty.
Manufacturer and after-sales center : Ace Co., Ltd.
16-17, Chilsan-ro 387beon-gil, Gimhae-City, Korea
Tel : [phone]
* For oil-free applications, add a "C" to the end of the model name, such as
Acetrap15NC.
* Do not use with toxic, flammable and hazardous fluids.
* Option : Internal viewing glasses (Add “S” to the end of the model name,
such as Acetrap15NS)
Trap housing pressure design conditions (not operating conditions) ;
Maximum allowable pressure (bar) : 20
Maximum allowable temperature (°C) : 120
Do not use this product beyond the
specifications. Use of this product is prohibited
hands. Be sure to touch it after wearing gloves, etc.
󱀧 Standard thread is PF, NPT thread
and other specifications of screws are
available upon request.
in accordance with local regulations. May be limited under
quoted conditions.
