Acer
Veriton X680G/X688G/X680
Service Guide
PRINTED IN TAIWAN

ii
Revision History
Please refer to the table below for the updates made on this service guide.
Date Chapter Updates

iii
Copyright
Copyright © 2010 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

iv
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium Dual-Core, Celeron Dual-Core, Core 2 Duo, Core 2 Quad, Celeron, and combinations thereof, are
trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

v
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES Denotes actual messages that appear on screen.
NOTE Gives additional information related to the current topic.
WARNING Alerts you to any physical risk or system damage that might result from doing
or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of
procedures.

vi
Service Guide Coverage
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic
service guide. In such cases, please contact your regional offices or the responsible personnel/channel to
provide you with further technical details.
FRU Information
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available
on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in
the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the
list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

vii
System Tour 1
Features 1
Block Diagram 5
System Components 6
Front Panel 6
Rear Panel 7
Hardware Specifications and Configurations 8
Power Management Function(ACPI support function) 11
System Utilities 12
CMOS Setup Utility 12
Entering CMOS setup 13
Navigating Through the Setup Utility 13
Setup Utility Menus 14
System Disassembly 27
Disassembly Requirements 27
Pre-disassembly Procedure 28
Removing the Side Panel 29
Removing the Front Bezel 30
Removing the Heat Sink Fan Assembly 31
Removing the Processor 32
Removing the Optical Drive 33
Removing the Hard Disk Drive 34
Removing the Power Supply 37
Removing the VGA Card 39
Removing the Memory Modules 40
Removing the Front I/O and Card Reader Boards 41
Removing the Intrusion Alarm Cable 43
Removing the Power Switch,OBR and LED Cable Assembly 44
Removing the Mainboard 46
System Troubleshooting 48
Hardware Diagnostic Procedure 48
System Check Procedures 49
Power System Check 49
System External Inspection 49
System Internal Inspection 49
Beep Codes 50
Checkpoints 51
BIOS Recovery 54
Jumper and Connector Information 55
M/B Placement 55
Jumper Setting 57
Setting Jumper 57
FRU (Field Replaceable Unit) List 65
Veriton X680G/X688G/X680 Exploded Diagram 66
Veriton X680G/X688G/X680 FRU List 67
Table of Contents

Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
NOTE: The features listed in this section is for your reference only. The exact configuration of the system
depends on the model purchased.
Operating System
•Microsoft Windows7 Home Basic
•Microsoft Windows7 Professional
•Microsoft Windows7 64 bit support
•Microsoft XPP SP3
•Linpux Linux X-windows mode
•FreeDos
Processor
•Socket Type:Intel Socket T LGA 1156 pin
•Socket Quantity: 1
•Processor Type:
•Intel Lynnfield/Clarkdale DMI/FDI 1333 MHz CPUs(co-layout).
Chipset
•PCH:Intel Q57
•Design Criteria:
•Should meet Intel Q57 platform design guide.
PCB
•Max. 244mm x 244mm
Memory subsystem
•Socket Type: DDR III connector.
•Socket Quantity: 4
•Dual channel support.
•Support Intel Flex Memory Mode.
•Capacity support:
•1GB/2GB/4GB DDR3 1333/1066 Un-buffered Non-ECC/ DIMM support.
•1 GB to 16GB Max memory support.
•Design Criteria:
•Should meet Intel Lynnfield and Clarkdale Family design guide.
•Dual channel should be enabled always when plug-in 2 same memory size DDRIII memory
module.
System Tour
Chapter 1

2Chapter 1
Hard disk
•Support up to two SATA ports
•3.5", 25.4mm
•Capacity and models are listed on AVLC
Optical disk
•Support one SATA 5.25" standard ODD
•Support DVD-ROM, DVD-SuperMulti, BD-combo, BD-rewrite
•Maximum ODD depth to 185mm with bezel
•Models are listed on AVLC
Serial ATA controller
•Slot Type:SATA connector (3Gb/s).
•Quantity:5
•Storage Type support:
•3.5" SATA/SATAII HDD.
•Combo/DVDsupermulti/Blue-rayDVD/HDD/CD-ROM/CD-RW/DVD-ROM/DVD-RW/DVD+RW/
DVD Dual.
•RAID/AHCI/IDE mode option.
•Default AHCI mode.
e-SATA
•Support one port e-SATA interface.
Audio
•Chip:HD audio codec ALC662-VC HD codec 5.1
•Connectors support:
•Audio jacks color coding: should meet Microsoft Windows Logo Program Device Requirements:
Audio-0002.
•1 S/PDIF-out header (1*4) for (ALC662-VC) SKU, closed to PCIEx16 slot.
•1 front panel audio header (2*5).
•1 internal speaker header (2*4).
•S/N ration: 90dB at rear output jack.
•One earphone and one microphone jack is required on front bezel.
•3 HD audio plugs on rear panel.
•Auto detection and re-tasking behavior is following Acer Audio Jack spec.
LAN
•MAC Controller:Q57.
•PHY: Intel Hanksville-D 82578 PCI-E Giga LAN.
USB ports
•Controller: Intel Q57
•Ports Quantity:14
•6 back rear ports
•On-board: 4 2*5 headers ( 8ports)

Chapter 1 3
•4 ports for front daughter board
•4 ports reserved
•Connector Pin: standard Intel FPIO pin definition.
•Data transfer rate support:USB 2.0/1.1
•All USB ports must be boot-capable includes USB-ODD, USB-HDD, USB-FDD, and etc…
•All USB ports must provide the over current protection.
Extension slot
•PCI Express Slot Type : x16
•Quantity : 1
•PCI Express Slot Type : x1
•Quantity : 1
Rear I/O connectors
•1 D-Sub port.
•1 DVI-D port.
•At least 6 USB ports.
•1 e-SATA.
•1 RJ45 LAN port.
•3 mini audio jacks.
•At least three HD audio in/output.
•2 PS2 keyboard/mouse connector.
•1 serial port.
On-board connectors
•One LGA 1156 CPU socket.
•Four DDR3 DIMM memory sockets.
•One PCI Express x16 slot.
•One PCI Express x 1 slot.
•Five SATAII connectors.
•Four 2*5 pin Intel FPIO specification USB pin connectors (follow Intel FPIO standard Specification).
•One 2*5 pin Intel FPIO spec. Microphone In/ Headphone Out pin connectors.
•One 4 pin CPU Fan connector.
•One 3 pin System Fan connector (reserve).
•One 3 pin chipset Fan connector.
•One 4 pin SPDIF header closed to PCIEx16 slot.
•One 24 pin ATX interface PS3/PS2 SPS connector, 4 pin CPU power connector.
•One 2*7 pin front panel IO header.
•One Jumper for clear CMOS.
•One on board buzzer.
•One reserved 2pin GPIO connector (OBR).
•One Serial port header (COM2).
•One 2pin Intrusion Alarm connector.
•One LPT 2*13pin header (near rear IO is preferable).
•One 2*4 pin internal speaker header.

4Chapter 1
•Color management for on board connecter (please refer to Acer spec).
•Header Naming should follow MB Header Naming (Refer to Appendix).
•Braidwood connector (reserved).
•One 3pin ME enable/disable connector (with 1 jumper).
System BIOS
•Use SPI Flash
•Size: 64Mb(Piketon vPro).
•Kernel:AMI Kernel with Acer skin/copyright.
Power supply
•accepts 1-U style power supply.
•Compliant with Energy Star 5.0(Veriton X680 will not support Energy Star 5.0).
•Should be compliant with Eup lot6.

Chapter 1 5

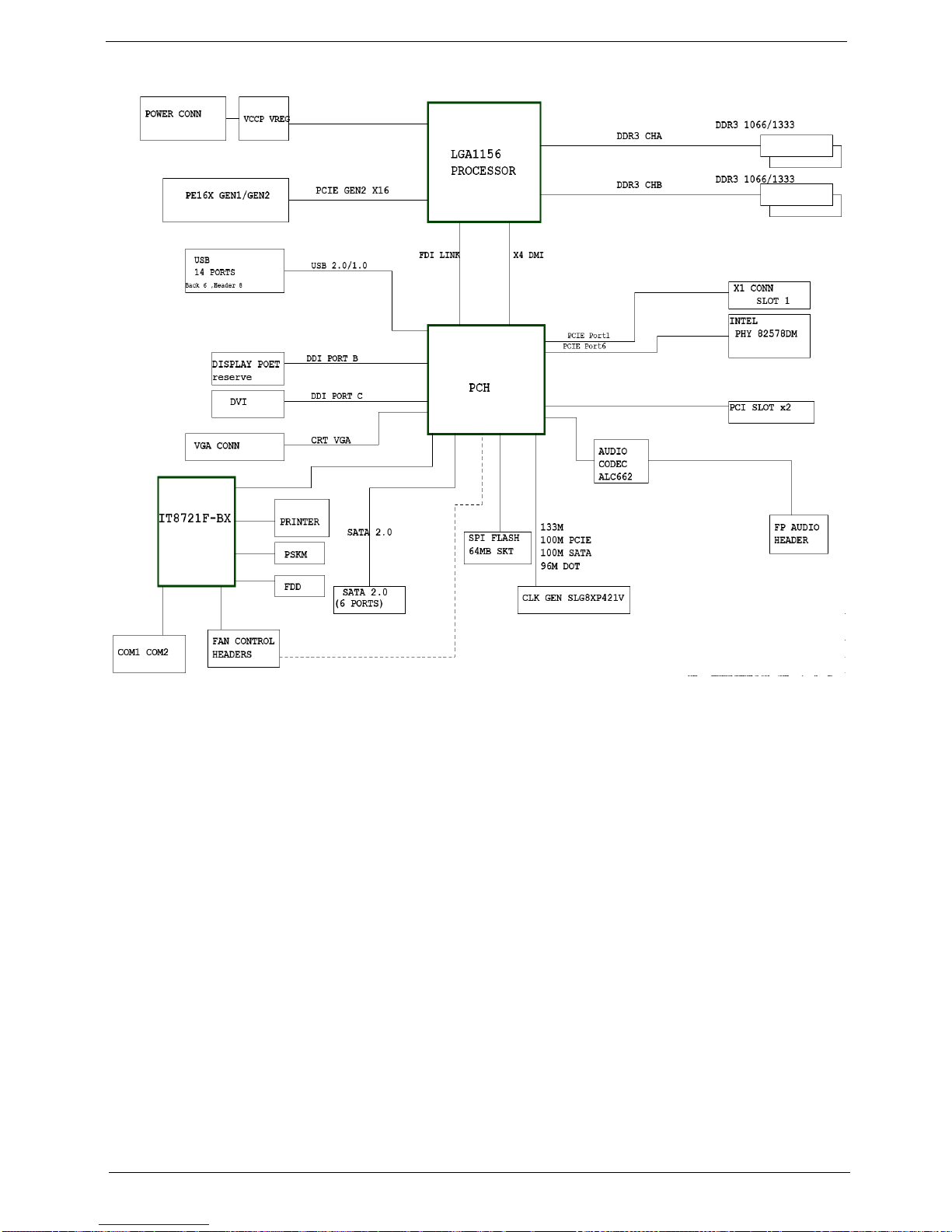

Block Diagram

6Chapter 1
System Components
This section is a virtual tour of the system’s interior and exterior components.

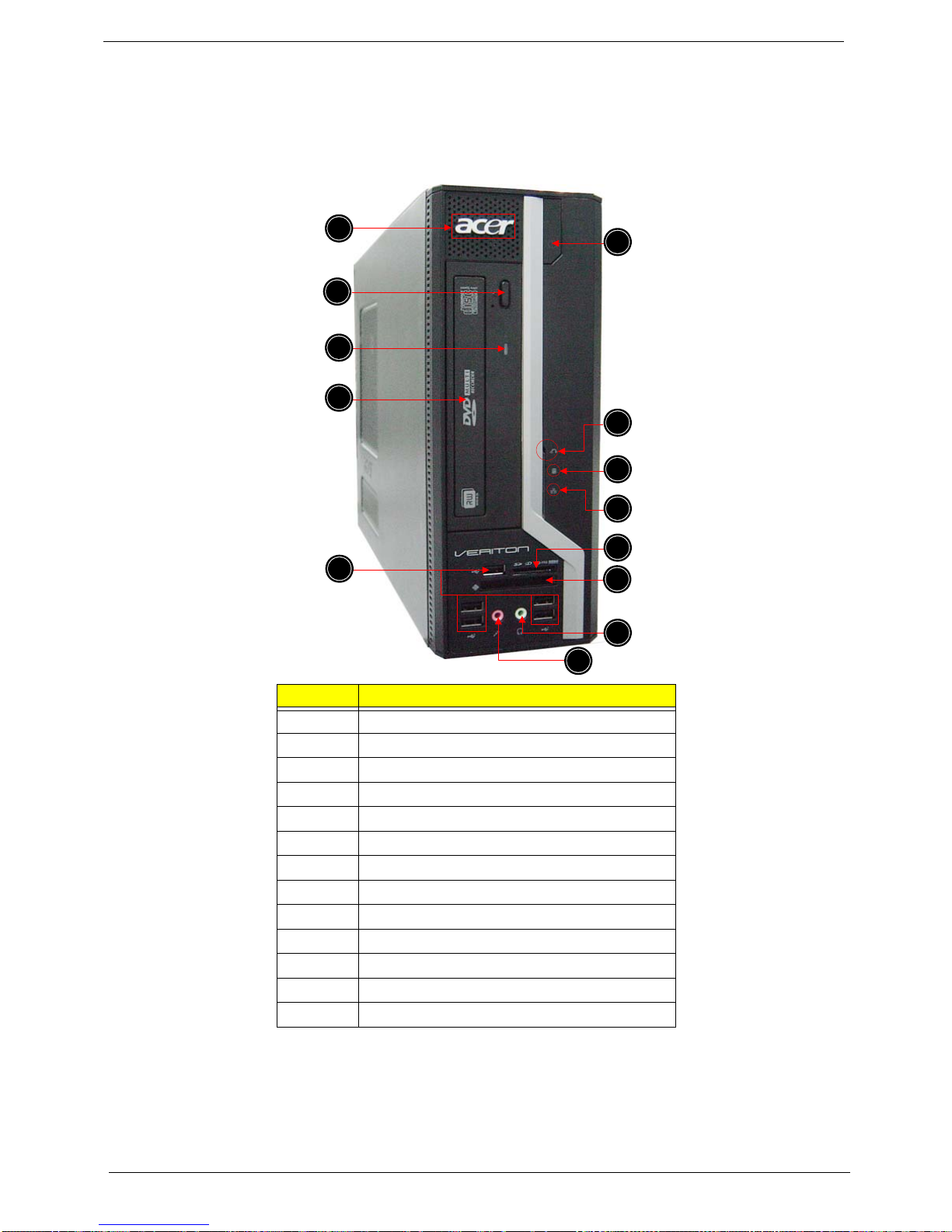

Front Panel
No. Component
1Acerlogo
2 Optical drive button
3 ODD activity indicator
4 Optical drive
5 USB 2.0 ports
6 Microphone-in jack
7 Headphone/Speaker-out/line-out jack
8 CF I/II (CompactFlash Type I/II) slot
9 XD(XD-Picture)/SD(Secure Digital)/PRO slot
10 LAN activity indicator
11 HDD activity indicator
12 Recover jack and indicator
13 Power button
1
2
3
4
5
6
7
8
9
10
11
12
13

Chapter 1 7
Rear Panel
No. Component
1 Fan aperture
2 PS2 keyboard connector
3 DVI port
4COMport
5e-SATAport
6 USB 2.0 ports
7 Microphone/speaker-out/line-in jack
8 Expansion slot(graphics card and modem card)
9 Line-out jack
10 Line-in jack
11 RJ45 LAN port
12 D-sub port
13 PS2 mouse connector
14 Power connector
9
12
13
11
10
1
8
6
5
4
3
2
14
7

8Chapter 1
Hardware Specifications and Configurations
Processor
BIOS
BIOS Hotkey List
Main Board Major Chips
Item Specification
Type Intel Lynnfield/Clarkdale DMI/FDI 1333 MHz CPUs
Socket Intel Socket T LGA 1156 pin
FSB 1333 MHz
Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to Enabled.)
Item Specification
BIOS code programmer AMI Kernel skin
BIOS version P01-A0
BIOS ROM type SPI ROM
BIOS ROM size 64Mb(Piketon vPro)
Support protocol SMBIOS2.6.1
Device Boot Support 1st priority: SATA HDD
2nd priority: CD-ROM
3rd priority: Removable Device
4rd priority: LAN
5th priority: USB device
Support to LS-120 drive NO
Support to BIOS boot block feature YES
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to enter BIOS Setup Utility.
Item Specification
North Bridge Intel Q57
South Bridge Intel Q57
VGA controller Intel Q57
Audio controller Intel Q57+ALC662-VC
LAN controller Intel Q57+Intel Hanksville-D 82578
USB controller Intel Q57
SATA Intel Q57

Chapter 1 9
Memory Combinations
System Memory
Audio Interface
Slot Memory Total Memory
Slot 1 1GB, 2GB,4GB 1GB ~4GB
Slot 2 1GB, 2GB,4GB 1GB ~4GB
Slot 3 1GB, 2GB,4GB 1GB ~4GB
Slot 4 1GB, 2GB,4GB 1GB ~4GB
Maximum System Memory Supported 1GB ~16GB
Item Specification
Memory slot number 4 slot
Support Memory size per socket 1GB/2GB/4GB
Support memory type DDR3 1333/1066 Un-buffered Non-ECC/ DIMM
Support memory interface DDR3 connector
Support memory voltage 1.5V
Support to parity check feature Yes
Support to error correction code (ECC) feature No
Memory module combinations You can install memory modules in any combination as long
as they match the above specifications.
Item Specification
Audio controller Intel Q57+ALC662-VC
Audio controller type ALC662-VC
Audio channel codec 5.1(Rear 3 jack)
Audio function control Enable/Disable by BIOS setup
Mono or stereo Stereo
Compatibility The ALC662-VC series support host audio controller from the Intel ICH series
chipset, and also from any other HDA compatible audio controller. With EAX/
Direct Sound 3D/I3DL2/A3D compatibility, and excellent software utilities like
environment sound emulation, multiple bands of software equalizer and
dynamic range control, optional Dolby® Digital Live, DTS® CONNECT™, and
Dolby® Home Theater programs, provides an excellent home entertainment
package and game experience for PC users.
Music synthesizer Yes,internal FM synthesizer
Sampling rate 192KHz (max)
MPU-401 UART support Supported
Microphone/Headphone jack Supported

10 Chapter 1
SATA Interface
USB Port
Environmental Requirements
Power Management
•Devices wake up from S3 should be less than.
•Devices wake up from S5 should be less than 10 second
Item Specification
SATA controller Intel Q57
SATA controller resident bus PCI bus
Number of SATA channel SATA X 6
Support bootable CD-ROM YES
Item Specification
Universal HCI USB 2.0/1.1
USB Class Support legacy keyboard for legacy mode
USB Connectors Quantity 6 back rear ports
On-board: 4 2*5 headers ( 8ports)
4 ports for front daughter board
4 ports reserved
Item Specification
Temperature
Operating +5°C ~ +35°C
Non-operating -20 ~ +60°C (Storage package)
Humidity
Operating 15% to 80% RH
Non-operating 10% to 90% RH
Vibration
Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in all 3 axes.
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3 axes.
Devices S1 S3 S4 S5
PowerButtonVVVV
USB Keyboard/Mouse V V N/A N/A
PME Disabled Disabled Disabled Disabled
RCT Disabled Disabled Disabled Disabled
WOR Disabled Disabled Disabled Disabled

Chapter 1 11
Power Management Function(ACPI support function)
Device Standby Mode
•Independent power management timer for hard disk drive devices(0-15 minutes,time step=1minute).
•Hard Disk drive goes into Standby mode(for ATA standard interface).
•Disable V-sync to control the VESA DPMS monitor.
•Resume method:device activated (keyboard for DOS, keyboard &mouse for Windows.
•Resume recovery time 3-5sec
Global Standby Mode
•Global power management timer(2-120minutes,time step=10minute).
•Hard disk drive goes into Standby mode(for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode.
•Resume recovery time :7-10sec
Suspend Mode
•Independent power management timer(2-120minutes,time step=10minute)or pushing extern switch
button.
•CPU goes into SMM
•CPU asserts STPCLK# and goes into the Stop Grant State.
•LED on panel turns amber colour.
•Hard disk drive goes into SLEEP mode (for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Ultra I/O and VGA chip go into power saving mode.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode
•Return to original state by pushing external switch button,modem ring in and USB keyboard for ACPI
mode.
ACPI
•ACPI specification 1.0b
•S0,S1,S2 and S5 sleep state support.
•On board device power management support.
•On board device configuration support.

Chapter 2 12
CMOS Setup Utility
CMOS setup is a hardware configuration program built into the system ROM, called the complementary metal-
oxide semiconductor (CMOS) Setup Utility. Since most systems are already properly configured and
optimized, there is no need to run this utility. You will need to run this utility under the following conditions.
•When changing the system configuration settings
•When redefining the communication ports to prevent any conflicts
•When modifying the power management configuration
•When changing the password or making other changes to the security setup
•When a configuration error is detected by the system and you are prompted ("Run Setup"
message) to make changes to the CMOS setup
NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. In this case, the system
cannot retain configuration values in CMOS. Ask a qualified technician for assistance.
CMOS setup loads the configuration values in a battery-backed nonvolatile memory called CMOS RAM. This
memory area is not part of the system RAM which allows configuration data to be retained when power is
turned off.
Before you run the CMOS Setup Utility, make sure that you have saved all open files. The system reboots
immediately after you close the Setup.
NOTE: CMOS Setup Utility will be simply referred to as “BIOS”, "Setup", or "Setup utility" in this guide.
The screenshots used in this guide display default system values. These values may not be the same
those found in your system.
System Utilities
Chapter 2

13 Chapter 2
Entering CMOS setup
1. Turn on the server and the monitor.
If the server is already turned on, close all open applications, then restart the server.
2. During POST, press Delete.
If you fail to press Delete before POST is completed, you will need to restart the server.
The Setup Main menu will be displayed showing the Setup’s menu bar. Use the left and right arrow keys
to move between selections on the menu bar.
Navigating Through the Setup Utility
Use the following keys to move around the Setup utility.
•Left and Right arrow keys – Move between selections on the menu bar.
•Up and Down arrow keys – Move the cursor to the field you want.
•PgUp and PgDn keys – Move the cursor to the previous and next page of a multiple page menu.
•Home – Move the cursor to the first page of a multiple page menu.
•End – Move the cursor to the last page of a multiple page menu.
•+and -keys – Select a value for the currently selected field (only if it is user-configurable). Press
these keys repeatedly to display each possible entry, or the Enter key to choose from a pop-up
menu.
NOTE: Grayed-out fields are not user-configurable.
•Enter key – Display a submenu screen.
NOTE: Availability of submenu screen is indicated by a (>).
•Esc – If you press this key:
•On one of the primary menu screens, the Exit menu displays.
•On a submenu screen, the previous screen displays.
•When you are making selections from a pop-up menu, closes the pop-up without making a
selection.
•F1 – Display the General Help panel.
•F6 – Press to load optimized default system values.
•F7 – Press to load fail-safe default system values.
•F10 – Save changes made the Setup and close the utility.
