First things first
Your guides
A set of guides is provided to help you set up and use your Aspire
computer.:
For more information on our products, services, and support, please
visit our web site www.global.acer.com.
Basic care and tips for using your computer
Turning your computer on and off
To turn on your computer, open the lid and press the power button
above the keyboard.
To turn the power off, you can do any of the following:
•Click on the Start button in Windows, and then select Shut Down
on the popup menu.
•Push the power button.
To use this method, you must first click on the Power Management
icon in Windows Control Panel, and then check that the power
button is set to shut down the computer when pressed. See
Windows Help for more information.
The Just for starters… poster shows you how to set up your
computer.
This User's Guide provides clear and concise information on
using your computer productively. You are advised to read
it thoroughly and keep it handy for future reference.
Bt2811`F/cppl!!Qbhf! jj!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

viii
English
Note: if you are unable to shut down the computer in the usual
way, press and hold the power switch for more than four seconds.
You should then wait at least two seconds before turning the
computer on again.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0°C (32°F), or
above 50°C (122°F).
•Do not expose the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Do not place objects on top of the computer.
•Do not slam the lid shut. Close the computer gently.
•Do not place the computer on unstable or uneven surfaces.
Taking care of your AC adapter
It is important that you look after your AC adapter.
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on it. Route
the power cord away from areas where people might walk on it or
trip over it.
•Do not pull on the power cord when disconnecting from the mains
power socket. Grasp and pull the plug instead.
•The total ampere ratings of equipment plugged into a power strip
should not exceed the ampere rating for that power strip.
Bt2811`F/cppl!!Qbhf! jjj!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

ix
English
English
Taking care of your battery pack(Optional)
It is also important that you look after your computer's battery pack.
•Use the correct battery model for your computer. Do not use other
kinds of batteries.
•Turn the power off before removing or replacing the battery.
•Do not tamper with the battery. Keep the battery away from
children.
•Dispose of batteries according to local regulations. Recycle if
possible.
Cleaning and servicing
When cleaning your computer, it is important that you follow these
steps:
1Turn off the computer and remove the battery.
2Disconnect the AC adapter.
3Clean with a soft cloth moistened with a little water. Do not use
liquid or aerosol cleaners.
Refer to the chapter entitled “Frequently asked questions” on page 69
if any of the following occurs:
•You drop the computer or damage the case.
•You spill liquid on the computer.
•The computer does not operate normally.
Bt2811`F/cppl!!Qbhf!jy!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

x
English
Bt2811`F/cppl!!Qbhf!y!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with
your computer
Bt2811`F/cppl!!Qbhf!2!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with your computer2
English
Your Aspire 1700 series computer combines
solid performance, versatility, multimedia
capabilities and portability with a stylish design.
Increase your productivity by working wherever
you are.
This chapter provides an in-depth "tour" of your
computer's features.
Bt2811`F/cppl!!Qbhf!3!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

3
English
English
A tour of your computer
After setting up your new Aspire computer, as illustrated in the Just for
starters… poster, take a few minutes to explore the unit.

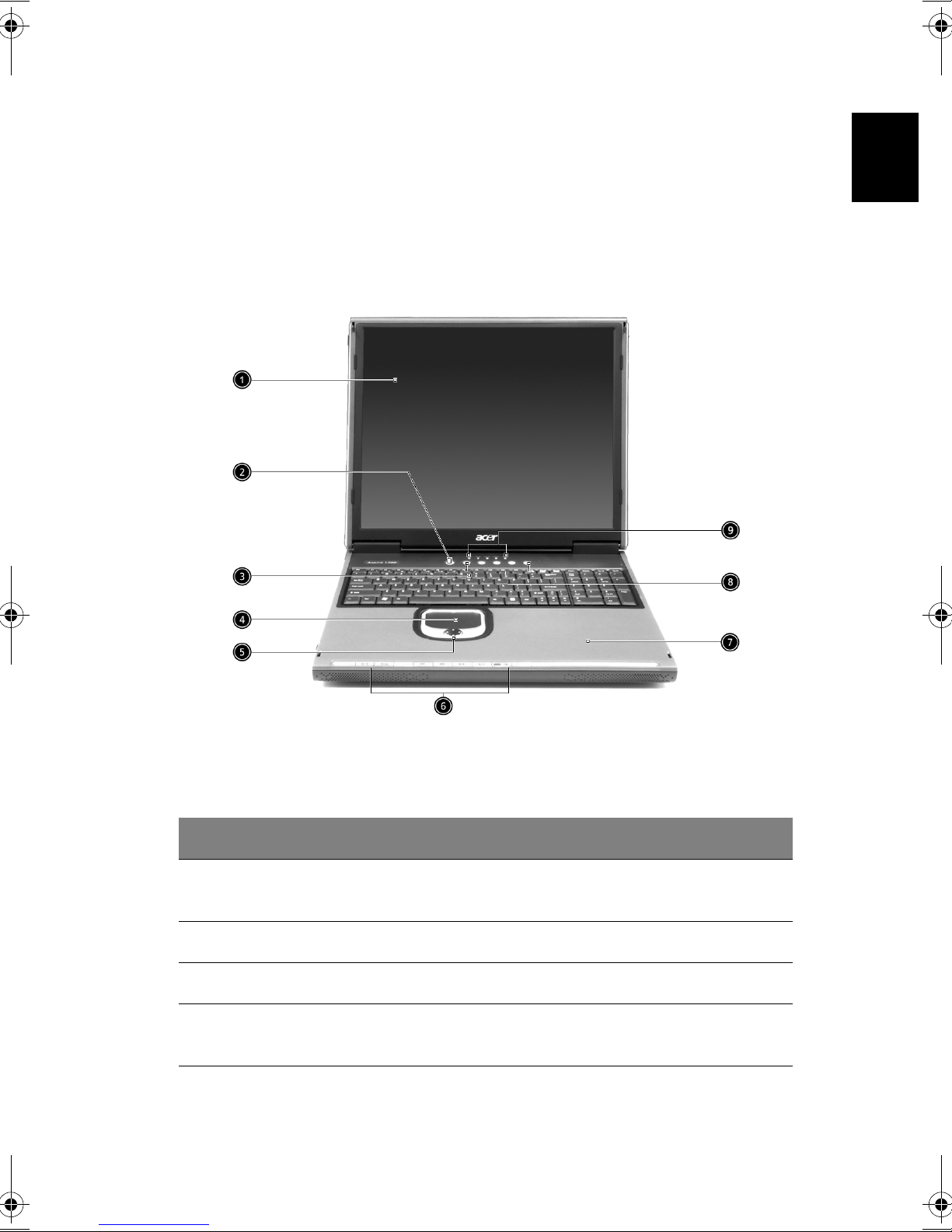

Opened front view
#Item Description
1 Display Large liquid crystal display (LCD) provides visual
output.
2 Power button Turns the computer on and off.
3 Keyboard Full-size keyboard for inputting typed data.
4 Touchpad Touch sensitive pad that functions like a computer
mouse.
Bt2811`F/cppl!!Qbhf!4!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with your computer4
English
5 Click buttons &
scroll key
Right and left buttons that provide the same functions
as the buttons on a computer mouse. The scroll key
scrolls the contents of a window up and down.
6 Audio DJ controls
and indicator
Button and indicators for the Audio DJ function. For
more information, see “Audio” on page 27..
7 Palm rest Provides a comfortable platform for your hands when
typing on the keyboard.
8 Launch keys 1 switch button for wired LAN /wireless LAN
1 e-mail launch button
1 launch button for Internet browser
2 programmable buttons
9 Status indicators Light emitting diodes (LED) that show the status of the
computer and its components.
#Item Description
Note: This wireless communiction button works for models
with 802.11b & 802.11a+b wireless LAN only.
Bt2811`F/cppl!!Qbhf!5!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

5
English
English

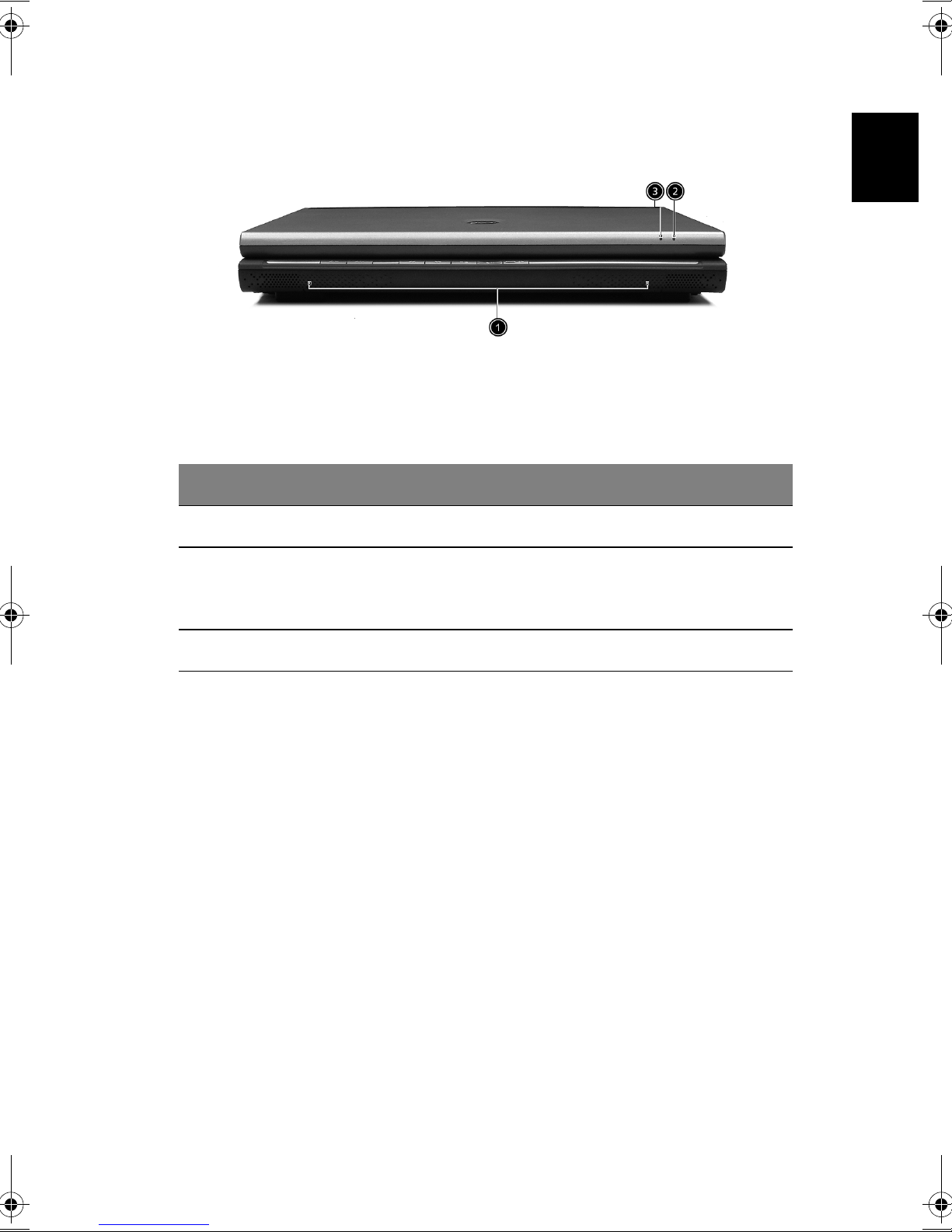

Closed Front view
#Item Description
1 Speakers Left and right speakers deliver stereo audio output
2 Wireless
communication
indicator
Lights when the Wireless LAN capability is enabled.
3 Power indicator Lights when the computer is on.
Bt2811`F/cppl!!Qbhf!6!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with your computer6
English

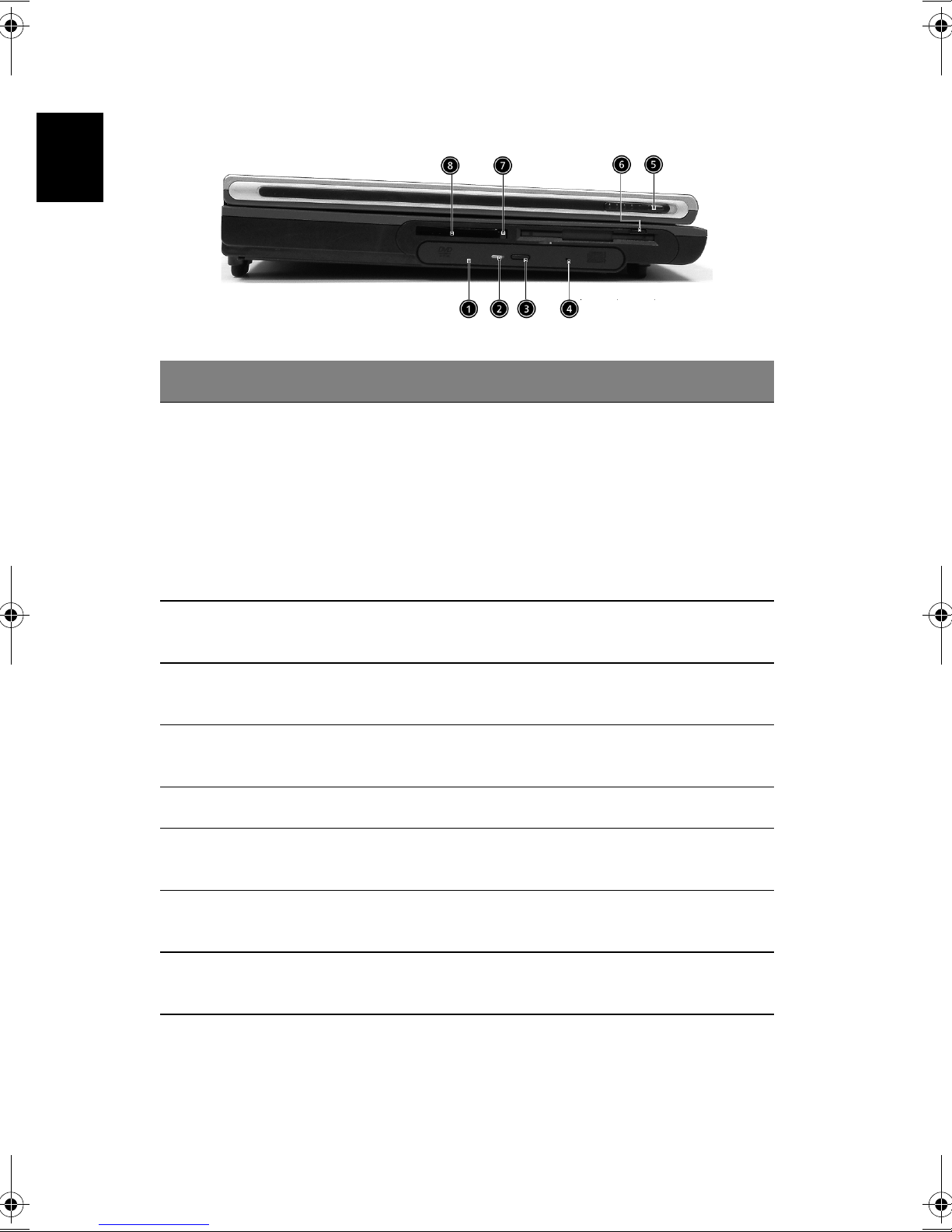

Left view
#Item Description
1 Optical drive Depending on your model, the optical drive
is one of the following:
•CD-ROM drive for reading CDs.
•DVD-ROM drive for reading CDs and
DVDs.
•DVD/CD-RW combo drive for reading
CDs and DVDs, and writing to CD-Rs
and CD-RWs..
2 Optical disc read indicator Light emitting diode (LED) that indicates
when an optical disc is being read.
3 Optical drive eject button Press the eject button to remove a disc from
the optical drive.
4 Optical drive emergency
eject hole
Used to eject an optical disc when the
computer is turned off.
5 Floppy drive Accepts 3.5 inch floppy disk.
6 Left Latch Locks and releases the lid.(One on the right
and one on the left)
7 PC card eject button Press the eject button to remove a PC card
from the PC card slot.
8 PC card slot The slot supports a standard Type II PC card
(PCMCIA).
Bt2811`F/cppl!!Qbhf!7!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

7
English
English

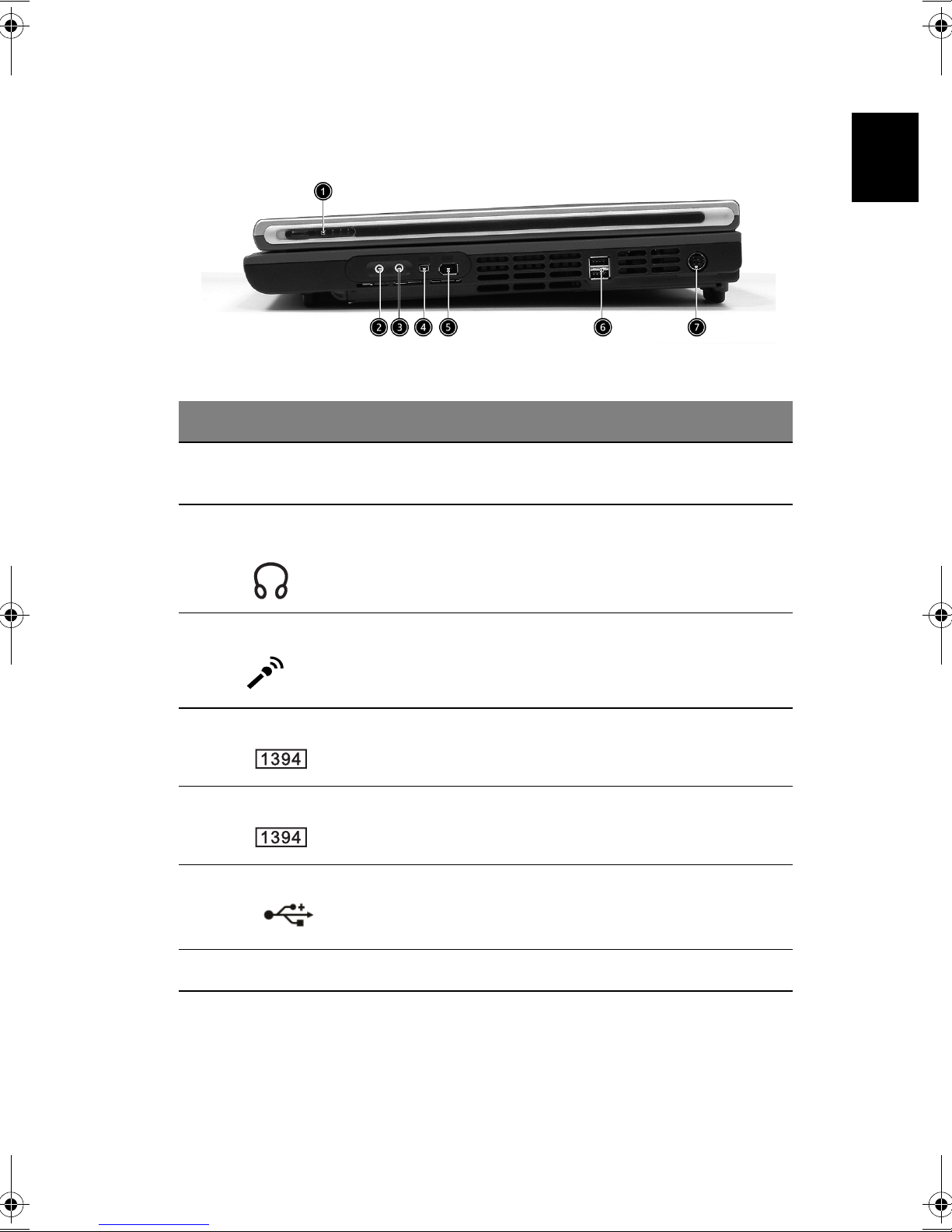

Right view
#Item Description
1 Right Latch Locks and releases the lid.(One on the right
and one on the left)
2 Speaker/Headphone-out
jack
Connects to audio line-out devices
(e.g.,speakers, headphones).
3 Line-in/Mic-in jack Accepts audio line-in devices (e.g., audio CD
player, stereo walkman). Selection is through
the OS Windows mixer.
4 IEEE 1394 port Connects to an IEEE 1394 device.
5 IEEE 1394 port Connects to an IEEE 1394 device.
6 USB ports 2 ports for connecting USB 2.0 devices.
7 DC-in jack Connects the AC adapter.
Bt2811`F/cppl!!Qbhf!8!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with your computer8
English
Rear view
#Item Description
1 USB ports 2 ports for connecting USB 2.0 devices.
2Modemjack Connects the built-in fax/data modem to a phone
line.
3S-video Connects to a television or dispaly device with S-
video input.
4 External display port Connects an external (VGA) display devices
monitor.
5 COM port Connects to other serial interface devices.
6 Network jack Connects to an Ethernet 10/100-based network.
7 Parallel port Connects a parallel device, such as a printer.
8 PS2 port Connects to a PS2 mouse
9 Kensington lock slot For attaching a security connector.
Bt2811`F/cppl!!Qbhf!9!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

9
English
English
Bottom view
#Item Description
1 Battery cover Protects the battery bay.
2 Sub-woofer Enhance the audio quality.
3 Ventilation slots Enables the computer to stay cool, even after
prolonged use.
Bt2811`F/cppl!!Qbhf!:!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN

Getting familiar with your computer10
English
Features
Performance
•Intel Pentium 4 Northwood/Celeron processor.
•L2 cache 512K (Northwood), 128K (Celeron).
•SiS M650 with SiS 962, support 400/533Mhz Front Side Bus , Intel HTT
support
•40 GB or higher-capacity Desktop 5400rpm, 7200rpm HDD.
•Microsoft Windows XP operating system.
•Optional 6-in-1 Multimedia memory card module
Multimedia
•CD-ROM.
•DVD-ROM.
•DVD/CD-RW combo.
•Audio input and output jacks.
•Optional 6-in-1 Multimedia memory card module
•Hardware 3D graphic engine
•Two stereo speakers + One sub-woofer
•15” Desktop XGA color LCD, 1024x768, 16M colors / 17" Desktop
SXGA LCD, 1280x1024, 16M colors
Connectivity
•Modem: Software Modem V9.0/V9.2 56Kbps (MDC).
•10/100 Mbps Lan .
•Optional Mini-PCI 802.11b / 802.11a+b / bluetooth(+modem)
•One switch to enable or disable wireless function
•Keyboard and Pointing Device
•4 universal serial bus (USB) ports.
Human-centric design and ergonomics
•All-in-one design (incorporating hard drive, optical drive and floppy disk
drive).
•Rugged and space saving.
•Full-size Desktop keyboard.
•No need to turn on the system for playing CD or MP3
Bt2811`F/cppl!!Qbhf!21!!Uvftebz-!Nbsdi!22-!3114!!22;5:!BN
