First things first
We would like to thank you for making the TravelMate series of
notebook computers your choice for your mobile computing needs.
Your guides
To help you use your TravelMate, we have designed a set of guides:
First off, the Just for starters... poster helps you get started with
setting up your computer.
The printed User's Guide introduces you to the basic features
and functions of your new computer. For more on how your
computer can help you to be more productive, please refer to
the AcerSystem User's Guide. This guide contains detailed
information on such subjects as system utilities, data recovery,
expansion options, and troubleshooting. In addition it contains
warranty information and the general regulations and safety
notices for your notebook. It is available in Portable Document
Format (PDF) and comes preloaded on your notebook. Follow
these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User's Guide.
Note: Viewing the file requires Adobe Acrobat Reader. If Adobe
Acrobat Reader is not installed on your computer, clicking on
AcerSystem User's Guide will run the Acrobat Reader setup
program first. Follow the instructions on the screen to complete
the installation. For instructions on how to use Adobe Acrobat
Reader, access the Help and Support menu.

iv
English
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button
below the LCD screen beside the launch keys. See "Front view" on
page 1 for the location of the power button.
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer; then click on Turn Off.
•Use the power button
Note: You can also use the power button to perform power
management functions. See "Moving around" on page 27 of the
AcerSystem User's Guide.
•Use the customized functions for power management
You can also shut down the computer by closing the display cover,
or by pressing the sleep hot key <Fn>+<F4>. See "Moving around"
on page 27 of the AcerSystem User's Guide.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0ºC (32ºF) or
above 50ºC (122ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.

v
English
•Do not expose the computer to dust and dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adaptor
Here are some ways to take care of your AC adaptor:
•Do not connect the adaptor to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from
foot traffic.
•When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
•The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into a
single wall outlet should not exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations.
Recycle if at all possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Power off the computer and remove the battery pack.
2 Disconnect the AC adaptor.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.

vi
English
If any of the following occurs:
•The computer has been dropped or the body has been damaged.
•The computer does not operate normally.
Please refer to "Frequently-asked questions" on page 47 of the
AcerSystem User's Guide.
Caution
Changes or modifications not expressly approved by the manufacturer
could void the user's authority, which is granted by the Federal
Communications Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Users are requested to follow the RF safety instructions on wireless
option devices that are included in the user's manual of each RF
option device.
An improper installation or unauthorized use may cause harmful
interference to radio communications. Also any tampering of the
internal antenna will void the FCC certification and your warranty.
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject
to licensing.
For more information about our products, services, and support
information, please visit our website: http://global.acer.com.

First things first iii
Your guides iii
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer iv
Taking care of your AC adaptor v
Taking care of your battery pack v
Cleaning and servicing v
A TravelMate tour 1
Front view 1
Closed front view 3
Left view 4
Right view 5
Rear view 6
Bottom view 7
Specifications 8
Indicators 12
Using the keyboard 13
Lock keys 13
Embedded numeric keypad 14
Windows keys 15
Hot keys 16
The Euro symbol 18
Launch keys 19
Touchpad 20
Touchpad basics 20
Ejecting the optical (CD or DVD) drive tray 22
Using a computer security lock 22
Audio 23
Adjusting the volume 23
Using system utilities 24
Acer eManager 24
Acer GridVista (dual-display compatible) 25
Launch Manager 26
Moving around with your notebook PC 27
Disconnecting from the desktop 27
Moving around 27
Preparing the computer 27
What to take to short meetings 28
What to bring to long meetings 28
Taking the computer home 29
Preparing the computer 29
What to take with you 29
Special considerations 29
Contents

Setting up a home office 30
Traveling with the computer 30
Preparing the computer 30
What to take with you 30
Special considerations 30
Traveling internationally with the computer 31
Preparing the computer 31
What to bring with you 31
Special considerations 31
Securing your computer 32
Using a computer security lock 32
Using passwords 32
Entering passwords 33
Setting passwords 33
Expanding through options 35
Connectivity options 35
Fax/Data modem 35
Built-in network feature 36
Fast Infrared 36
Universal Serial Bus 37
IEEE 1394 port 37
PC Card slot 38
Installing memory 39
BIOS utility 39
Boot sequence 40
Disc to disc recovery enable 40
Password 40
Using software 40
Playing DVD movies 40
Power management 41
Acer eRecovery 42
Create backup 42
Restore from backup 43
Create factory default image CD 43
Re-install bundled software without CD 44
Change password 44
Acer disc-to-disc recovery 45
Multilingual operating system installation 45
Restore without a Recovery CD 46
Troubleshooting 47
Frequently-asked questions 47
Troubleshooting tips 50
Error messages 51
Requesting service 52

International Travelers Warranty (ITW) 52
Before you call 52
Regulations and safety notices 53
Energy Star Guidelines Compliance 53
FCC notice 53
Modem notices 55
Important safety instructions 58

1
English
A TravelMate tour
After setting up your computer as illustrated on the Just for Starters...
poster, let us show you around your new TravelMate computer.
Front view
#Item Description
1 Display screen Also called Liquid-Crystal Display (LCD),
displaying computer output.
2 Launch keys Buttons for launching frequently used
programs. See "Launch keys" on page 19 for
more details.
3 Status indicators Light-Emitting Diodes (LEDs) that turn on and
off to show the status of the computer’s
functions and components.
4 Palmrest Comfortable support area for your hands when
you use the computer.

2
English
5 Click buttons (left,
center and right)
The left and right buttons function like the left
and right mouse buttons; the center button
serves as a 4-way scroll button.
6 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
7 Microphone Internal microphone for sound recording.
8 Keyboard Inputs data into your computer.
9 Power button Turns the computer on and off.
#Item Description

3
English
Closed front view
#Item Description
1 Speakers Left and right speakers deliver stereo
audio output.
2Bluetooth®
communication
button/indicator
Press to enable/disable Bluetooth®
function. Lights to indicate the status of
Bluetooth®communications
(manufacturing option).
3 Wireless
communication
button/indicator
Press to enable/disable Wireless
function. Lights to indicate the status of
wireless LAN communications
(manufacturing option).
4 Power indicator Lights when the computer is on.
5 Battery indicator Lights when the battery is
being charged.
6 Headphones/
speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
7Microphone
line-in jack
Accepts audio line-in devices (e.g.,
audio CD player, stereo walkman).
8 Infrared port Interfaces with infrared devices
(e.g., infrared printer and
IR-aware computer).

4
English

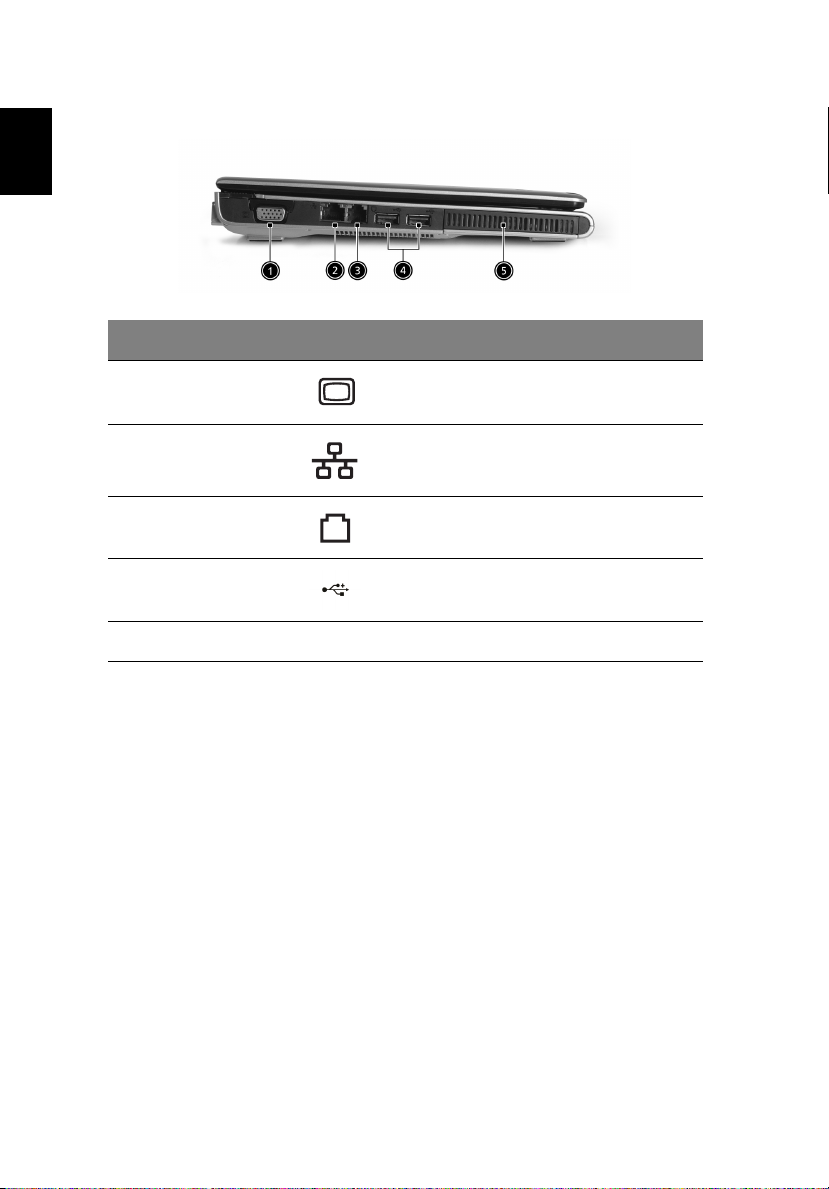

Left view
#Item Description
1 External display
port
Connects to a display device (e.g.,
external monitor, LCD projector).
2 Network jack Connects to an Ethernet 10/100/1000-
based network.
3RJ-11modem
jack
Connects to a phone line.
4 Two USB 2.0
ports
Connects to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
5 Ventilation slots Enable the computer to stay cool.

5
English
Right view
#Item Description
1 PC Card slot Connects to one Type II CardBus PC Card.
2 4-in-1 card reader Accepts MS, MS PRO, MMC and SD card.
Note: Only one card can operate at any
given time.
3 PC Card slot
eject button
Ejects the PC Card from the slot.
4 One USB 2.0 port Connect to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
5 IEEE 1394 port Connects to IEEE 1394 devices.
6 Ventilation slots Enable the computer to stay cool.
7 Security keylock Connects to a Kensington-compatible
computer security lock.

6
English

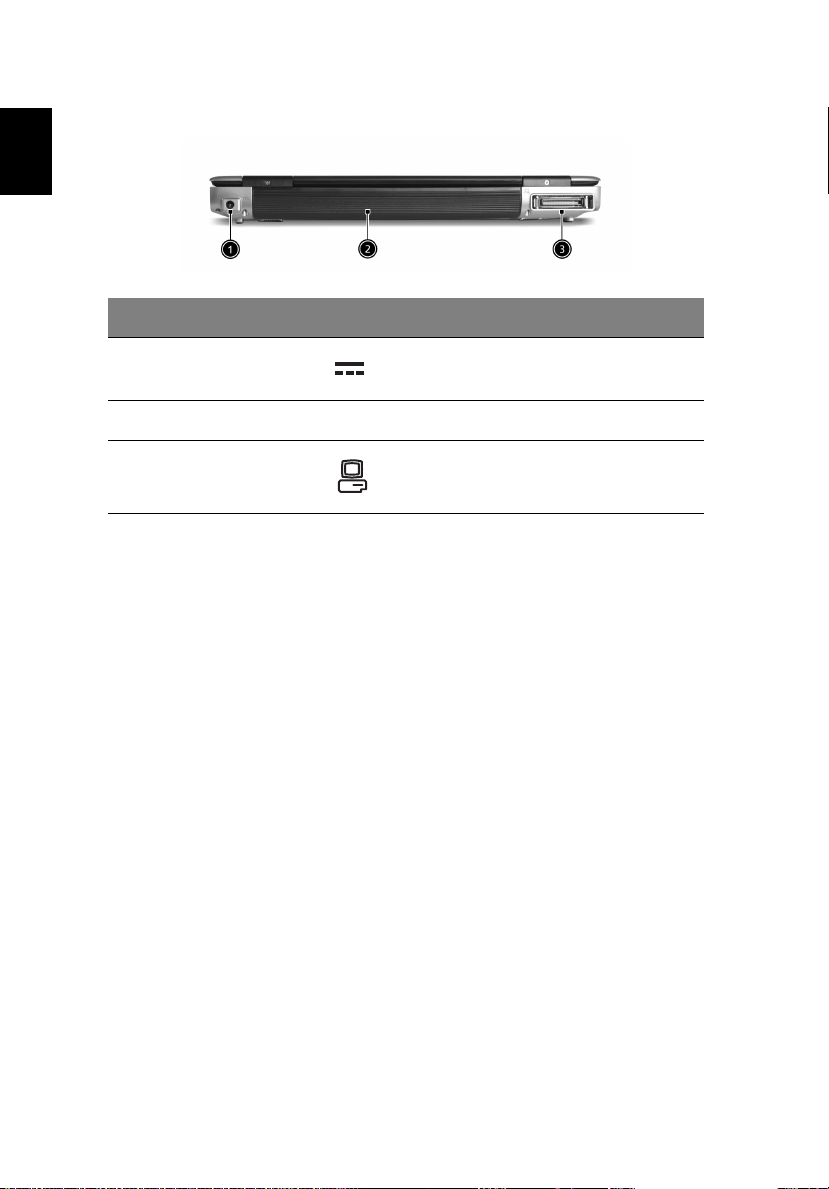

Rear view
#Item Description
1 Power jack Connects to an AC adaptor.
2 Battery bay Houses the computer's battery pack.
3 124-pin Acer
ezDock connector
Connects to Acer ezDock.

7
English
Bottom view
#Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery lock Locks the battery in place.
3 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the
opening of the fan.
4 Ventilation slots Enable the computer to stay cool.
5 Memory compartment Houses the computer's main memory.
6 Battery release latch Unlatches the battery to remove the
battery pack.

8
English
Specifications
Operating system
•Microsoft®Windows®XP Home/Professional Service Pack 2 Edition
Microprocessor
•Intel®Pentium®M processor 730/740/750/760/770 with
Intel®Centrino™mobile technology at 1.6/1.73/1.86/2.0/2.13 GHz
Memory
•256/512 MB of DDR2 533 SDRAM standard, upgradeable to 2 GB
with dual soDIMM modules
Data storage
•One 40/60/80 GB ATA/100 hard disc drive
•One external IEEE 1394 optical drive (DVD-Dual or
DVD/CD-RW combo)
•4-in-1 card reader supports Memory Stick, Memory Stick PRO,
Multimedia Card (MMC), and Secure Digital (SD) cards.
Display and video
•12.1" WXGA color TFT LCD (1280 x 800) or 12.1" WXGA Acer
CrystalBrite color TFT LCD (1280 x 768) pixel resolution,
16.7 million colors
•Intel®915GM integrated 3D graphics with 128 MB of video
memory, supporting Intel®Graphics Media Accelerator 900 and
Microsoft®DirectX®9.0
•Simultaneous LCD and CRT display support
•DualView™support
•MPEG-2/DVD hardware-assisted capability

9
English
Connectivity
•LAN: 10/100/1000 Mbps gigabit Ethernet connection
•Modem: 56K ITU V.92 modem with PTT approval
•Wireless LAN (manufacturing option):
• Integrated Intel®PRO/Wireless 2200BG network connection
(dual-band 802.11b/g) Wi-Fi CERTIFIED™solution; supporting Acer
SignalUp wireless technology
• Integrated Intel®PRO/Wireless 2915ABG network connection
(dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED™solution;
supporting Acer SignalUp wireless technology
•Wireless PAN (manufacturing option): integrated Bluetooth®
Audio
•Audio system with built-in speakers and microphone
•Intel®high-definition audio support
•Sound Blaster®Pro and MS-Sound compatible
•S/PDIF (Sony/Philips Digital Interface) support for digital speakers
Keyboard and pointing device
•84/85-key Windows keyboard with 12 function and embedded
numeric keypad
•Built-in touchpad with buttons and 4-way integrated scroll key
•12 function keys; 4 cursor keys; 2 Windows keys; hotkey controls
•Four easy-launch buttons: Email, Internet browser,
Acer Empowering Key, and one user-programmable button
•Two front-access buttons: WLAN LED-button and Bluetooth®
LED-button

10
English
I/O ports
•Three USB 2.0 ports
•One Type II PC Card slot
•One IEEE 1394 port
•One RJ-11 modem port
•One RJ-45 Ethernet port
•One DC-in jack for AC adaptor
•One 124-pin Acer ezDock connector (for selected models)
•One monitor (VGA) port
•One headphones/speaker/line-out jack with S/PDIF support
•One microphone/line-in jack
•One Infrared (FIR) port
•4-in-1 MS/MS PRO/MMC/SD card reader
Weight
• 1.40 kg (3.08 lbs) with 3-cell Li-ion battery pack
• 1.55 kg (3.41 lbs) with 6-cell Li-ion battery pack
Dimensions
•210 (W) x 297.5 (D) x 25/32.5 (H) mm
Environment
• Temperature:
• Operating: 5°C - 35°C, Non-operating: -10°C - 65°C
• Humidity (non-condensing):
• Operating: 20% - 80% RH, Non-operating: 20% - 80% RH
System compliance
•ACPI 1.0b
•Mobile PC 2001
•DMI 2.0
•Wi-Fi®
•CCX-V3
