Acer TravelMate 650 Series User manual

TravelMate 650 series
User’s guide
UN761.f/cppl!!Qbhf!j!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

Changes may be made periodically to the information in this publication without obligation
to notify any person of such revision or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date, and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your computer. All correspondence concerning your unit should include the serial
number, model number, and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopy, recording, or otherwise,
without the prior written permission of Acer Incorporated.
Model number : _________________________________
Serial number: ___________________________________
Purchase date: ___________________________________
Place of purchase: ________________________________
Copyright © 2003 Acer Incorporated.
All Rights Reserved.
TravelMate 650 series User’s guide
Original Issue: January 2003
TravelMate 650 series Notebook computer
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other company's
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.
UN761.f/cppl!!Qbhf!jj!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

iii
First things first
We would like to thank you for making the TravelMate series of
notebook computers your choice for your mobile computing needs.
We hope you will be happy with your TravelMate as much as we
enjoyed making it for you.
Your guides
To help you use your TravelMate, we have designed a set of guides:
For more information about our products, services, and support
information, please visit our Web site (global.acer.com).
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press the power button, the button
left of the launch keys found above your TravelMate’s standard
First off, the Just for Starters... poster helps you get
started with setting up your computer.
This User’s guide introduces you to the many ways your
computer can help you be more productive. This guide
provides clear and concise information about the computer,
so read it thoroughly.
If you ever need to print out a copy, this User’s guide is also
available in PDF (Portable Document Format). Follow these
steps:
1 Click on Start, Programs, TravelMate.
2 Click on TravelMate User’s guide.
Note: Viewing the file requires Adobe Acrobat Reader
installed. For instructions on how to use Adobe Acrobat
Reader, access the Help menu.
UN761.f/cppl!!Qbhf!jjj!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

iv
keyboard. See page 3 for the location of the power switch.
To turn the power off, do any of the following:
•Use the Windows shutdown command
For Windows 2000: Click on Start, Shut Down..., and select Shut
down; then click on OK.
- or -
For Windows XP: Click on Start, Turn off Computer; then click
Turn Off.
•Use the power switch
Note: You can also use the power switch to perform power
management functions. See Windows help for more information.
•Use the customized functions for power management
You can also shut down the computer by closing the display cover,
or by pressing the sleep hot key (Fn-F4). See the online guide for
details.
Note: If you cannot power off the computer normally, press and
hold the power switch for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0ºC (32ºF) or
above 50ºC (122ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock and vibration.
•Do not expose the computer to dust and dirt.
UN761.f/cppl!!Qbhf!jw!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

v
•Never place objects on top of the computer to avoid damaging the
computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal
traffic.
•When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
•The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into
a single wall outlet should not exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if
at all possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1Power off the computer and remove the battery pack.
2Disconnect the AC adapter.
3Use a soft cloth moistened with water. Do not use liquid or aerosol
cleaners.
4To clean the display screen, use an LCD cleaning kit.
If any of the following occurs:
UN761.f/cppl!!Qbhf!w!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

vi
•The computer has been dropped or the body has been damaged.
•Liquid has been spilled into the product.
•The computer does not operate normally.
Please refer to "Troubleshooting my computer" on page 57.
UN761.f/cppl!!Qbhf!wj!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

Contents
First things first iii
Your guides iii
Basic care and tips for using your computer iii
1 Getting to know your TravelMate 1
A TravelMate tour 3
Front open view 3
Front view 4
Left view 6
Right view 7

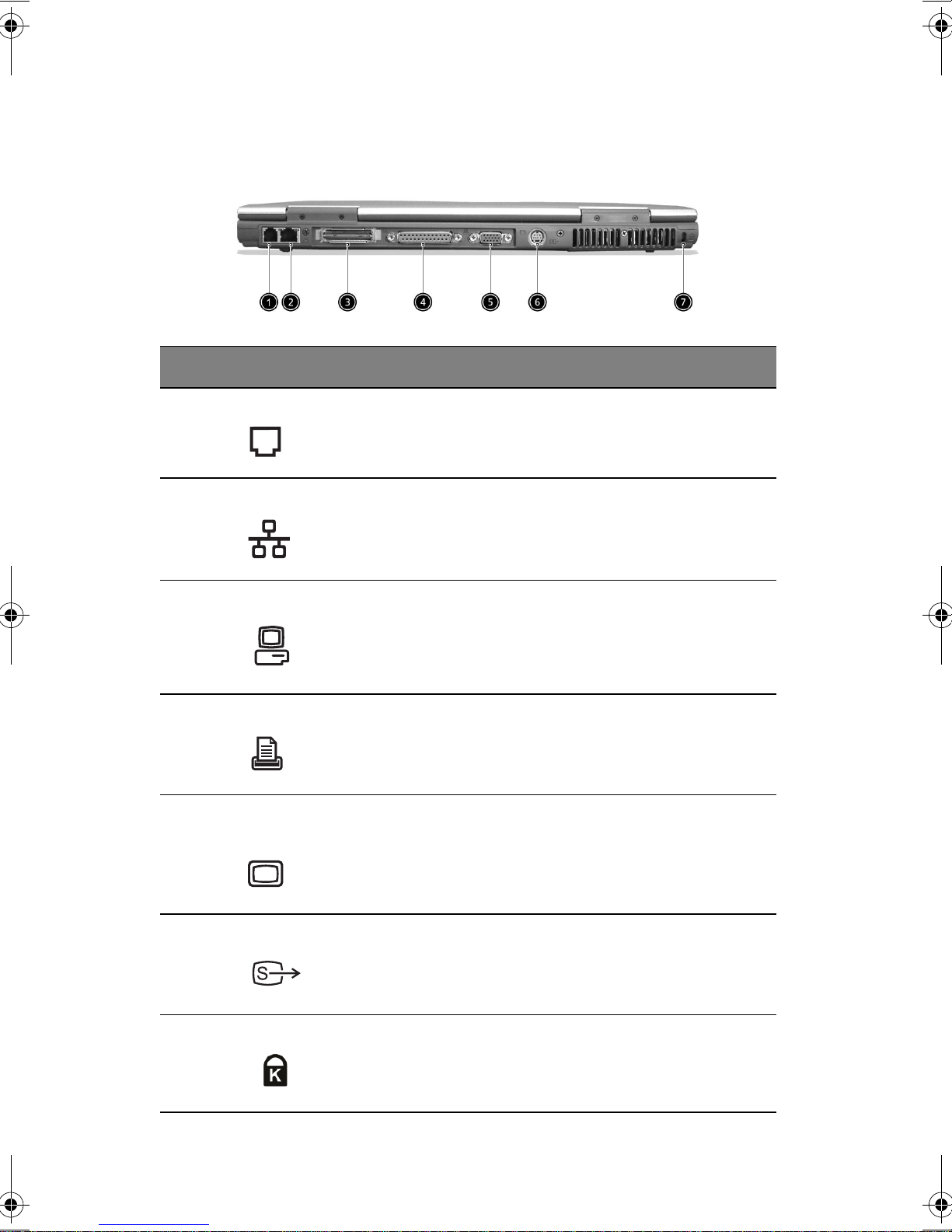

Rear view 8
Bottom view 9
Features 11
Indicators 13
Using the keyboard 15
Special keys 15
Launch Keys 22
Touchpad 24
Touchpad basics 24
Storage 26
Hard disk 26
AcerMedia bay 26
Using software 27
Audio 29
Adjusting the volume 29
Power management 30
Moving around with your TravelMate 31
Disconnecting from the desktop 31
Moving around 31
Taking the computer home 32
Traveling with the computer 34
Traveling internationally with the computer 34
Securing your computer 36
Using a computer security lock 36
Using the Smart Card 36
Using passwords 42
2 Customizing my computer 45
Expanding through options 47
Connectivity options 47
Upgrade options 52
Using system utilities 55
UN761.f/cppl!!Qbhf!wjj!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

viii
Notebook Manager 55
55
66
BIOS Utility 56
3 Troubleshooting my computer 57
Frequently-asked questions 59
Troubleshooting tips 62
Error messages 63
Requesting service 64
International Traveler’s Warranty (ITW) 64
Before you call 64
Appendix A Specifications 67
Appendix B Notices 73
Index 81
UN761.f/cppl!!Qbhf!wjjj!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your
TravelMate
UN761.f/cppl!!Qbhf!2!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

Your TravelMate computer combines high-
performance,versatility,powermanagement
features and multimedia capabilities with a
unique style and ergonomic design. Work
with unmatched productivity and reliability
with your new power computing partner.
UN761.f/cppl!!Qbhf!3!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

3
A TravelMate tour
After setting up your computer as illustrated in the Just for
Starters... poster, let us show you around your new TravelMate
computer.

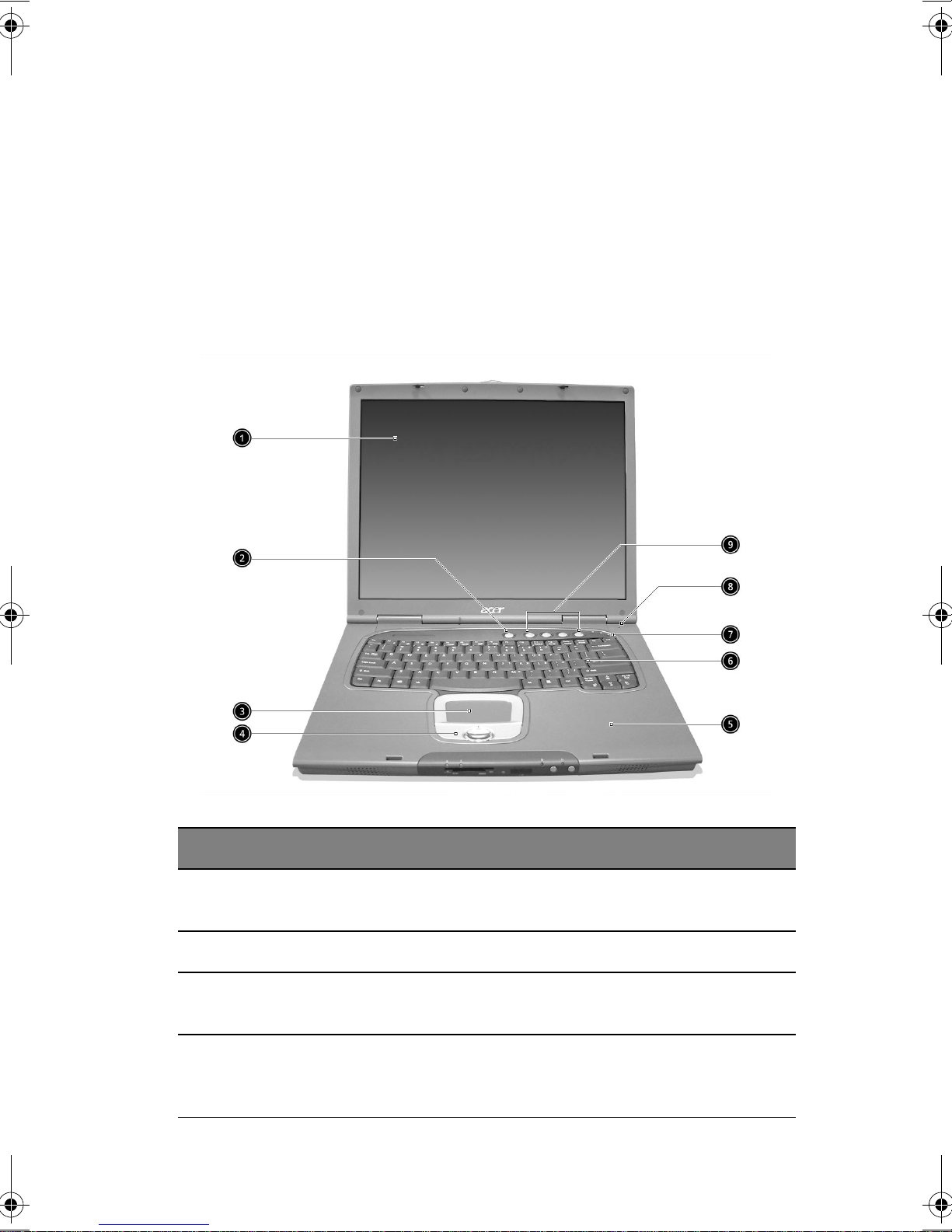

Front open view
#Item Description
1 Display screen Also called LCD (liquid-crystal display),
displays computer output.
2 Power button Turns on the computer.
3 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
4 Click buttons (left,
center and right) The left and right buttons function like the left and right mouse buttons; the center
button serves as a 4-way scroll button.
UN761.f/cppl!!Qbhf!4!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your TravelMate4

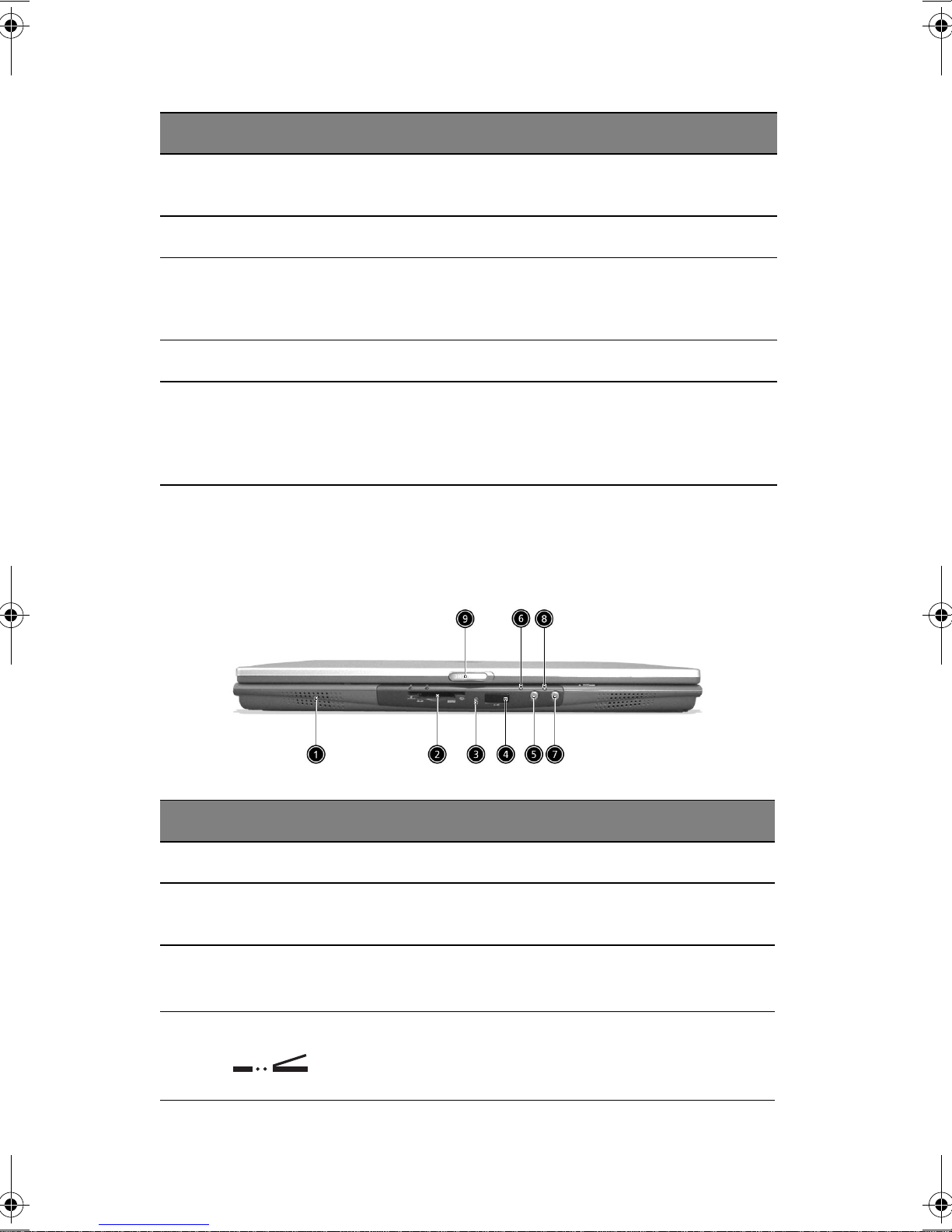

Front view
5 Palmrest Comfortable support area for your hands
when you use the computer.
6 Keyboard Inputs data into your computer.
7 Status indicators LEDs (light-emitting diode) that turn on and
off to show the status of the computer, its
functions and components.
8 Microphone Internal microphone for sound recording.
9 Launch keys Special keys for launching internet browser,
email program and frequently used
programs. See “” on page 21 for more
details.
# Item Description
1 Speaker Outputs sound.
24-in-1 card reader1
Reads one card from Smart Media, Memory
Stick, MultiMedia, and Secure Digital cards.
34-in-1 card reader1
indicator Displays activity of 4-in-1 card reader.
4 Infrared port Interfaces with infrared devices (e.g.,
infrared PDA, IR-aware computer).
# Item Description
UN761.f/cppl!!Qbhf!5!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

5
Notes:
1.Four-in-one card reader is a manufacturing option, subject to
configuration.
2.Bluetooth button and indicator work on models with Bluetooth
only.
3.InviLink button and indicator work on models with wireless
LAN only.
5Bluetooth button2
Enables or disables Bluetooth functionality.
6Bluetoothindicator2Indicates that Bluetooth is enabled.
7InviLink button3
Enables or disables wireless LAN feature.
8InviLink indicator3Indicates status of wireless LAN communication.
9 Latch Latch for opening and closing the laptop.
#Item Description
UN761.f/cppl!!Qbhf!6!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your TravelMate6

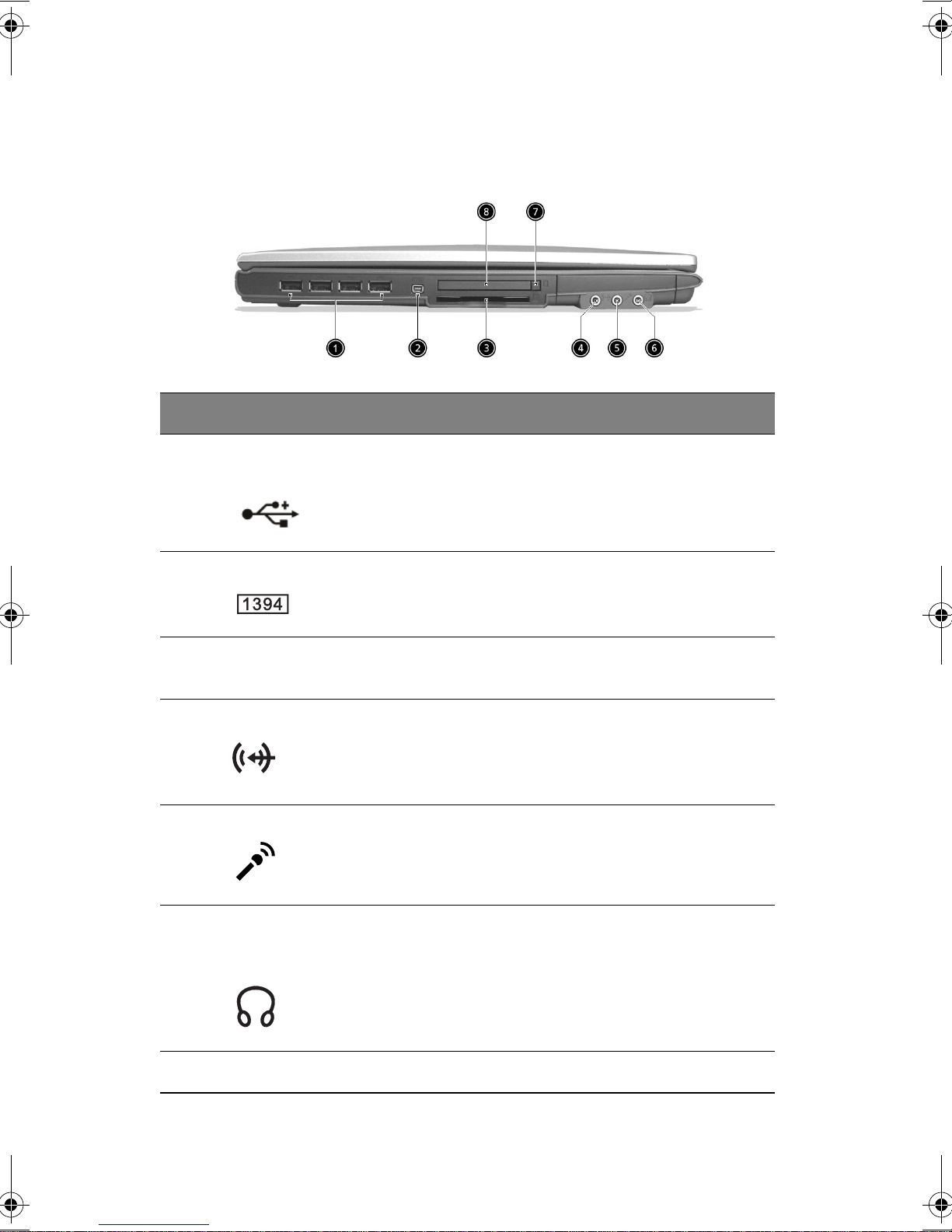

Left view
# Item Description
1USB 2.0 ports Connect to Universal Serial Bus devices (e.g.,
USB mouse, USB camera).
2 IEEE 1394 port Connects to IEEE 1394 devices.
3 Smart Card slot Slot for Smart Card interface with pre-boot
authentication system.
4 Line-in jack Accepts audio line-in devices (e.g., audio CD
player, stereo walkman).
5 Microphone jack Accepts input from external microphones.
6 Headphone/
Speaker/ Line-out
jack
Connect to headphones or other line-out
audio devices (speakers).
7 PC Card eject button Ejects the PC Card from the slot.
UN761.f/cppl!!Qbhf!7!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

7

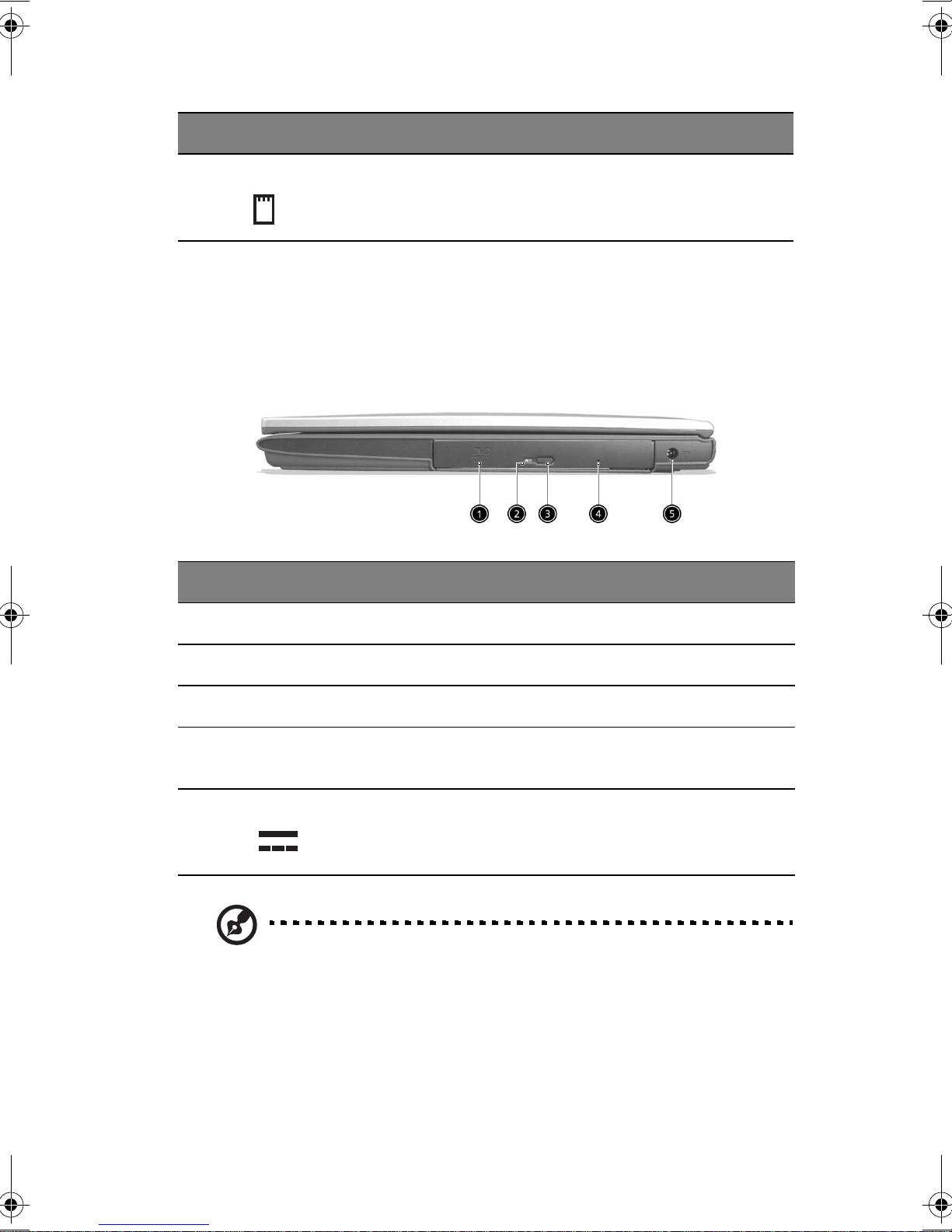

Right view
Note: The positions of the AcerMedia indicator, eject button and
emergency eject hole may differ depending on the optical drive
module installed.
8PC Card slot Accepts one Type II PC Card.
#Item Description
1 AcerMedia drive Houses a removable media drive module.
2 AcerMedia indicator Lights up when the AcerMedia drive is active.
3 Eject button Ejects the drive tray.
4 Emergency eject slot Ejects the drive tray when the computer is
turned off. See page 60 for more details.
5 Power jack Connects to an AC adapter.
#Item Description
UN761.f/cppl!!Qbhf!8!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your TravelMate8
Rear view
#Item Description
1 Modem jack Connects to a phone line.
2 Network jack Connects to an Ethernet 10/100-based
network.
3 Expansion port Connects to I/O port replicator or EasyPort
expansion devices.
4 Parallel port Connects to a parallel device (e.g., parallel
printer).
5 External display
port Connects to a display device (e.g., external monitor, LCD projector) and displays up to
16.7 million colors and up to 1400x1050
resolution.
6 S-video Connects to a television or display device
with S-video input.
7 Security keylock Connects to a Kensington-compatible
computer security lock.
UN761.f/cppl!!Qbhf! !!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

9

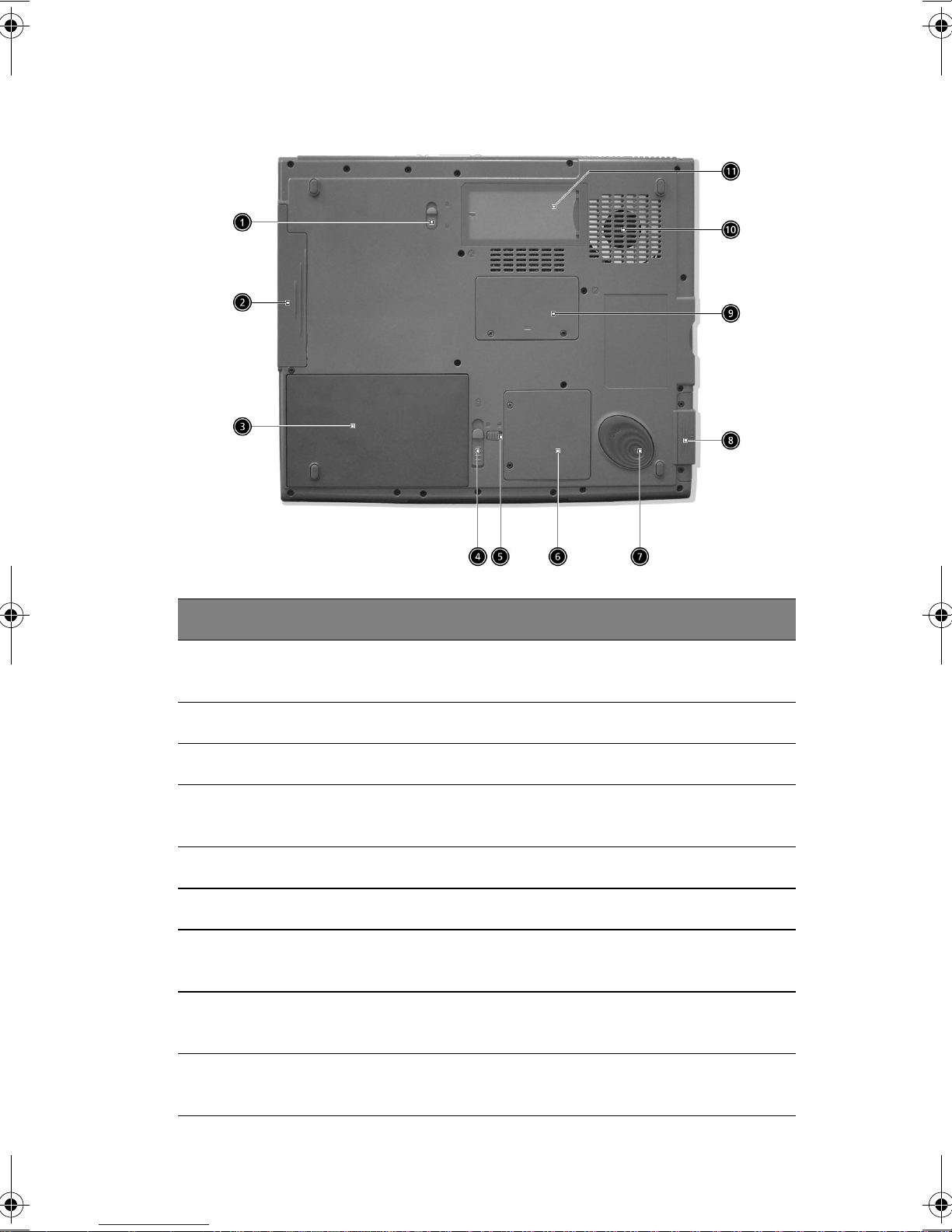

Bottom view
# Item Description
1AcerMediabay
release latch Unlatches the AcerMedia drive for removing the optical drive.
2 AcerMedia bay Houses an AcerMedia drive module.
3 Battery bay Houses the computer's battery pack.
4 Battery release latch Unlatches the battery to remove the
battery pack.
5 Battery lock Locks the battery in place.
6 Mini-PCI slot Slot for adding mini-PCI cards.
7 Hard disk protector Protects the hard disk from accidental
bumps and vibration.
8 Hard disk bay Houses the computer's hard disk (secured
by a screw).
9Memory
compartment Houses the computer’s main memory.
UN761.f/cppl!!Qbhf!:!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your TravelMate10
10 Cooling fan Helps keep the computer cool.
Note: Don’t cover or obstruct the opening
of the fan.
11 Personal
identification slot Insert a business card or similar-sized identification card to personalize your
computer.
#Item Description
UN761.f/cppl!!Qbhf!21!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

11
Features
Below is a brief summary of the computer’s many features:
Performance
•Mobile Intel® Pentium® 4 Processor-M with 512 KB level 2 cache
featuring the new Enhanced Intel® SpeedStep™ technology
•Memory expandable up to 1 GB
•Internal removable optical drive (AcerMedia bay)
•High-capacity, Enhanced-IDE hard disk
•Li-Ion main battery pack
•Power management system with ACPI (Advanced Configuration
Power Interface)
•Smart Card interface with pre-boot authentication system for
added security
Display
•Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-
bit high color up to 1024 x 768 eXtended Graphics Array (XGA)
resolution for 14.1”/15” and 1400 x 1050 Super eXtended Graphics
Array + (SXGA+) resolution for some 15” models. (specification
varies depending on the model)
•3D capabilities
•Simultaneous LCD and CRT display support
•S-video for output to a television or display device that supports S-
video input
•"Automatic LCD dim" feature that automatically decides the best
settings for your display and conserves power
•Dual display capability
Multimedia
•16-bit high-fidelity AC’97 stereo audio
•Built-in dual speakers
•Built-in microphone
•High-speed optical drive (AcerMedia bay)
UN761.f/cppl!!Qbhf!22!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN

1 Getting to know your TravelMate12
Connectivity
•High-speed fax/data modem port
•Ethernet/Fast Ethernet port
•Fast infrared wireless communication
•Four USB 2.0 (Universal Serial Bus) ports
•IEEE 1394 port
•InviLink 802.11b or 802.11a/b wireless LAN (manufacturing optional)
•Bluetooth ready (manufacturing optional)
•SD/MMC/SM/MS memory slot (manufacturing optional)
Human-centric design and ergonomics
•Internet 4-way scroll button
•Sleek, smooth and stylish design
•Acer FinTouch full-sized curved keyboard
•Ergonomically-centered touchpad pointing device
Expansion
•One type II CardBus PC Card slot
•Upgradeable memory
UN761.f/cppl!!Qbhf!23!!Gsjebz-!Kbovbsz!28-!3114!!7;47!QN
