First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Setup Poster helps you get started with setting up your
computer.
The Quick Guide introduces you to the basic features and functions of
your new computer.
For more on how your computer can help you to be more productive,
please refer to the TravelMate User’s Manual. The TravelMate User’s
Manual contains useful information applying to your new computer. It
covers basic topics such as using the keyboard and audio, etc.
This guide contains detailed information on such subjects as system
utilities, data recovery, expansion options and troubleshooting. In addition it
contains warranty information and the general regulations and safety
notices for your notebook.
Follow these steps to access it:
1 Type "User" from Start.
2 Click on Acer User’s Manual.

4
English
Your Acer notebook tour
After setting up your computer as illustrated in the setup poster, let us show
you around your new Acer notebook.

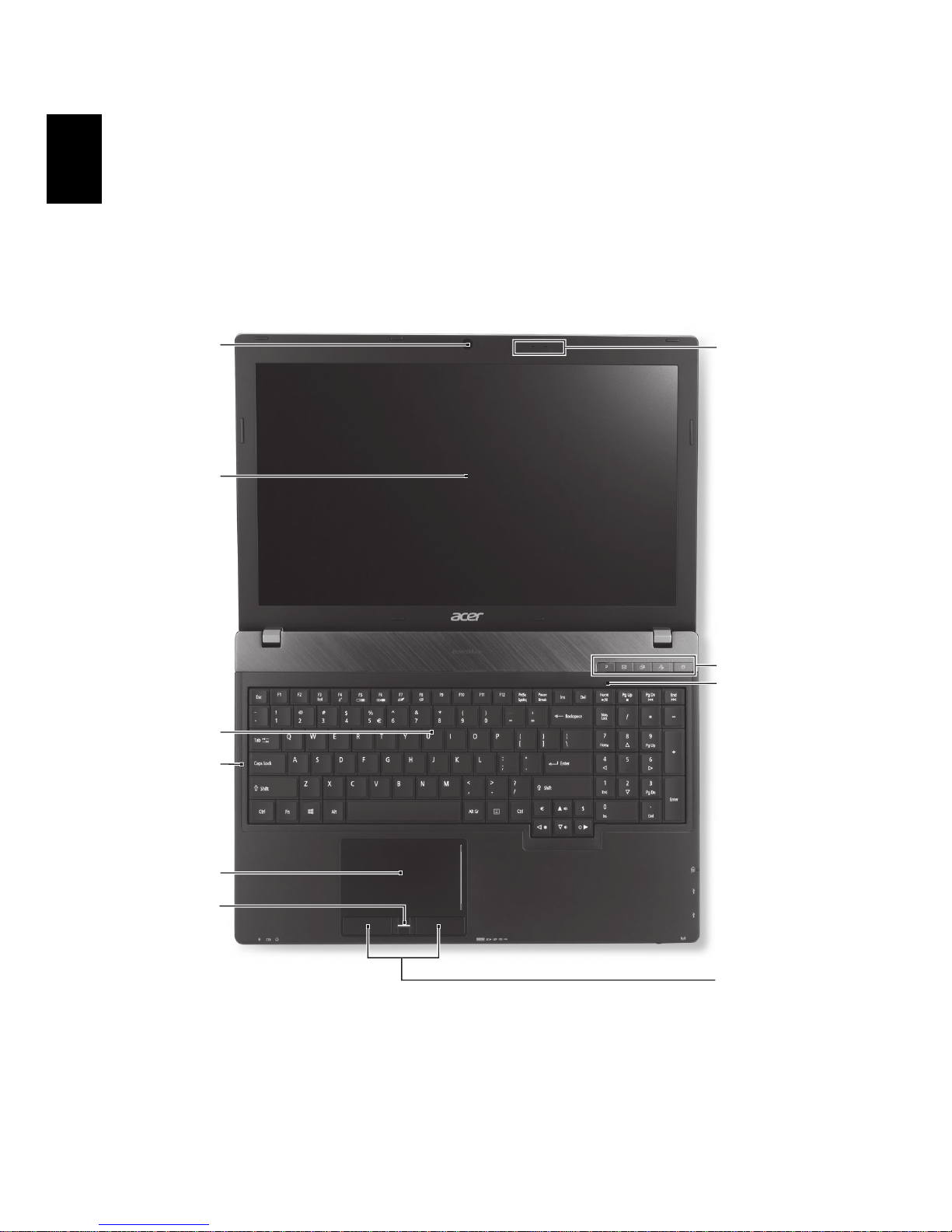

Top view
#Icon Item Description
1Integrated
webcam
Web camera for video communication.
A light next to the webcam indicates that
the webcam is active.
1
3
4
2
5
6
7
9
10
8

5
English
2 Screen
Also called Liquid-Crystal Display (LCD),
displays computer output (configuration
may vary by model).
3 Keyboard For entering data into your computer.
4 Caps Lock Lights up when Caps Lock is activated.
5Touchpad
Touch-sensitive pointing device which
functions like a computer mouse.
6 Fingerprint reader Fingerprint reader for Acer ProShield
Security Suite.
7Click buttons (left
and right)
The left and right buttons function like the
left and right mouse buttons.
8 Num Lock Lights up when Num Lock is activated.
9
PP key Programmable key (configuration may
vary by model).
Acer email key Opens your default email application.
Backup key Launches Acer Backup Management for
three-step data backup.
Microphone mute Mutes the microphone.
Power button /
indicator
Turns the computer on and off. Indicates
the computer's power status.
10 Microphones Two internal microphones for stereo sound
recording.
#Icon Item Description

6
English

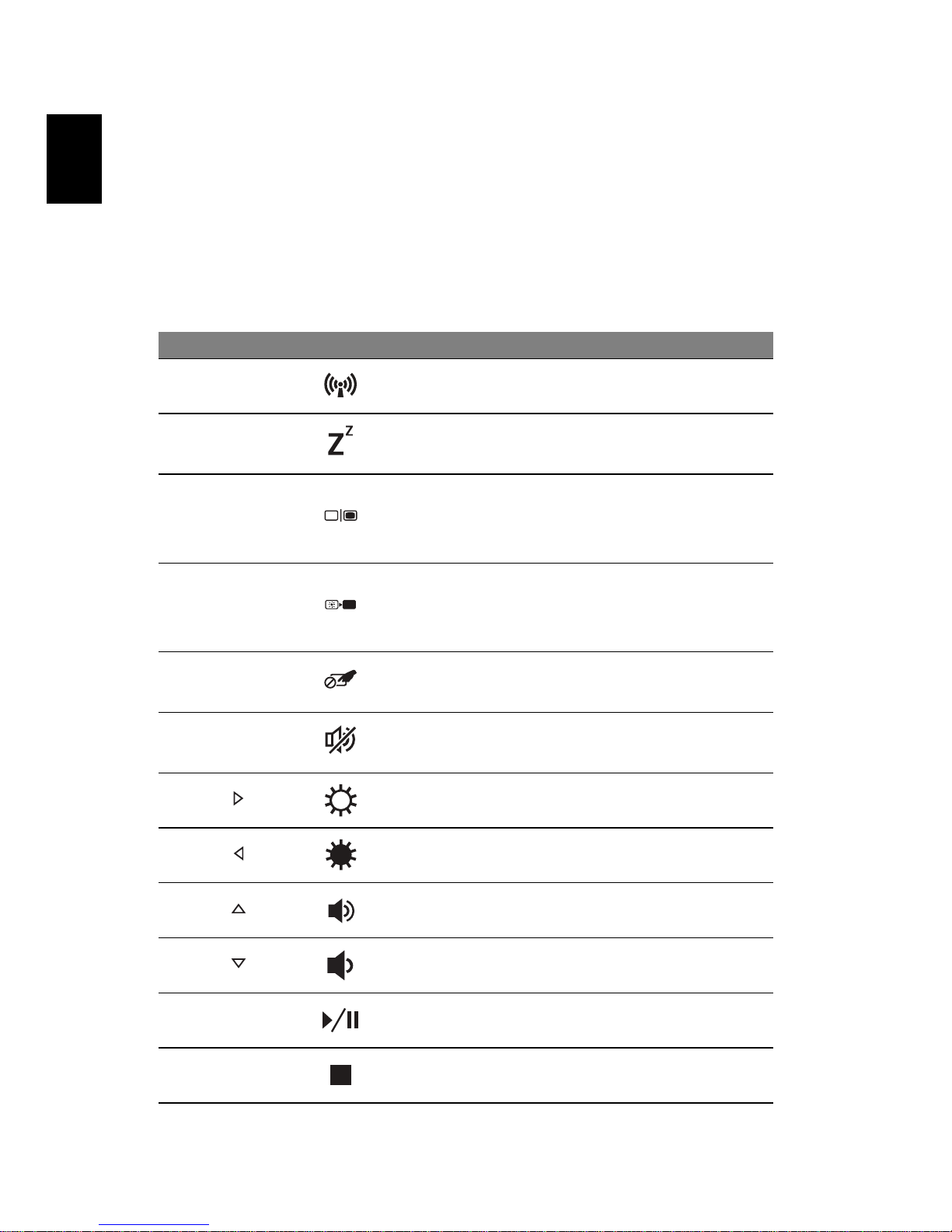

Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other
key in the hotkey combination.
Hotkey Icon Function Description
<Fn> +
<F3>
Communicatio
n
Enables/disables the computer’s
communication devices.
<Fn> +
<F4> Sleep Puts the computer in Sleep mode.
<Fn> +
<F5> Display toggle
Switches display output between the
display screen, external monitor (if
connected) and both.
<Fn> +
<F6> Screen blank
Turns the display screen backlight
off to save power. Press any key to
return.
<Fn> +
<F7>
Touchpad
toggle
Turns the internal touchpad on and
off.
<Fn> +
<F8> Speaker toggle Turns the speakers on and off.
<Fn> +
<> Brightness up Increases the screen brightness.
<Fn> +
<>
Brightness
down Decreases the screen brightness.
<Fn> +
<> Volume up Increases the sound volume.
<Fn> +
<> Volume down Decreases the sound volume.
<Fn> +
<Home> Play/Pause Play or pause a selected media file.
<Fn> +
<Pg Up> Stop Stop playing the selected media file.
<Fn> +
<Pg Dn> Previous Return to the previous media file.
<Fn> +
<End> Next Jump to the next media file.

7
English

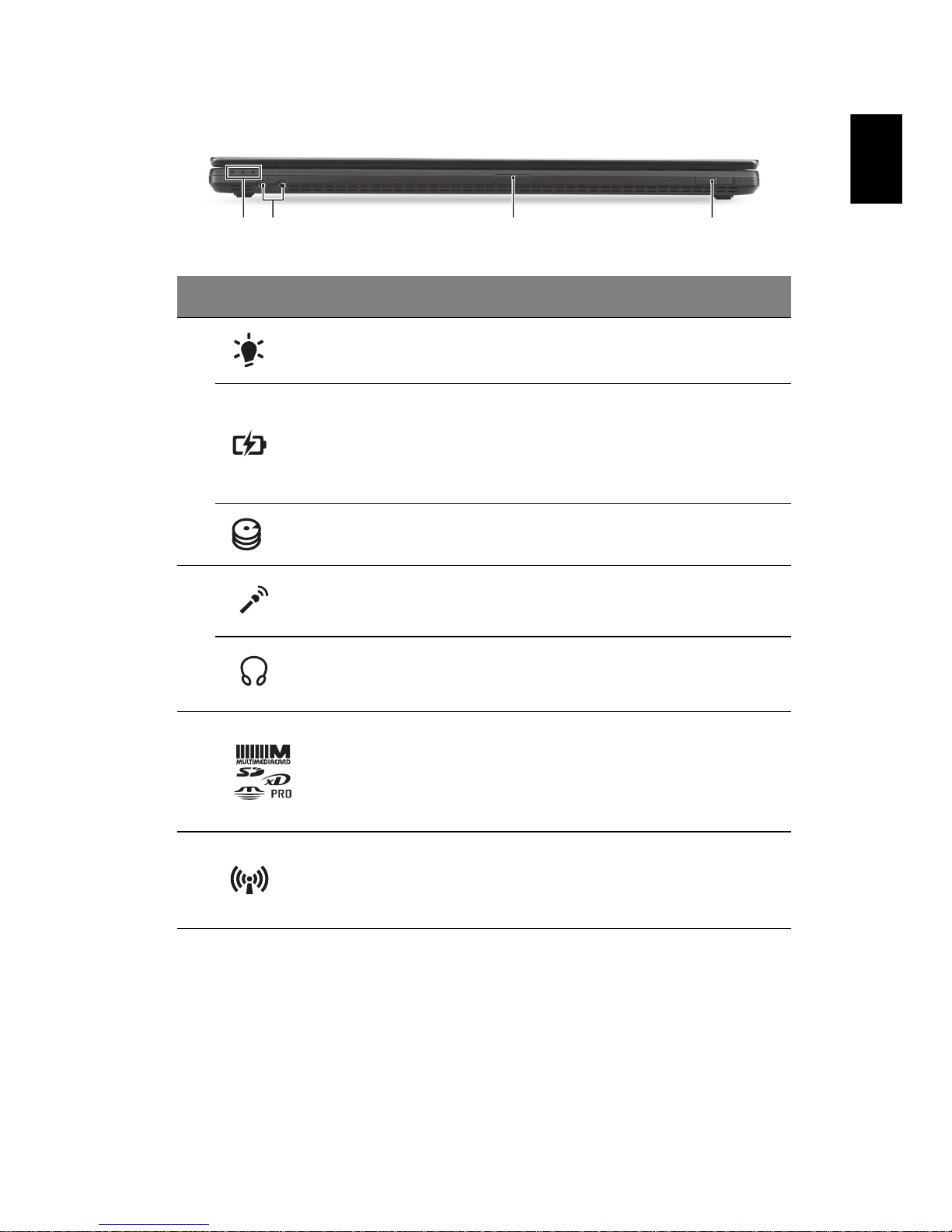

Closed front view
#Icon Item Description
1
Power indicator Indicates the computer's power status.
Battery indicator
Indicates the computer's battery status.
1. Charging: The light shows amber
when the battery is charging.
2. Fully charged: The light shows blue
when in AC mode.
HDD indicator Indicates when the hard disk drive is
active.
2
Microphone jack Accepts inputs from external
microphones.
Headphones/speaker
jack
Connects to audio devices
(e.g., speakers, headphones).
3 Multi-in-1 card reader
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card.
Only one card can operate at any time.
4Communication
switch / indicator
Enables/disables the computer’s
communication devices / indicates the
computer’s wireless connectivity device
status.
2134

8
English
Left view
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
3External display
(VGA) port
Connects to a display device (e.g.,
external monitor, LCD projector).
2 HDMI port Supports high-definition digital video
connections.
4 USB / eSATA port
Connects to USB or eSATA devices (only
for certain models).
Note: If you plug in an eSATA device you
will have three USB ports available.
5 SmartCard slot Accepts a SmartCard.
6 ExpressCard/34 slot
Accepts one ExpressCard/34 module.
Note: Push to remove/insert the
module.
231456
