Acer AT2001 User manual

Acer LCD TV
AT2001
User's Guide

Copyright © 2005. Acer Incorporated.
All Rights Reserved.
Acer AT2001 User' s Guide
Original Issue: May 2005
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies’ product names or trademarks are used herein for
identification purposes only and belong to their respective companies

Contents
Important safety instructions...........................................................................................5
Taking care of your remote control......................................................................... 6
Cleaning and servicing.............................................................................................. 6
Declaration of Environmental Protection Conformity............................................ 6
1BEFORE YOU START ...................................................................................................7
1-1 What’s in the Box ............................................................................................ 7
2YOUR LCD TV AT A GLANCE......................................................................................8
2-1 Control Panel ................................................................................................... 8
2-2 Left-side Connectors ........................................................................................ 9
2-3 Back Connectors ............................................................................................ 10
3YOUR REMOTE CONTROL AT A GLANCE ................................................................11
4BASIC LCD TV SETUP ................................................................................................13
4-1 Connecting to the Aerial............................................................................... 13
4-2 Using the Remote Control (Basic Operation)............................................... 13
4-3 Plugging In Your LCD TV............................................................................... 14
4-4 Turning ON the Power .................................................................................. 15
4-5 Tuning Channels Automatically (AUTO SETUP)........................................... 16
4-6 Programme Sort............................................................................................. 17
4-7 Naming Channels........................................................................................... 19
4-8 Tuning Channels Manually (MANUAL TUNING) .......................................... 20
5CONNECTING EXTERNAL DEVICES...........................................................................21
5-1 Connecting a SCART Device .......................................................................... 21
5-2 Connecting a Composite Device ................................................................... 22
5-3 Connecting a S-Video Device ........................................................................ 23
5-4 Connecting a VCR Using Coaxial (RF) ........................................................... 24
5-5 Connecting Speakers ..................................................................................... 25
6ADJUSTING SETTINGS ..............................................................................................26
6-1 Basic Operations ............................................................................................ 26

6-1-1 ADJUSTING THE VOLUME ................................................................ 26
6-1-2 SELECTING PROGRAMMES ............................................................... 28
6-2 Using the On-Screen Display (OSD) .............................................................. 29
6-2-1 MAKING ADJUSTMENTS................................................................... 29
6-3 OSD Menus and Options ............................................................................... 30
6-3-1 With Source Input Set to TV.........………….........................................30
7ADVANCED SETTINGS ..............................................................................................34
7-1 Setting the Sleep Timer................................................................................. 34
7-2 Displaying Teletext ........................................................................................ 35
7-2-1 TO TURN ON/OFF TELETEXT MODE ................................................. 35
TROUBLESHOOTING AND SUPPORT ..............................................................................36
PRODUCT SPECIFICATIONS.............................................................................................38

Important safety instructions
English
Read these instructions carefully. Save them for
future reference.
1 Follow all warnings and instructions marked
on the product.
2 Unplug this product from the power outlet
before cleaning. Use a soft, moist cloth for
cleaning. Do not use liquid or aerosol
cleaners.
3 Do not use this product near water.
4 Do not place this product on an unstable cart,
stand, or table. The product may fall, causing
serious damage to the product.
5 Slots and openings are provided for
ventilation; to ensure reliable operation of
the product and to protect it from
overheating. These openings must not be
blocked or covered. The openings should
never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This
product should never be placed near or over
a radiator or heat register, or in a built-in
installation unless proper ventilation is
provided.
6 This product should be operated from the
type of power source indicated on the label.
If you are unsure of the type of power source
available, consult your dealer or local power
company before use.
7 Do not step on or place heavy objects on the
power cord. Carefully route the power cord
and any cables away from foot traffic. Do not
locate this product where persons will step
on the cord.
8 If an extension cord is used with this product,
make sure that the total ampere rating of
the equipment plugged into the extension
cord does not exceed the extension cord
ampere rating. Also, make sure that the total
rating of all products plugged into the wall
outlet does not exceed the fuse rating.
9 Never push objects of any kind into this
product through cabinet slots as they may
touch dangerous voltage points or short out
parts that could result in a fire or electric
shock.
10 Do not attempt to service this product
yourself, as opening or removing covers may
expose you to dangerous voltage points or
other risks. Refer all servicing to qualified
service personnel.
11 Unplug this product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
a. When the power cord or plug is damaged
or frayed.
b.If liquid has been spilled into the product.
c. If the product has been exposed to rain or
water.
d.If the product does not operate normally
when the operating instructions are
followed. Adjust only those controls that
are covered by the operating instructions
since improper adjustment of other
controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to normal
condition.
e. If the product has been dropped or the
case has been damaged.
f. If the product exhibits a distinct change in
performance, indicating a need for service.
12 Only use the correct power cord (provided in
your accessories box) for this product. Always
disconnect the power cord from the wall
outlet before servicing or disassembling this
equipment.
5

Taking care of your remote control
Follow these steps to ensure proper care of your remote control:
English
• Handle the remote control with care. Dropping it, placing it in direct sunlight, or
allowing it to get wet may cause damage.
• Do not tamper with the batteries, and keep them away from children.
• When you anticipate that the remote control will not be used for an extended
period, remove the batteries to prevent possible damage from battery leakage.
• Dispose of batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning your LCD TV, follow these steps:
1 Power off the TV.
2 Disconnect the power cord.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
6

1 BEFORE YOU START1 BEFORE YOU START
Englishlish
1-1 What’s in the Box1-1 What’s in the Box
When you receive your LCD TV, unpack it carefully, and check to make sure
you have all the items below.
When you receive your LCD TV, unpack it carefully, and check to make sure
you have all the items below.
REMOTE CONTROL and
ONE L3120 BATTERY
POWER CORD USER’S MANUAL WARRANTY
SCART-SCART CABLE TV CABLE
7

2 YOUR LCD TV AT A GLANCE
English
2-1 Control Panel
BUTTON VIEWING FUNCTION (OSD OFF) MENU FUNCTION (OSD ON)
Lowers the sound level. Reduces a menu option value.
Increases the sound level. Displays a submenu with selections
for the current menu option.
Increases a menu option value.
Selects the input source. N/A
Turns the LCD TV ON/OFF. N/A
Activates the OSD main menu. Returns to the previous menu or to
normal viewing.
Displays the previous stored
channel.
Selects the previous menu option.
Displays the next stored
channel.
Selects the next menu option.
8

2-2 Left-side Connectors
To access these connectors , you will need to open the protective cover.
English
CONNECTOR DESCRIPTION
TUNER (UHF/VHF-CATV) - Connect to antenna, cable service, or
VCR.
S-Video - Connect an S-video device, such as a DVDplayer or VCR,
to this connector.
Composite - Connect a composite device, such as a DVD player or
VCR, to this connector.
SCART - Connect a video device, such as a DVD player or VCR, to
this connector.
9

2-3 Back Connectors
English
CONNECTOR DESCRIPTION
DC-in - Connect the AC power adapter to this.
VGA - Connects to a computer’s VGA terminal output.
Audio-in - Connects to a computer’s audio out jack.
Audio-out - Connect a headphone, external amplifier, or speakers
to this.
10

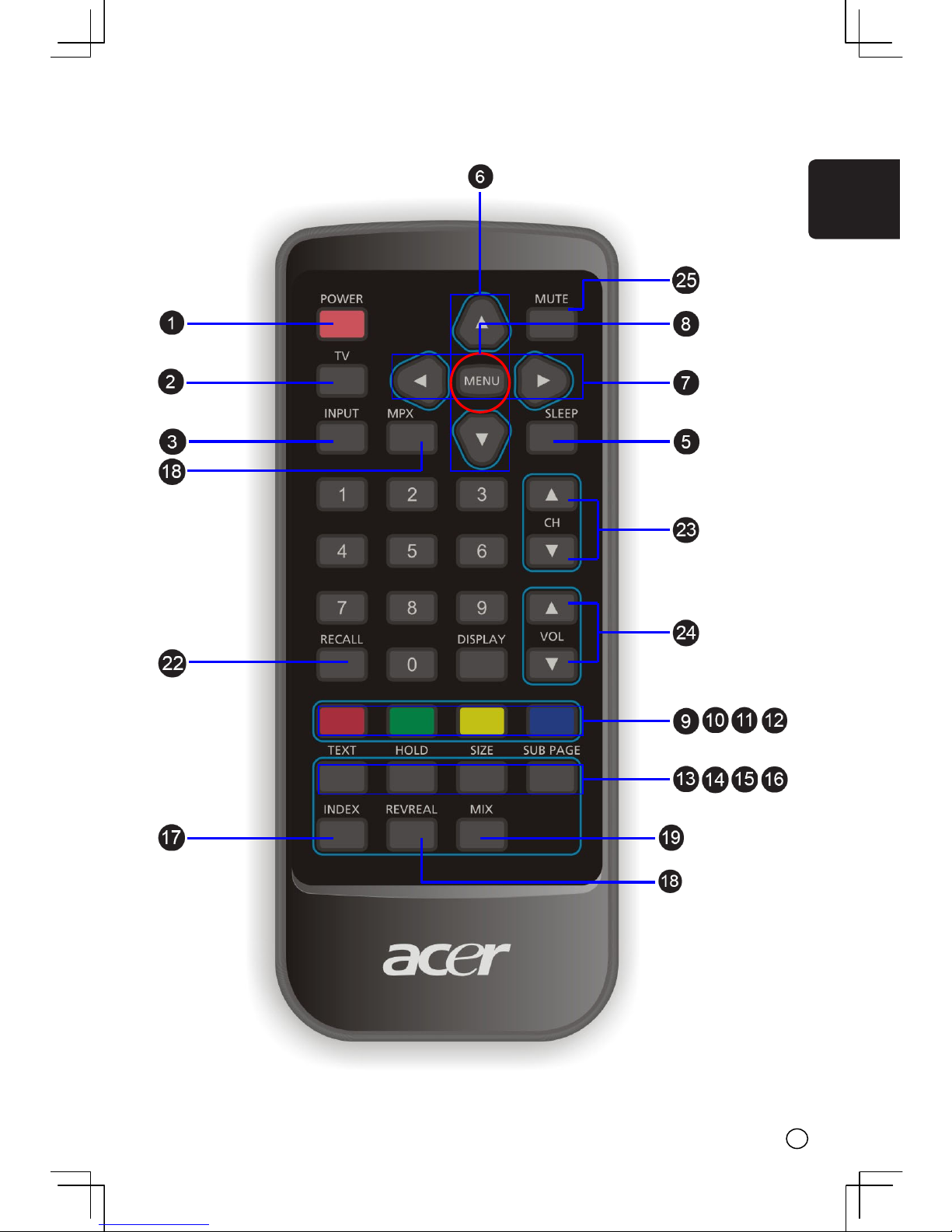

3 YOUR REMOTE CONTROL AT A GLANCE3 YOUR REMOTE CONTROL AT A GLANCE
Englishlish
11

English
BUTTON DESCRIPTION
POWER Turns the selected component ON/OFF.
TV Selects a programmed TV.
INPUT Changes the input source.
MPX Changes the audio output.
SLEEP Turns on the sleep timer.
UP/DOWN Navigates up and down in the on-screen display (OSD)
menus.
LEFT/RIGHT Navigates left and right in the on-screen display (OSD)
menus.
MENU Displays menus for TV and other options.
R RED, activates Teletext command or the Sound menu
when Teletext is not displayed.
G GREEN, activates Teletext command or the Picture menu
when Teletext is not displayed.
Y YELLOW, Teletext command.
C CYAN, Teletext command.
TEXT Toggles ON/OFF Teletext mode.
HOLD Temporarily holds the current Teletext page.
SIZE Selects the size of the text in Teletext mode.
SUB PAGE Turns ON/OFF the display of subpages for Teletext (where
available).
INDEX Brings up the initial Teletext page.
REVEAL Displays hidden information.
MIX Displays Teletext superimposed on top of the TV image.
Number pad Selects a channel or enters a password.
LAST Recalls the last viewed channel and input source.
RECALL Shows the current status of your LCD TV, such as the video
input source, audio status, and channel number.
CH Changes the channel.
VOL Increases/decreases the volume.
MUTE Mutes or restores the sound volume.
12

4 BASIC LCD TV SETUP4 BASIC LCD TV SETUP
Englishlish

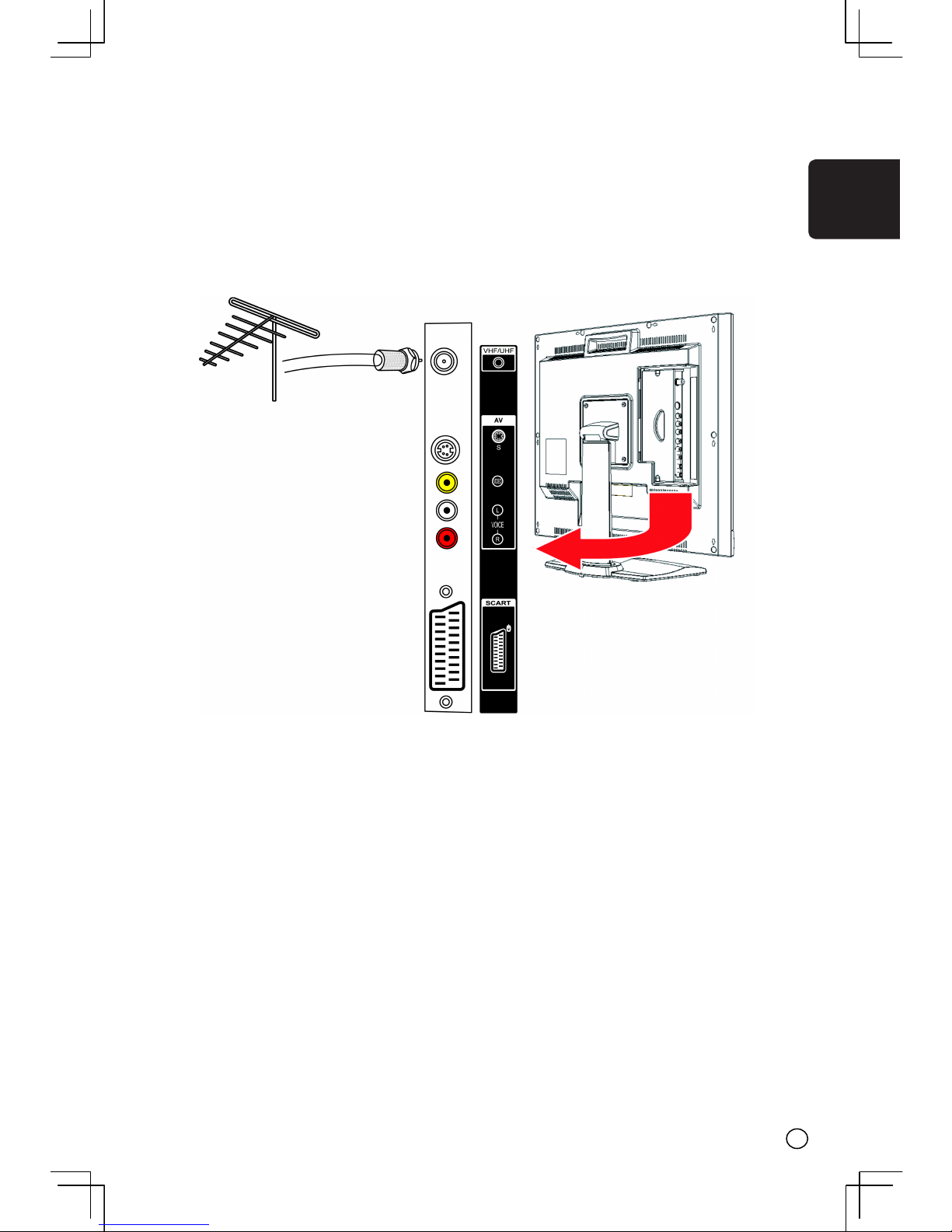

4-1 Connecting to the Aerial4-1 Connecting to the Aerial
Connect the outdoor aerial (antenna) cable lead or your cable TV box to the
TUNER (UHF/VHF-CATV) jack on the back of your LCD TV using an RF (coaxial)
lead. See
2-2 Left-side Connectors for location.
Connect the outdoor aerial (antenna) cable lead or your cable TV box to the
TUNER (UHF/VHF-CATV) jack on the back of your LCD TV using an RF (coaxial)
lead. See
2-2 Left-side Connectors for location.
(supplied)
RF lead
4-2 Using the Remote Control (Basic Operation)
Point the remote control towards the remote control sensor window located
on the front of your LCD TV. Make sure no objects are in the line of aim,
otherwise the remote control may not operate properly.
13

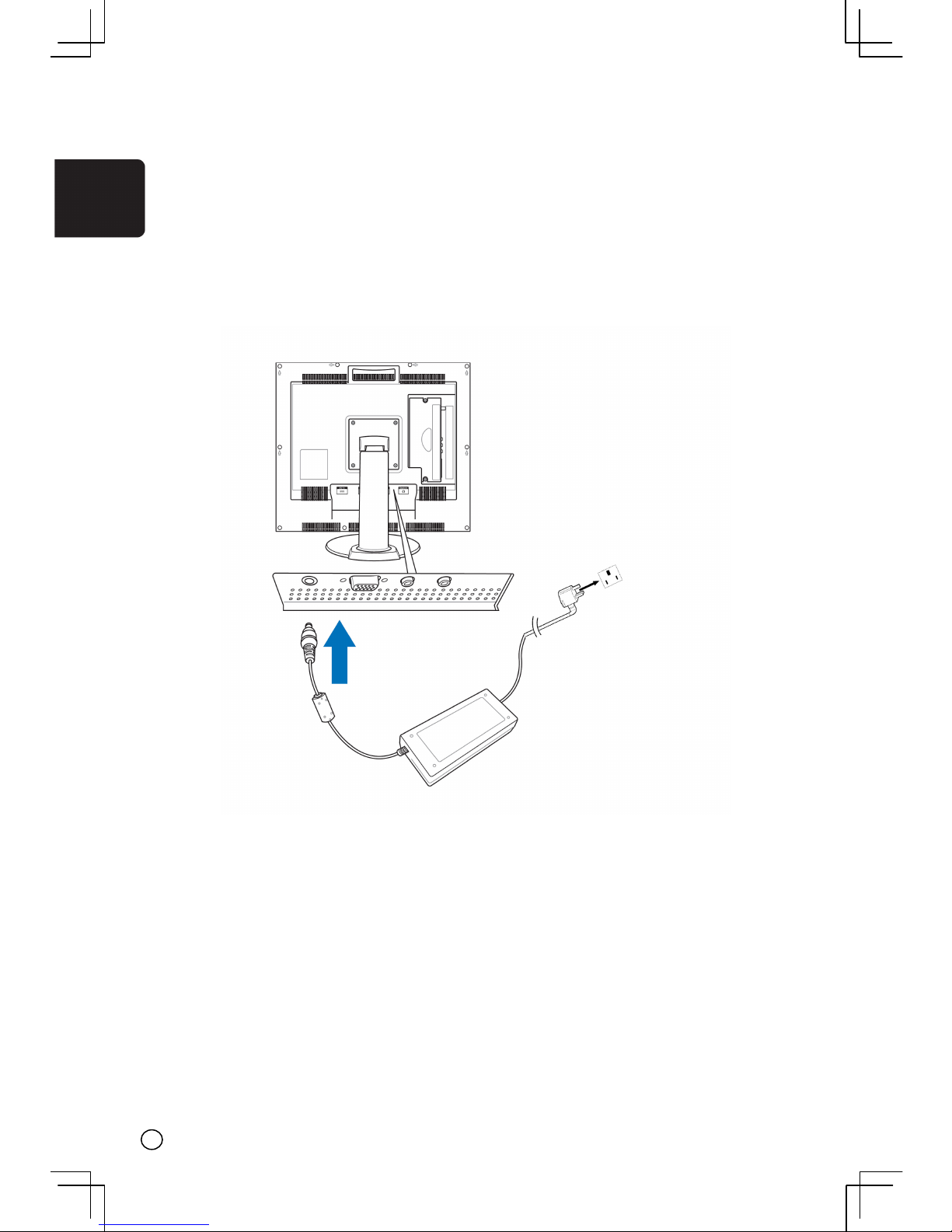

4-3 Plugging In Your LCD TV
English
1. Connect the power cord to the power cord connector on the back of your
LCD TV.
2. Plug the other end of the power cord into a properly grounded electrical
outlet or surge protector.
14

4-4 Turning ON the Power
Press the Power button on the top of the LCD
TV (see
2-1 Control Panel for location). The
Status LED on the front turns green and your
LCD TV turns on.
English
-OR-
Press the POWER button on your remote
control. The Status LED on the front turns
green, and the unit turns on.
WARNING! For added protection during a lightning storm or when it is left
unattended or unused for long periods of time, unplug your
LCD TV from the wall outlet and disconnect the aerial or cable
system.
15

4-5 Tuning Channels Automatically (AUTO SETUP)
Use this option to quickly add all channels that have a signal to the channel
list.
English
TO TUNE CHANNELS AUTOMATICALLY
1. Press the MENU button on the
remote control to open the OSD.
2. Press the / buttons to select
SETUP.
3. Press to open the Setup menu.
4. Press the / buttons to select
AUTO SETUP.
5. Press to start auto setup.
The LCD TV will search for all
available channels. Please be
patient, this will take a few
minutes.
6. When the LCD TV has finished
searching, the SORT menu will
appear.
NOTE: Submenus can be accessed by
pressing either or .






16

4-6 Programme Sort
To sort the channels so that, for example, BBC1 is stored as number “1”,
follow the steps below:
English
1. Press the MENU button.
The Main Menu will appear.
2. Press the /buttons to
highlight SETUP.
3. Press to select.
4. Press the /buttons to
highlight PROGRAMME SORT.
5. Press to select.
6. Press the /buttons to select
the programme that you want to
change. At this time, only the
selected programme number is
highlighted.
NOTE: We recommend you sort
your channels in order e.g. BBC1
first, BBC2 second, ITV third, etc.
You may need to refer to a TV
guide or use Teletext to identify
the channels.
7. Once the desired programme is
highlighted, press the Yellow
button. You will now see
“SORTING...” displayed near the
bottom of the OSD at which time
the entire corresponding row is
highlighted.
8. Press the /buttons to move
the channel to your desired
position.
9. Press the MENU button confirm
and return to the previous menu.
10.Repeat steps 6-9 for all the
channels you want to reorder.
17

Now you will be able to select programmes using the number pad or the
CH+/- buttons on your remote control.
English
NOTE: You may also change the CHANNEL number (middle column)
allocated to the PRG numbers (left column) as follows:
In the Programme Sort menu...
1. Press to access the CHANNEL column.
2. Press /to select the channel you would like to store in this location
(e.g. BBC1).
3. Once found, press to return to the PROG column.
4. Press to go to the next PROG number.
Repeat steps 1-4 until all your channels are stored in your chosen PROG
location.
NOTE: Submenus can be accessed by pressing either or .
18

4-7 Naming Channels
Use this option to give a channel a
name, e.g. BBC1.
1. Press the MENU button on the
remote control to open the Main
menu.
2. Press the /buttons to select
SETUP.
3. Press to select.
The Setup menu opens.
4. Press the /buttons to
highlight PROGRAMME SORT.
5. Press to select.
The Programme Sort menu opens.
6. Press the /buttons to select
the channel that you want to
name.
7. Press to move the selection
block to the NAME column.
8. Enter a name for this channel using
the number keypad on the remote
control. After the first letter or
number is entered, press and
enter the next letter or number. A
maximum of five letters and/or
numbers may be entered.
9. When finished, press MENU to
return to the previous menu.
Now you will be able to see the
channel name that corresponds with
the selected channel.
NOTE: Submenus can be accessed by
pressing either or .
English
19

4-8 Tuning Channels Manually (MANUAL TUNING)
Use this option to add certain channels to the channel list.
English
TO ADD CHANNELS MANUALLY
1. Press the MENU button on the
remote control to open the OSD.
2. Press the /buttons to
highlight SETUP.
3. Press to open the menu.
4. Press the /buttons to
highlight MANUAL TUNING.
5. Press to select. The Manual
Tuning menu opens.
6. Press the button to search for
the next available channel and the
button to search for an available
channel prior to the one selected.
7. When finished, press MENU
repeatly to close the OSD.
20
