Acer AT2621, AT2622 User manual

Contents
Important safety instructions 2
Disposal instructions 2
Declaration of Conformity 2
First things first 3
Packing checklist 3
Your LCD TV overview 3
Front panel view 3

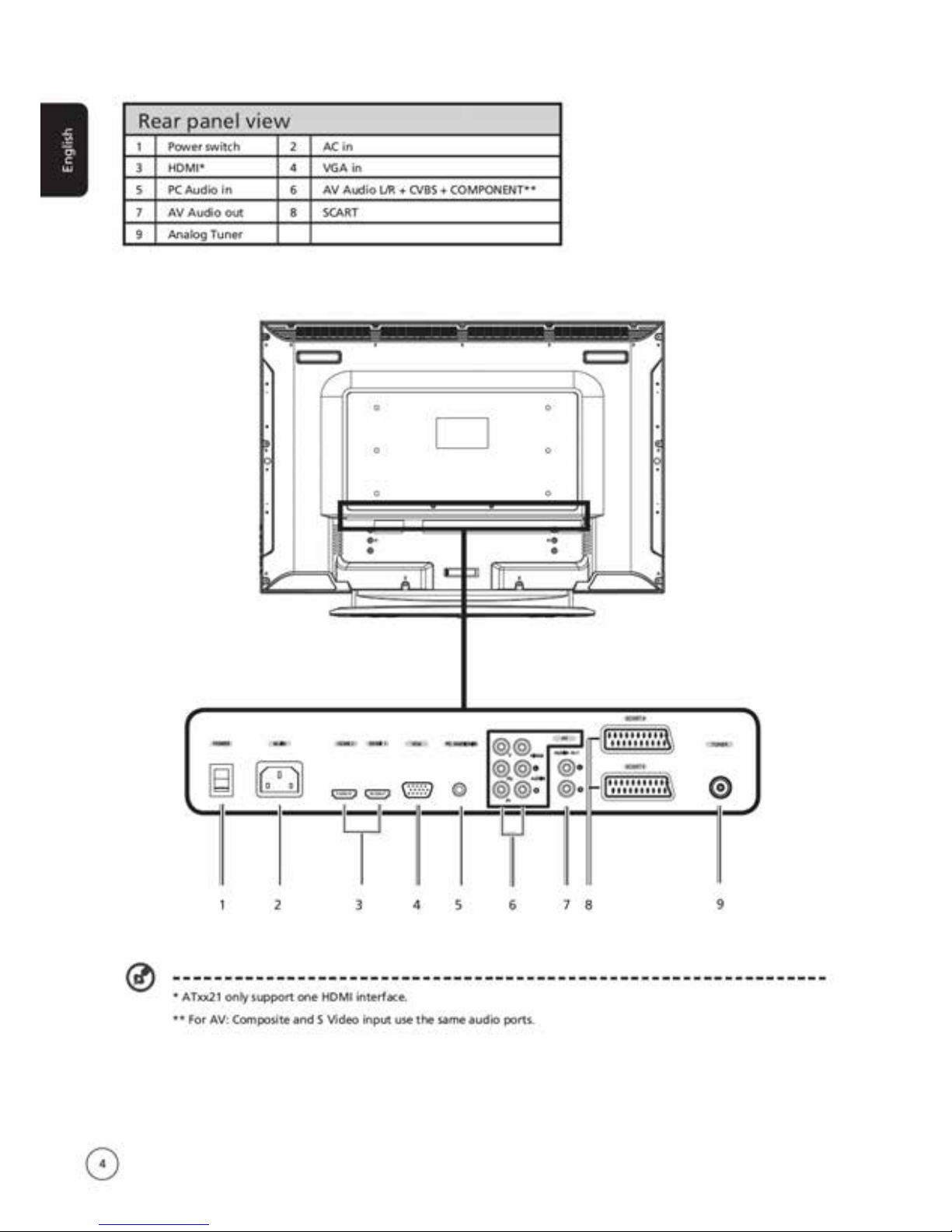

Rear panel view 4
Remote control 5
General keys 5
Teletext 5

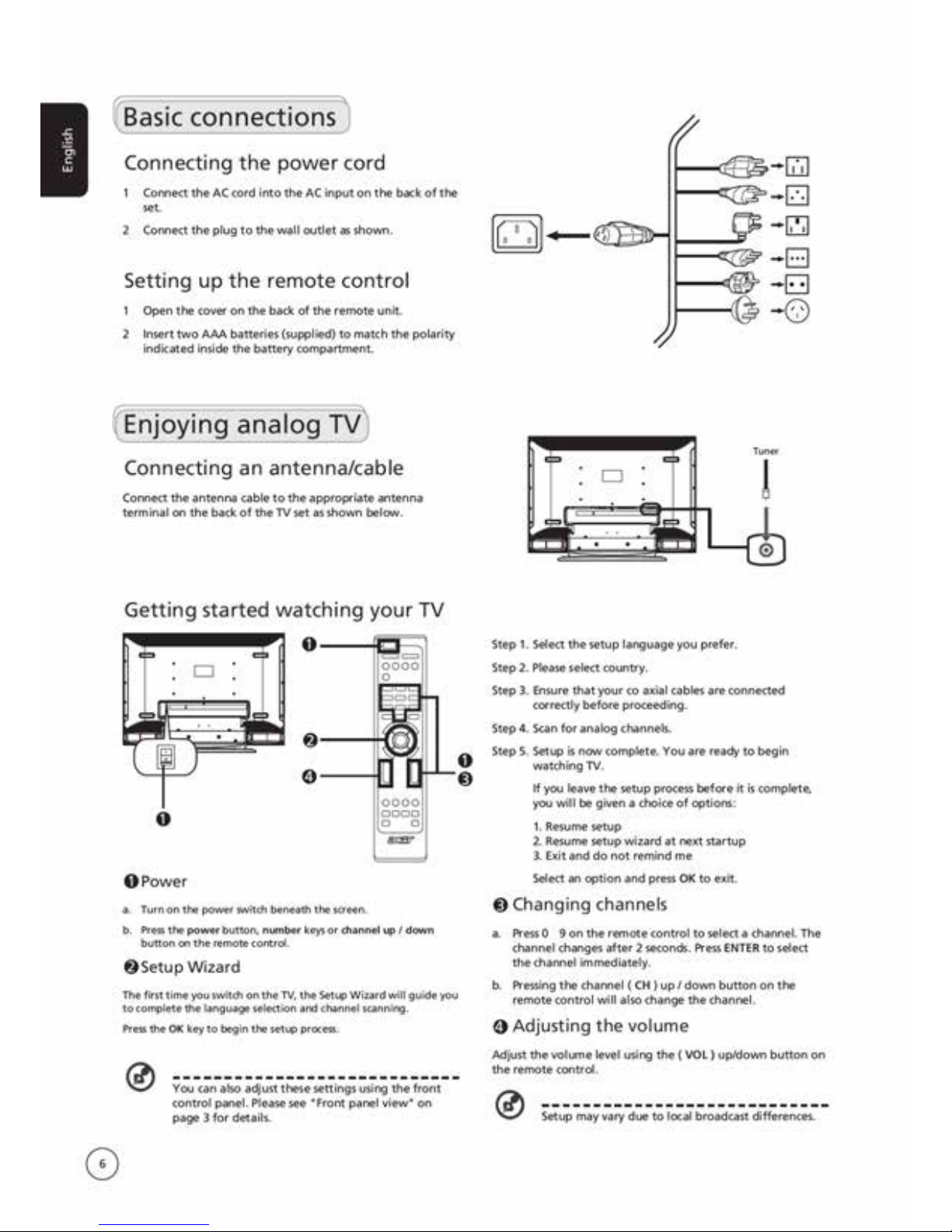

Basic connections 6
Connecting the power cord 6
Setting up the remote control 6
Enjoying analog TV 6
Connecting an antenna/cable 6
Getting started watching your TV 6
Connecting external audio/video devices 7
Connecting a DVD, VCR, STB or audio/video equipment 7

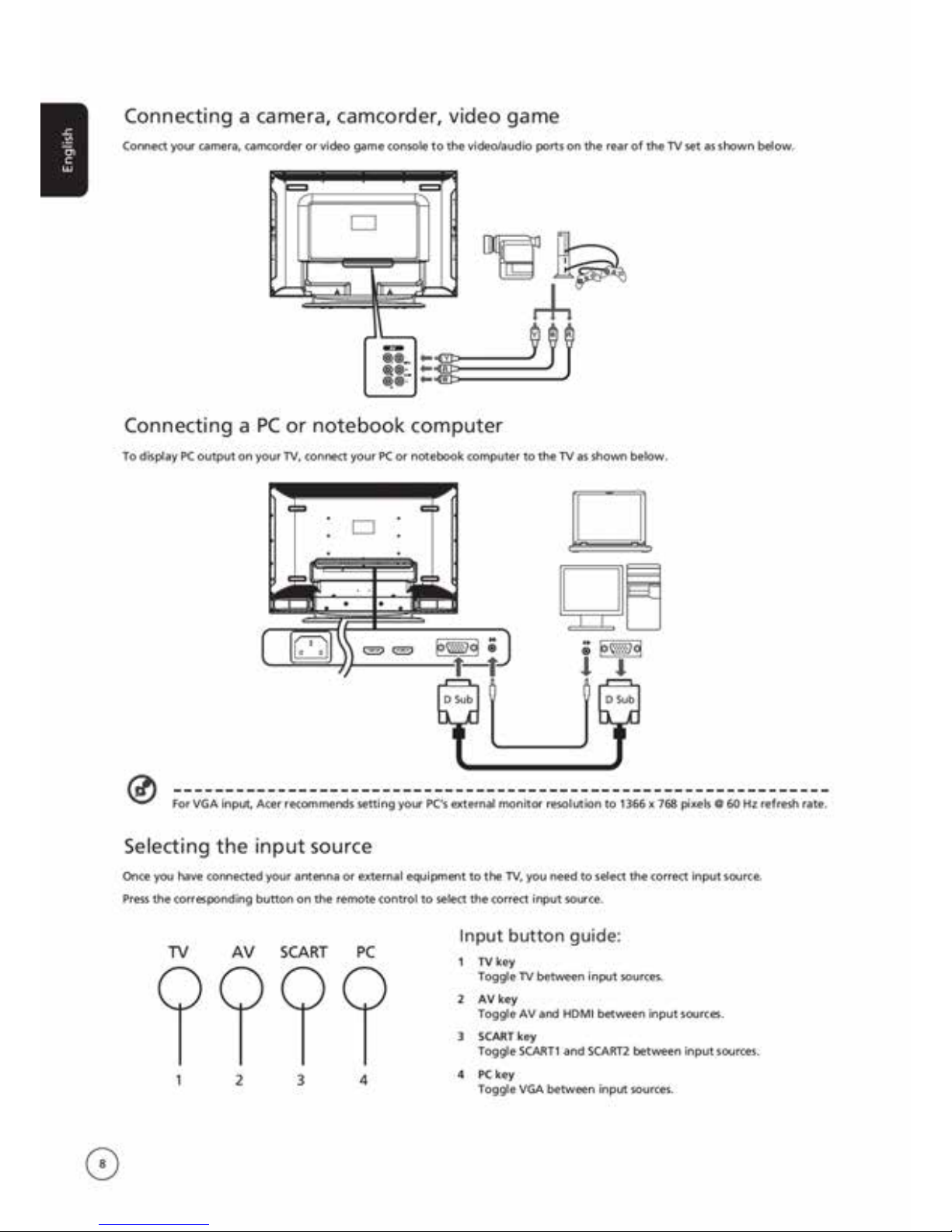

Connecting a camera, camcorder, video game 8
Connecting a PC or notebook computer 8
Selecting the input source 8
OSD navigation 9
Navigating the OSD with the remote control 9
Adjusting the OSD settings 10
Advanced features 11

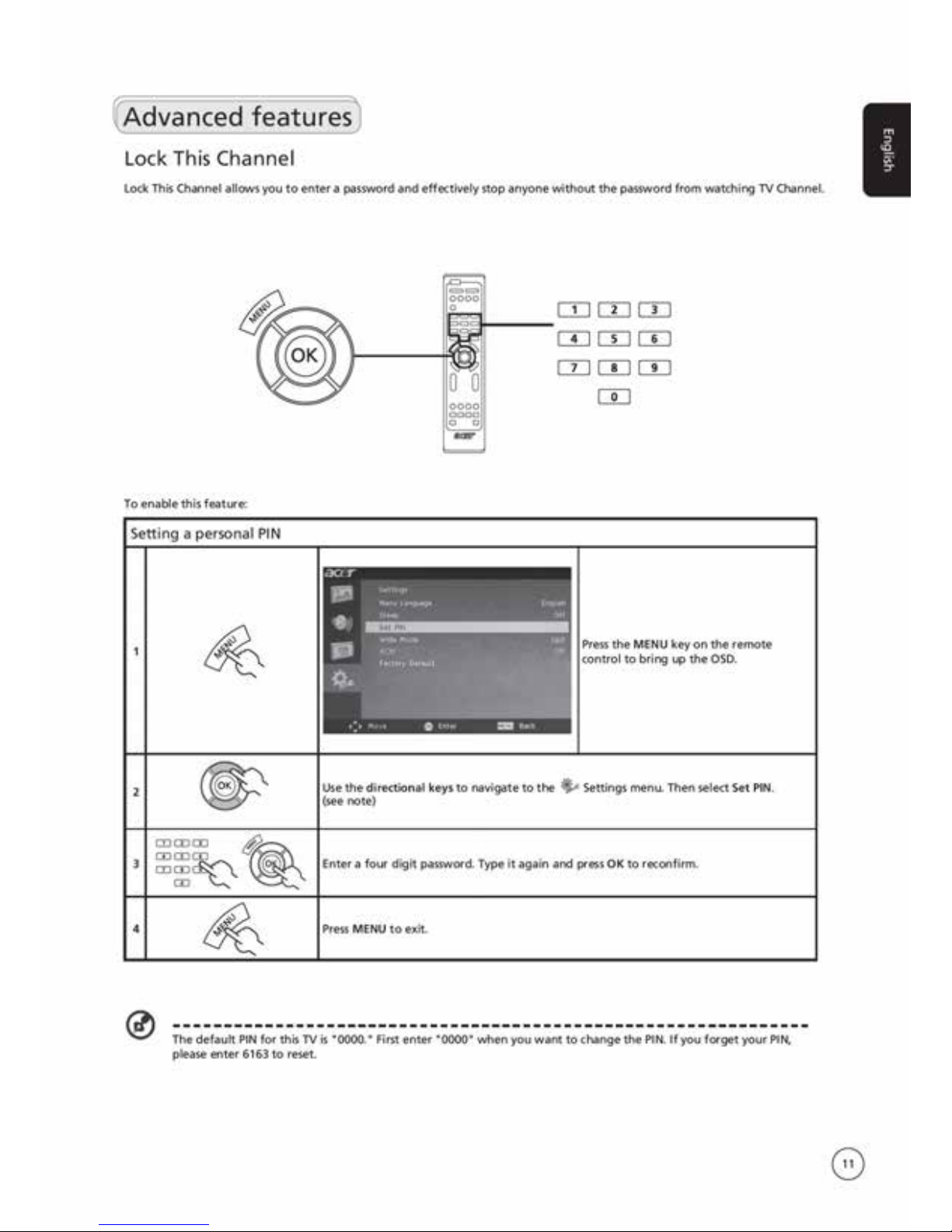

Lock This Channel 11

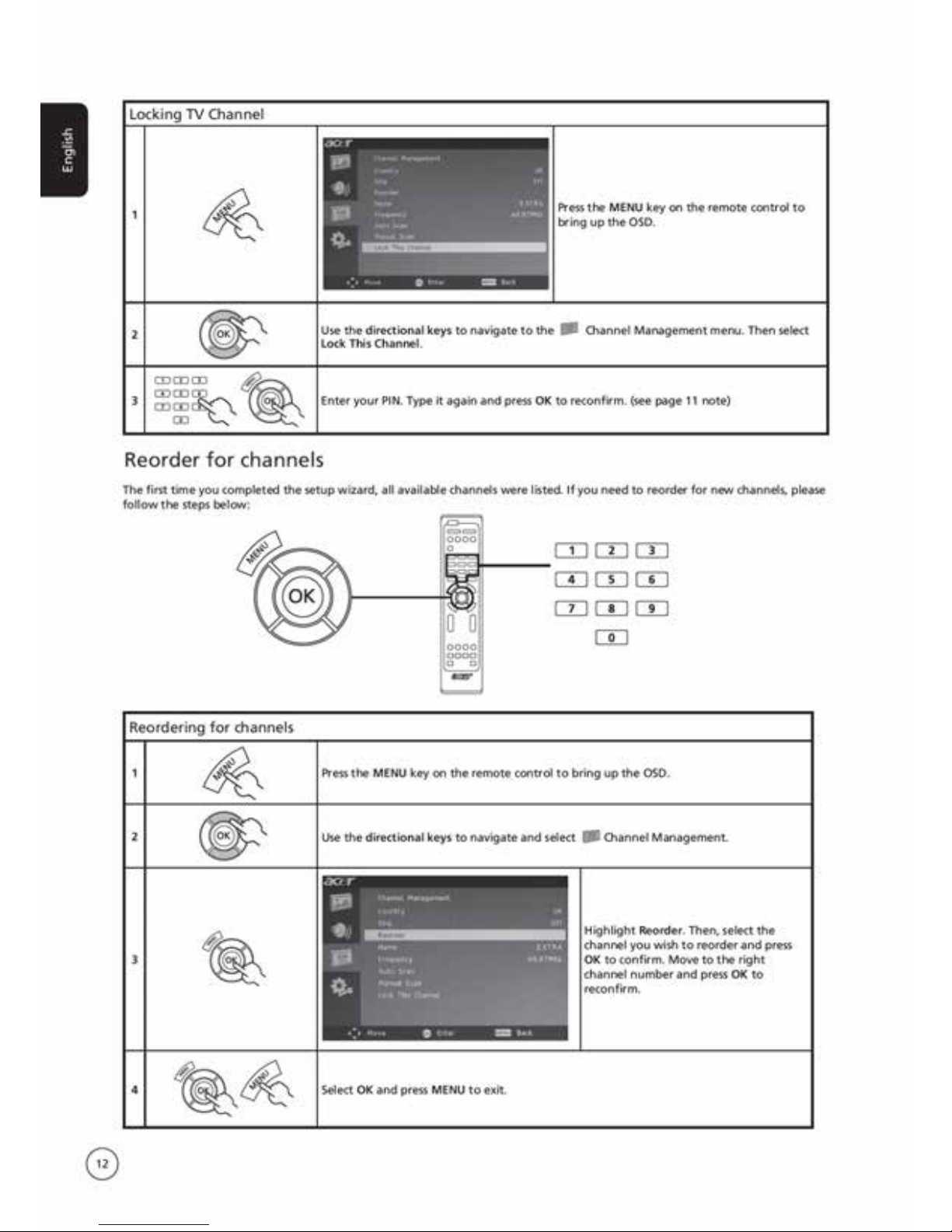

Reorder for channels 12

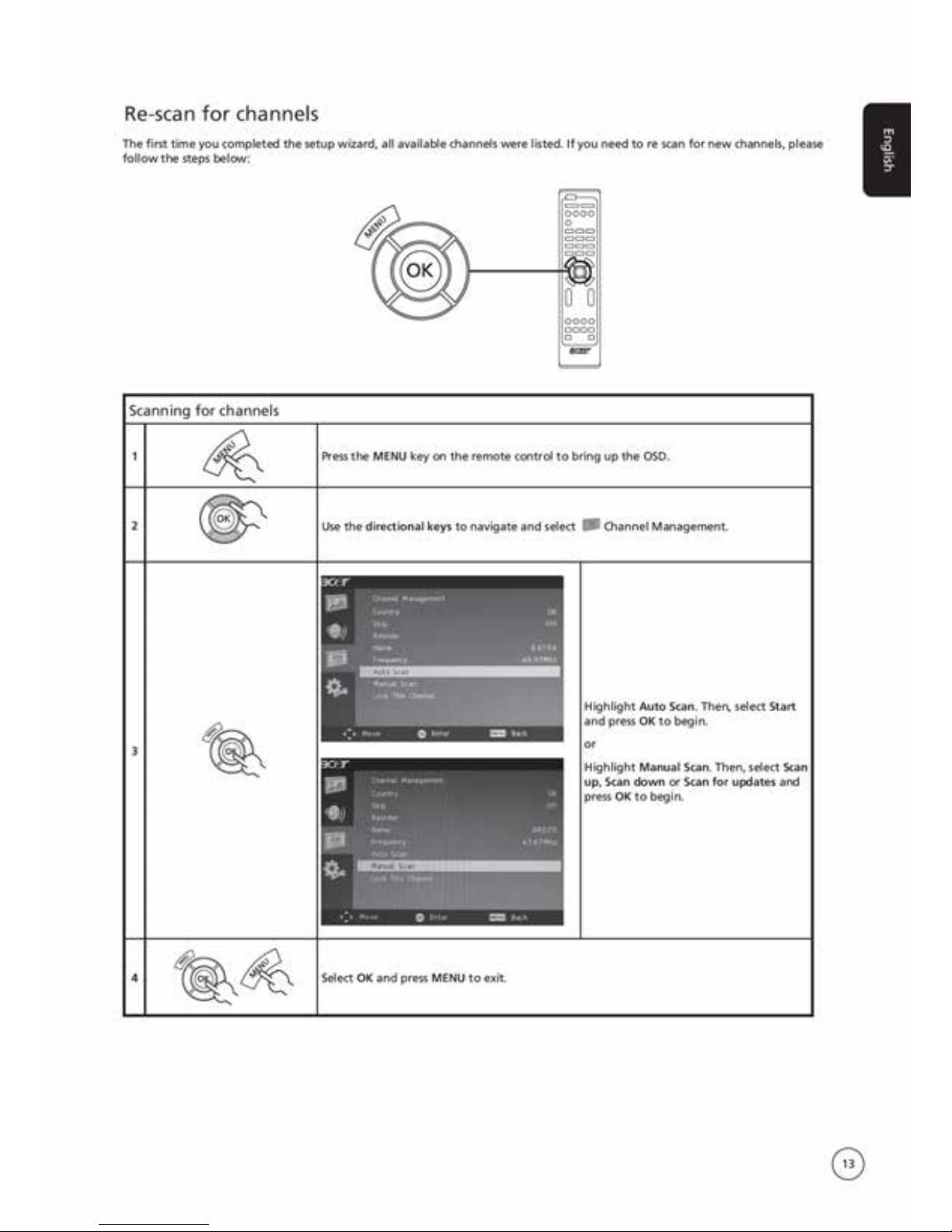

Re scan for channels 13
Widescreen display mode 14
Troubleshooting 15
PC Input Signal Reference Chart 16
Product specifications 17
AT4221/AT4222
AT3221/AT3222
AT2621/AT2622
User's Guide
Acer LCD TV
Copyright © 2007. Acer Incorporated.
All Rights Reserved.
Acer LCD TV User's Guide
Original Issue: 5 / 2007
Changes may be made periodically to the information in this publication without obligation to notify any
person of such revisions or changes. Such changes will be incorporated in new editions of this manual or
supplementary documents and publications. This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of
merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date, and place of purchase information in the space
provided below. The serial number and model number are indicated on the label affixed to your device.
All correspondence concerning your unit should include the serial number, model number, and purchase
information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or
by any means, electronically, mechanically, by photocopy, recording, or otherwise, without the prior written
permission of Acer Incorporated.
Model Number:
Serial Number:
Purchase Date:
Place of Purchase:
Acer and the Acer Logo are registered trademarks of Acer Inc. Other companies' product names or trademarks
are used herein for identification purposes only and belong to their respective companies.

English
5

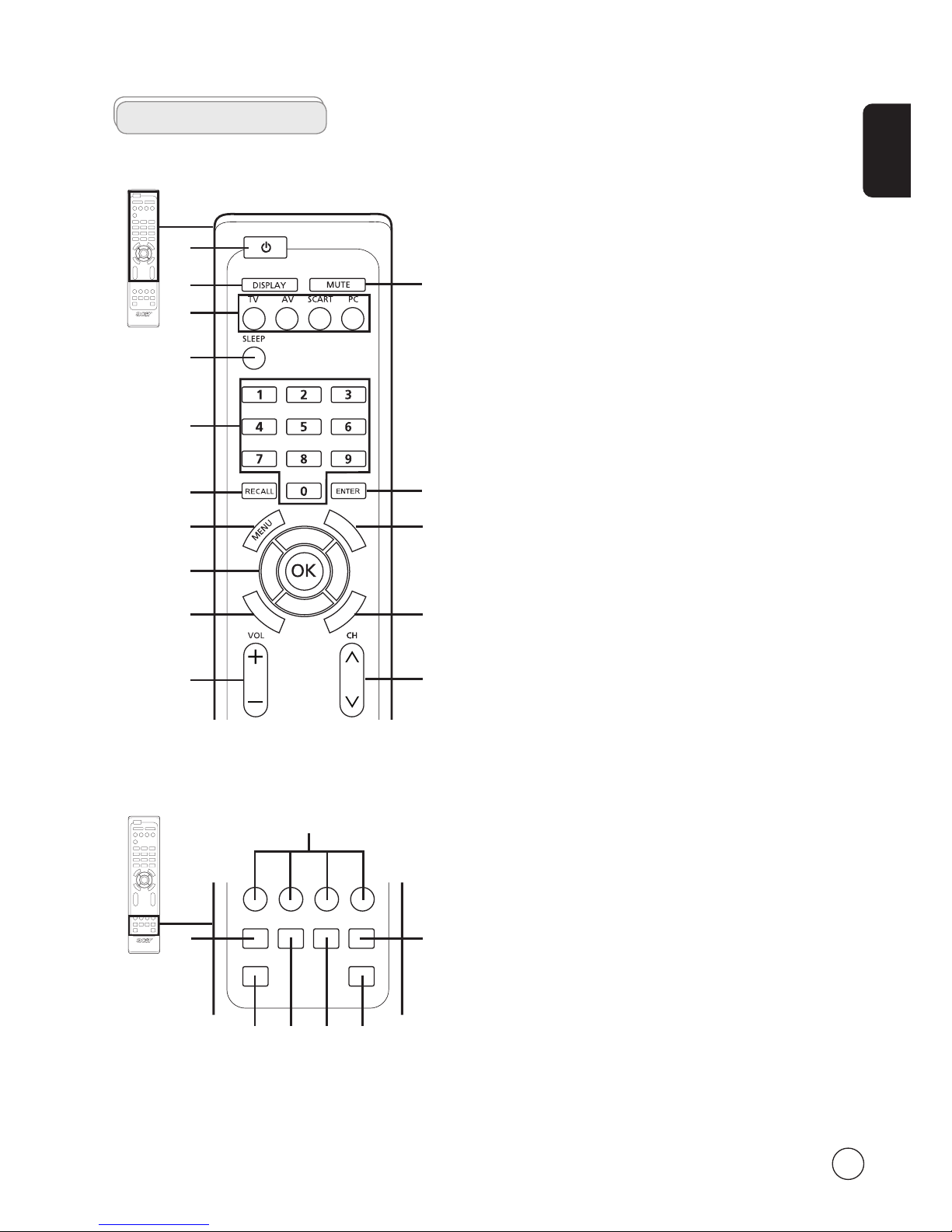

General keys
Remote control
T
T
X
/
M
I
X
M
P
X
W
I
D
E
1
7
11
2
10
6
3
1 POWER
Press to turn your TV on/off.
2 DISPLAY
Press to display input/channel information
(dependent on input/source type).
3 MUTE
Press to toggle audio on and off.
4 Input buttons (TV/AV/SCART/PC)
Press to select correct input mode.
5 SLEEP
Press to set a time period after which the TV will switch
itself to standby (15, 30, 45, 60, 90 or 120 minutes).
6 Number keys.
7 RECALL
Press to return to the previous channel.
8 ENTER
Press to confirm channel number selection.
9 MENU
Press to open or close the Menu.
10 TTX/MIX (TELETEXT/MIX)
Press to switch from TV/AV to Teletext mode.
Press to overlay teletext page on the TV image.
11 Directional keys/OK
VOL (up/down), CH (up/down)
12 WIDE
Press to toggle scaling mode between Auto, 16:9, 4:3,
Panorama and Letterbox 1, 2, 3 modes.
13 MPX
Press to select the sound input, displayed in the top right
hand corner (mono, stereo, bilingual).
14 VOL (+/-)
Press to increase or decrease the volume.
15 CH (up/down)
Press to sequentially select the TV channel.
9
8
T
INDEX SUBTITLE SUBPAGE REVEAL
SIZE HOLD
1 Colour buttons (R/G/Y/B)
Operates corresponding button on the teletext page.
2 INDEX
Press to go to the index page
3 SIZE
Press once to zoom teletext page to 2X.
Press again to resume.
4 SUBTITLE
Press to view subtitles on the screen.
5 SUBPAGE
Press to access the teletext’s subpages directly.
6 HOLD
Press to pause the current teletext page in multi page
viewing mode.
7 REVEAL
Press to reveal hidden telext information.
Teletext
3
1
4 5 6
27
4
5
12 13
14 15

English
10
Adjusting the OSD settings
The OSD can be used for adjusting the settings of your LCD TV.
Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, audio settings, channel settings and
general settings. For advanced settings, please refer to following page:
Adjusting the picture quality
1 Press the MENU key to bring up the OSD.
2 Using the directional keys, select Picture from the OSD. Then navigate to the picture
element you wish to adjust.
3 Use the left or right keys to adjust the sliding scales.
4 The Picture menu can be used to adjust the brightness, contrast, colour, sharpness and
other image related qualities.
Adjusting the audio settings
1 Press the MENU key to bring up the OSD.
2 Using the directional keys, select Audio from the onscreen display. Then navigate to the
feature you wish to adjust.
3 Use the left or right keys to adjust the sliding scale. Press OK to save.
4 The Audio menu can also be used to adjust the treble, bass, balance, sound effect and
Steady sound.
Adjusting the channel management
1 Press the MENU key to bring up the OSD.
2 Using the directional keys, select Channel management from the OSD.
3 Use the directional keys to navigate the menus.
4 The Channel management menu can be used to set the channel namings, Auto Scan,
Manual Scan channel and other related settings.
Adjusting the settings
1 Press the MENU key to bring up the OSD.
2 Using the directional keys, select Settings from the OSD. Then navigate to the feature you
wish to adjust.
3 The Settings menu can be used to adjust the menu language and other important
settings.
The options available on the OSD may vary depending on the TV signal source.

English
14
Widescreen display mode
Your Acer LCD TV has a special widescreen mode that allows you to toggle between Auto, 4:3, 16:9, Panorama, and Letterbox 1,
2 and 3 type views.
Press the WIDE key on the remote control to toggle the display between the four wide modes.
Wide mode
The Acer LCD contains four widescreen modes, including Auto, 4:3, 16:9, Panorama, and Letterbox 1, 2 and 3.
Auto In this mode, TV will auto detect picture source and fit in suitable size.
4:3
For 4:3 standard pictures. A side bar appears on each side.
16:9
For 16:9 standard pictures. A side bar appears on each side.
Panorama
In this mode, the picture is progressively stretched toward each side of the screen.
Letterbox 1, 2 and 3
In this mode, the picture is enlarged linearly to fit the screen. The top and bottom portions of
the picture may be cut off.
W
I
D
E

English
15
Troubleshooting
Before you call the Acer service center, please check the following items:
Here is a list of possible situations that may arise during the use of your LCD TV. Easy answers and solutions are provided for each.
There is no picture or sound.
• Make sure the power cord is properly inserted in the power outlet.
• Make sure the input mode is correctly set by your selected input.
• Make sure the antenna at the rear of the TV is properly connected.
• Make sure the main power switch is turned on.
• Make sure the volume is not set to minimum or the sound is not set to mute.
• Make sure the headphones are not connected.
• Make sure the internal speaker is set to ON.
• Reception other than those of broadcasting stations can be considered.
Picture is not clear.
• Make sure the antenna cable is properly connected.
• Consider whether your TV signal is being properly received.
• Poor picture quality can occur due to a VHS camera, camcorder, or other peripheral being connected at the same time. Switch
off one of the other peripherals.
• The 'ghost' or double image may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly
directional antenna may improve the picture quality.
• The horizontal dotted lines shown on the pictures may be caused by electrical interference, e.g., hair dryer, nearby neon
lights, etc. Turn off or remove these.
Picture is too dark, too light or tinted.
• Check the colour adjustment.
• Check the brightness setting.
• Check the sharpness function.
• The fluorescent lamp may have reached the end of its service life.
Remote control does not work.
• Check the batteries of the remote control.
• Make sure the remote sensor window is not under strong fluorescent lighting.
• Try to clean the remote control sensor lens on the TV with a soft cloth.
• Use the buttons (hotkeys) on the TV before the remote control works.
If the above suggestions do not solve your technical issue, please refer to the warranty card for service information.

English
16
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Standard Format
1 640 x 350 31.5 70.0 VGA
2 720 x 400 31.5 70.0 VGA
3 640 x 480 31.5 60.0 VGA
4 640 x 480 35.0 66.7 MAC
5 640 x 480 37.9 72.0 VESA
6 640 x 480 37.5 75.0 VESA
7 640 x 480 43.3 85.0 VESA
8 800 x 600 35.2 56.0 VESA
9 800 x 600 37.9 60.0 VESA
10 800 x 600 48.1 72.0 VESA
11 800 x 600 46.9 75.0 VESA
12 800 x 600 53.7 85.0 VESA
13 832 x 624 49.7 74.5 MAC
14 1024 x 768 48.4 60.0 VESA
15 1024 x 768 56.5 70.0 VESA
16 1024 x 768 60.0 75.0 VESA
17 1280 x 768 47.8 59.9 VESA
18 1280 x 720 44.8 59.9 VESA 16:9
19 1280 x 720 56.5 74.8 VESA 16:9
20 1360 x 768 47.7 59.8 VESA 16:9
21 1360 x 768 60.3 74.9 VESA 16:9
PC Input Signal Reference Chart
1). The PC input does not support Sync on Green or Composite Sync.
2). The PC input does not support interlaced signals.

English
17
Product specifications
Model AT2621 AT3221 AT4221
Panel spec
Resolution (pixels) 1366 x 768
Brightness (tpe.) 500 nit
Contrast Ratio (tpe.) 800 : 1 1500 : 1
Display colour 16.7 M
Viewing angle (tpe.) H: 160o; V:160oH: 178o; V:178o
Response (tpe.) 8 ms (Gray to Gray) 6.5 ms (Gray to Gray) 8 ms (Gray to Gray)
Power supply
Input 100 to 240 V AC (50~60 Hz)
Max. power consumption 161 W 185 W 291 W
Power saving <2 W
Mechanical
Dimensions (W x H x D mm) 693 x 529 x 195 814 x 610 x 261 1071 x 794 x 311
Weight (kg) 12.08 17.7 32.3
Weight (lbs.) 26.9 39 71.15
Gross weight (Kg) 14.4 21.06 38.6
Gross weight (lbs) 32 46.9 85.8
Wall mounting holes 200mm x 100mm 400mm x 200mm
Analog TV system
Colour system PAL, SECAM
Sound system B/G/D/K/I/L (multi European)
Stereo system NICAM/A2
Subtitle Teletext 1.5 (1000 pages)
TV tuner quantity 1
Terminal
Analog Tuner In Yes
SCART 1 SCART for CVBS(In/Out), RGB(In), Audio R/L, FB, S Video
SCART 2 SCART for CVBS(In/Out), RGB(In), Audio R/L, FB, S Video
AV in YPbPr/YCbCr,CVBS, Audio R/L
HDMI 1 Yes
PC D sub in Yes
PC audio in Yes
RCA Audio Out Yes
Audio system
Speakers 5W + 5W 10W + 10W

English
18
Model AT2622 AT3222 AT4222
Panel spec
Resolution (pixels) 1366 x 768
Brightness (tpe.) 500 nit
Contrast Ratio (tpe.) 800 : 1 1500 : 1
Display colour 16.7 M
Viewing angle (tpe.) H: 160o; V:160oH: 178o; V:178o
Response (tpe.) 8 ms (Gray to Gray) 6.5 ms (Gray to Gray) 8 ms (Gray to Gray)
Power supply
Input 100 to 240 V AC (50~60 Hz)
Max. power consumption 161 W 185 W 291 W
Power saving <2 W
Mechanical
Dimensions (W x H x D mm) 693 x 529 x 195 814 x 610 x 261 1071 x 794 x 311
Weight (kg) 12.08 17.7 32.3
Weight (lbs.) 26.9 39 71.15
Gross weight (Kg) 14.4 21.06 38.6
Gross weight (lbs) 32 46.9 85.8
Wall mounting holes 200mm x 100mm 400mm x 200mm
Analog TV system
Colour system PAL, SECAM
Sound system B/G/D/K/I/L (multi European)
Stereo system NICAM/A2
Subtitle Teletext 1.5 (1000 pages)
TV tuner quantity 1
Terminal
Analog Tuner In Yes
SCART 1 SCART for CVBS(In/Out), RGB(In), Audio R/L, FB, S Video
SCART 2 SCART for CVBS(In/Out), RGB(In), Audio R/L, FB, S Video
AV in YPbPr/YCbCr,CVBS, Audio R/L
HDMI 1 Yes
HDMI 2 Yes
PC D sub in Yes
PC audio in Yes
RCA Audio Out Yes
Audio system
Speakers 5W + 5W 10W +10W
